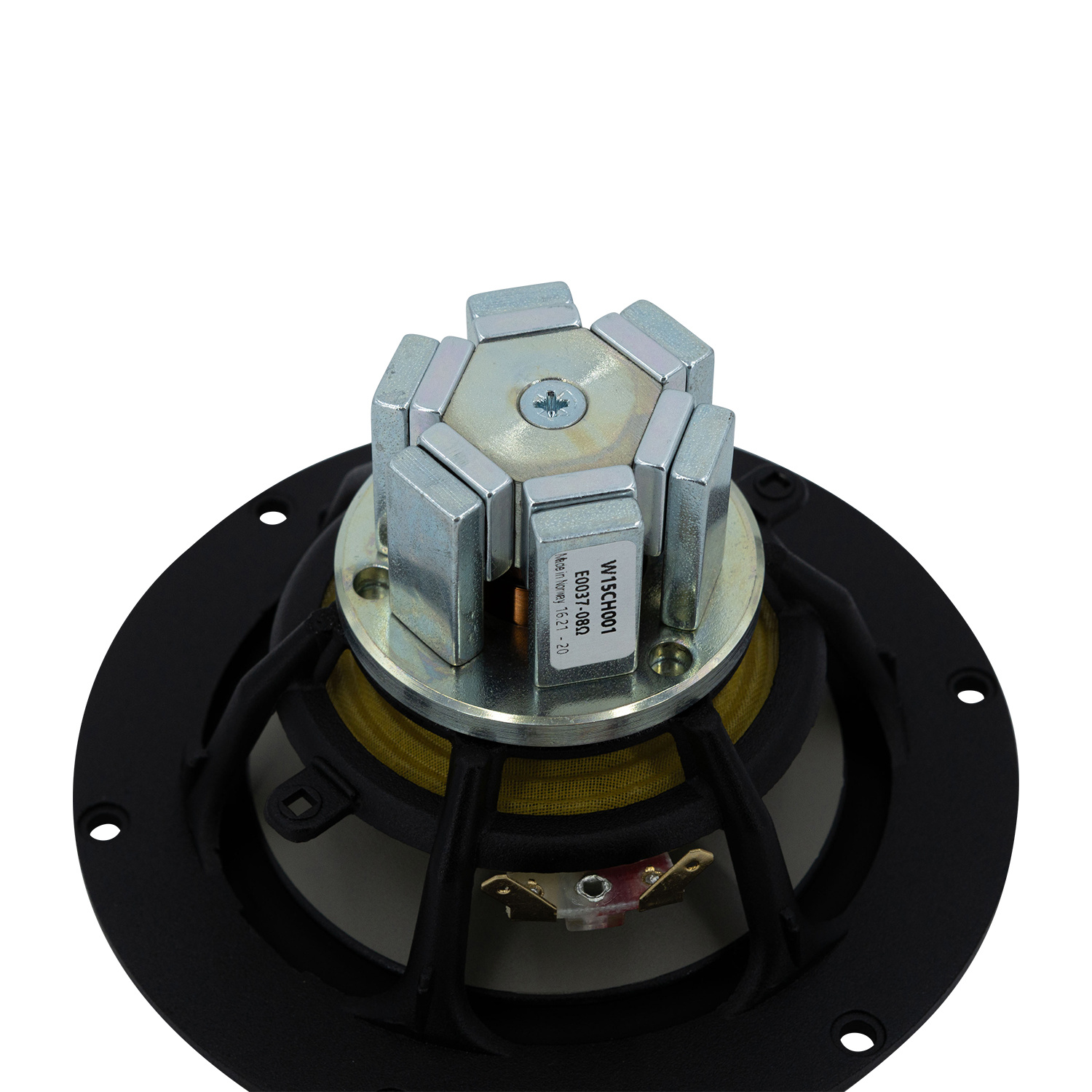

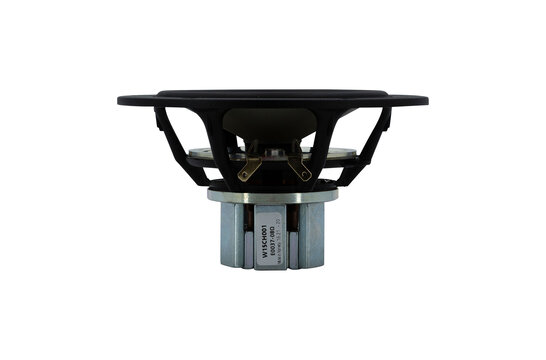

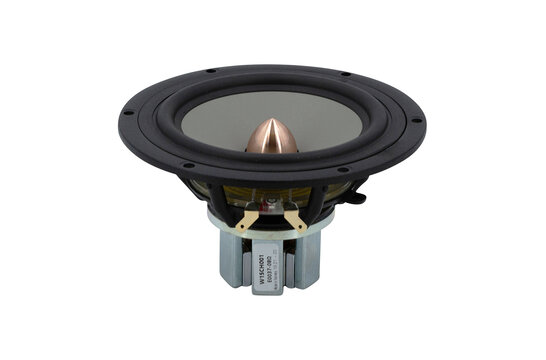

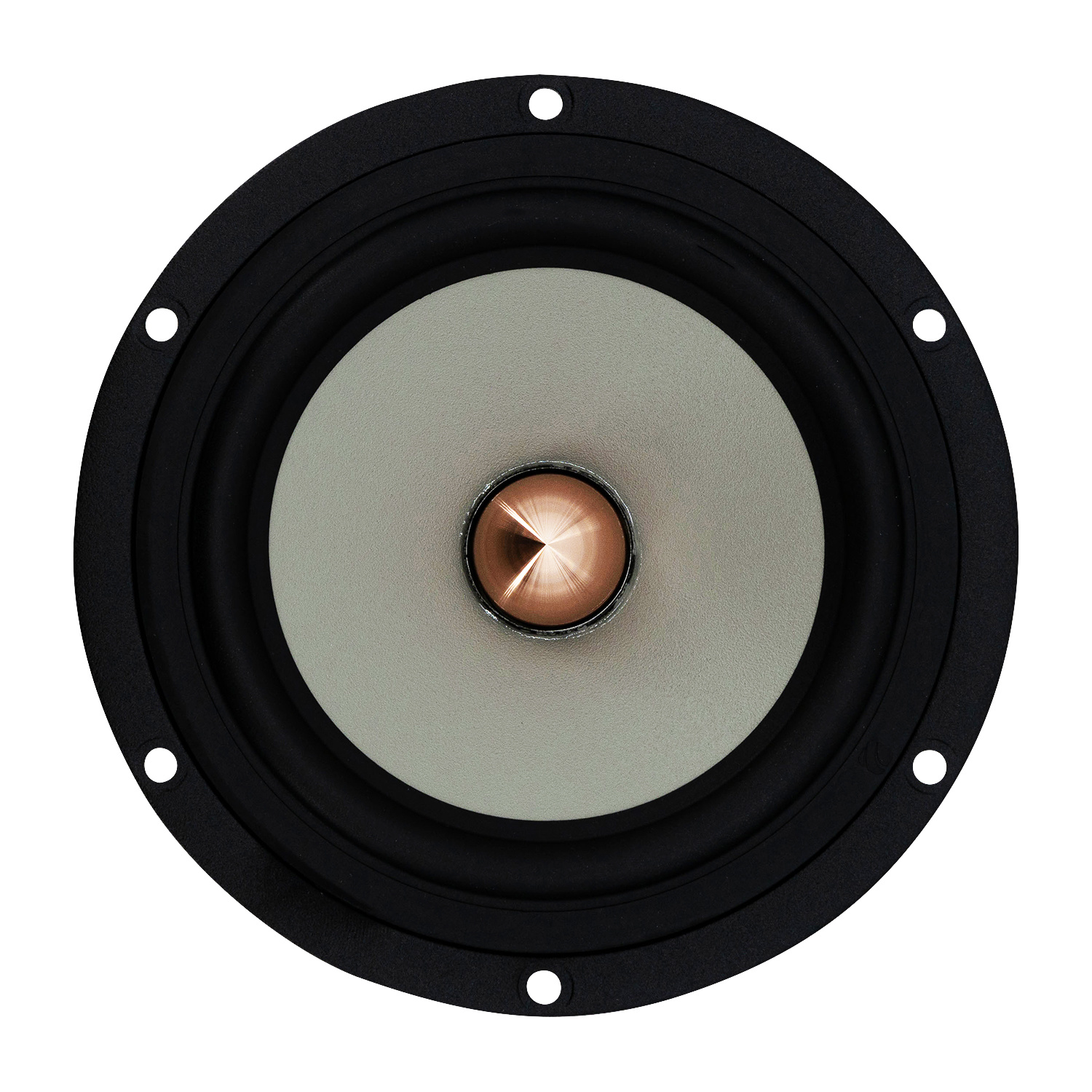

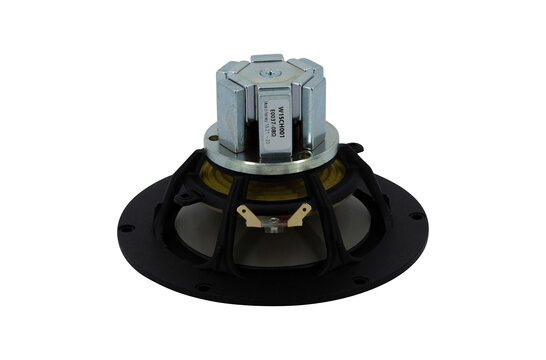

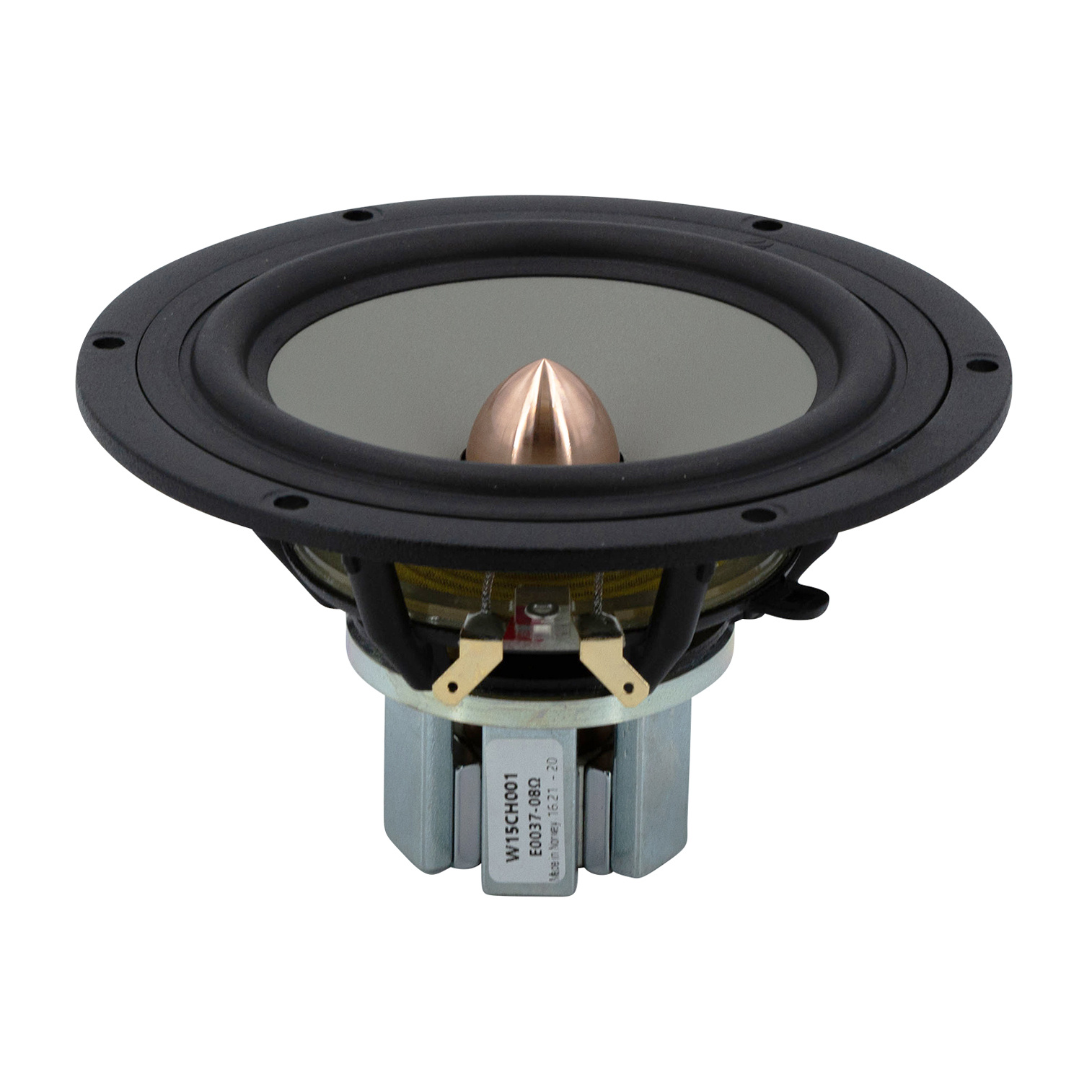

      W15CH001 - E0037-08S Woofer

      SEAS W15CH001 - E0037-08S Woofer

      €459,95

      6 In magazzino

      SEAS W15CH001 - E0037-08S Woofer

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 380,12€ 459,95 6 In magazzino
      • -5% Acquista 4 per soli € 436,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS W15CH001 - E0037-08S Woofer

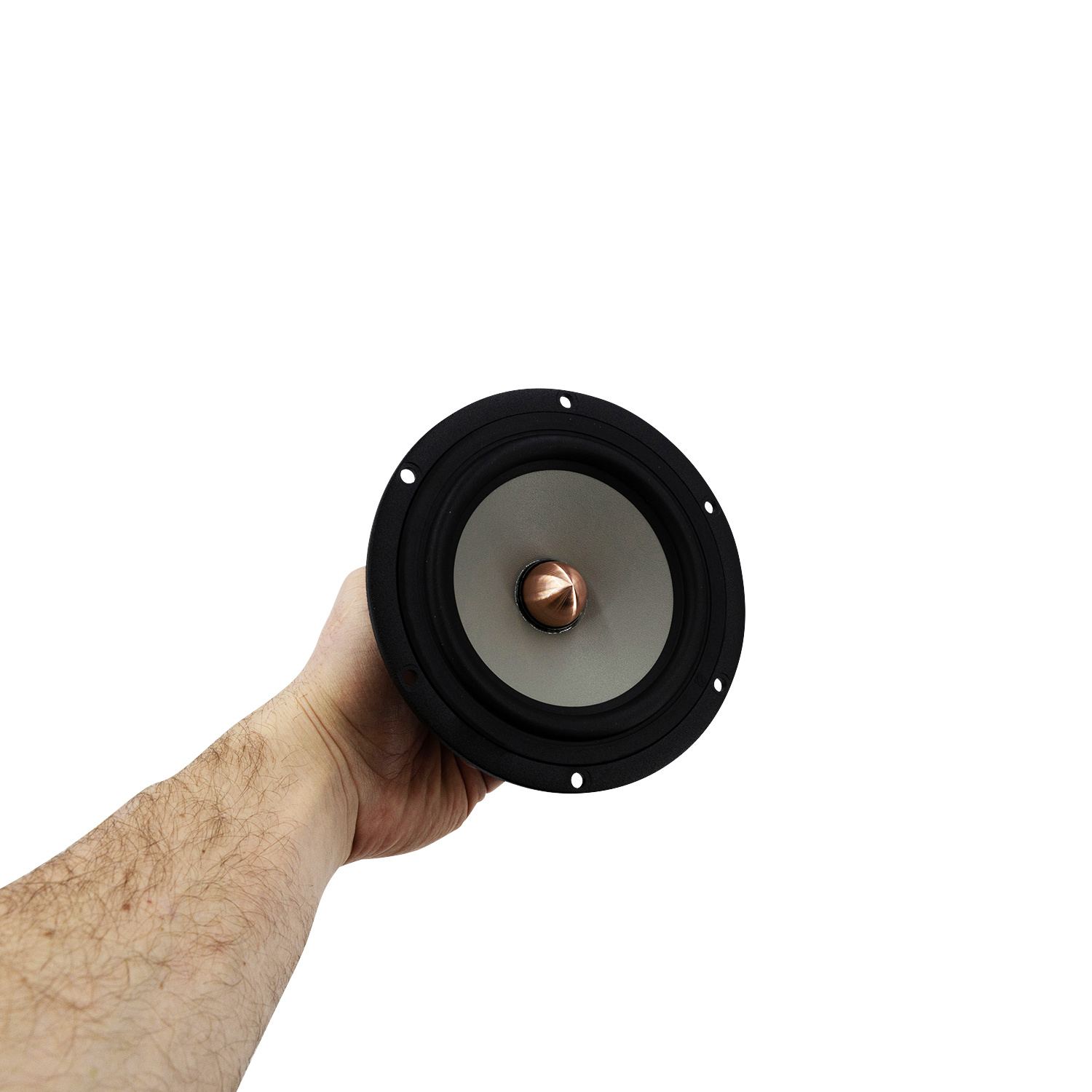

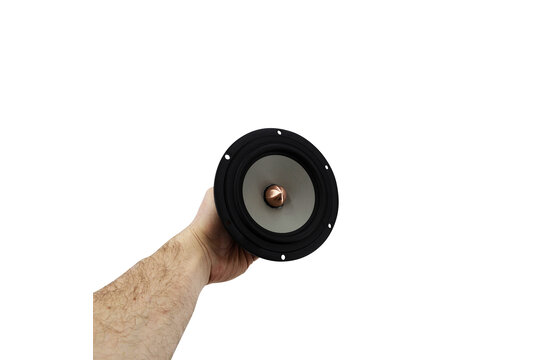

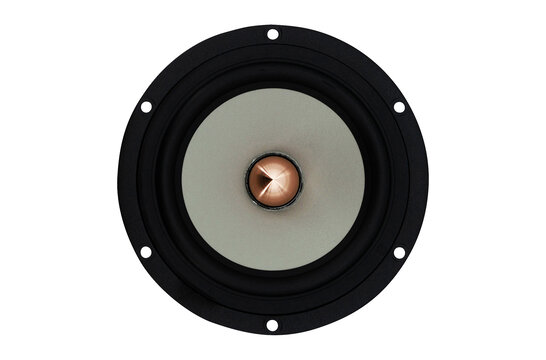

      The SEAS W15CH001 - E0037-08S is a 5.5-inch woofer that is designed for use in high-quality audio applications. It features a precision-cast and surface-treated magnesium cone, a natural rubber surround, a patented Hexadym magnet system, heavy copper rings, a solid copper phase plug, and an extremely stiff and stable injection-molded metal basket.



      Highlights

      • Excellent transient response
      • Detailed sound reproduction
      • Wide frequency response
      • Non-resonant natural rubber surround
      • Patented Hexadym magnet system
      • Heavy copper rings
      • Solid copper phase plug
      • Extremely stiff and stable injection-molded metal basket



      Product details

      SEAS Excel W15CH001 - E0037-08S 5.5'' Woofer

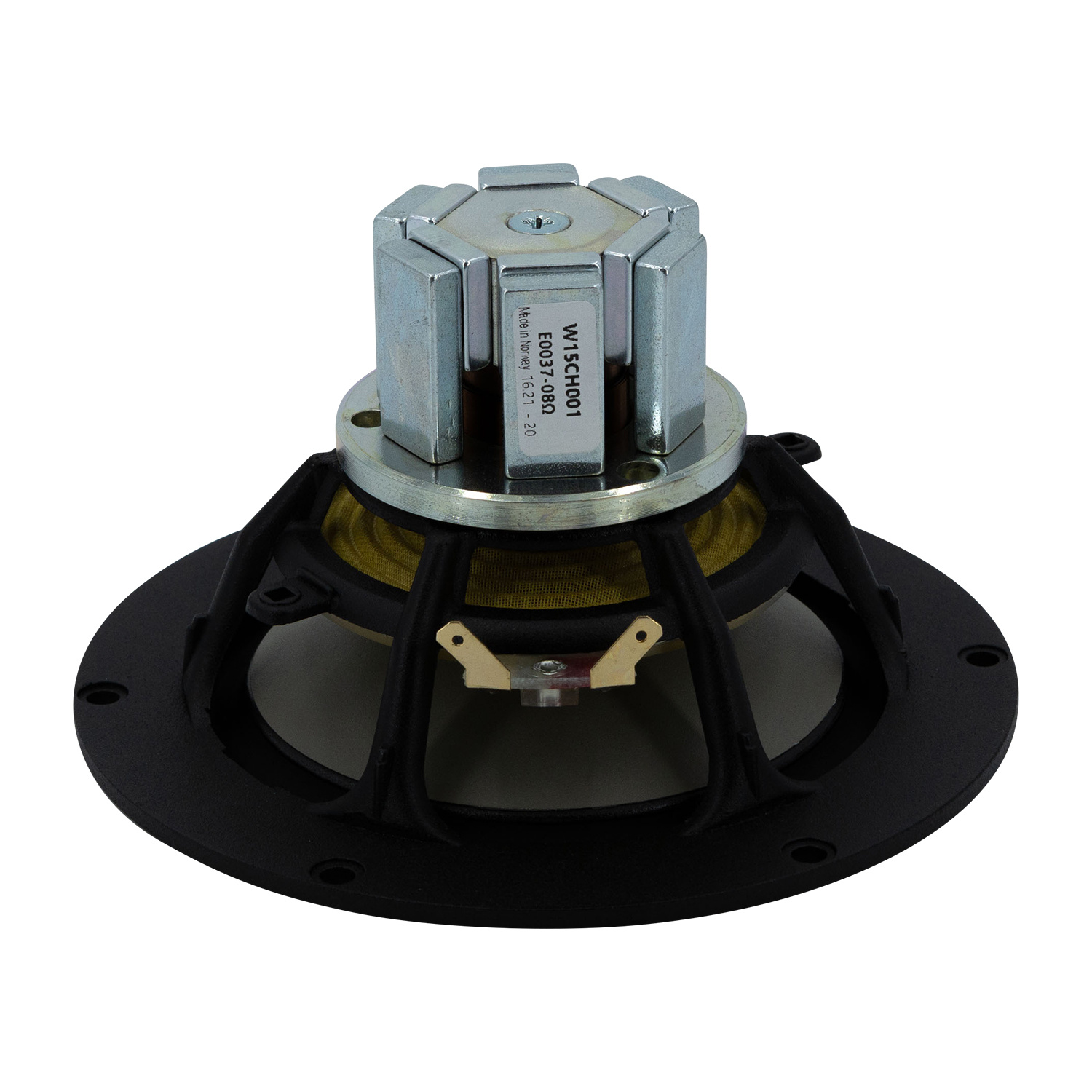

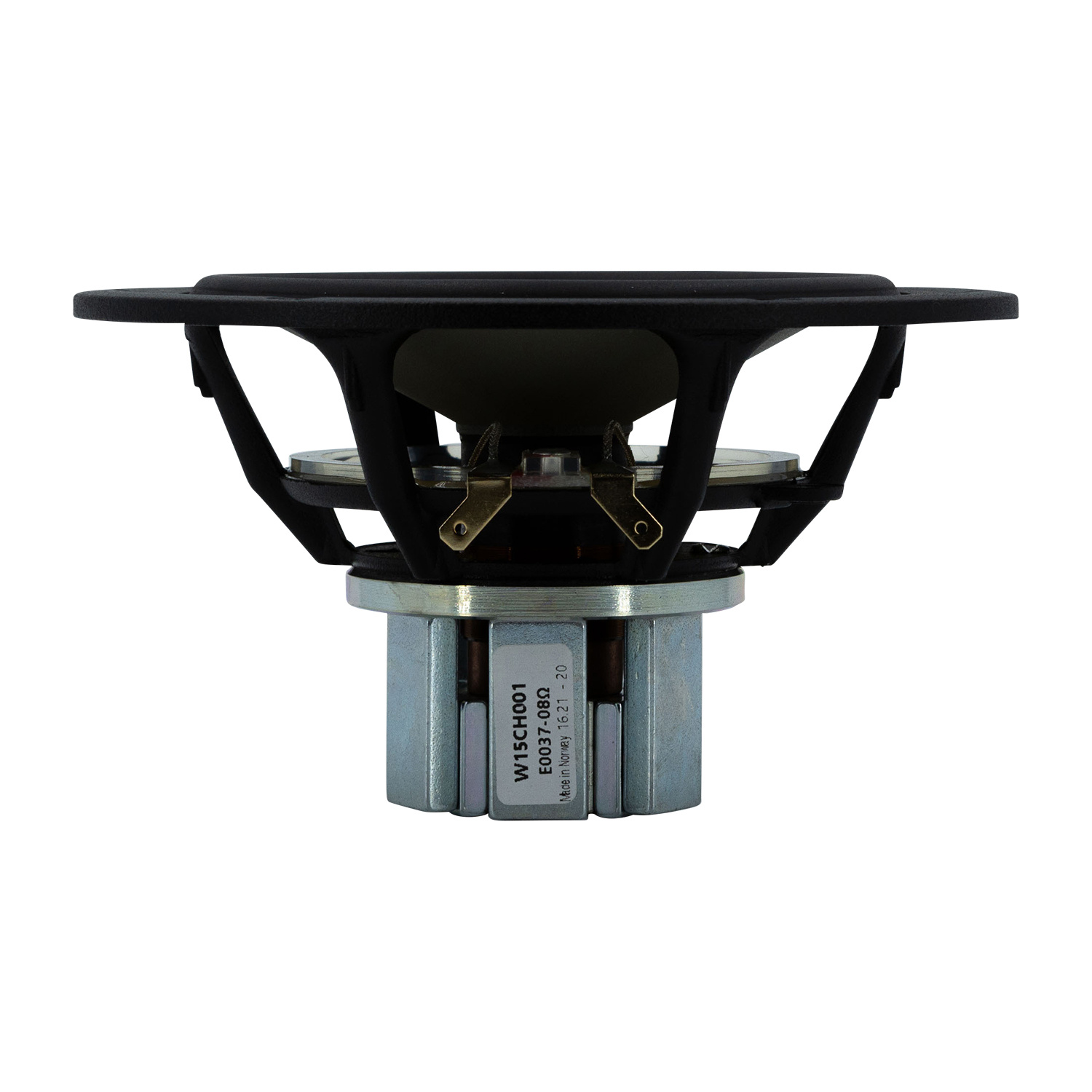

      The magnesium cone provides the woofer with a high degree of stiffness and lightness, which results in excellent transient response and detail retrieval. The natural rubber surround is non-resonant and provides the woofer with a wide frequency response. The patented Hexadym magnet system is acoustically transparent and helps to reduce cavity resonances and air flow noise. The heavy copper rings reduce non-linear and modulation distortion, and increase the overload margin. The solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. The extremely stiff and stable injection-molded metal basket keeps the critical components in perfect alignment.

      Show more

      Specifiche

      Numero dell'articolo:
      W15CH001
      EAN
      8785256848706
      Serie del woofer
      Excel
      Diametro nominale
      5 " | 145 mm
      Gestione della potenza (RMS)
      70 W
      Gestione della potenza (max)
      200 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      85 dB
      Risposta in frequenza
      50 - 3000 Hz
      Diametro della bobina mobile
      26 mm
      Peso del magnete
      0.06 kg
      Resistenza DC (Re)
      5.5 Ω
      Induttanza della bobina mobile (Le)
      0.49 mH
      Frequenza di risonanza (Fs)
      38 Hz
      Fattore di merito meccanico (Qms)
      2.58
      Fattore di merito elettromagnetico (Qes)
      0.50
      Fattore di merito totale (Qts)
      0.42
      Massa del diaframma incl. la massa dell'aria (Mms)
      9.5 g
      Cedevolezza meccanica della sospensione (Cms)
      1.8 mm/N
      Superficie del cono (Sd)
      75 cm²
      Prodotto BL (BL)
      5.1 N/A
      Volume equivalente di cedevolezza (Vas)
      14 L
      Escursione lineare massima (Xmax)
      4 mm
      Perdite meccaniche del driver (Rms)
      0.91 Ns/m
      Materiale del cono / diaframma
      Magnesium
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Injection moulded metal
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      145 mm
      Profondità complessiva
      76.0 mm
      Diametro del ritaglio del pannello frontale
      114 mm
      Diametro del cerchio dei fori di montaggio
      136.5 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm
