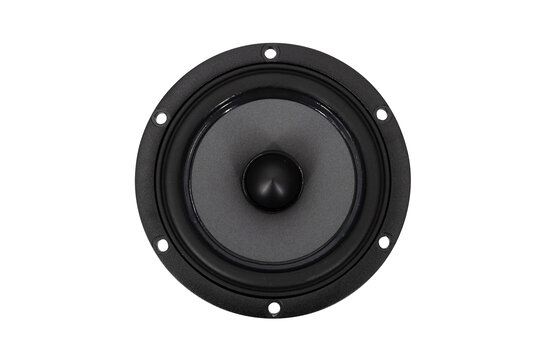

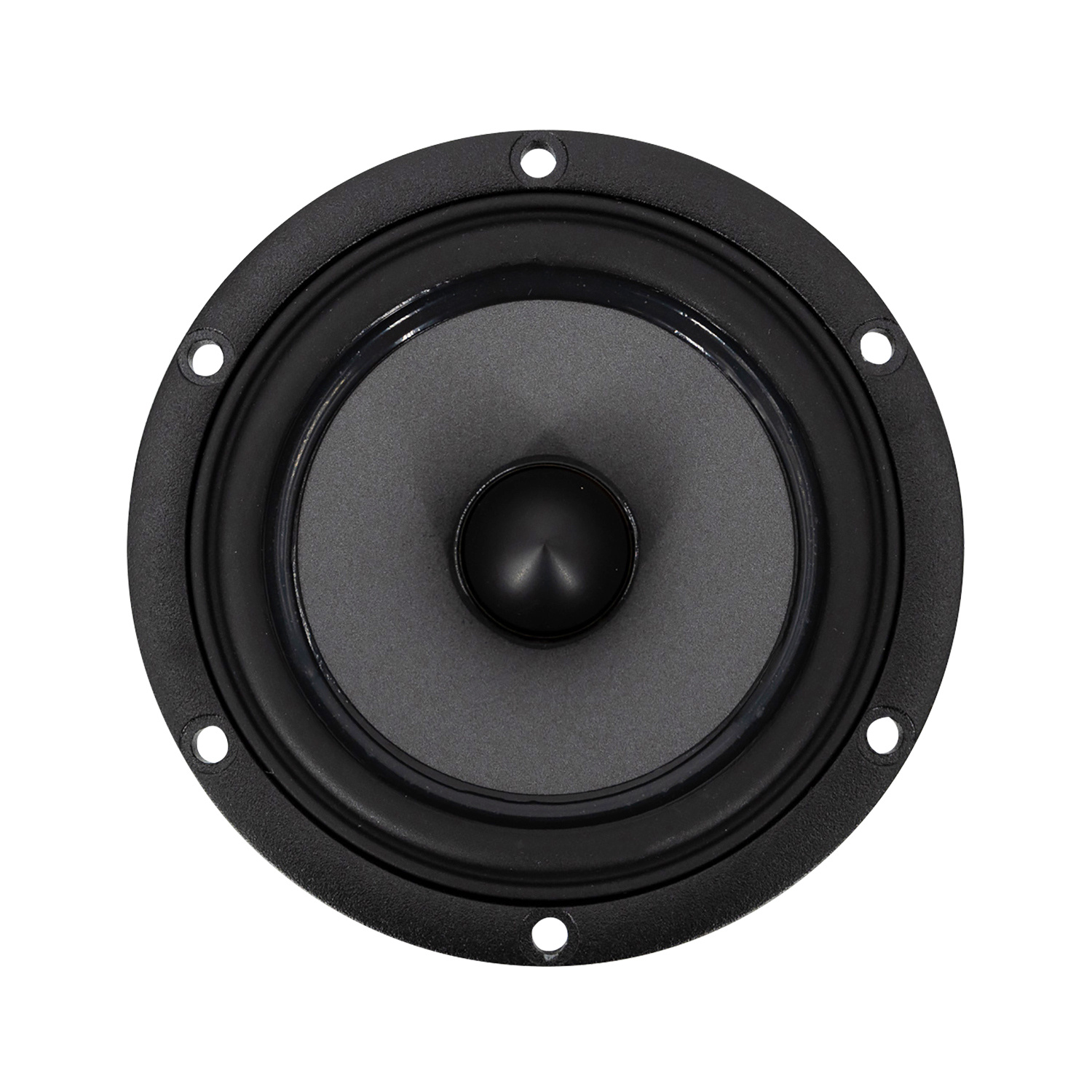

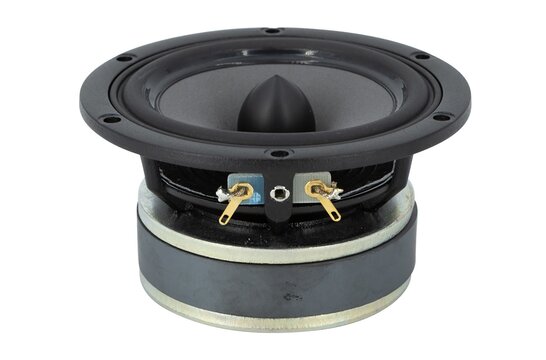

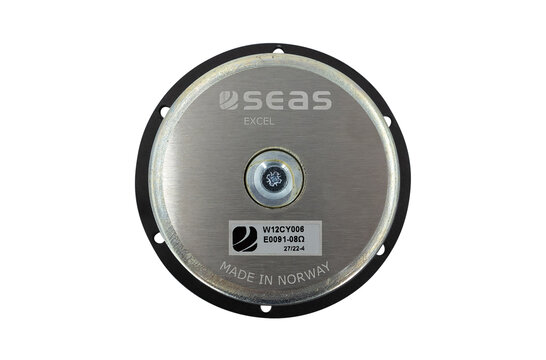

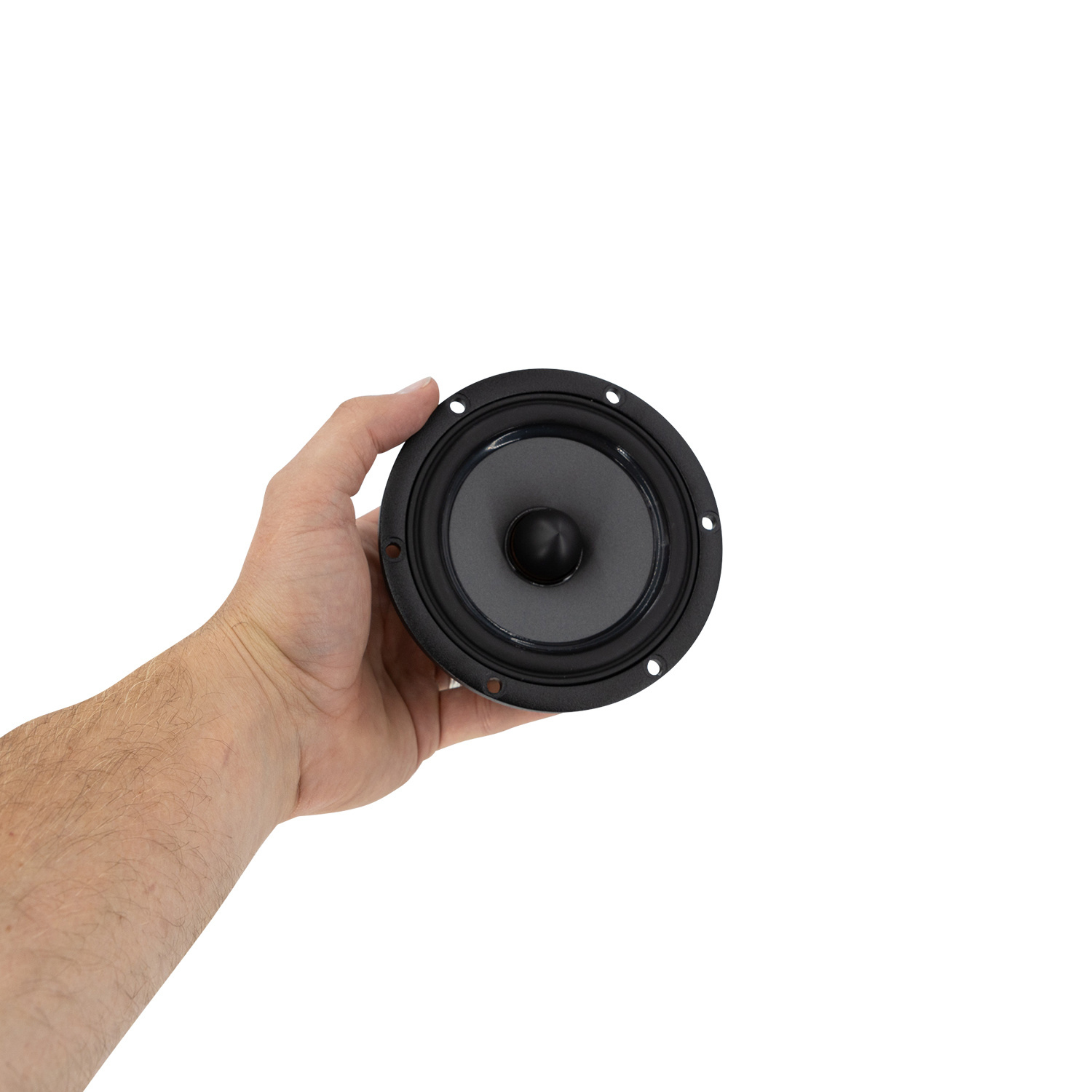

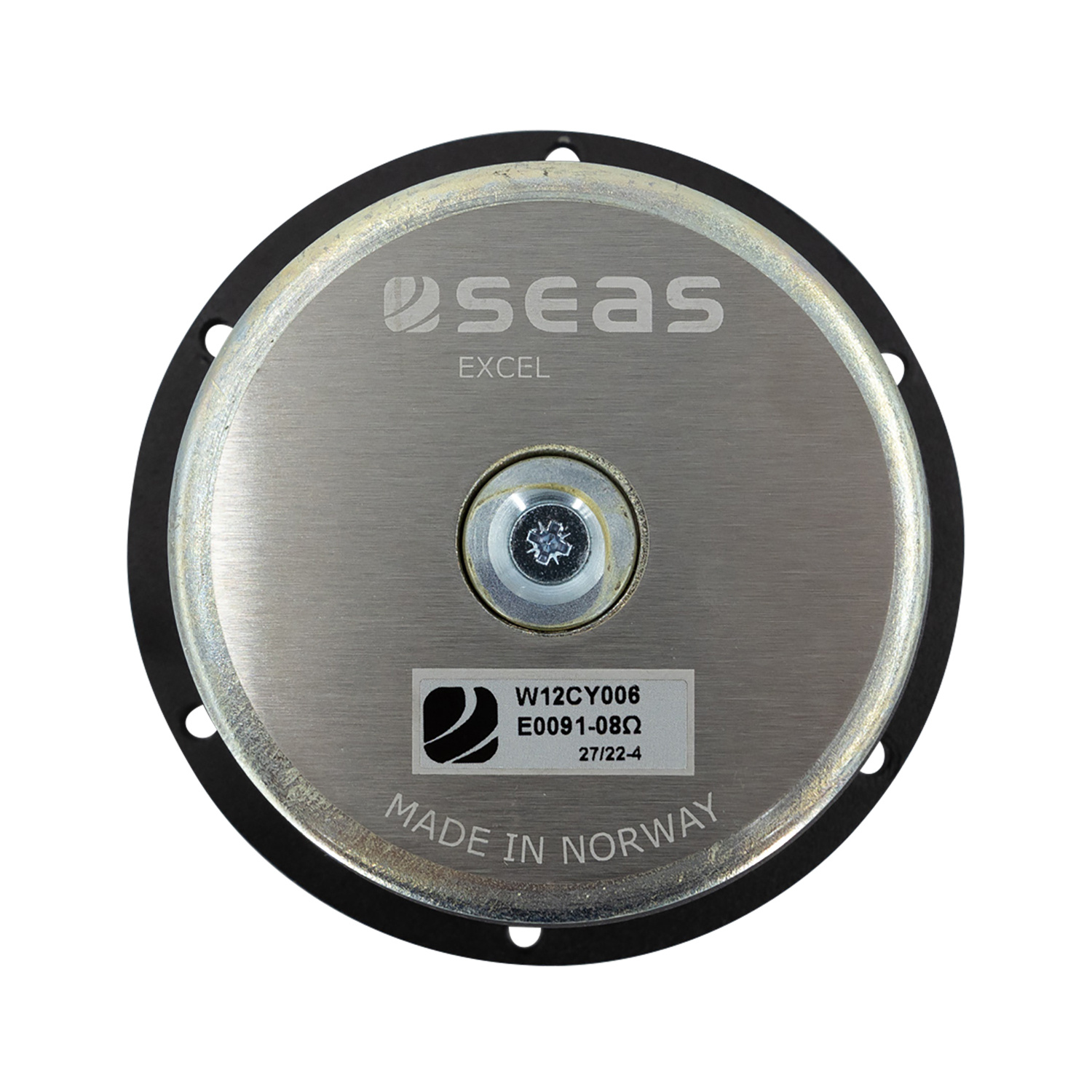

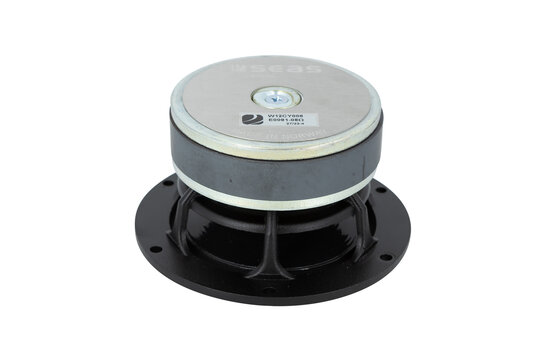

      Excel W12CY006 - E0091-08 Woofer Medio-Bassi

      SEAS Excel W12CY006 - E0091-08 Woofer Medio-Bassi

      €299,95

      Non disponibile

      SEAS Excel W12CY006 - E0091-08 Woofer Medio-Bassi

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 247,89€ 299,95 Esaurito
      • -5% Acquista 4 per soli € 284,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Excel W12CY006 - E0091-08 Woofer Medio-Bassi

      Paper cone with a unique Nextel top coating combined with a back coating and a carefully placed edge coating for extra damping gives an unparalleled smooth and detailed paper cone sound.



      Highlights

      • FEA optimized motor-design
      • High-performance titanium voice coil former
      • Keeps the critical components in perfect alignment



      Product details

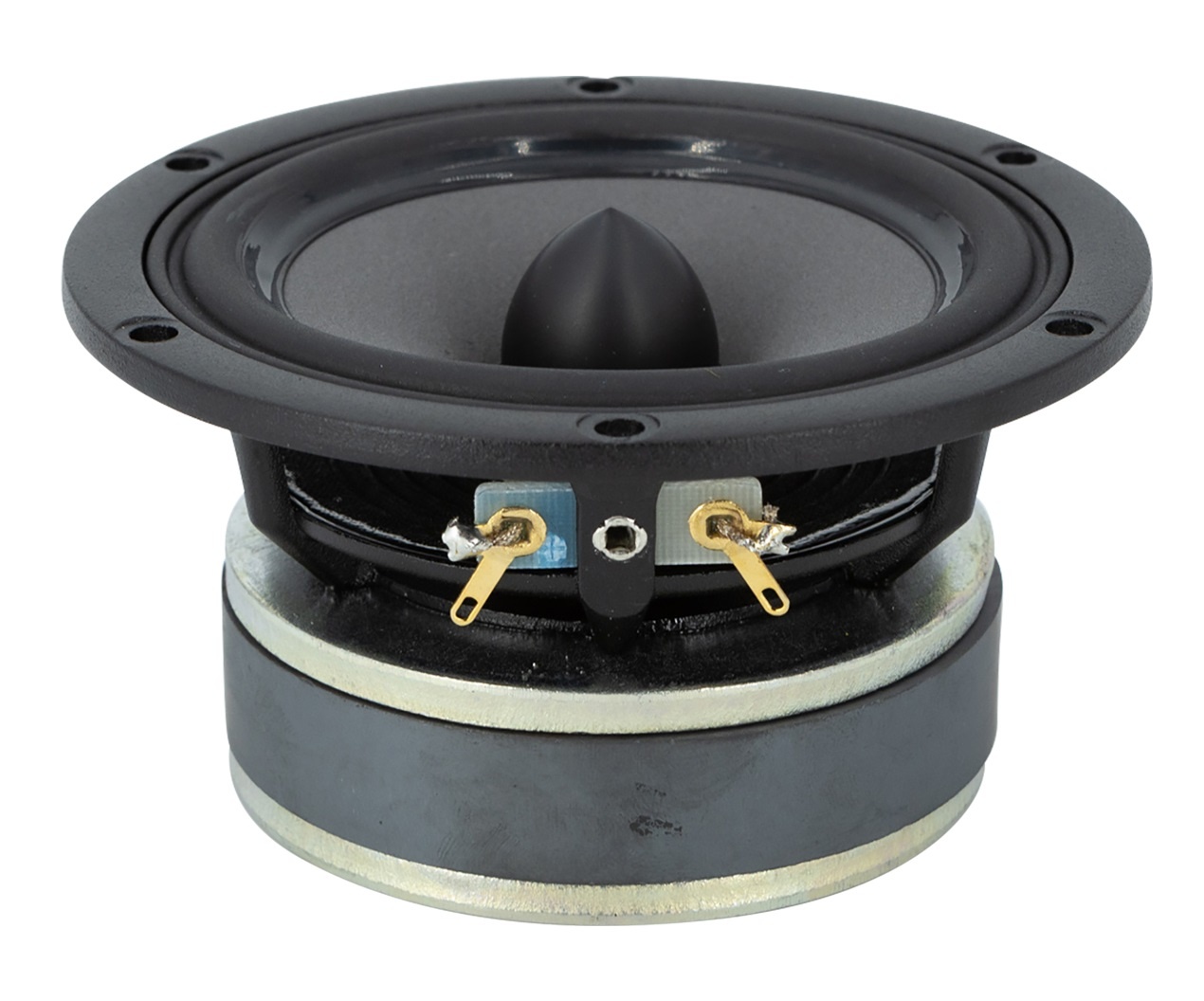

      SEAS Excel W12CY006 - E0091-08 4.5" Edge Coated Nextel Paper Cone Woofer

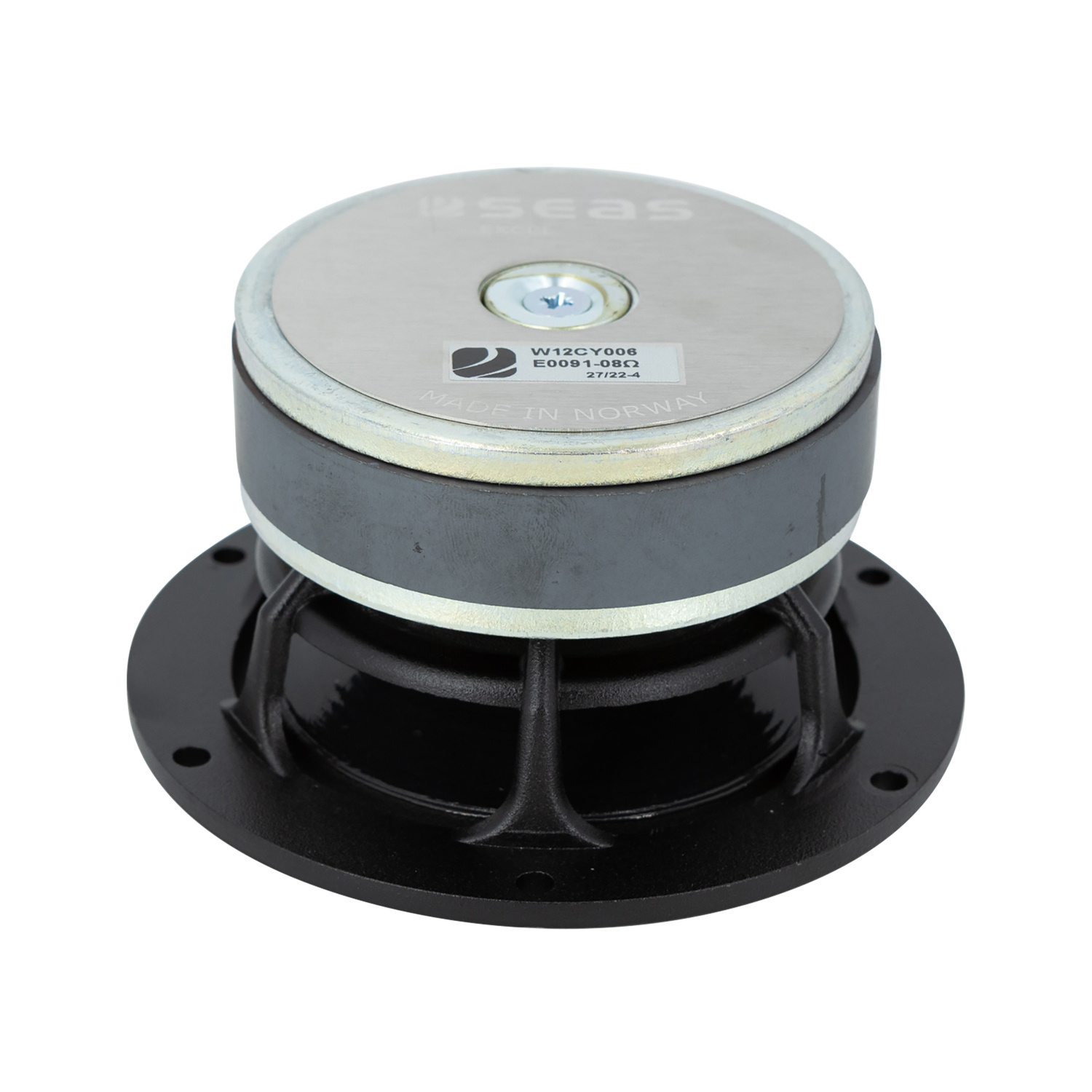

      The FEA optimized motor-design represents the state-of-the-art regarding linearity and low distortion. Low mechanical and electromagnetic damping ensure high quality reproduction of even the finest micro details in music. At the same time, the high-performance titanium voice coil former and its connection to the cone has very high power-handling.



      The smooth frequency response and ample linearity make it very suitable both as a dedicated midrange in a 3-way design, or as a woofer in a small compact speaker.

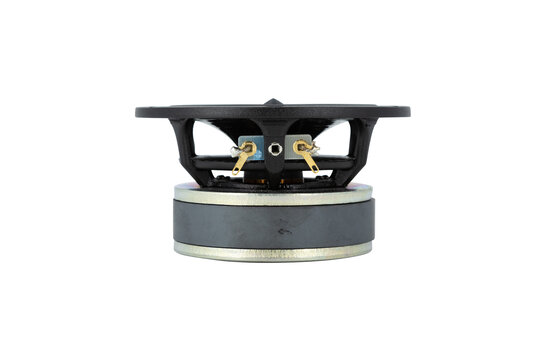

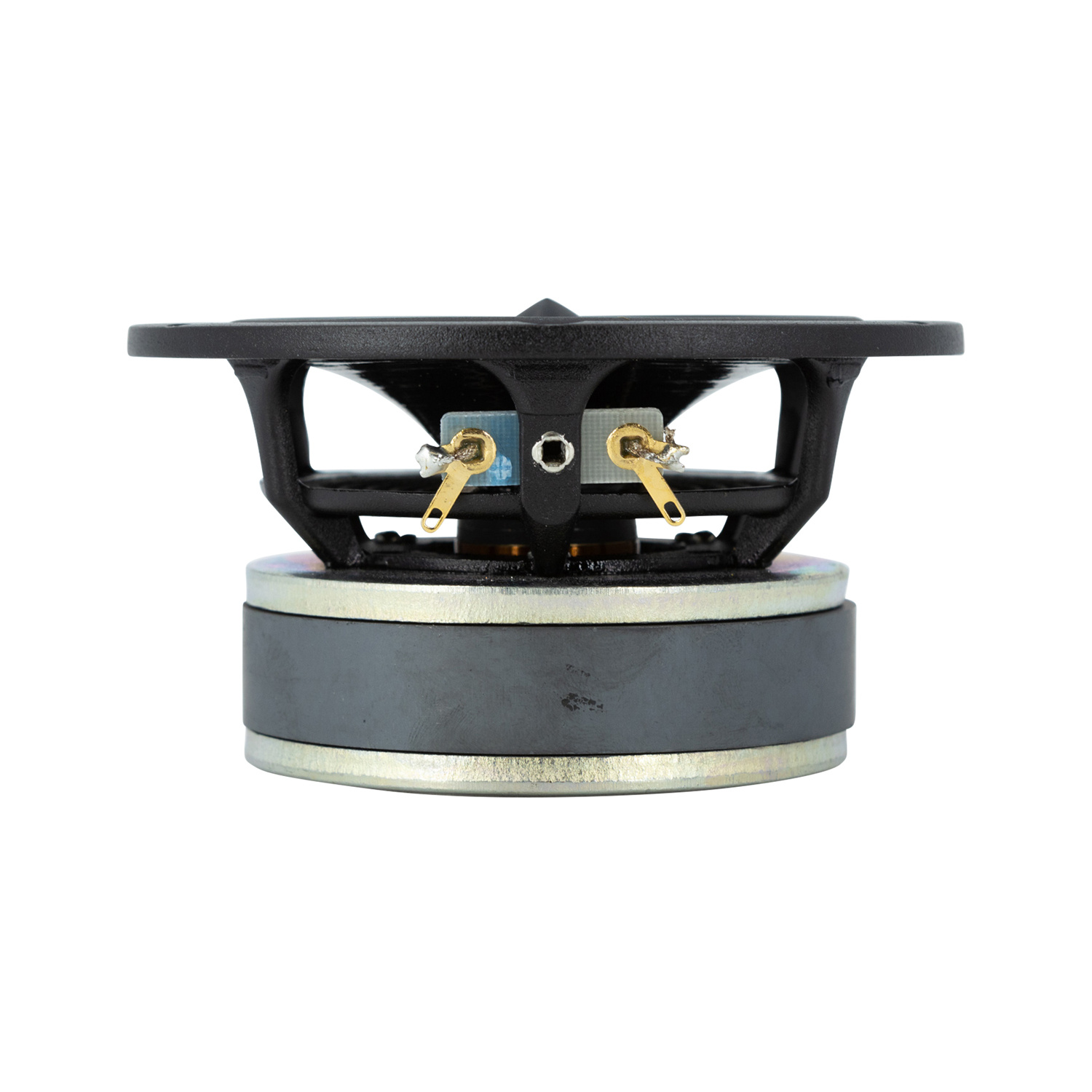

      The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      Show more

      Specifiche

      Numero dell'articolo:
      W12CY006
      EAN
      8785256845873
      Serie del woofer
      Excel
      Diametro nominale
      4.5 " | 119 mm
      Gestione della potenza (RMS)
      90 W
      Gestione della potenza (max)
      180 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      85 dB
      Risposta in frequenza
      50 - 4000 Hz
      Diametro della bobina mobile
      26 mm
      Peso del magnete
      0.42 kg
      Resistenza DC (Re)
      5.6 Ω
      Induttanza della bobina mobile (Le)
      0.27 mH
      Frequenza di risonanza (Fs)
      72 Hz
      Fattore di merito meccanico (Qms)
      2.20
      Fattore di merito elettromagnetico (Qes)
      0.49
      Fattore di merito totale (Qts)
      0.40
      Massa del diaframma incl. la massa dell'aria (Mms)
      6.9 g
      Cedevolezza meccanica della sospensione (Cms)
      0.71 mm/N
      Superficie del cono (Sd)
      50 cm²
      Prodotto BL (BL)
      5.9 N/A
      Volume equivalente di cedevolezza (Vas)
      3 L
      Escursione lineare massima (Xmax)
      3 mm
      Perdite meccaniche del driver (Rms)
      1.42 Ns/m
      Materiale del cono / diaframma
      Paper
      Supporto della bobina mobile
      Titanium
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      120.4 mm
      Profondità complessiva
      58.5 mm
      Diametro del ritaglio del pannello frontale
      95.8 mm
      Diametro del cerchio dei fori di montaggio
      110.8 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm

      Show more
