      Excel W12CY003 - E0044 Woofer Medio-Bassi

      SEAS Excel W12CY003 - E0044 Woofer Medio-Bassi

      €239,95

      4 In magazzino

      SEAS Excel W12CY003 - E0044 Woofer Medio-Bassi

      1 klantbeoordelingen
      5 da 5
      1 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 198,31€ 239,95 4 In magazzino
      • -5% Acquista 4 per soli € 227,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Excel W12CY003 - E0044 Woofer Medio-Bassi

      Highlights

      • Long term power handling (RMS) is 70 Watts
      • Unique Nextel coating ensures smooth frequency response and low distortion
      • Increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



      Product details

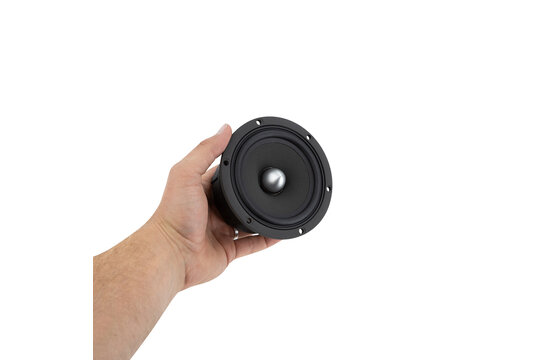

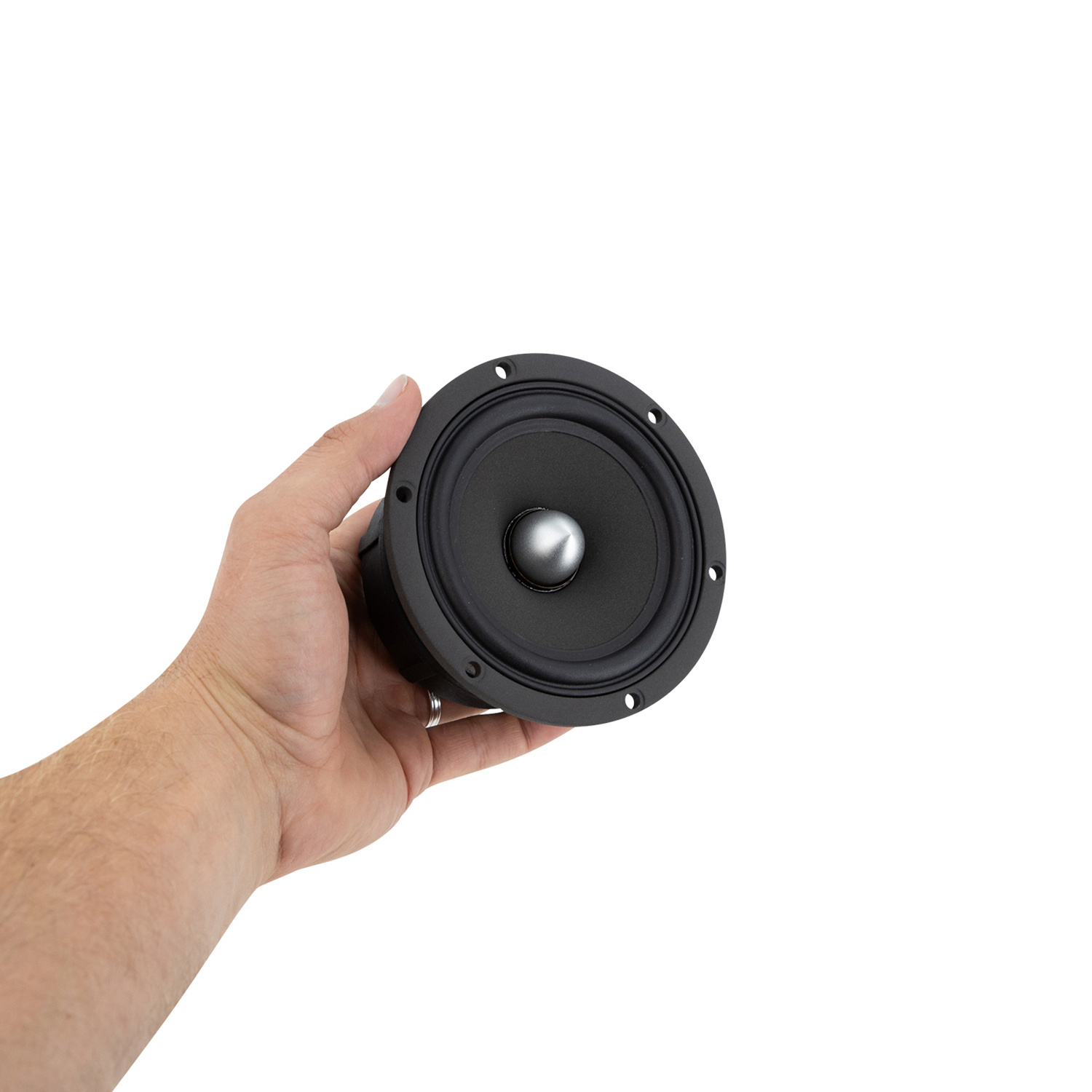

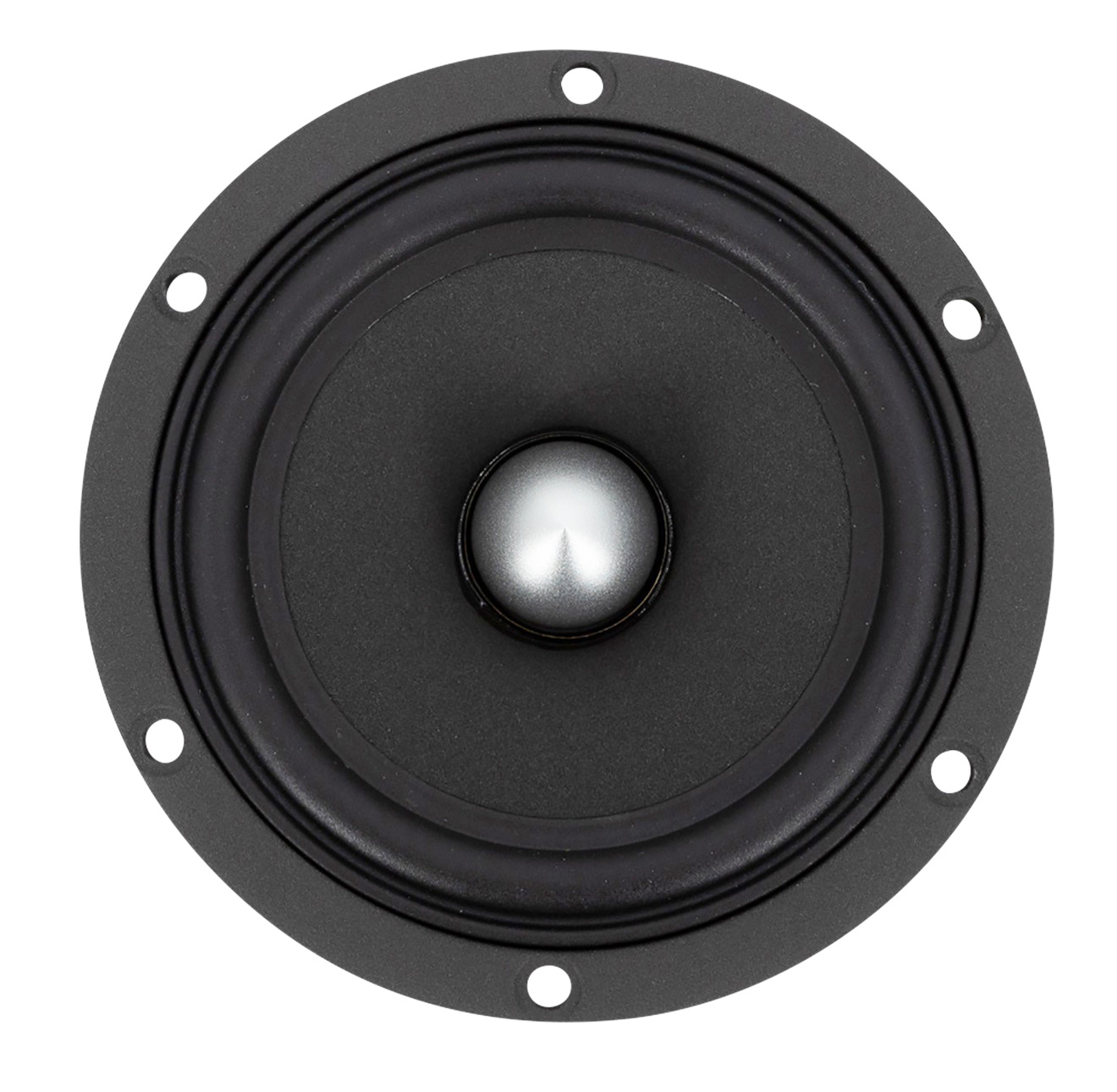

      Seas Excel W12CY003 - E0044 4.5" Nextel Cone Woofer



      A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

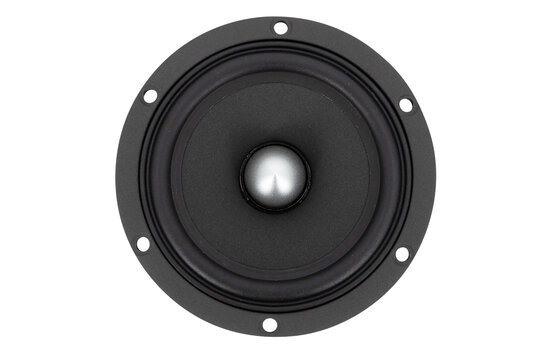

      A large magnet system provides good sensitivity and transient response. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

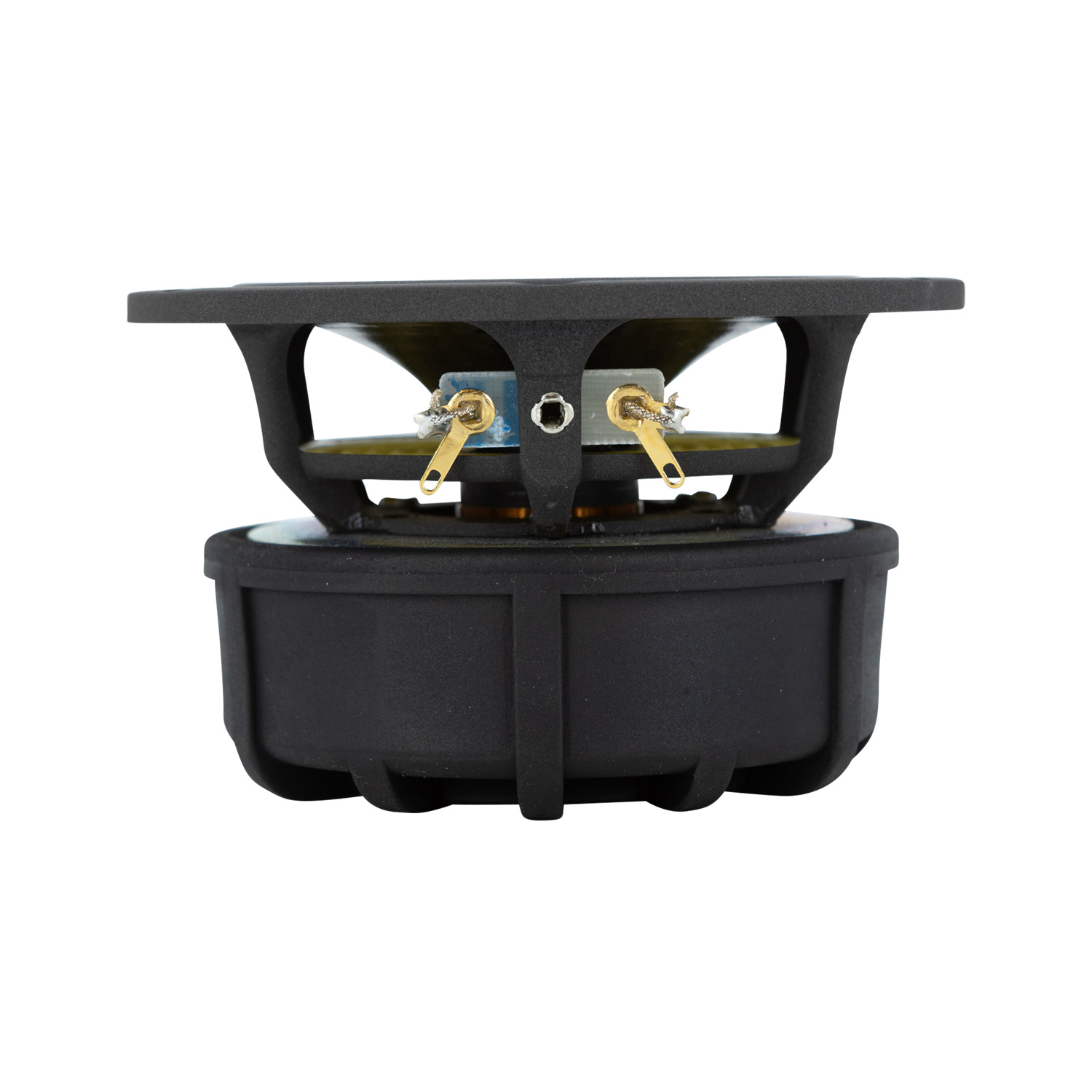

      An extremely stiff and stable injection molded Nextel coated metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

      Show more

      Specifiche

      Numero dell'articolo:
      W12CY003
      EAN
      0696277270125
      Serie del woofer
      Excel
      Tipo di woofer
      Midwoofer
      Diametro nominale
      4.5 " | 119 mm
      Gestione della potenza (RMS)
      70 W
      Gestione della potenza (max)
      200 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      85.5 dB
      Risposta in frequenza
      60 - 3500 Hz
      Diametro della bobina mobile
      26 mm
      Peso del magnete
      0.42 kg
      Resistenza DC (Re)
      5.5 Ω
      Induttanza della bobina mobile (Le)
      0.41 mH
      Frequenza di risonanza (Fs)
      60 Hz
      Fattore di merito meccanico (Qms)
      2.30
      Fattore di merito elettromagnetico (Qes)
      0.44
      Fattore di merito totale (Qts)
      0.36
      Massa del diaframma incl. la massa dell'aria (Mms)
      6.1 g
      Cedevolezza meccanica della sospensione (Cms)
      1.2 mm/N
      Superficie del cono (Sd)
      50 cm²
      Prodotto BL (BL)
      5.5 N/A
      Volume equivalente di cedevolezza (Vas)
      4 L
      Escursione lineare massima (Xmax)
      3 mm
      Perdite meccaniche del driver (Rms)
      1.03 Ns/m
      Materiale del cono / diaframma
      Paper
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      124 mm
      Profondità complessiva
      66.5 mm
      Diametro del ritaglio del pannello frontale
      90 mm
      Diametro del cerchio dei fori di montaggio
      110.8 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm

      Show more
