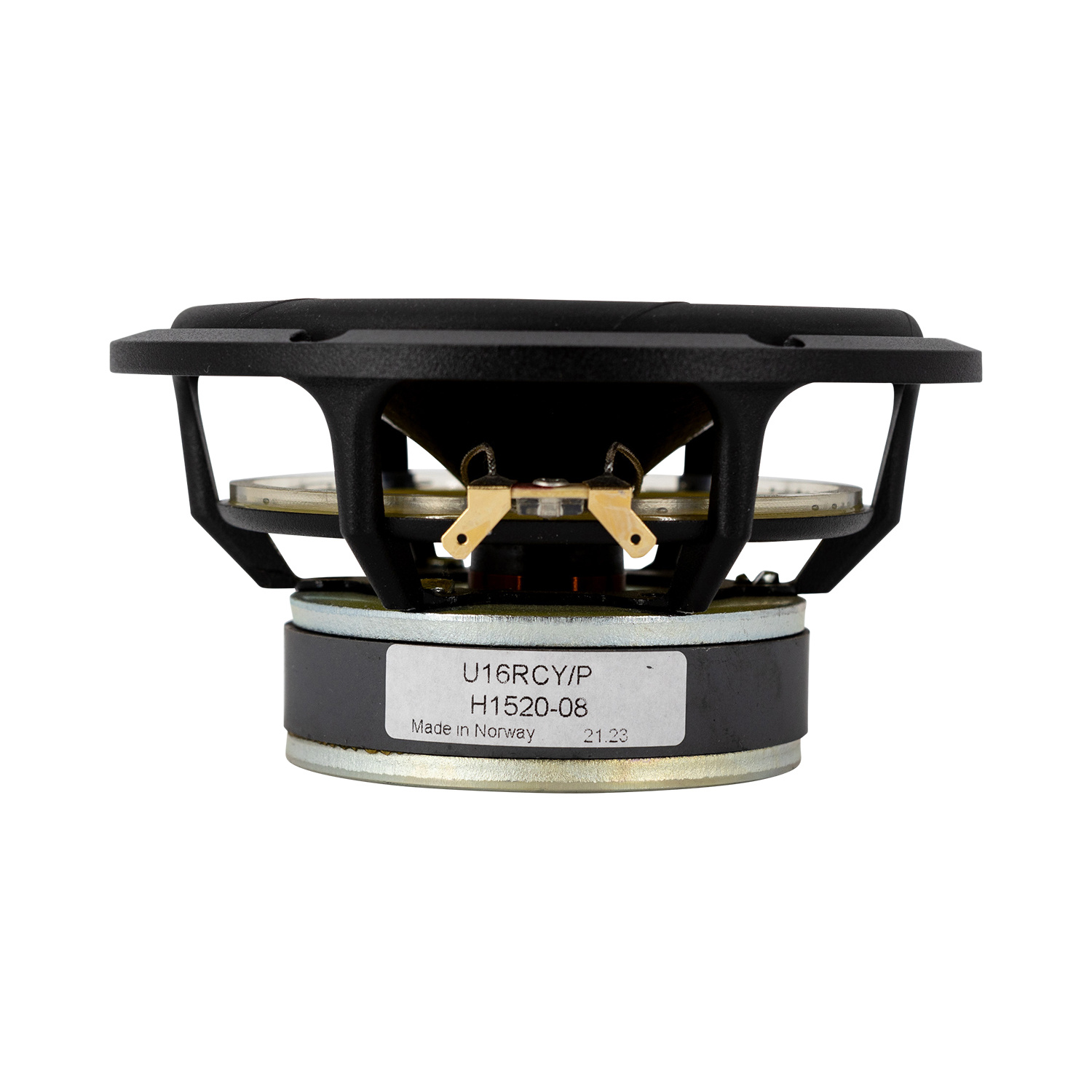

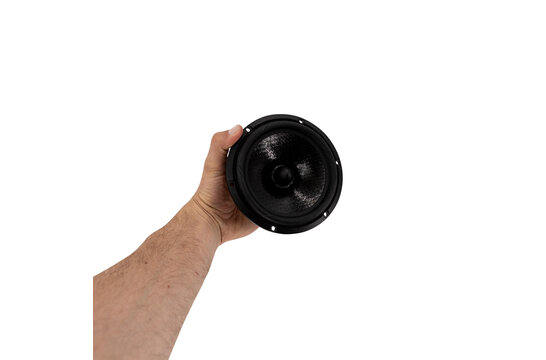

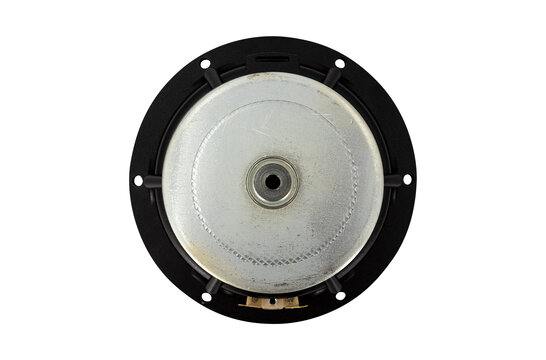

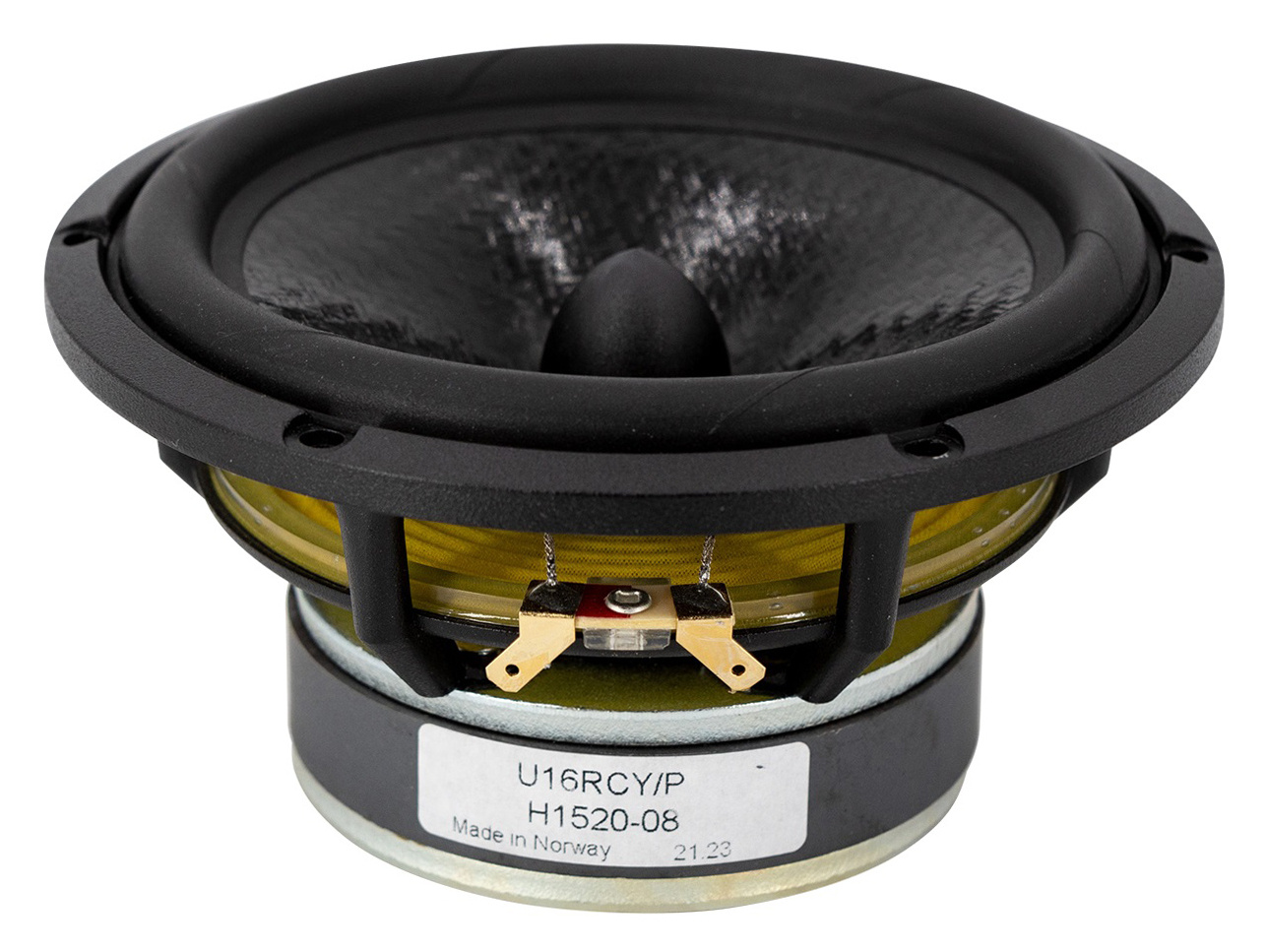

      Prestige U16RCY/P - H1520 Woofer Medio-Bassi

      SEAS Prestige U16RCY/P - H1520 Woofer Medio-Bassi

      €139,95

      6 Arrivo previsto il 24-07-2026

      SEAS Prestige U16RCY/P - H1520 Woofer Medio-Bassi

      2 klantbeoordelingen
      5 da 5
      2 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 115,66€ 139,95 Esaurito6 Arrivo previsto il 24-07-2026
      • -5% Acquista 4 per soli € 132,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Prestige U16RCY/P - H1520 Woofer Medio-Bassi

      Highlights

      • Long term power handling (RMS) is 60 Watts
      • Injection moulded metal chassis, intended for bass reflex and transmission line designs
      • Seas SpiderRing® technology



      Product details

      Seas Prestige U16RCY/P - H1520 5.5" Curv Cone Woofer

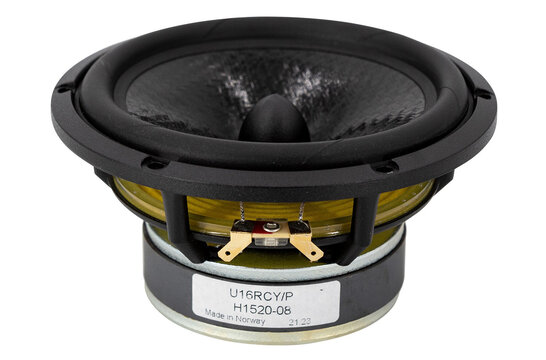

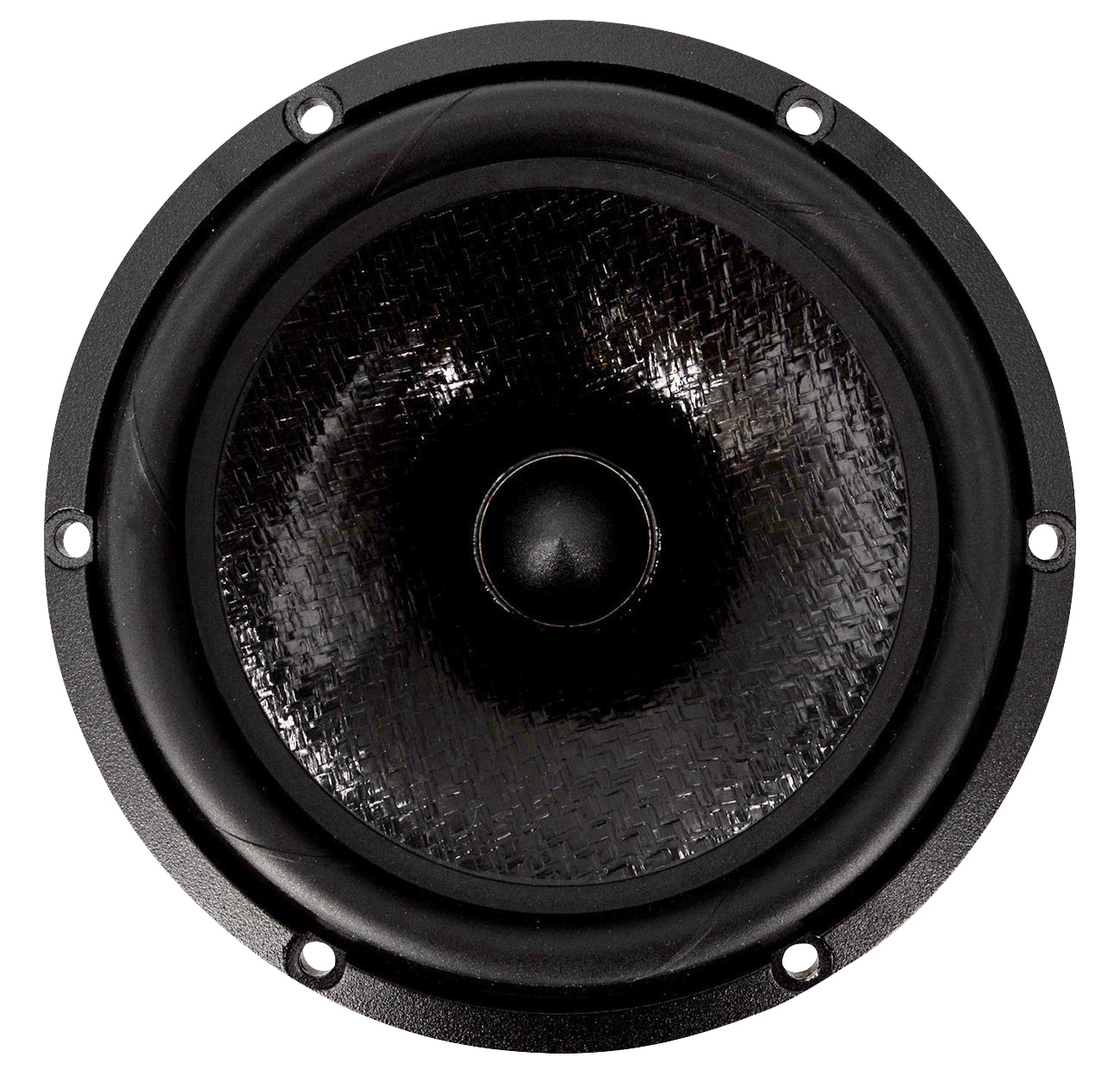

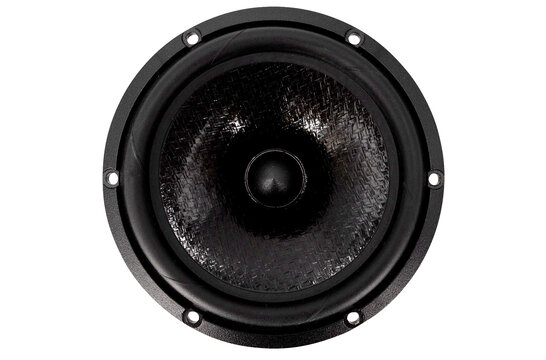

      U16RCY/P is a 5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. A unique radial reinforced low loss rubber surround reduces radial resonances and prevents surround break up at large excursions.



      Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.

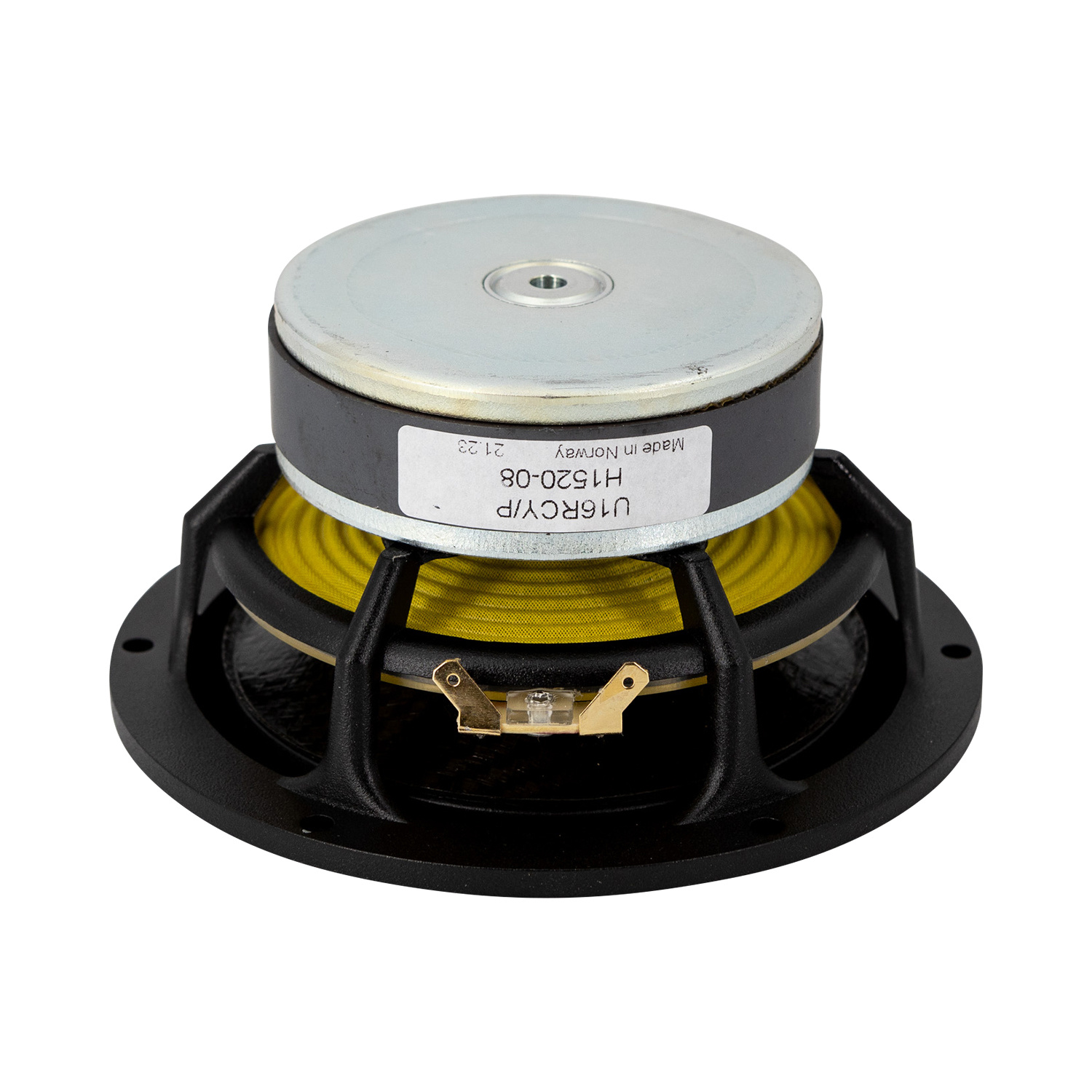

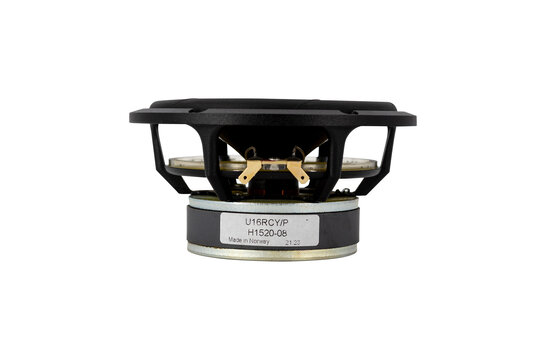

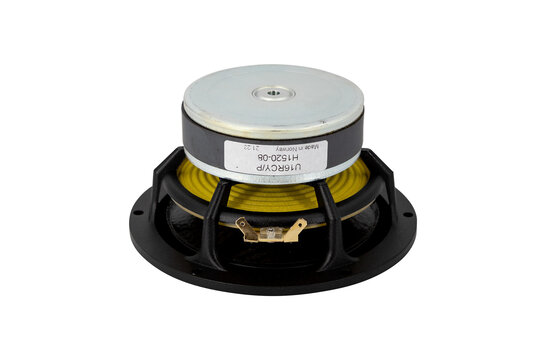

      Extremely stiff and stable injection moulded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. This driver uses Seas SpiderRing® technology.

      Show more

      Specifiche

      Numero dell'articolo:
      U16RCY/P
      EAN
      0696277269921
      Serie del woofer
      Prestige
      Tipo di woofer
      Woofer
      Diametro nominale
      5 " | 146 mm
      Gestione della potenza (RMS)
      60 W
      Gestione della potenza (max)
      250 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      87 dB
      Risposta in frequenza
      45 - 3000 Hz
      Diametro della bobina mobile
      26 mm
      Peso del magnete
      0.42 kg
      Resistenza DC (Re)
      6.2 Ω
      Induttanza della bobina mobile (Le)
      0.81 mH
      Frequenza di risonanza (Fs)
      36 Hz
      Fattore di merito meccanico (Qms)
      2.19
      Fattore di merito elettromagnetico (Qes)
      0.38
      Fattore di merito totale (Qts)
      0.32
      Massa del diaframma incl. la massa dell'aria (Mms)
      10.26 g
      Cedevolezza meccanica della sospensione (Cms)
      1.9 mm/N
      Superficie del cono (Sd)
      99 cm²
      Prodotto BL (BL)
      6.3 N/A
      Volume equivalente di cedevolezza (Vas)
      25 L
      Escursione lineare massima (Xmax)
      4 mm
      Perdite meccaniche del driver (Rms)
      1.11 Ns/m
      Materiale del cono / diaframma
      Woven polypropylene
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      146 mm
      Profondità complessiva
      65.5 mm
      Diametro del ritaglio del pannello frontale
      126.2 mm
      Diametro del cerchio dei fori di montaggio
      137 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm
