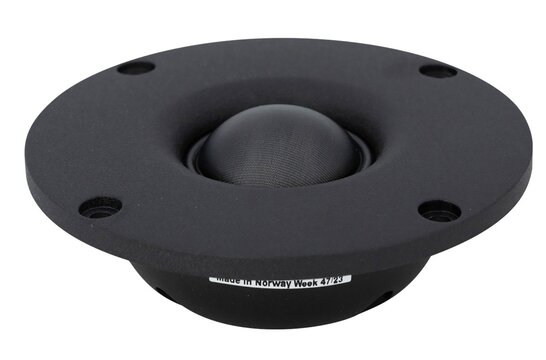

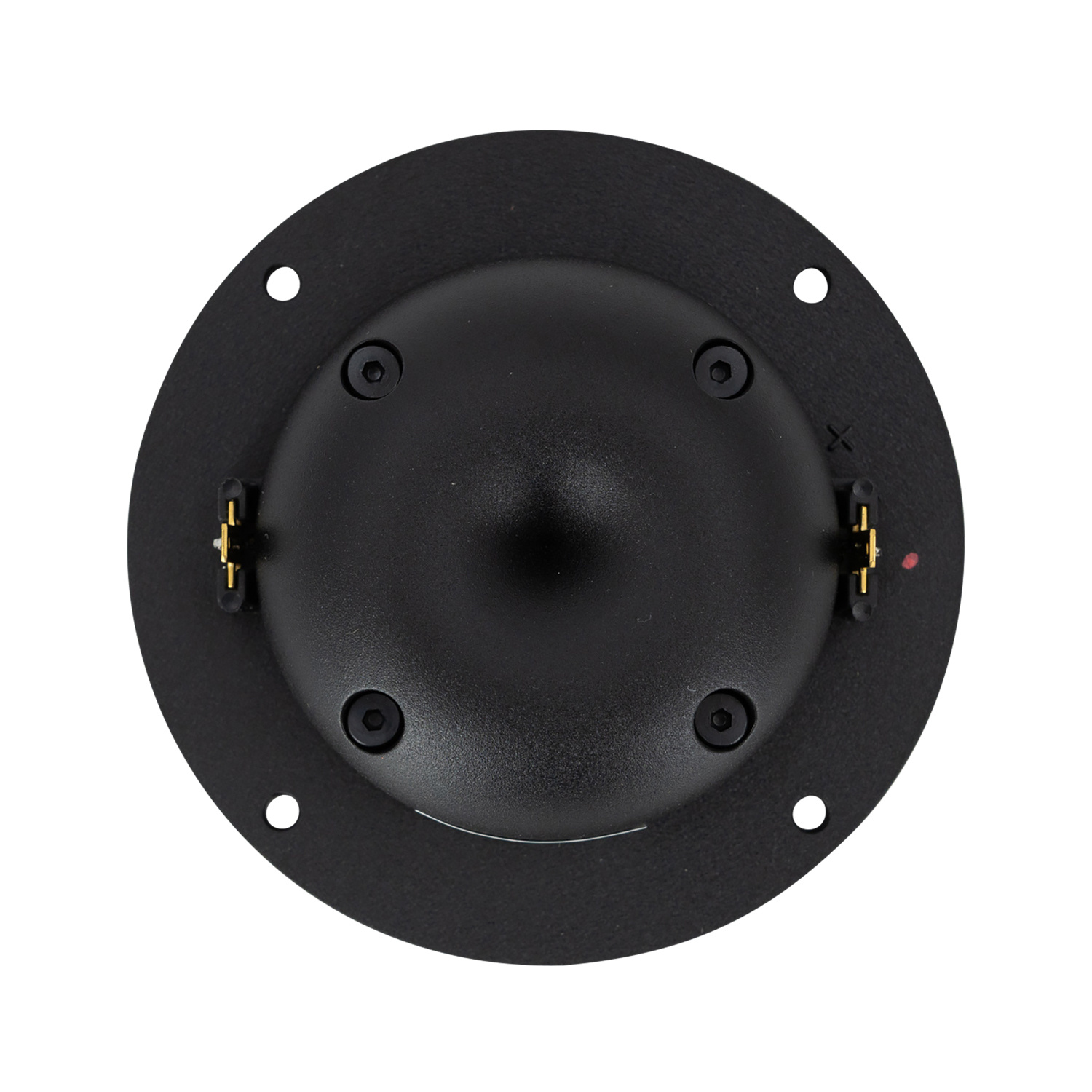

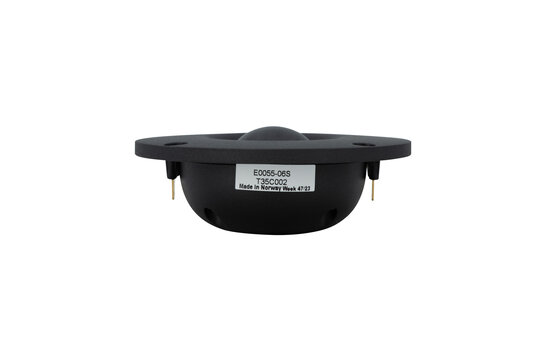

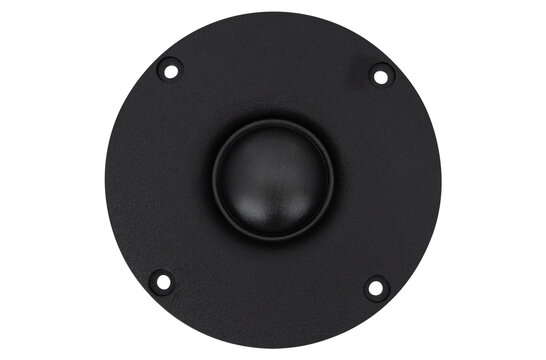

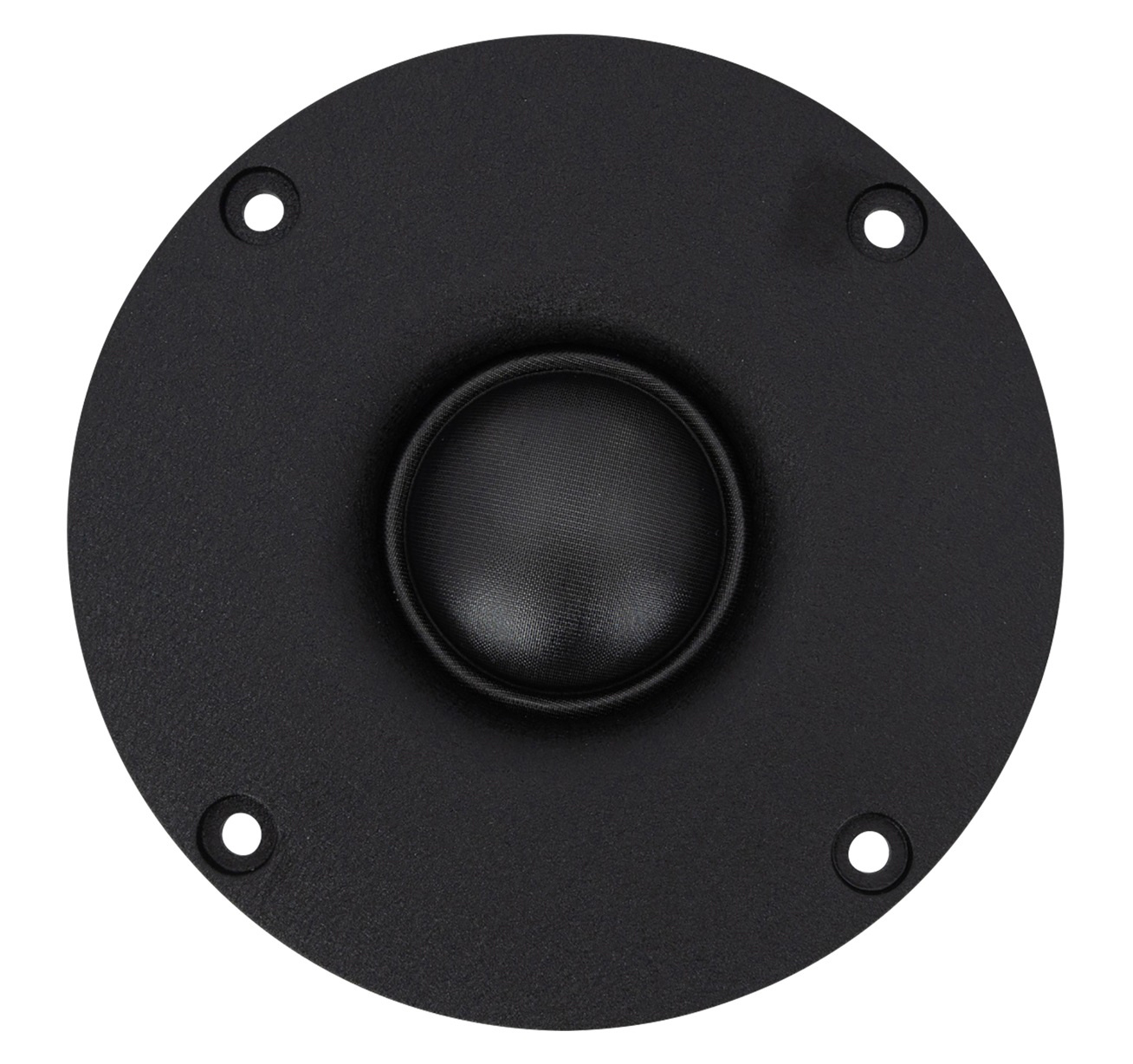

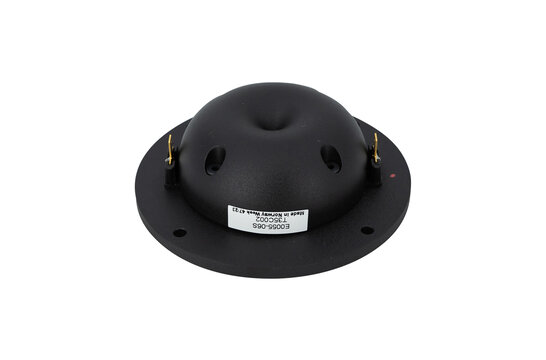

Name: SEAS Excel T35C002 - E0055 Tweeter a Cupola
Brand: SEAS
SKU: T35C002
Price: 369.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

1.5" | 6 Ω

€ 305,74€ 369,95 1 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto SEAS Excel T35C002 - E0055 Tweeter a Cupola

Highlights

The top plate and T-yoke are CNC machined for excellent precision
100 Watts RMS Power Handling
95 dB 2.83V/1m Sensitivity

Product details

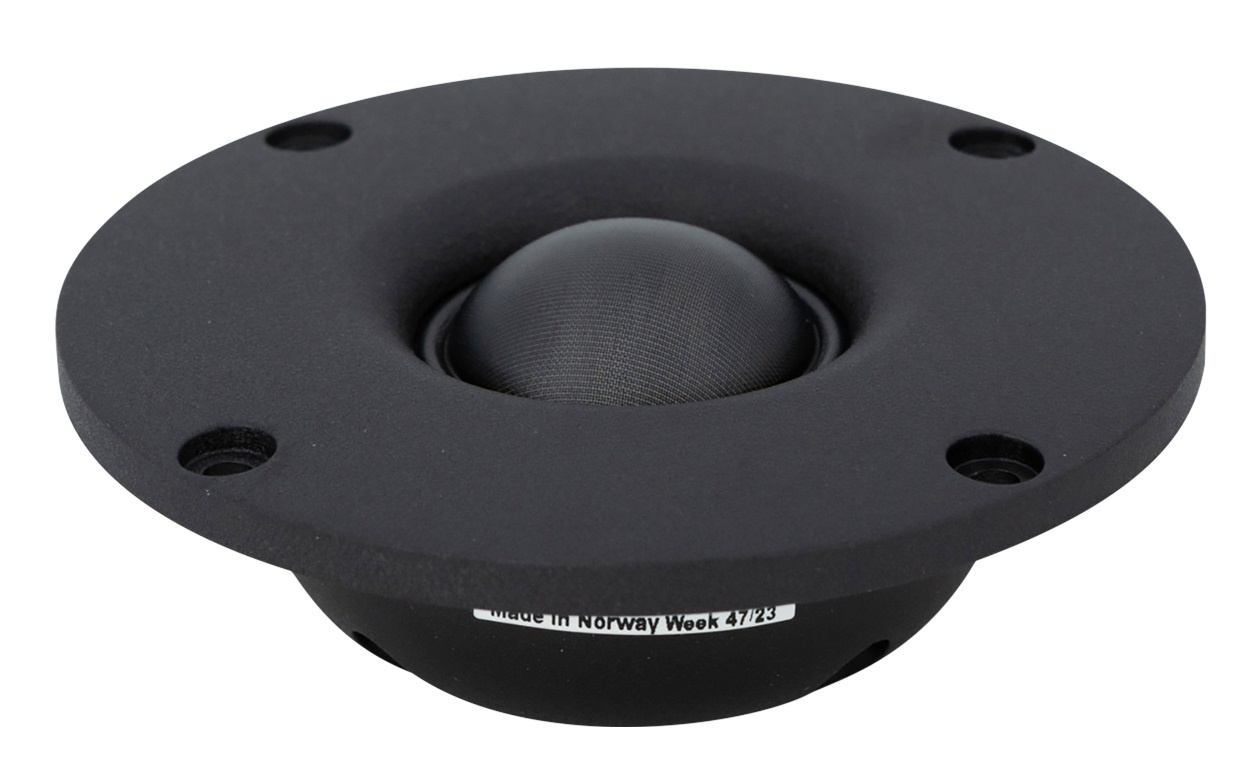

Seas Excel T35C002 - E0055 1-1/2" Coated Fabric Dome Tweeter

The T35C002 is a classic dome midrange tweeter with high sensitivity and a smooth, extended frequency response. A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This supplier was among the first in the world to offer fabric dome diaphragms, and did produce the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968.

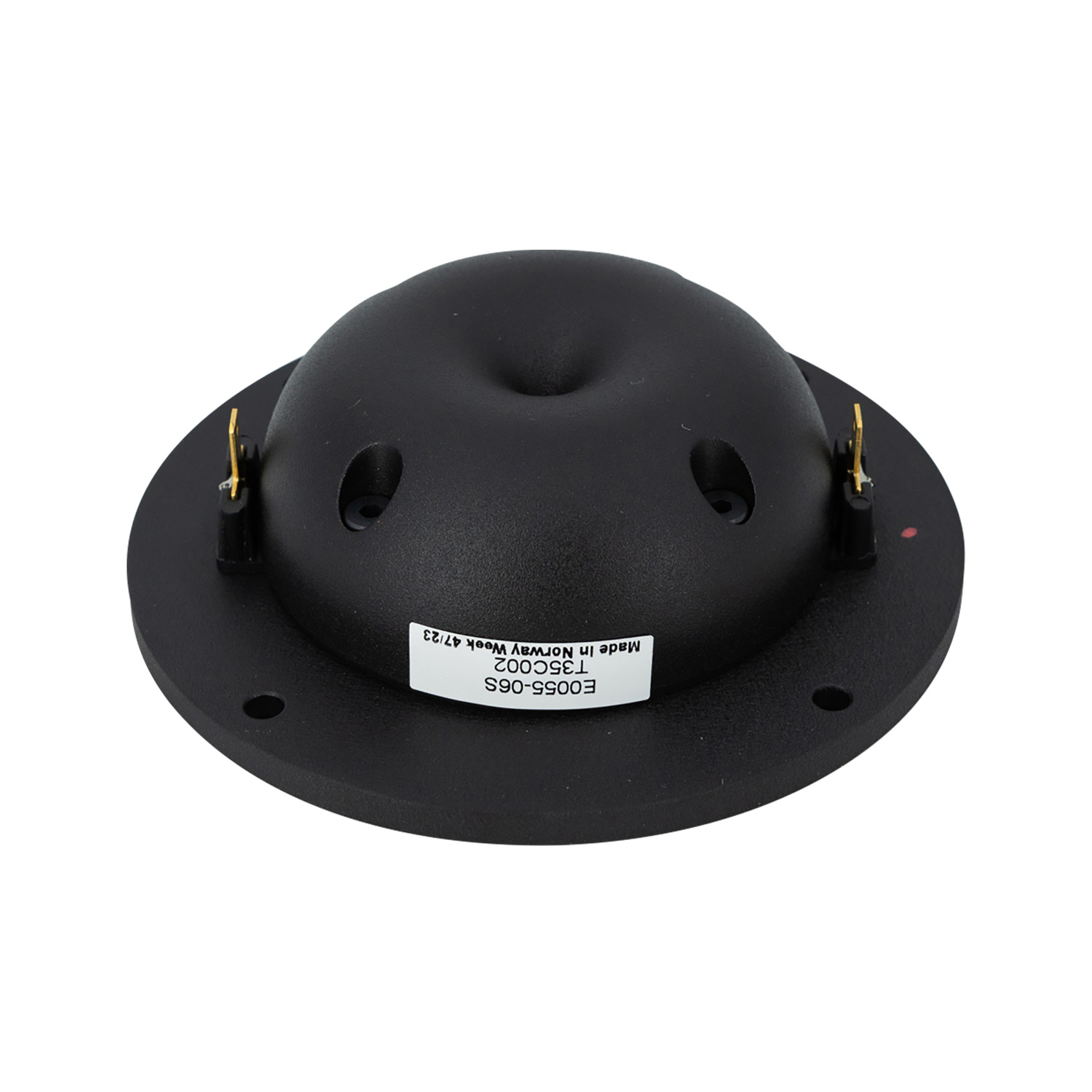

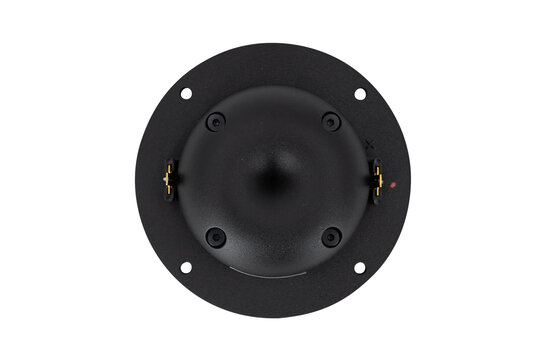

A small, high efficiency Neodymium ring magnet in a carefully designed system contributes to high sensitivity and low distortion. The top plate and T-yoke are CNC machined for excellent precision. A well damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response. A generously underhung 35mm voice coil wound from copper-clad aluminum wire further enhances the sensitivity.

Flexible lead-out wires and venting holes in the aluminum coil former help reduce noise to a minimum. A 7 mm thick precision die-cast aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.

A great application example would be the SEAS application De A26. To learn more, please check out our blog article "SEAS Application Notes".

Recensioni

2 reviews

Recensisci questo prodotto

5 di 5

The tweeter can be cross over at 1500Hz (Tannoy D700) and is a 1.5 inch soft dome the sound is smooth and warm unlike a beryllium dome tweeter I tried which was harsh. Sound imports are amazing

Da Kevin on 5 Novembre 2025

Der Hochtöner hält was der Preis verspricht. Über 300€ für eine Kalotte ist schon nicht gerade wenig. Mit 1,5 Zoll ist er groß und verträgt eine Trennung erster Ordnung (6db) sehr gut. Mir war wichtig das er deutlich aber immer soft bleibt. Ich brauche keine Frequenzen jenseits des Hörbaren. Da zischelt nix und es ist luftig leicht. Die Verarbeitung ist sehr gut. Rundherum cnc verarbeitet Aluminium.

Da Oliver on 6 Marzo 2024
