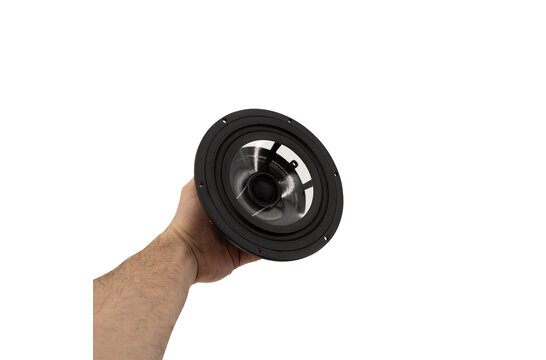

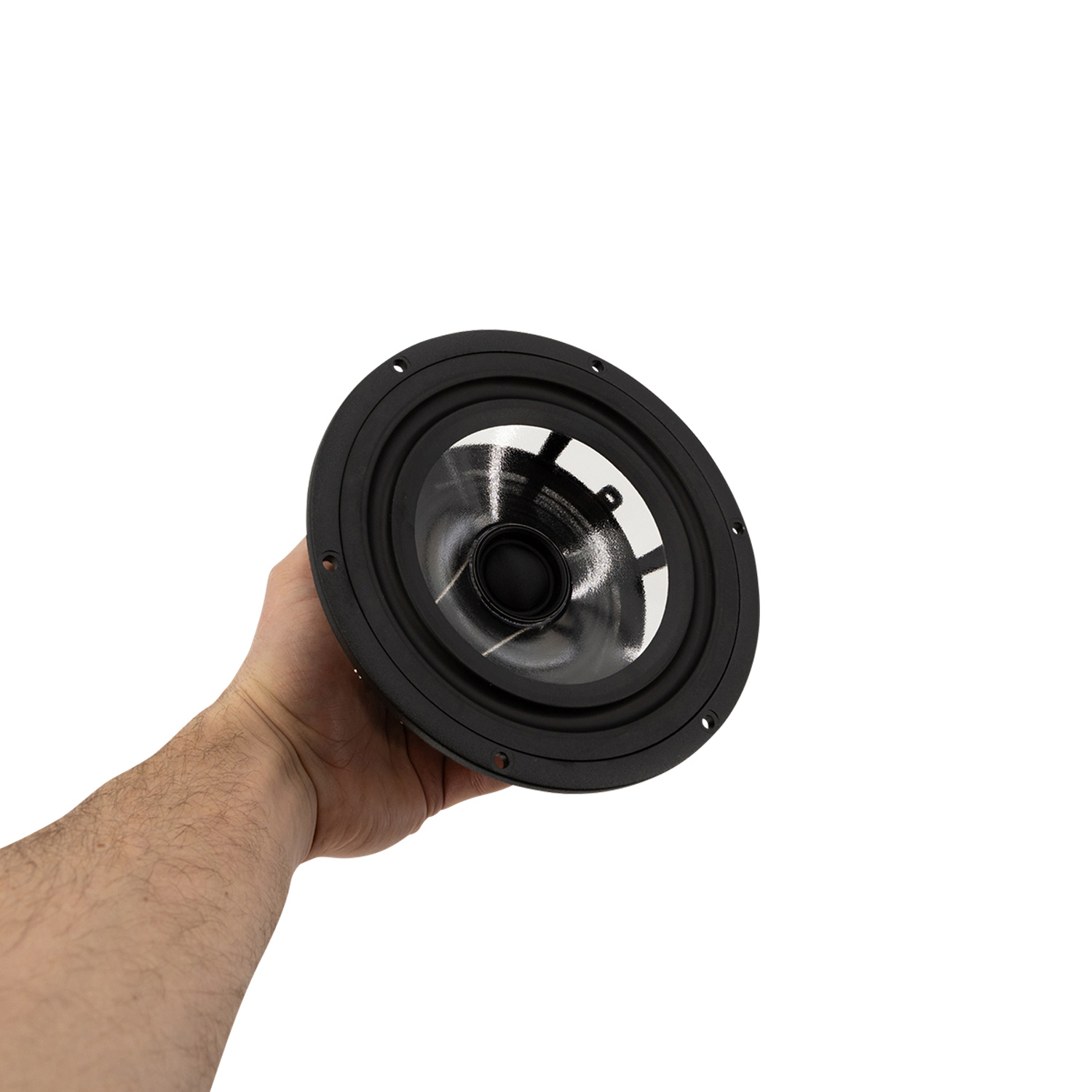

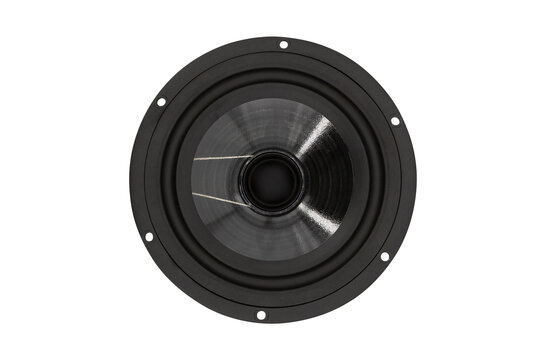

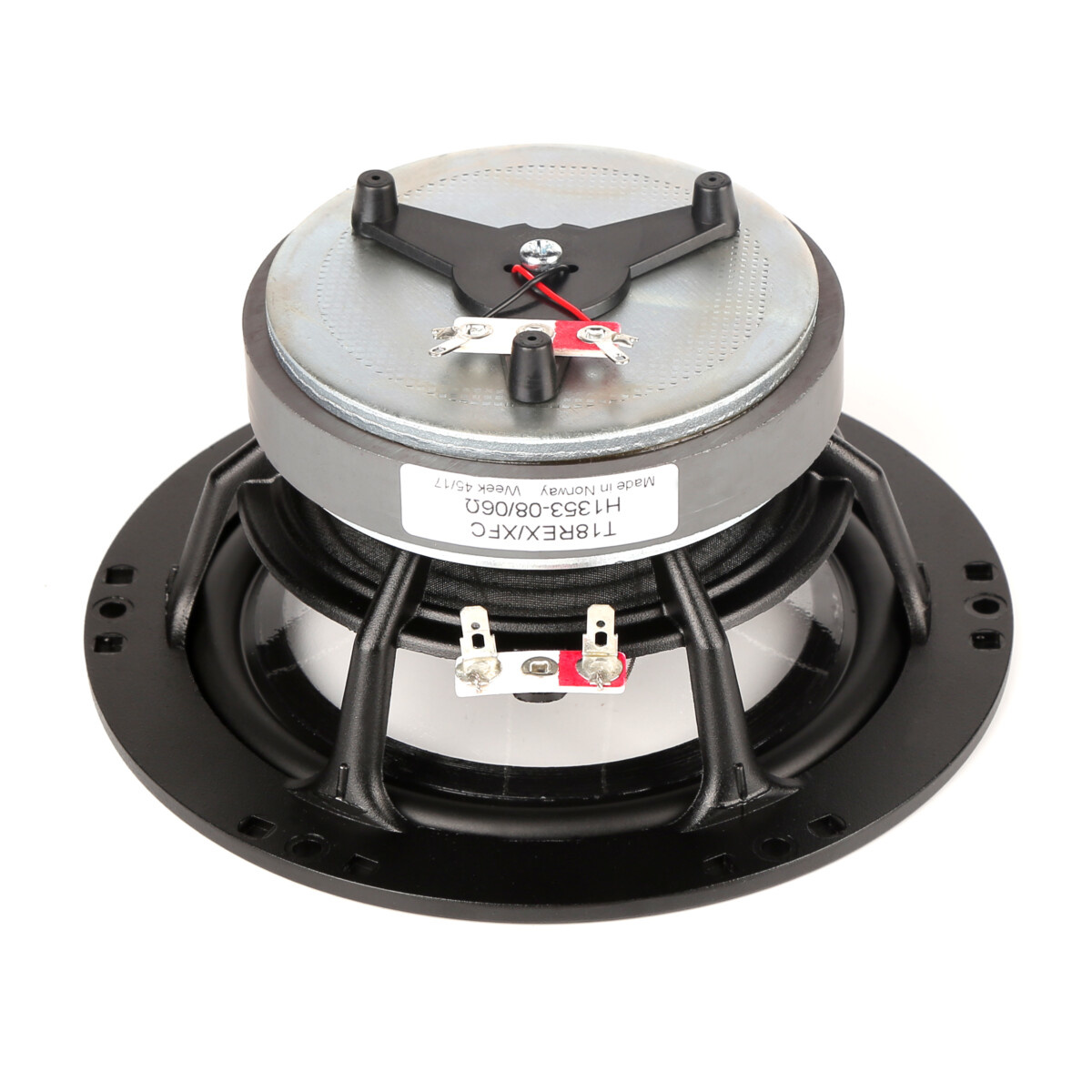

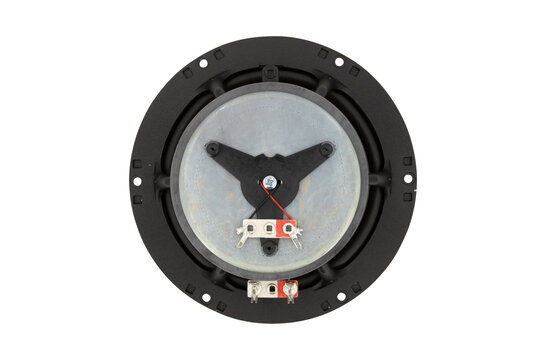

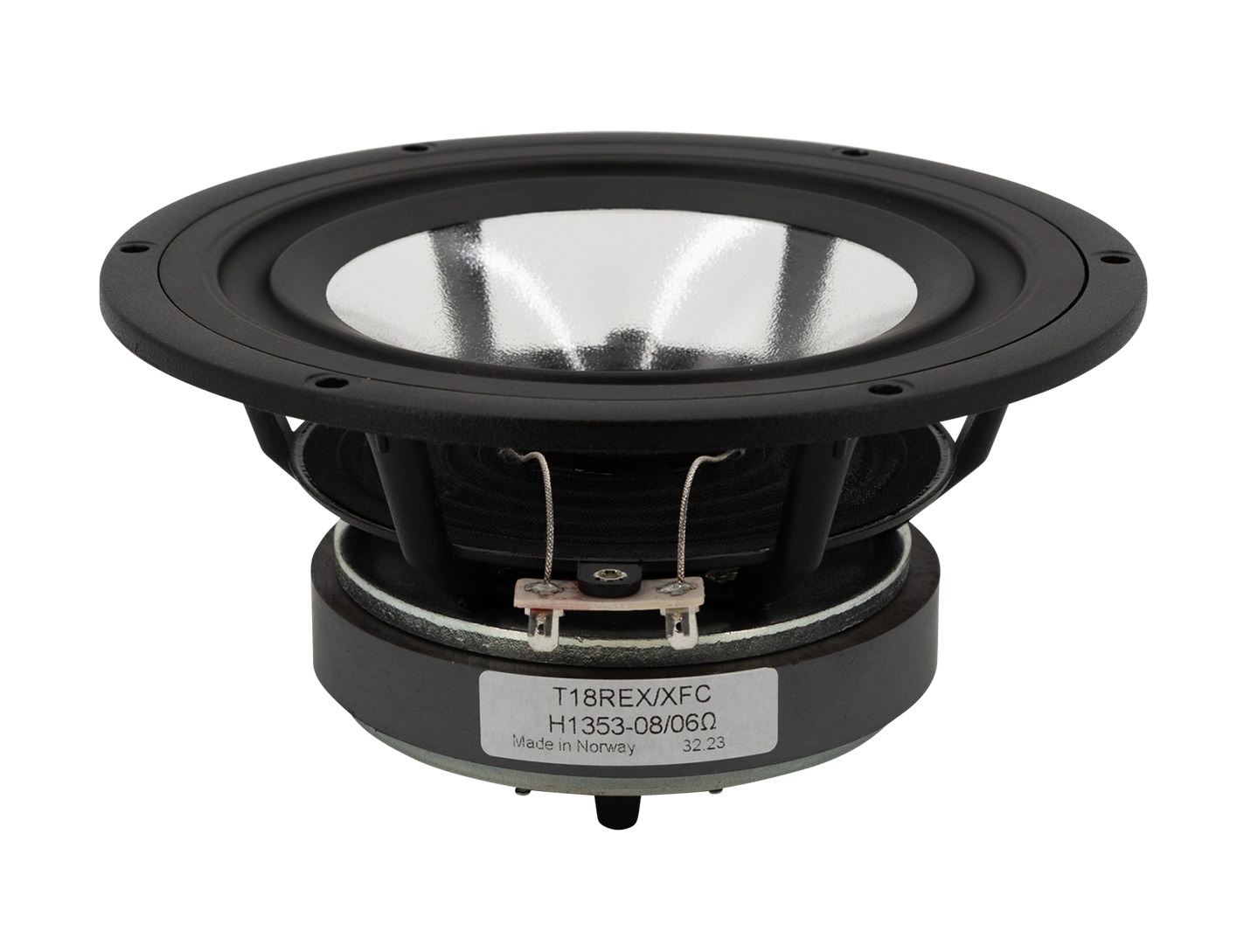

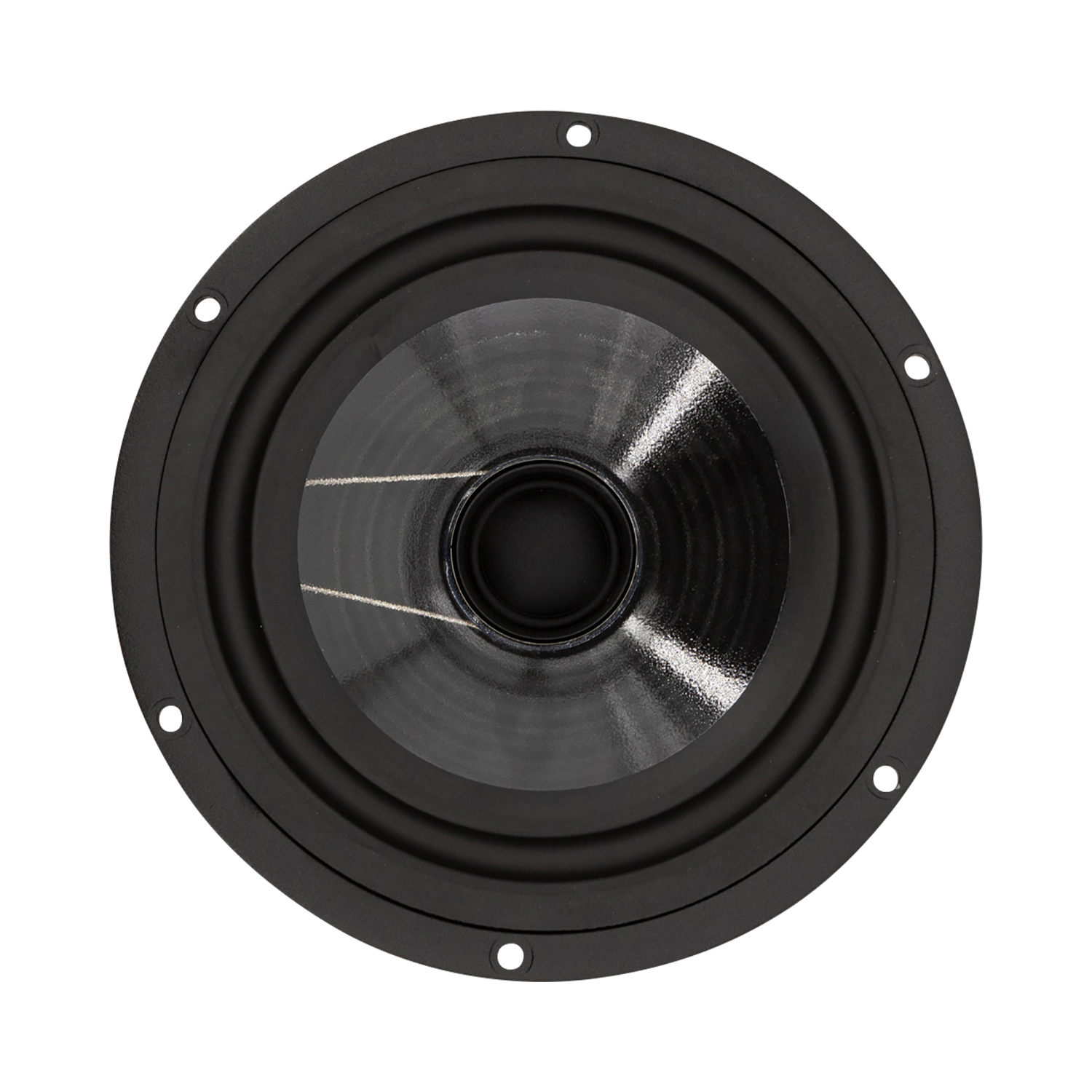

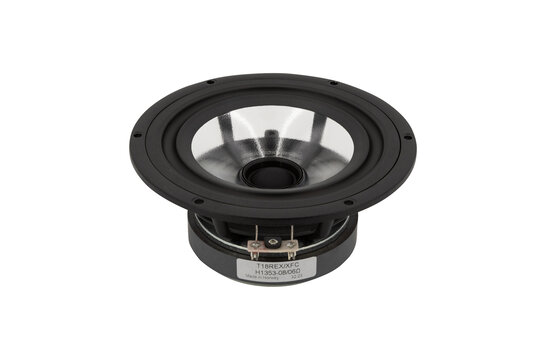

      Prestige T18REX/XFC - H1353-08/06 Woofer Coassiale

      SEAS Prestige T18REX/XFC - H1353-08/06 Woofer Coassiale

      €274,95

      4 Arrivo previsto il 17-07-2026

      SEAS Prestige T18REX/XFC - H1353-08/06 Woofer Coassiale

      4 klantbeoordelingen
      5 da 5
      4 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 227,23€ 274,95 Esaurito4 Arrivo previsto il 17-07-2026
      • -5% Acquista 4 per soli € 261,20 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Prestige T18REX/XFC - H1353-08/06 Woofer Coassiale

      Highlights

      • Long term power handling (RMS) is 200 Watts (Woofer) and 180 Watts (Tweeter)
      • The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source
      • The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn



      Product details

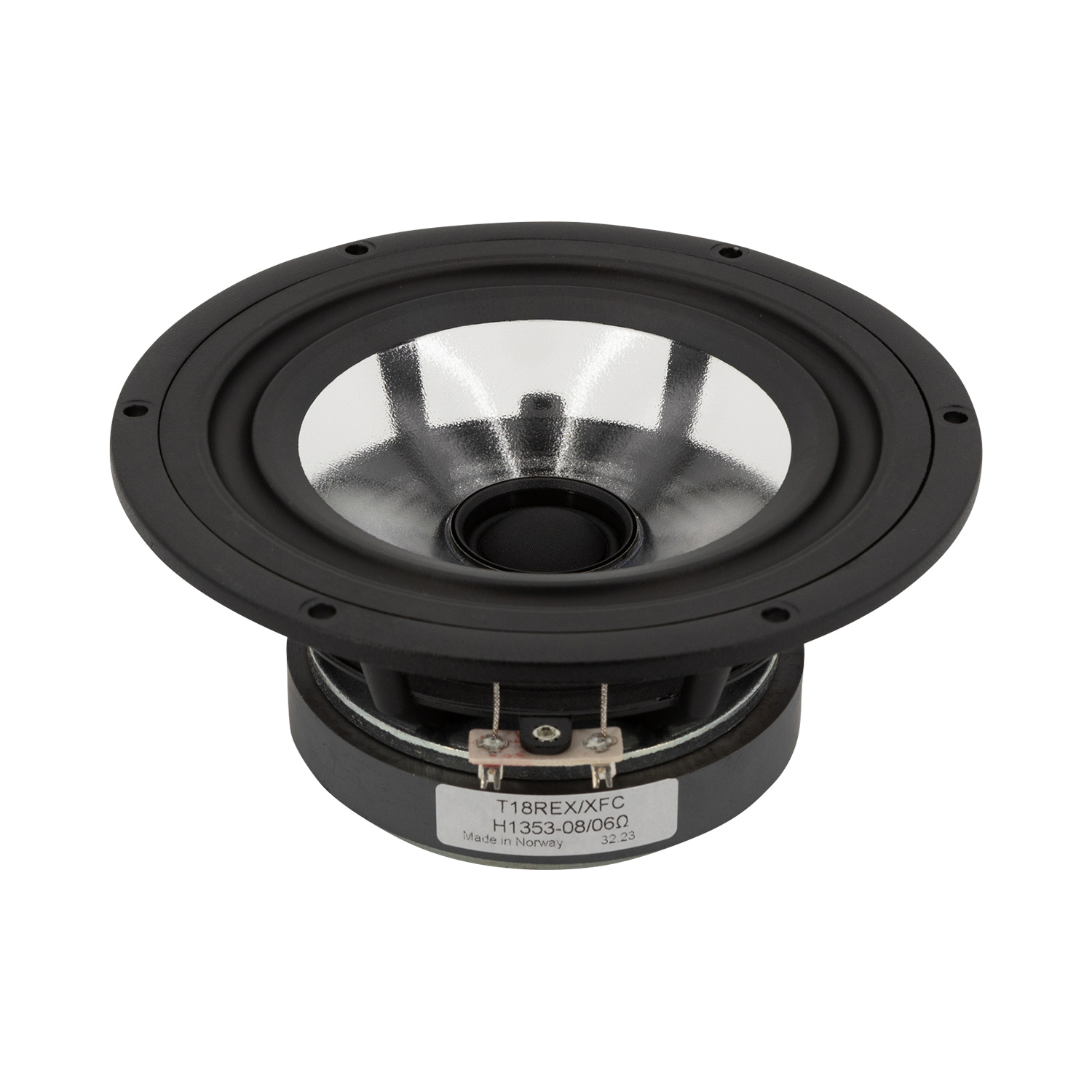

      Seas Prestige T18REX/XFC - H1353-08/06 6.5" Coaxial Woofer

      The PP/TPX based cone matches ideally with the adaptive rubber surround. The result is an outstandingly smooth frequency response from the mid woofer. The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source. The cone of the woofer acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.

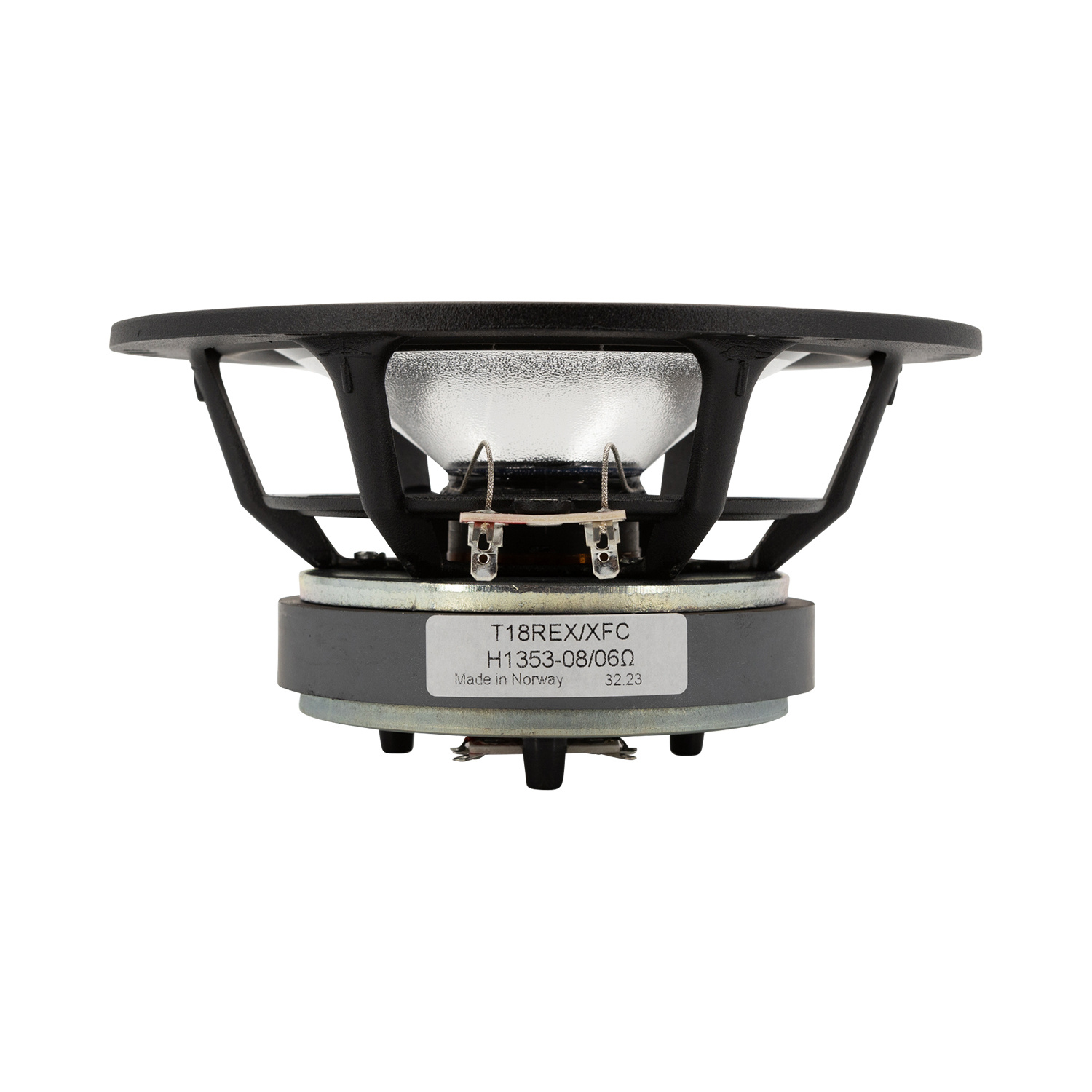

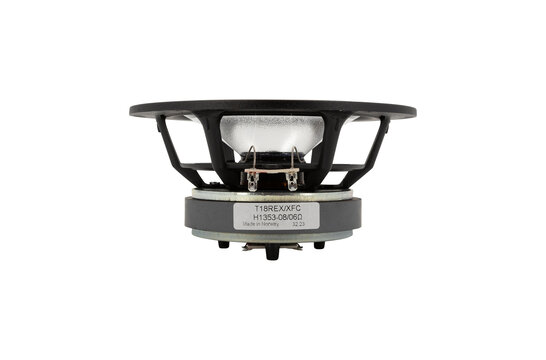

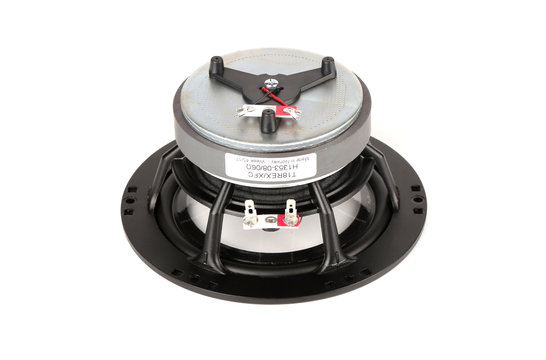

      Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

      A great application example would be the SEAS application Loki Mk III. To learn more, please check out our blog article "SEAS Application Notes".

      Show more

      Specifiche

      Numero dell'articolo:
      T18REX/XFC
      EAN
      0696277270095
      Serie del woofer
      Prestige
      Tipo di woofer
      Coaxial
      Diametro nominale
      6.5" | 176 mm
      Gestione della potenza (RMS)
      200 W
      Gestione della potenza (max)
      300 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      87.5 dB
      Risposta in frequenza
      30 Hz - 3000 Hz
      Diametro della bobina mobile
      39 mm
      Peso del magnete
      0.85 kg
      Resistenza DC (Re)
      6.2 Ω
      Induttanza della bobina mobile (Le)
      0.70 mH
      Frequenza di risonanza (Fs)
      30 Hz
      Fattore di merito meccanico (Qms)
      1.64
      Fattore di merito elettromagnetico (Qes)
      0.29
      Fattore di merito totale (Qts)
      0.24
      Massa del diaframma incl. la massa dell'aria (Mms)
      13.3 g
      Cedevolezza meccanica della sospensione (Cms)
      1.9 mm/N
      Superficie del cono (Sd)
      126 cm²
      Prodotto BL (BL)
      7.8 N/A
      Volume equivalente di cedevolezza (Vas)
      42 L
      Escursione lineare massima (Xmax)
      3 mm
      Perdite meccaniche del driver (Rms)
      1.71 Ns/m
      Materiale del cono / diaframma
      PP/TPX
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      176 mm
      Profondità complessiva
      73 mm
      Diametro del ritaglio del pannello frontale
      146.5 mm
      Diametro del cerchio dei fori di montaggio
      166 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm

      Show more

      5 di 5
      -
      Da Oliver on 16 Gennaio 2026
      5 di 5
      The 2nd set of speakers I build with this popular SEAS coaxial driver. Highly regarded & delivers a true high fidelity experience in my builds.
      Da Peter Verhauwen on 19 Novembre 2024
