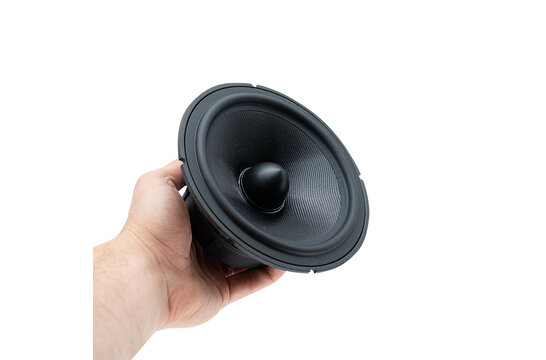

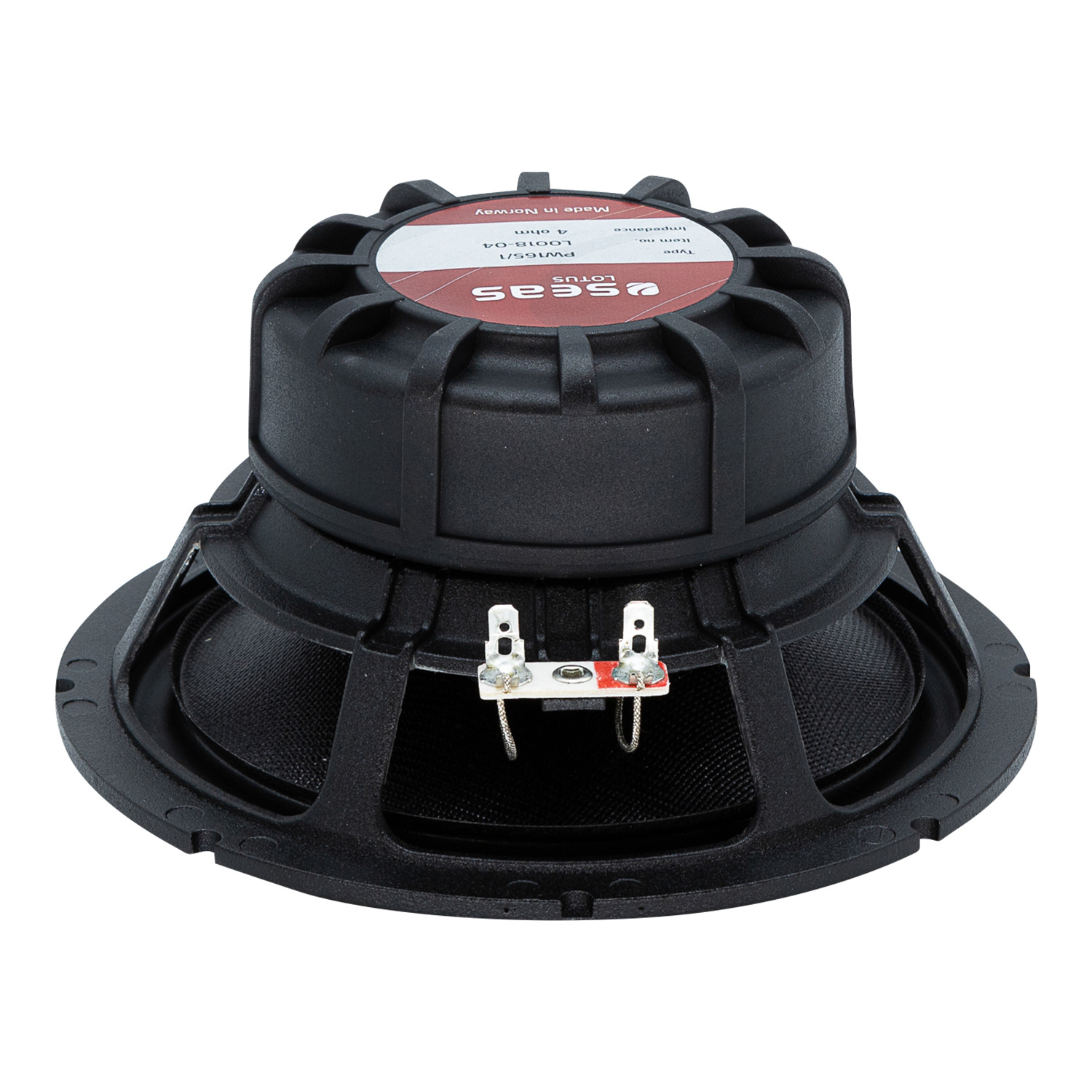

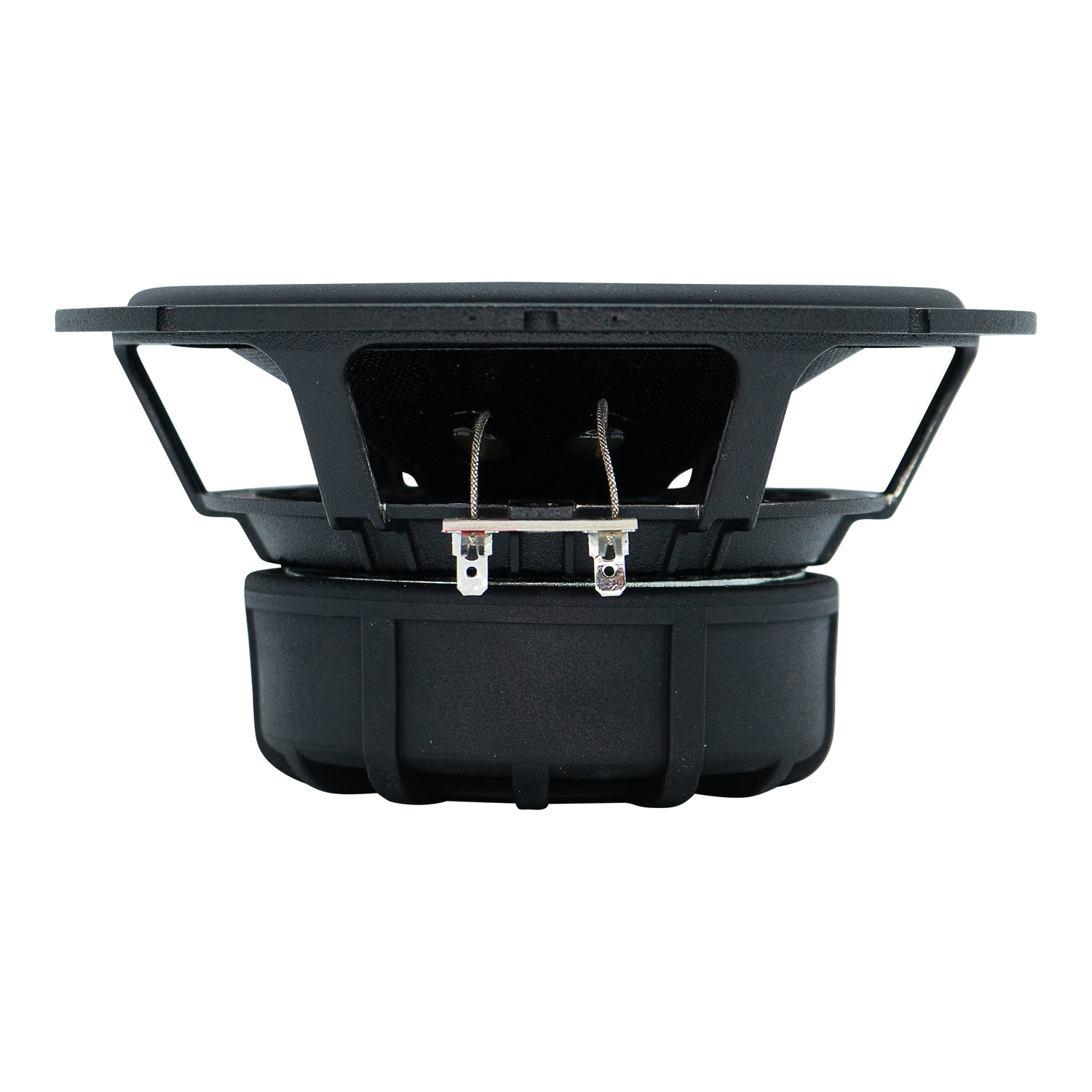

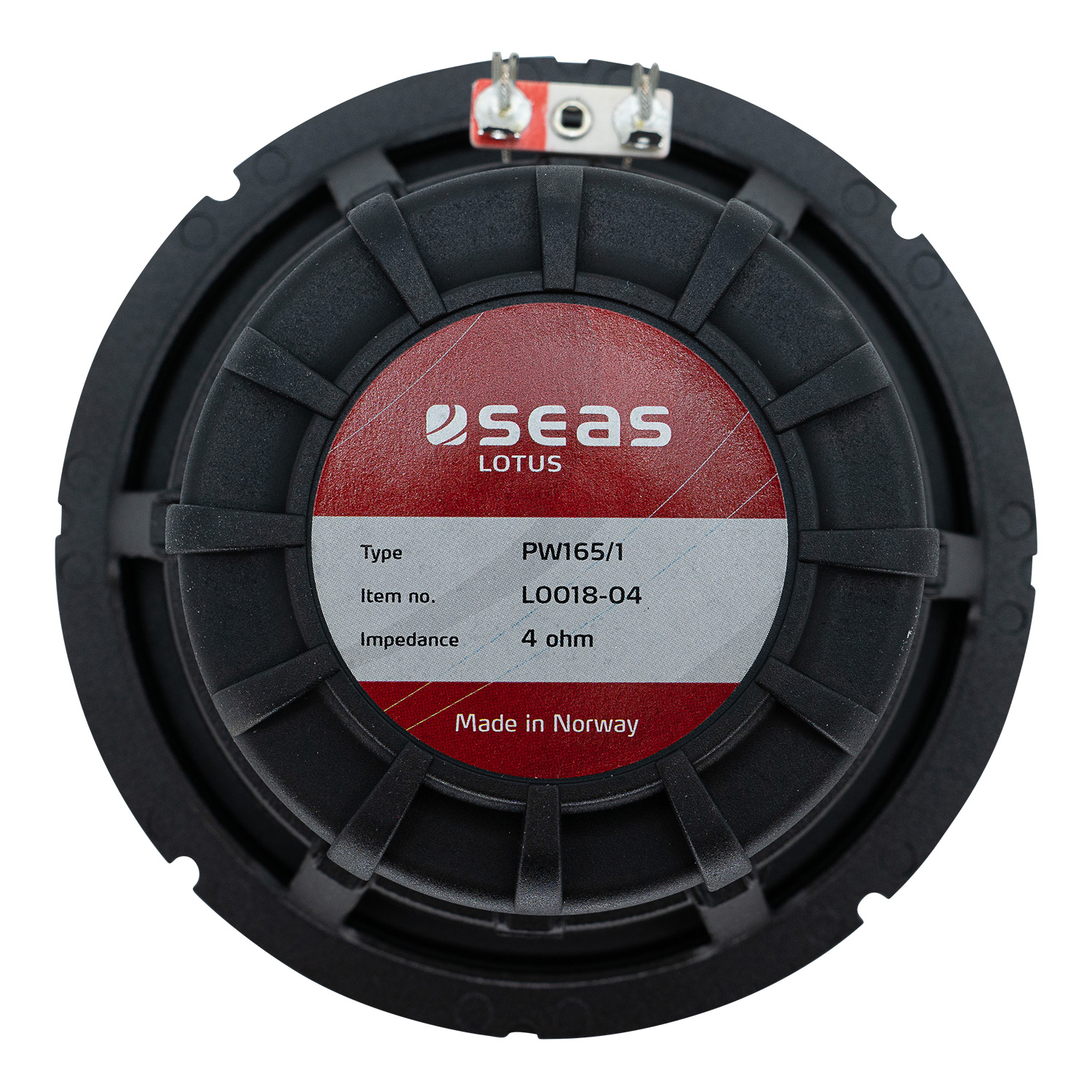

      Lotus PW165/1 - L0018-04S Woofer

      SEAS Lotus PW165/1 - L0018-04S Woofer

      €199,95

      2 In magazzino

      SEAS Lotus PW165/1 - L0018-04S Woofer

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      € 165,25€ 199,95 2 In magazzino
      • -5% Acquista 4 per soli € 189,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SEAS Lotus PW165/1 - L0018-04S Woofer

      A glass fibrecone, and a stiff low loss rubber surround carefully matched to each
      other, result in a smooth frequency response, and a clear, precise reproduction of the critical midrange area.



      Highlights

      • The bullet shaped phase plug
      • Keeps the critical components in perfect alignment



      Product details

      SEAS Lotus PW165/1 - L0018-04S Woofer

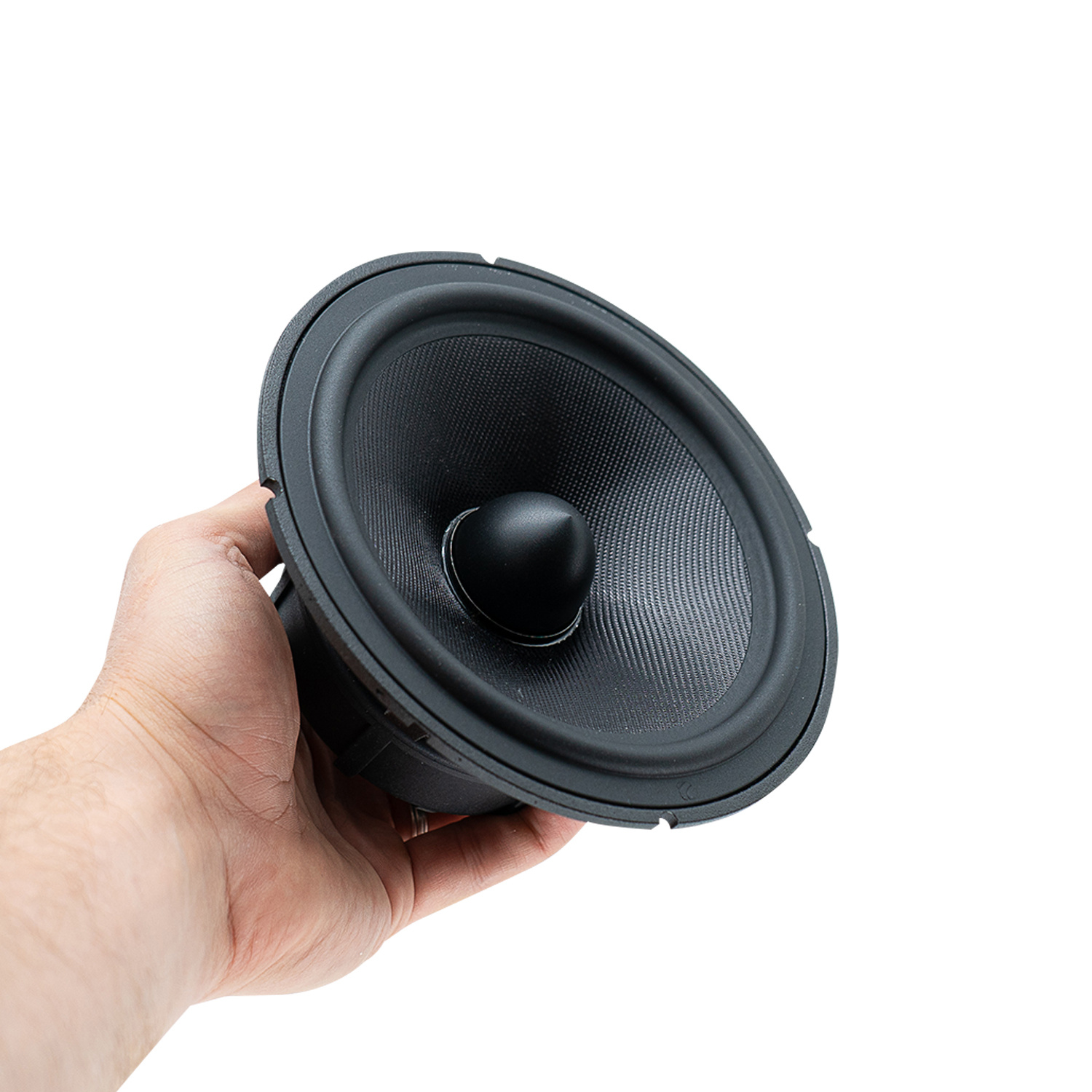

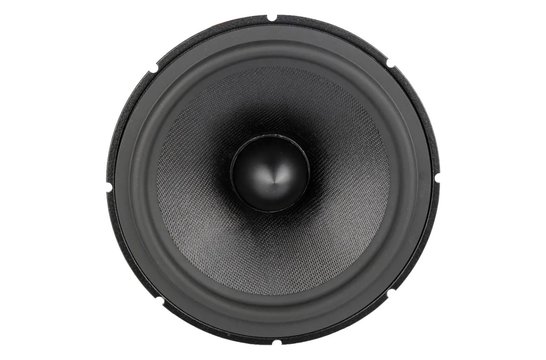

      A glass fibrecone, and a stiff low loss rubber surround carefully matched to each other, result in a smooth frequency response, and a clear, precise reproduction of the critical midrange area.


      A relatively large voice coil diameter results in high power handling capacity. The magnet system with a T-shaped cross section of the pole piece gives low
      modulation distortion.

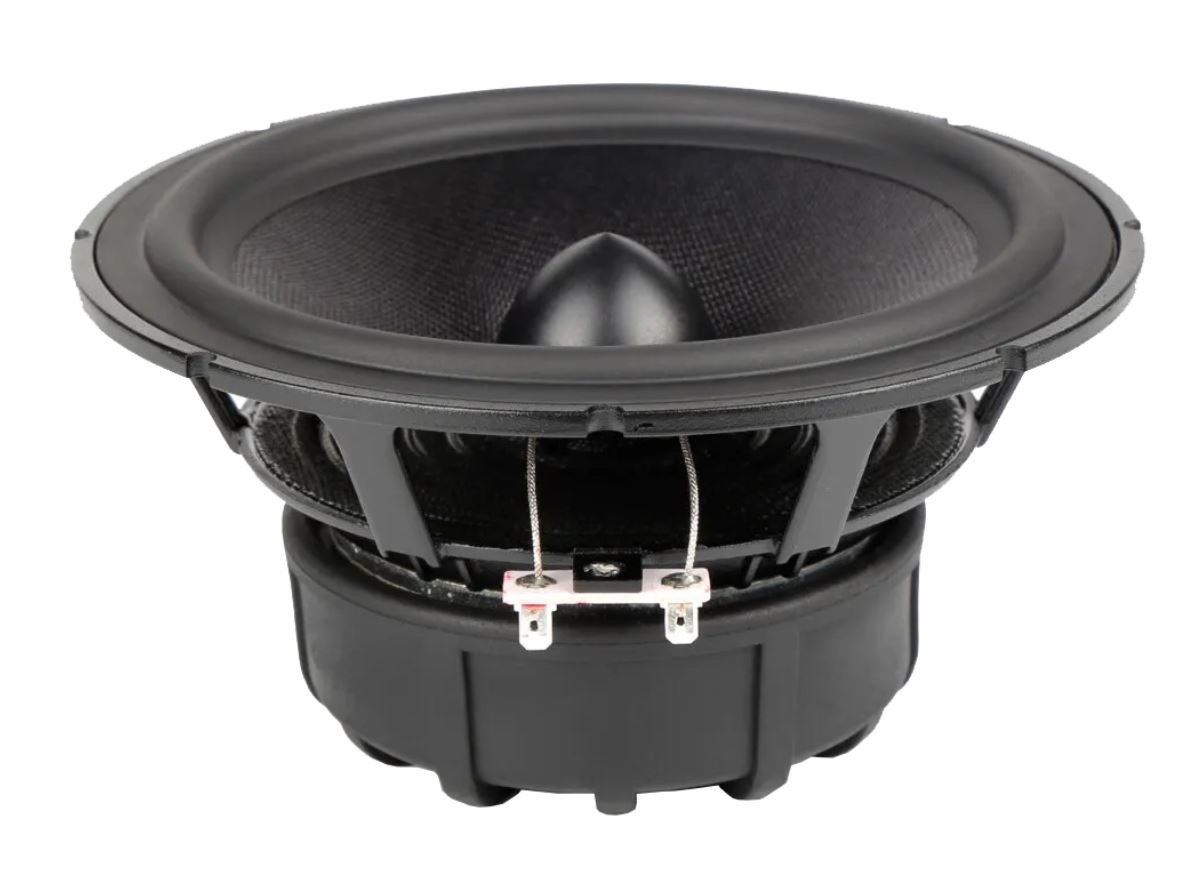

      The bullet shaped phase plug reduces compression due to temperature variations in the voice coil and avoids resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.

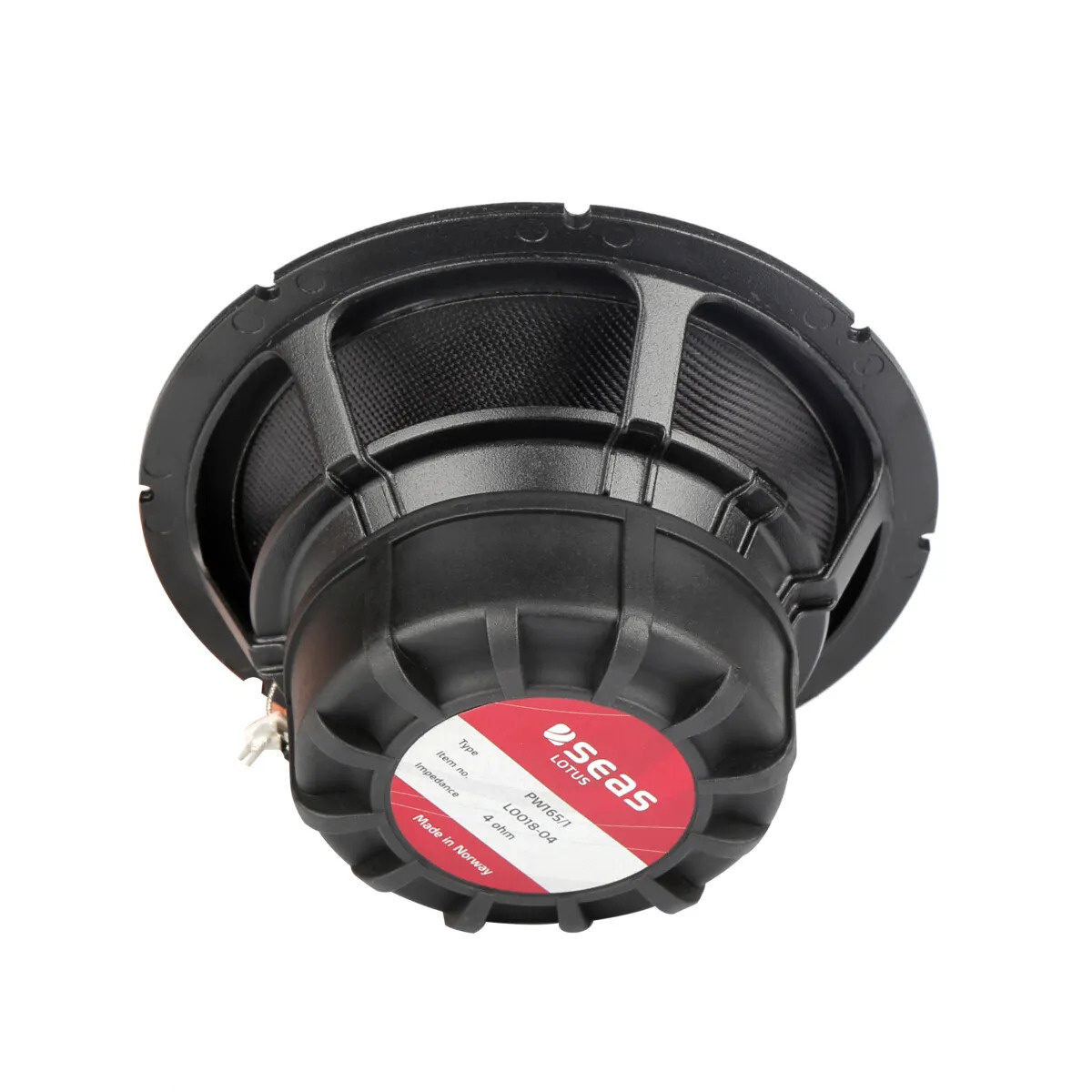

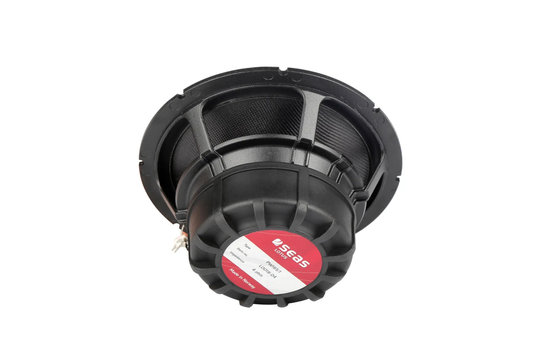

      The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.

      Show more

      Specifiche

      Numero dell'articolo:
      PW165/1
      EAN
      8785256847174
      Serie del woofer
      Orbit
      Tipo di woofer
      Full Range
      Diametro nominale
      2 " | 54 mm
      Gestione della potenza (RMS)
      10 W
      Gestione della potenza (max)
      12 W
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      86 dB
      Risposta in frequenza
      100 - 20000 Hz
      Diametro della bobina mobile
      25.5 mm
      Peso del magnete
      0.03 kg
      Resistenza DC (Re)
      3.3 Ω
      Induttanza della bobina mobile (Le)
      0.14 mH
      Frequenza di risonanza (Fs)
      70 Hz
      Fattore di merito meccanico (Qms)
      4.40
      Fattore di merito elettromagnetico (Qes)
      0.41
      Fattore di merito totale (Qts)
      0.37
      Massa del diaframma incl. la massa dell'aria (Mms)
      3.0 g
      Cedevolezza meccanica della sospensione (Cms)
      1.77 mm/N
      Superficie del cono (Sd)
      23.8 cm²
      Prodotto BL (BL)
      3.2 N/A
      Volume equivalente di cedevolezza (Vas)
      1.42 L
      Escursione lineare massima (Xmax)
      4.6 mm
      Perdite meccaniche del driver (Rms)
      0.29 Ns/m
      Materiale del cono / diaframma
      Aluminum
      Materiale del cestello / telaio
      Steel
      Diametro esterno complessivo
      54 mm
      Profondità complessiva
      40.5 mm
      Diametro del ritaglio del pannello frontale
      43.3 mm
      # Numero di fori di montaggio
      4

      Show more

      There are no reviews written yet about this product..
