      LUCID Bookshelf Kit Autocostruzione with DSP

      SEAS LUCID Bookshelf Kit Autocostruzione with DSP

      €1.999,95 €2.249,95

      2 In magazzino

      Aggiungi al carrello

      SEAS LUCID Bookshelf Kit Autocostruzione with DSP

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SEAS
      Coppia
      LUCID Bookshelf Kit Autocostruzione with DSP
      LUCID Bookshelf Kit Autocostruzione with DSP
      LUCID Bookshelf Kit Autocostruzione with DSP
      LUCID Bookshelf Kit Autocostruzione with DSP
      € 1.859,46
      € 2.249,95
      € 1.652,85€ 1.999,95 2 In magazzino
      • -5% Acquista 4 per soli € 1.899,95 per pezzo
      € 1.999,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      LUCID Bookshelf Kit Autocostruzione with DSP
      LUCID Bookshelf Kit Autocostruzione with DSP
      LUCID Bookshelf Kit Autocostruzione with DSP
      LUCID Bookshelf Kit Autocostruzione with DSP

      Descrizione del prodotto SEAS LUCID DSP Bookshelf Kit Autocostruzione

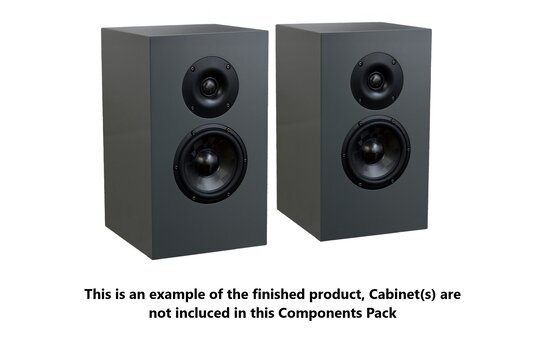

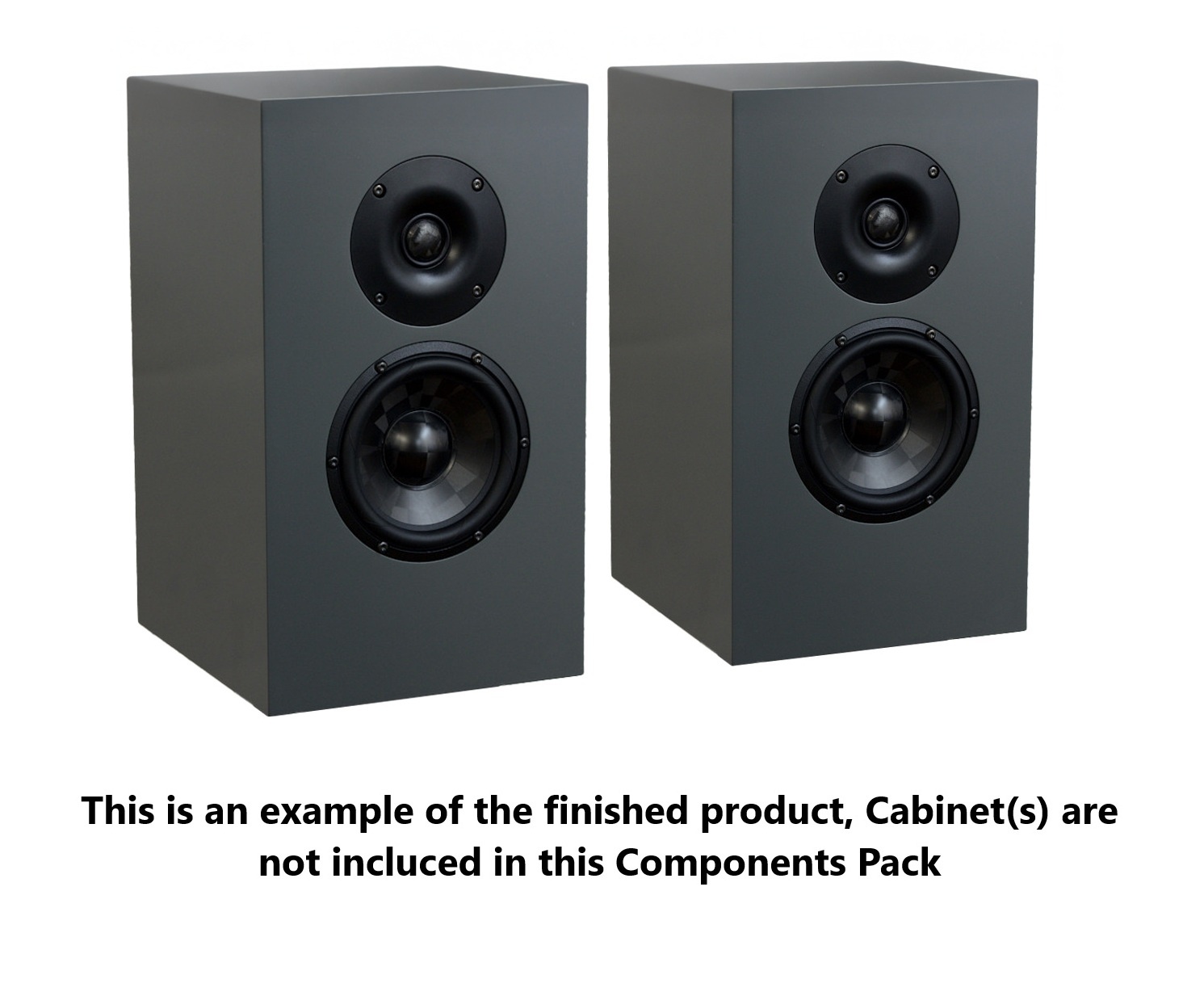

      The SEAS Lucid is a high-performance active bookshelf speaker kit designed for audiophiles seeking an immersive and engaging listening experience. Utilizing SEAS Metamodal TPCD drivers and advanced DSP technology, the Lucid delivers exceptional audio clarity and precision in a compact enclosure.

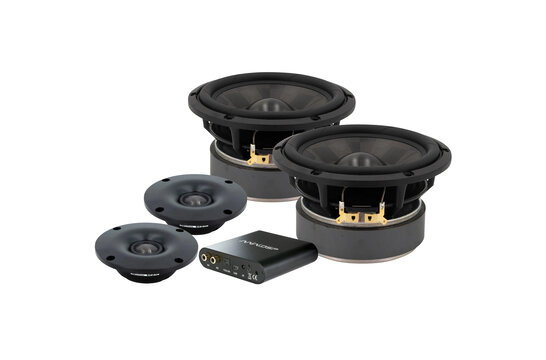

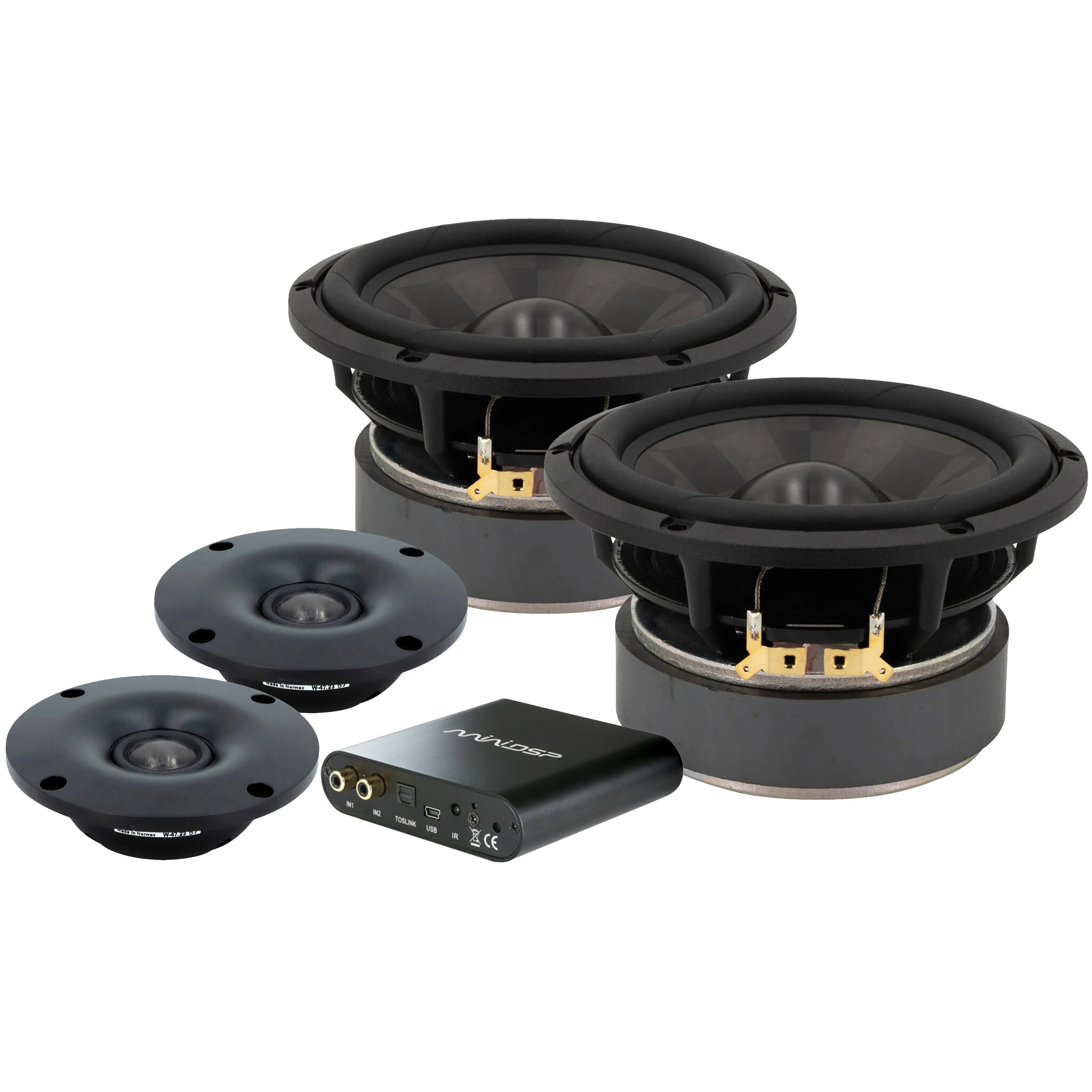

      Highlights of the SEAS Lucid DSP Bookshelf Components Pack

      • Features the SEAS T29X001 1" Metamodal TPCD dome tweeter for accurate high-frequency reproduction.
      • Incorporates the SEAS W16NX005 6.5" Metamodal TPCD woofer for dynamic and controlled bass response.
      • Employs a 14-liter closed-box design to minimize port noise and resonances, enhancing transient response.
      • Utilizes a miniDSP 2x4 HD Boxed for active crossover implementation, allowing precise tuning and EQ adjustments.



      Product details SEAS Lucid DSP Bookshelf Components Pack

      SEAS Lucid DIY Active Bookshelf Speaker Kit



      The SEAS Lucid is meticulously engineered to provide audiophiles with a premium DIY speaker solution that combines state-of-the-art driver technology with the flexibility of digital signal processing. Central to this kit are the SEAS Metamodal TPCD drivers: the T29X001 1" dome tweeter and the W16NX005 6.5" woofer. The tweeter's Metamodal TPCD dome balances stiffness, weight, and damping, ensuring clear and accurate high-frequency reproduction. The woofer's large excursion capability and compact size deliver dynamic low-end performance with wide dispersion, facilitating a seamless transition between drivers.



      The recommended enclosure is a 14-liter closed box, chosen to eliminate issues associated with ported designs, such as port noise and midrange leakage. This design enhances transient response and provides a tight, controlled bass. The wider baffle lowers the baffle step frequency, adding body to the midrange and contributing to a balanced tonal character.



      The active crossover is implemented using a miniDSP 2x4 HD Boxed, allowing for rapid testing and fine-tuning of various setups. This approach enables precise EQ adjustments, particularly beneficial for tailoring the low-end response of the closed-box design. The crossover is configured to achieve a smooth and slightly declining response within the listening window (0-30 degrees) and a consistent power response. An all-pass filter is employed to align the phase of the drivers over a broad frequency range, ensuring a seamless crossover at approximately 3.3 kHz. Additionally, a high-pass filter at 40 Hz is applied to the woofer to suppress distortion from excessive low-frequency excursion, with the option to adjust or disable this filter based on user preference and SPL requirements.



      The SEAS Lucid kit offers DIY enthusiasts a sophisticated and adaptable speaker system capable of delivering high-fidelity sound. Its combination of advanced driver materials, thoughtful enclosure design, and the versatility of DSP makes it an excellent choice for those seeking to build a modern, active bookshelf speaker system.

      Show more

      Specifiche

      Numero dell'articolo:
      LUCID
      EAN
      9505332927984
      Diametro nominale
      Woofer 6", Tweeter 1"
      Gestione della potenza (RMS)
      180 Watt (Woofer) + 120 Watt (Tweeter)
      Gestione della potenza (max)
      300 Watt (Woofer)
      Impedenza (Z)
      Woofer 8 Ω, Tweeter 4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      87.3 dB (Woofer) + 91 dB (Tweeter)
      Risposta in frequenza
      20 - 4000 Hz, 2000 - 30.000 Hz
      Diametro della bobina mobile
      39 mm (Woofer) + 26 mm (Tweeter)
      Resistenza DC (Re)
      6.4 Ω (Woofer) + 3.6 Ω (Tweeter)
      Induttanza della bobina mobile (Le)
      0.45 mH (Woofer) + 0.01 (Tweeter)
      Frequenza di risonanza (Fs)
      40 Hz (Woofer) + 515 Hz (Tweeter)
      Fattore di merito meccanico (Qms)
      4.37 (Woofer)
      Fattore di merito elettromagnetico (Qes)
      0.34 (Woofer)
      Fattore di merito totale (Qts)
      0.32 (Woofer)
      Massa del diaframma incl. la massa dell'aria (Mms)
      13.4 g (Woofer)
      Superficie del cono (Sd)
      104 cm² (Woofer)
      Volume equivalente di cedevolezza (Vas)
      18 Liters (Woofer)
      Escursione lineare massima (Xmax)
      11 mm (Woofer)
      Supporto della bobina mobile
      Titanium (Woofer)
      Diametro esterno complessivo
      146 mm (Woofer) + 110 mm (Tweeter)
      Profondità complessiva
      78.8 mm (Woofer) + 38.8 mm (Tweeter)
      Diametro del ritaglio del pannello frontale
      126 mm (Woofer) + 85.6 mm (Tweeter)
      # Numero di fori di montaggio
      6 (Woofer) + 4 (Tweeter)
      Diametro dei fori di montaggio
      5 mm (Woofer) + 4.5 mm (Tweeter)
