      Descrizione del prodotto SEAS Prestige CA22RNY - H1471-08 Woofer Medio-Bassi

      Highlights

      • Long term power handling (RMS) is 90 Watts
      • Low distortion and high power handling capacity
      • Perfect driver for high efficiency 2-way system



      Product details

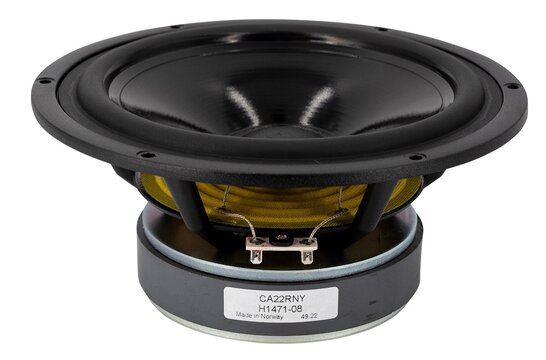

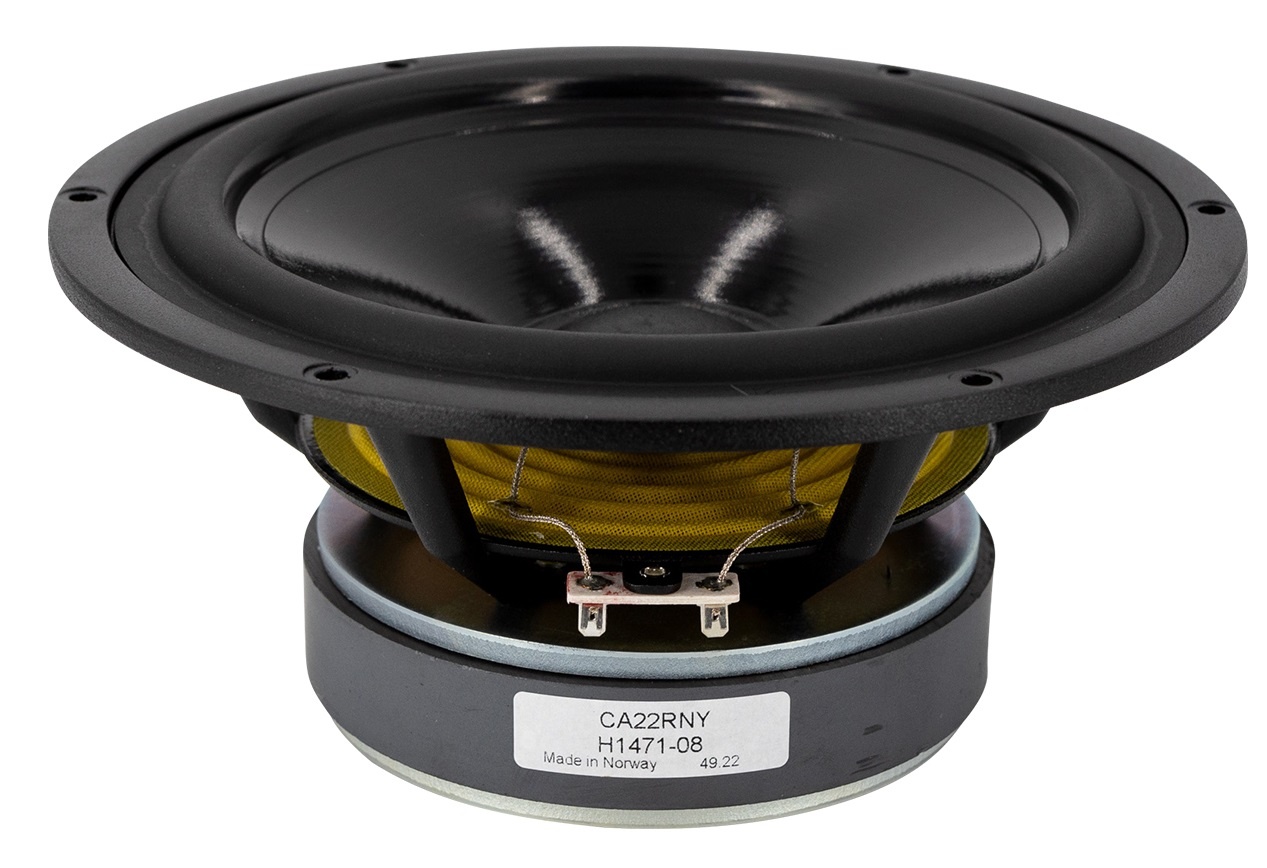

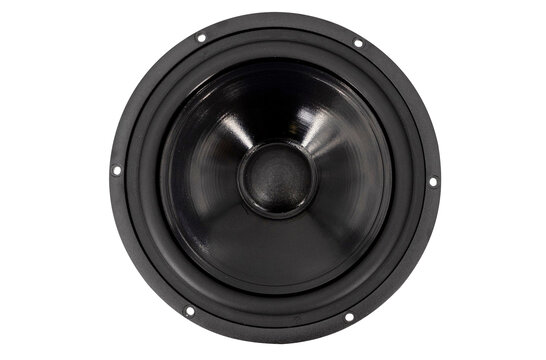

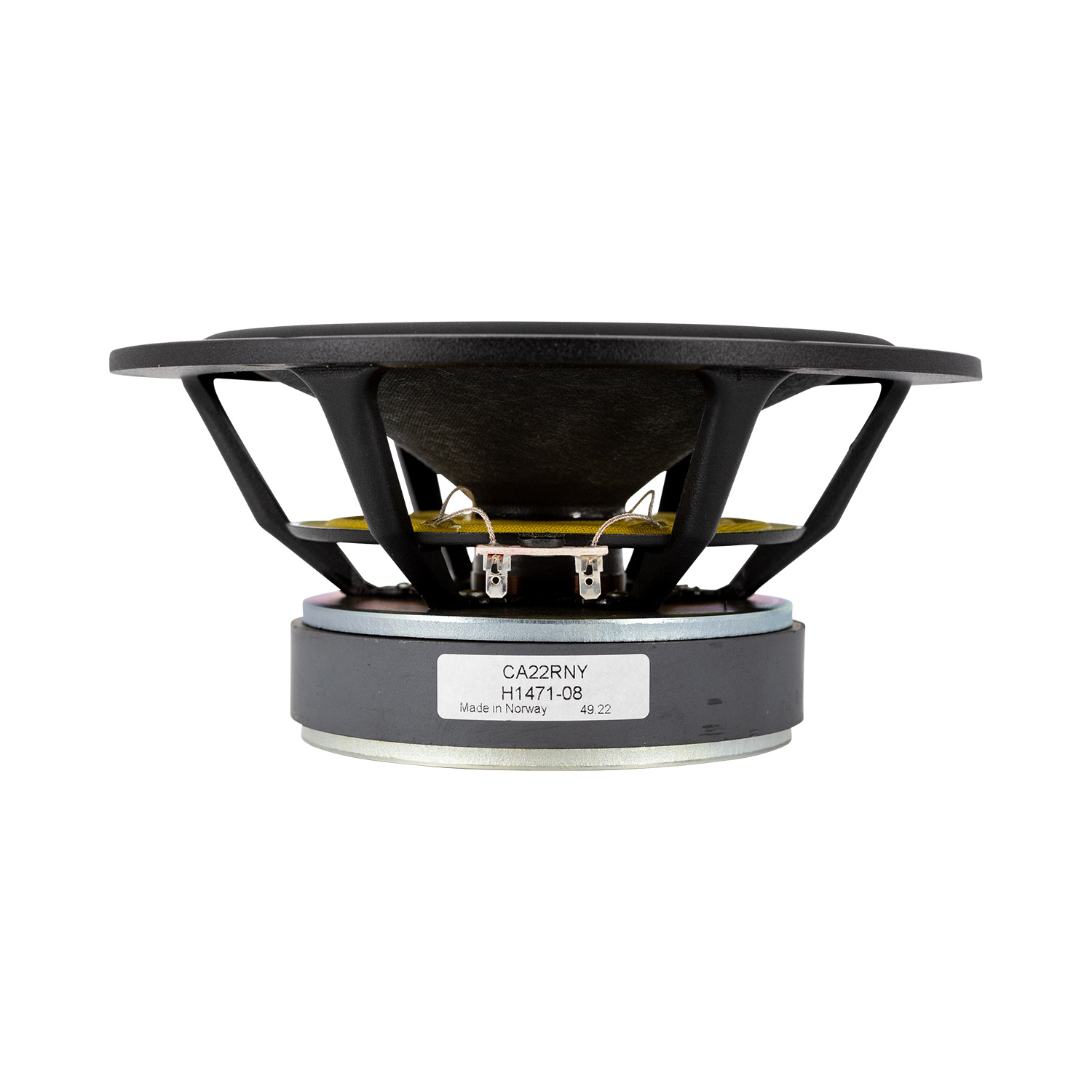

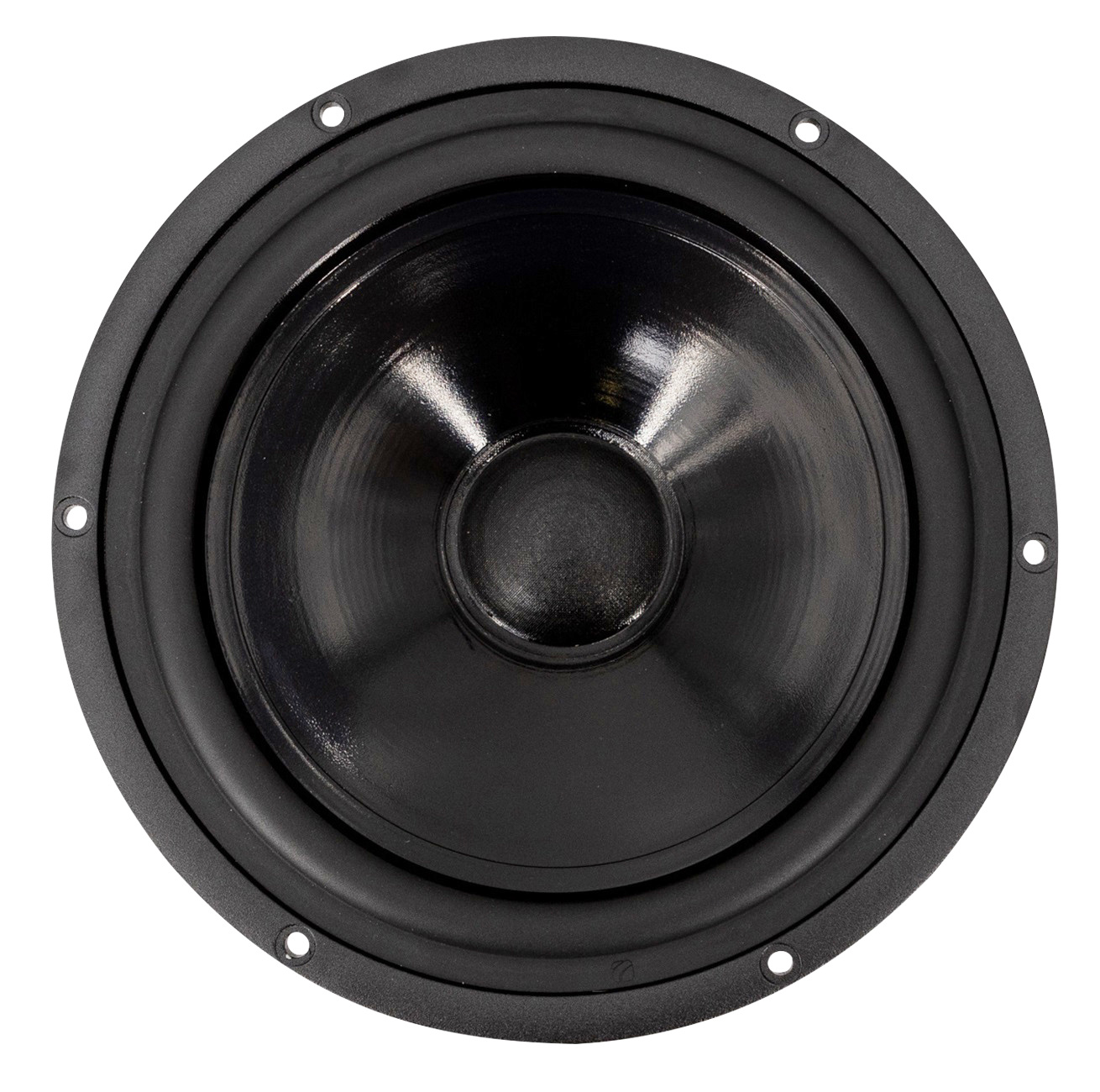

      Seas Prestige CA22RNY - H1471-08 8" Coated Paper Cone Woofer



      Classical handcoated paper cone and matching natural rubber surround produce a well behaved roll off characteristic and reduce potential resonance problems. Long, high temperature voice coil wound on an aluminum voice coil former gives low distortion and high power handling capacity.

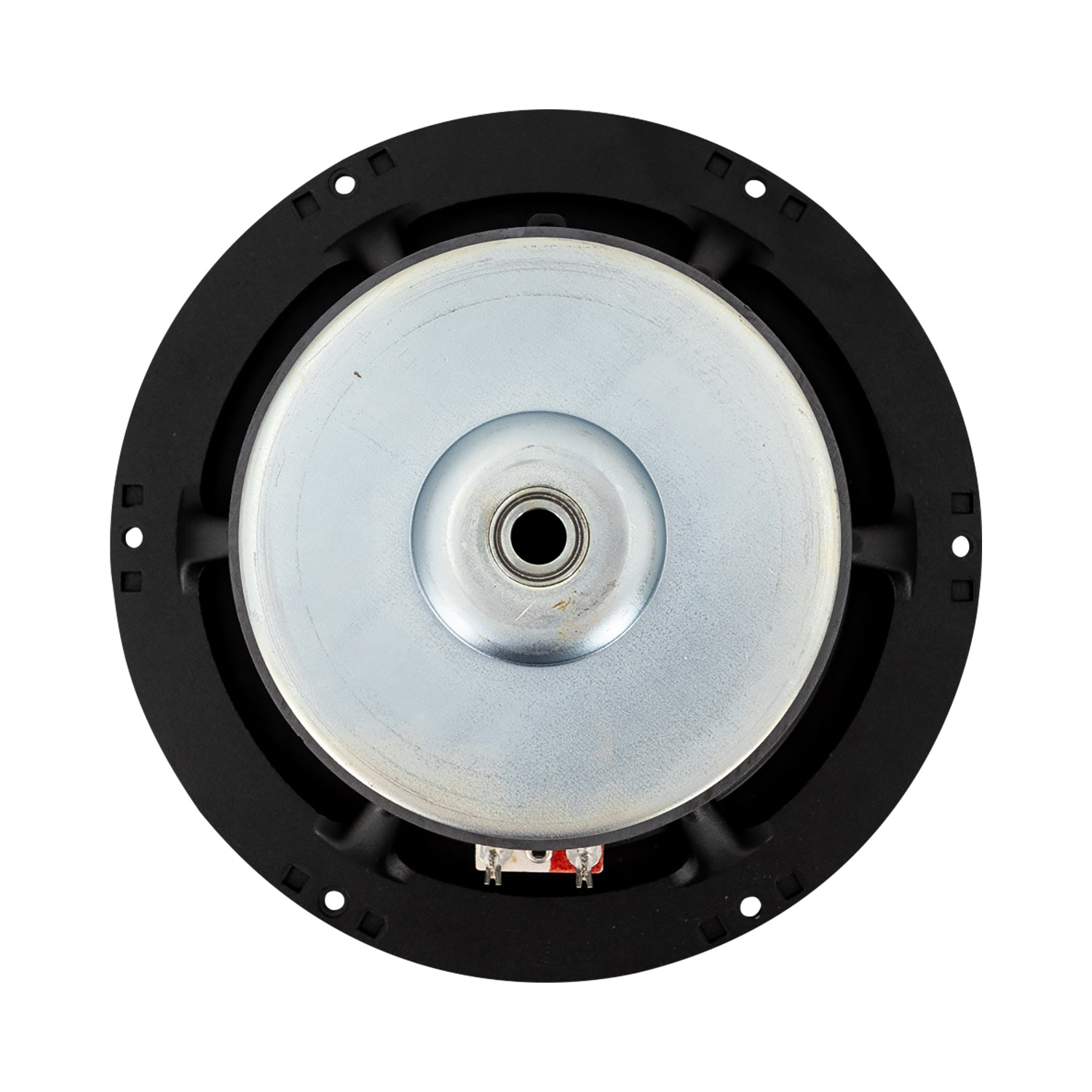

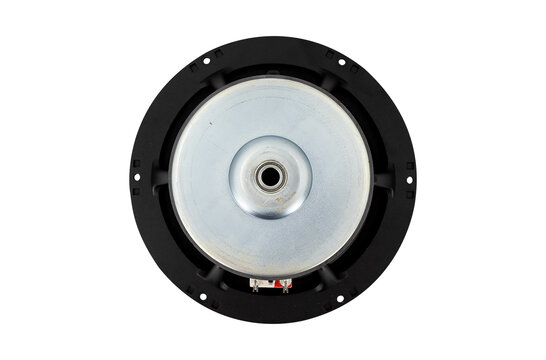

      Extra large magnet system provides high efficiency and good transient response, and parameters that make this driver perfect for high efficiency 2-way system. Bumped backplate in the magnet system allows maximum utilization of the long voice coil without mechanical limitation.

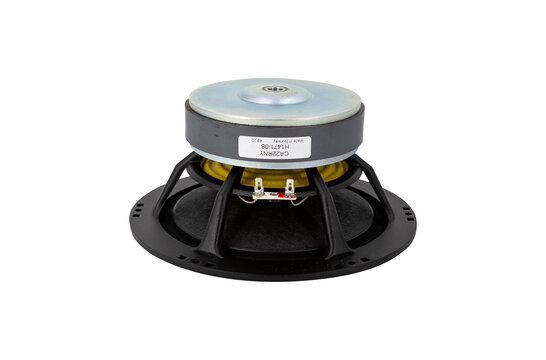

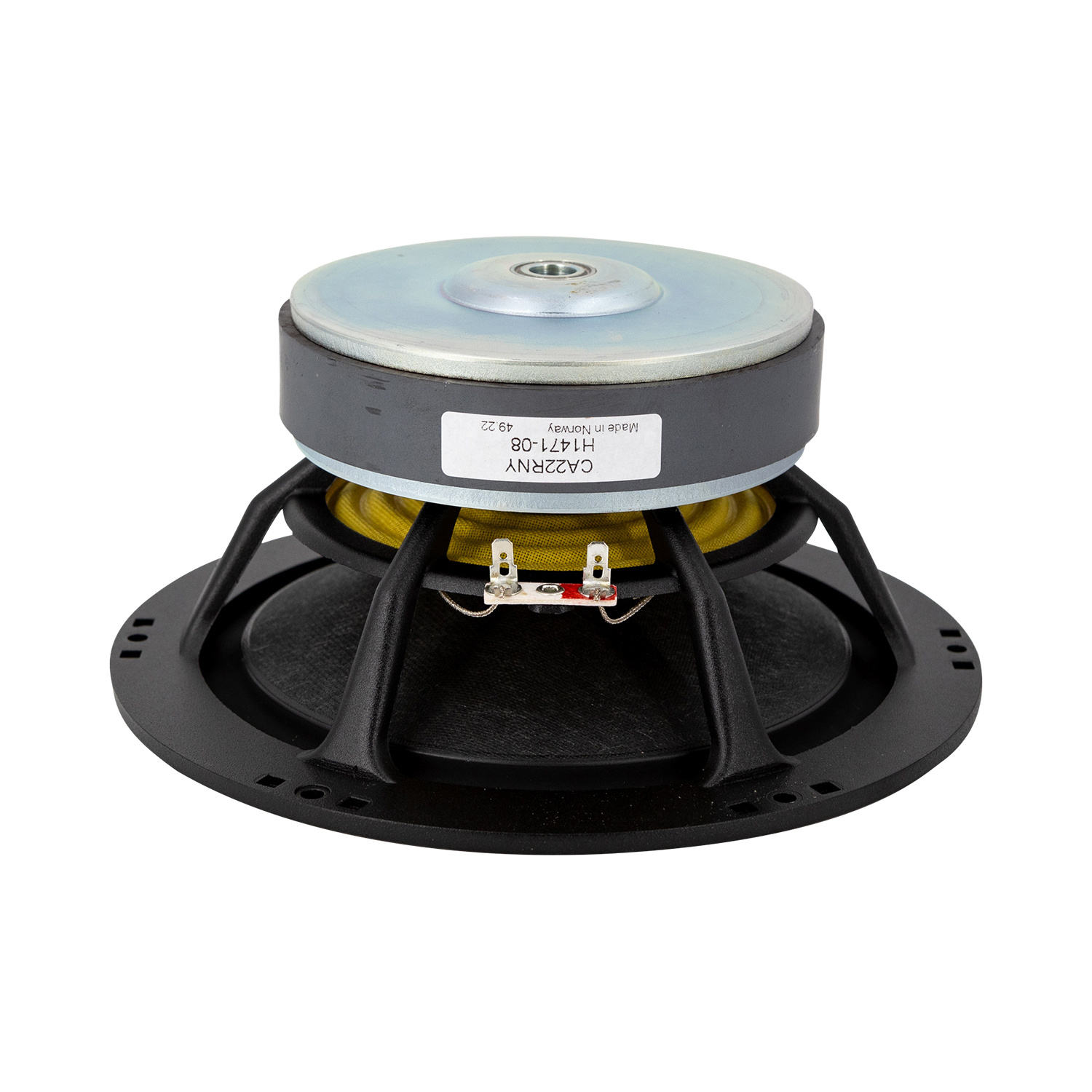

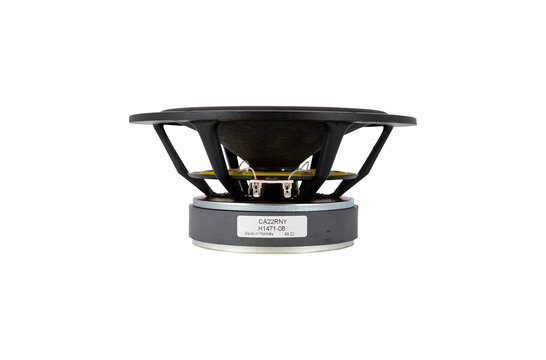

      Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonances to a minimum.

      Show more

      Specifiche

      Numero dell'articolo:
      CA22RNY
      EAN
      0696277270002
      Serie del woofer
      Prestige
      Tipo di woofer
      Midwoofer
      Diametro nominale
      8 " | 221 mm
      Gestione della potenza (RMS)
      90 W
      Gestione della potenza (max)
      250 W
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      91 dB
      Risposta in frequenza
      35 - 2500 Hz
      Diametro della bobina mobile
      39 mm
      Peso del magnete
      1.30 kg
      Resistenza DC (Re)
      6.2 Ω
      Induttanza della bobina mobile (Le)
      1.55 mH
      Frequenza di risonanza (Fs)
      34 Hz
      Fattore di merito meccanico (Qms)
      1.69
      Fattore di merito elettromagnetico (Qes)
      0.36
      Fattore di merito totale (Qts)
      0.30
      Massa del diaframma incl. la massa dell'aria (Mms)
      19.8 g
      Cedevolezza meccanica della sospensione (Cms)
      1.1 mm/N
      Superficie del cono (Sd)
      230 cm²
      Prodotto BL (BL)
      8.5 N/A
      Volume equivalente di cedevolezza (Vas)
      82 L
      Escursione lineare massima (Xmax)
      6 mm
      Perdite meccaniche del driver (Rms)
      2.51 Ns/m
      Materiale del cono / diaframma
      Paper
      Materiale della sospensione
      Rubber
      Supporto della bobina mobile
      Aluminium
      Materiale del cestello / telaio
      Injection moulded metal
      Diametro esterno complessivo
      221.0 mm
      Profondità complessiva
      97.0 mm
      Diametro del ritaglio del pannello frontale
      186.4 mm
      Diametro del cerchio dei fori di montaggio
      209.5 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5.0 mm
