Name: SEAS BRAGI MTM Kit Autocostruzione
Brand: SEAS
SKU: BRAGI
Price: 599.95 EUR
Availability: BackOrder

Single

€ 520,62

€ 629,95

€ 495,83€ 599,95 Esaurito

Backorder

Spedizione gratuita a partire da € 199
Presto di nuovo disponibile
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto SEAS BRAGI MTM Kit Autocostruzione

The SEAS Bragi is a meticulously engineered 2-way MTM (Midwoofer-Tweeter-Midwoofer) loudspeaker kit designed for audiophiles seeking high-fidelity sound reproduction. This kit combines advanced driver technology with a thoughtfully designed crossover network to deliver exceptional audio performance in a compact form factor.

Highlights of the SEAS Bragi Loudspeaker Kit

Dual 6.5" SEAS U18RNX/P woofers featuring woven polypropylene Curv cones for smooth and extended frequency response.
27 mm SEAS 27TBCD/GB-DXT tweeter with DXT lens for controlled directivity and excellent off-axis performance.
Symmetrical crossover design at 2.6 kHz ensuring seamless integration between drivers.
Compact bass-reflex cabinet design with a 30-liter volume for balanced bass reproduction.

Product details SEAS Bragi Loudspeaker Kit

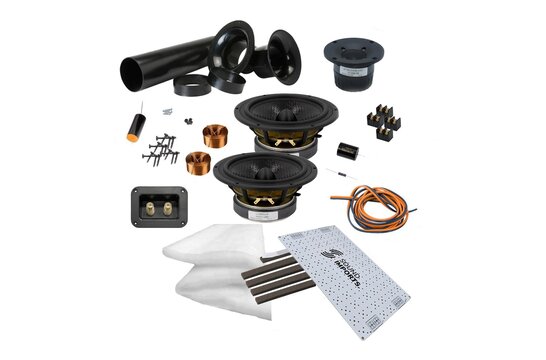

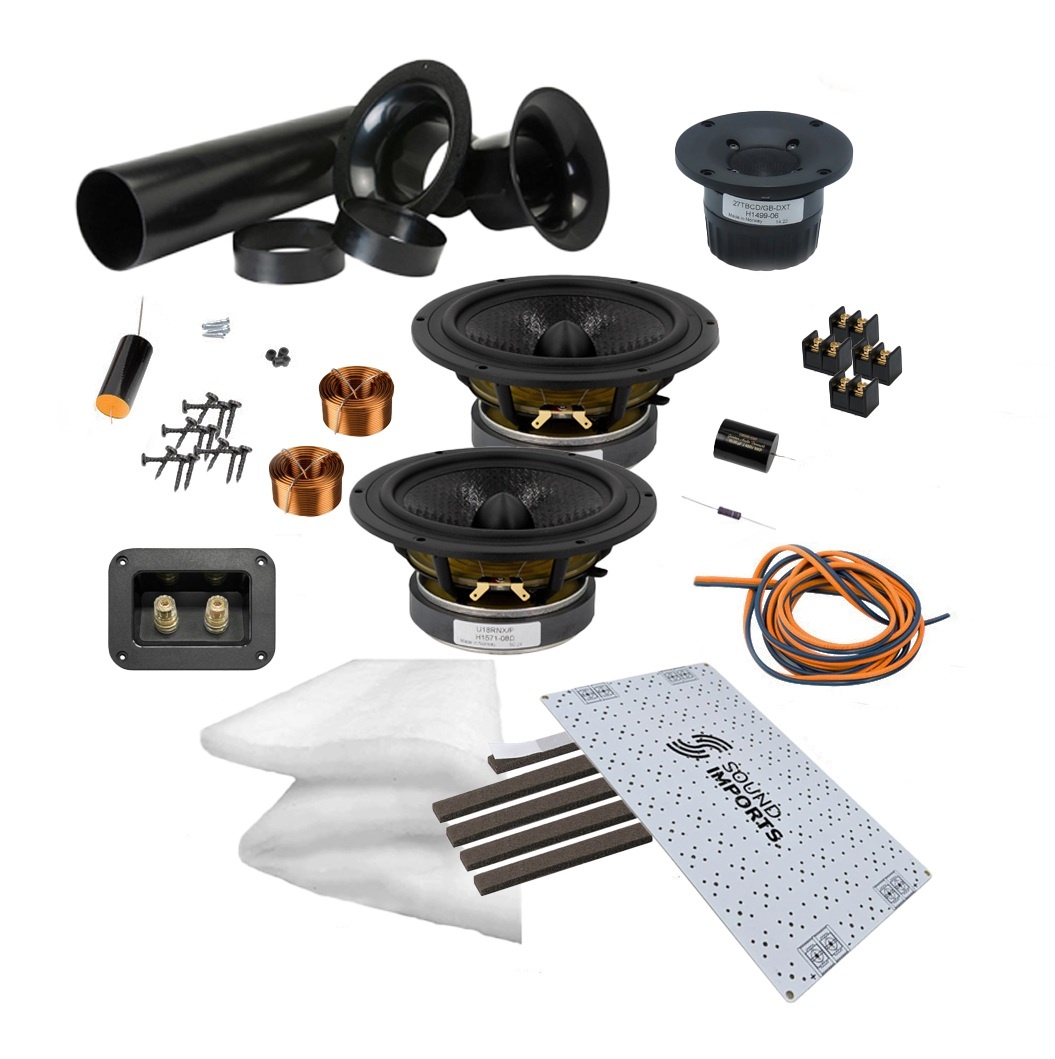

SEAS Bragi 2-Way MTM Loudspeaker Kit

The Bragi loudspeaker kit features two SEAS U18RNX/P woofers, each equipped with a woven polypropylene Curv cone. This material offers excellent internal damping, resulting in a smooth and extended frequency response. The woofers are designed with a large magnet system and a long, lightweight copper-clad aluminum voice coil, allowing for significant excursion with low distortion. The bullet-shaped phase plug reduces compression and resonance issues, enhancing overall performance.

The high frequencies are handled by the SEAS 27TBCD/GB-DXT tweeter, which incorporates an aluminum/magnesium alloy dome and a unique DXT lens. This design addresses directivity control, off-axis response, and baffle diffraction issues, ensuring consistent performance across a wide listening area. The tweeter's rear chamber is optimally damped, allowing for use with moderately low crossover frequencies.

The crossover network is a symmetrical 2nd order design with a crossover frequency at 2.6 kHz. This configuration aligns the phase of the drivers effectively, providing a smooth transition between the woofers and the tweeter. The simplicity of the crossover contributes to the system's dynamic and detailed sound quality, even at high power levels.
