      Illuminator R3004/602200 Tweeter Ring Radiator

      Scan-Speak Illuminator R3004/602200 Tweeter Ring Radiator

      €199,95

      Non disponibile

      Scan-Speak Illuminator R3004/602200 Tweeter Ring Radiator

      1 reviews
      5 da 5
      1 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Scan-Speak
      € 165,25€ 199,95 Esaurito
      • -5% Acquista 4 per soli € 189,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

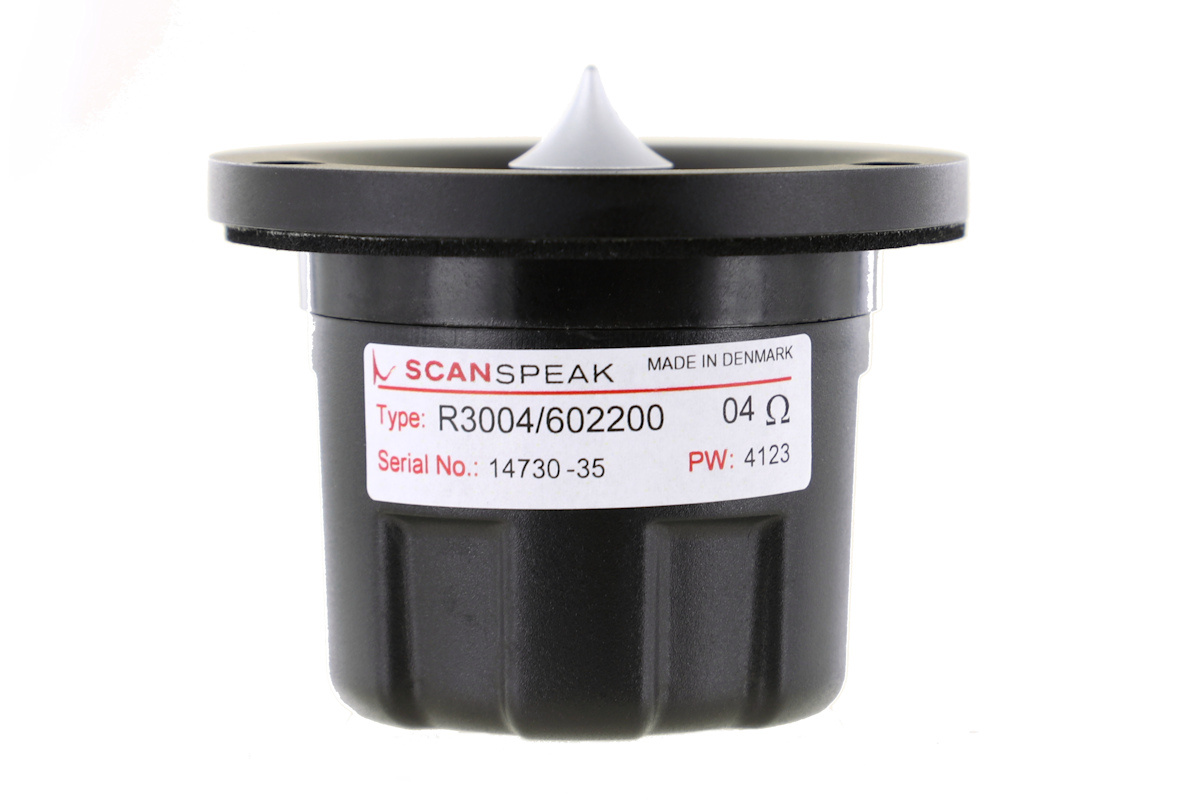

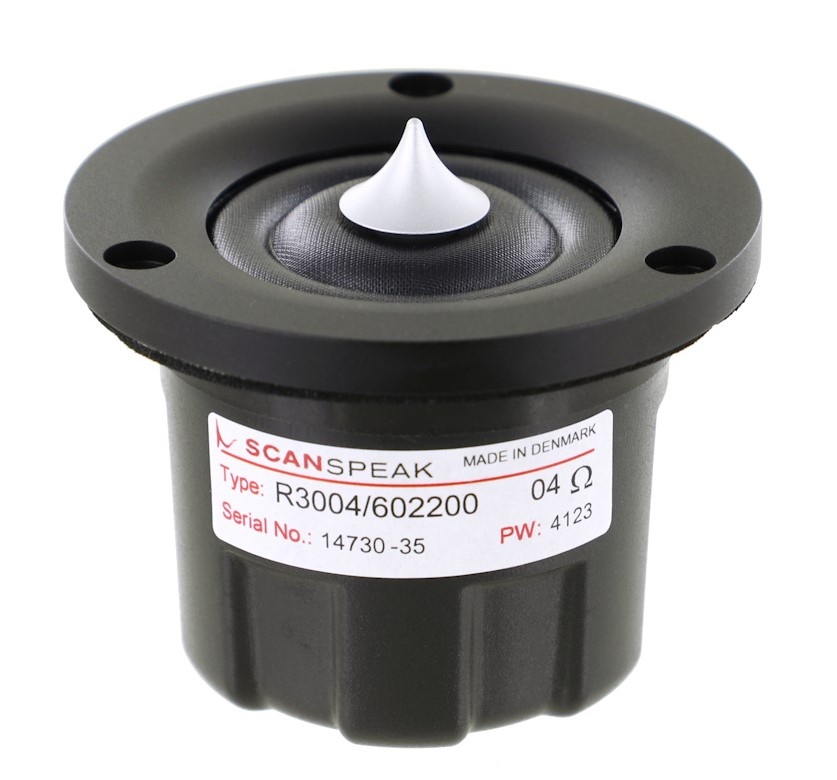

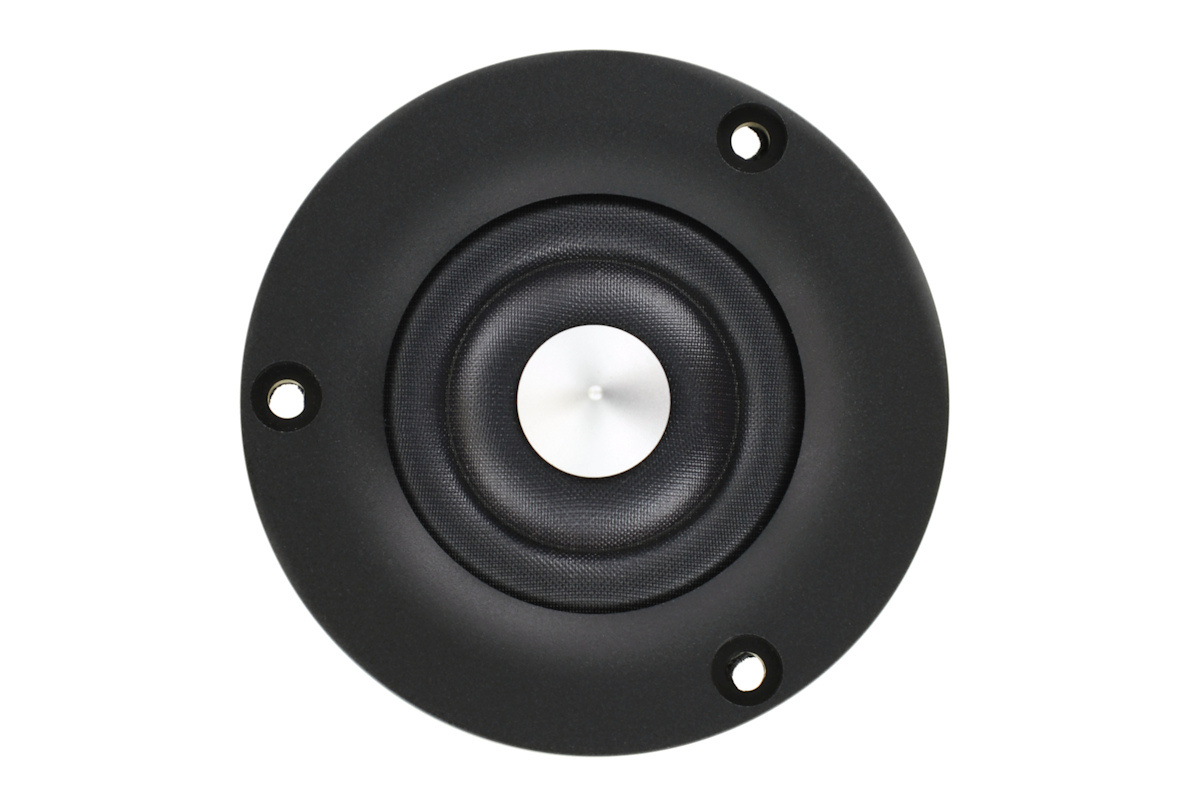

      Descrizione del prodotto Scan-Speak Illuminator R3004/602200 Tweeter Ring Radiator

      The Scan-Speak Illuminator R3004/602200 Ring Radiator Tweeter is a high-end audio component designed to deliver exceptional sound quality. It features a 1-inch ring radiator tweeter, a high-grade neodymium magnet, and a textile dome diaphragm. This combination of materials results in a tweeter that produces clear, detailed high-frequency sound with minimal distortion.



      Highlights

      • 1" ring radiator tweeter
      • High-grade neodymium magnet
      • Textile dome diaphragm
      • Die-cast aluminum faceplate
      • Frequency response: 2.5kHz to 40kHz
      • Sensitivity: 92dB
      • Very compact size



      Product details

      Scan-Speak Illuminator R3004/602200 Ring Radiator Tweeter


      The Scan-Speak Illuminator R3004/602200 Ring Radiator Tweeter is also very compact, making it easy to install in a variety of applications. It has a frequency response of 2.5kHz to 40kHz and a sensitivity of 92dB. This means that it can reproduce a wide range of high-frequency sounds and that it can be driven by a relatively low-power amplifier. The tweeter is also very efficient, meaning that it can convert a large amount of electrical power into sound output.

      Show more

      Specifiche

      Numero dell'articolo:
      R3004/602200
      EAN
      8785256859849
      Tipo di tweeter
      Ring Radiator Tweeter
      Serie del tweeter
      Illuminator
      Diametro del cono / cupola
      26 mm
      Gestione della potenza (RMS)
      50 Watts
      Gestione della potenza (max)
      130 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      89.5 dB
      Risposta in frequenza
      2.500-40.000 Hz
      Frequenza di risonanza (Fs)
      420 Hz
      Resistenza DC (Re)
      3 Ω
      Induttanza della bobina mobile (Le)
      0.02 mH
      Fattore di merito meccanico (Qms)
      2.3
      Fattore di merito elettromagnetico (Qes)
      0.48
      Fattore di merito totale (Qts)
      0.40
      Diametro esterno complessivo
      62 mm
      Diametro del ritaglio
      43 mm
      Tipo di montaggio
      3 Holes
