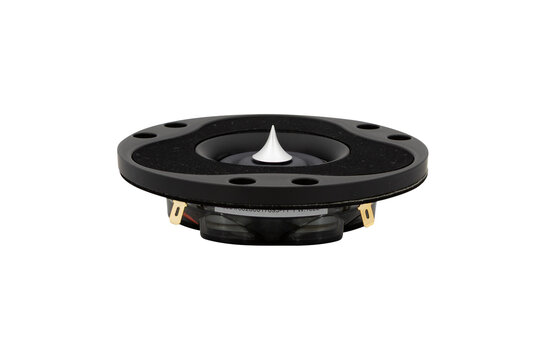

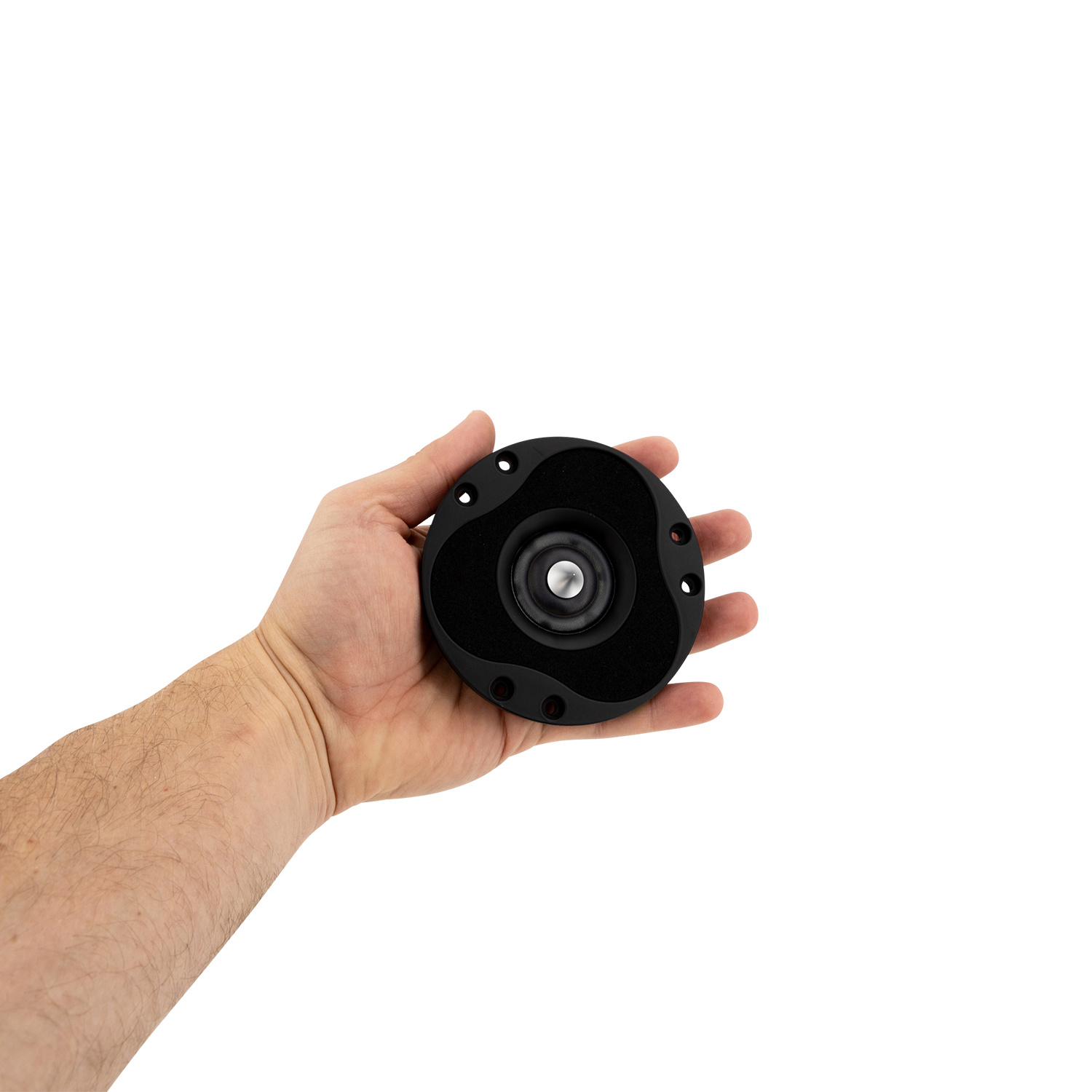

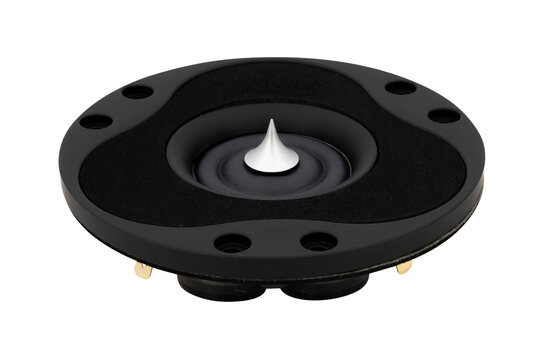

Name: Scan-Speak Illuminator R3004/662000 Tweeter Ring Radiator
Brand: Scan-Speak
SKU: R3004/662000
Price: 269.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

1" | 4 Ω

Illuminator R3004/662000 Tweeter Ring Radiator

€ 223,10€ 269,95 7 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Scan-Speak Illuminator R3004/662000 Tweeter Ring Radiator

Highlights

1" Ring Dome Diaphragm
Patented Symmetrical Drive (SD-2) motor
Diffraction Damping Rubber Front
Patented Phase Plug Design
AirCirc Motor Design with 6 Neo magnets
Die Cast Rubber Painted Alu Face Plate

Product details

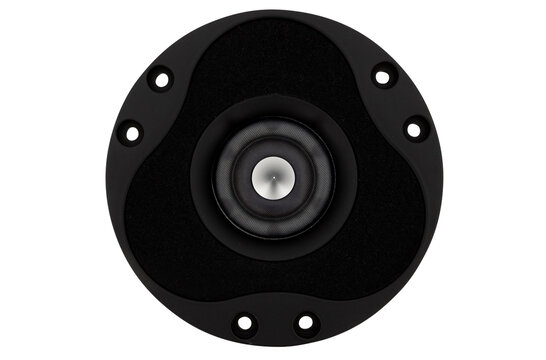

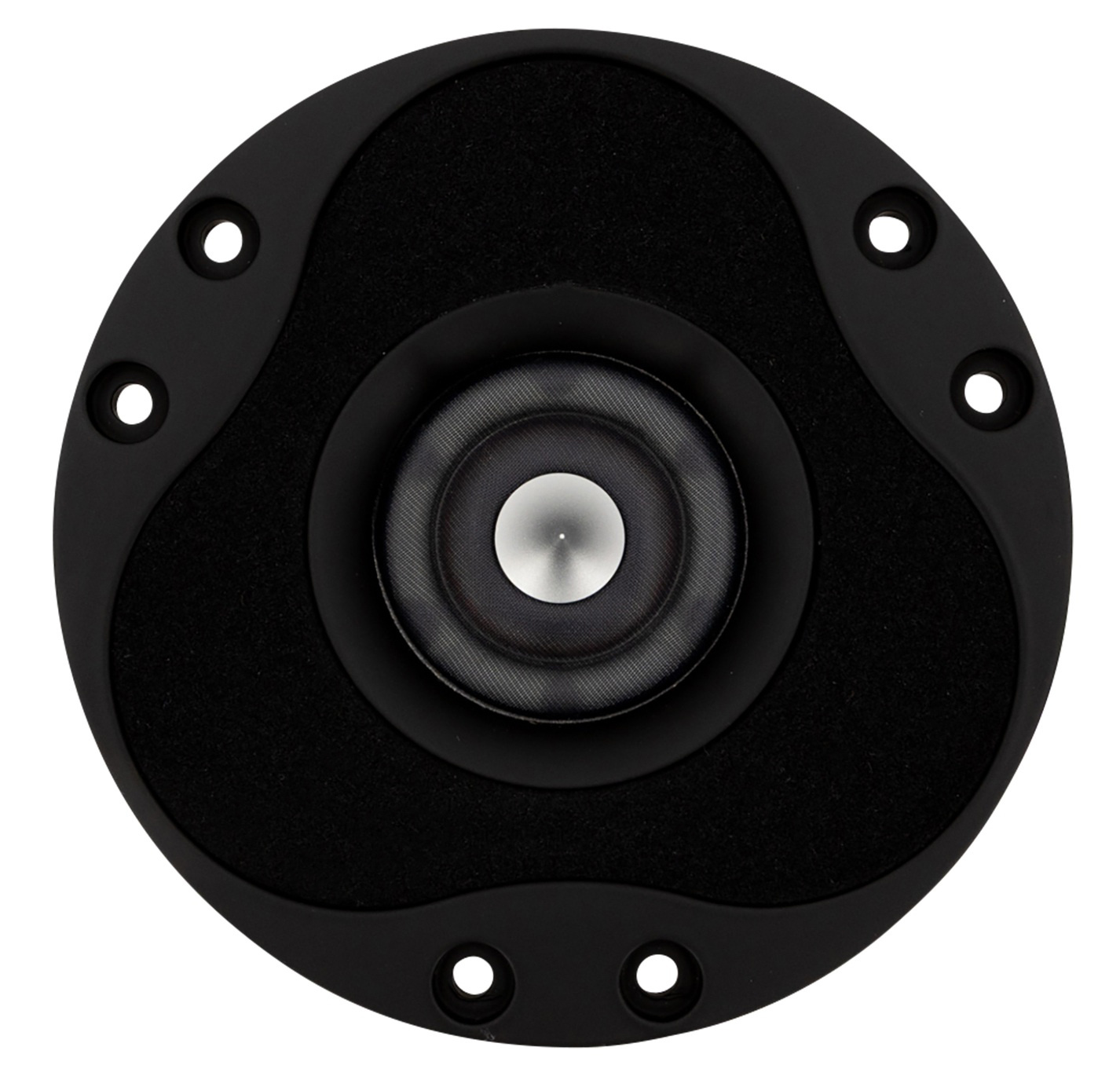

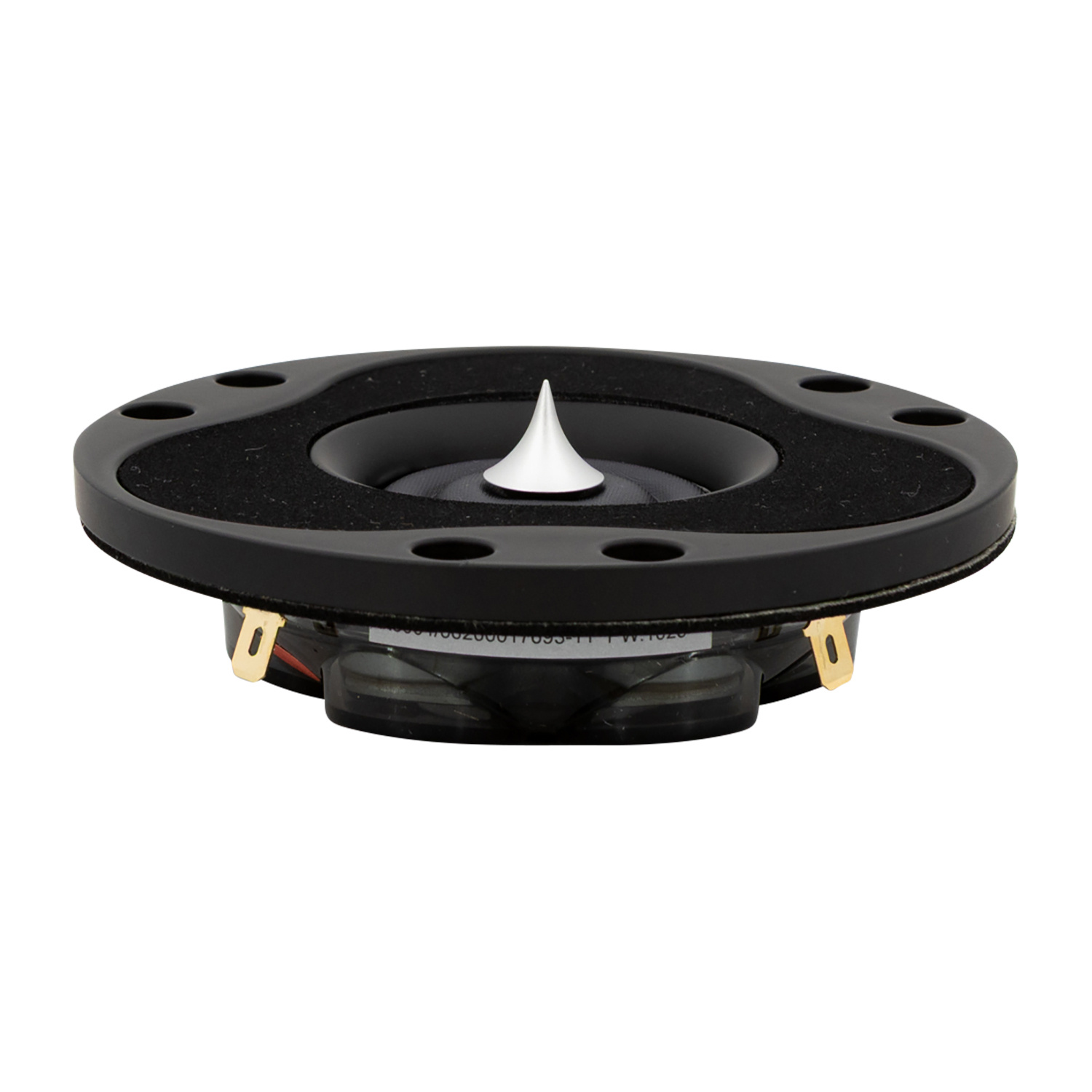

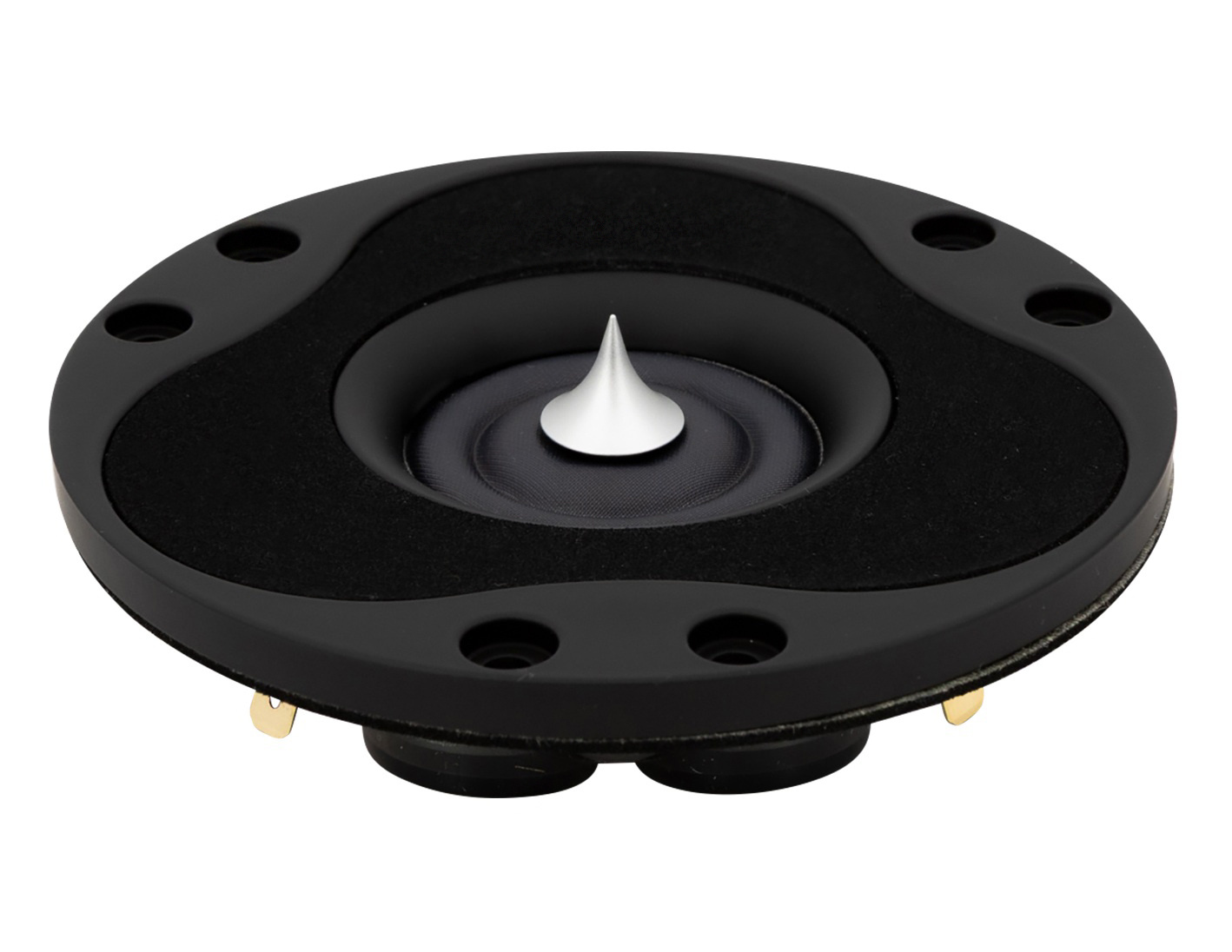

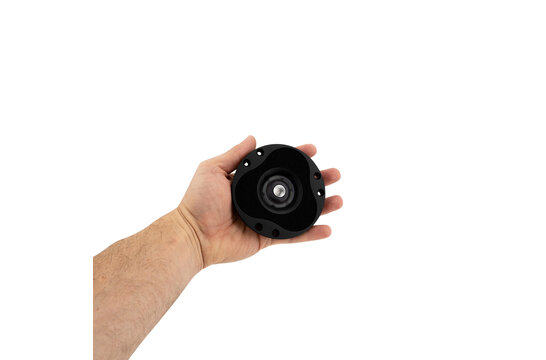

Scan-Speak Illuminator R3004/662000 1" Ring Radiator

The Illuminator tweeters continue with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

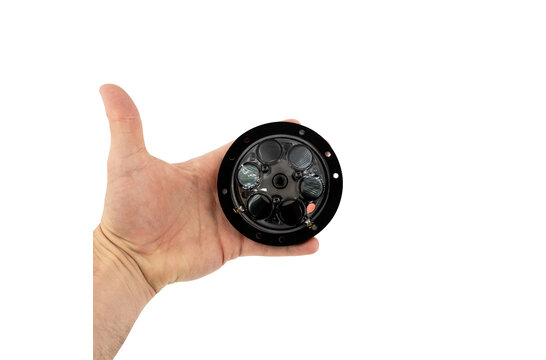

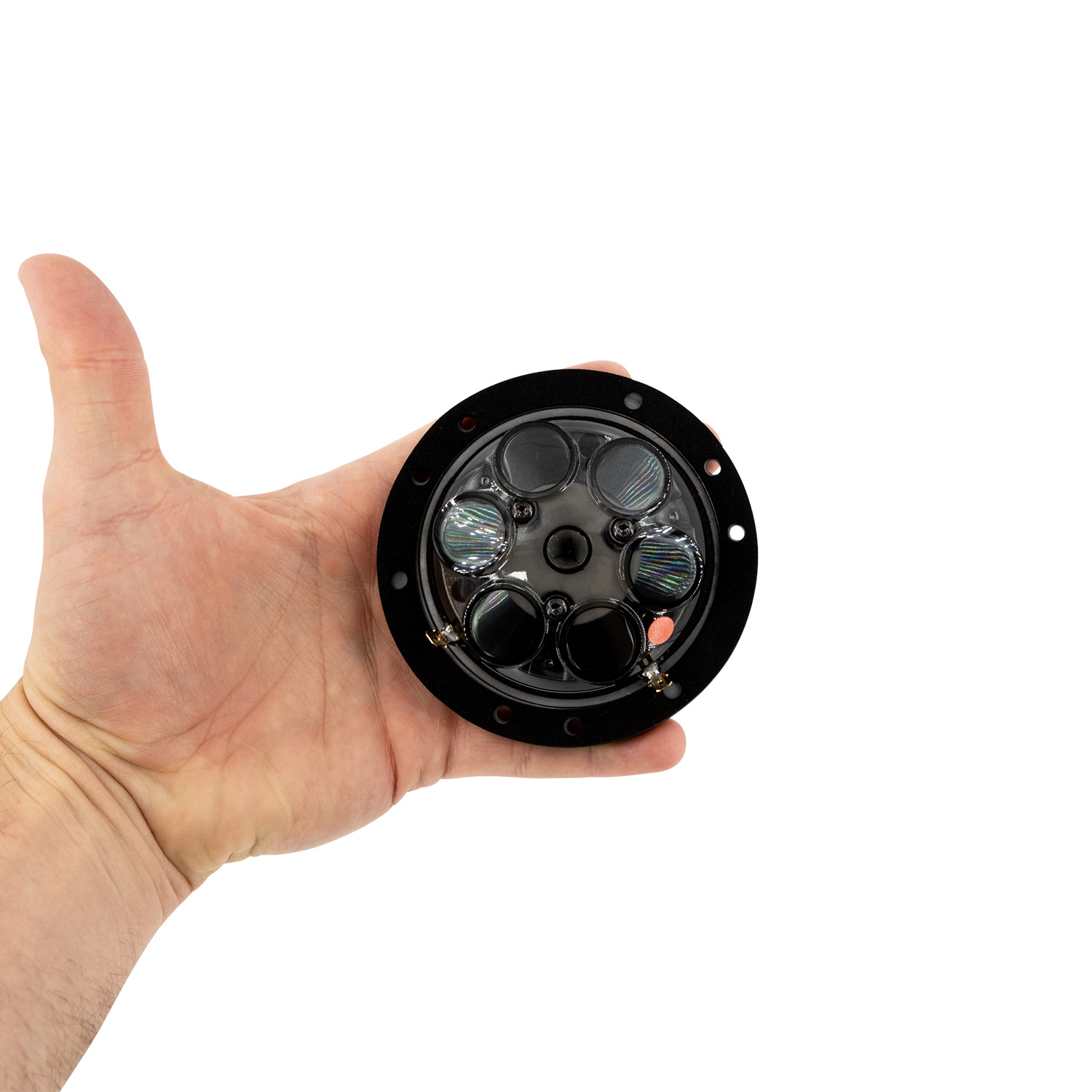

The R3004 builds on the experience of the one-inch R29 ring radiator, resulting in low resonance frequency, superb vocal rendition and excellent imaging at all listening locations. Scan-speak’s unique AirCirc Magnet System -- named for the way it optimizes air flow within the chamber – rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors.

Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm²
