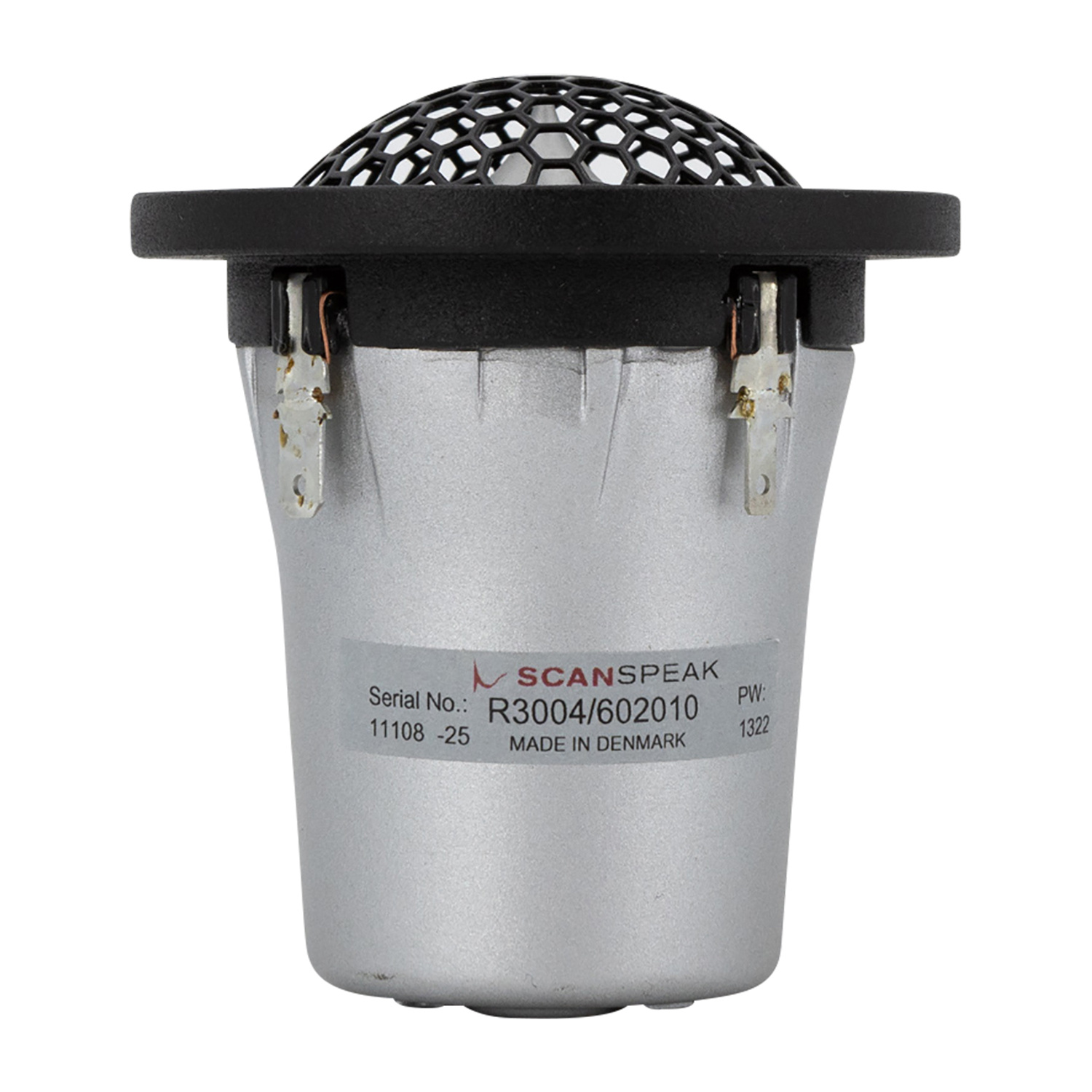

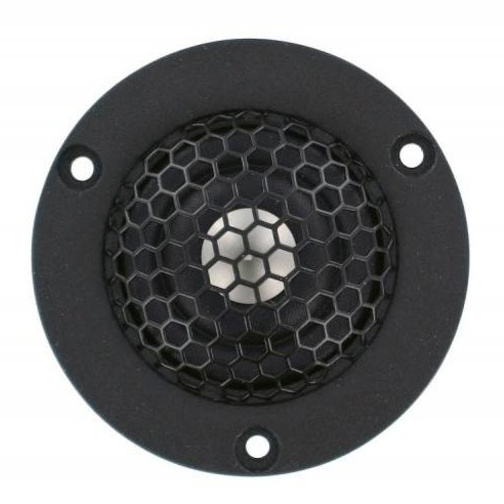

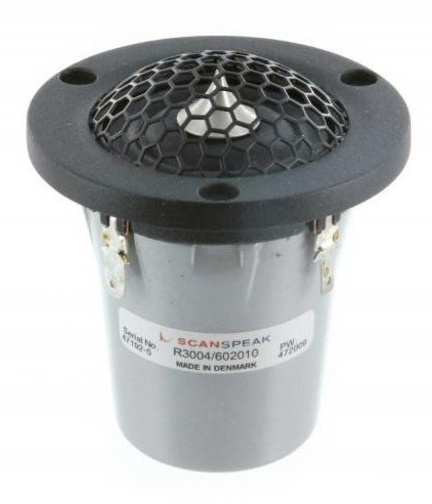

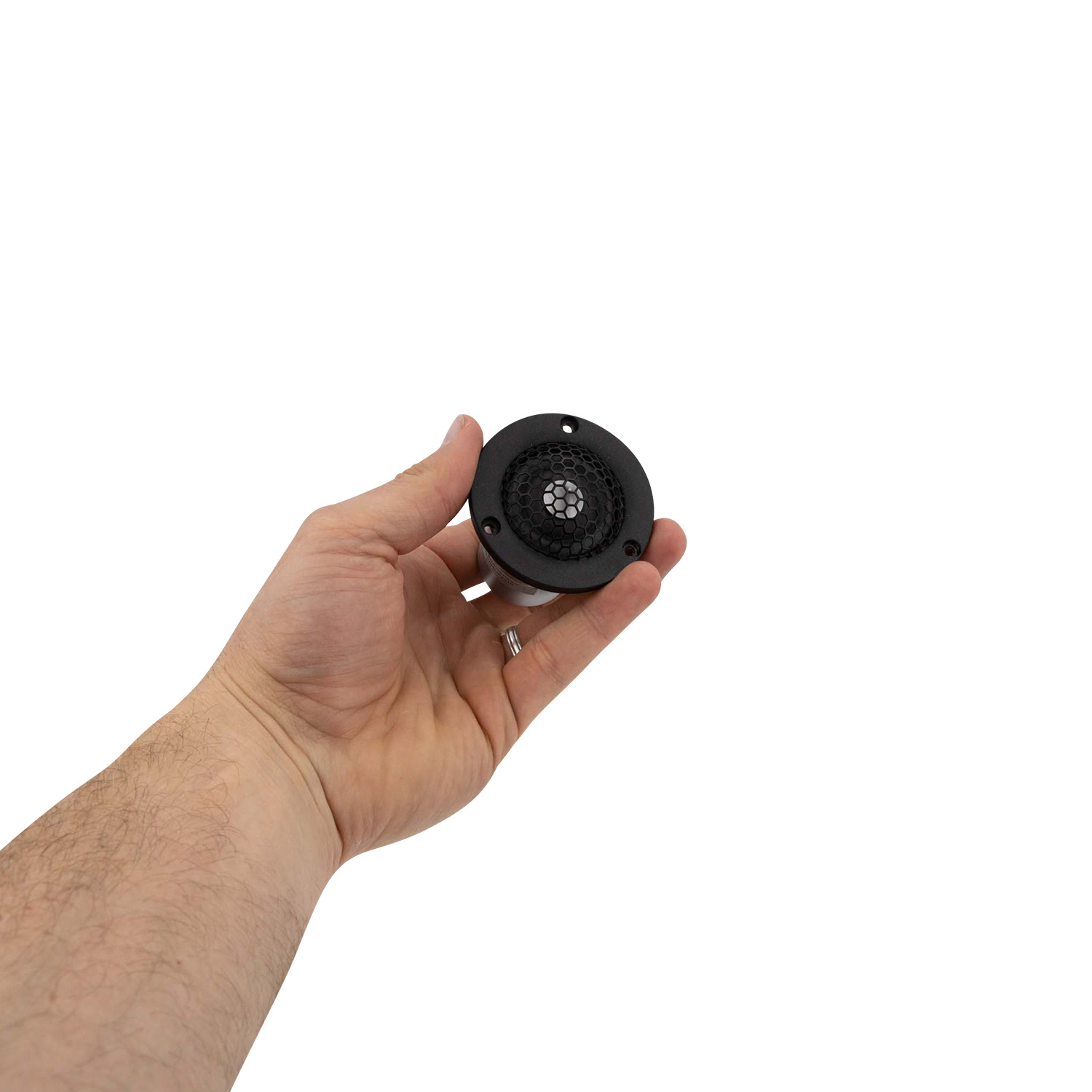

Name: Scan-Speak Illuminator R3004/602010 Tweeter Ring Radiator
Brand: Scan-Speak
SKU: R3004/602010
Price: 189.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1" | 4 Ω

Illuminator R3004/602010 Tweeter Ring Radiator

€ 156,98€ 189,95 4 In magazzino6 Arrivo previsto il 19-12-2025

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Scan-Speak Illuminator R3004/602010 Tweeter Ring Radiator

Highlights

1" Soft Ring Dome
Ring Neodymium Magnet
Patented Symmetrical Drive (SD-2) motor
Patented Phase Plug Design
Aluminum Face Plate and Housing
Sound Transparent Protective Grill
Deep Non Resonant Alu Rear Chamber
9mm (2.44") diameter flange with 55.1mm (2.17") depth (see drawing below)
Excellent choice for both home hi-fi and autosound applications where depth is not an issue

Product details

Scan-Speak Illuminator R3004/602010 1" Ring Radiator

The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

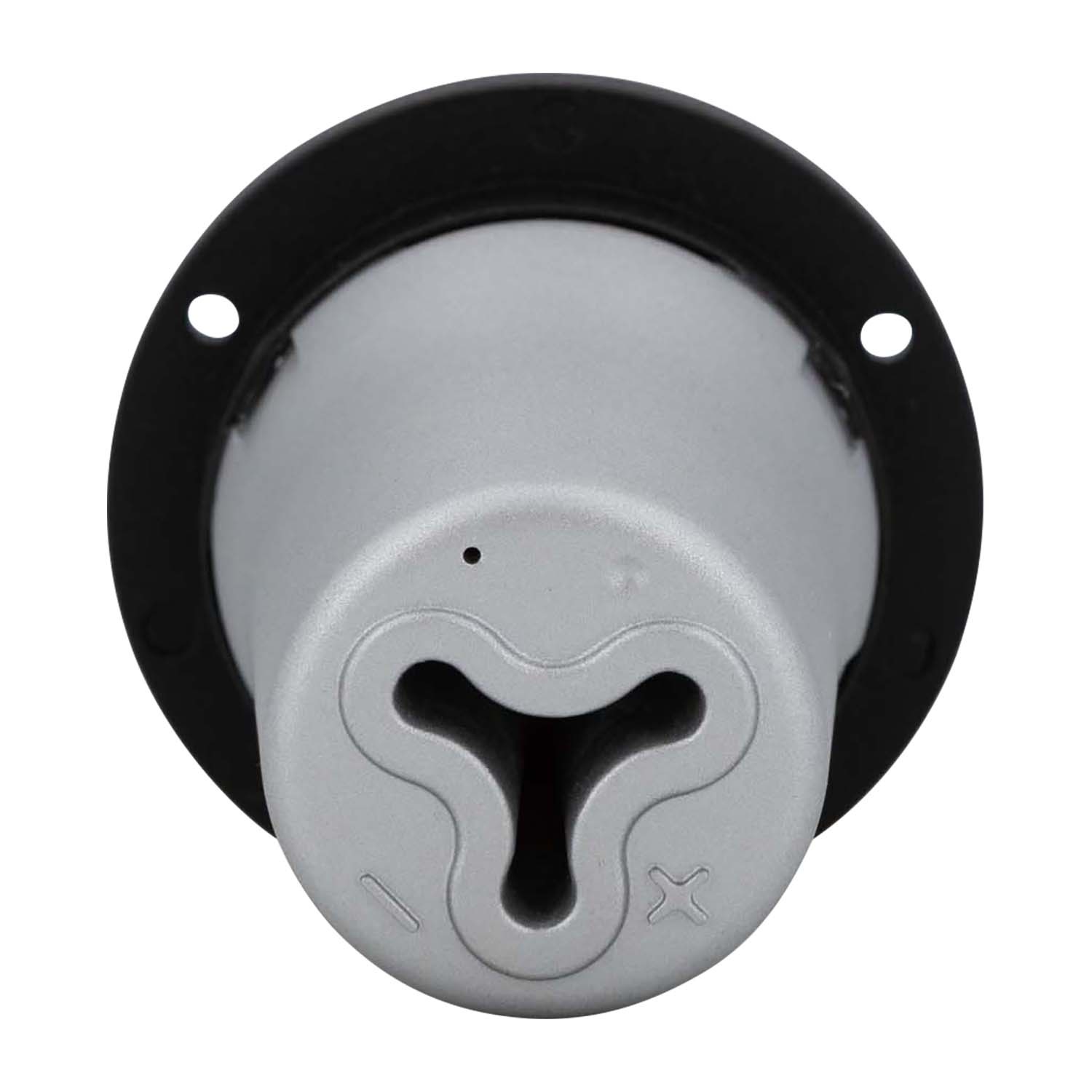

The R3004-602010 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces where you have extra depth. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.41 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm²
