Name: Scan-Speak Revelator R2904/700005 Tweeter Ring Radiator
Brand: Scan-Speak
SKU: R2904/700005
Price: 349.95 EUR
Availability: InStock

1" | 4 Ω

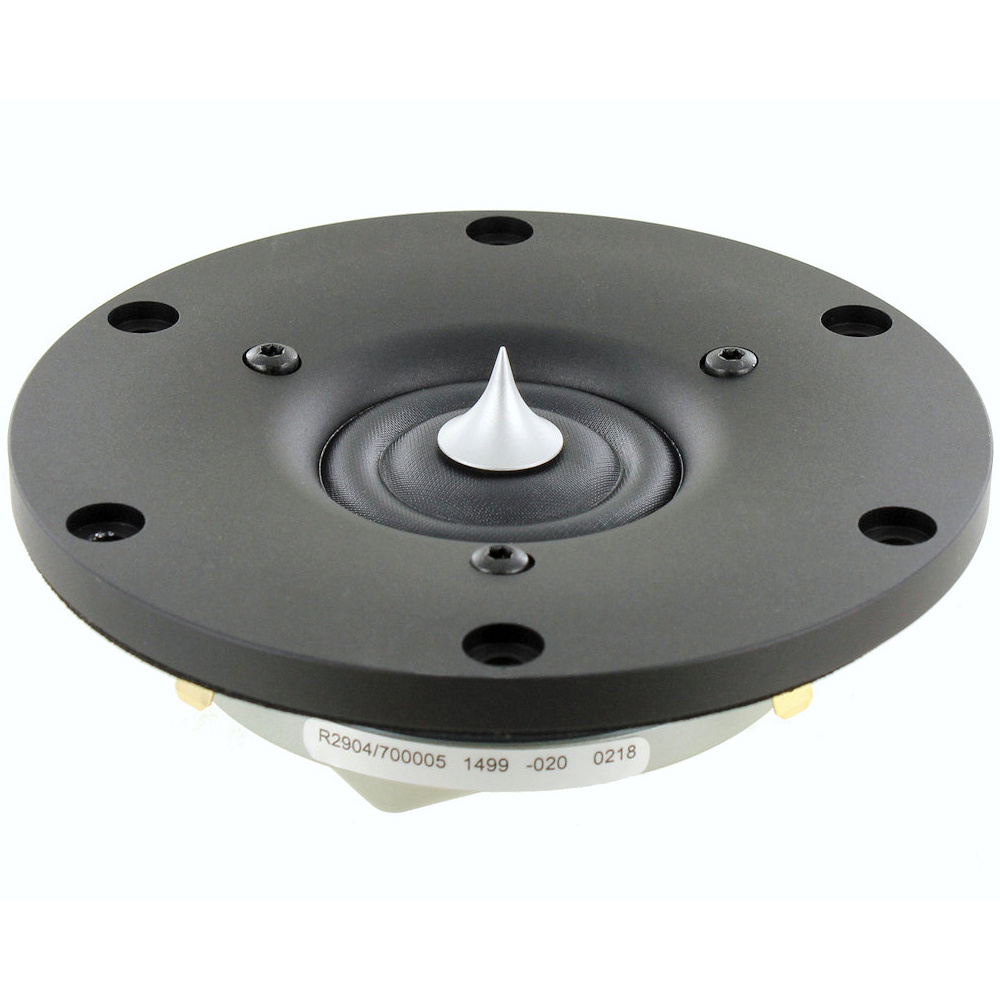

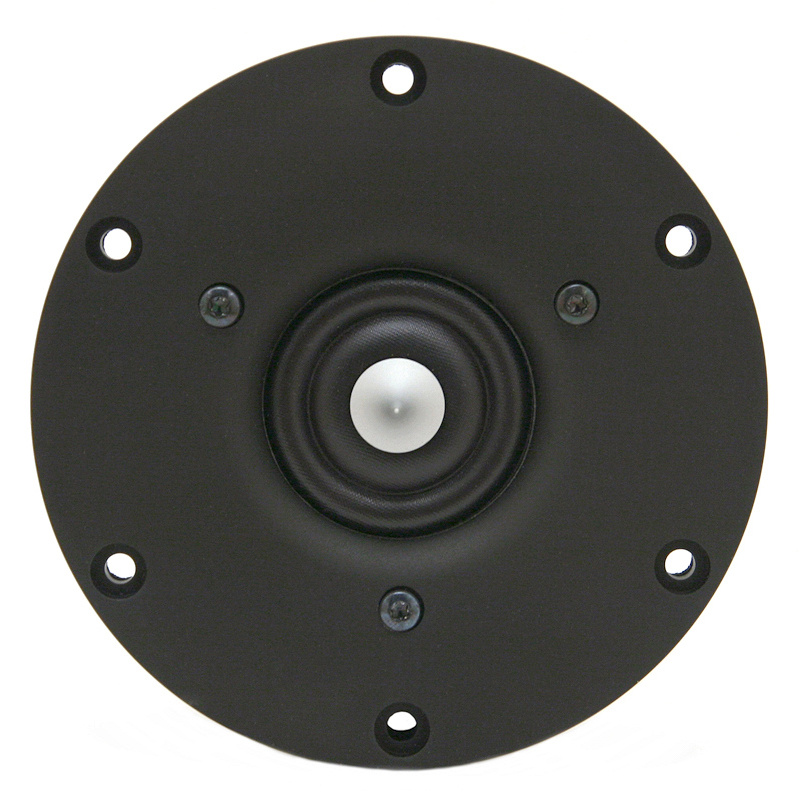

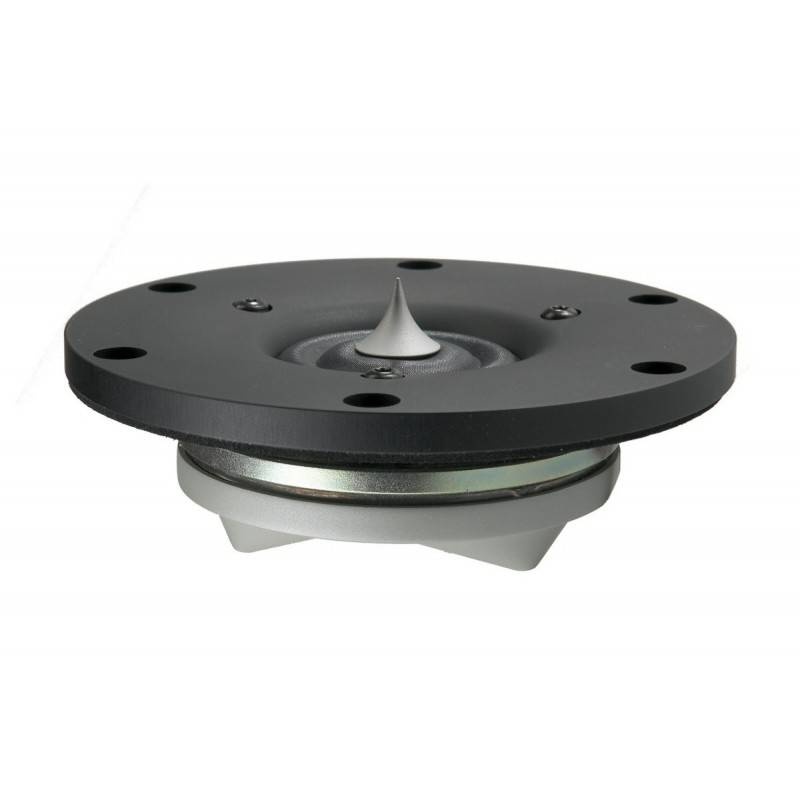

Revelator R2904/700005 Tweeter Ring Radiator

€ 289,21€ 349,95 4 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Scan-Speak Revelator R2904/700005 Tweeter Ring Radiator

Highlights

1" Ring Dome Diaphragm
Patented Symmetrical Drive (SD-2) motor
Non Resonant Alu Rear Chamber
Patented Phase Plug Design
Large Ring Neo Magnet for High Output
Anodized Mashined Alu Face Plate

Product details

Scan-Speak Revelator R2904/700005 1" Ring Radiator

The Scan-speak R2904-700005 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radiating area is now concentrated around the voice coil.

This offers more control and reduces distortion and loss that occur at the center of the dome on dome tweeters. The phase plug also acts as a wave guide, reducing high frequency cancellations. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.

Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm²
