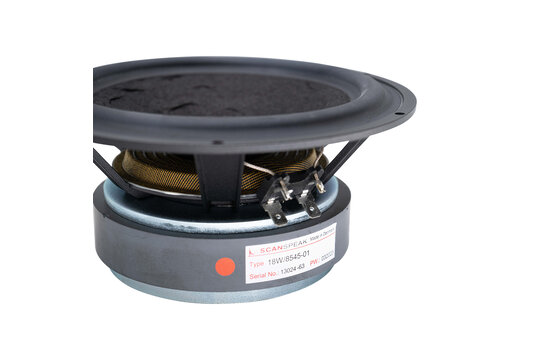

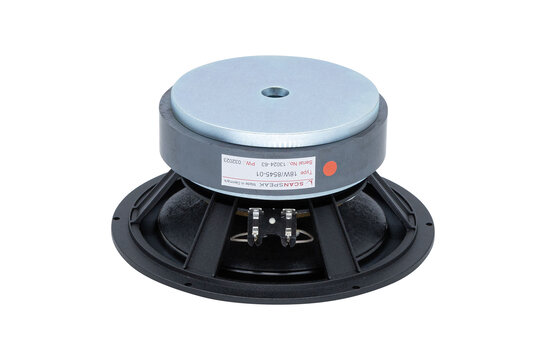

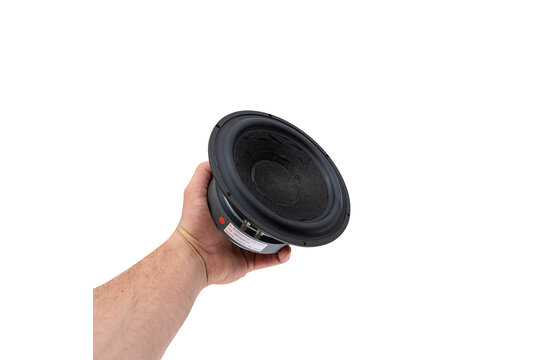

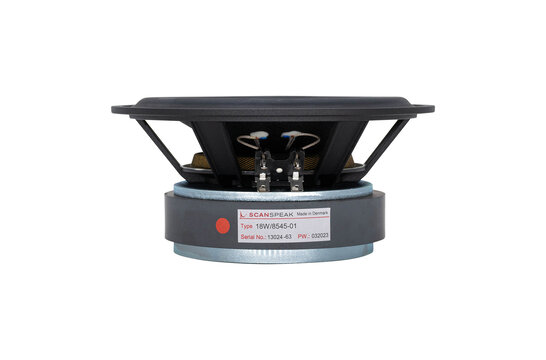

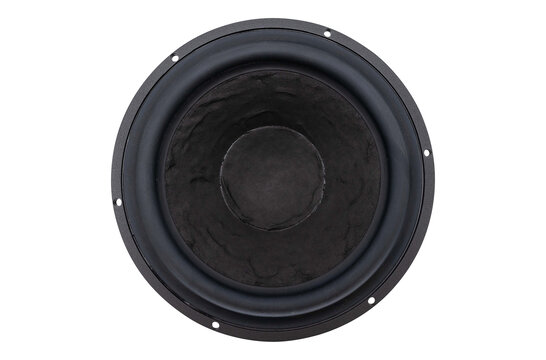

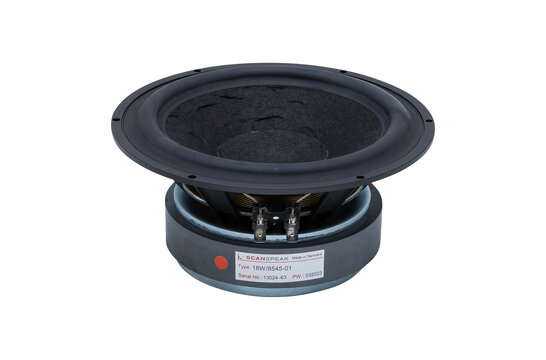

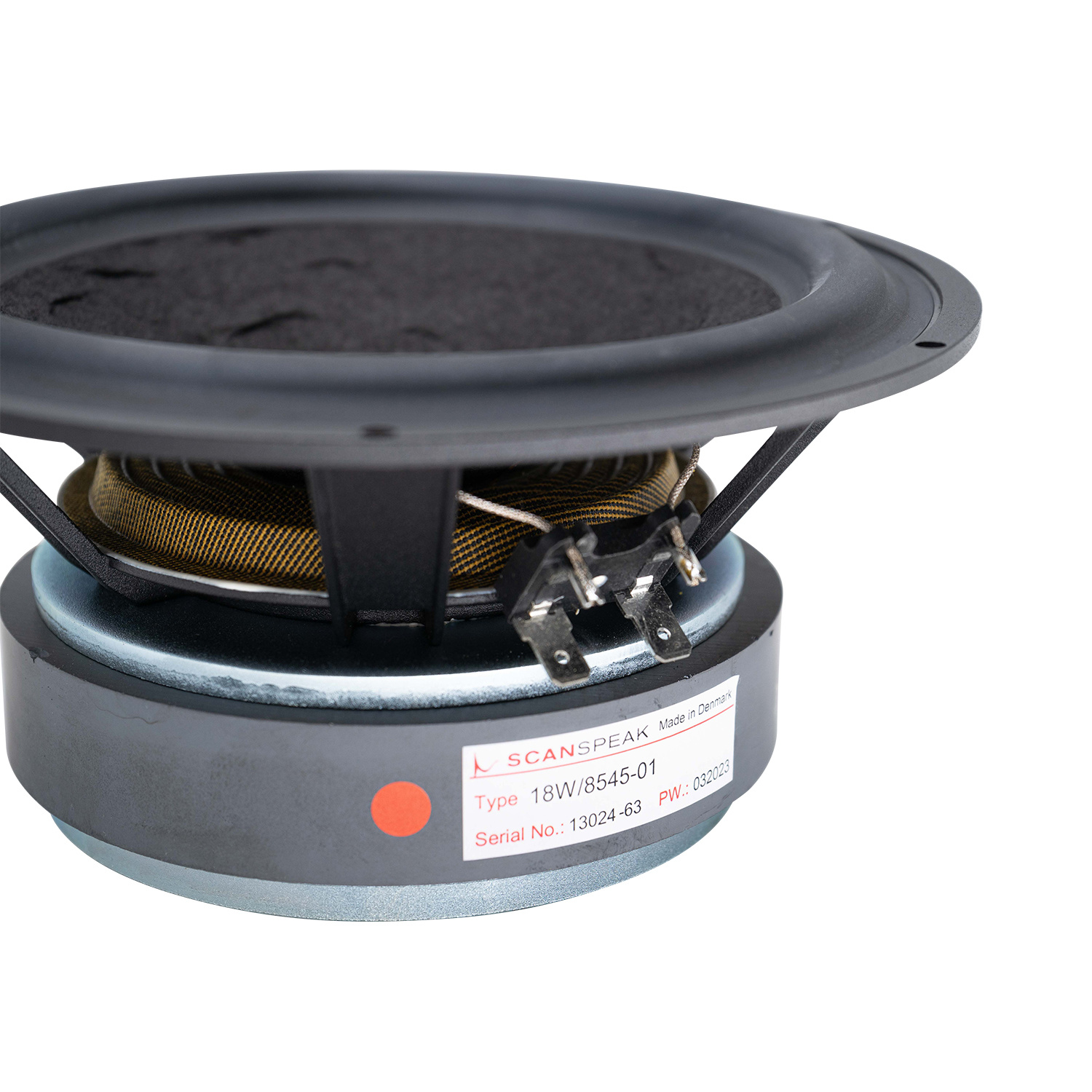

      Classic 18W/8545-01 Woofer a Gamma Media

      Scan-Speak Classic 18W/8545-01 Woofer a Gamma Media

      €189,95

      10+ In magazzino

      Scan-Speak Classic 18W/8545-01 Woofer a Gamma Media

      11 reviews
      5 da 5
      11 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Scan-Speak
      € 156,98€ 189,95 10+ In magazzino
      • -5% Acquista 4 per soli € 180,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Scan-Speak Classic 18W/8545-01 Woofer a Gamma Media

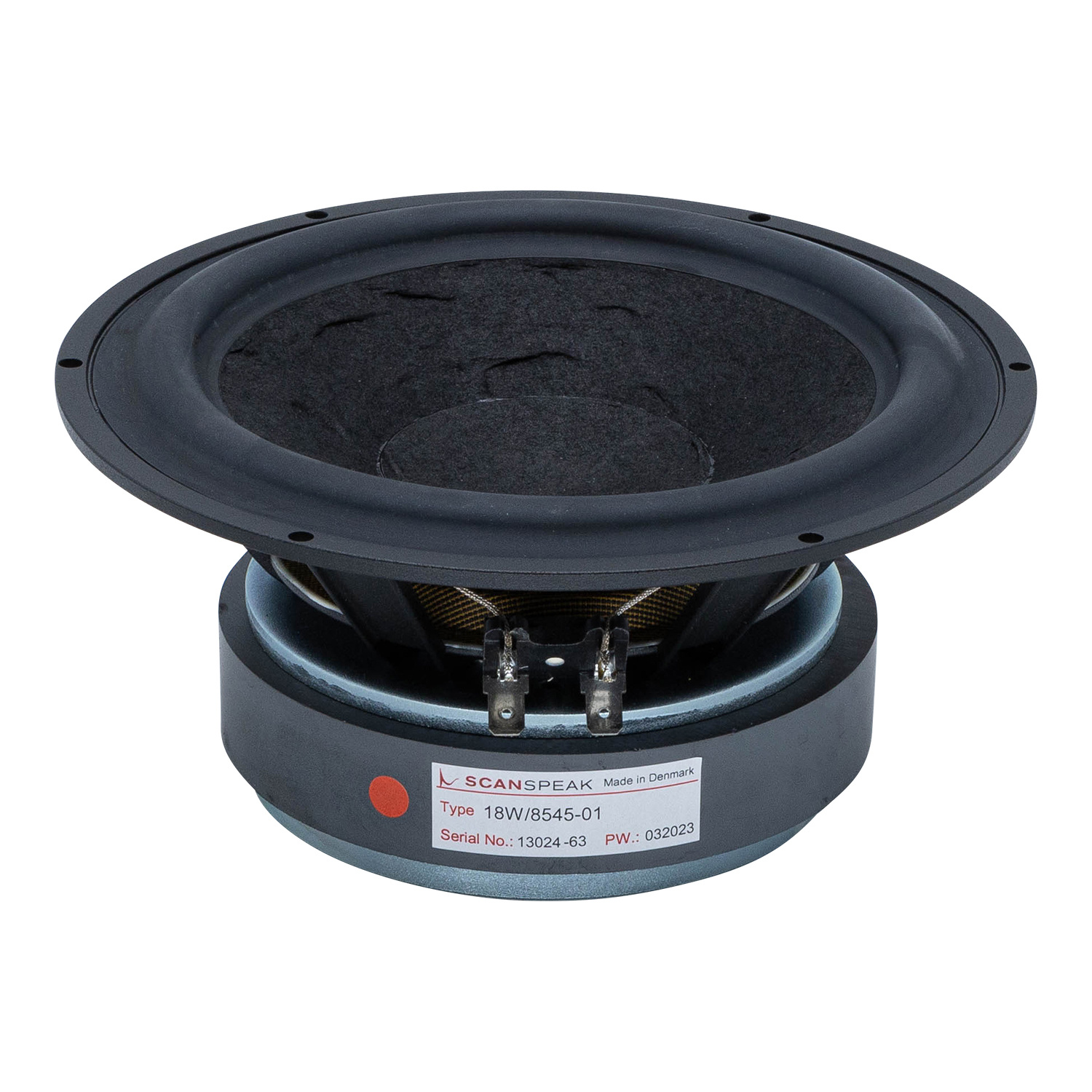

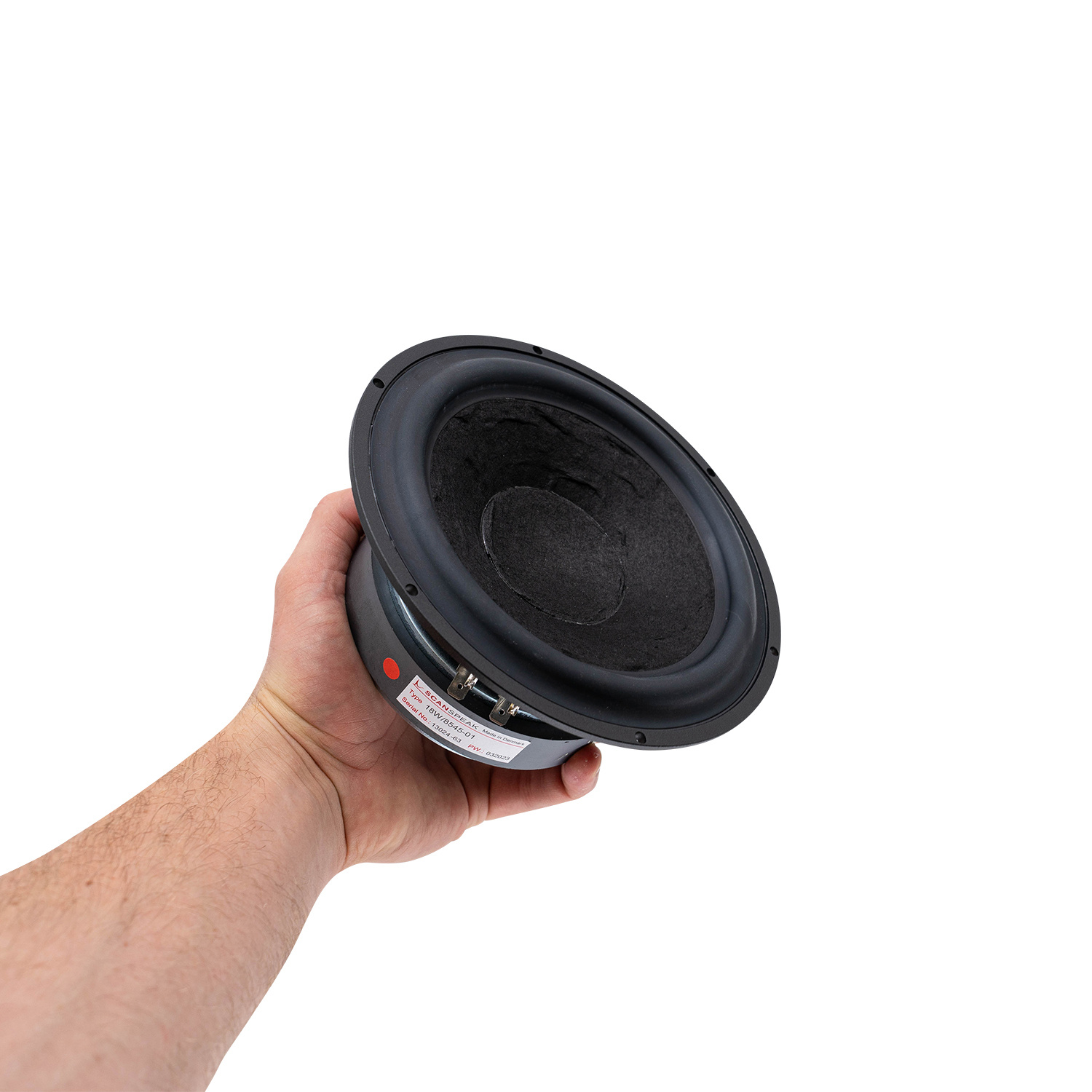

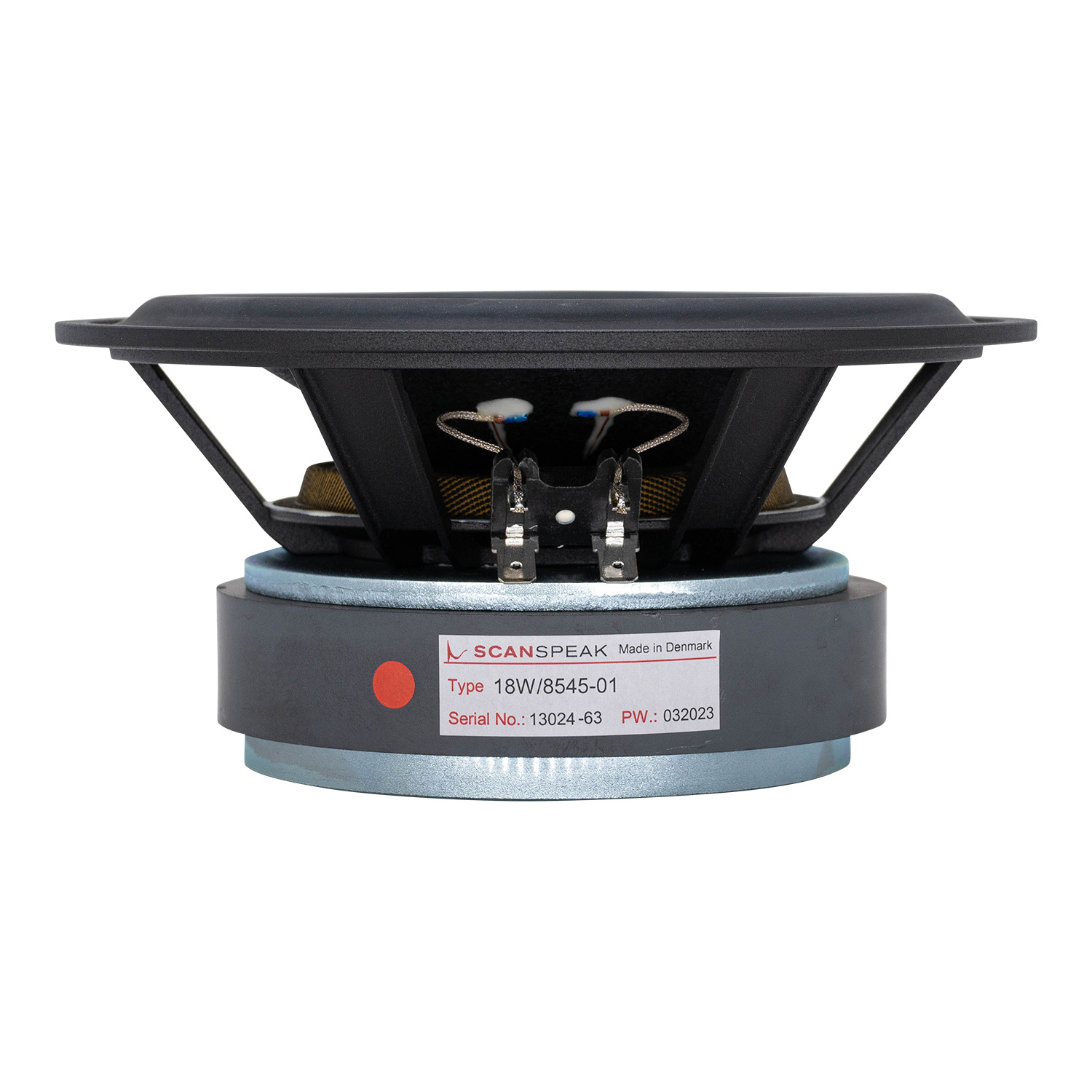

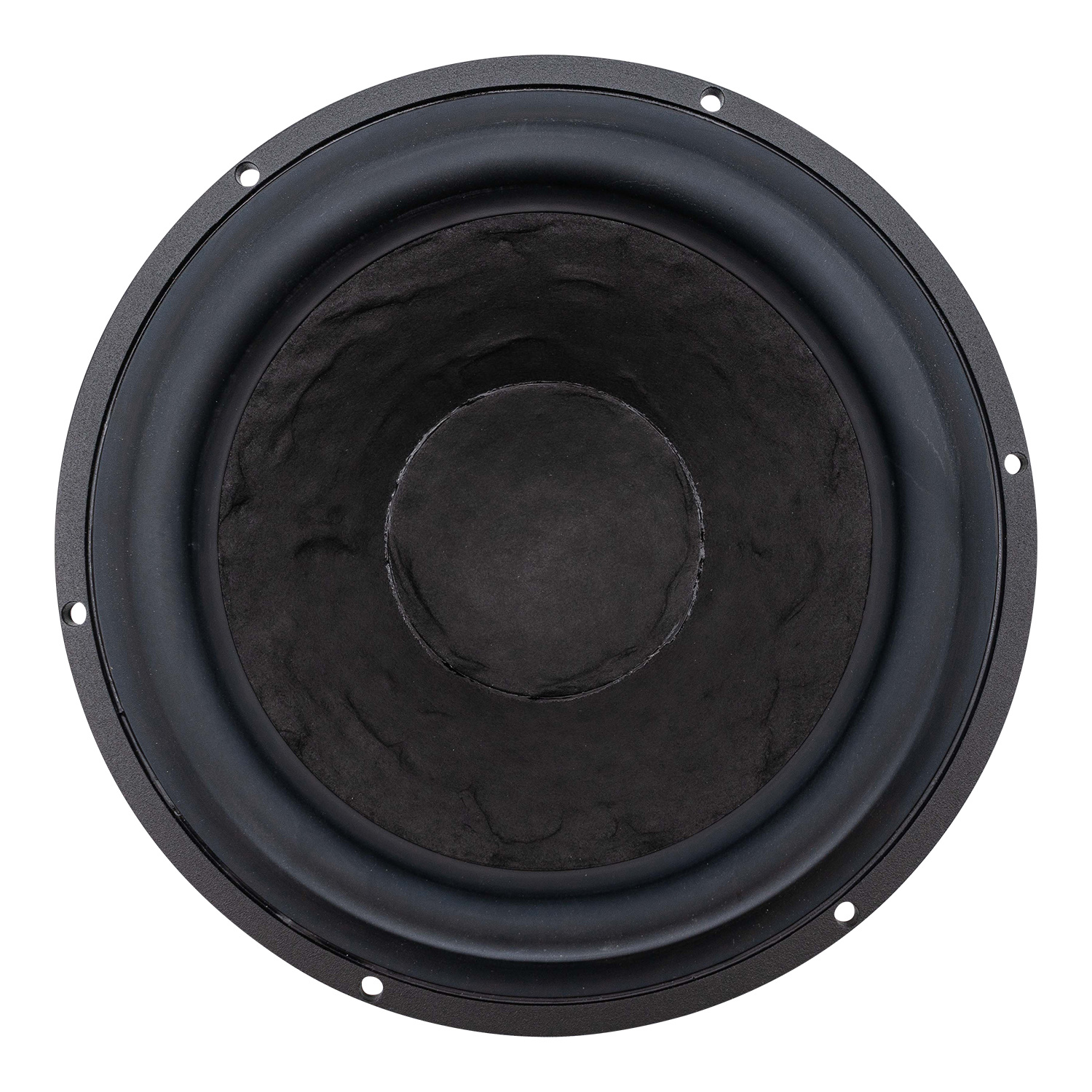

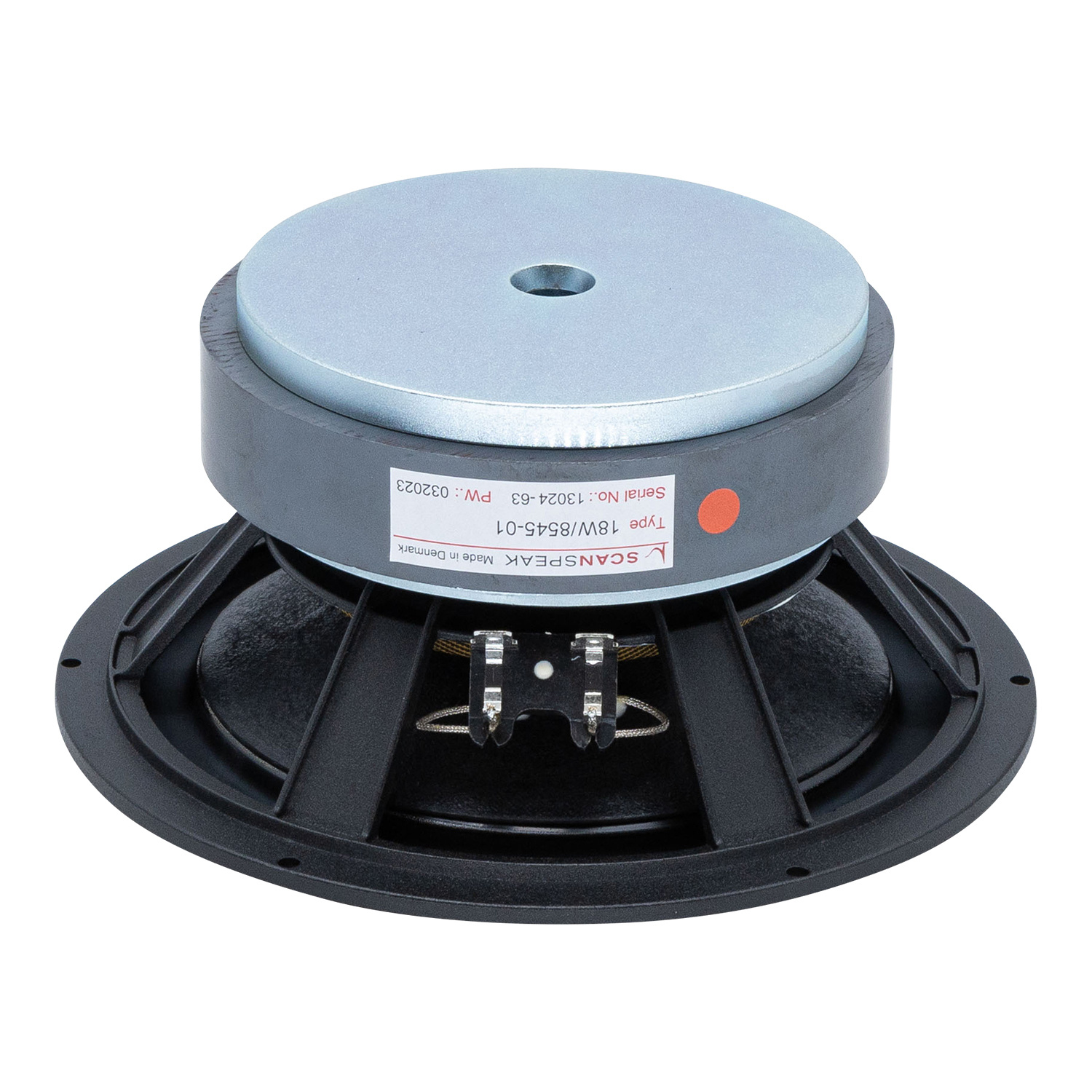

      The ScanSpeak Classic 18W/8545-01 Mid-range Woofer is a high-quality speaker driver that is known for its accurate sound reproduction and smooth frequency response. It is a 7-inch speaker with a paper cone and a rubber surround. The cone is impregnated with carbon fiber, which gives it a high stiffness-to-mass ratio and helps to improve the speaker's dynamic range. The rubber surround is low-damping, which helps to reduce distortion.



      Highlights

      • Accurate sound reproduction
      • Wide frequency response
      • High sensitivity
      • Low impedance
      • Well-made construction



      Product details

      Scan-Speak Classic 18W/8545-01 Mid-range Woofer



      The Classic 18W/8545-01 has a frequency response of 60-2,200 Hz, which makes it well-suited for reproducing the mid-range frequencies in music. It has a sensitivity of 86 dB, which means that it can be driven by a wide range of amplifiers. The speaker has an impedance of 8 ohms, which makes it compatible with most speaker systems.

      Show more

      Specifiche

      Numero dell'articolo:
      18W/8545-01
      EAN
      8785256848515
      Serie del woofer
      Scan-Speak Classic series
      Tipo di woofer
      Midwoofer
      Diametro nominale
      7 "
      Gestione della potenza (RMS)
      100 Watts
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      88 dB
      Risposta in frequenza
      60 - 2200 Hz
      Diametro della bobina mobile
      42 mm
      Resistenza DC (Re)
      5.7 Ω
      Induttanza della bobina mobile (Le)
      0.39 mH
      Frequenza di risonanza (Fs)
      25 Hz
      Fattore di merito meccanico (Qms)
      1.55
      Fattore di merito elettromagnetico (Qes)
      0.22
      Fattore di merito totale (Qts)
      0.2
      Massa del diaframma incl. la massa dell'aria (Mms)
      18g
      Cedevolezza meccanica della sospensione (Cms)
      2.3 mm/N
      Superficie del cono (Sd)
      145 cm²
      Prodotto BL (BL)
      8.4 N/A
      Volume equivalente di cedevolezza (Vas)
      68.6 Liters
      Escursione lineare massima (Xmax)
      6.5 mm

      Show more

      5 di 5
      Used to replace the 06 version in Merlin speakers with no crossover modification. Outstanding sound.
      Da Xavier on 20 Novembre 2025
      5 di 5
      -
      Da Andrea on 10 Novembre 2025
