      Descrizione del prodotto Scan-Speak Gold Series 16W/4538G05 Woofer

      Our GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the – TRUE TO LIVE – that they enjoy from their high-end home audio system.



      Highlights

      • Die Cast Housing & Face Plate
      • High Grade Compact Neo magnet System
      • Low Damping SBR Rubber Surround
      • Low-Loss linear suspension
      • Patented Symmetrical Drive Motor Design
      • Robust Die cast Alu Chassis



      Product details

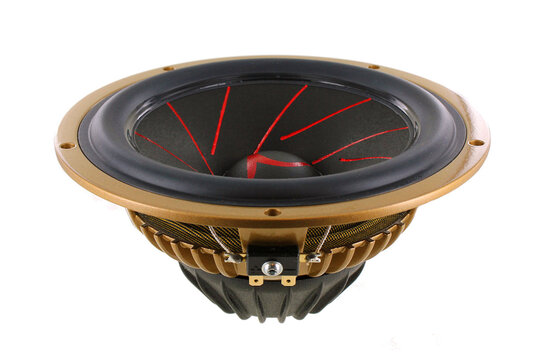

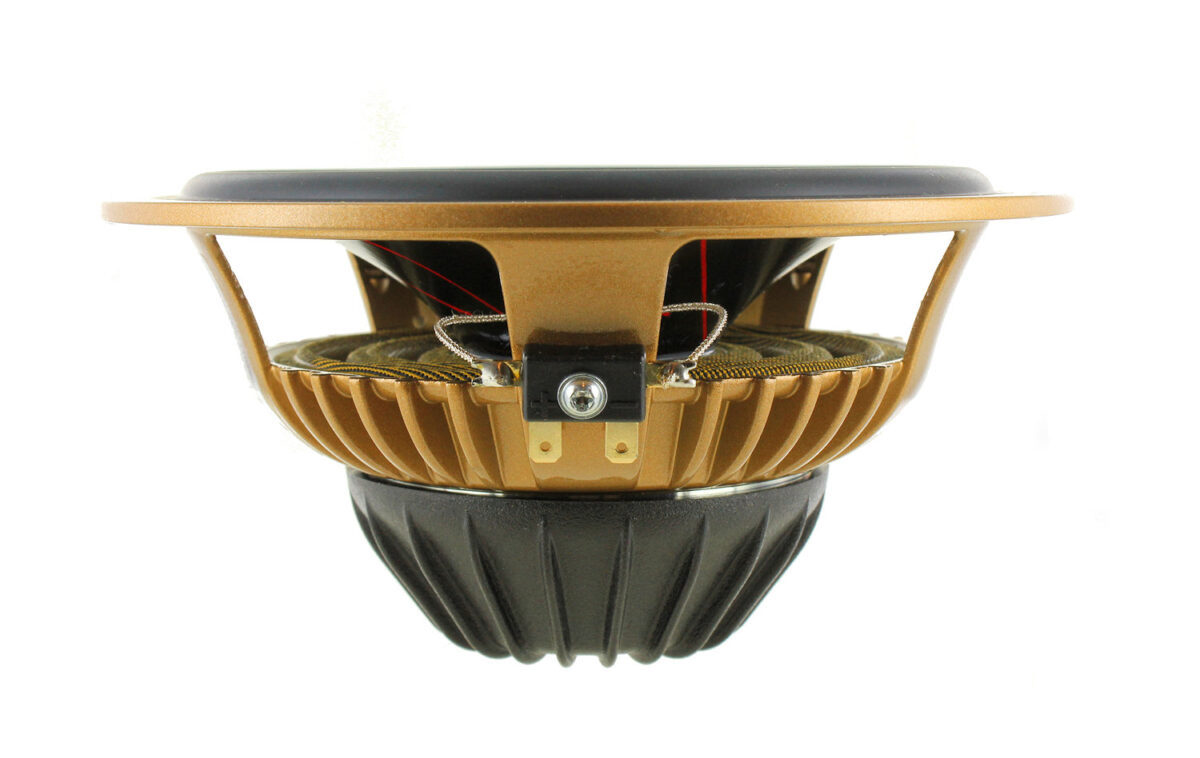

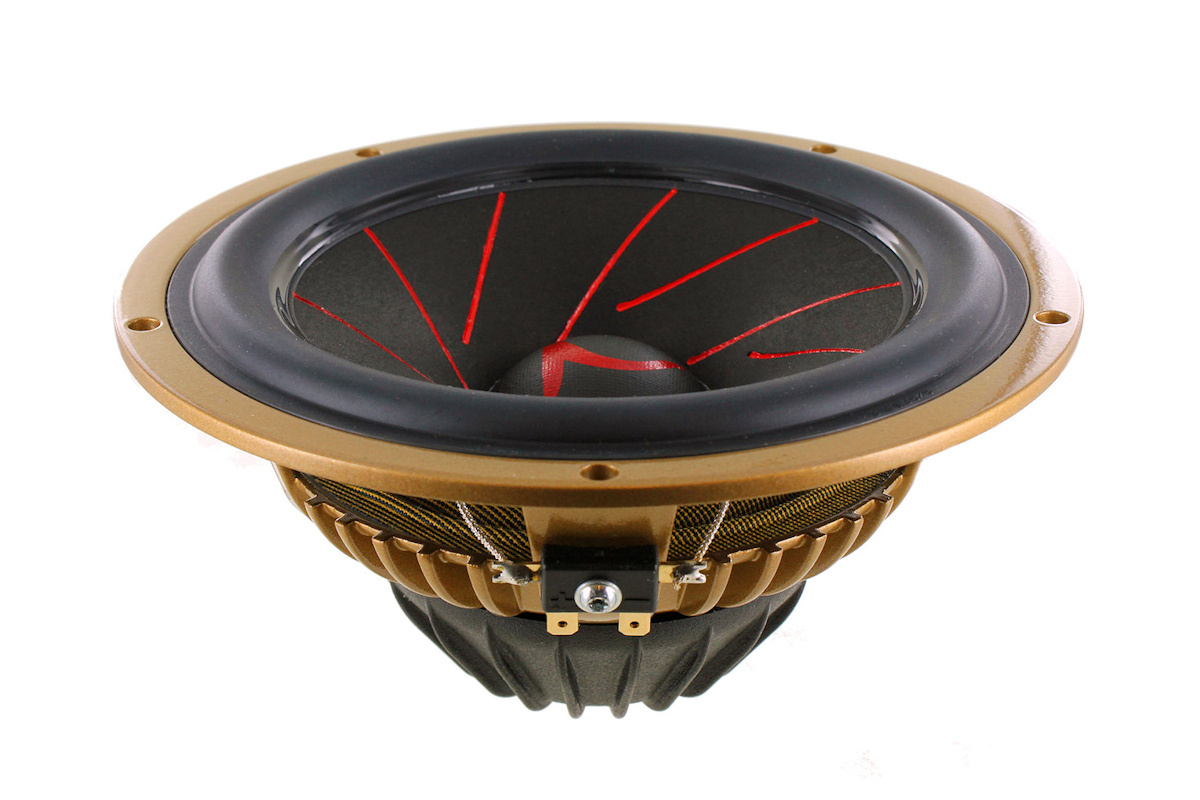

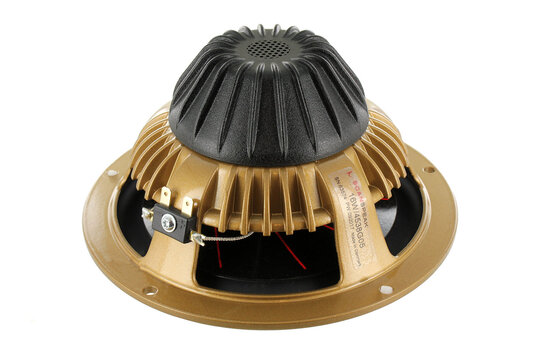

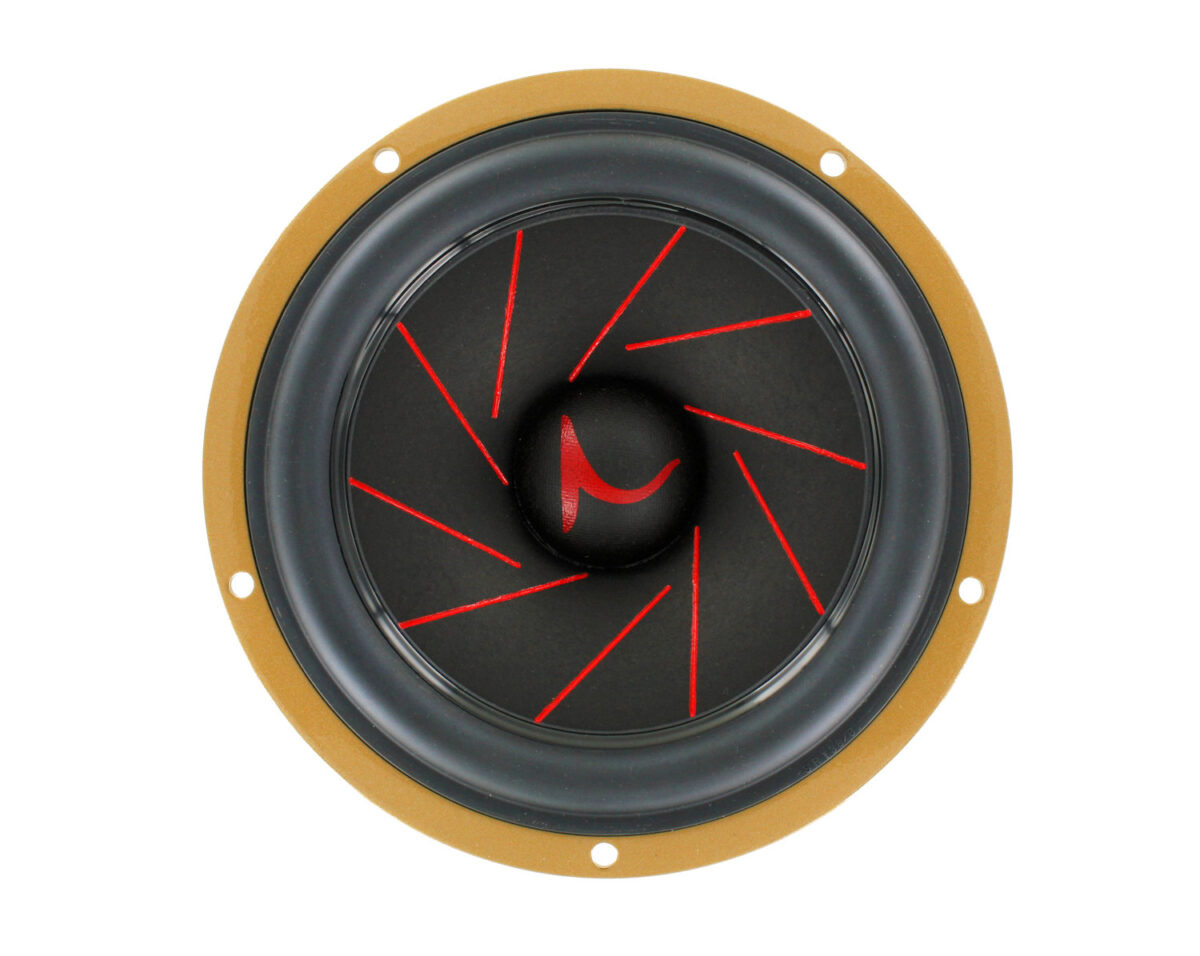

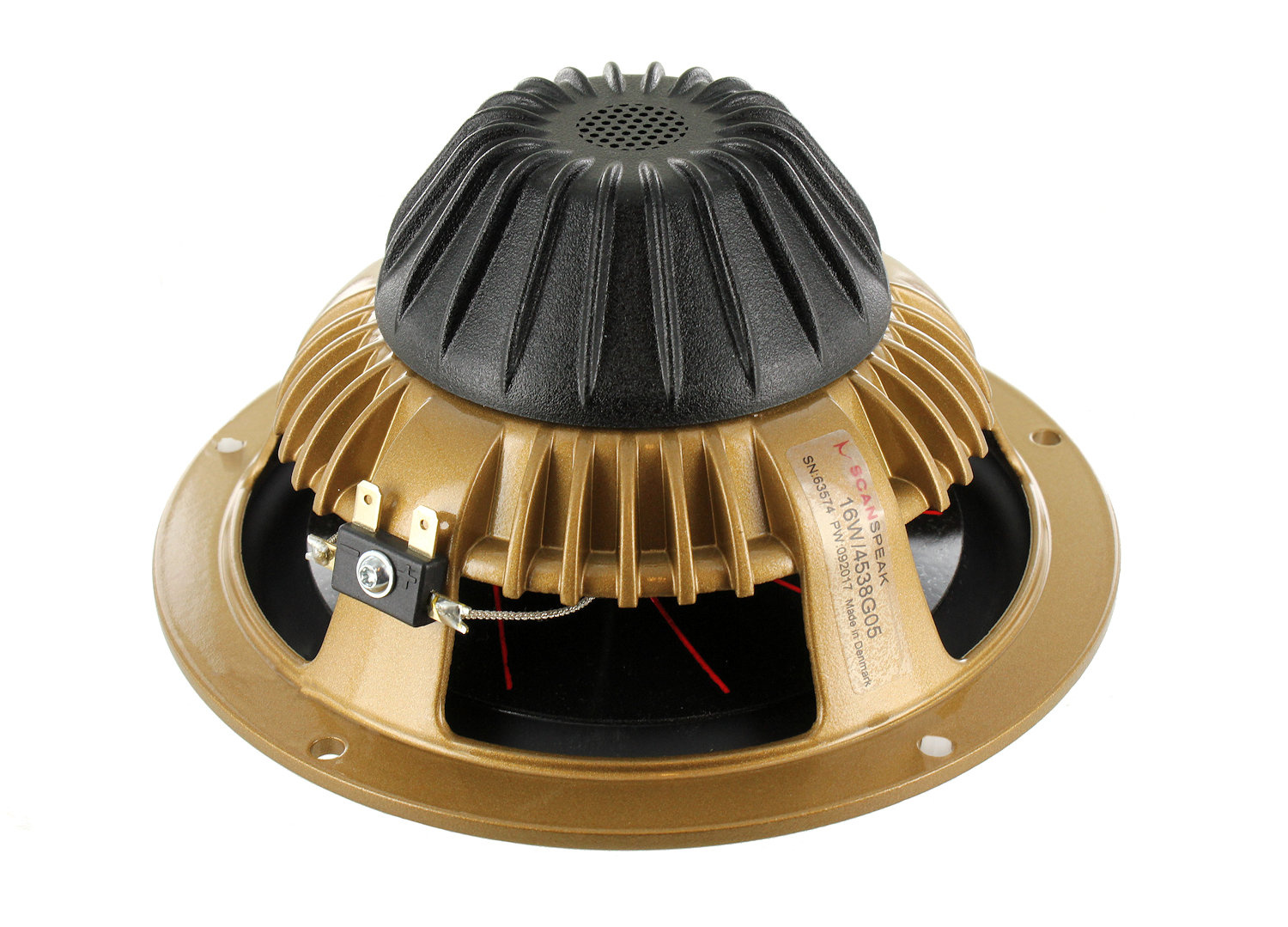

      Scan-Speak Gold Series 16W/4538G05 Car Mid-range Woofer



      The Scan-Speak Gold Series 16W/4538G05 is a high-end 6.5" woofer that is designed for automotive use. It features a number of innovative technologies that make it capable of delivering outstanding sound quality.



      One of the most notable features is its sandwich cone. This cone is made up of a sliced paper membrane that is bonded to a rearside polycarbonate membrane. This unique construction provides the cone with a high degree of rigidity and damping, which helps to suppress cone breakup modes and improve overall sound quality.



      The 16W/4538G05 also features a symmetrical drive motor system. This system uses a pair of magnets that are arranged symmetrically around the voice coil. This helps to improve the woofer's linearity and reduce distortion.



      The Woofer is also equipped with a low-damping SBR rubber surround. This surround provides the woofer with a smooth, linear response and helps to reduce distortion. It's finished in a black anodized aluminium chassis. This chassis is both lightweight and strong, and it helps to protect the woofer from damage.

      Show more

      Specifiche

      Numero dell'articolo:
      16W/4538G05
      EAN
      8785256848287
      Tipo di woofer
      Automotive
      Diametro nominale
      160 mm
      Gestione della potenza (RMS)
      70 Watts
      Gestione della potenza (max)
      125 Watt
      Impedenza (Z)
      4 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      90 dB
      Risposta in frequenza
      36-5000 Hz
      Diametro della bobina mobile
      38 mm
      Resistenza DC (Re)
      3.1 Ohm
      Induttanza della bobina mobile (Le)
      0.18 mH
      Frequenza di risonanza (Fs)
      36 Hz
      Fattore di merito meccanico (Qms)
      3.82
      Fattore di merito elettromagnetico (Qes)
      0.39
      Fattore di merito totale (Qts)
      0.35
      Massa del diaframma incl. la massa dell'aria (Mms)
      16.9 g
      Cedevolezza meccanica della sospensione (Cms)
      1.12 mm/N
      Superficie del cono (Sd)
      123 cm2
      Prodotto BL (BL)
      5.5 Tm
      Volume equivalente di cedevolezza (Vas)
      24 Litres
      Escursione lineare massima (Xmax)
      13.5 mm
      Perdite meccaniche del driver (Rms)
      1 kg/s
      Diametro esterno complessivo
      165 mm
      Diametro del ritaglio del pannello frontale
      141 mm
      # Numero di fori di montaggio
      5
      Diametro dei fori di montaggio
      5.2 mm
      Volume per cassa reflex
      21 Litres
