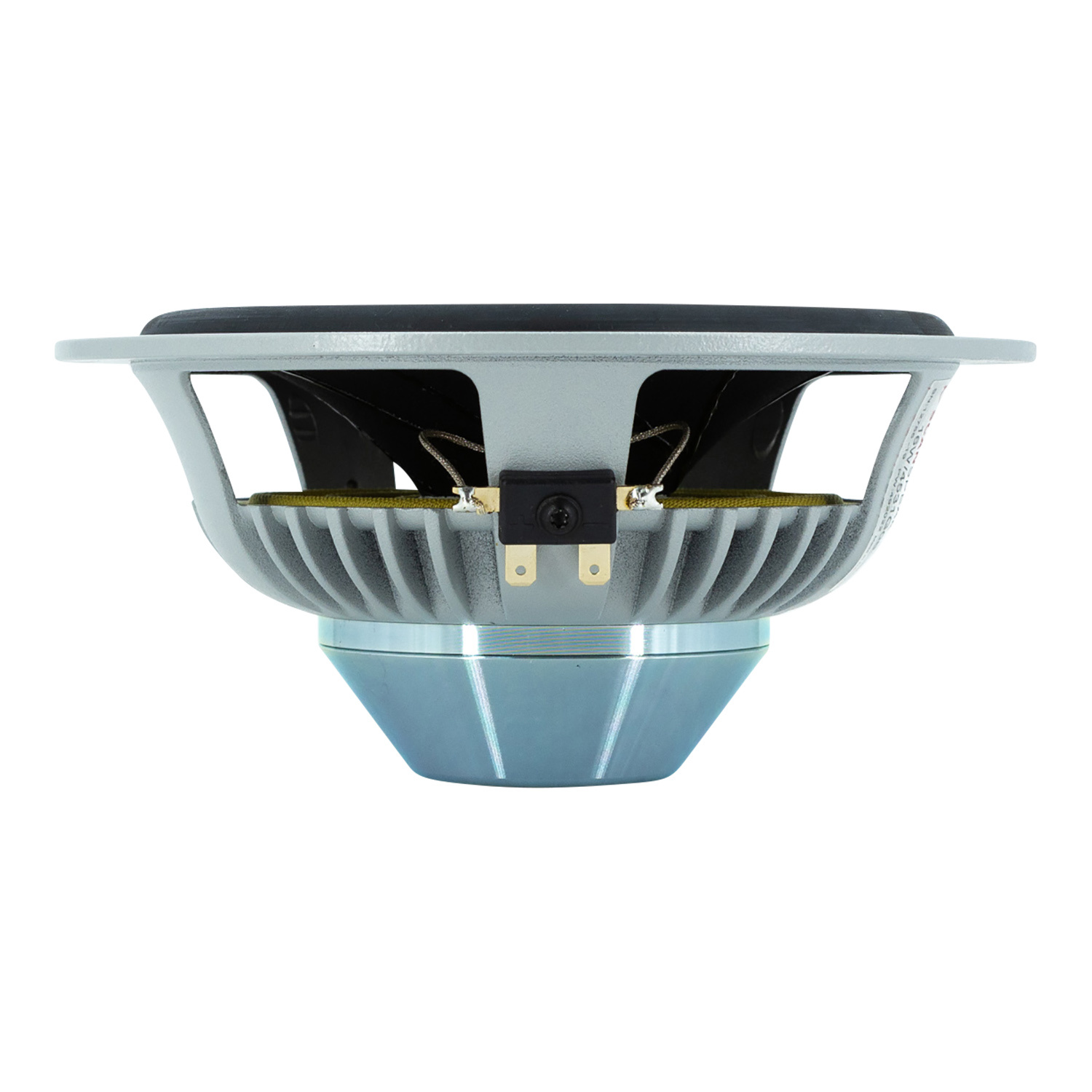

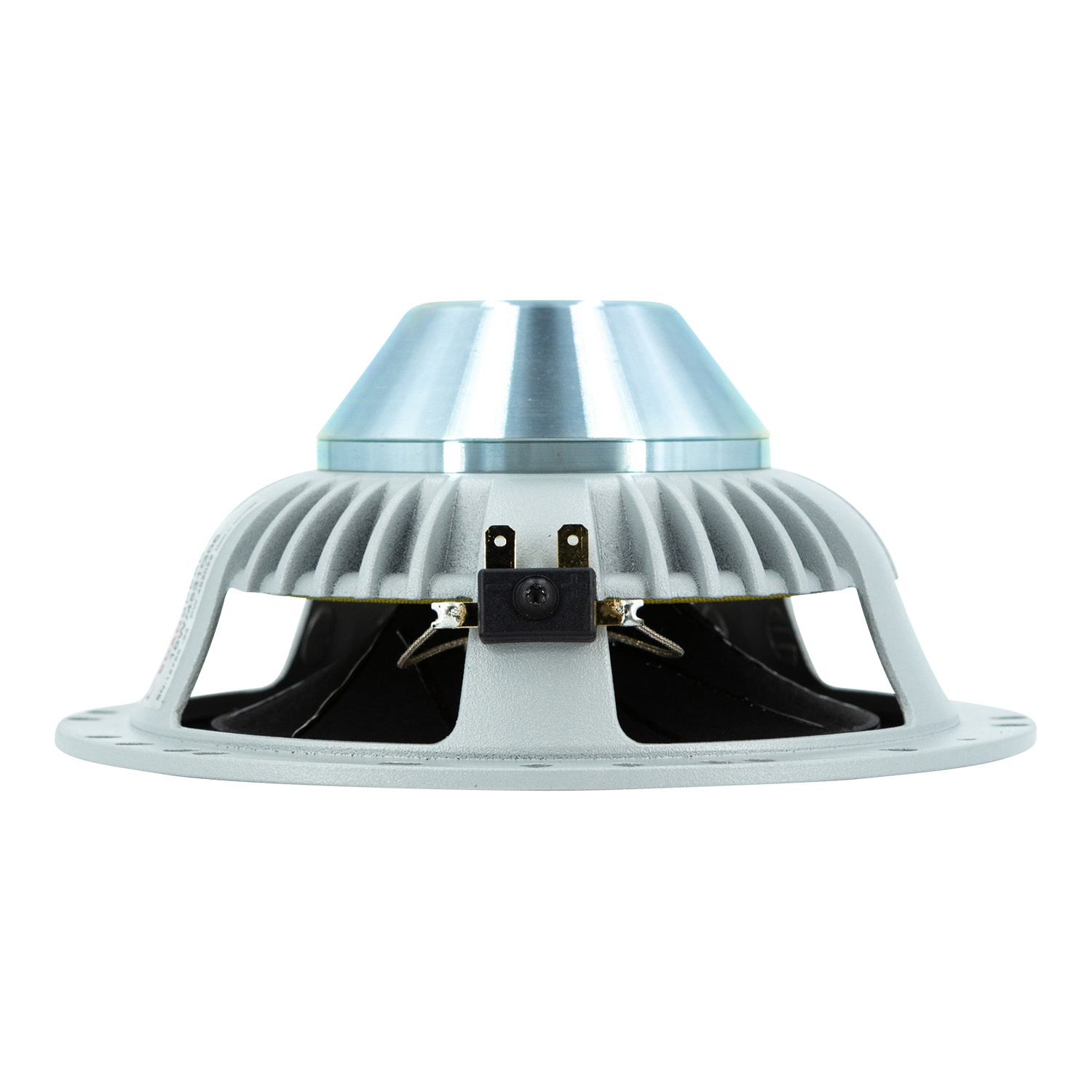

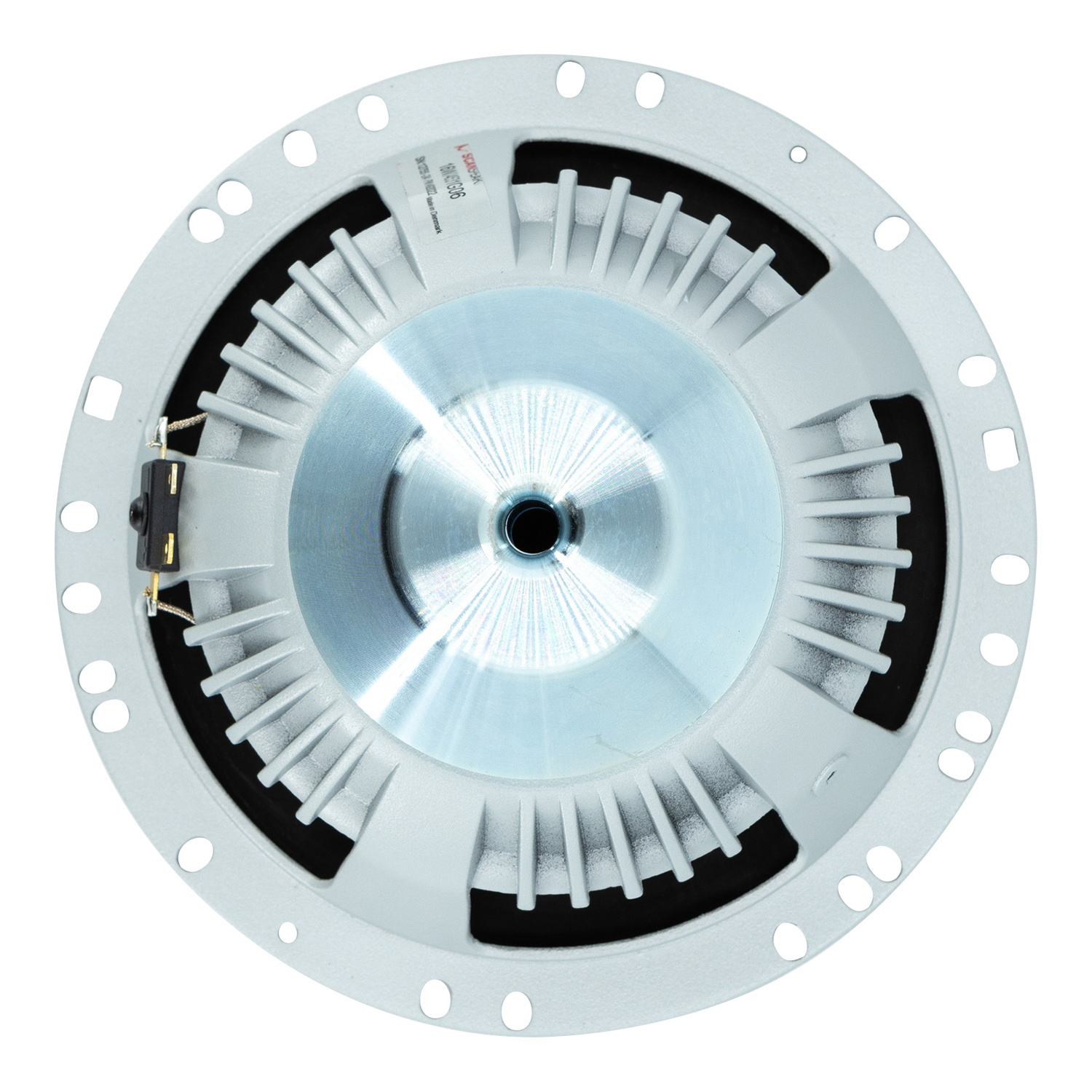

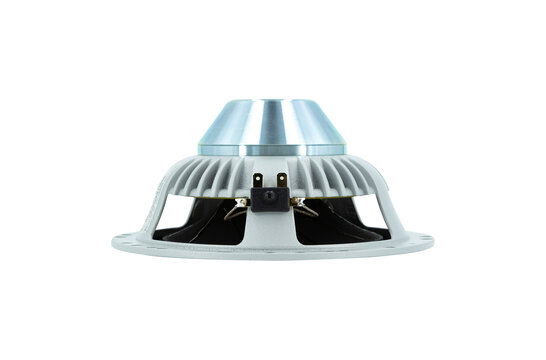

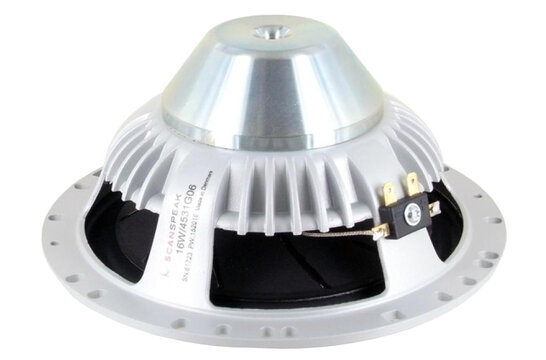

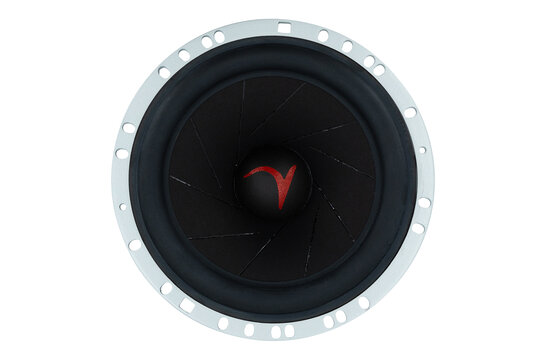

      Silver Series 16W/4531G06 Woofer

      Scan-Speak Silver Series 16W/4531G06 Woofer

      €379,95

      6 In magazzino

      Scan-Speak Silver Series 16W/4531G06 Woofer

      2 reviews
      5 da 5
      2 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Scan-Speak
      € 314,01€ 379,95 6 In magazzino
      • -5% Acquista 4 per soli € 360,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Optimized for automotive use

      Descrizione del prodotto Scan-Speak Silver Series 16W/4531G06 Woofer

      Our SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the – TRUE TO LIVE – that they enjoy from their high-end home audio system.



      Highlights

      • Patented Symmetrical Drive Motor Design
      • Roboust Die cast Alu Chassis
      • Low Damping SBR Rubber Surround
      • Low-Loss linear suspension
      • Sliced Cone (Controls Cone Breakups)
      • Compact powerful Neo magnet



      Product details

      Scan-Speak Silver Series 16W/4531G06 Car Mid-range Woofer

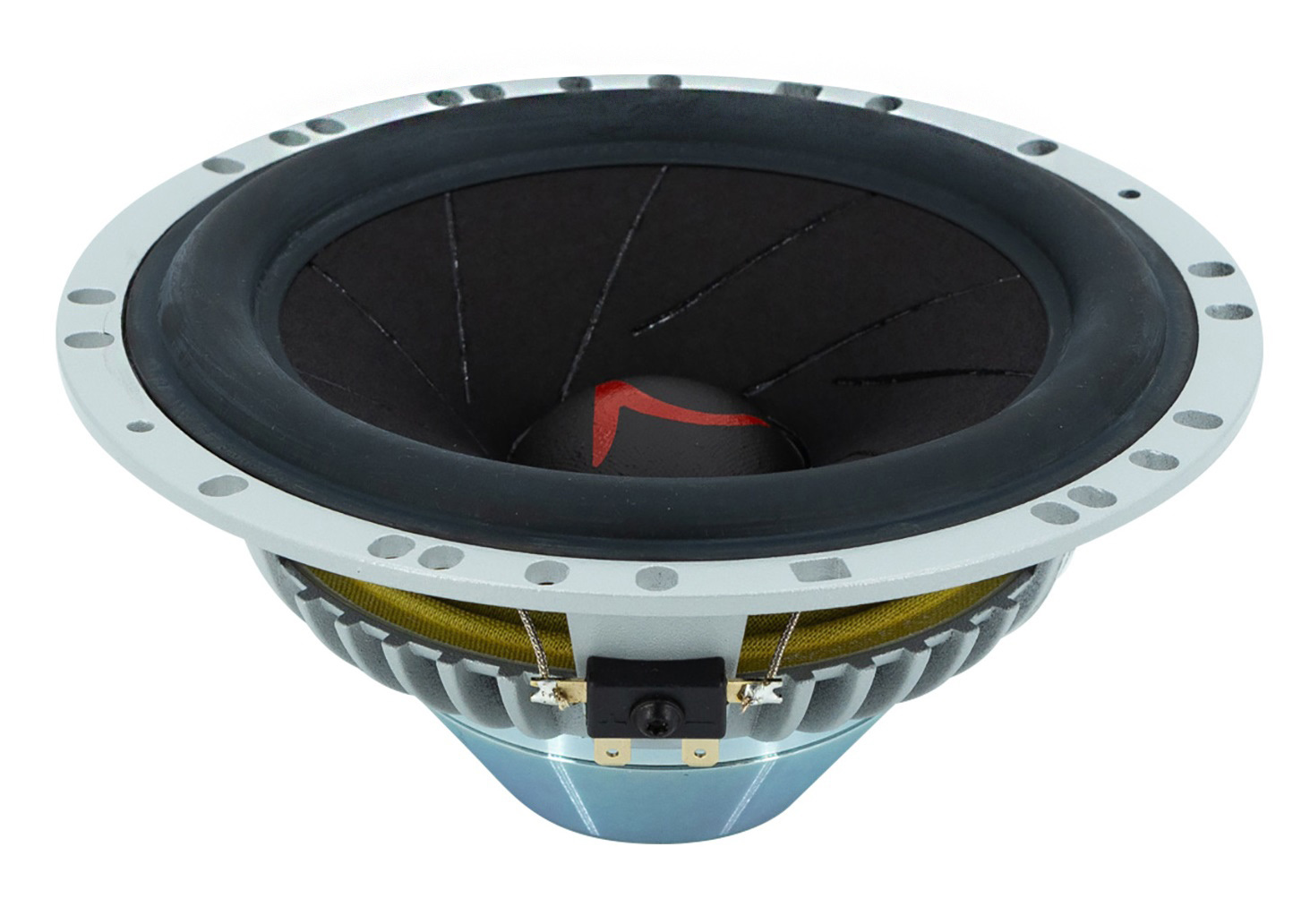

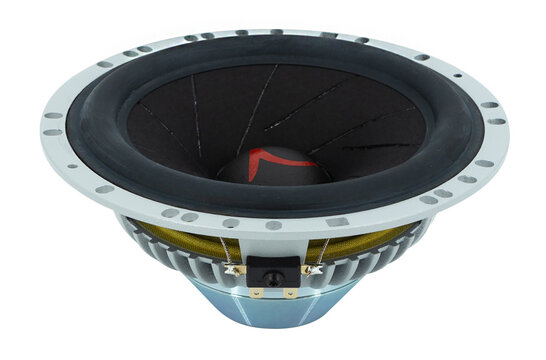

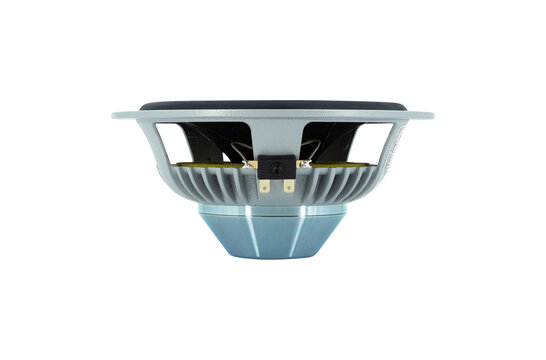

      The Scan-Speak Silver Series 16W/4531G06 is a high-end 6.5" woofer that is designed for automotive use. It features a number of innovative technologies that make it capable of delivering outstanding sound quality.

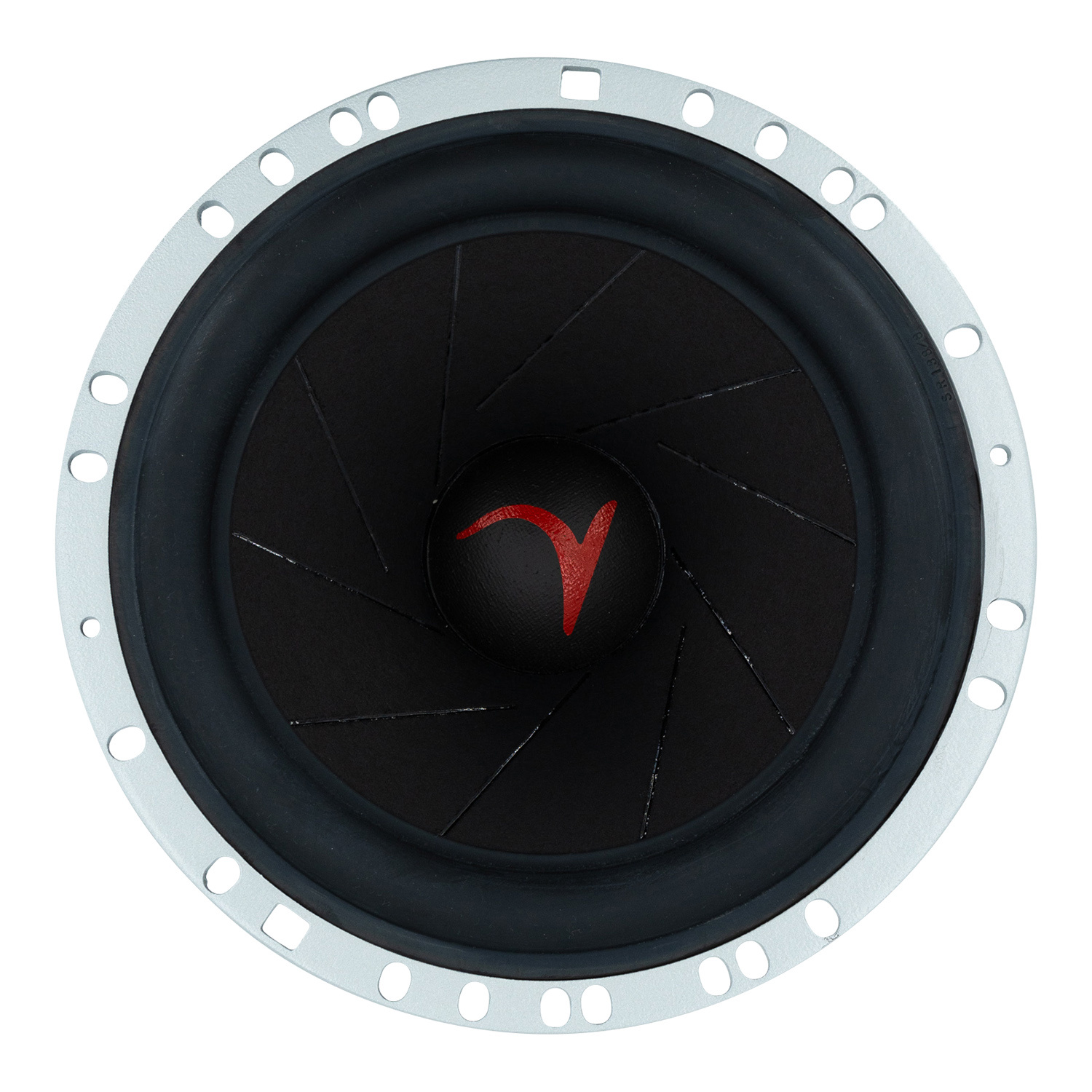

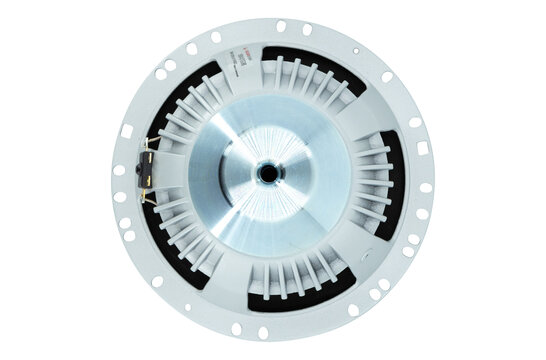

      One of the most notable features is its sandwich cone. This cone is made up of a sliced paper membrane that is bonded to a rearside polycarbonate membrane. This unique construction provides the cone with a high degree of rigidity and damping, which helps to suppress cone breakup modes and improve overall sound quality. It also features a symmetrical drive motor system. This system uses a pair of magnets that are arranged symmetrically around the voice coil. This helps to improve the woofer's linearity and reduce distortion.

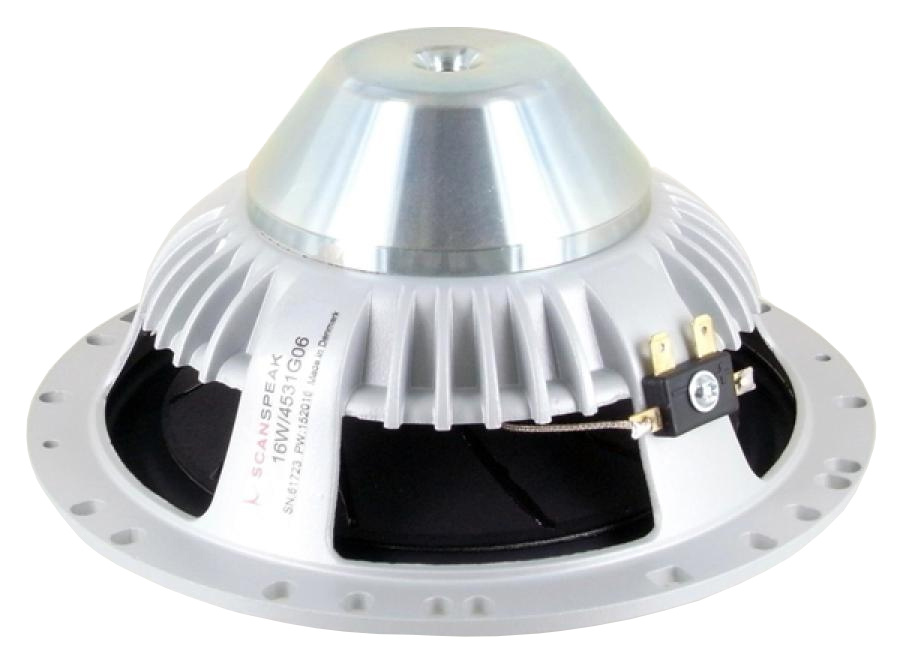

      This Woofer is also equipped with a low-damping SBR rubber surround. This surround provides the woofer with a smooth, linear response and helps to reduce distortion. It's finished in a black anodized aluminium chassis. This chassis is both lightweight and strong, and it helps to protect the woofer from damage.

      Show more

      Specifiche

      Numero dell'articolo:
      16W/4531G06
      EAN
      8785256848270
      Tipo di woofer
      Midwoofer Automotive
      Diametro nominale
      160 mm
      Gestione della potenza (RMS)
      70 Watts
      Gestione della potenza (max)
      125 Watt
      Impedenza (Z)
      4 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      88 dB
      Risposta in frequenza
      51-6000 Hz
      Diametro della bobina mobile
      38 mm
      Resistenza DC (Re)
      3.46 Ohm
      Induttanza della bobina mobile (Le)
      0.28 mH
      Frequenza di risonanza (Fs)
      51 Hz
      Fattore di merito meccanico (Qms)
      5.08
      Fattore di merito elettromagnetico (Qes)
      0.66
      Fattore di merito totale (Qts)
      0.59
      Massa del diaframma incl. la massa dell'aria (Mms)
      16.3 g
      Cedevolezza meccanica della sospensione (Cms)
      0.59 mm/N
      Superficie del cono (Sd)
      123 cm²
      Prodotto BL (BL)
      5.18 Tm
      Volume equivalente di cedevolezza (Vas)
      12.6 Litres
      Escursione lineare massima (Xmax)
      9.5 mm
      Perdite meccaniche del driver (Rms)
      1.02 kg/s
      Materiale del cestello / telaio
      Aluminium
      Diametro esterno complessivo
      165.5 mm
      Profondità complessiva
      70.7 mm
      Diametro del ritaglio del pannello frontale
      141 mm
      # Numero di fori di montaggio
      25
      Volume per cassa reflex
      58 Litres

      Show more
