      Revelator 15W/8530K00 Midwoofer

      Scan-Speak Revelator 15W/8530K00 Midwoofer

      €199,95

      10+ In magazzino

      Scan-Speak Revelator 15W/8530K00 Midwoofer

      3 reviews
      5 da 5
      3 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Scan-Speak
      € 165,25€ 199,95 10+ In magazzino
      • -5% Acquista 4 per soli € 189,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Patended symmetrical drive motor design

      Descrizione del prodotto Scan-Speak Revelator 15W/8530K00 Midwoofer

      Highlights

      • Excellent Midrange Performance
      • Coated Sliced Paper Cone
      • Low loss linear suspension
      • SD-1 motor



      Product details

      Scan-Speak Discovery 15W/8530K00 5.5" Midwoofer

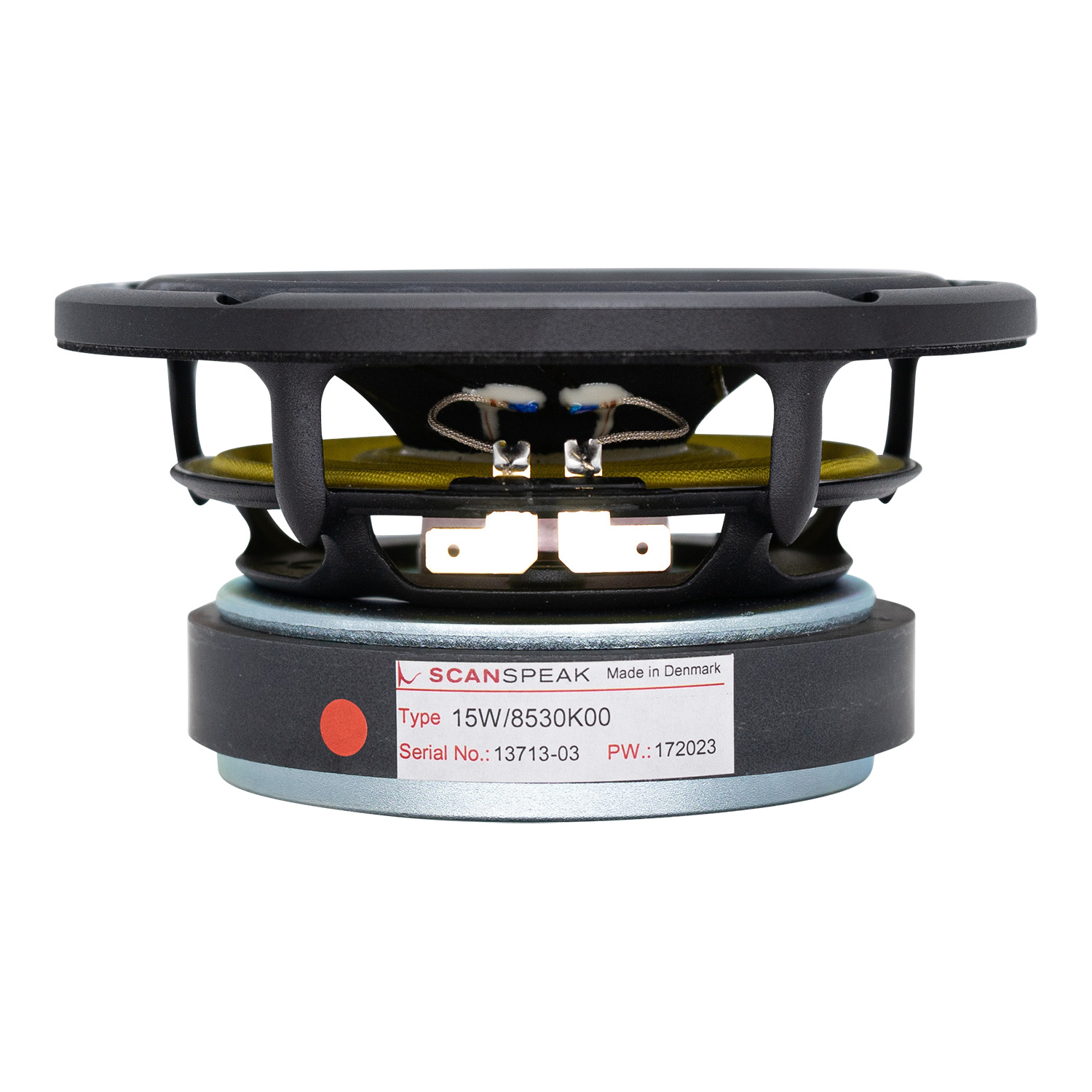

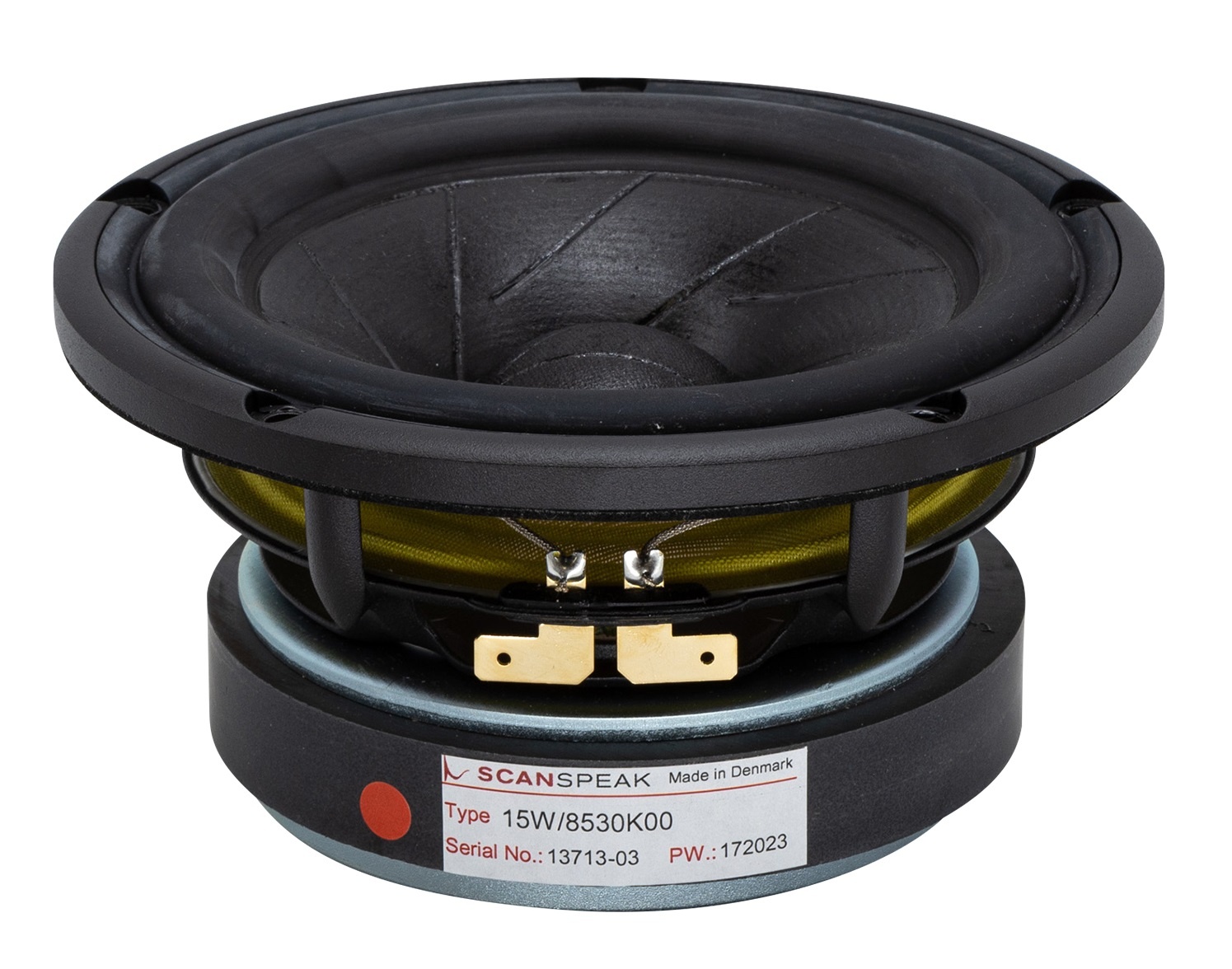

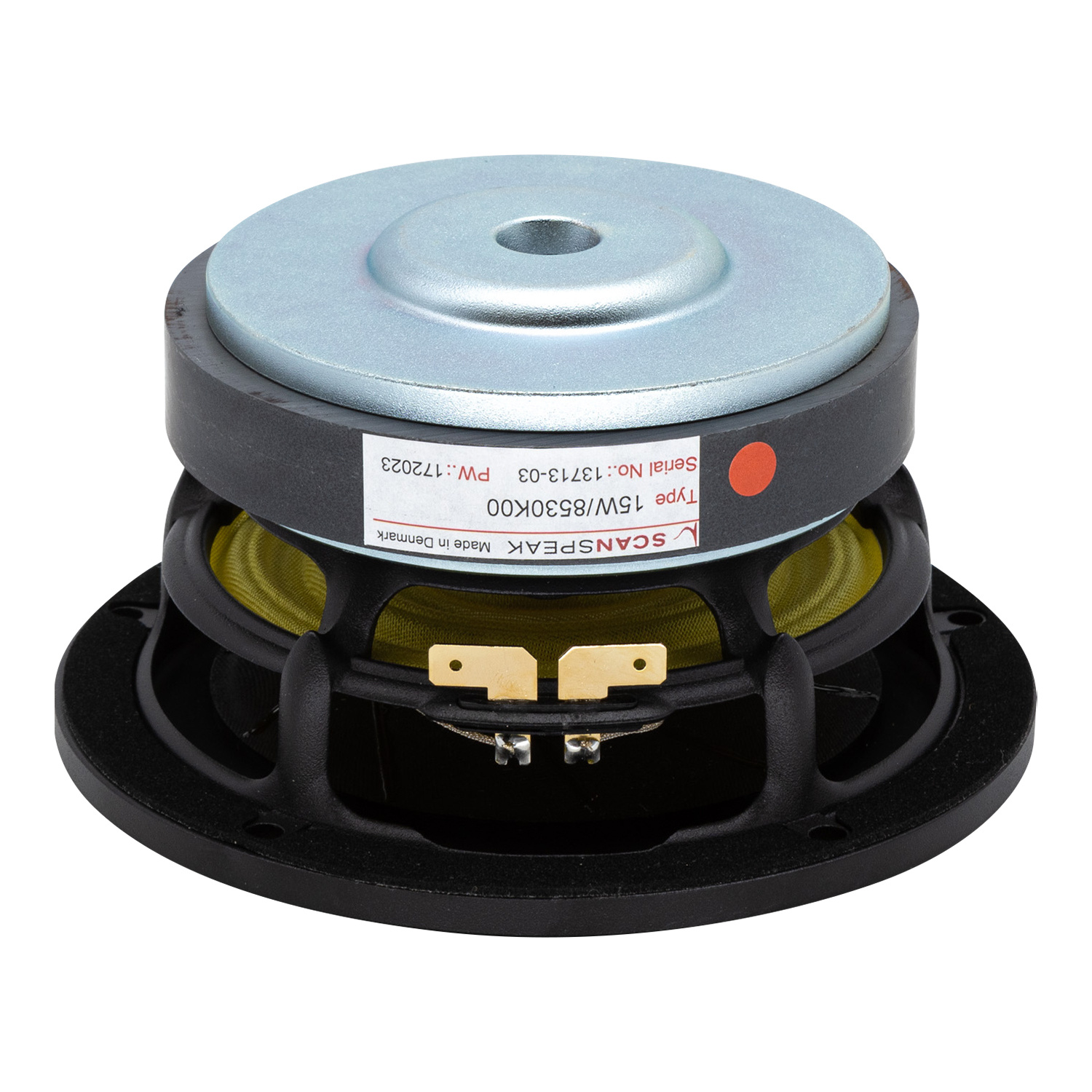

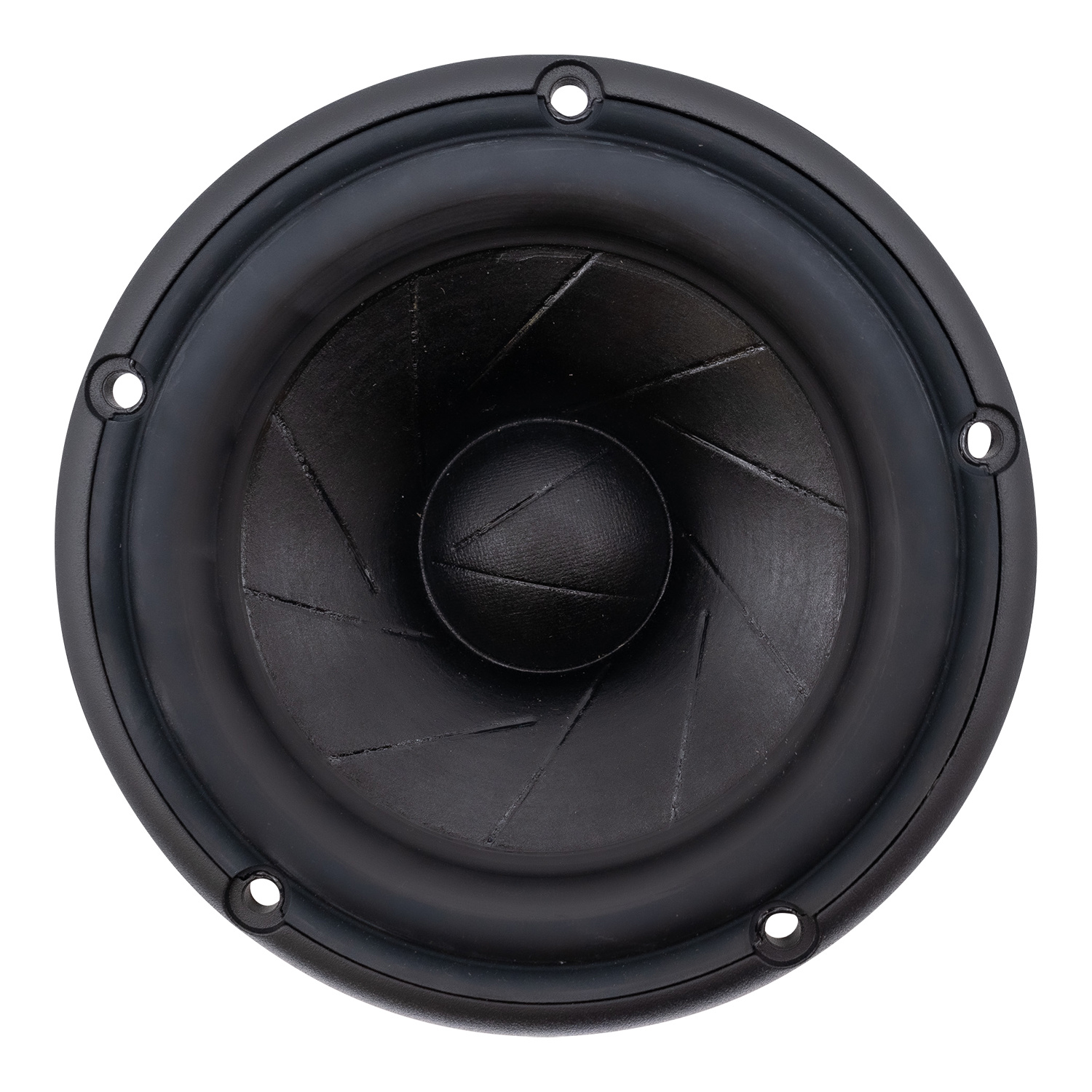

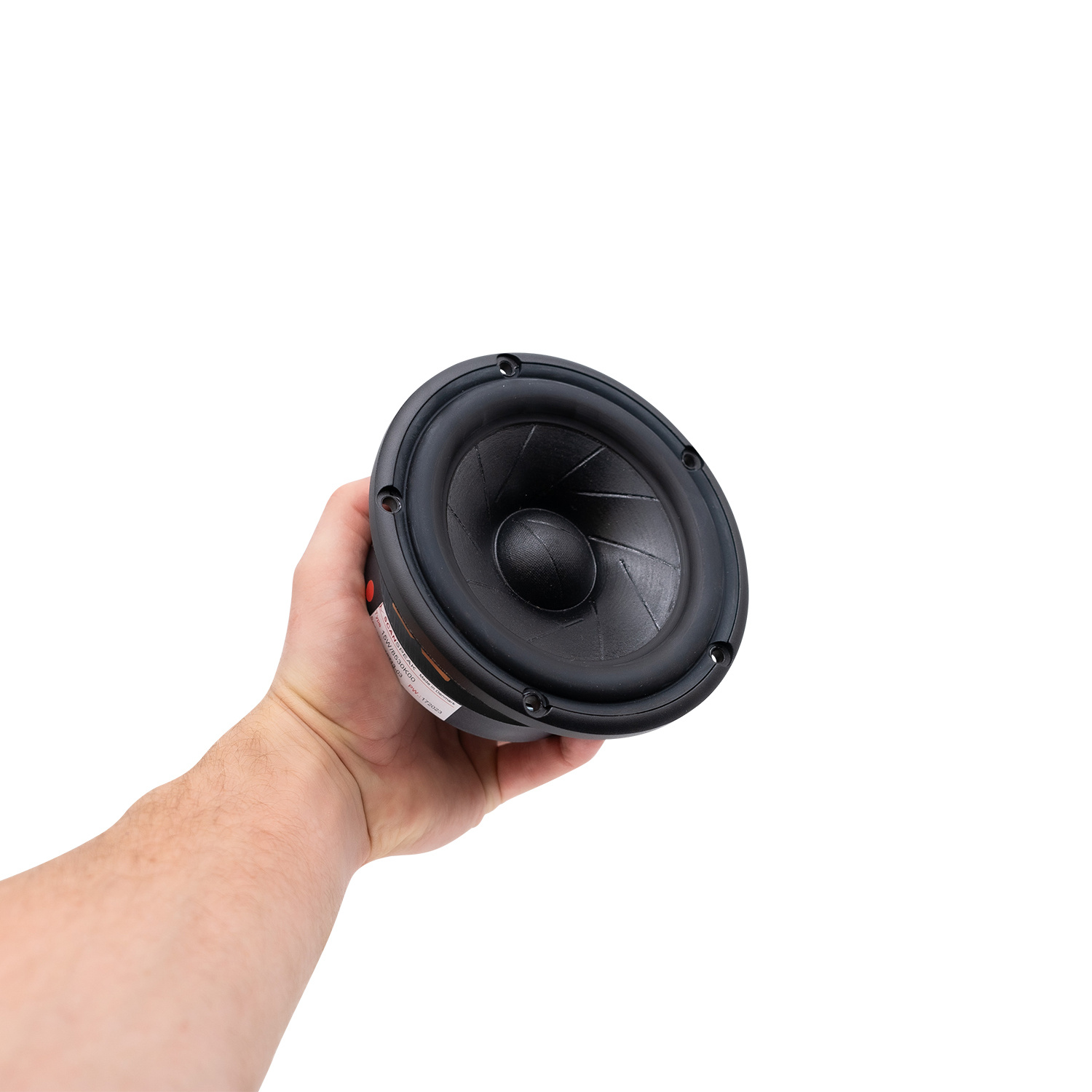

      The 15W/8530K is a 5 ½” Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper” cast chassis with maximized airflow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy, and higher sound pressure capability make the 15W have more musical and dynamic capability than any other 5 ½” we know of. Wonderful bass in a small box!



      The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

      Show more

      Specifiche

      Numero dell'articolo:
      15W/8530K00
      EAN
      0691046949530
      Serie del woofer
      Scan-Speak Revelator series
      Tipo di woofer
      Midwoofer
      Diametro nominale
      5.5''
      Gestione della potenza (RMS)
      60 Watts
      Gestione della potenza (max)
      110 Watts
      Impedenza (Z)
       8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      86 dB
      Risposta in frequenza
      39-6.000 Hz
      Diametro della bobina mobile
      38 mm
      Resistenza DC (Re)
       5.85 Ω
      Induttanza della bobina mobile (Le)
      0.3 mH
      Frequenza di risonanza (Fs)
      39 Hz
      Fattore di merito meccanico (Qms)
      5
      Fattore di merito elettromagnetico (Qes)
      0.43
      Fattore di merito totale (Qts)
      0.39
      Massa del diaframma incl. la massa dell'aria (Mms)
      13 g
      Cedevolezza meccanica della sospensione (Cms)
      1.27 mn/N
      Superficie del cono (Sd)
      90 cm²
      Prodotto BL (BL)
      6.6 Tm
      Volume equivalente di cedevolezza (Vas)
      16 Liters
      Escursione lineare massima (Xmax)
      +/- 6.5 mm
      Perdite meccaniche del driver (Rms)
      0.64 kg/s
      Materiale della sospensione
      Low damping SBR Rubber
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      148 mm
      Profondità complessiva
      77 mm
      Diametro del ritaglio del pannello frontale
      125 mm
      # Numero di fori di montaggio
      5
      Diametro dei fori di montaggio
      5.3 mm

      Show more
