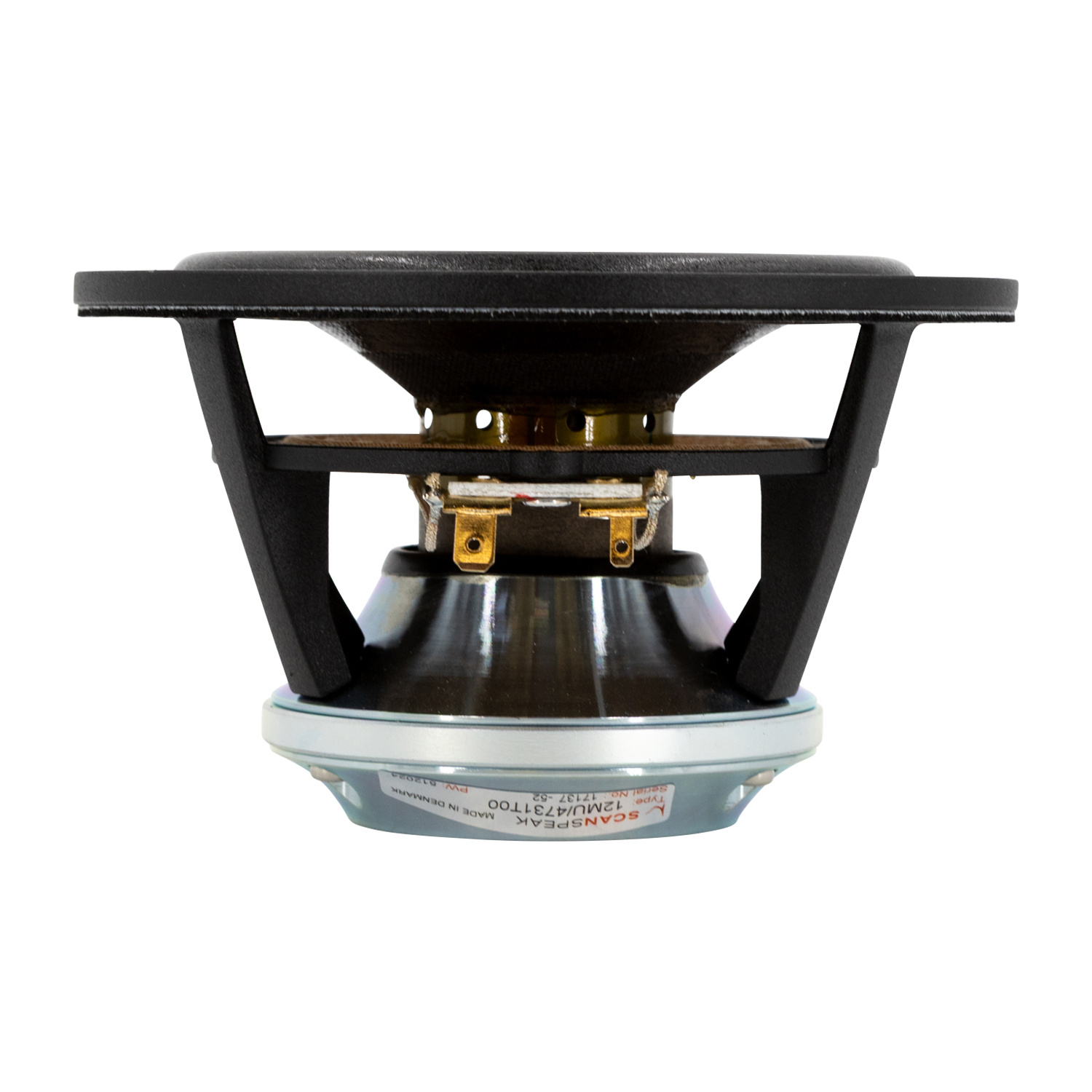

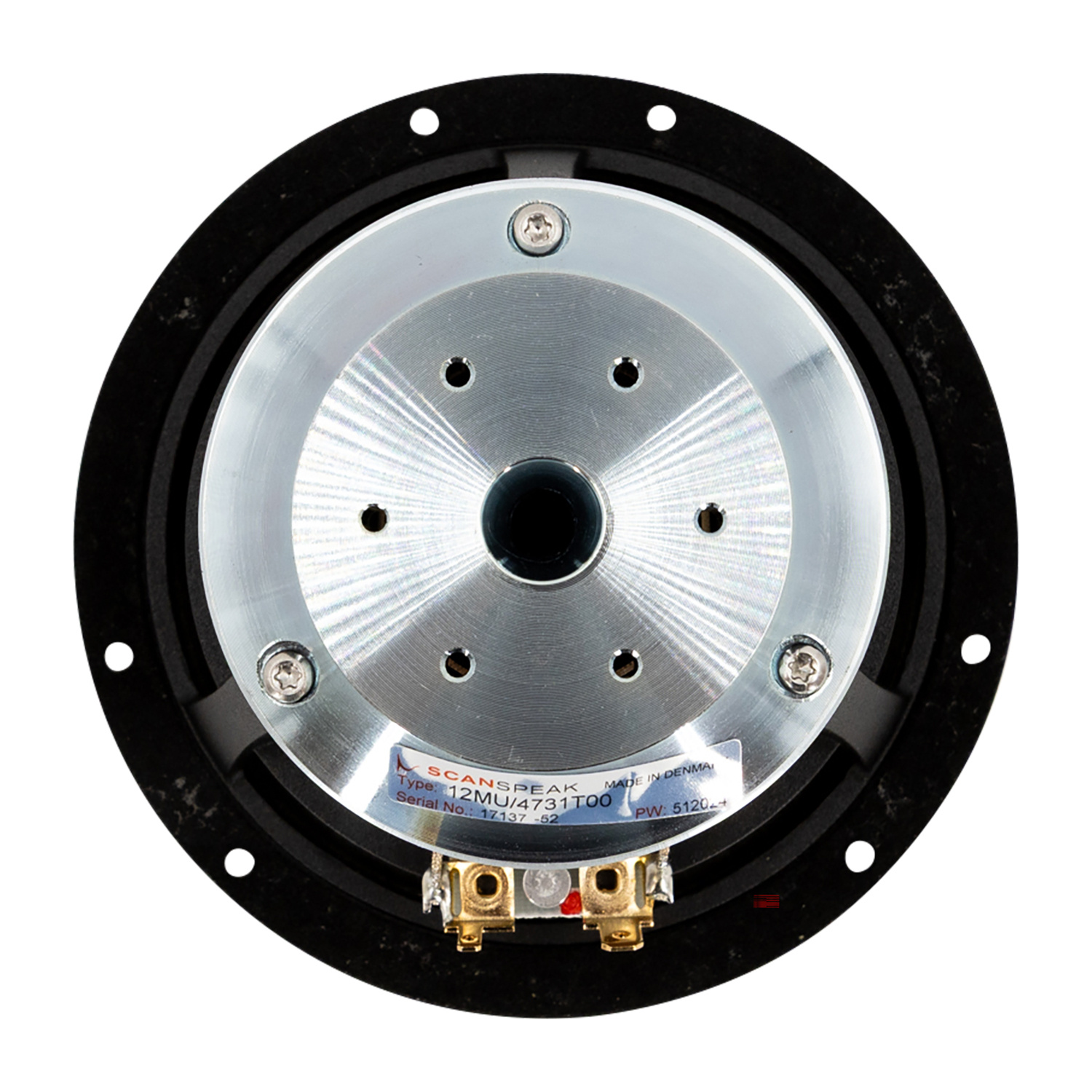

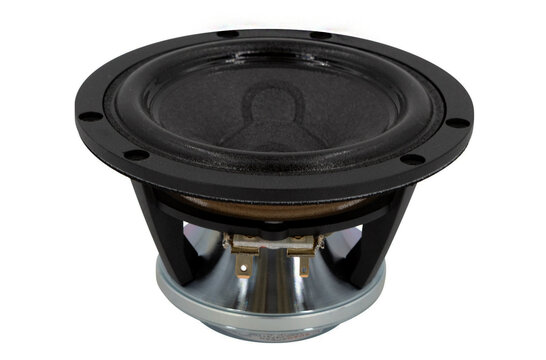

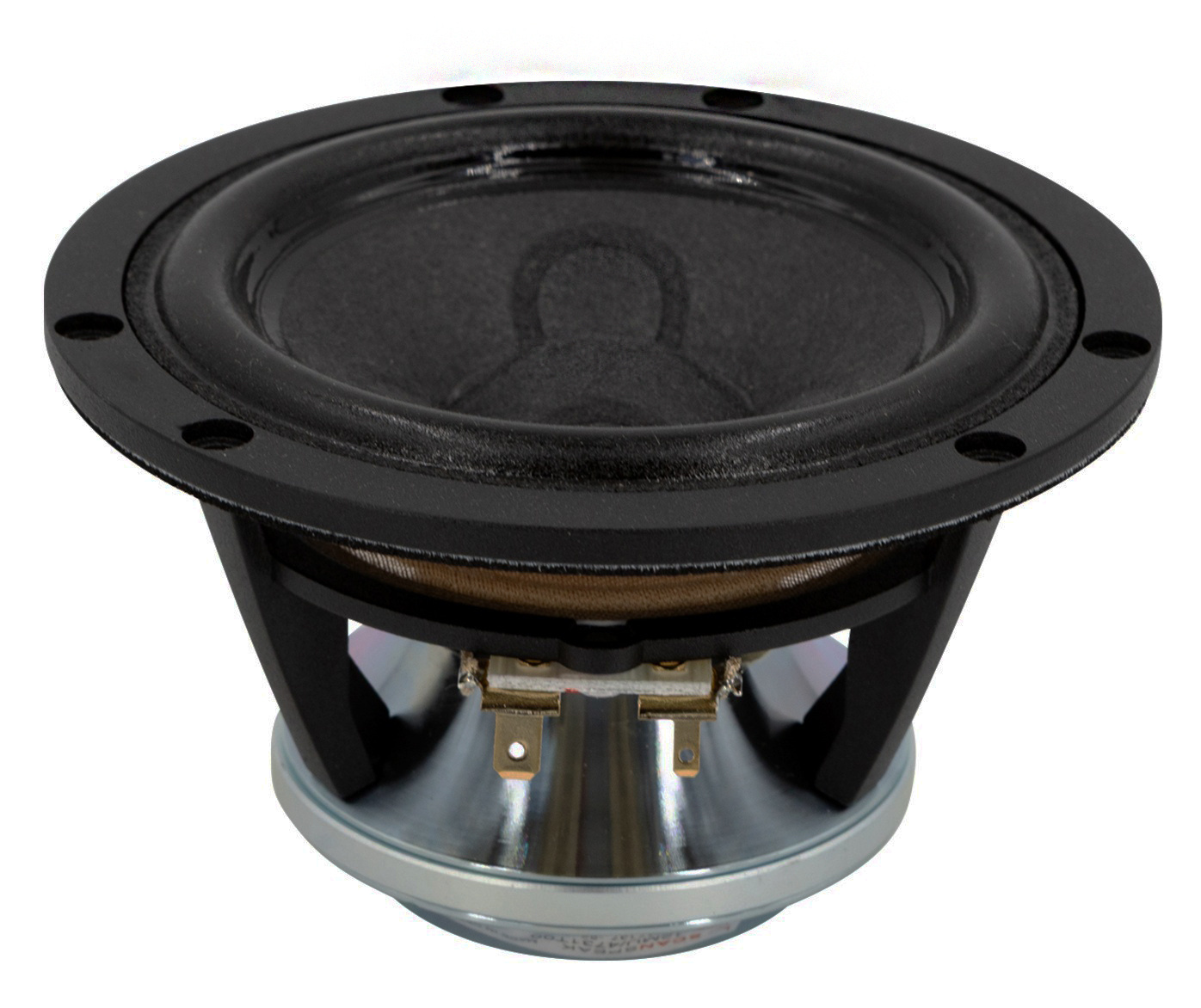

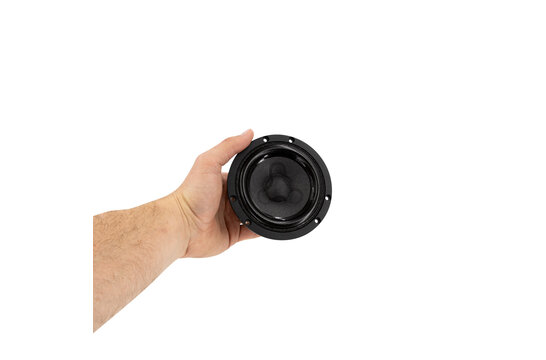

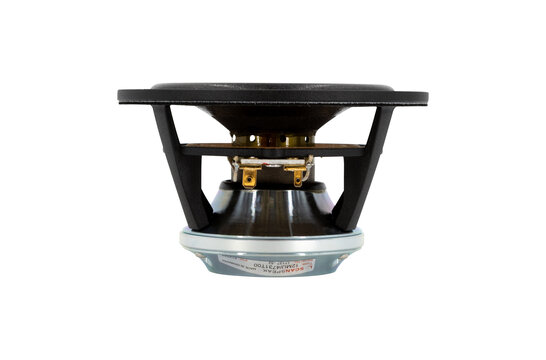

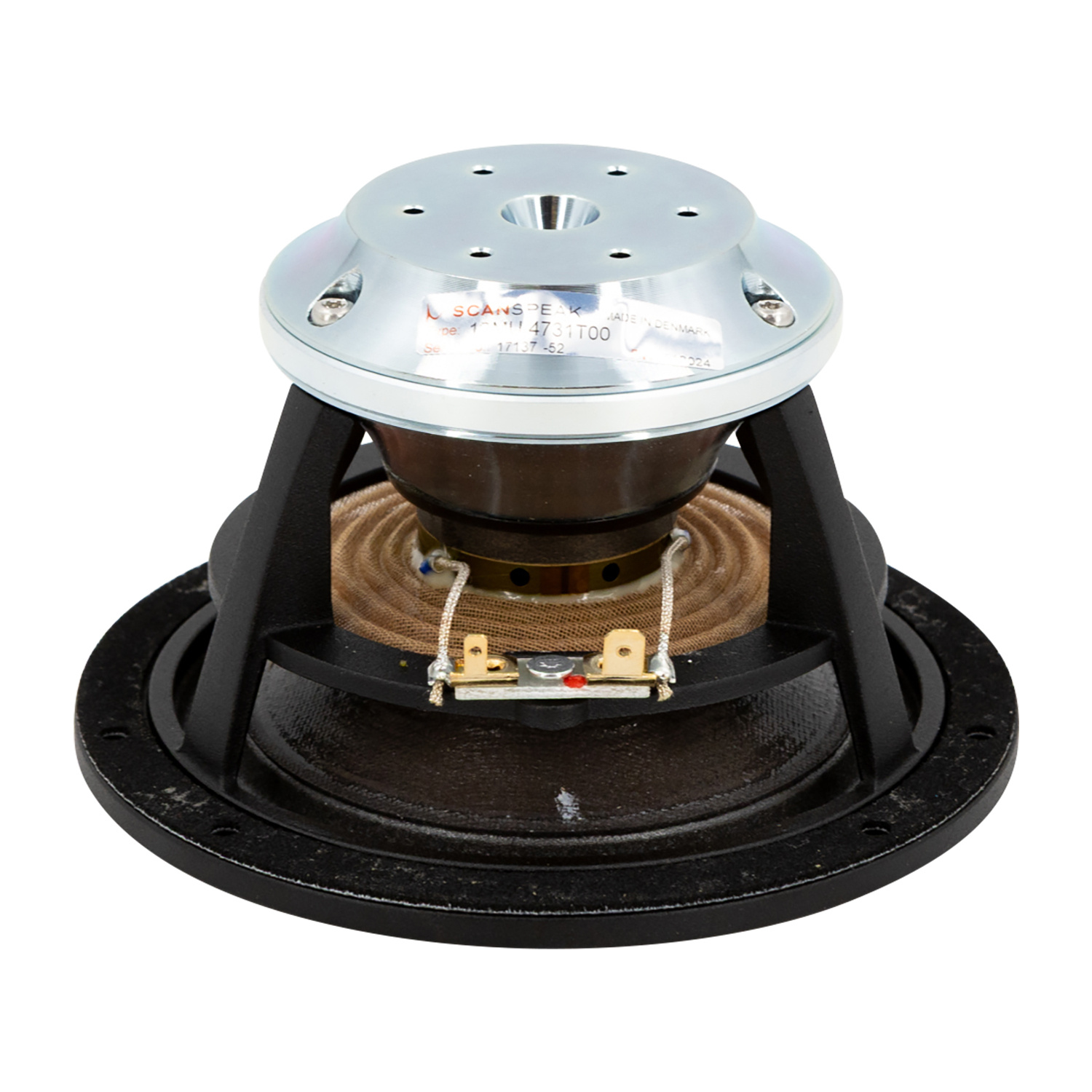

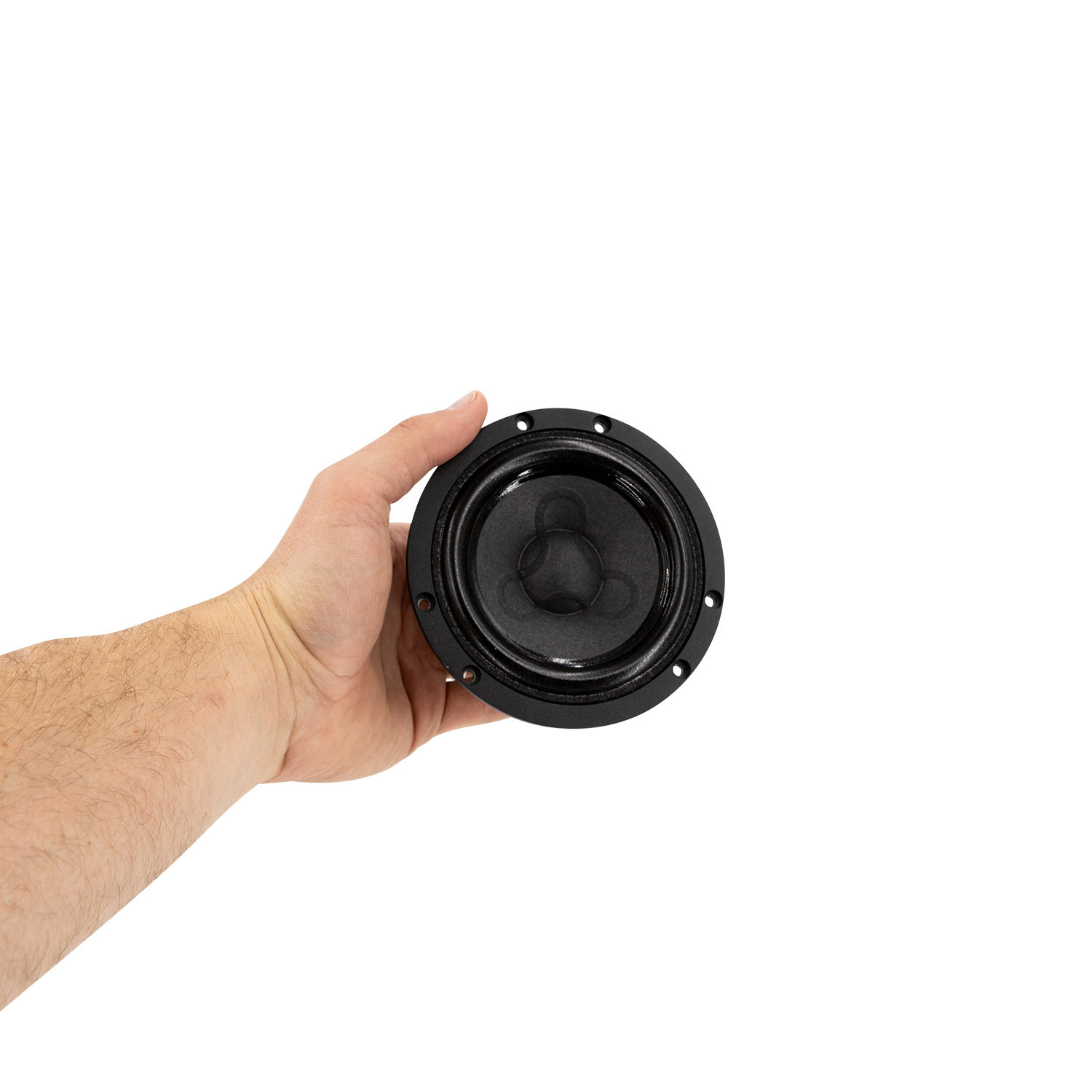

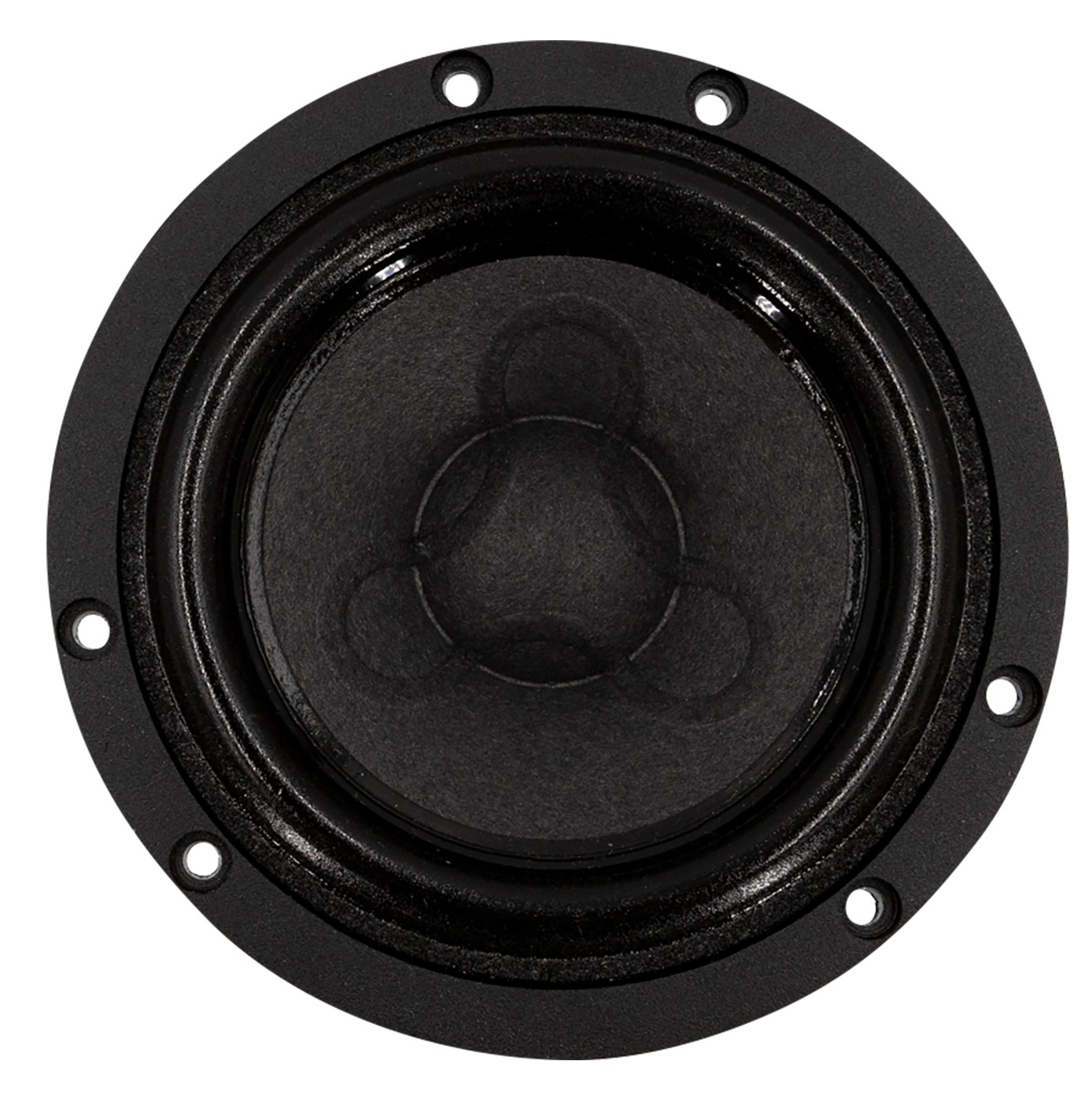

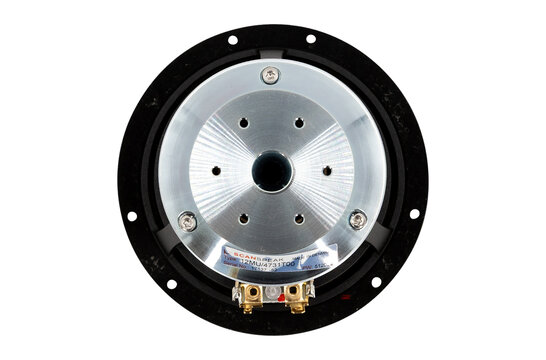

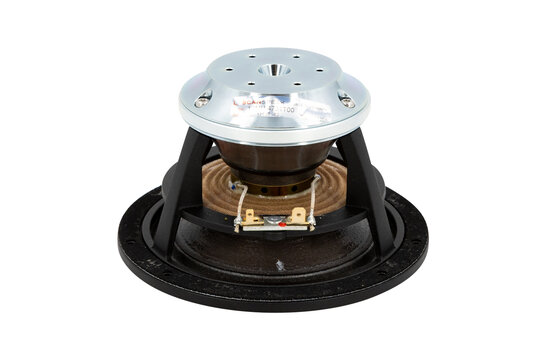

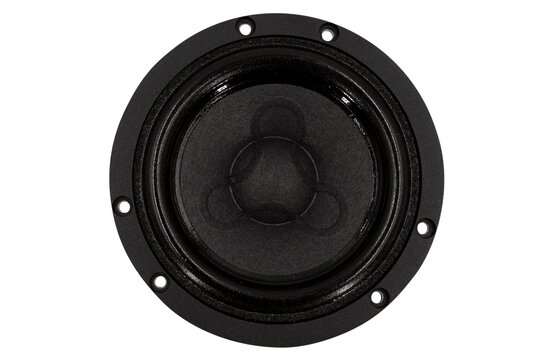

Name: Scan-Speak Illuminator 12MU/4731T00 Woofer Medio-Bassi
Brand: Scan-Speak
SKU: 12MU/4731T00
Price: 314.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

4" | 4 Ω

Illuminator 12MU/4731T00 Woofer Medio-Bassi

€ 260,29€ 314,95 4 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Scan-Speak Illuminator 12MU/4731T00 Woofer Medio-Bassi

Highlights

Neodymium magnet
Under hung motor system
One piece cone and dust cap, full cone technology
Very Wide Frequency Response 100-10KHz
Patented Symmetrical Drive (SD-3)
Low-loss Linear Suspension
Foam surround
High Output 90dB @ 2,83V

Product details

Scan-Speak Illuminator 12MU/4731T00 4" Woofer

The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.
