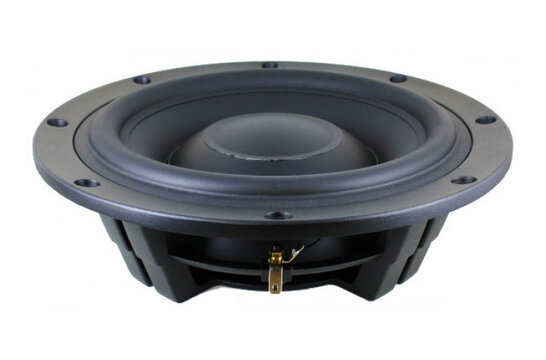

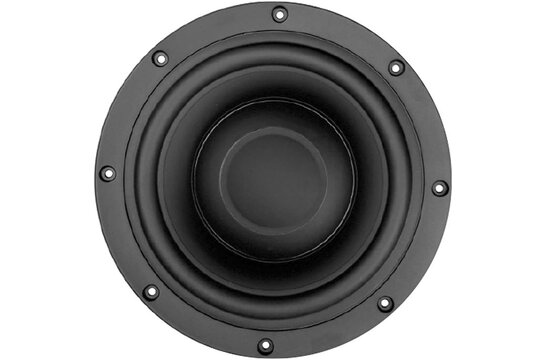

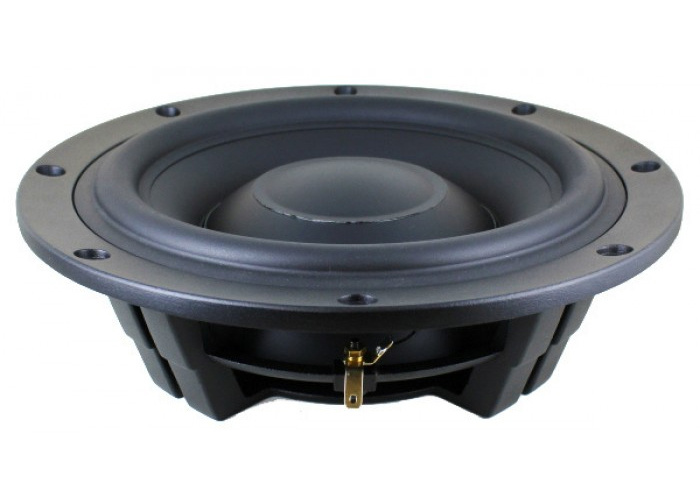

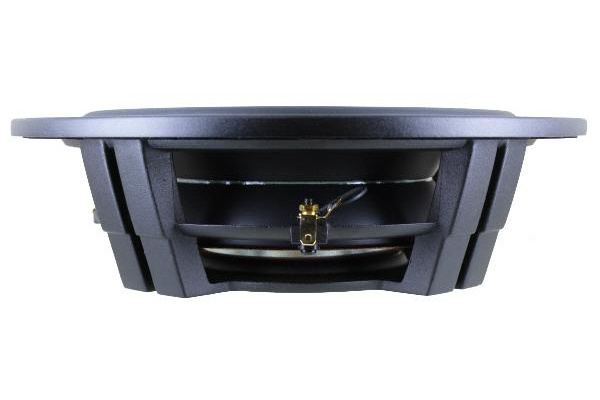

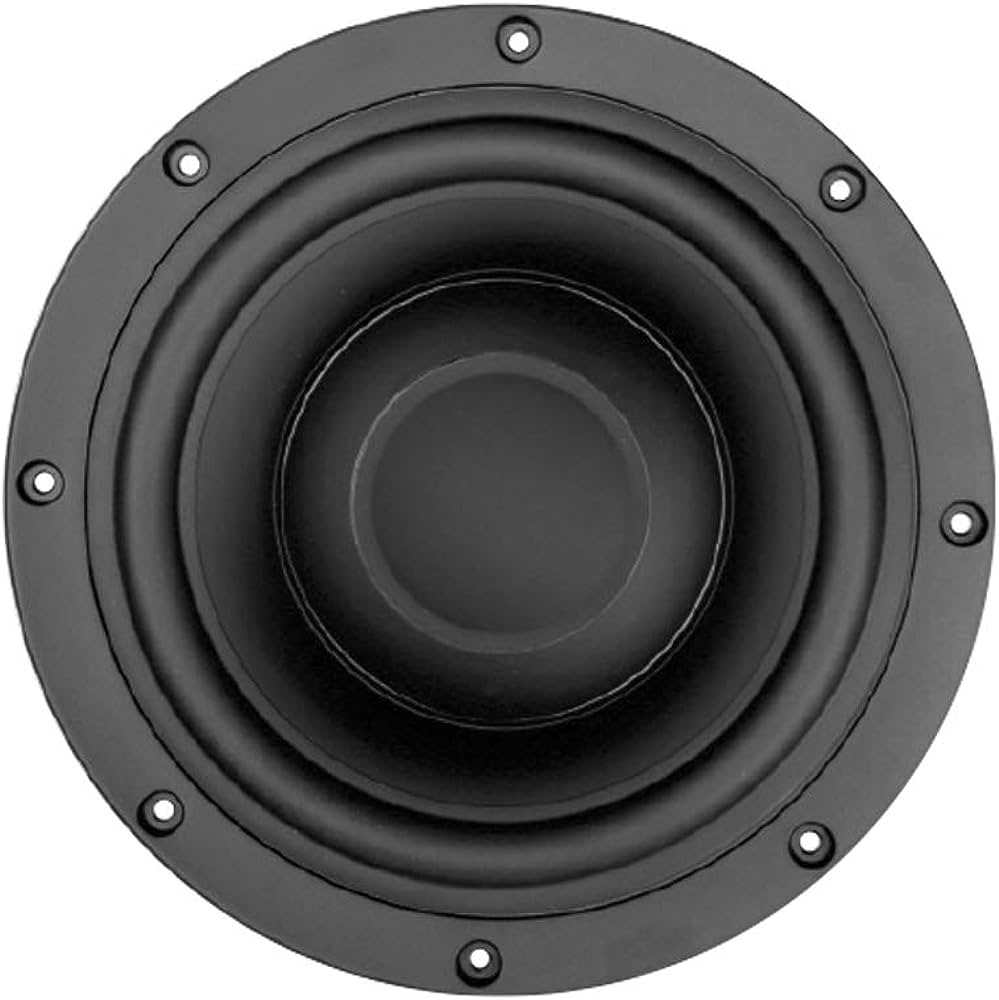

      SW26DBAC76-3-DV Subwoofer

      SB Acoustics SW26DBAC76-3-DV Subwoofer

      €309,95

      8 In magazzino

      SB Acoustics SW26DBAC76-3-DV Subwoofer

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      € 256,16€ 309,95 8 In magazzino
      • -5% Acquista 4 per soli € 294,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Dual rigid aluminum cone structure and · Non-conducting fiber glass coil former for minimum damping

      Descrizione del prodotto SB Acoustics SW26DBAC76-3-DV Subwoofer

      The SW26DBAC76-3-DV is a high-performance subwoofer that is well-suited for both home and car audio applications. It features a long throw design that allows it to produce deep bass frequencies, while the vented cast aluminum chassis helps to dissipate heat and reduce distortion.



      Highlights

      • Unique patented long throw shallow design
      • Vented cast aluminum chassis for optimum strength and low compression
      • Dual rigid aluminum cone structure
      • Non-conducting fiber glass coil former for minimum damping
      • Shorting ring in motor system for reduced distortion
      • Copper voice coil for improved power handling
      • Dual voice coil
      • Long life insulated silver lead wires
      • Powerful neodymium motor system



      Product details

      SB Acoustics SW26DBAC76-3-DV Shallow Subwoofer



      the SB Acoustics SW26DBAC76-3-DV Shallow Subwoofer is a dual voice coil (2x 3ohm) shallow design long throw subwoofer featuring a 10 inch aluminium cone and a vented cast aluminium chassis. It has a unique patented long throw shallow design, non-conducting fiber glass coil former for minimum damping, shorting ring in motor system for reduced distortion, copper voice coil for improved power handling and long life insulated silver lead wires. The subwoofer has a vented cast aluminum chassis for optimum strength and low compression.



      The SW26DBAC76-3-DV is a shallow-mount subwoofer, making it ideal for applications where space is limited. The subwoofer is rated for 300W RMS power, so it can handle even the most demanding audio applications. Also, the SW26DBAC76-3-DV features a frequency response of 19Hz - 250Hz, so it can reproduce a wide range of bass frequencies.

      Show more

      Specifiche

      Numero dell'articolo:
      SW26DBAC76-3-DV
      EAN
      8785256847990
      Gestione della potenza (RMS)
      300 Watts
      Gestione della potenza (max)
      600 Watt
      Impedenza (Z)
      2 x 4 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      82.9 dB
      Resistenza DC (Re)
      1.2 Ohm
      Induttanza della bobina mobile (Le)
      0.4 mH
      Frequenza di risonanza (Fs)
      19.5 Hz
      Fattore di merito meccanico (Qms)
      5.96
      Fattore di merito elettromagnetico (Qes)
      0.29
      Fattore di merito totale (Qts)
      0.28
      Massa del diaframma incl. la massa dell'aria (Mms)
      185 g
      Massa in movimento del diaframma (Mmd)
      180.9 g
      Cedevolezza meccanica della sospensione (Cms)
      360 µm/N
      Superficie del cono (Sd)
      312 cm²
      Volume di spostamento (Vd)
      374 cm³
      Prodotto BL (BL)
      9.7
      Volume equivalente di cedevolezza (Vas)
      49.7 L
      Escursione lineare massima (Xmax)
      12.0 mm
      Perdite meccaniche del driver (Rms)
      3.8 3.8 kg/s
      Supporto della bobina mobile
      Fiber glass
      Bobina mobile doppia
      Yes
      Materiale del cestello / telaio
      Aluminium
      Diametro esterno complessivo
      290 mm
      Profondità complessiva
      84.6 mm
      Diametro del ritaglio del pannello frontale
      249 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      5.5 mm
