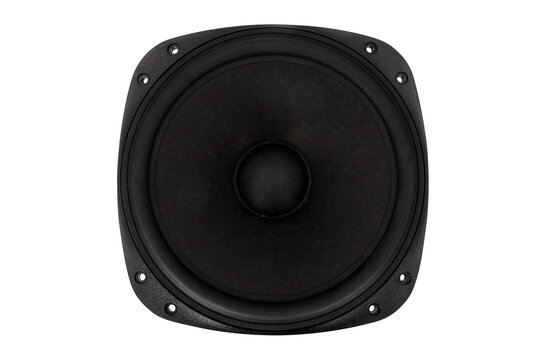

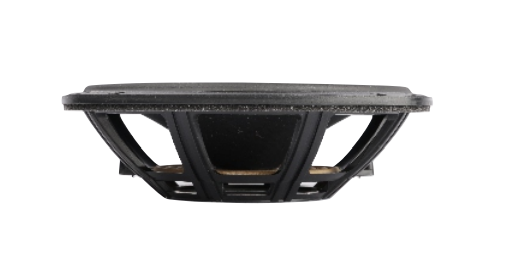

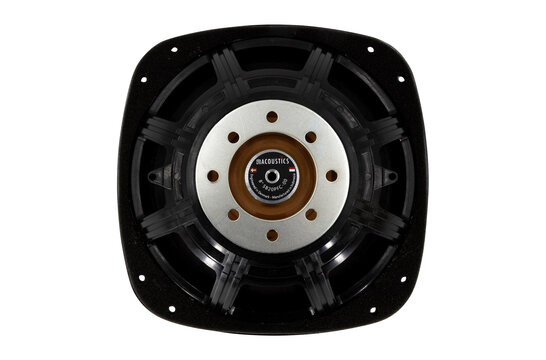

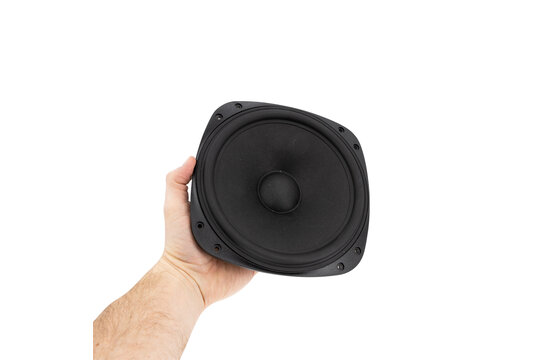

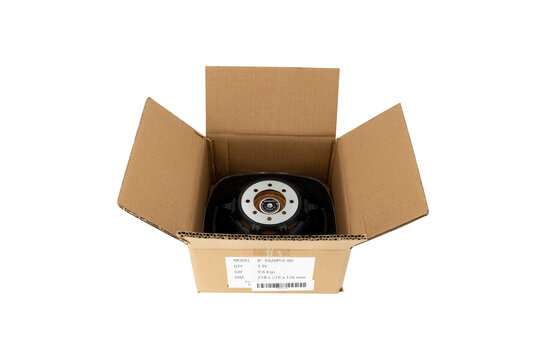

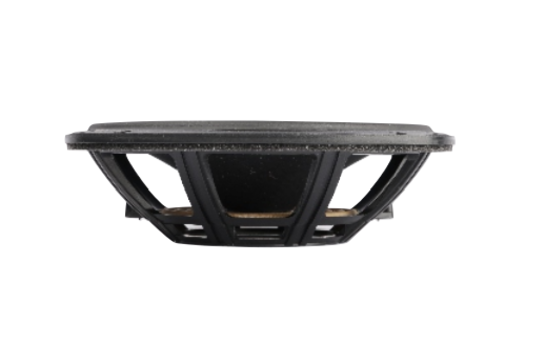

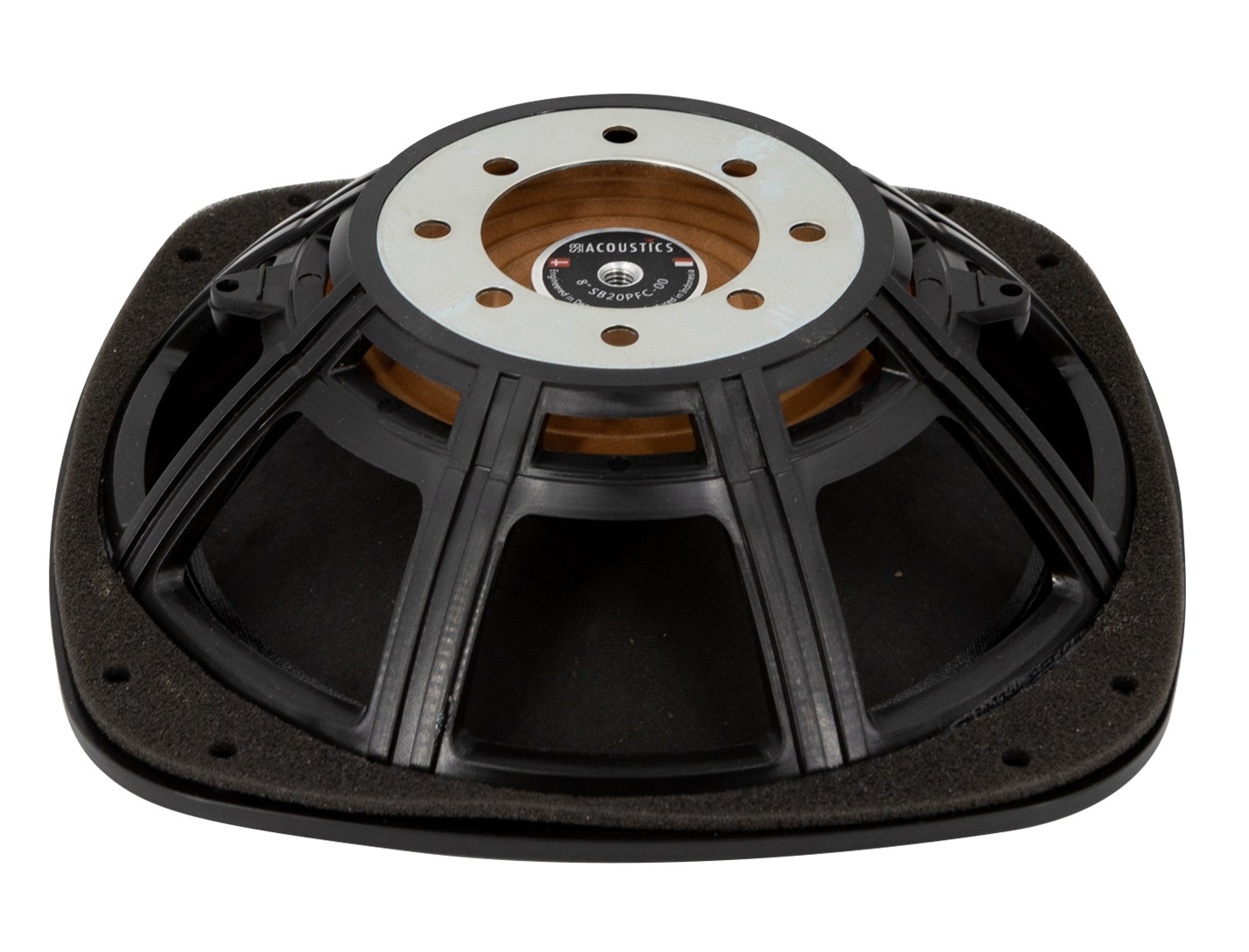

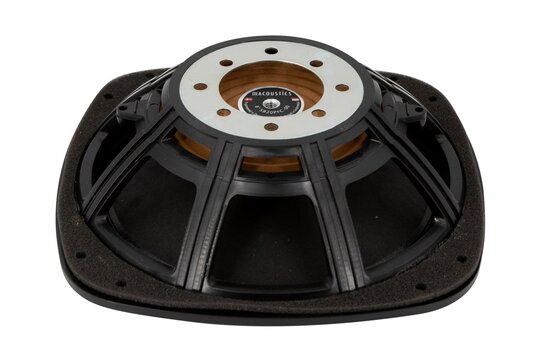

Name: SB Acoustics SB20PFC-00 Radiatore Passivo
Brand: SB Acoustics
SKU: SB20PFC-00
Price: 31.45 EUR
Availability: BackOrder

passive | 8''

€ 25,99€ 31,45 Esaurito4 Arrivo previsto il 19-12-2025

Backorder

Spedizione gratuita a partire da € 199
Presto di nuovo disponibile
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto SB Acoustics SB20PFC-00 Radiatore Passivo

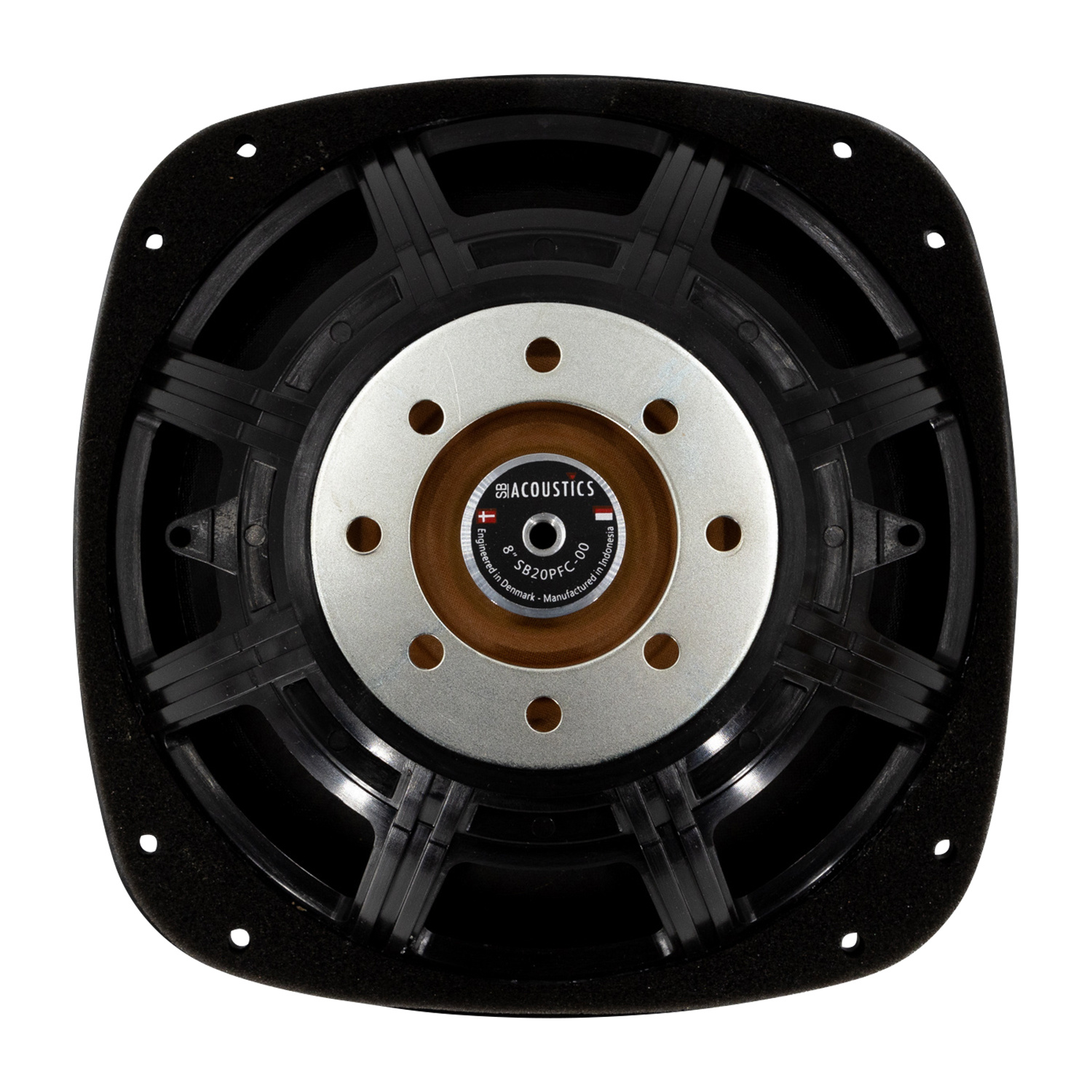

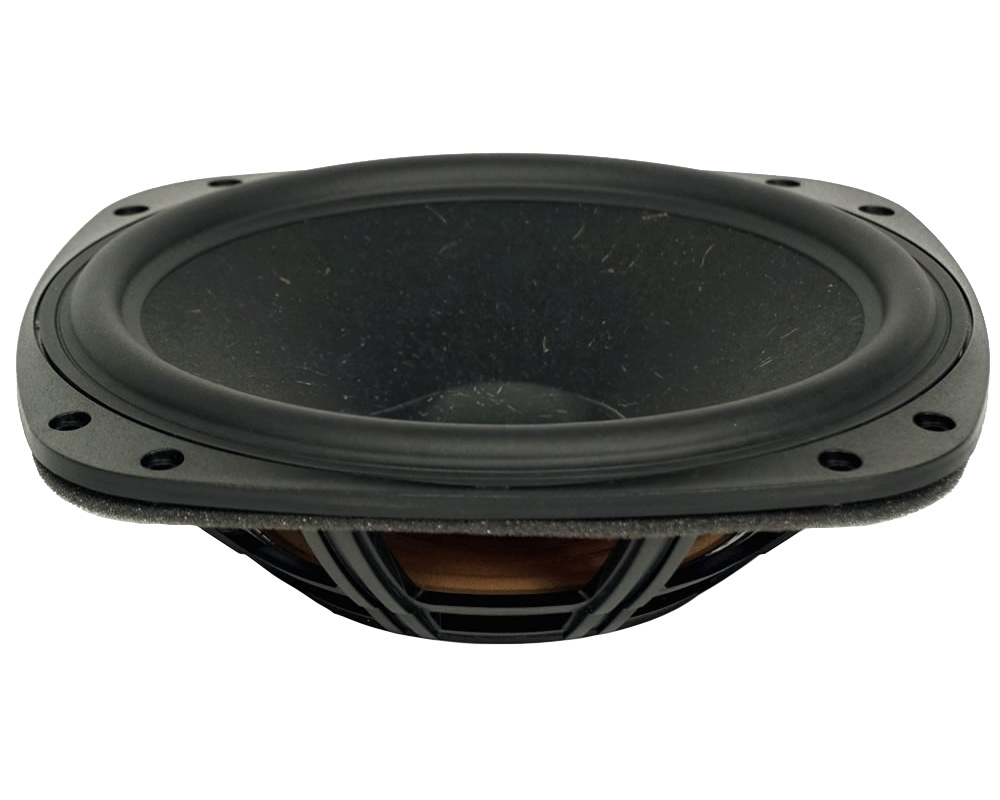

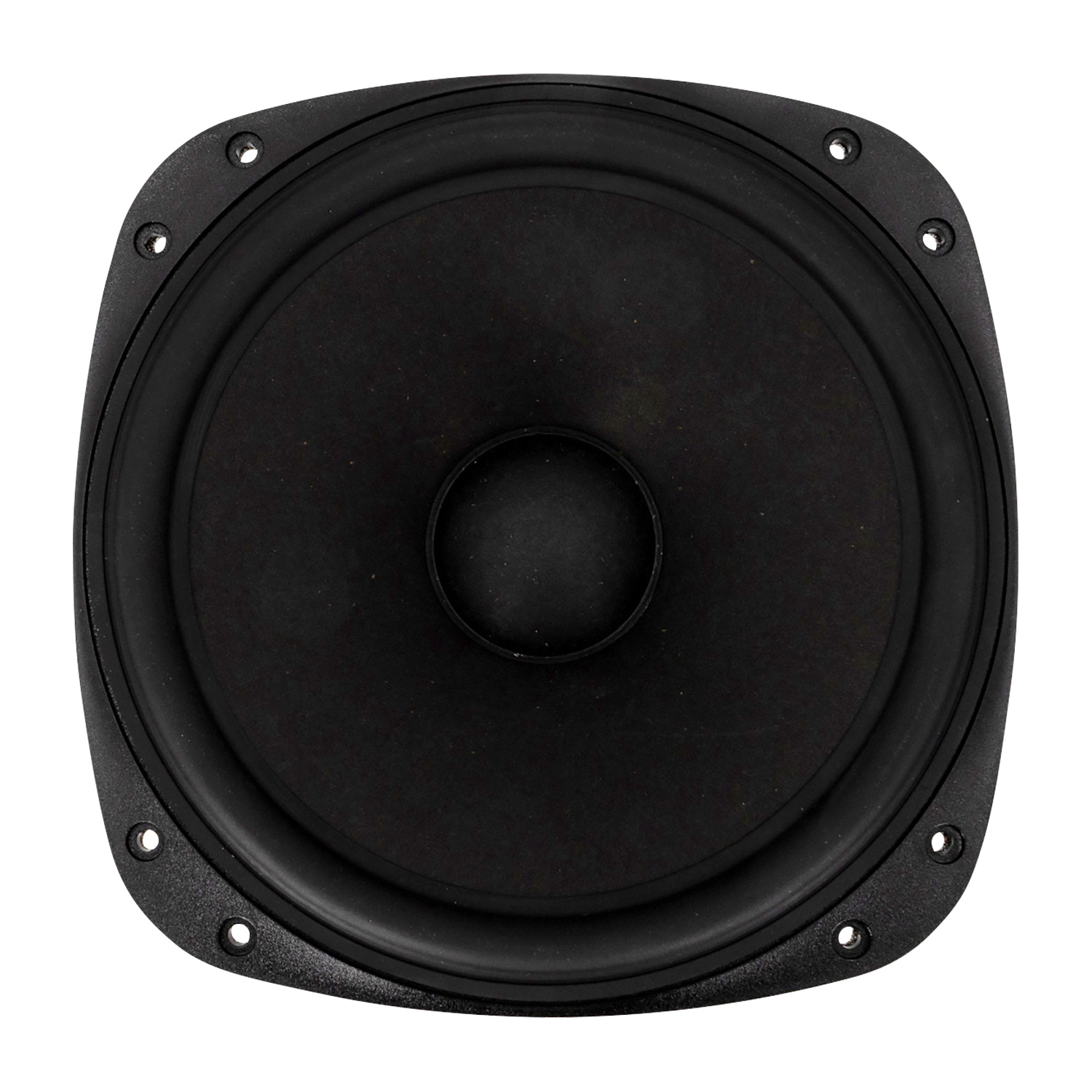

The SB Acoustics SB20PFC-00 is an 8-inch passive radiator that is designed to be used in conjunction with a woofer to extend the low-frequency response of a speaker system. It is made with a paper cone and a vented plastic basket, and it has a free-air resonance frequency of 20 Hz.

Highlights

Vented reinforced plastic chassis
Proprietary cone material with natural fibers made in-house
Soft low damping surround
Easily adjustable moving mass
Symmetric suspension

Product details

SB Acoustics SB20PFC-00 8'' Paper Passive Radiator

The SB20PFC-00 is a good choice for speakers that need to be compact but still have good bass response. It can be used in a variety of speaker enclosures, including sealed, ported, and bass-reflex designs. This passive radiator has an effective piston area of 216 cm², a free air resonance of 20 Hz, and a compliance of 0.83 mm/N. It has a moving mass including air of 76.7 g and a maximum mechanical cone excursion of ± 11mm. The mechanical loss is 1.4 kg/s and the mechanical Q-factor is 6.8. The equivalent volume is 55 liters and the net weight is 246 g.
