      SB17NRXC35-8 Woofer Medio-Bassi

      SB Acoustics SB17NRXC35-8 Woofer Medio-Bassi

      €72,95

      10+ In magazzino

      Aggiungi al carrello

      SB Acoustics SB17NRXC35-8 Woofer Medio-Bassi

      3 reviews
      4 da 5
      3 reviews
      5 stars
      33%
      4 stars
      67%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      Mostra tutti Woofer medio-bassi
      6" | 8 Ω
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      € 60,29€ 72,95 10+ In magazzino
      • -5% Acquista 4 per soli € 69,30 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi
      SB17NRXC35-8 Woofer Medio-Bassi

      Descrizione del prodotto SB Acoustics SB17NRXC35-8 Woofer Medio-Bassi

      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • vented pole piece for reduced compression



      Product details

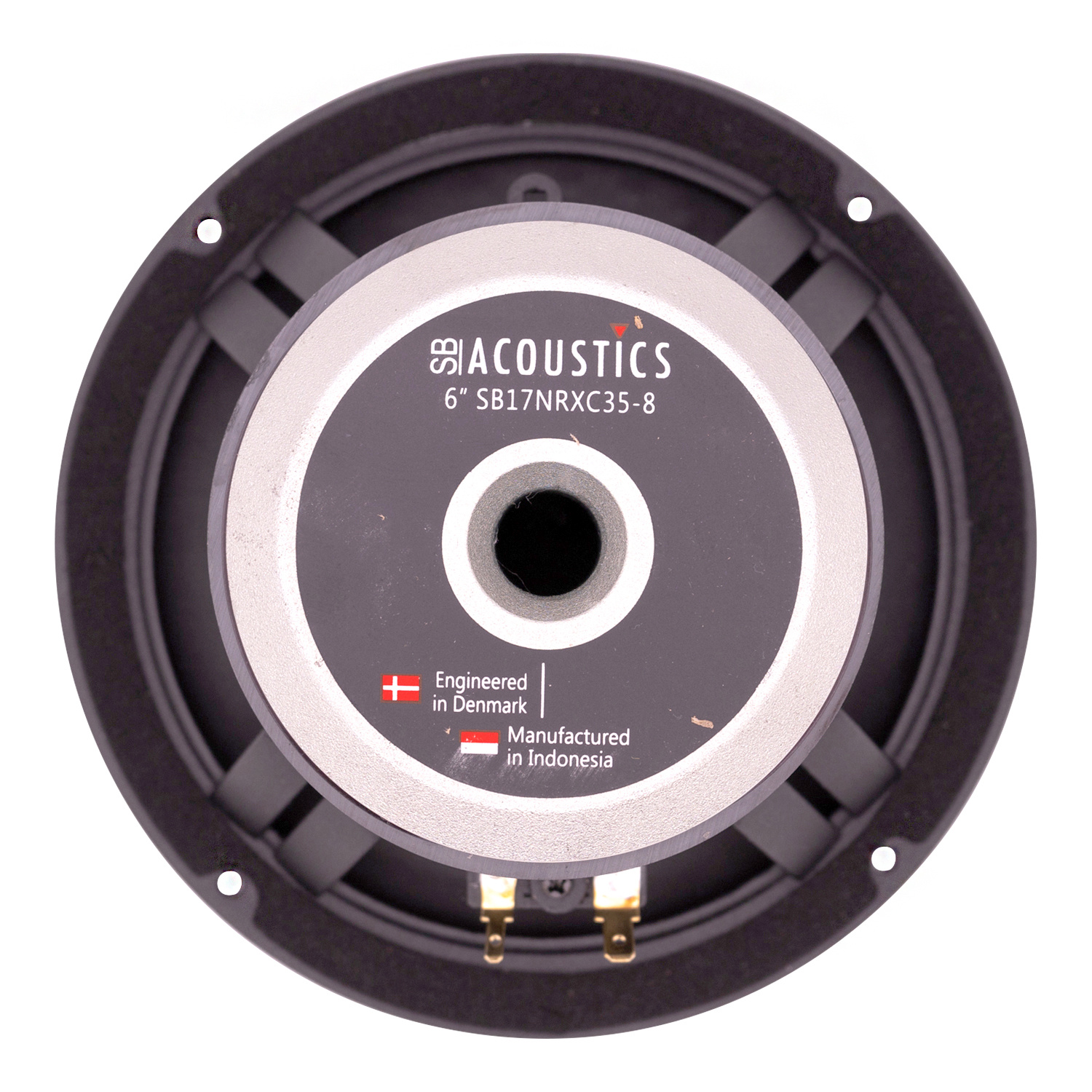

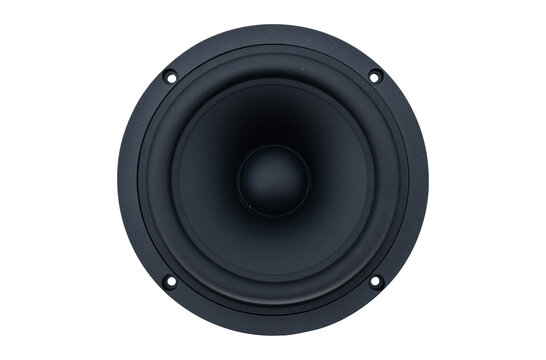

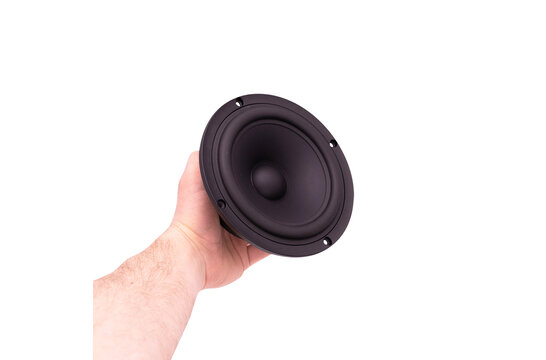

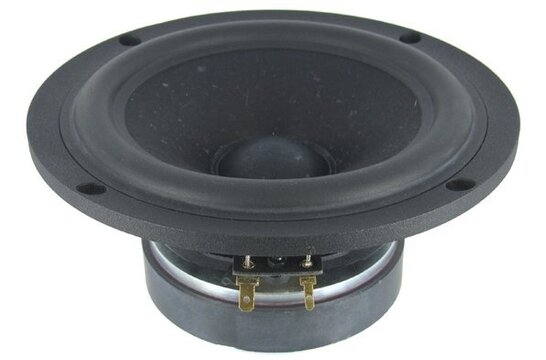

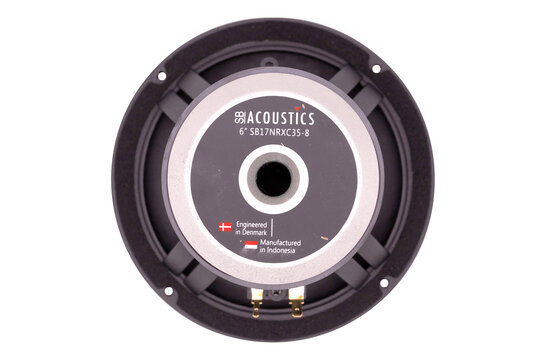

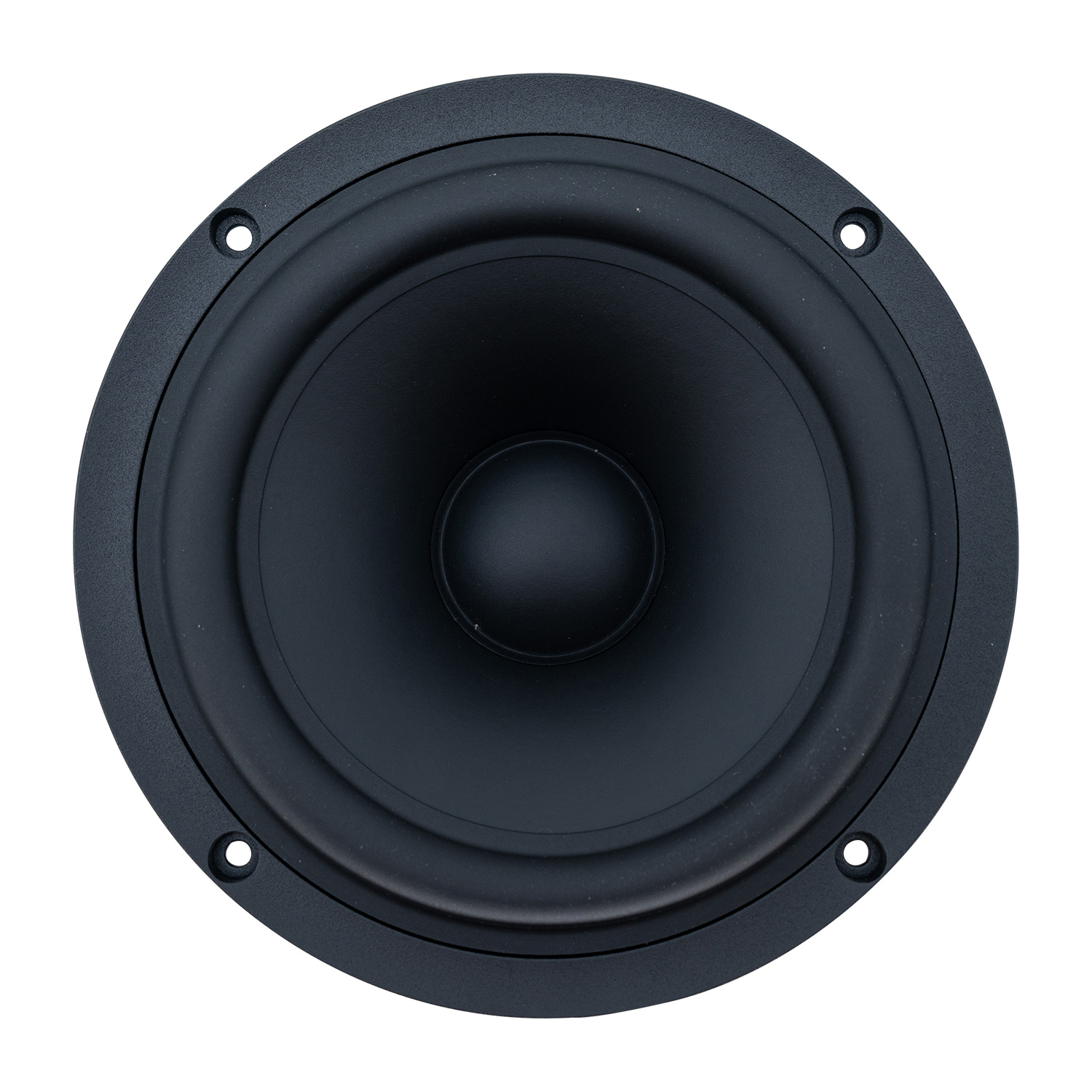

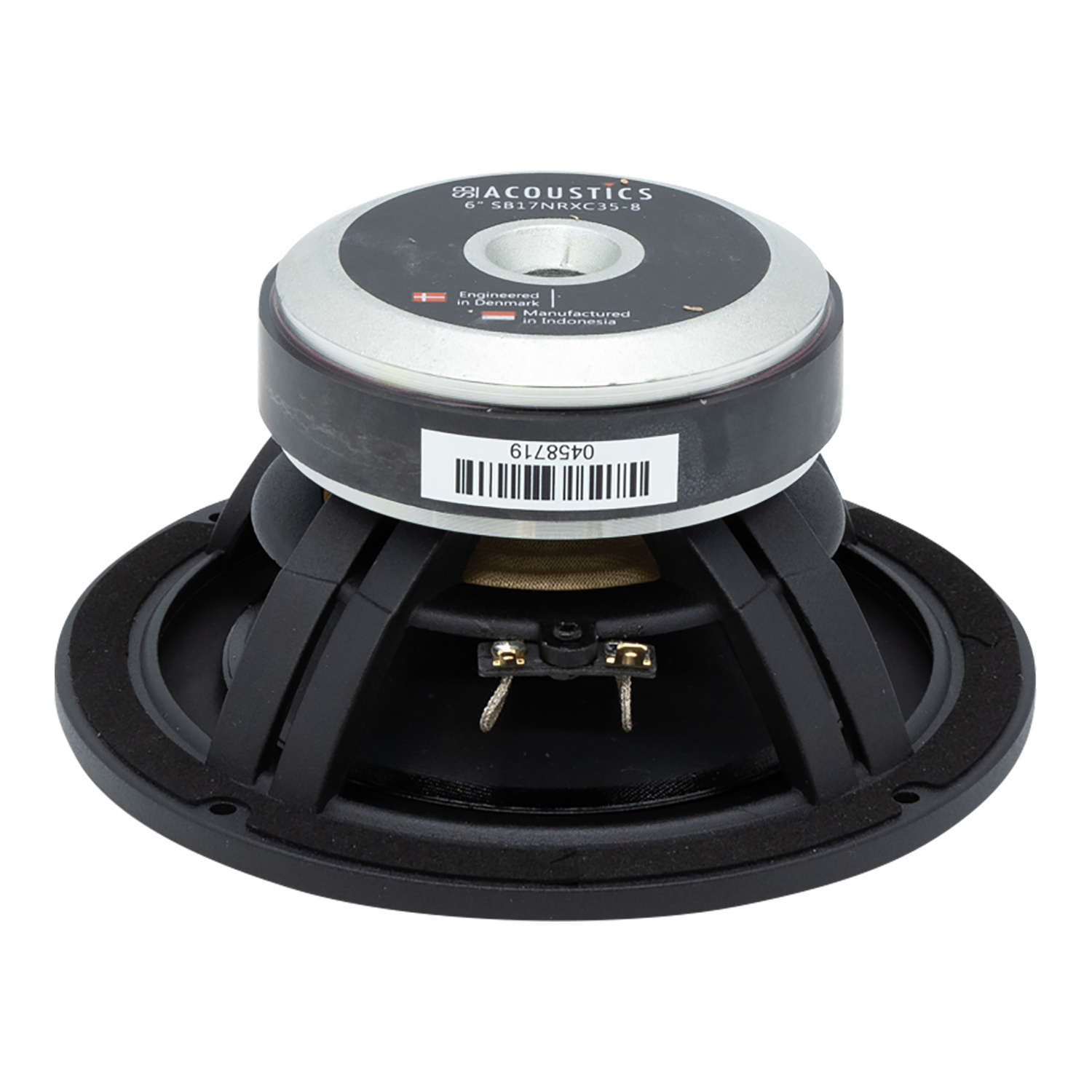

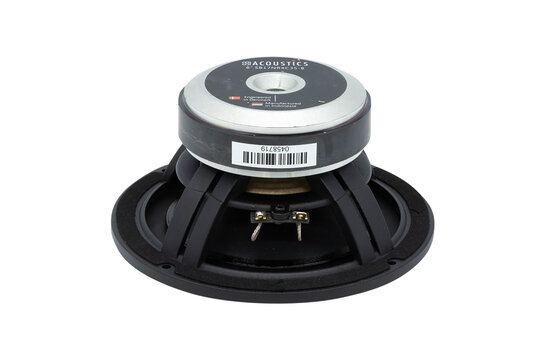

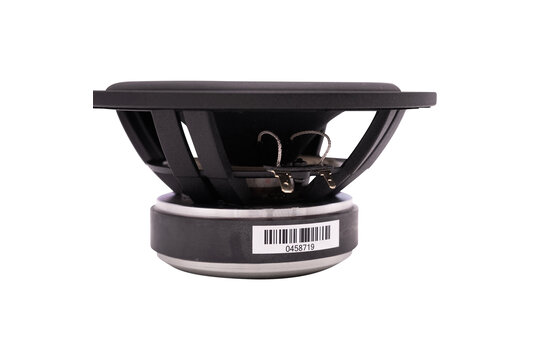

      SB Acoustics SB17NRXC35-8 6" Midrange Woofer



      Newly developed Norecx non-resonant poly-coated papyrus fiber cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive CCAW fiber glass 300mm coil former. Silver lead wires. Vented pole piece.



      The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To this end, SBA are proud to present their NRX series where close attention has been payed to design engineering with manufacturing materials and processes to optimize performance.

      Show more

      Specifiche

      Numero dell'articolo:
      SB17NRXC35-8
      EAN
      0696277269044
      Serie del woofer
      SB Acoustics NRX Norex series
      Tipo di woofer
      Midwoofer
      Diametro nominale
      6"
      Gestione della potenza (RMS)
      60 Watts
      Impedenza (Z)
      8 ohms
      Sensibilità (SPL a 1m / 2,83V)
      89 dB
      Diametro della bobina mobile
      1.4"
      Resistenza DC (Re)
      5.7 ohms
      Induttanza della bobina mobile (Le)
      0.15 mH
      Frequenza di risonanza (Fs)
      32 Hz
      Fattore di merito meccanico (Qms)
      5
      Fattore di merito elettromagnetico (Qes)
      0.36
      Fattore di merito totale (Qts)
      0.34
      Massa del diaframma incl. la massa dell'aria (Mms)
      11
      Cedevolezza meccanica della sospensione (Cms)
      2.25 mm/N
      Superficie del cono (Sd)
      118 cm2
      Prodotto BL (BL)
      5.9 Tm
      Volume equivalente di cedevolezza (Vas)
      1.57 ft.³
      Escursione lineare massima (Xmax)
      5.5 mm
      Volume per cassa sigillata
      14L - 25L (less damped - damped)
      Volume per cassa reflex
      13L @ 35Hz - 17L @ 37Hz (damped - less damped)

      Show more

      Recensioni

      3 reviews
      Recensisci questo prodotto
      4 di 5
      I used this driver to replace my damaged old one. I measured TS parameters before installing it into my enclosure. The TS parameters were not acc. to driver spec. yet (e.g. Fs was not 32 Hz as defined, but was 47 Hz). It is OK because driver was not burned in. It will need time. It is important to take it into consideration if you are building a crossover from the meaured not burned in driver.
      Da Michal on 31 Marzo 2024
      5 di 5
      For my old Autovector speakers, I have replaced all mid-woofers with this unit - SB Acoustics SB17NRXC35-8 Perfect - highly recommendable.
      Da Anders Larsen on 5 Luglio 2022
      Show more
