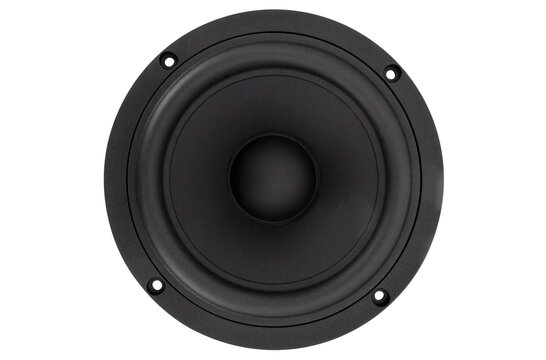

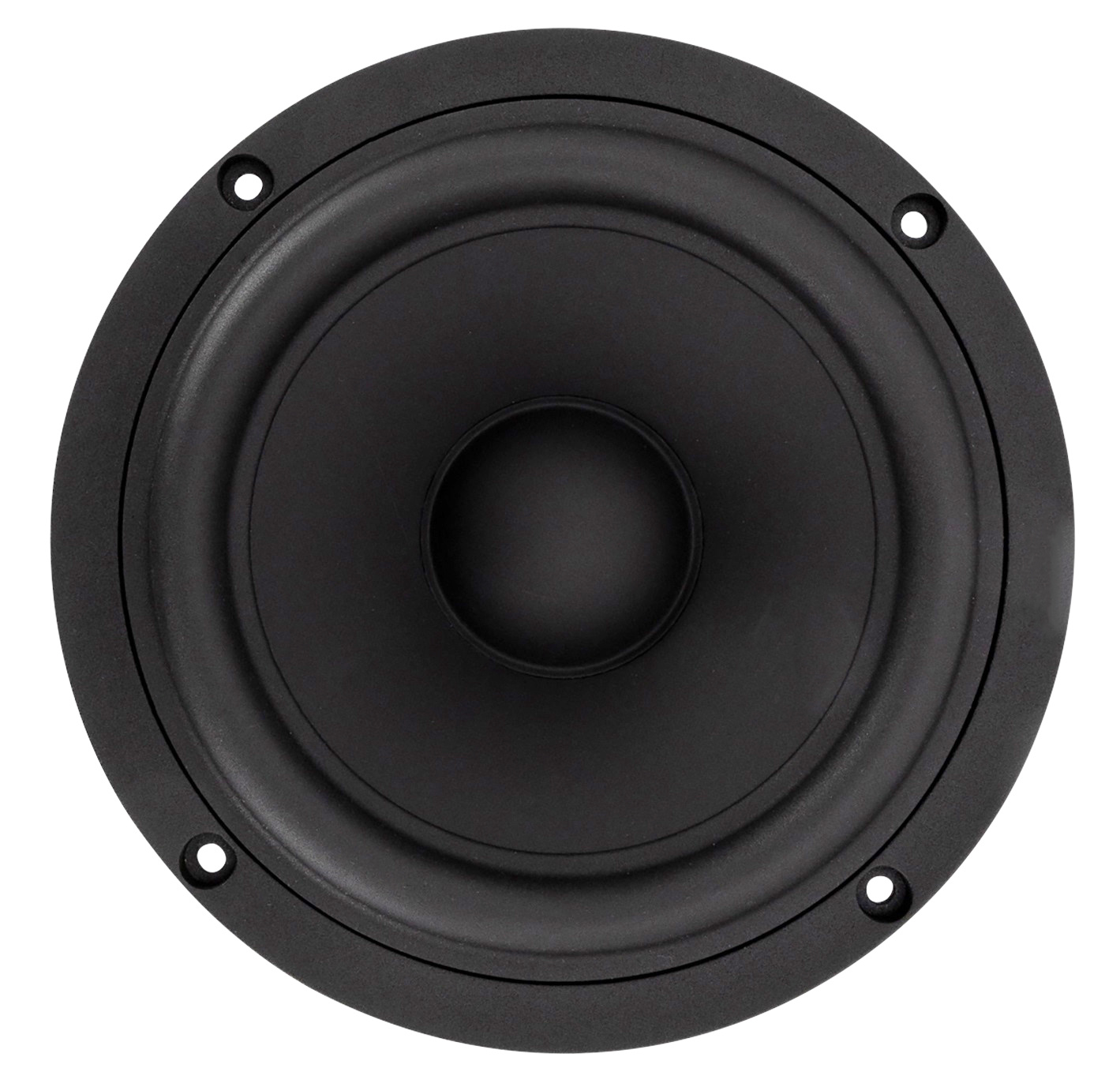

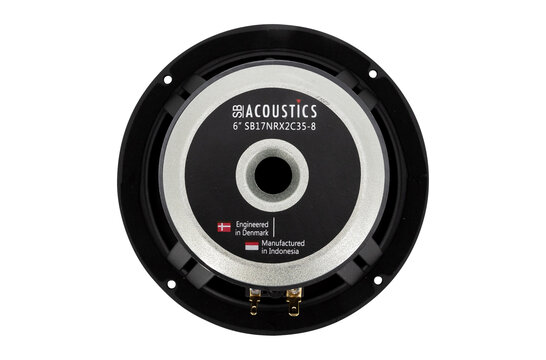

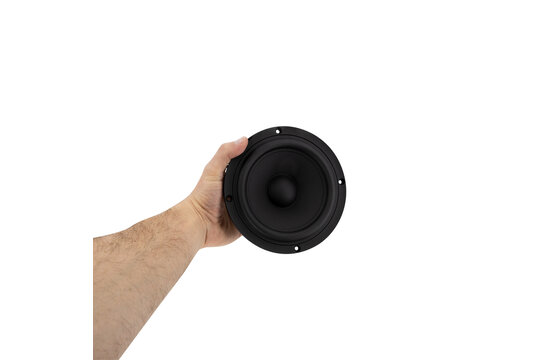

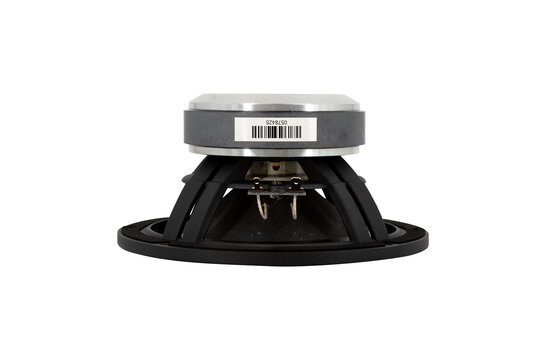

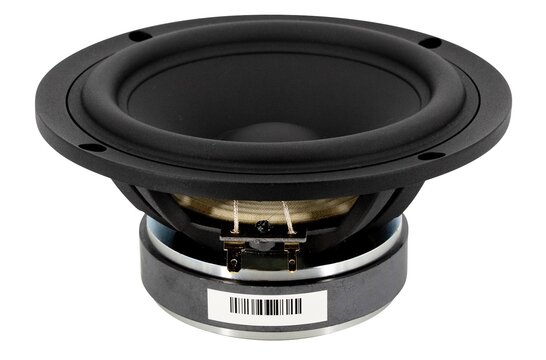

      SB17NRX2C35-8 Woofer Medio-Bassi

      SB Acoustics SB17NRX2C35-8 Woofer Medio-Bassi

      €75,95

      10+ In magazzino

      SB Acoustics SB17NRX2C35-8 Woofer Medio-Bassi

      3 reviews
      5 da 5
      3 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      € 62,77€ 75,95 10+ In magazzino
      • -5% Acquista 4 per soli € 72,15 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Non-conducting fiber glass voice coil former for minimum damping
      • · Extended copper sleeve on pole piece for low inductance and low distortion

      Descrizione del prodotto SB Acoustics SB17NRX2C35-8 Woofer Medio-Bassi

      The SB Acoustics SB17NRX2C35-8 is a 6.5" woofer with a nominal impedance of 8 ohms. It has a frequency response of 35-4000 Hz, a sensitivity of 87 dB, and a rated power handling of 50 watts. The woofer is made with a proprietary cone material with natural fibers, a soft low damping rubber surround, and a non-conducting fiberglass voice coil former. It has a vented cast aluminum chassis and a long life silver lead wires.



      Highlights

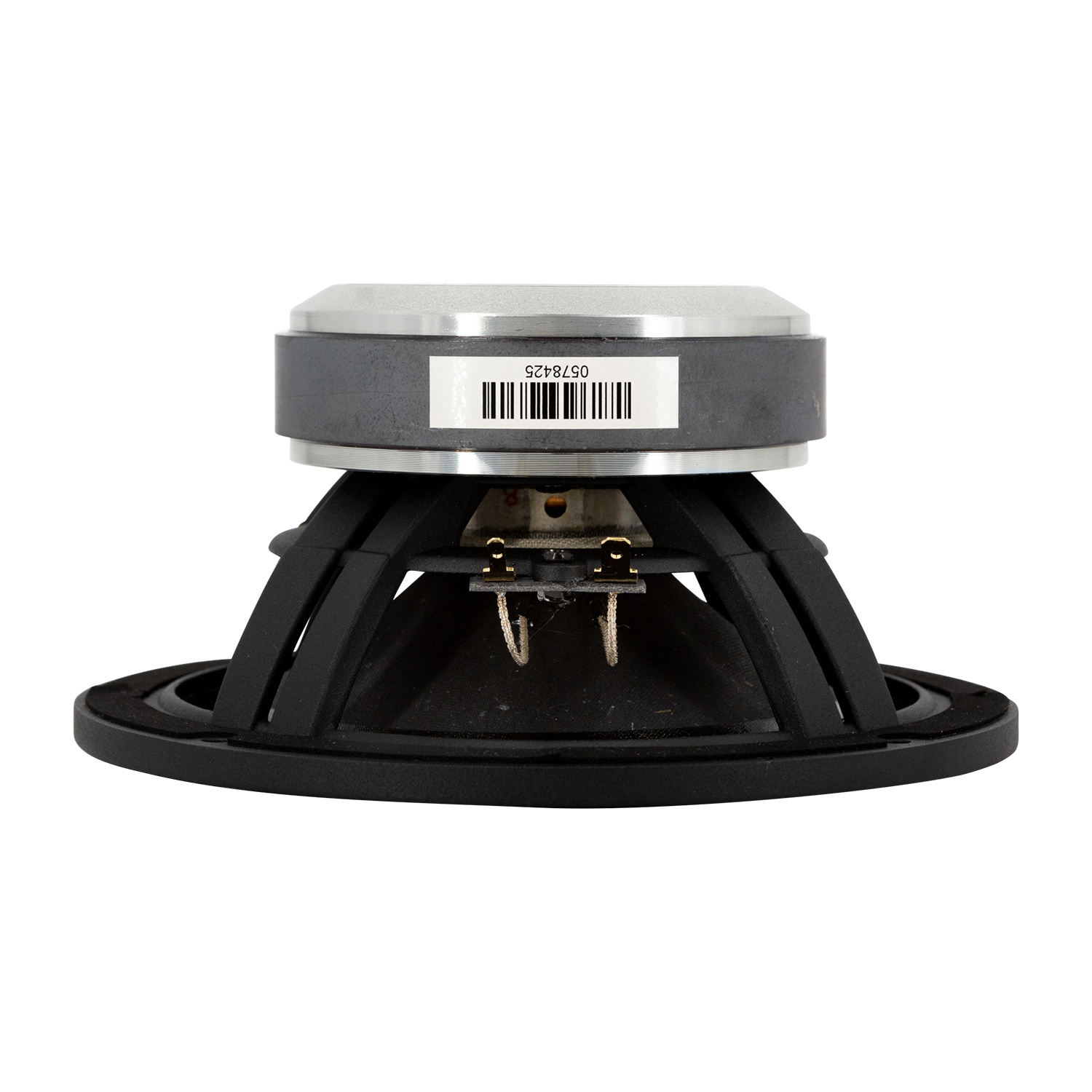

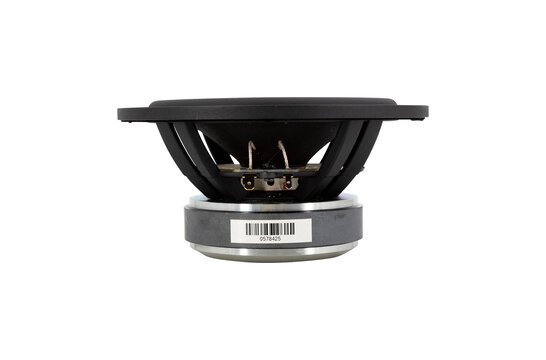

      • Vented cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • Vented coil former
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB17NRX2C35-8 Norex Bass-midwoofer



      The SB Acoustics SB17NRX2C35-8 Bass-midwoofer is a 6.5" midrange woofer that features a vented cast aluminum chassis for optimum strength and low compression. The proprietary cone material with natural fibers made in-house is used to produce a very accurate sound. The newly developed Norecx non-resonant poly-coated papyrus fiber cone is used to reduce resonance and improve sound quality. The low damping SBR rubber surround has high exertion and resilience, while the open structure cast frame is used for reduced reflections and compression. The aluminum alloy is used for light weight, non-magnetic and extra rigidity. Finally, the shorting copper cap on pole piece is used to reduce voice coil inductance.



      The SB17NRX2C35-8 is a versatile woofer that can be used in a variety of applications, including home audio, car audio, and professional audio. It is known for its accurate sound reproduction, its smooth frequency response, and its ability to handle high power levels.

      Show more

      Specifiche

      Numero dell'articolo:
      SB17NRX2C35-8
      EAN
      8785256848034
      Serie del woofer
      SB Acoustics NRX Norex series
      Diametro nominale
      171 mm
      Gestione della potenza (RMS)
      60 Watts
      Gestione della potenza (max)
      120 Watt
      Impedenza (Z)
      8 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      87 dB
      Risposta in frequenza
      35-4000 Hz
      Diametro della bobina mobile
      35,5 mm
      Peso del magnete
      0.54 kg
      Resistenza DC (Re)
      5.7 Ohm
      Induttanza della bobina mobile (Le)
      0.15 mH
      Frequenza di risonanza (Fs)
      36.5 Hz
      Fattore di merito meccanico (Qms)
      4.55
      Fattore di merito elettromagnetico (Qes)
      0.47
      Fattore di merito totale (Qts)
      0.42
      Massa del diaframma incl. la massa dell'aria (Mms)
      13.9 g
      Cedevolezza meccanica della sospensione (Cms)
      1.37 mm/N
      Superficie del cono (Sd)
      118 cm2
      Prodotto BL (BL)
      6.25 N/A
      Volume equivalente di cedevolezza (Vas)
      27 liters
      Escursione lineare massima (Xmax)
      5.5 mm
      Perdite meccaniche del driver (Rms)
      0.7 kg/s
      Materiale del cestello / telaio
      Vented cast aluminum chassis
      Diametro esterno complessivo
      171 mm
      Profondità complessiva
      85.9 mm
      Diametro del ritaglio del pannello frontale
      144.9 mm
      # Numero di fori di montaggio
      4
      Diametro dei fori di montaggio
      4.3 mm
