      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Soft low damping rubber surround for improved transient response

      Descrizione del prodotto SB Acoustics SB16PFCR25-4-COAX Woofer Coassiale

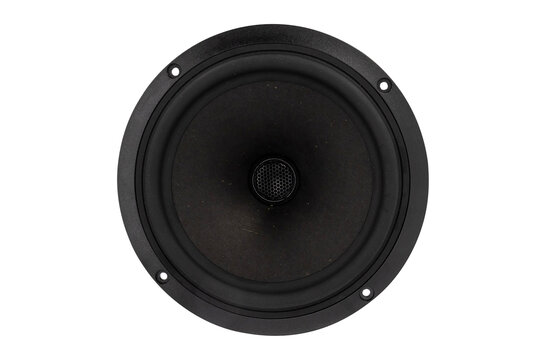

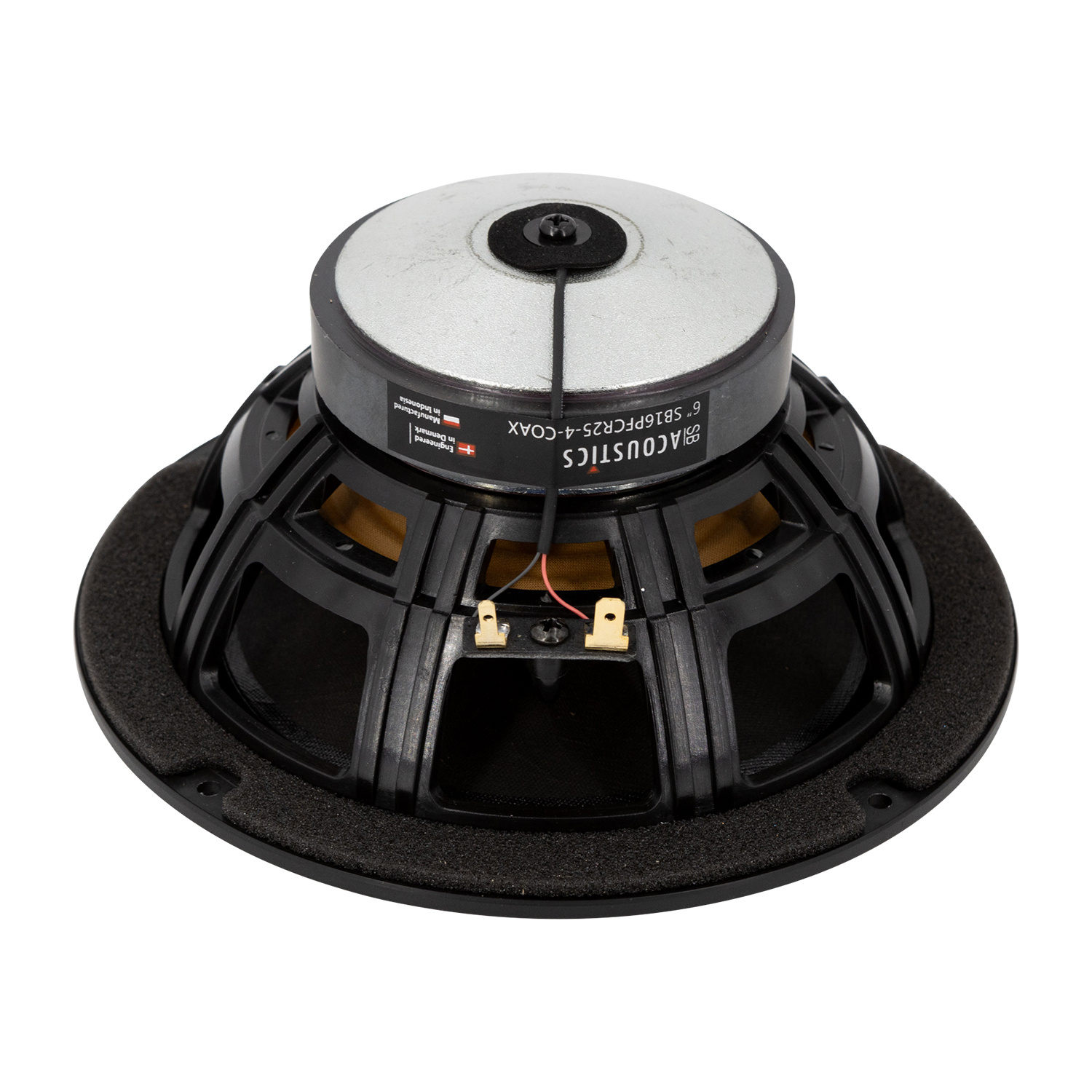

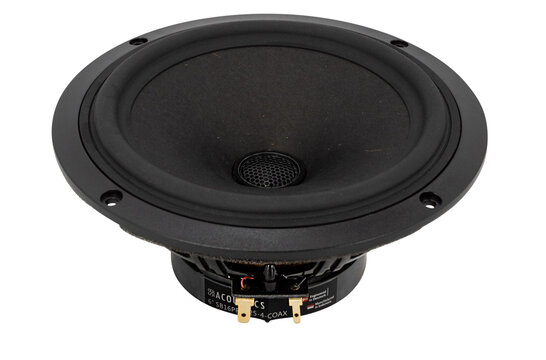

      The SB Acoustics SB16PFCR25-4-COAX is a 2-way coaxial loudspeaker drive unit featuring a 6" paper composite cone midwoofer with a 1" center-mounted soft dome tweeter. The vented reinforced plastic chassis and proprietary cone material with natural fibers made in-house provide a soft low damping rubber surround for improved transient response. The optimized motor system and vented coil former for low compression ensure non-resonant long life lead wires.



      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for improved transient response
      • Optimized motor system
      • Non-resonant long life lead wires
      • Compact large surround dome tweeter



      Product details

      SB Acoustics SB16PFCR25-4-COAX Coaxial Woofer



      The SB Acoustics SB16PFCR25-4-COAX is a 6-inch coaxial speaker that features a proprietary cone material with natural fibers made in-house, a soft low damping rubber surround for improved transient response, an optimized motor system, non-resonant long life lead wires, and a compact large surround dome tweeter. It has a nominal impedance of 4 ohms, a frequency response of 36-20,000 Hz, a sensitivity of 90 dB, and a rated power handling of 40 watts.



      The cone material is lightweight and rigid, which provides good linearity and transient response. And its surround provides a smooth and controlled response, which helps to improve the overall sound quality. The motor system provides good power handling and efficiency.

      Show more

      Specifiche

      Numero dell'articolo:
      SB16PFCR25-4-COAX
      EAN
      8785256848133
      Serie del woofer
      SB Acoustics PFC Paper series
      Diametro nominale
      176 mm
      Gestione della potenza (RMS)
      40 Watts
      Impedenza (Z)
      4 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      90 dB
      Risposta in frequenza
      36-20,000 Hz
      Diametro della bobina mobile
      25.4 mm
      Resistenza DC (Re)
      3.2 Ohm
      Induttanza della bobina mobile (Le)
      0.31mH
      Frequenza di risonanza (Fs)
      36 Hz
      Fattore di merito meccanico (Qms)
      2.6
      Fattore di merito elettromagnetico (Qes)
      0.35
      Fattore di merito totale (Qts)
      0.31
      Massa del diaframma incl. la massa dell'aria (Mms)
      12.5 g
      Cedevolezza meccanica della sospensione (Cms)
      1.56 mm/N
      Superficie del cono (Sd)
      119 cm 2
      Prodotto BL (BL)
      5.1 Tm
      Volume equivalente di cedevolezza (Vas)
      31.3 liters
      Escursione lineare massima (Xmax)
      9.3 mm
      Perdite meccaniche del driver (Rms)
      1.1 kg/s
      Materiale del cestello / telaio
      Vented reinforced plastic chassis
      Diametro esterno complessivo
      176 mm
      Profondità complessiva
      88.3 mm
      Diametro del ritaglio del pannello frontale
      144.5 mm
      # Numero di fori di montaggio
      4
