      SB15NRX2C30-4 Woofer Medio-Bassi

      SB Acoustics SB15NRX2C30-4 Woofer Medio-Bassi

      €68,45

      8 In magazzino

      SB Acoustics SB15NRX2C30-4 Woofer Medio-Bassi

      1 reviews
      5 da 5
      1 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      € 56,57€ 68,45 8 In magazzino
      • -5% Acquista 4 per soli € 65,03 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SB Acoustics SB15NRX2C30-4 Woofer Medio-Bassi

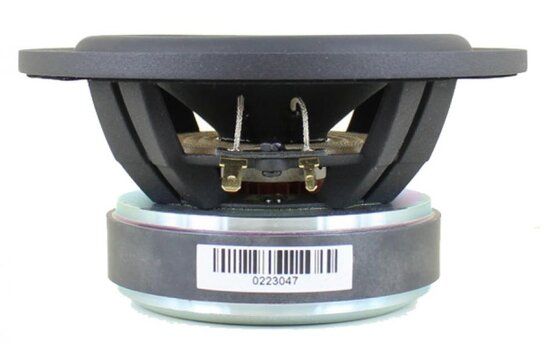

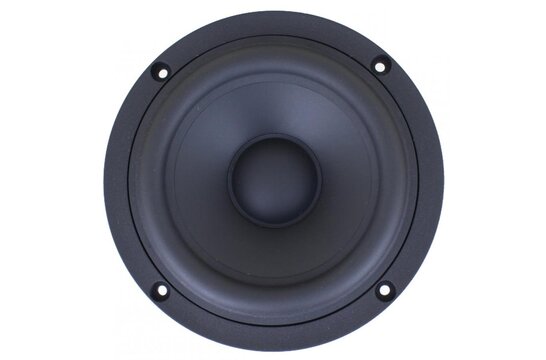

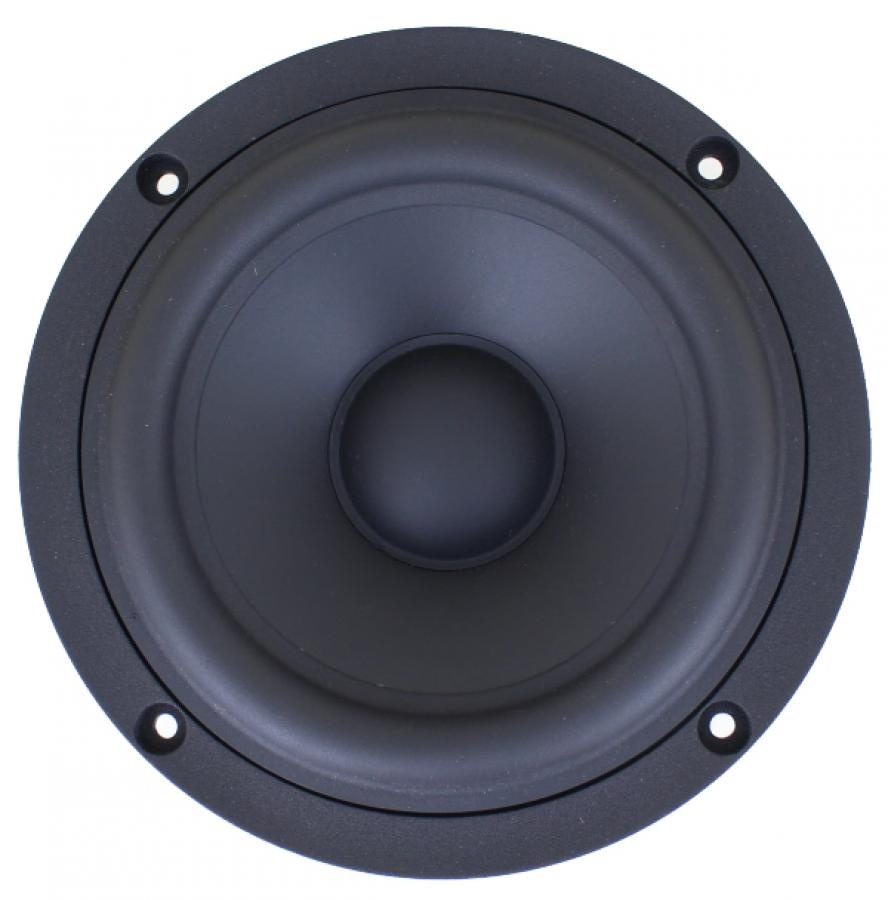

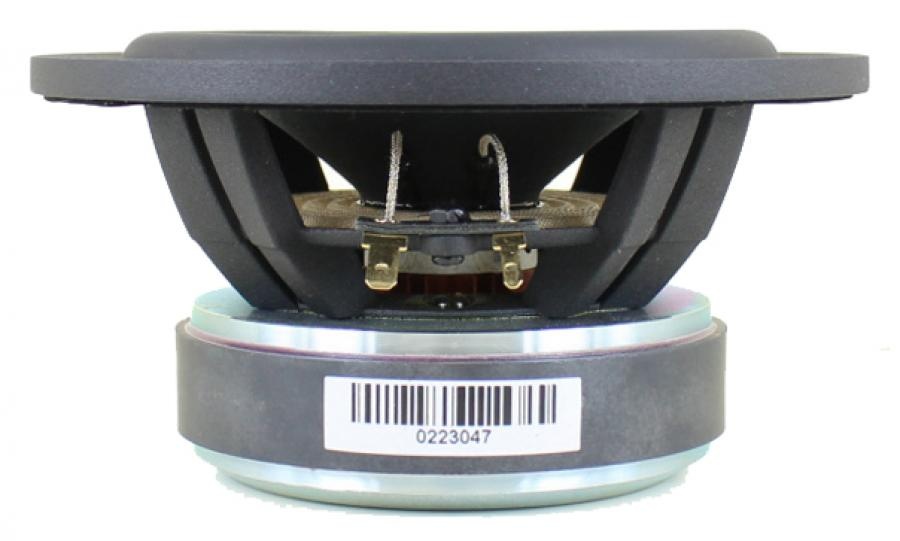

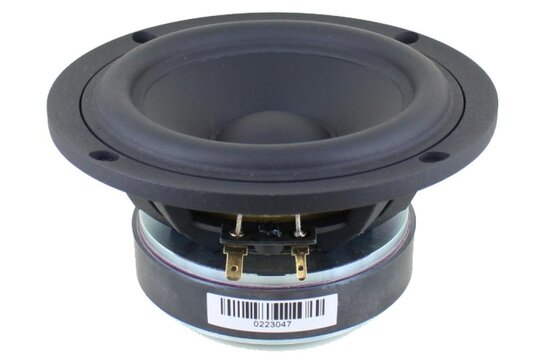

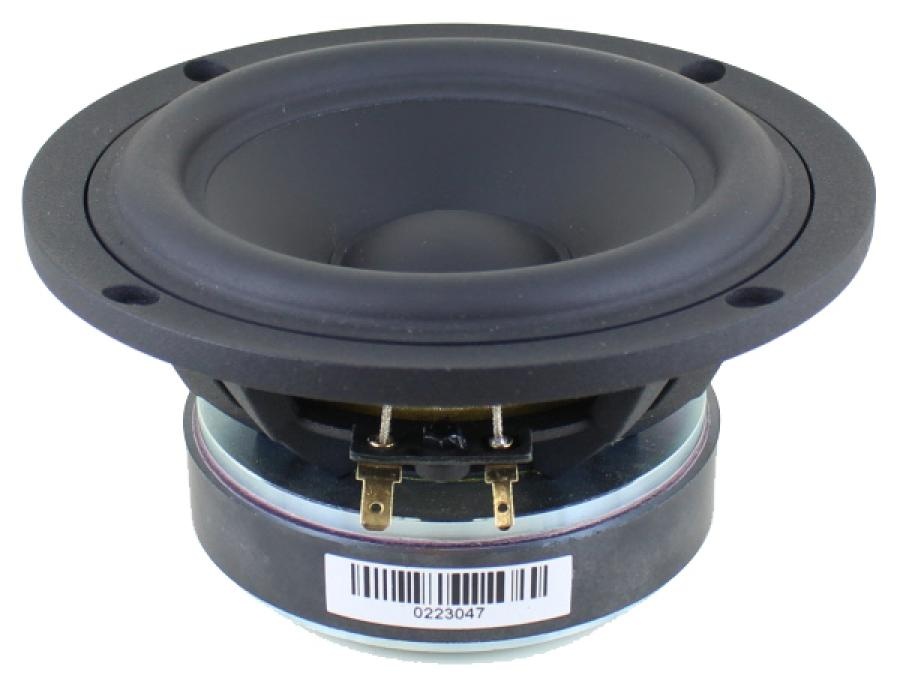

      The SB Acoustics SB15NRX2C30-4 is a 5-inch bass-midwoofer speaker driver. It features a vented cast aluminum chassis for optimum strength and low compression, a proprietary cone material with natural fibers made in-house, a soft low damping rubber surround for improved transient response and a non-conducting fiber glass voice coil former for minimum damping.



      Highlights

      • Vented cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for improved transient response
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and low distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Vented pole piece for reduced compression



      Product details

      SB Acoustics SB15NRX2C30-4 Norex Bass-midwoofer



      The SB Acoustics SB15NRX2C30-4 is a 5-inch bass-midwoofer speaker driver that is designed to produce high-quality sound. The vented cast aluminum chassis provides the speaker with optimum strength and low compression, which helps to reduce distortion and improve sound quality. The proprietary cone material with natural fibers made in-house is designed to provide a high level of rigidity and low mass, which helps to improve the speaker’s transient response and overall sound quality. The soft low damping rubber surround is designed to provide a high level of damping, which helps to reduce distortion and improve the speaker’s transient response. Finally, the non-conducting fiber glass voice coil former is designed to provide a high level of damping, which helps to reduce distortion and improve the speaker’s transient response.

      Show more

      Specifiche

      Numero dell'articolo:
      SB15NRX2C30-4
      EAN
      8785256848058
      Serie del woofer
      SB Acoustics NRX Norex series
      Diametro nominale
      150 mm
      Gestione della potenza (RMS)
      50 Watts
      Gestione della potenza (max)
      100 Watt
      Impedenza (Z)
      4 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      89.5 dB
      Risposta in frequenza
      40-4500 Hz
      Diametro della bobina mobile
      31 mm
      Peso del magnete
      0.54 kg
      Resistenza DC (Re)
      3.1 Ohm
      Induttanza della bobina mobile (Le)
      0.12 mH
      Frequenza di risonanza (Fs)
      36 Hz
      Fattore di merito meccanico (Qms)
      4.53
      Fattore di merito elettromagnetico (Qes)
      0.31
      Fattore di merito totale (Qts)
      0.29
      Massa del diaframma incl. la massa dell'aria (Mms)
      9.7 g
      Cedevolezza meccanica della sospensione (Cms)
      2.15 mm/N
      Superficie del cono (Sd)
      82 cm²
      Prodotto BL (BL)
      4.7 Tm
      Volume equivalente di cedevolezza (Vas)
      18.6 liters
      Escursione lineare massima (Xmax)
      5.0 mm
      Perdite meccaniche del driver (Rms)
      0.5 kg/s
      Materiale del cestello / telaio
      Vented cast aluminum
      Diametro esterno complessivo
      150 mm
      Profondità complessiva
      78.9 mm
      # Numero di fori di montaggio
      4
      Diametro dei fori di montaggio
      4.3 mm

      Show more

      5 di 5
      This is a superb midbass driver for very good price!
      Da Nagy on 5 Dicembre 2023
