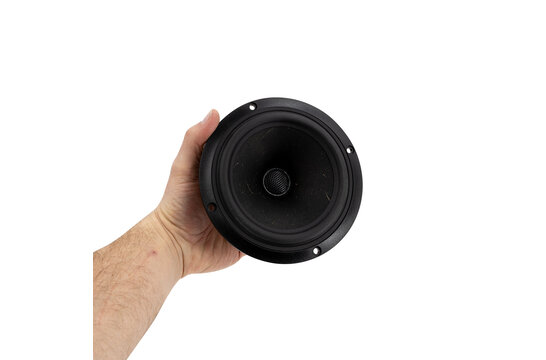

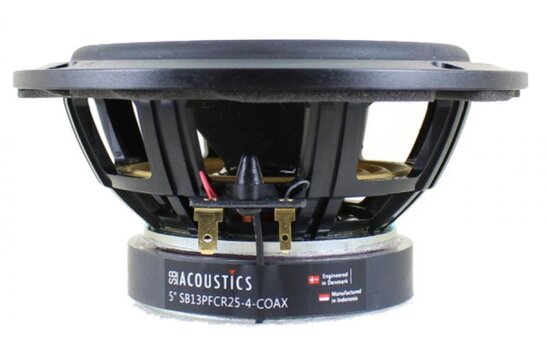

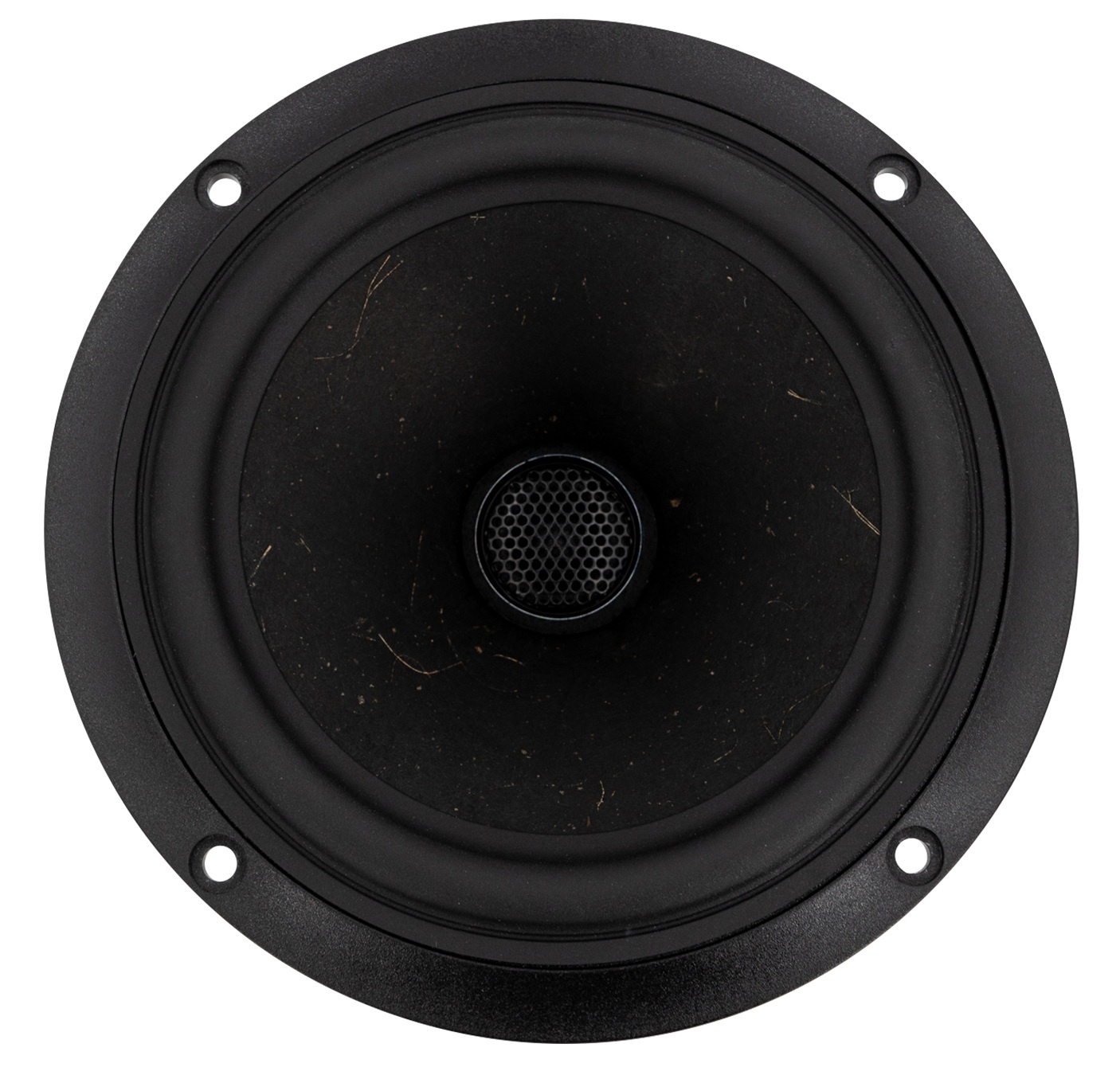

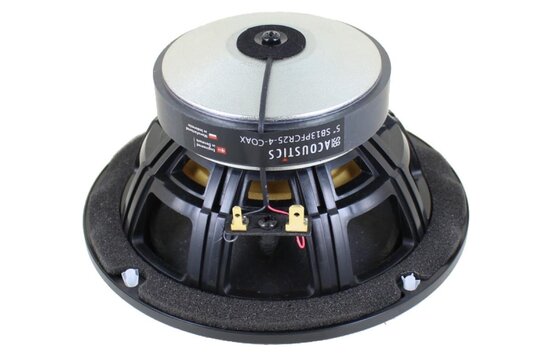

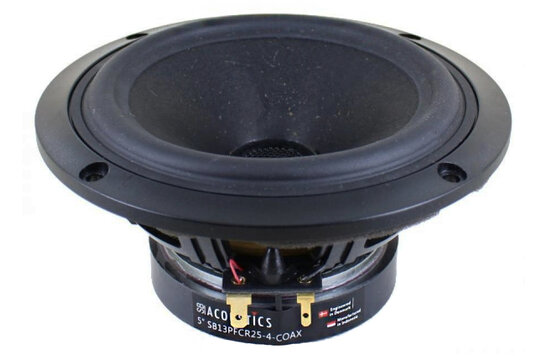

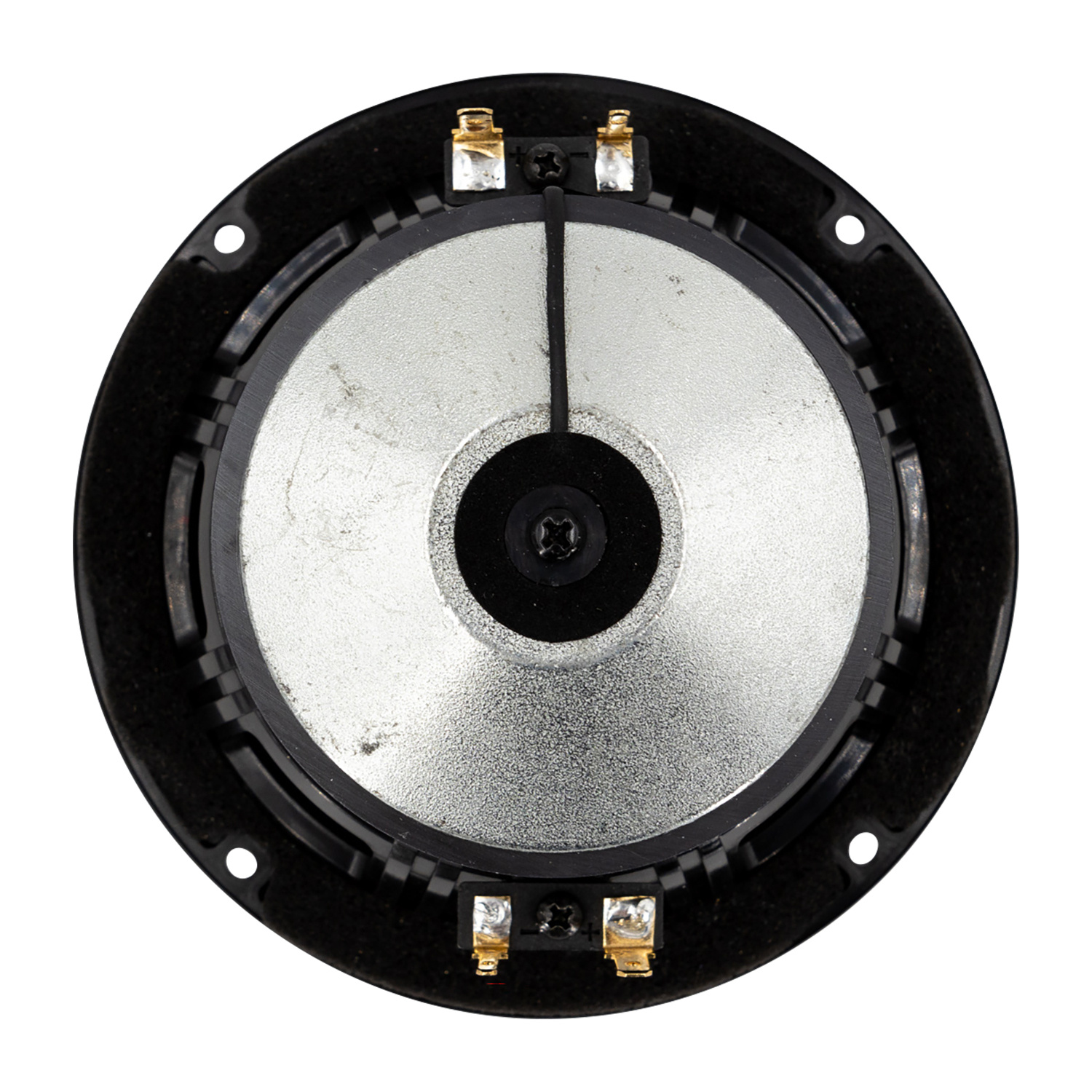

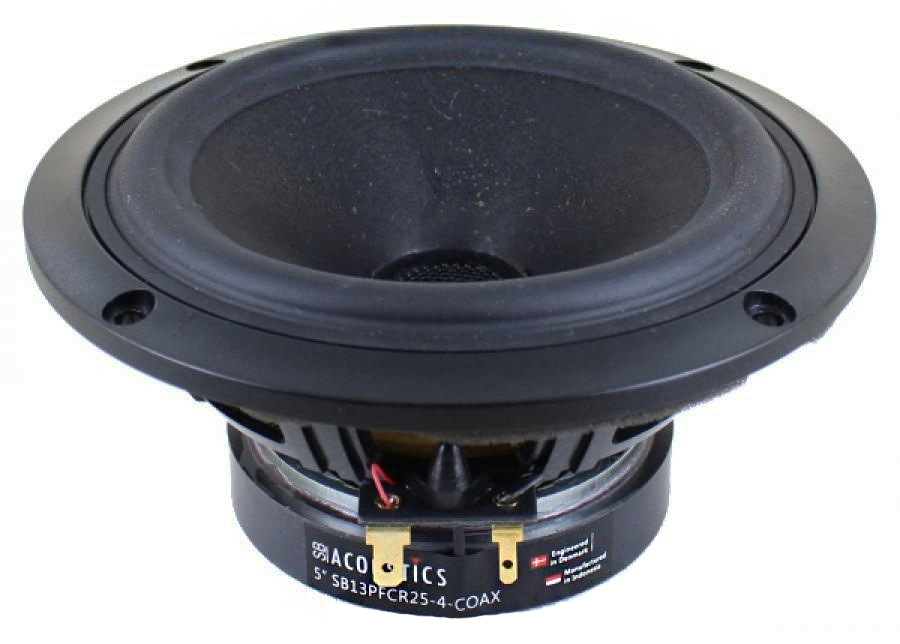

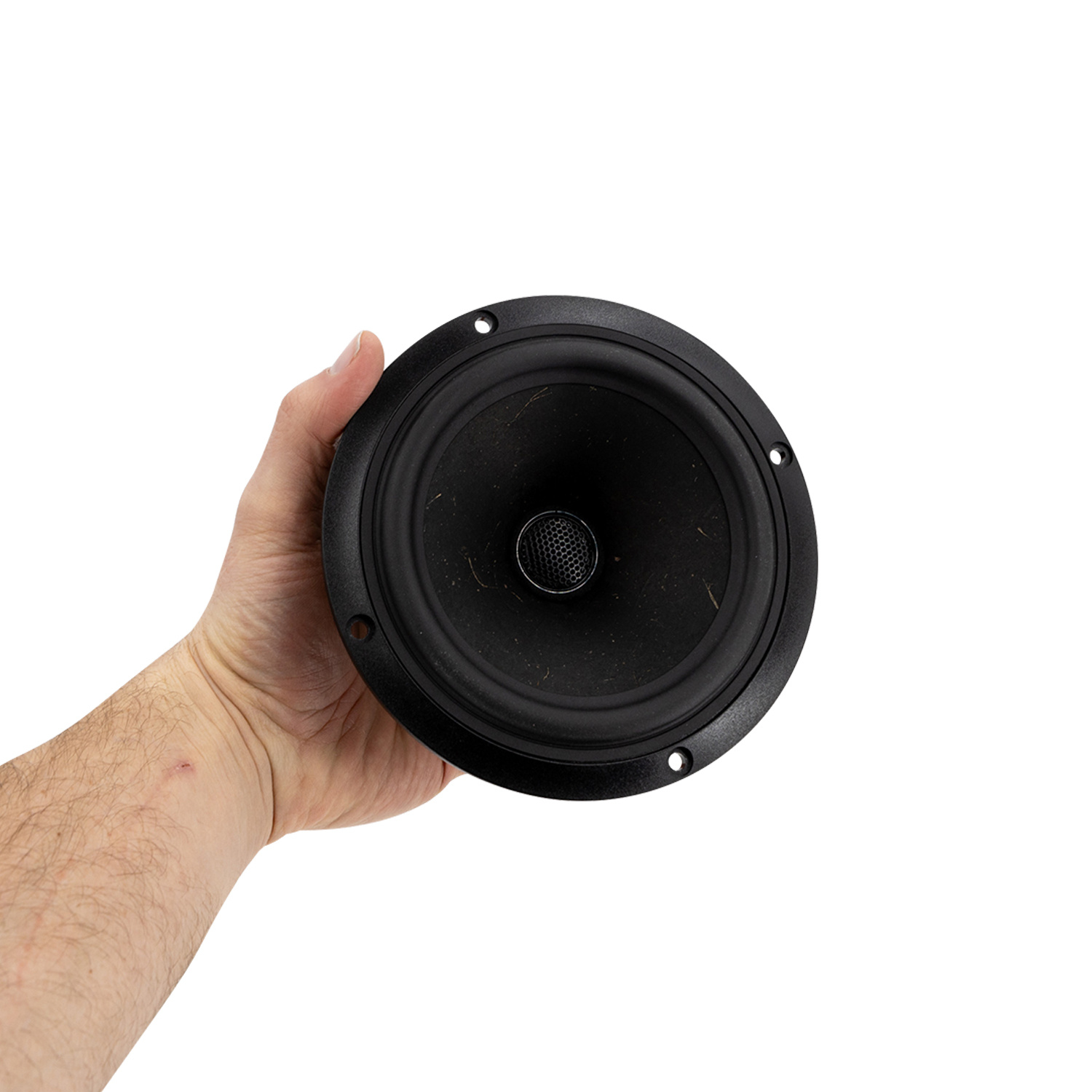

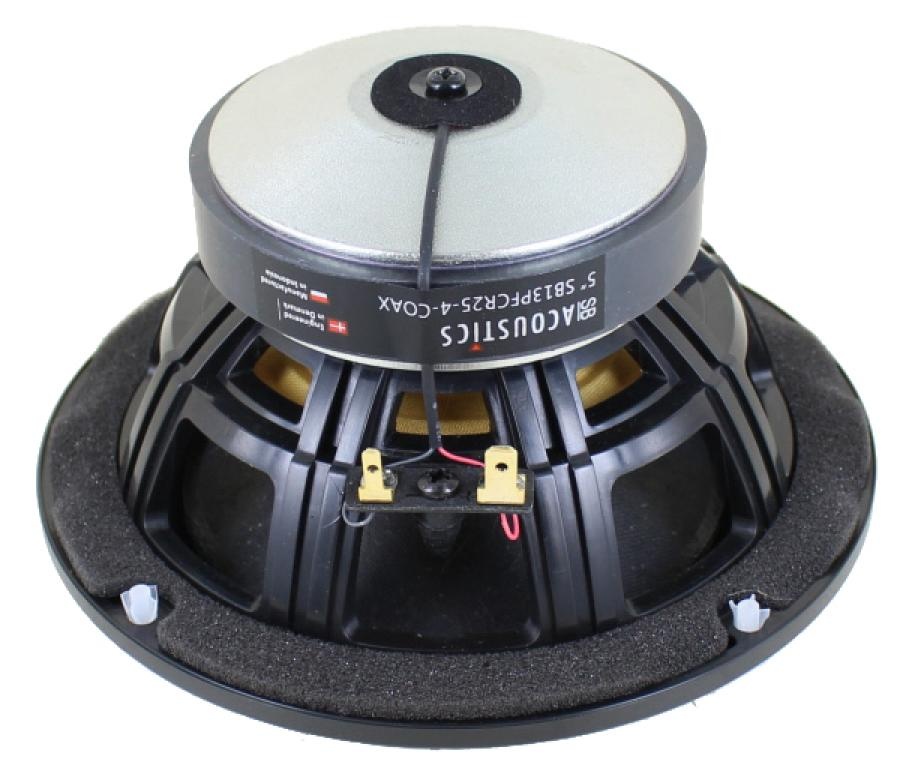

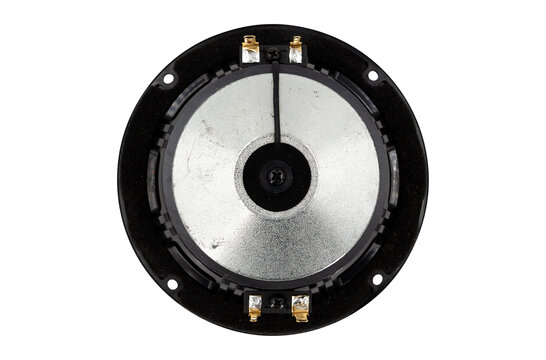

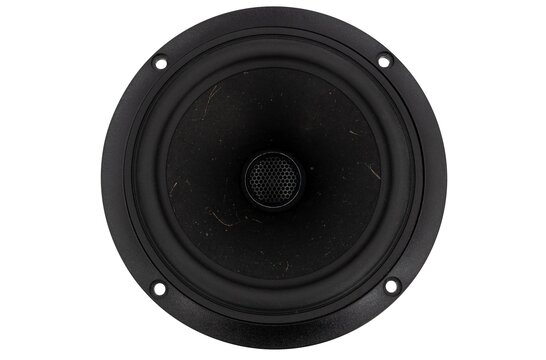

      SB13PFCR25-4-COAX Woofer Coassiale

      SB Acoustics SB13PFCR25-4-COAX Woofer Coassiale

      €60,95

      Non disponibile

      SB Acoustics SB13PFCR25-4-COAX Woofer Coassiale

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      € 50,37€ 60,95 Esaurito
      • -5% Acquista 4 per soli € 57,90 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Soft low damping rubber surround for improved transient response
      • Vented coil former for low compression

      Descrizione del prodotto SB Acoustics SB13PFCR25-4-COAX Woofer Coassiale

      The SB Acoustics SB13PFCR25-4-COAX is a coaxial woofer that has a vented reinforced plastic chassis. It has a proprietary cone material with natural fibers made in-house and a soft low damping rubber surround for improved transient response. The optimized motor system and non-resonant long life lead wires are other features of this coaxial woofer.



      Highlights

      • Vented reinforced plastic chassis
      • Proprietary cone material with natural fibers made in-house
      • Soft low damping rubber surround for improved transient response
      • Optimized motor system
      • Non-resonant long life lead wires
      • Compact large surround dome tweeter



      Product details

      SB Acoustics SB13PFCR25-4-COAX Coaxial Woofer



      The SB Acoustics SB13PFCR25-4-COAX is a 5-inch coaxial speaker with a 4-ohm impedance. It features a proprietary cone material with natural fibers made in-house, a soft low damping rubber surround for improved transient response, and an optimized motor system. The tweeter is a compact large surround dome tweeter with a 12.4mm voice coil. The speaker has a frequency response of 43Hz-20kHz, a sensitivity of 90dB, and a rated power handling of 40W. It is suitable for a variety of applications, including home audio, car audio, and professional audio.

      Show more

      Specifiche

      Numero dell'articolo:
      SB13PFCR25-4-COAX
      EAN
      8785256848126
      Serie del woofer
      SB Acoustics PFC Paper series
      Diametro nominale
      150.5 mm
      Gestione della potenza (RMS)
      40 Watts
      Impedenza (Z)
      4 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      89 dB
      Risposta in frequenza
      50-12000 Hz
      Diametro della bobina mobile
      25,4 mm
      Resistenza DC (Re)
      3.2 Ohm
      Induttanza della bobina mobile (Le)
      0.56 mH
      Frequenza di risonanza (Fs)
      44 Hz
      Fattore di merito meccanico (Qms)
      2.6
      Fattore di merito elettromagnetico (Qes)
      0.33
      Fattore di merito totale (Qts)
      0.49
      Massa del diaframma incl. la massa dell'aria (Mms)
      10.5 g
      Cedevolezza meccanica della sospensione (Cms)
      1.51 mm/N
      Superficie del cono (Sd)
      82 cm²
      Prodotto BL (BL)
      5.3
      Volume equivalente di cedevolezza (Vas)
      13.4 l
      Escursione lineare massima (Xmax)
      4.7 mm
      Diametro esterno complessivo
      150.5 mm
      Profondità complessiva
      69 mm
      # Numero di fori di montaggio
      4
      Diametro dei fori di montaggio
      5 mm
