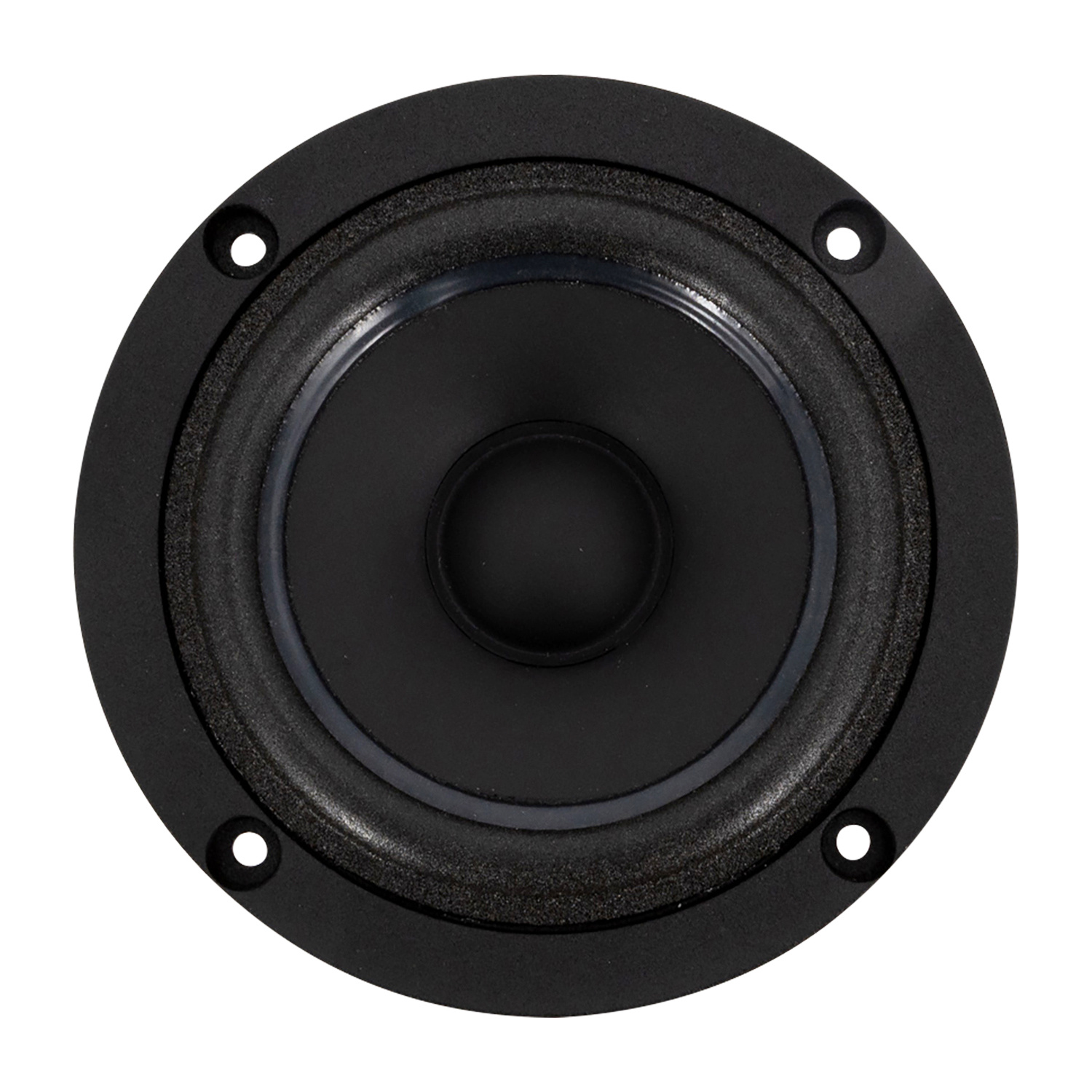

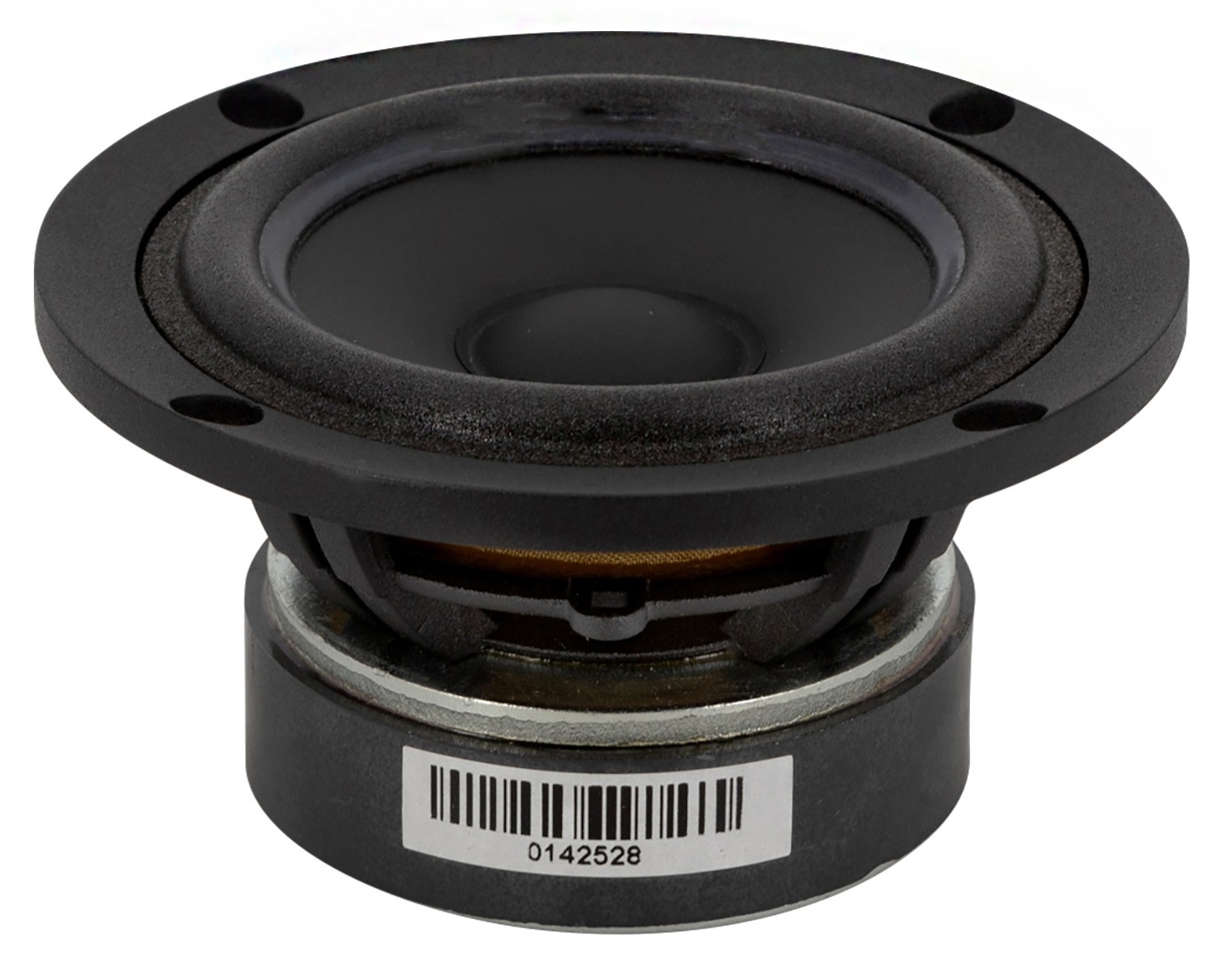

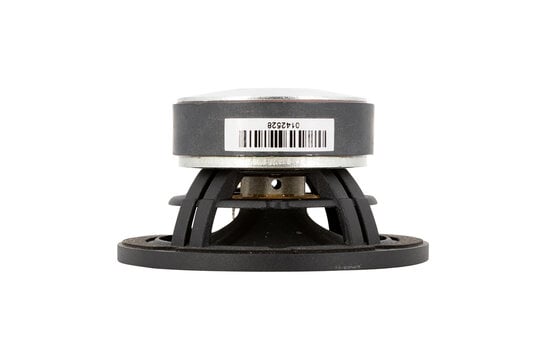

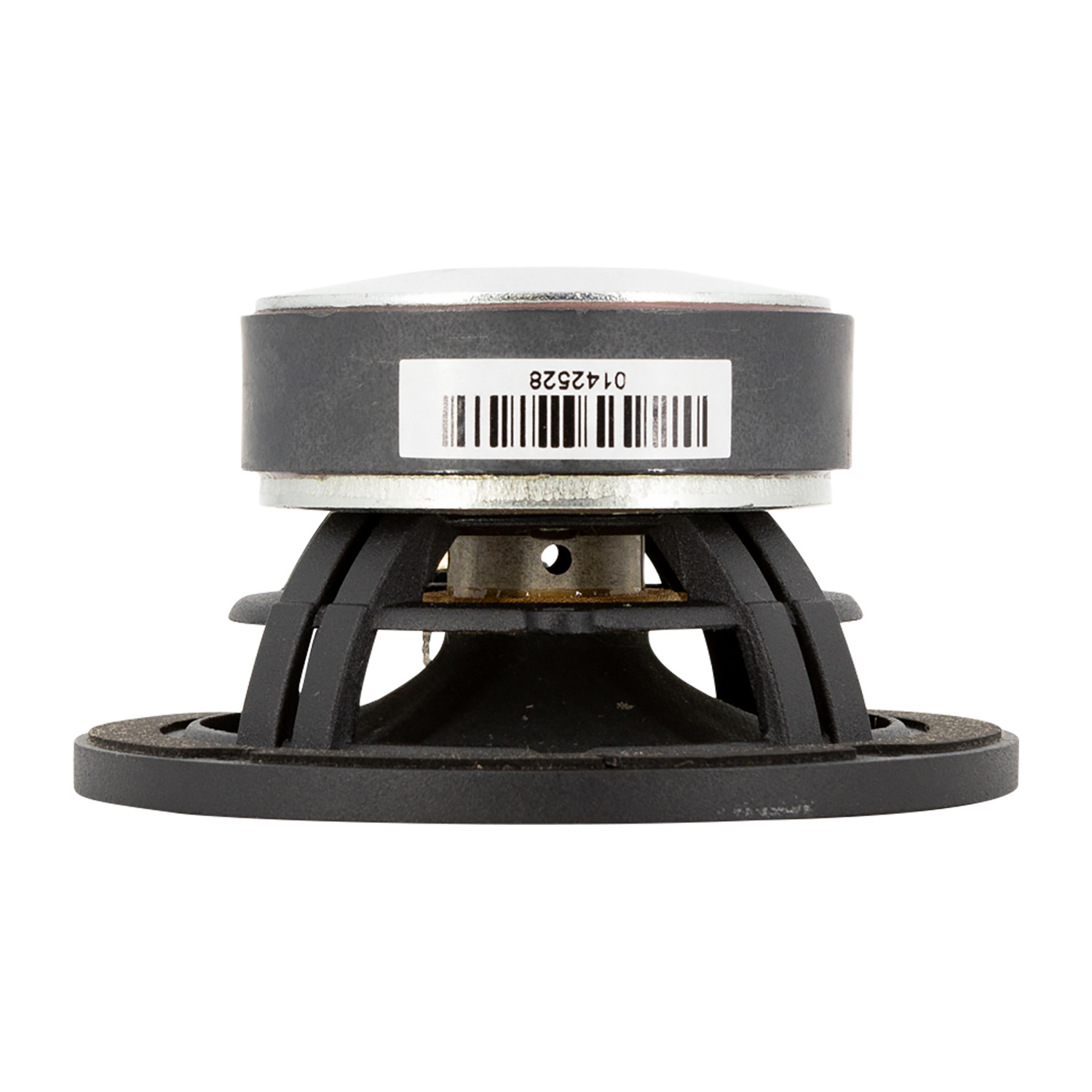

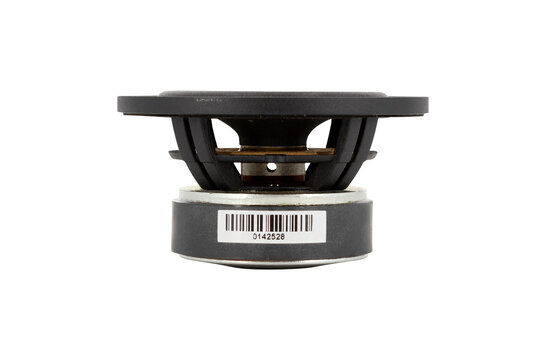

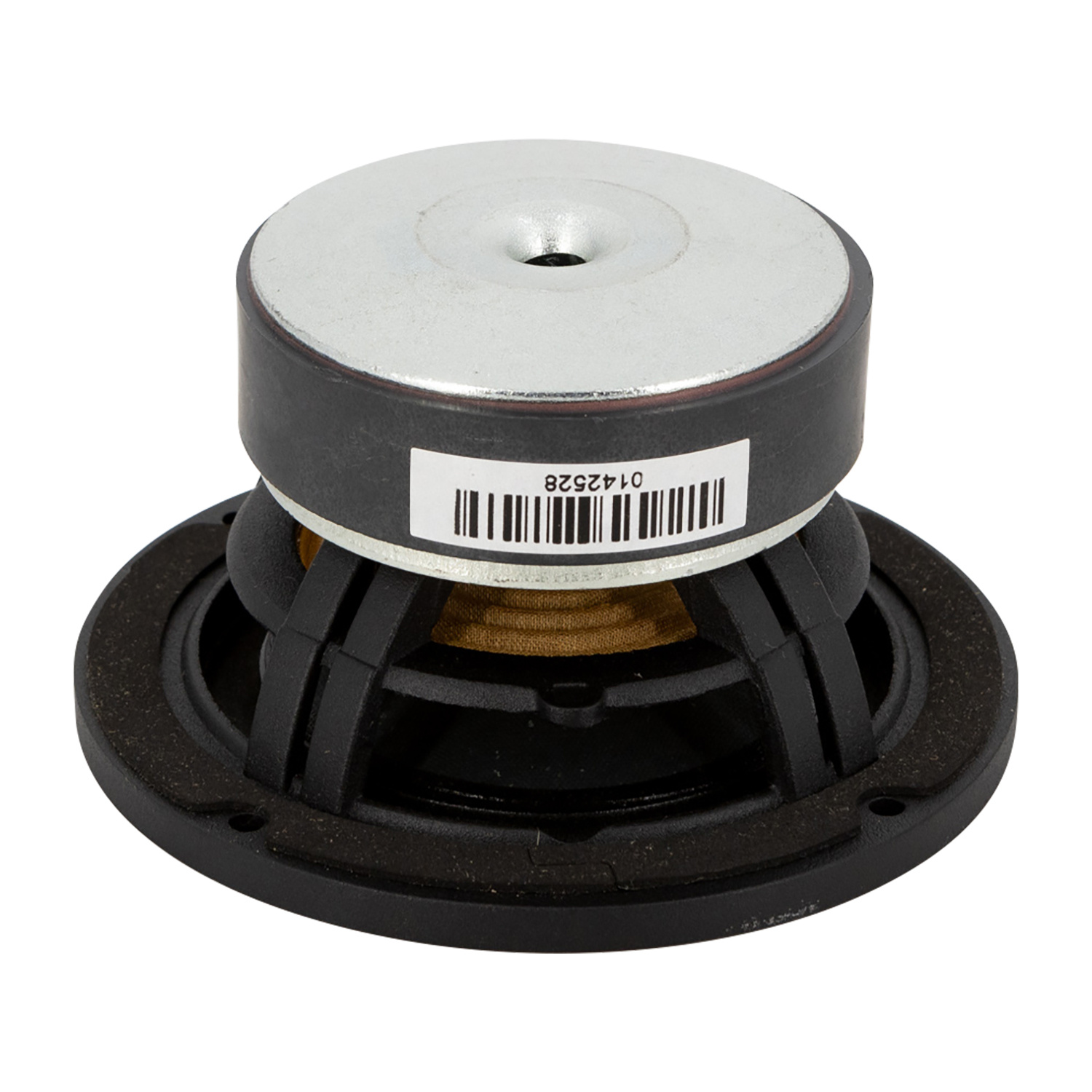

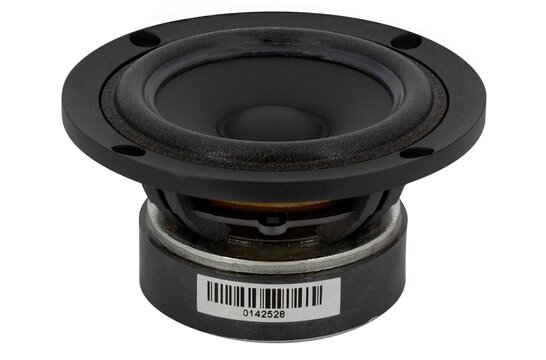

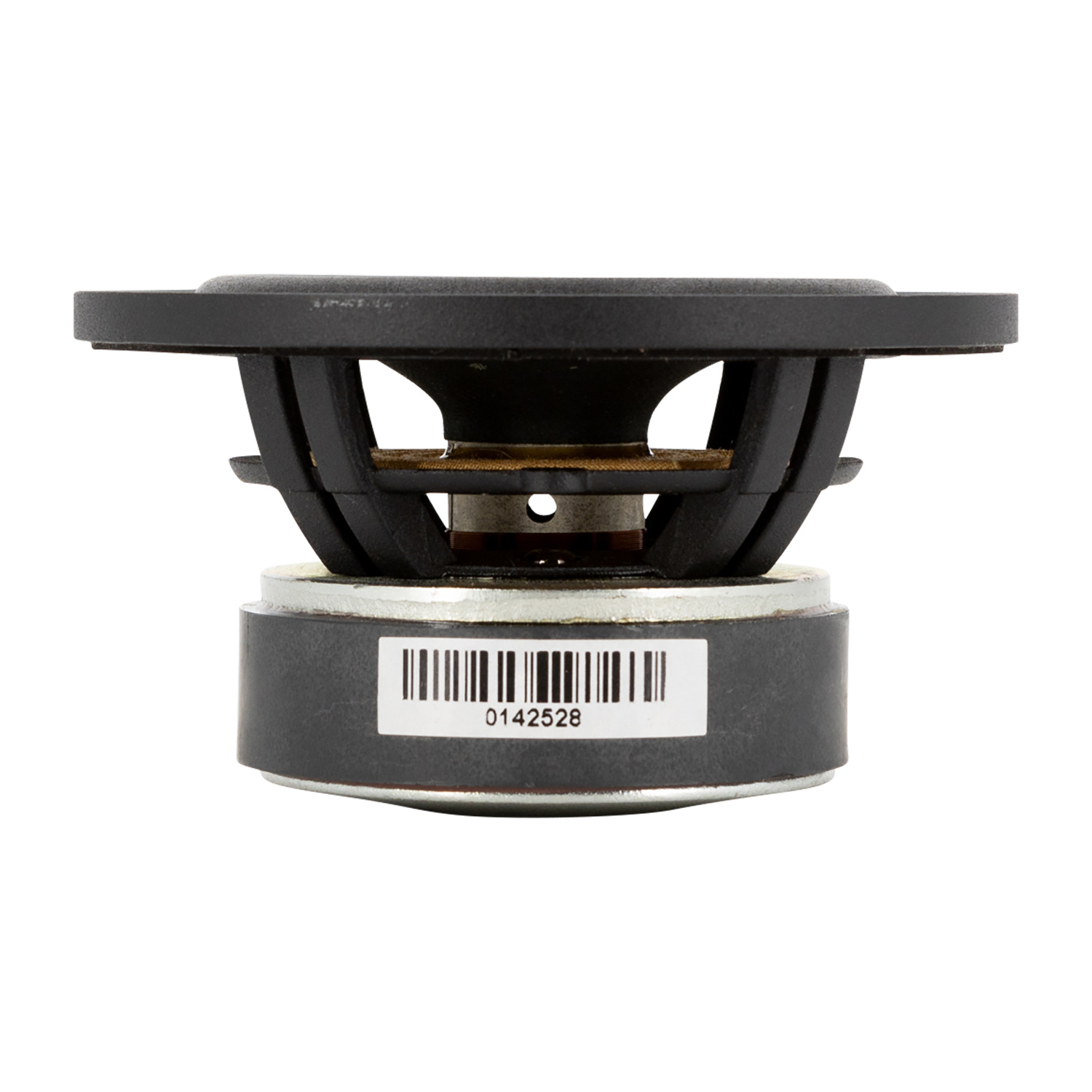

      SB12NRXF25-4 Woofer Medio-Bassi

      SB Acoustics SB12NRXF25-4 Woofer Medio-Bassi

      €62,45

      4 In magazzino

      Aggiungi al carrello

      SB Acoustics SB12NRXF25-4 Woofer Medio-Bassi

      2 reviews
      5 da 5
      2 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      Mostra tutti Woofer a gamma media
      4'' | 4 Ω
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      € 51,61€ 62,45 4 In magazzino
      • -5% Acquista 4 per soli € 59,33 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi
      SB12NRXF25-4 Woofer Medio-Bassi

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Non-conducting fibre glass coil former for minimum damping
      • Reflex box : Not recommended

      Descrizione del prodotto SB Acoustics SB12NRXF25-4 Woofer Medio-Bassi

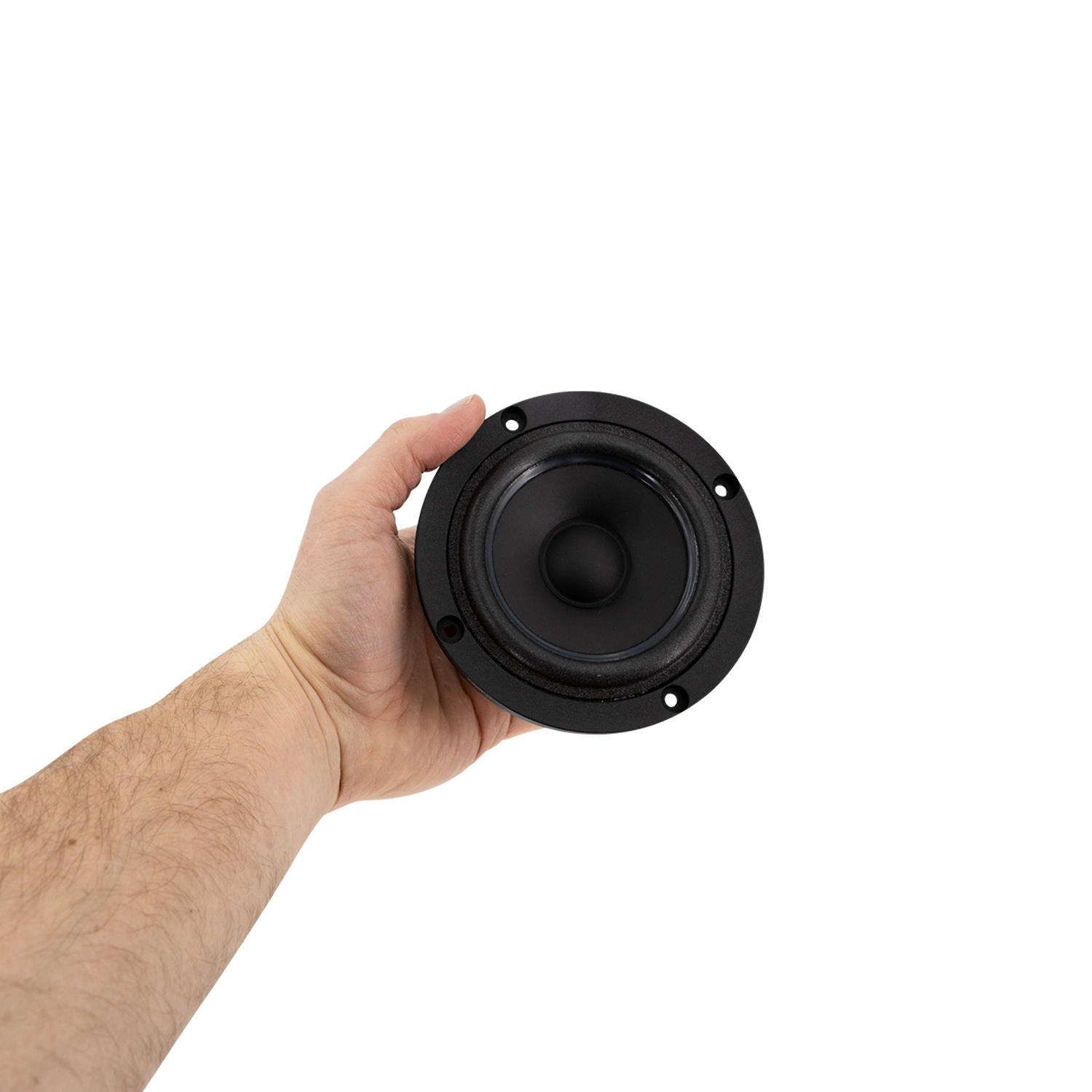

      The SB12NRXF25-4 is a 4-inch full-range driver from SB Acoustics. It features a proprietary cone material made from natural fibers, a foam surround, a vented cast aluminum chassis, and a CCAW voice coil. The driver has a nominal impedance of 4 ohms and a sensitivity of 87 dB. It is rated for a maximum power handling of 30 watts.



      Highlights

      • Proprietary cone material with natural fibres made in-house
      • Foam surround for maximum transparency and midrange resolution
      • Vented pole piece for reduced compression

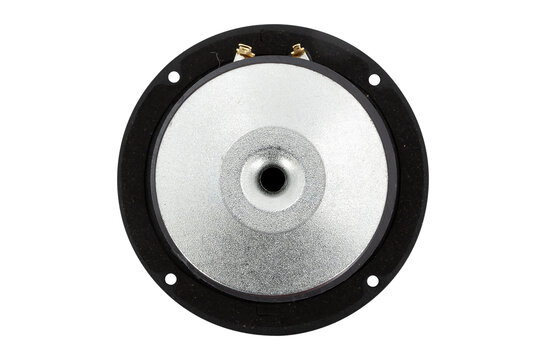

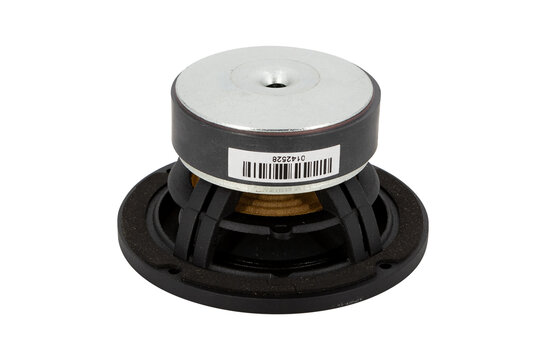

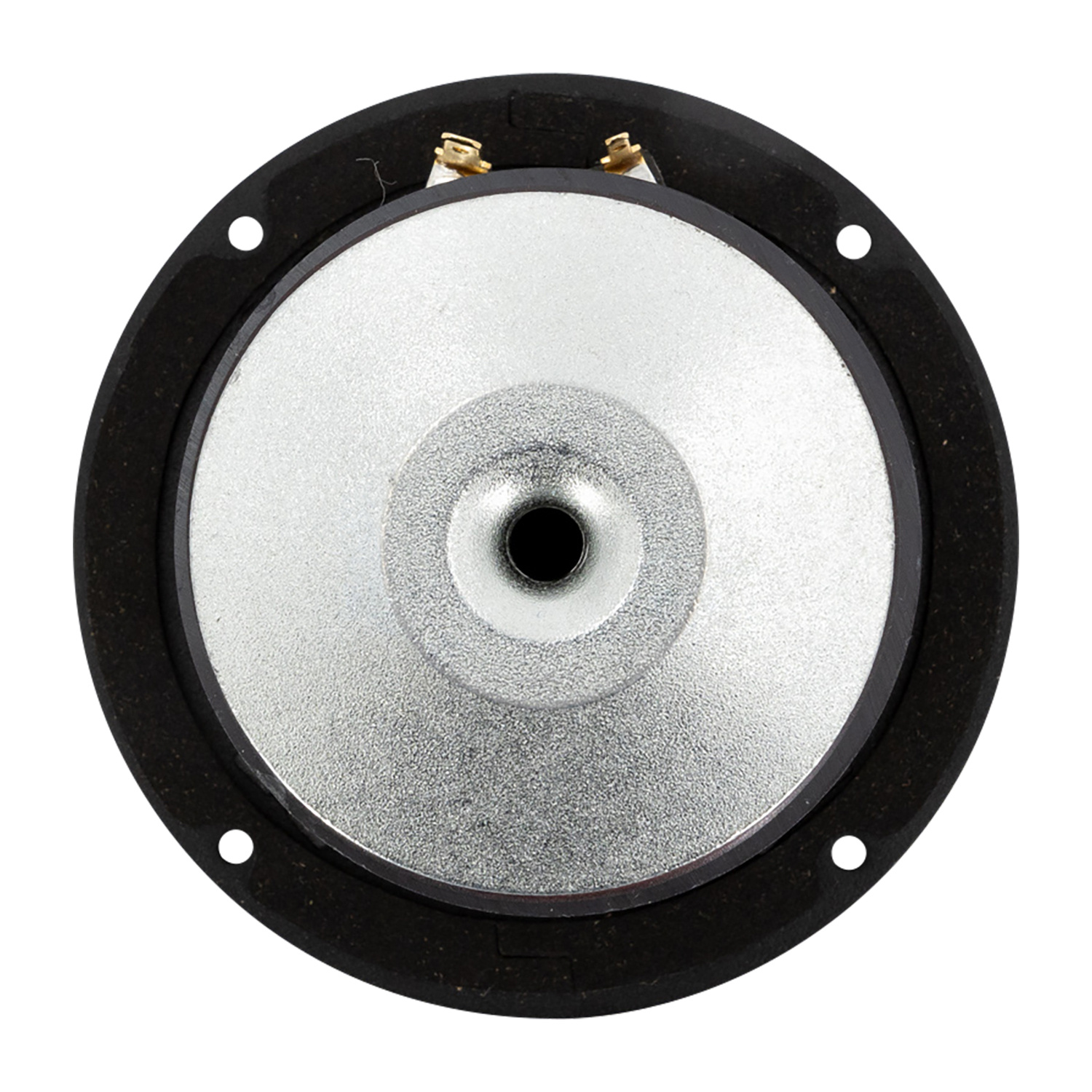

      • Vented cast aluminium chassis for optimum strength and low compression
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires
      • Non-conducting fibre glass coil former for minimum damping
      • Shorting ring in motor system for reduced distortion



      Product details

      SB Acoustics SB12NRXF25-4 Norex Bass-midwoofer



      The SB12NRXF25-4 is a well-rounded 4-inch full-range driver that is capable of delivering clear, accurate sound in a variety of applications. It is a good choice for bookshelf speakers, satellite speakers, and subwoofers. The proprietary cone material is made from a blend of natural fibers that is said to provide a more natural and balanced sound than traditional paper cones.



      The foam surround is designed to provide a smooth and accurate response in the midrange frequencies. The vented cast aluminum chassis helps to dissipate heat and reduce distortion. The CCAW voice coil is lightweight and provides good power handling. The long life silver lead wires are resistant to corrosion and oxidation. The non-conducting fiberglass coil former helps to reduce noise and distortion. The shorting ring in the motor system helps to reduce distortion at high frequencies.

      Show more

      Specifiche

      Numero dell'articolo:
      SB12NRXF25-4
      EAN
      8785256847907
      Tipo di woofer
      Bass-midwoofer
      Diametro nominale
      4 inch
      Gestione della potenza (RMS)
      30 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      87 dB
      Risposta in frequenza
      100-2000 Hz
      Diametro della bobina mobile
      25.4 mm
      Peso del magnete
      0.32 kg
      Resistenza DC (Re)
      3.1 Ω
      Induttanza della bobina mobile (Le)
      0.27 mH
      Frequenza di risonanza (Fs)
      61 Hz
      Fattore di merito meccanico (Qms)
      5.3
      Fattore di merito elettromagnetico (Qes)
      0.53
      Fattore di merito totale (Qts)
      0.48
      Massa del diaframma incl. la massa dell'aria (Mms)
      5.8 g
      Cedevolezza meccanica della sospensione (Cms)
      1.17 mm/N
      Superficie del cono (Sd)
      50 cm²
      Prodotto BL (BL)
      3.6 N/A
      Volume equivalente di cedevolezza (Vas)
      4.1
      Escursione lineare massima (Xmax)
      5 mm
      Perdite meccaniche del driver (Rms)
      0.42 kg/s
      Diametro esterno complessivo
      123 mm
      Profondità complessiva
      69.8 mm
      # Numero di fori di montaggio
      4
      Diametro dei fori di montaggio
      4,3 mm

      Show more

      Recensioni

      2 reviews
      Recensisci questo prodotto
      5 di 5
      In deze klasse een pareltje, in de toch al goede reeks van SB. Papier, lekker licht. Goed voor mid maar ook als mid woofertje. Liefst voor een TL, maar BR kan nog steeds. Rolrand van schuim, maar dat heeft een goede reden: de bekende dip rond de 600Hz is afwezig. Mooie combo voor een AMT tweeter. Hoog inzetbaar dankzij een rustig gedrag, al zou ik beneden de 3000Hz blijven. Mooi 2e orde LR af te filteren. Met de juiste tweeter, zelfs 1e orde. V...

      Show more

      Da Frank on 15 Agosto 2025
      5 di 5
      Perfect service and adminstartion!
      Da Peter on 14 Ottobre 2024
