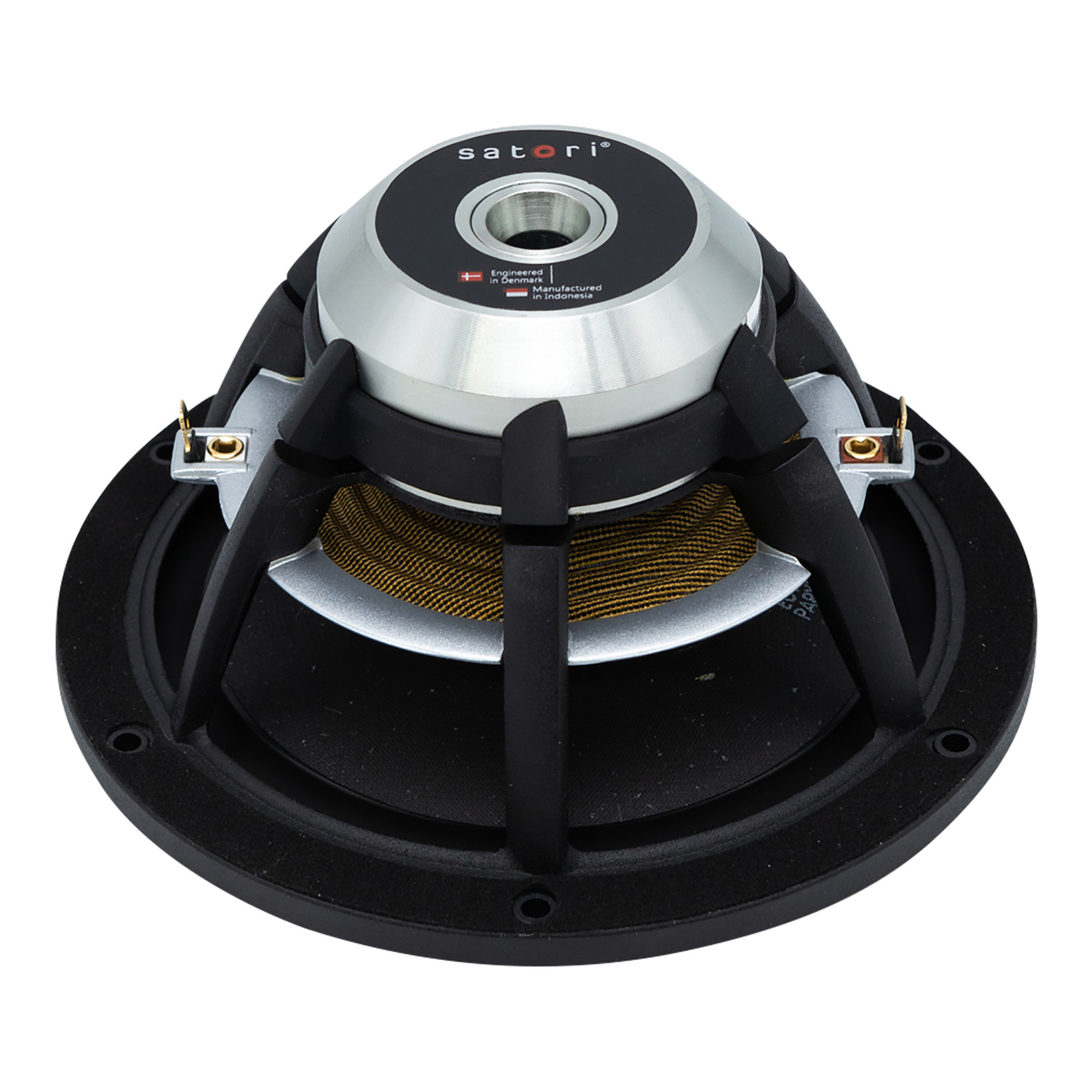

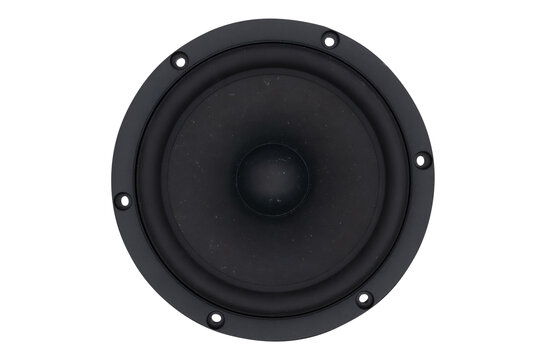

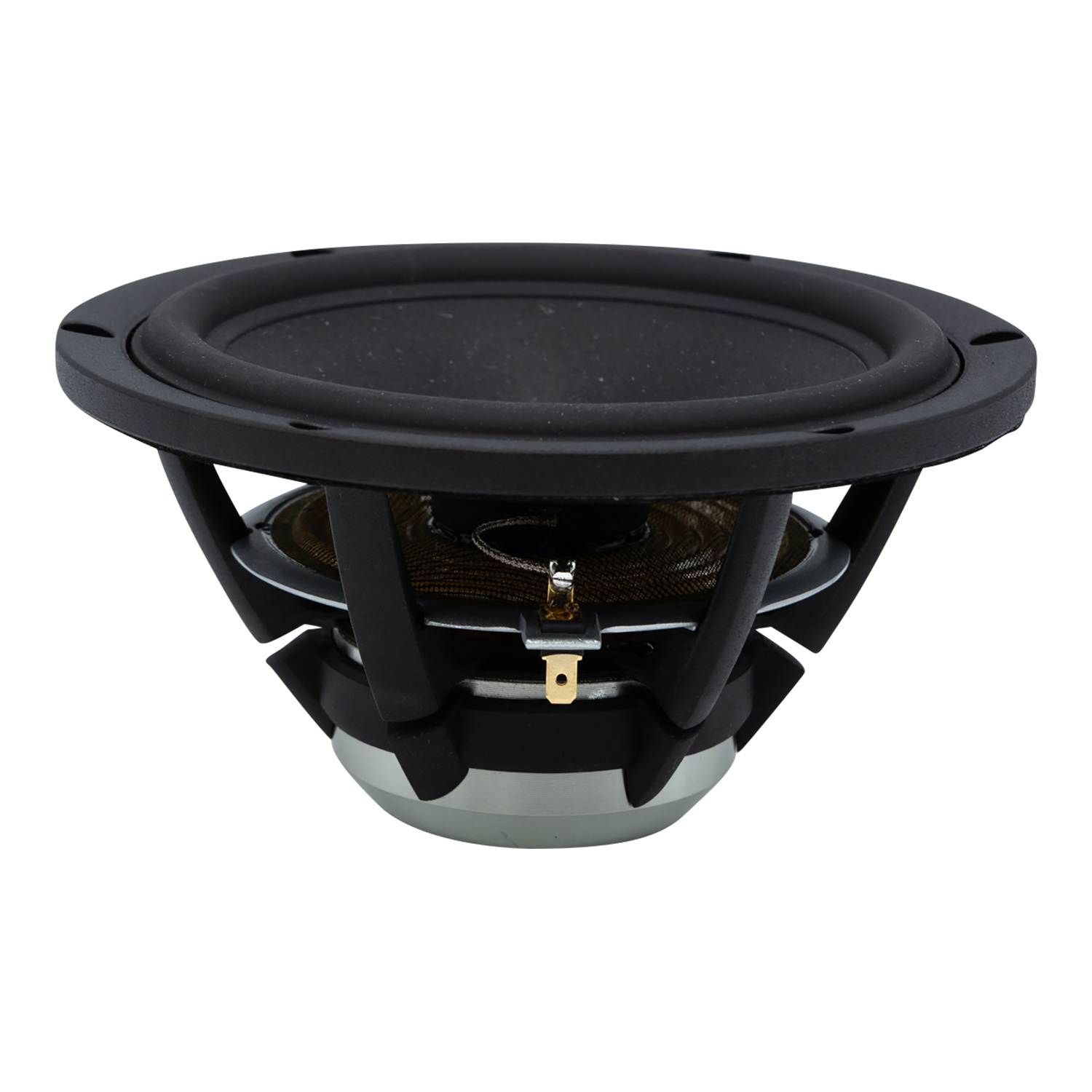

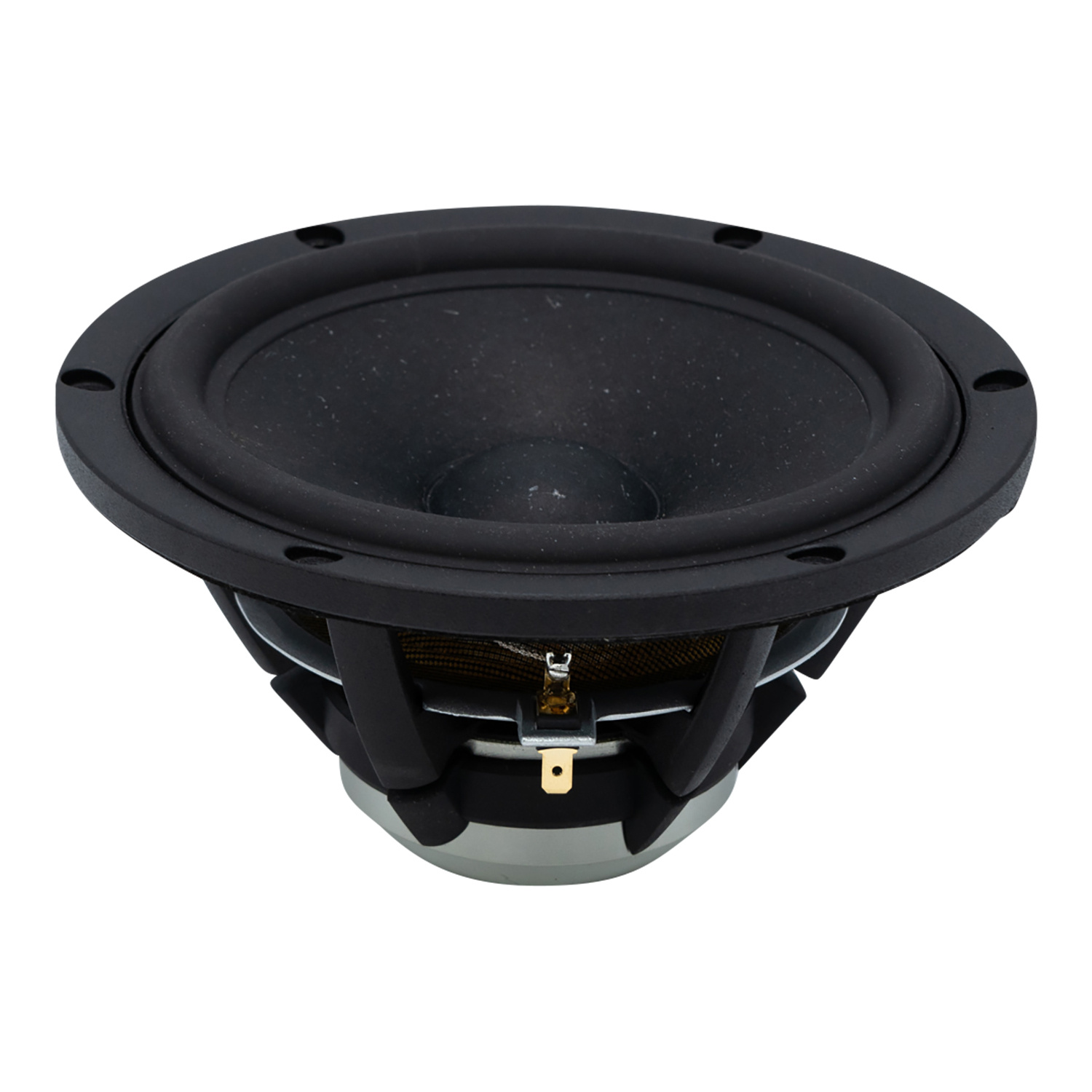

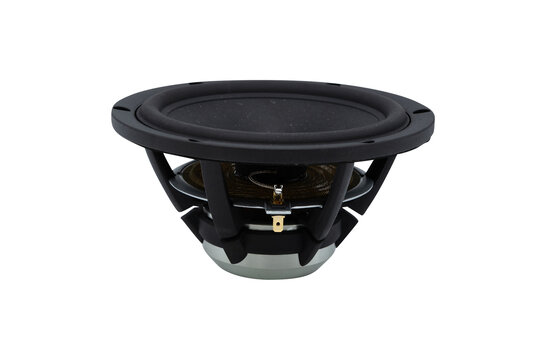

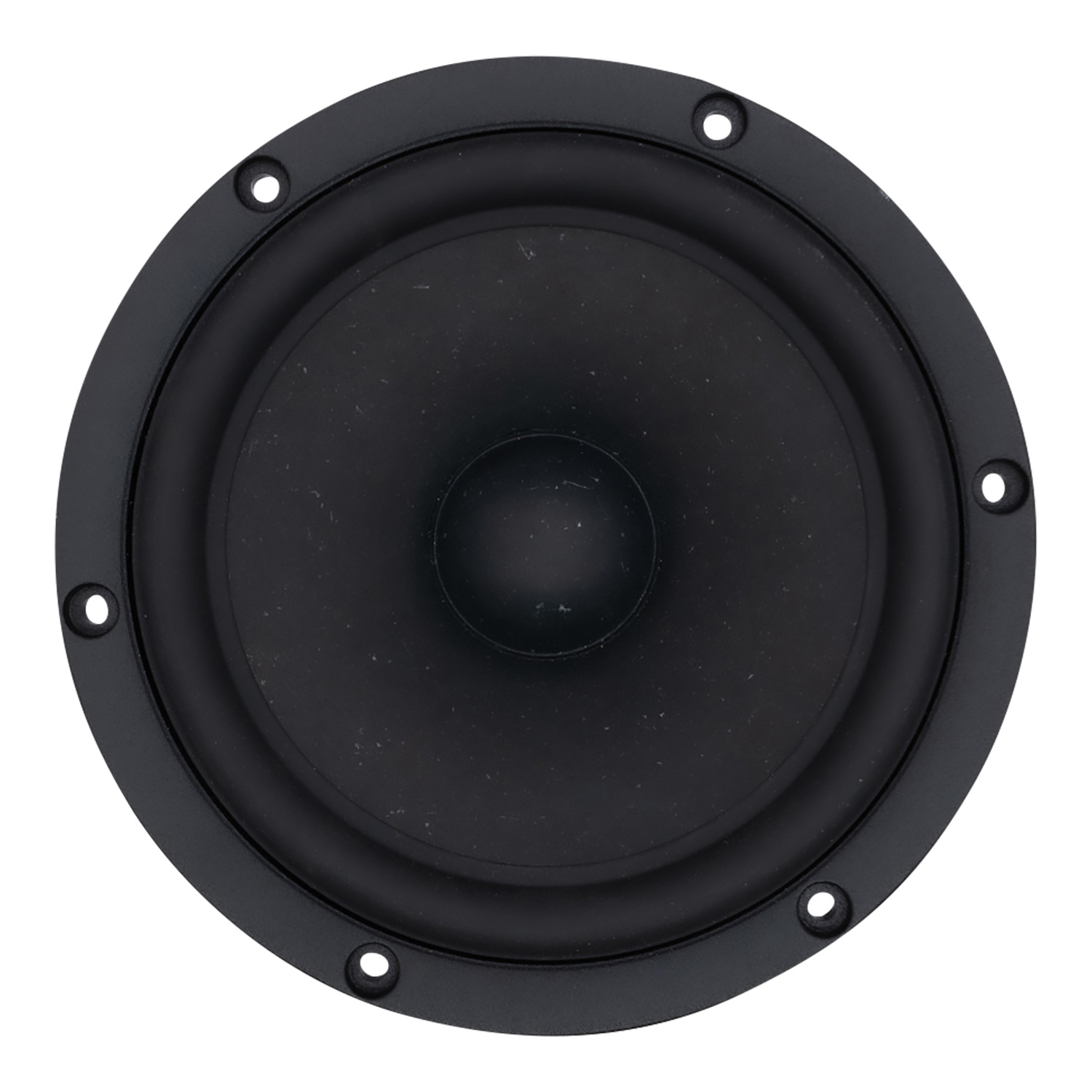

      Satori MW16P-4 Woofer Medio-Bassi

      SB Acoustics Satori MW16P-4 Woofer Medio-Bassi

      €174,95

      10 In magazzino

      SB Acoustics Satori MW16P-4 Woofer Medio-Bassi

      2 klantbeoordelingen
      5 da 5
      2 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      € 144,59€ 174,95 10 In magazzino
      • -5% Acquista 4 per soli € 166,20 per pezzo
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito domani
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto SB Acoustics Satori MW16P-4 Woofer Medio-Bassi

      Highlights

      • Egyptian Reed Cone
      • Vented aerodynamic cast aluminum chassis for optimum strength and low compression
      • Proprietary cone material with EGYPTIAN PAPYRUS fibers made in-house
      • Soft low damping rubber surround for optimum transient response
      • Advanced BIMAX spider for improved linearity
      • Powerful optimized low distortion neodymium motor system
      • Non-conducting fiber glass voice coil former for minimum damping
      • Extended copper sleeve on pole piece for low inductance and reduced distortion
      • CCAW voice coil for reduced moving mass
      • Long life silver lead wires attached 180° apart for improved stability
      • Vented pole piece for reduced compression
      • High piston to chassis diameter ratio
      • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet



      Product details

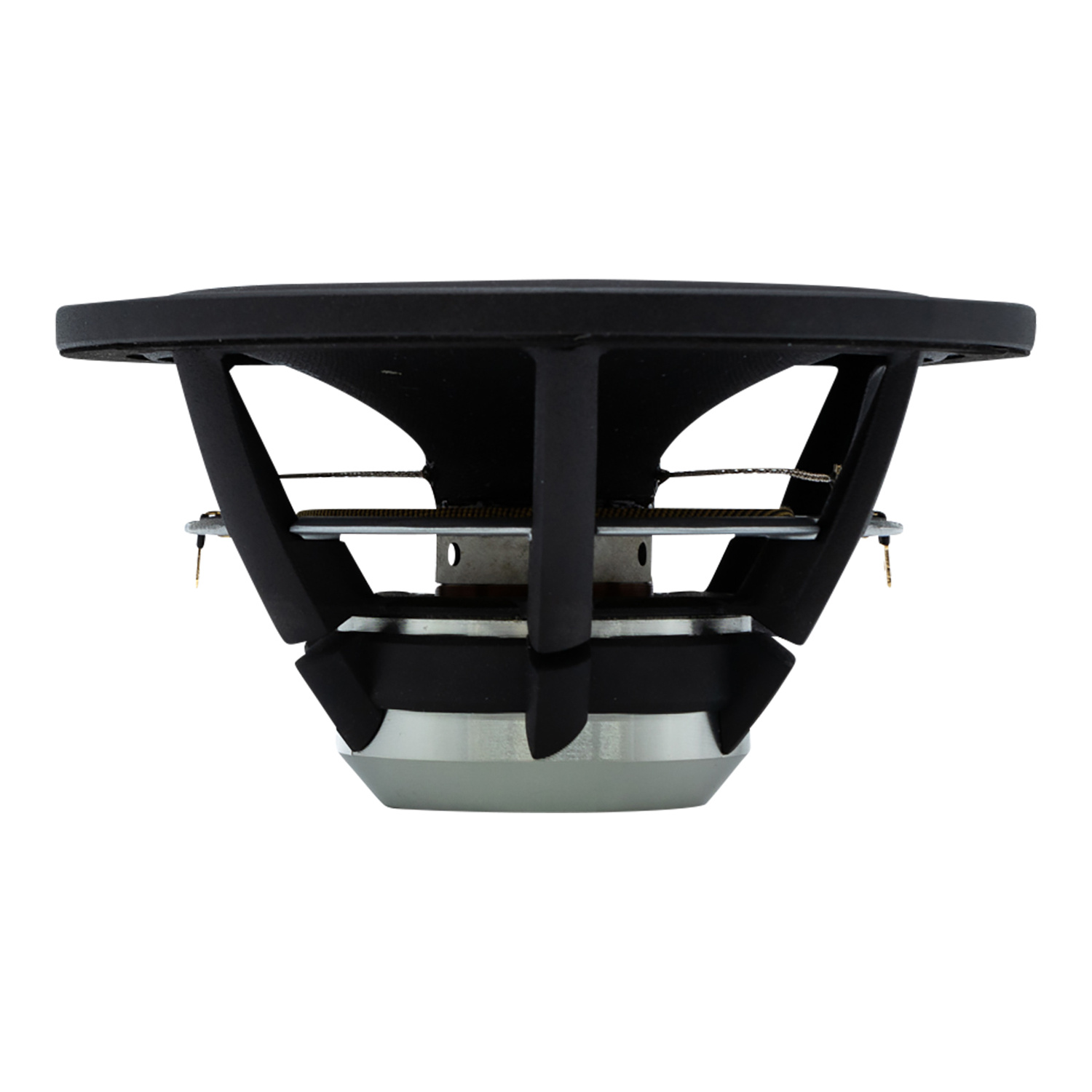

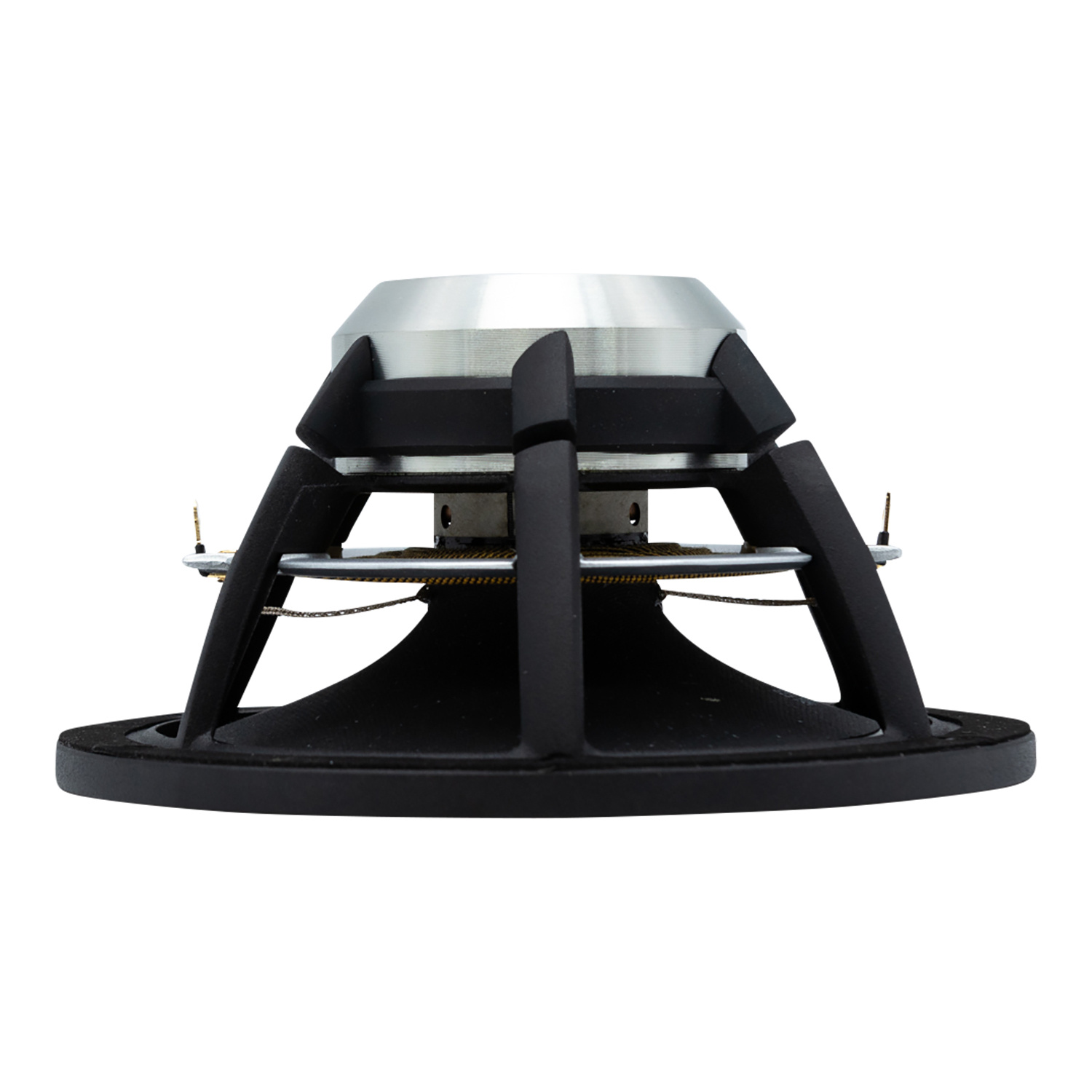

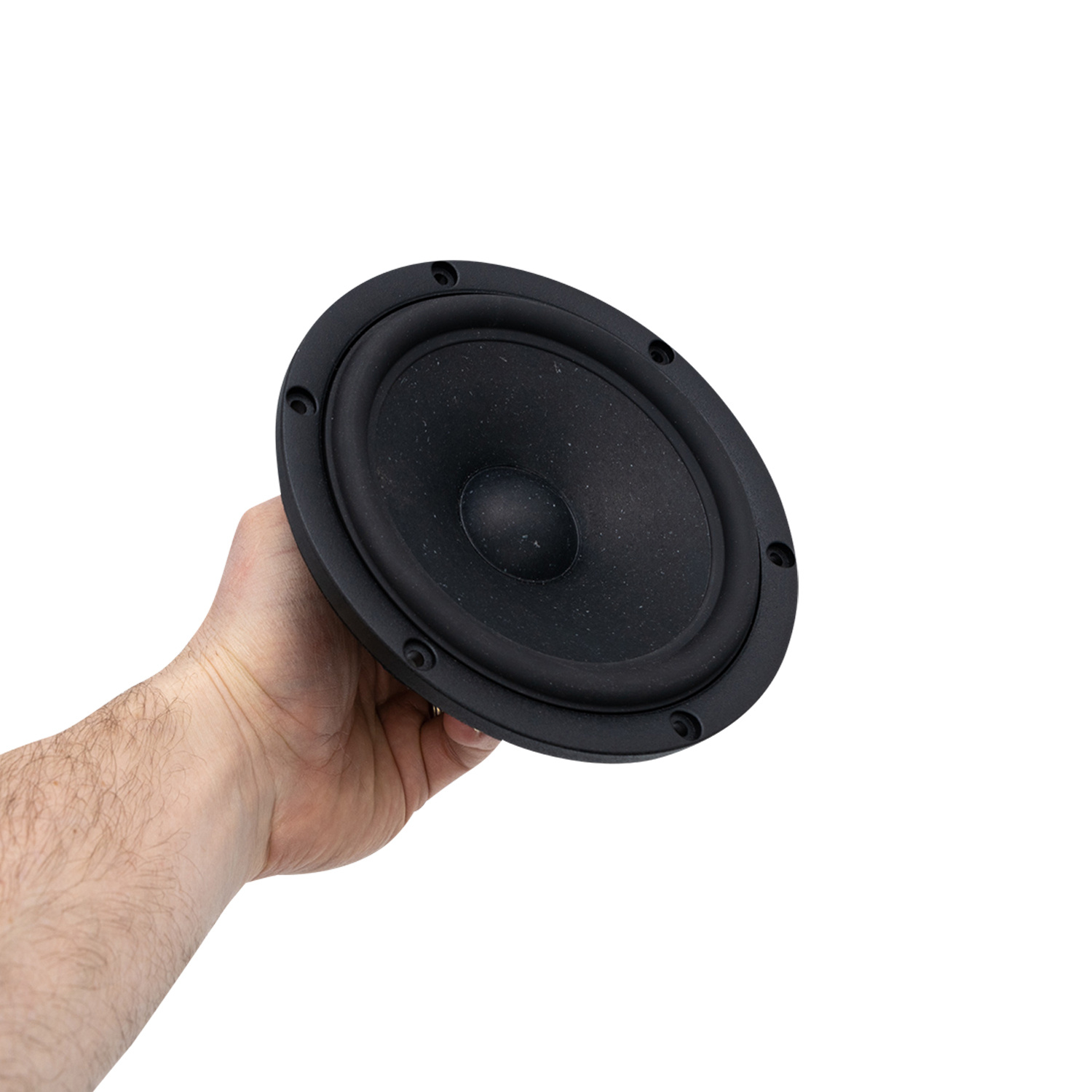

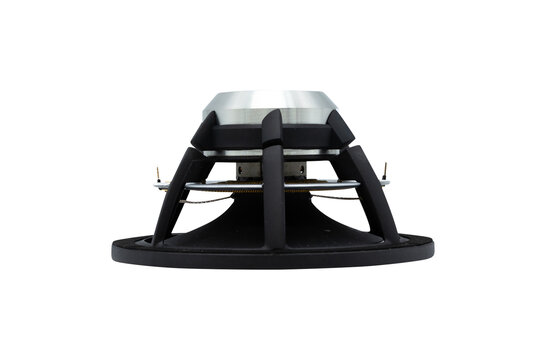

      SB Acoustics Satori MW16P-4 6.5" Egyptian Papyrus Cone Woofer



      The MW16P-4 is a 4 ohm mid-woofer from the SB Acoustics Satori series. Satori is a Buddhist term for enlightenment. The word literally means "understanding".  Satori translates as a flash of awareness.  Satori drivers are designed for subtlety and realism.



      The driver has very nice looks and building quality. The small but yet powerful neodymium magnet together with the shape of the chassis contributes to an optimal airflow behavior.

      Show more

      Specifiche

      Numero dell'articolo:
      MW16P-4
      EAN
      0696277269143
      Serie del woofer
      SB Acoustics Satori series
      Tipo di woofer
      Midwoofer
      Diametro nominale
      6.5"
      Gestione della potenza (RMS)
      60 Watt
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      90.5 dB
      Risposta in frequenza
      45 - 2200 Hz
      Diametro della bobina mobile
      36 mm
      Resistenza DC (Re)
      3.4 Ω
      Induttanza della bobina mobile (Le)
      0.15 mH
      Frequenza di risonanza (Fs)
      28 Hz
      Fattore di merito meccanico (Qms)
      15.57
      Fattore di merito elettromagnetico (Qes)
      0.28
      Fattore di merito totale (Qts)
      0.27
      Massa del diaframma incl. la massa dell'aria (Mms)
      12.8 g
      Cedevolezza meccanica della sospensione (Cms)
      2.50 mm/N
      Superficie del cono (Sd)
      119 cm²
      Prodotto BL (BL)
      5.2 Tm
      Volume equivalente di cedevolezza (Vas)
      50.1 L
      Escursione lineare massima (Xmax)
      6 mm
      Materiale del cono / diaframma
      Paper
      Materiale del filo della bobina mobile
      Copper
      Supporto della bobina mobile
      Glass Fiber
      Materiale del cestello / telaio
      Die Cast Aluminum
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      467 mm
      Diametro del ritaglio del pannello frontale
      423 mm

      Show more

      5 di 5
      Punch and fast, super good transient response
      Da Sarkar on 19 Ottobre 2026
      5 di 5
      Es wurde keine Beschreibung gegeben.
      Da Stefan S. on 27 Marzo 2020
