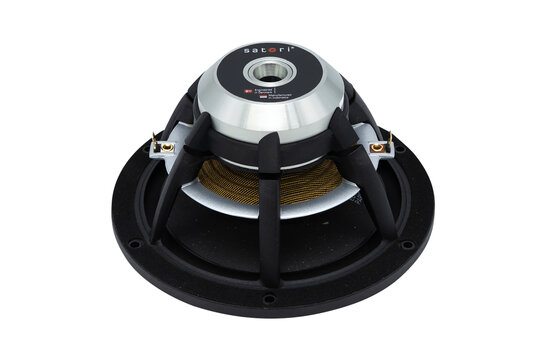

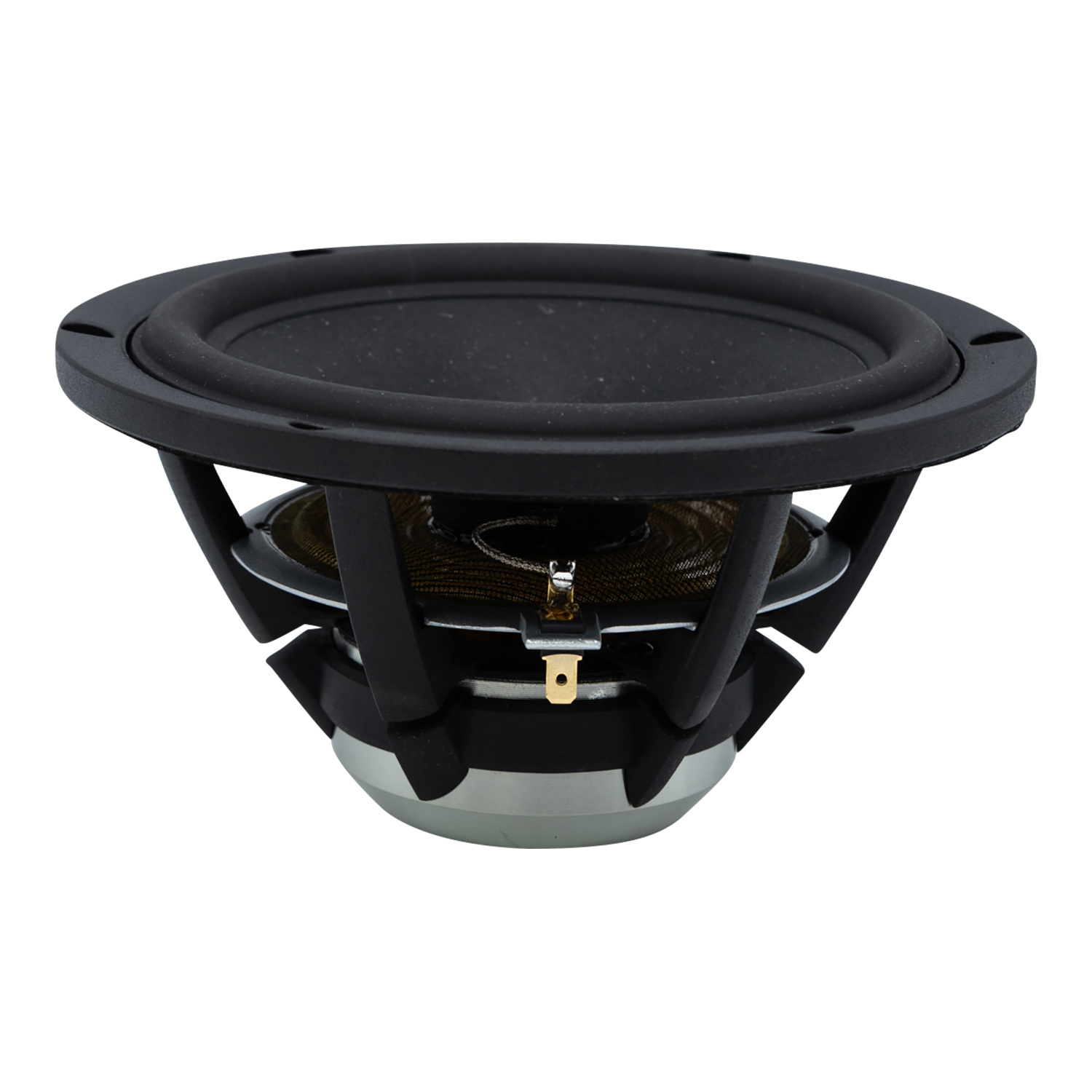

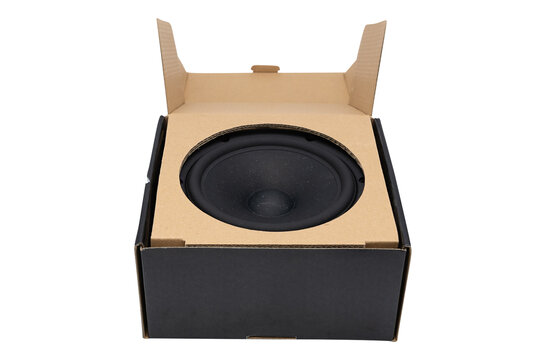

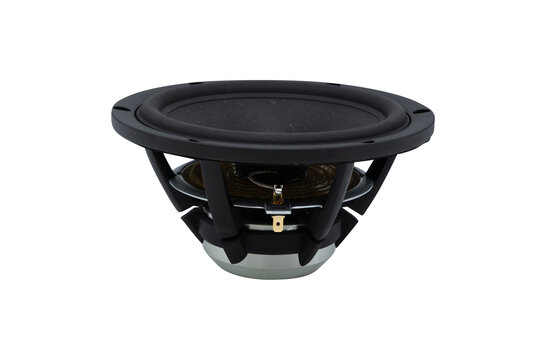

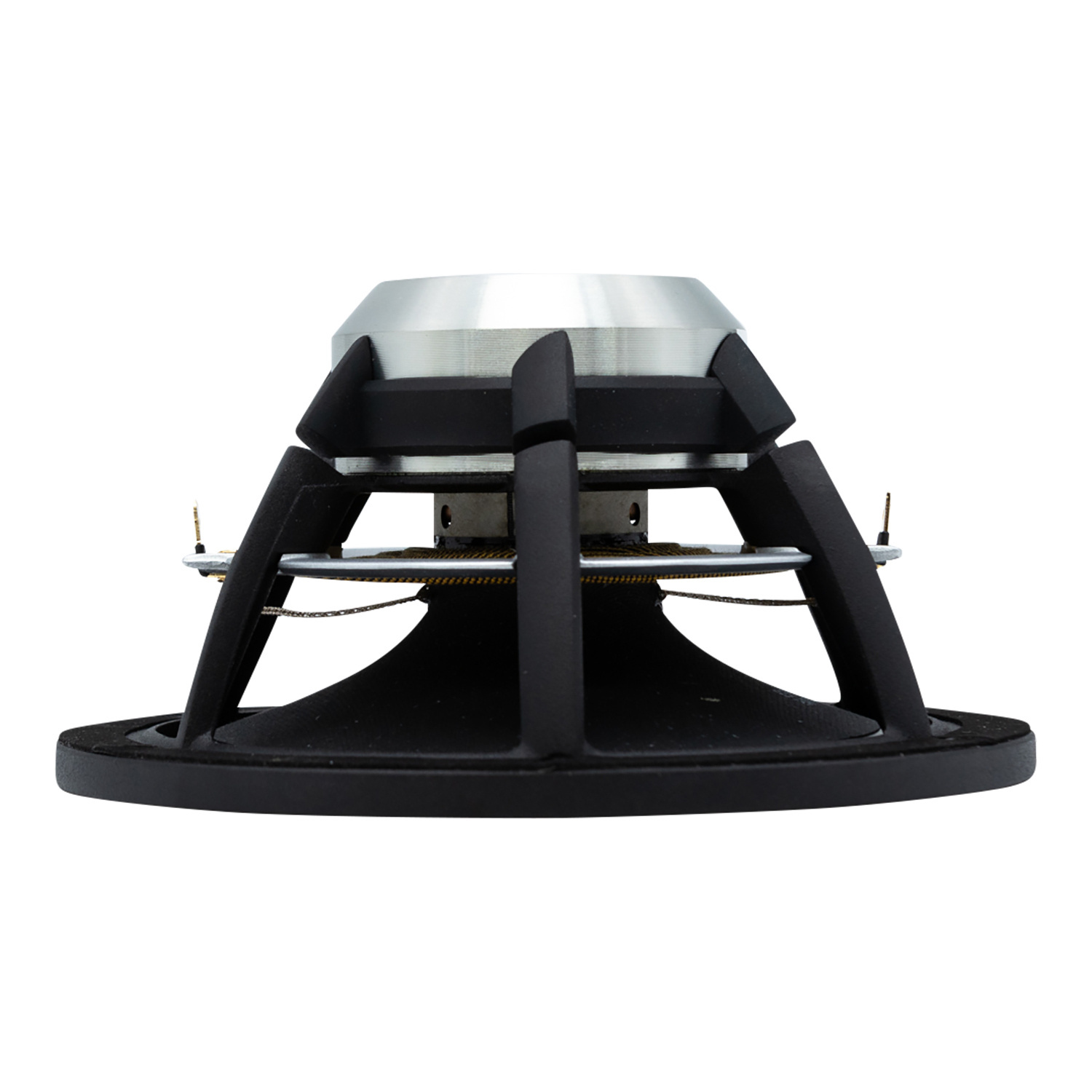

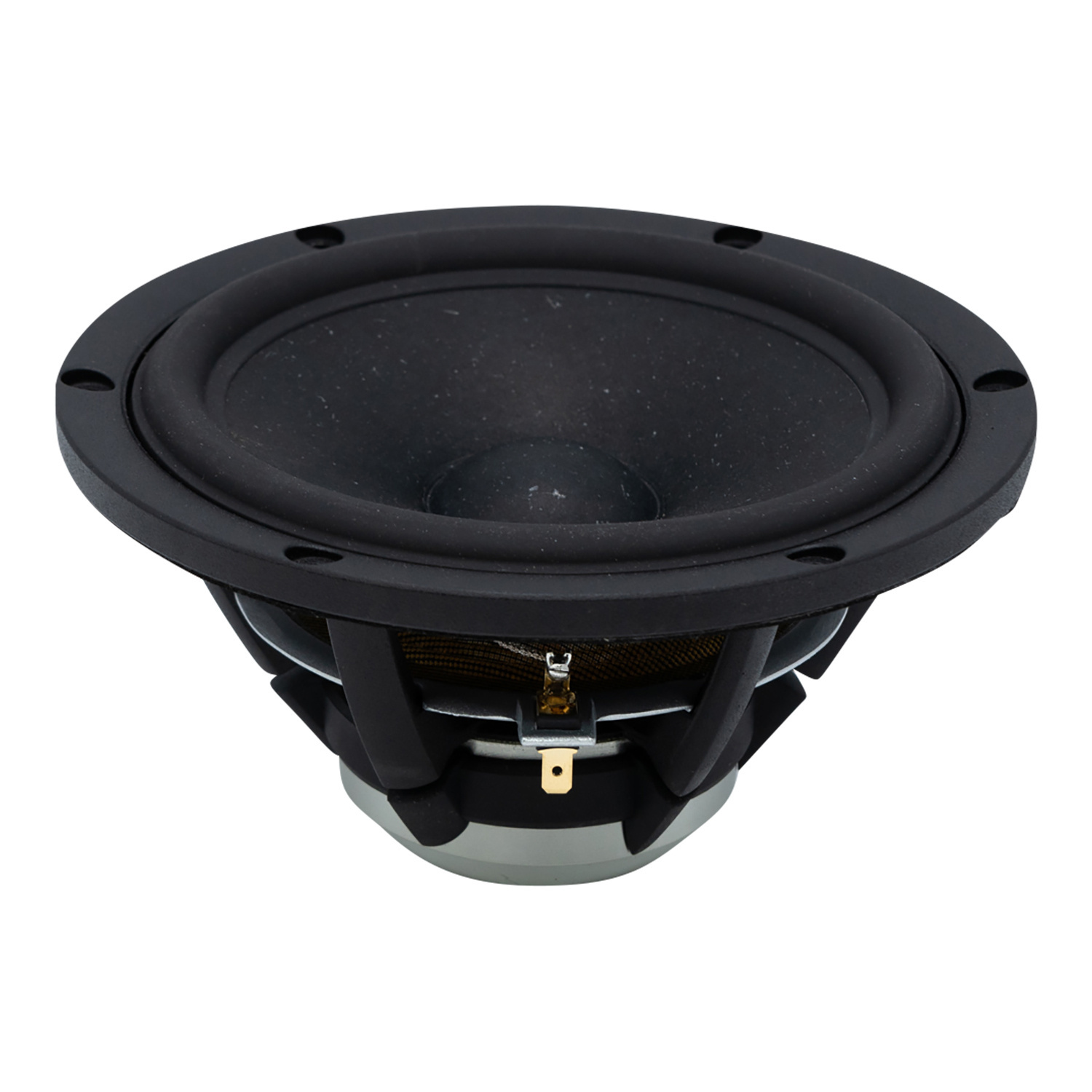

      MW16P-12 Woofer Medio-Bassi

      SB Acoustics MW16P-12 Woofer Medio-Bassi

      €174,95

      6 In magazzino

      Aggiungi al carrello

      SB Acoustics MW16P-12 Woofer Medio-Bassi

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: SB Acoustics
      Mostra tutti Nuovi prodotti
      6.5" | 12 Ω
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      € 144,59€ 174,95 6 In magazzino
      • -0% Acquista 4 per soli € 174,95 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito domani
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi
      MW16P-12 Woofer Medio-Bassi

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Flexibility thanks to 12 Ohm impedance

      Descrizione del prodotto SB Acoustics MW16P-12 Woofer Medio-Bassi

      The SB Acoustics Satori MW16P-12 is a high-end 6.5" midwoofer designed for discerning audiophiles and speaker builders seeking premium performance. With a focus on low distortion, natural tonal balance, and advanced motor design, this 12-ohm driver is ideal for high-fidelity speaker applications where clarity and precision are paramount.



      Highlights of the SB Acoustics Satori MW16P-12

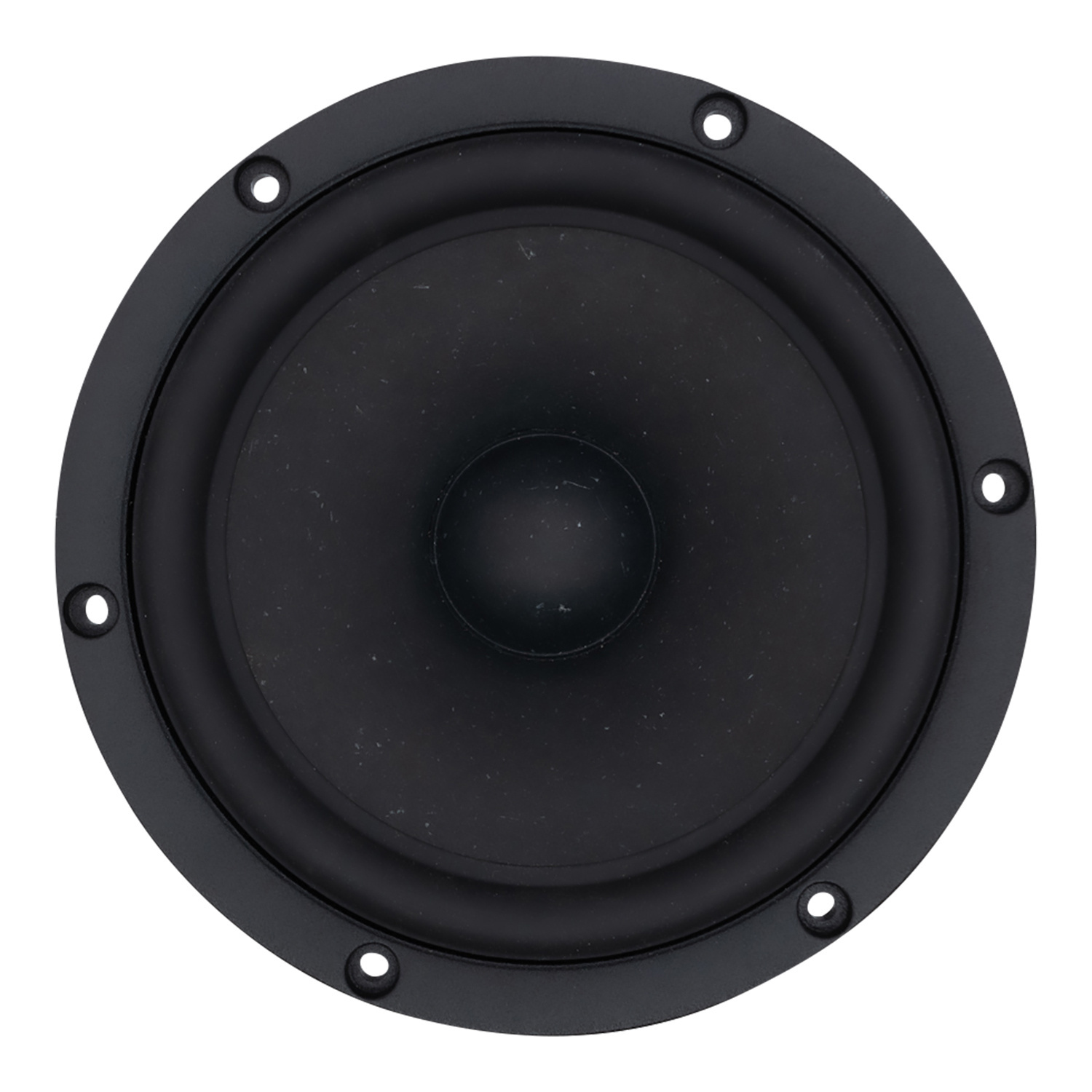

      • 6.5" Egyptian Papyrus cone for superior damping and natural sound reproduction

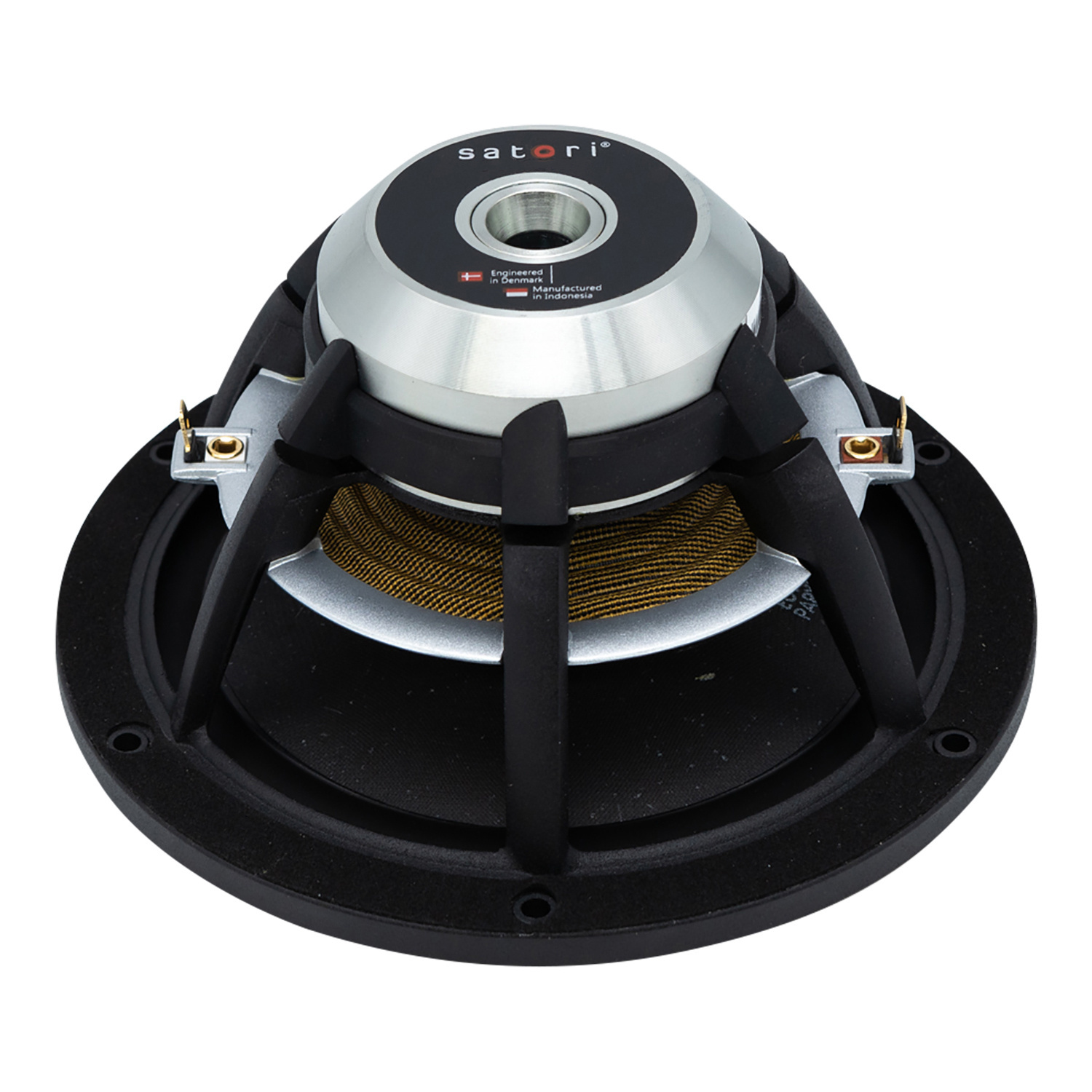

      • Vented cast aluminum chassis and neodymium motor system for low distortion
      • Extended copper sleeve on the pole piece to reduce inductance and distortion
      • CCAW voice coil and advanced Bimax spider for improved linearity and transient response



      Product details SB Acoustics Satori MW16P-12

      SB Acoustics Satori MW16P-12 6.5" Midwoofer



      The Satori MW16P-12 by SB Acoustics is part of their flagship line and combines carefully engineered acoustic and mechanical elements to deliver audiophile-grade performance. Featuring a proprietary cone crafted from Egyptian Papyrus™ fibers, the MW16P-12 offers excellent internal damping for a clean and natural midrange. The vented aerodynamic cast aluminum chassis minimizes compression while enhancing structural strength. The powerful low-distortion neodymium motor is optimized with an extended copper sleeve on the pole piece, reducing inductance and minimizing distortion. The non-conductive fiberglass voice coil former, combined with a CCAW (copper-clad aluminum wire) voice coil, results in reduced moving mass and superior transient response. The soft, low-damping rubber surround and advanced Bimax spider further improve linearity and control over cone movement.



      With a free-air resonance (Fs) of 30.6 Hz, sensitivity of 85 dB, and a linear excursion of 12.4 mm (p-p), the MW16P-12 is engineered for accurate low-frequency response and dynamic range. It is ideally suited for high-end 2-way and 3-way designs, particularly in applications that require precise detail and low coloration across the midrange spectrum.

      Show more

      Specifiche

      Numero dell'articolo:
      MW16P-12
      EAN
      9501934468238
      Serie del woofer
      SB Acoustics Satori series
      Tipo di woofer
      Bass-Midwoofer
      Diametro nominale
      6.5"
      Gestione della potenza (RMS)
      50 Watts
      Impedenza (Z)
      12 Ω
      Sensibilità (SPL a 1m / 2,83V)
      85 dB
      Risposta in frequenza
      35 - 2.000 Hz
      Diametro della bobina mobile
      35.5 mm
      Resistenza DC (Re)
      10 Ω
      Induttanza della bobina mobile (Le)
      0.19 mH
      Frequenza di risonanza (Fs)
      30.6 Hz
      Fattore di merito meccanico (Qms)
      4.81
      Fattore di merito elettromagnetico (Qes)
      0.40
      Fattore di merito totale (Qts)
      0.37
      Massa del diaframma incl. la massa dell'aria (Mms)
      11.5 g
      Cedevolezza meccanica della sospensione (Cms)
      2.35 mm/N
      Superficie del cono (Sd)
      119 cm²
      Prodotto BL (BL)
      7.4 Tm
      Volume equivalente di cedevolezza (Vas)
      47.3 Liters
      Escursione lineare massima (Xmax)
      12.4 mm
      Perdite meccaniche del driver (Rms)
      0.46 kg/s
      Materiale della sospensione
      Rubber
      Supporto della bobina mobile
      Fiber glass
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      165 mm
      Profondità complessiva
      86.1 mm
      Diametro del ritaglio del pannello frontale
      140.1 mm
      Diametro del cerchio dei fori di montaggio
      153.5 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      4.3 mm
