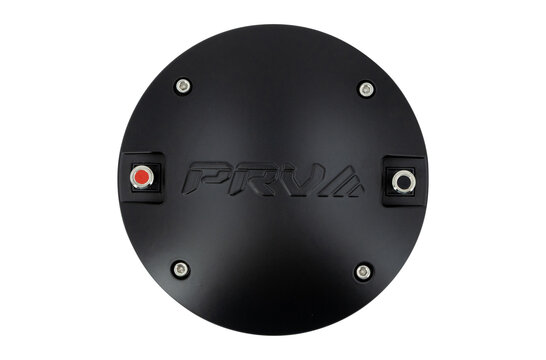

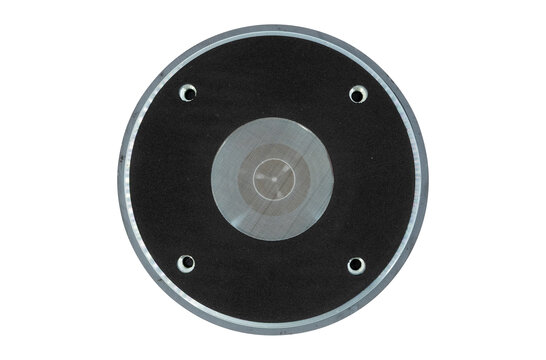

      D2200Ph Compression Driver

      PRV Audio D2200Ph Compression Driver

      €87,95

      Non disponibile

      Aggiungi al carrello

      PRV Audio D2200Ph Compression Driver

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: PRV Audio
      Mostra tutti Nuovi prodotti
      2" | 8 Ω
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      € 72,69€ 87,95 Esaurito
      • -5% Acquista 4 per soli € 83,55 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver
      D2200Ph Compression Driver

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Phenolic diaphragm for natural response
      • Compact driver design keeps installation easy in tight spaces

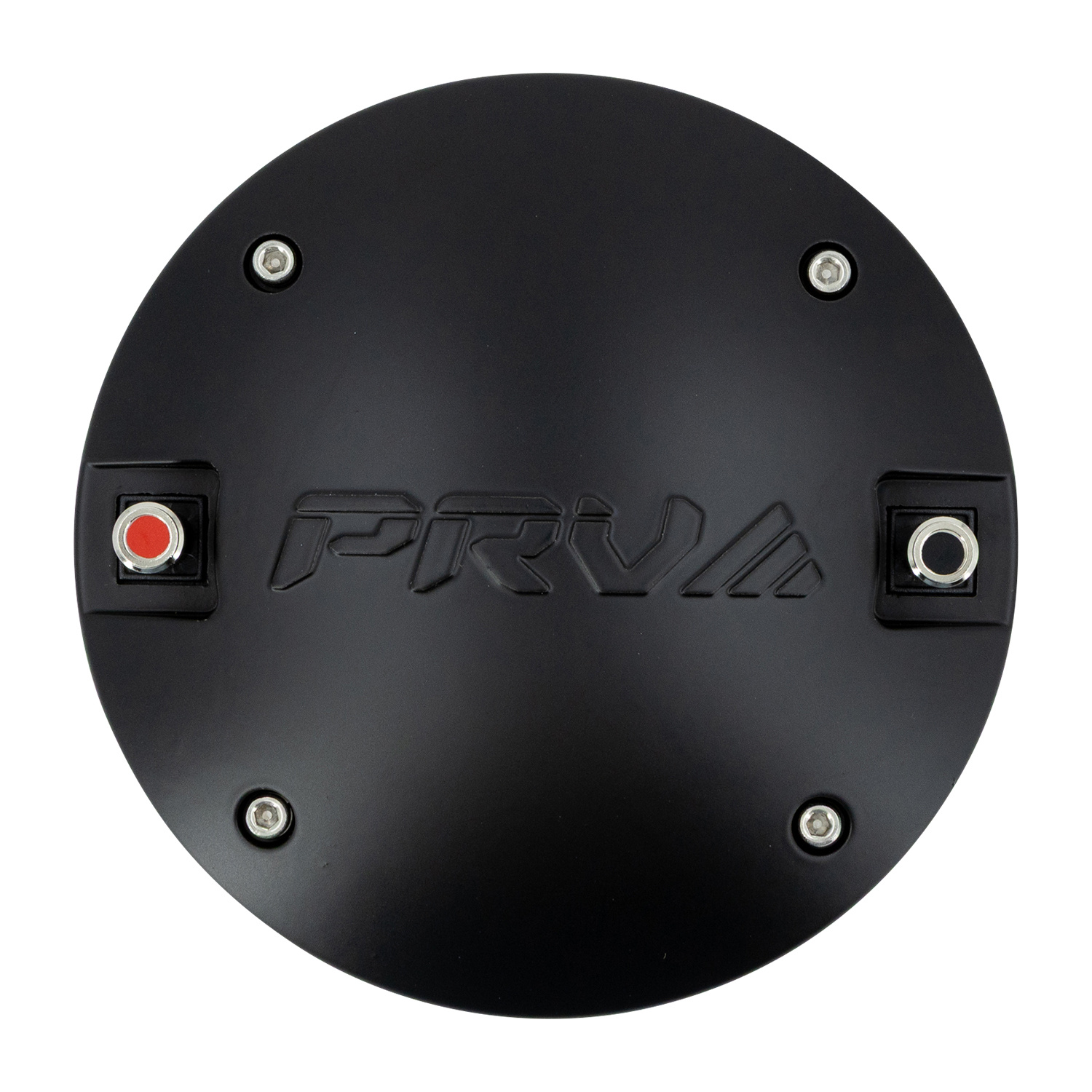

      • Spring-loaded speaker terminals
      • Phenolic diaphragms generally have less high-end detail compared to titanium or polyimide options

      Descrizione del prodotto PRV Audio D2200Ph Compression Driver

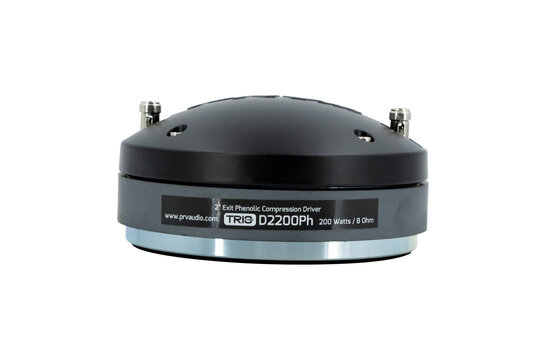

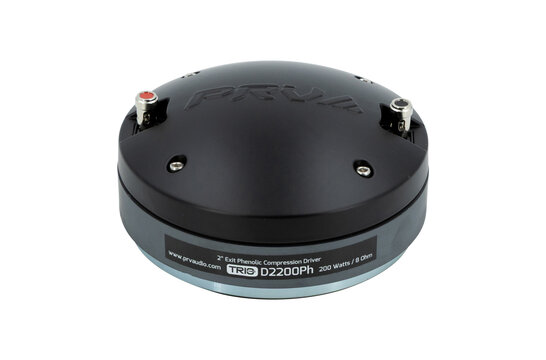

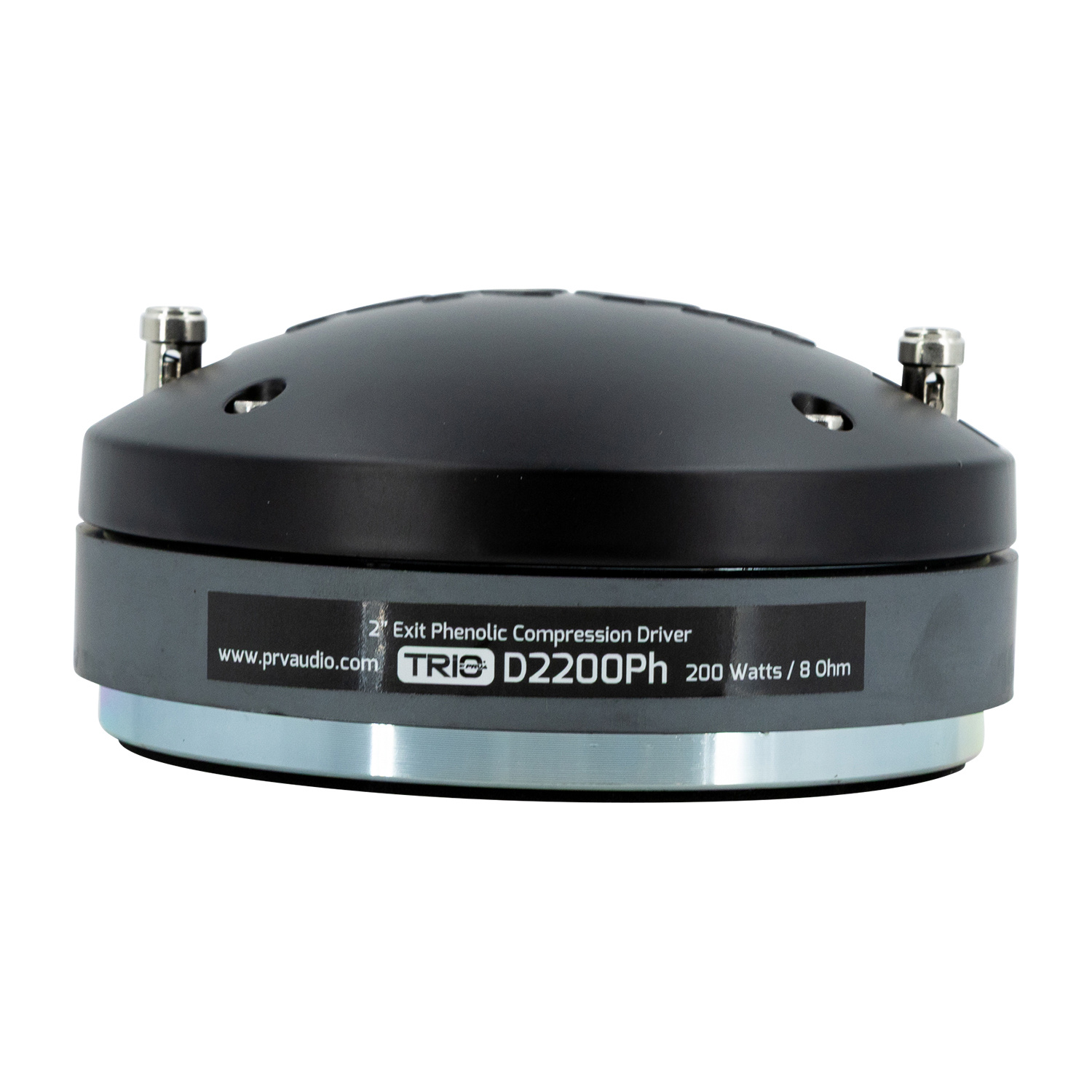

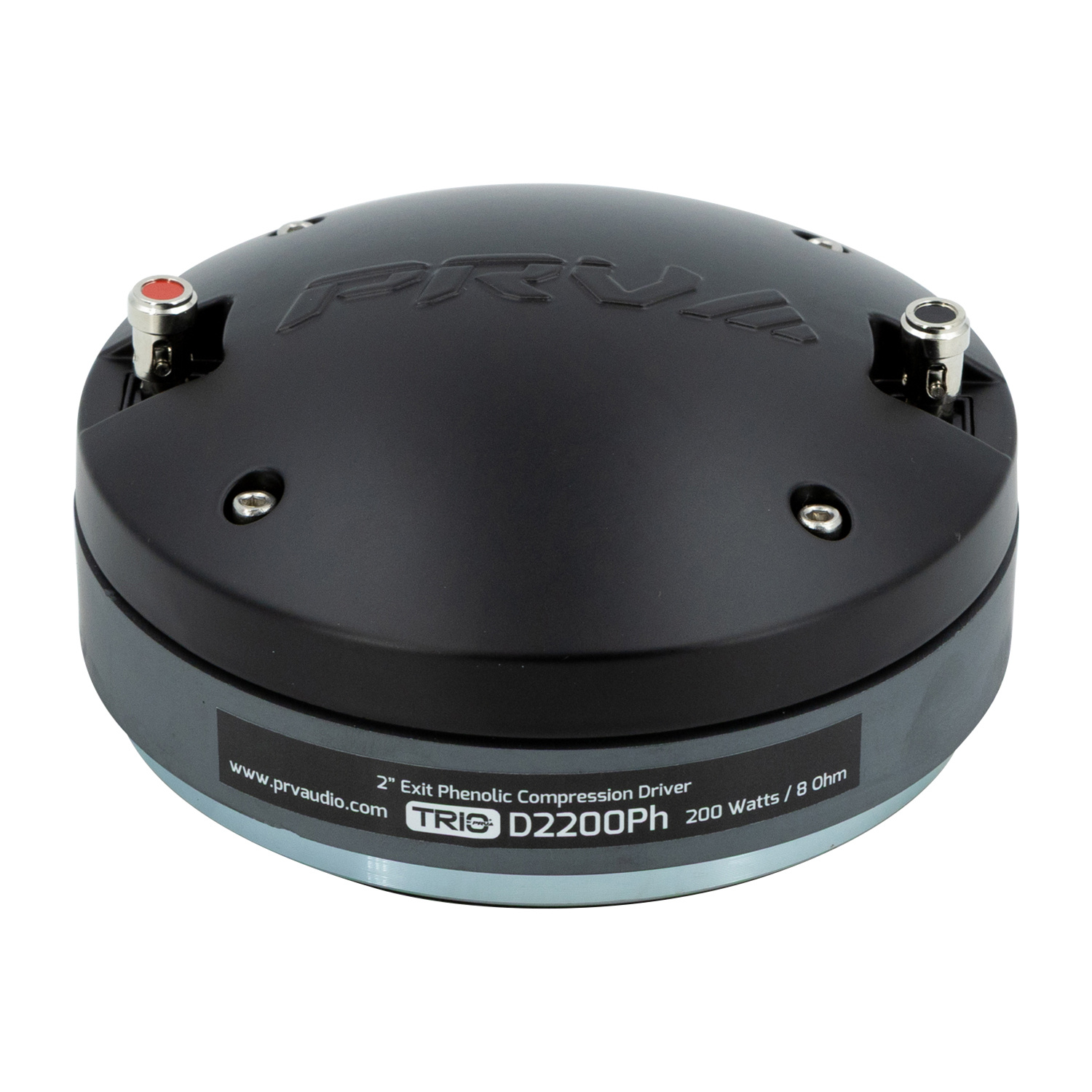

      The PRV Audio D2200Ph is a high-performance 2” exit compression driver engineered for professional audio applications requiring high power handling, extended frequency response, and durability. With its robust phenolic diaphragm and precise design, it delivers clean, articulate sound from 500 Hz to 9,000 Hz - making it ideal for midrange vocal reproduction in PA systems and custom speaker builds.



      Highlights of the PRV Audio D2200Ph

      • 2" voice coil and 2" exit throat for seamless horn integration
      • Handles 100W RMS / 200W program power for powerful output
      • High sensitivity of 109 dB ensures efficient performance
      • Phenolic diaphragm for smooth midrange and vocal clarity



      Product details PRV Audio D2200Ph

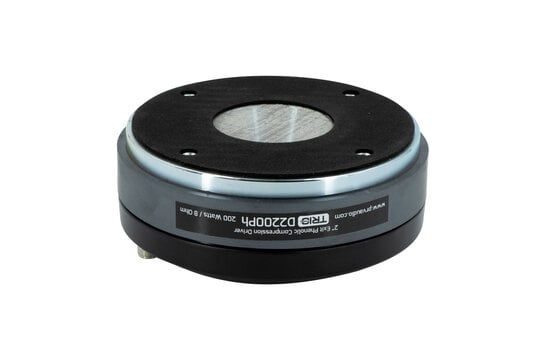

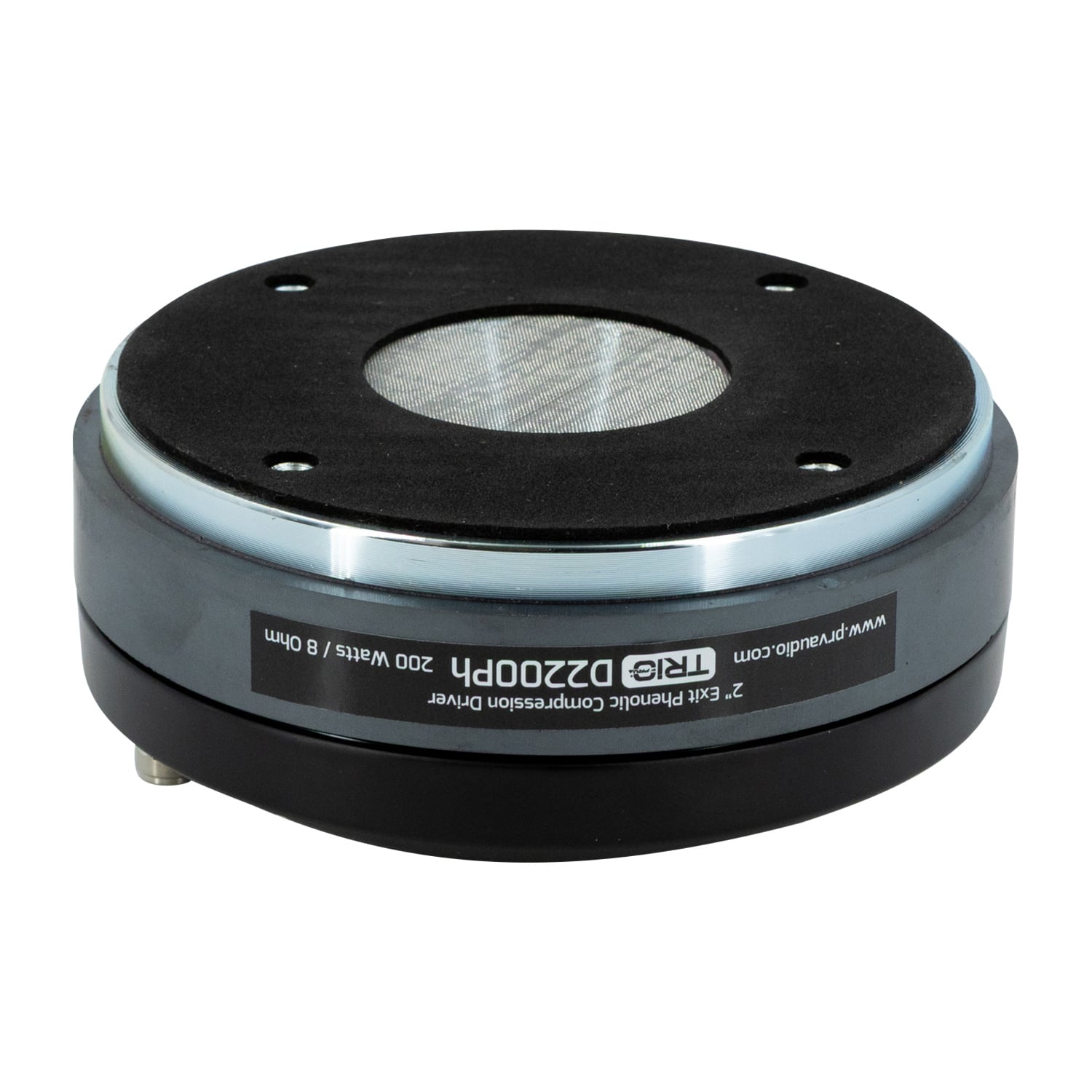

      PRV Audio D2200Ph Compression Driver



      The PRV Audio D2200Ph is a professional-grade 2” exit compression driver designed for audio enthusiasts and system integrators seeking clarity, efficiency, and reliability in mid to high-frequency reproduction. Built around a 2” CCAW voice coil wound on a heat-resistant Kapton® former, the driver delivers 100 watts RMS and peaks up to 200 watts of program power. Its phenolic diaphragm ensures smooth tonal character, especially in vocal applications, while the 109 dB sensitivity provides ample SPL with minimal amplifier power.



      Featuring a ferrite magnet structure with a flux density of 1.66 T, the D2200Ph achieves strong magnetic performance in a compact and robust housing. Its recommended crossover point is 500 Hz with a 12 dB/octave slope, making it well-suited for use in two-way and three-way speaker configurations. The unit has a standard 4-bolt mount with a 65.5 mm depth and 133 mm diameter, compatible with industry-standard horns.



      Whether used in touring systems, installed venues, or custom loudspeaker builds, the PRV Audio D2200Ph delivers articulate sound, high efficiency, and consistent performance - hallmarks of Brazilian engineering for pro audio applications.

      Show more

      Specifiche

      Numero dell'articolo:
      D2200Ph
      EAN
      602938022774
      Tipo di tweeter
      Compression Driver
      Serie del tweeter
      PRV Trio
      Diametro del cono / cupola
      50 mm
      Gestione della potenza (RMS)
      200 Watts
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      107 dB
      Risposta in frequenza
      800 - 9000Hz
      Diametro esterno complessivo
      133 mm
      Profondità
      65.5 mm
      Tipo di montaggio
      M6 x 4 - 4” (101.6 mm)
      Materiale del diaframma
      Phenolic
      Frequenza di taglio consigliata
      800 Hz
