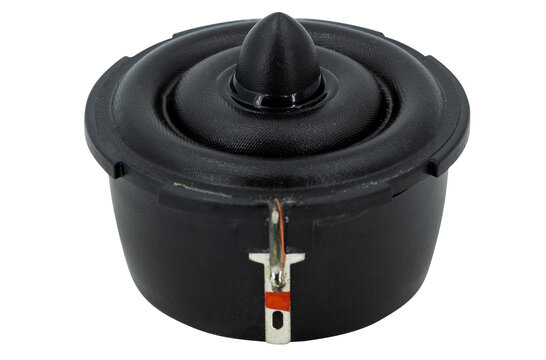

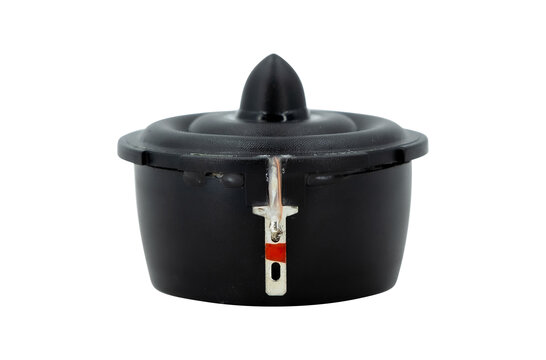

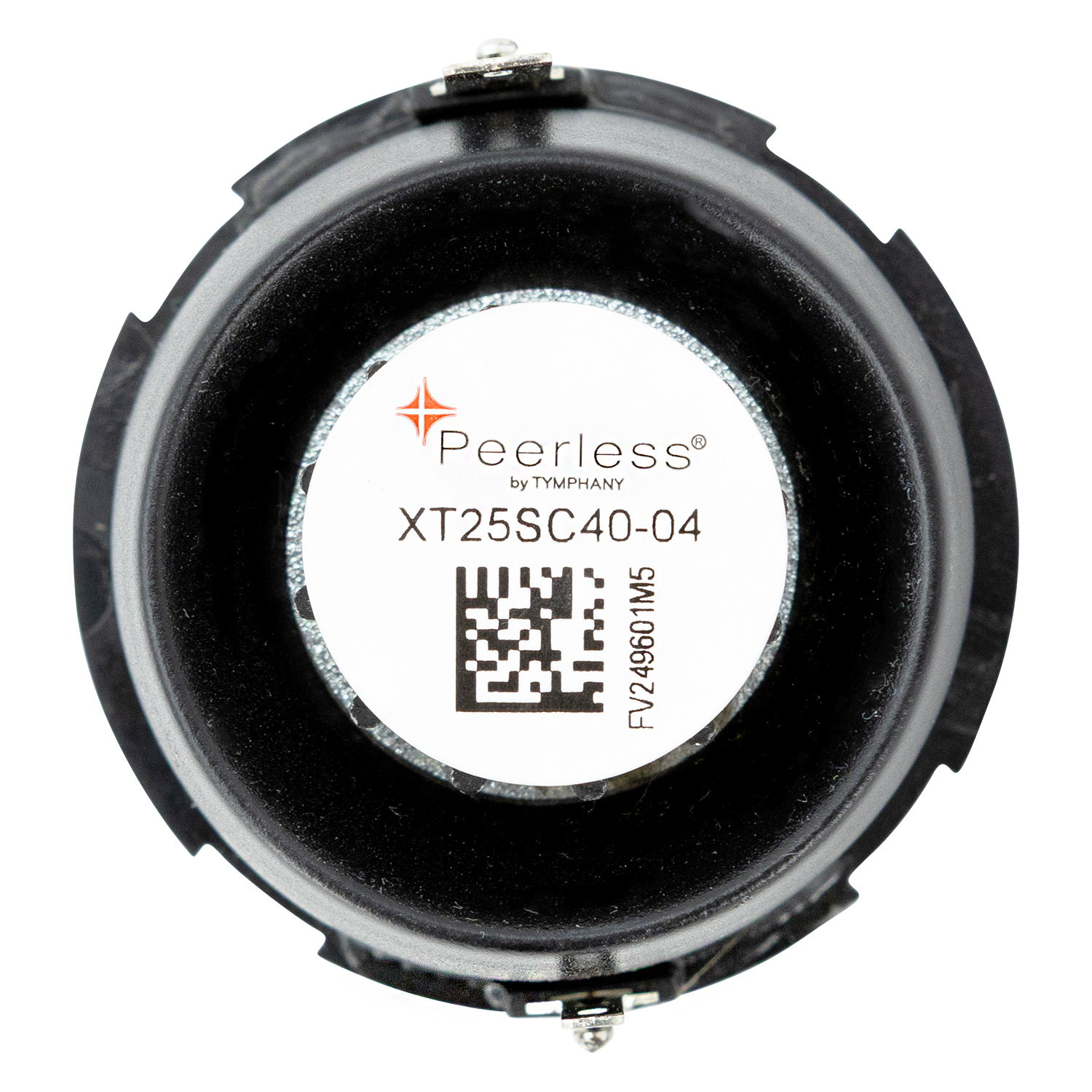

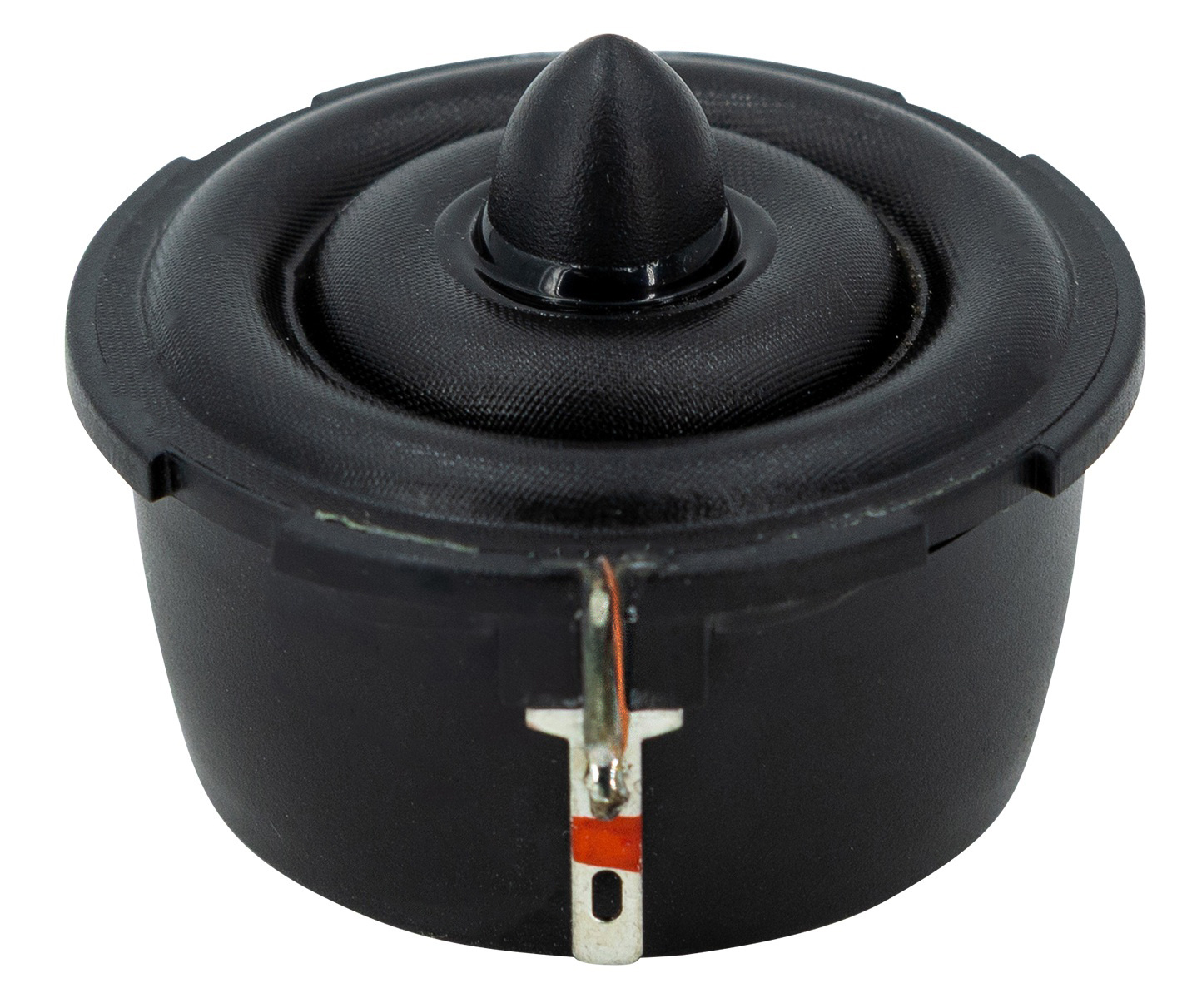

      XT25SC40-04 Tweeter Ring Radiator

      Peerless by Tymphany XT25SC40-04 Tweeter Ring Radiator

      €29,95

      10+ In magazzino

      Aggiungi al carrello

      Peerless by Tymphany XT25SC40-04 Tweeter Ring Radiator

      4 reviews
      5 da 5
      4 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Peerless by Tymphany
      Mostra tutti Tweeters Peerless by Tymphany
      1" | 4 Ω
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      € 24,75€ 29,95 10+ In magazzino
      • -5% Acquista 4 per soli € 28,45 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator
      XT25SC40-04 Tweeter Ring Radiator

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Widely applicable

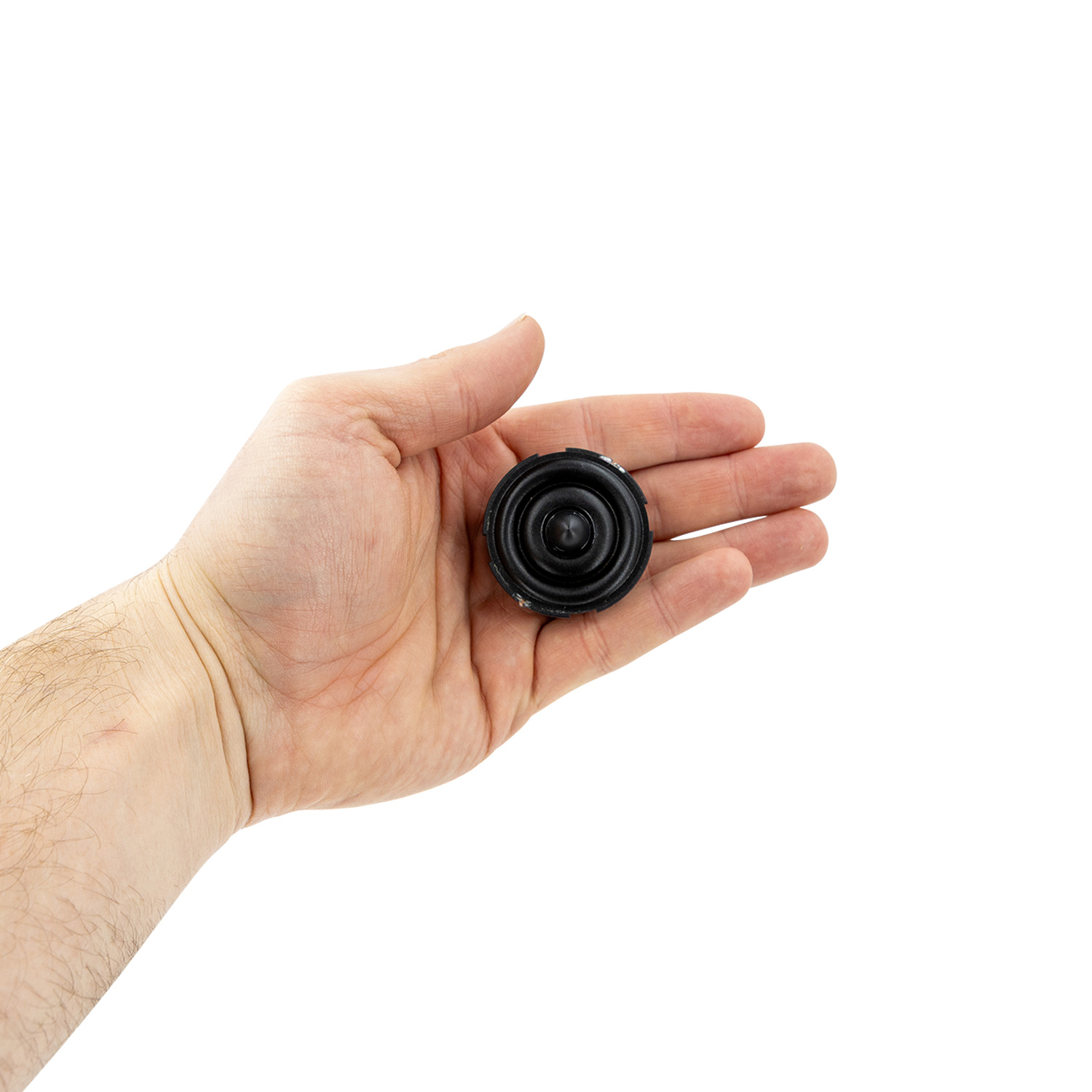

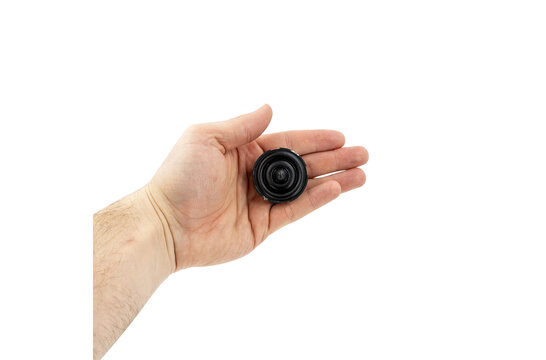

      • Extremely compact
      • Budget-friendly
      • • Requires more amplifier power to achieve similar sound levels as more sensitive tweeters

      Descrizione del prodotto Peerless by Tymphany XT25SC40-04 Tweeter Ring Radiator

      The Tymphany XT25BG60-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.



      Highlights of the Peerless XT25SC40-04 Ring Radiator Tweeter

      • Sensitivity (SPL at 1m / 2.83V): 94 dB
      • Resonant Frequency (Fs): 1018 Hz
      • Smooth, flat response all the way up to 20,000 Hz and beyond
      • Soft dome for natural response with minimal peaks and dips (±2 dB 1,500 to 20,000 Hz)
      • Neodymium motor with heatsink allows high power handling



      Product details Peerless XT25SC40-04 Ring Radiator Tweeter

      Peerless by Tymphany XT25BG60-04 1" Shielded Dual Ring Radiator Tweeter

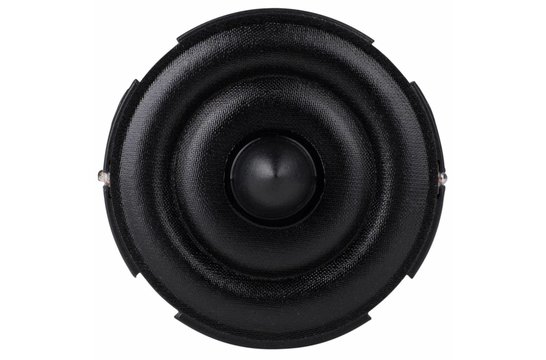

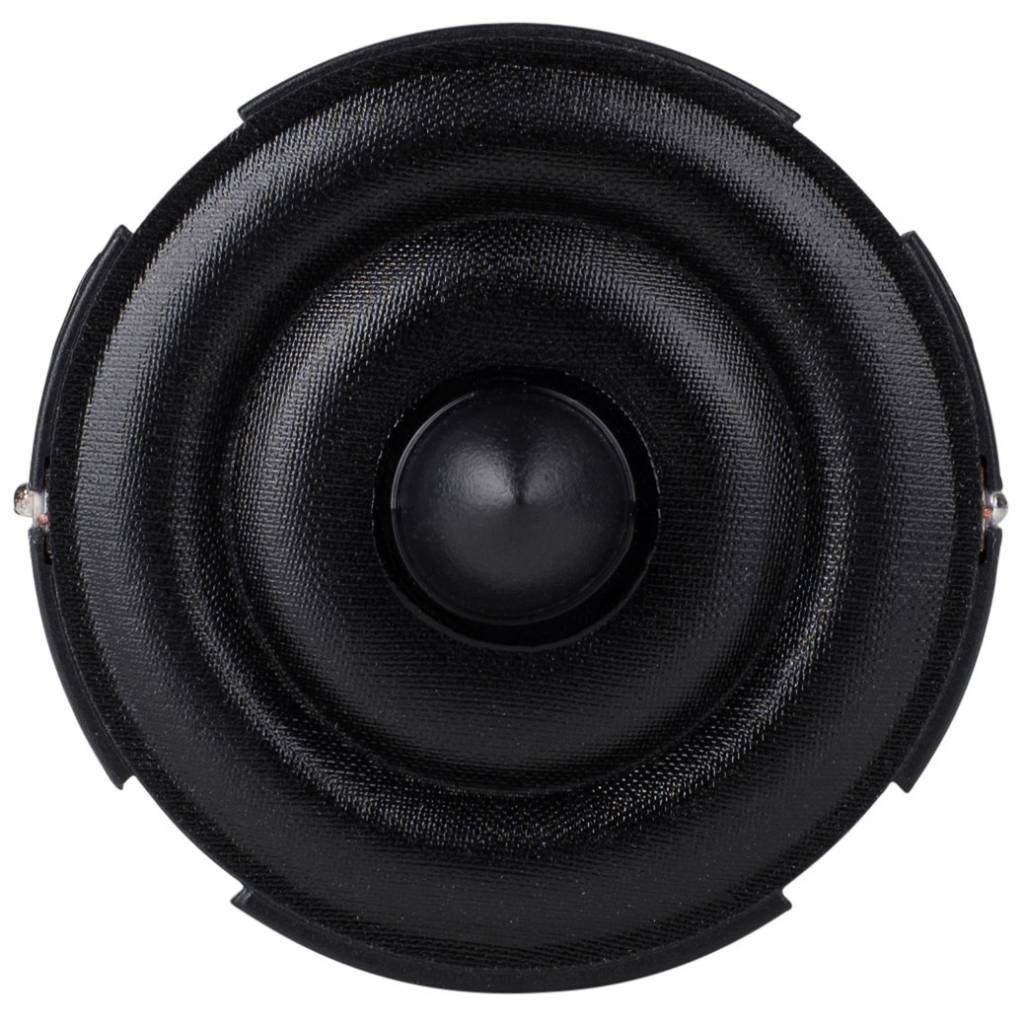

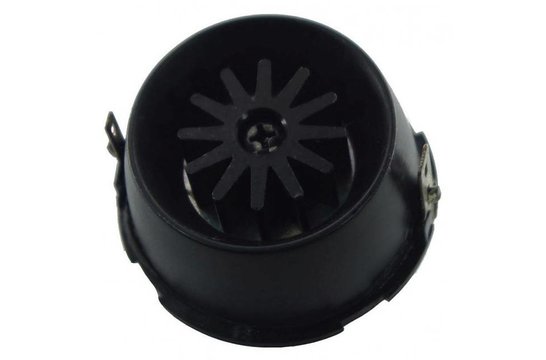

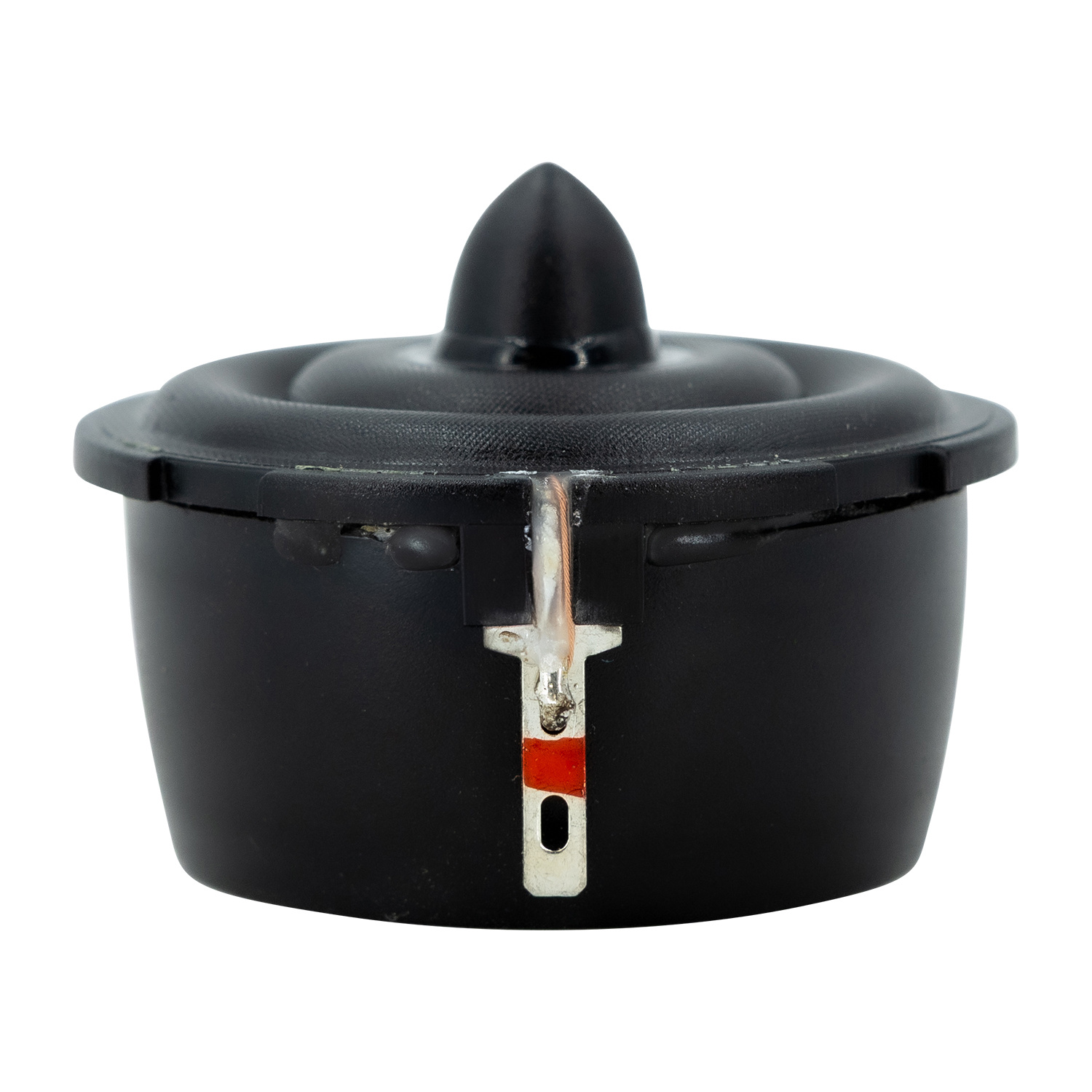

      This member of the XT tweeter family utilizes two patented Tymphany technologies to deliver exceptional sound quality: the ring radiator, and the central waveguide. The Peerless XT25SC40-04 features a 4 ohm 25 mm voice coil, mounted in a neodymium motor to keep the efficiency high on this extremely compact tweeter. The tweeter also features a rear chamber to enable extended low frequency response with remarkably low distortion. This tweeter as ready-made to be adapted to any compact faceplate, rear mount, or custom installation. In addition, the combination of small size, accurate frequency response, and 4-ohm impedance makes this tweeter also suitable for car audio systems.



      FAQ about the Peerless XT25SC40-04 Ring Radiator Tweeter

      What is the mounting diameter and depth of the Peerless XT25C40-04?

      "



      How does this tweeter compare to a standard dome tweeter?

      Compared to standard dome tweeters, the ring radiator design offers superior off-axis performance, extended high-frequency response, and lower distortion at high output levels.



      Expert Tips

      • Tip 1: Place the tweeter at ear level for the best soundstage and imaging.
      • Tip 2: Pair it with a woofer or midrange driver that has a natural roll-off above 2,000 Hz to achieve a smoother crossover transition.
      • Tip 3: Use quality crossover components, as this tweeter is capable of resolving subtle differences in signal purity.





      Peerless manufacturing code: T04-1E0010018

      Show more

      Specifiche

      Numero dell'articolo:
      XT25SC40-04
      EAN
      0848864044972
      Tipo di tweeter
      Ring Radiator
      Diametro del cono / cupola
      25 mm | 1"
      Gestione della potenza (RMS)
      100 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      94 dB
      Risposta in frequenza
      2500 to 20,000 Hz
      Frequenza di risonanza (Fs)
      1018 Hz
      Resistenza DC (Re)
      3.2 ohms
      Induttanza della bobina mobile (Le)
      0.01 mH
      Fattore di merito meccanico (Qms)
      2.53
      Fattore di merito elettromagnetico (Qes)
      0.83
      Fattore di merito totale (Qts)
      0.63
      Diametro esterno complessivo
      1.73”
      Diametro del ritaglio
      1.73”
      Profondità
      0.79"
