      TC7FD00-04 Woofer a Gamma Completa

      Peerless by Tymphany TC7FD00-04 Woofer a Gamma Completa

      €19,95

      10+ In magazzino

      Aggiungi al carrello

      Peerless by Tymphany TC7FD00-04 Woofer a Gamma Completa

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Peerless by Tymphany
      Mostra tutti Woofers Peerless by Tymphany
      2.5" | 4 Ω
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      € 16,49€ 19,95 10+ In magazzino
      • -5% Acquista 4 per soli € 18,95 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa
      TC7FD00-04 Woofer a Gamma Completa

      Descrizione del prodotto Peerless by Tymphany TC7FD00-04 Woofer a Gamma Completa

      The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.



      Highlights of the Peerless TC7FD00-04 Full range Woofer

      • Sensitivity (SPL at 1m / 2.83V): 82.4 dB
      • Resonant Frequency (Fs): 143 Hz
      • Patented NRSC PentaCut cone technology controls resonances and improves performance
      • Under-spider venting increases power handling



      Product details of the Peerless TC7FD00-04 Full range Woofer

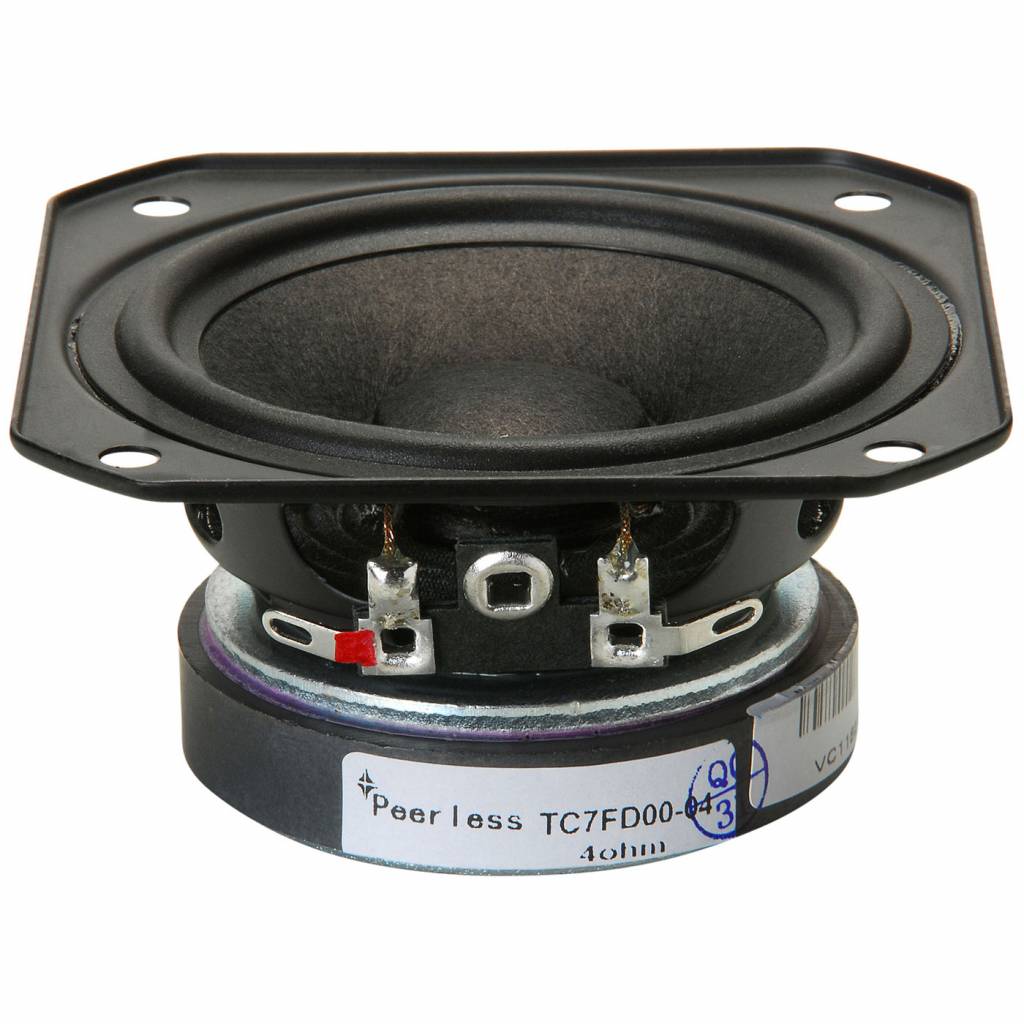

      Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer

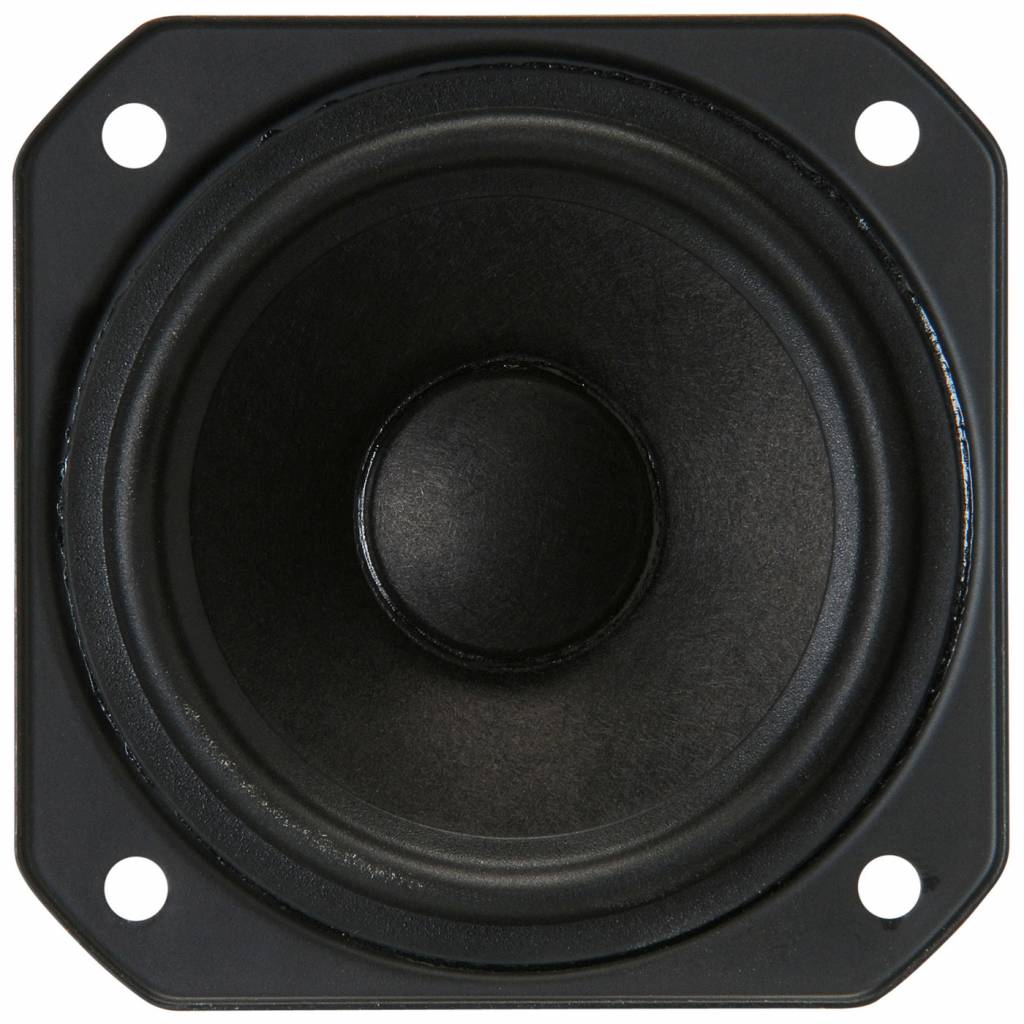

      This TC family 2.5 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.



      FAQ about the Peerless TC7FD00-04 Full range Woofer

      Can the TC7FD00-04 be used as a standalone full-range speaker?

      Yes! This driver is designed to function as a true full-range speaker, covering both midrange and high frequencies. However, due to its small size and limited bass extension, adding a subwoofer or bass reinforcement is recommended for deeper low-end reproduction.



      Does the TC7FD00-04 driver need a crossover?

      In single-driver full-range applications, no crossover is needed. However, in multi-driver setups, it should be high-passed at around 100 Hz – 120 Hz to prevent excessive excursion and distortion at lower frequencies.

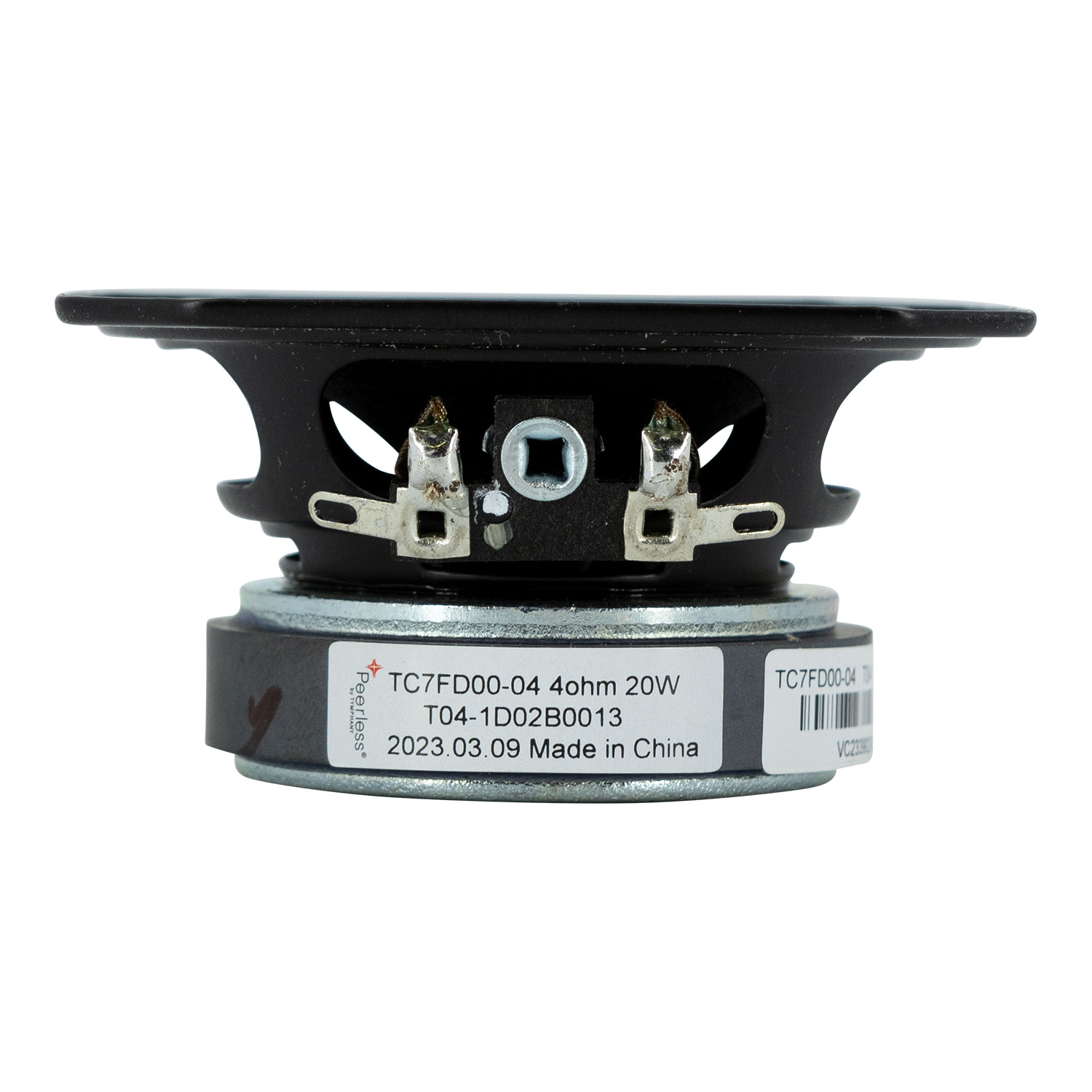

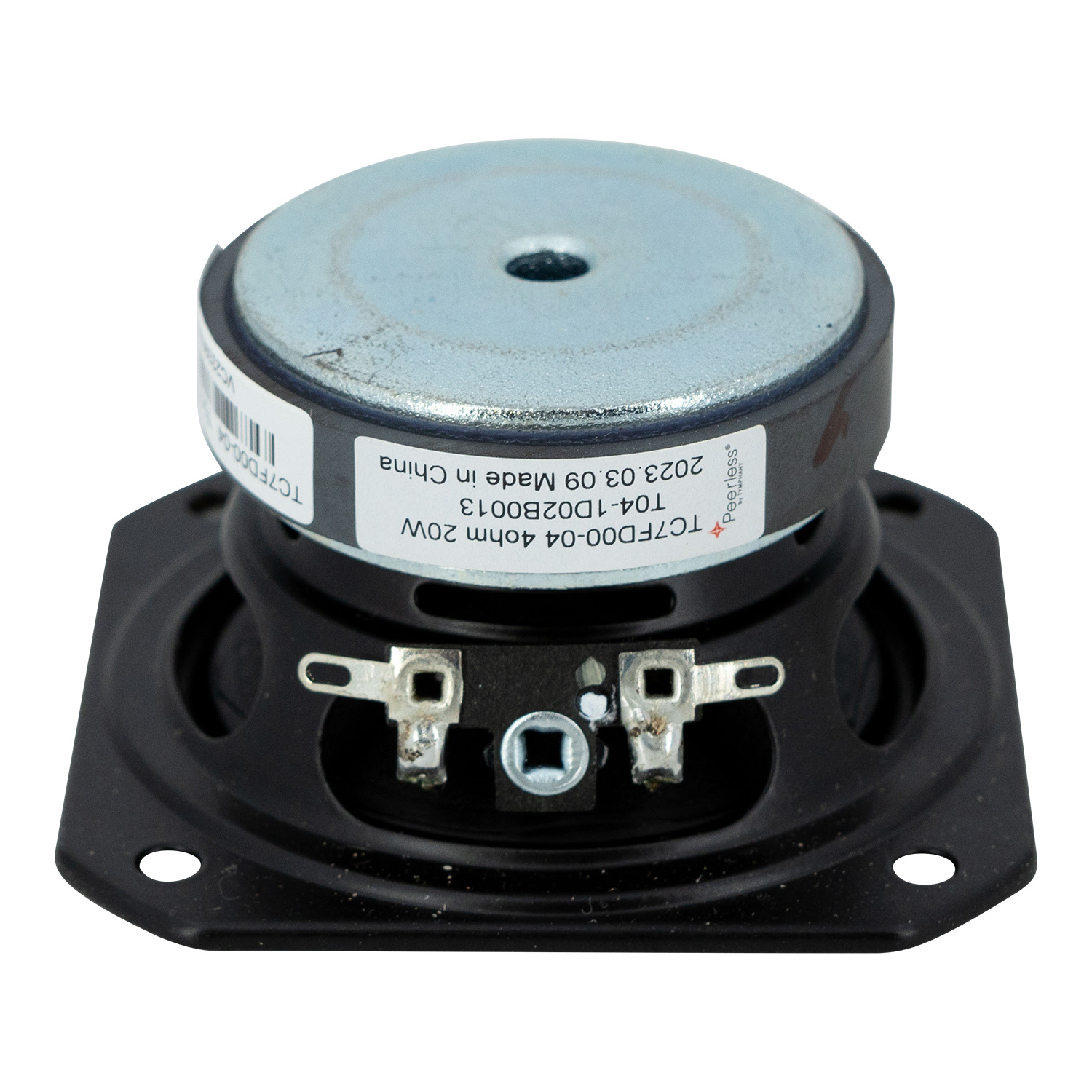

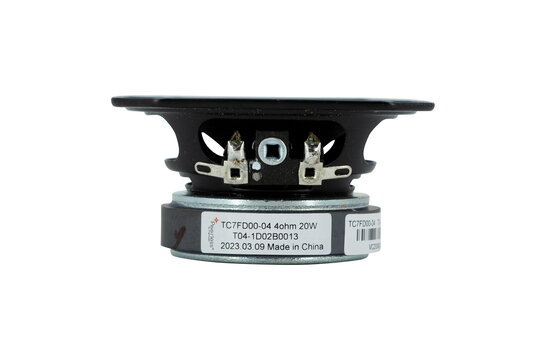

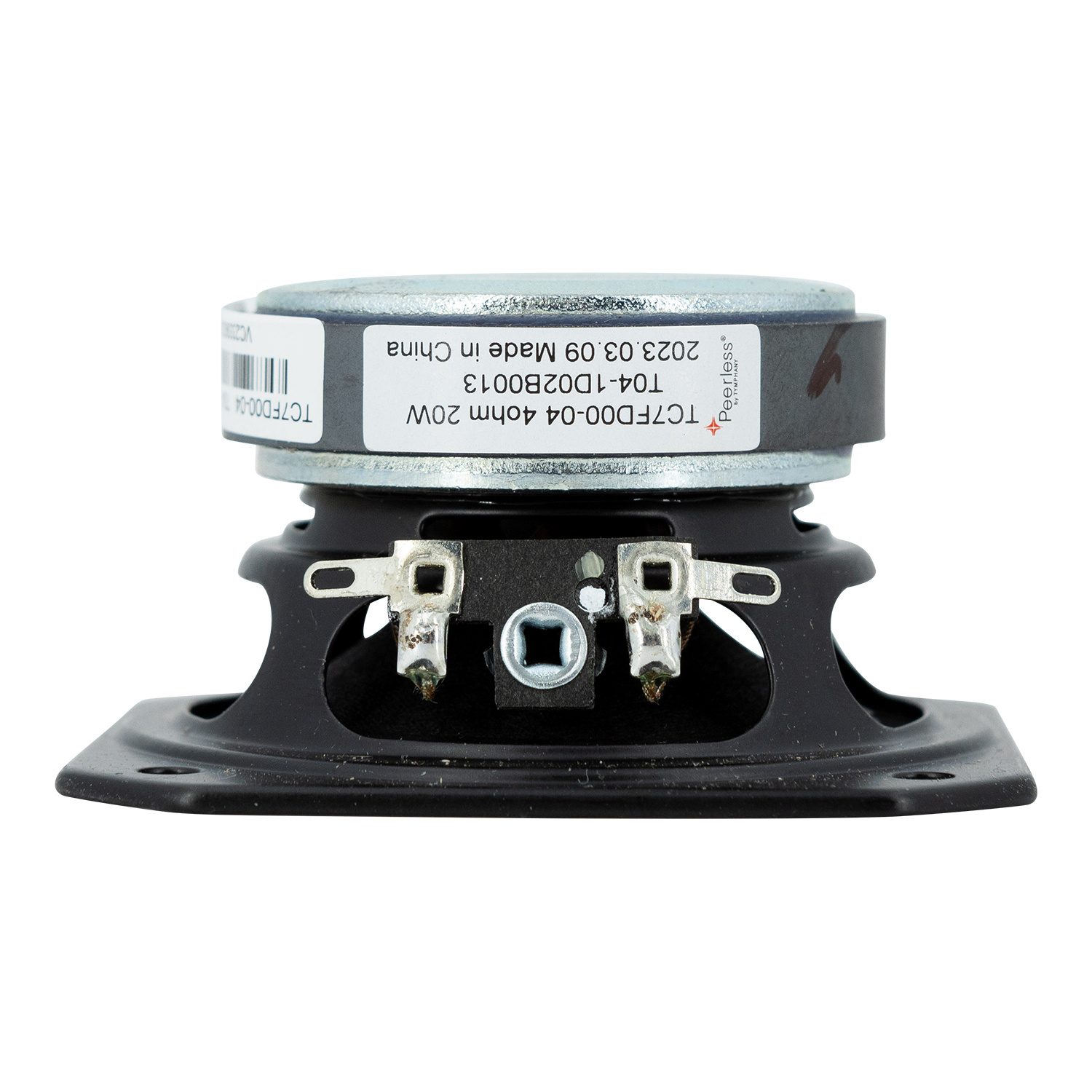

      Peeless manufacturing code: T04-1D02B0013

      Show more

      Specifiche

      Numero dell'articolo:
      TC7FD00-04
      EAN
      0844632092664
      Serie del woofer
      Peerless by Tymphany TA, TC & TG series
      Tipo di woofer
      Full Range Woofer
      Diametro nominale
      2-1/2"
      Gestione della potenza (RMS)
      20 Watts
      Gestione della potenza (max)
      40 Watts
      Impedenza (Z)
      4 ohms
      Sensibilità (SPL a 1m / 2,83V)
      82.4 dB
      Risposta in frequenza
      130 to 20,000Hz
      Diametro della bobina mobile
      0.75"
      Resistenza DC (Re)
      3.2 ohms
      Induttanza della bobina mobile (Le)
      0.02 mH
      Frequenza di risonanza (Fs)
      143 Hz
      Fattore di merito meccanico (Qms)
      3.7
      Fattore di merito elettromagnetico (Qes)
      1.22
      Fattore di merito totale (Qts)
      0.92
      Massa del diaframma incl. la massa dell'aria (Mms)
      1.64g
      Cedevolezza meccanica della sospensione (Cms)
      0.75 mm/N
      Superficie del cono (Sd)
      22.1 cm²
      Prodotto BL (BL)
      1.97 Tm
      Volume equivalente di cedevolezza (Vas)
      0.02 ft.³
      Escursione lineare massima (Xmax)
      1 mm
      Materiale del cono / diaframma
      Paper
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Steel
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      2.95"
      Profondità complessiva
      1.43"
      Diametro del ritaglio del pannello frontale
      2.56"
      # Numero di fori di montaggio
      4
      Volume per cassa sigillata
      0.05 ft.³
      Frequenza di risonanza della cassa sigillata (F3)
      138 Hz
      Volume per cassa reflex
      0.1 ft.³
      Frequenza di risonanza della cassa reflex (F3)
      82 Hz
