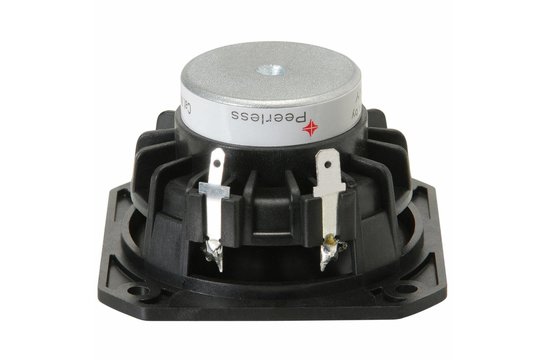

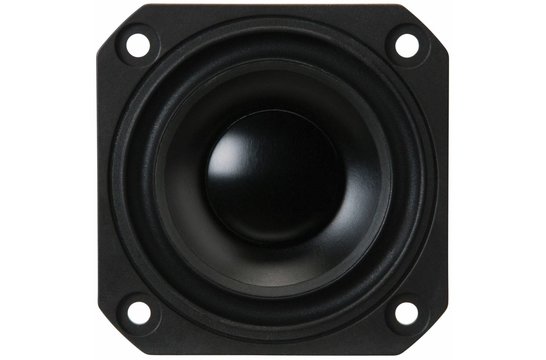

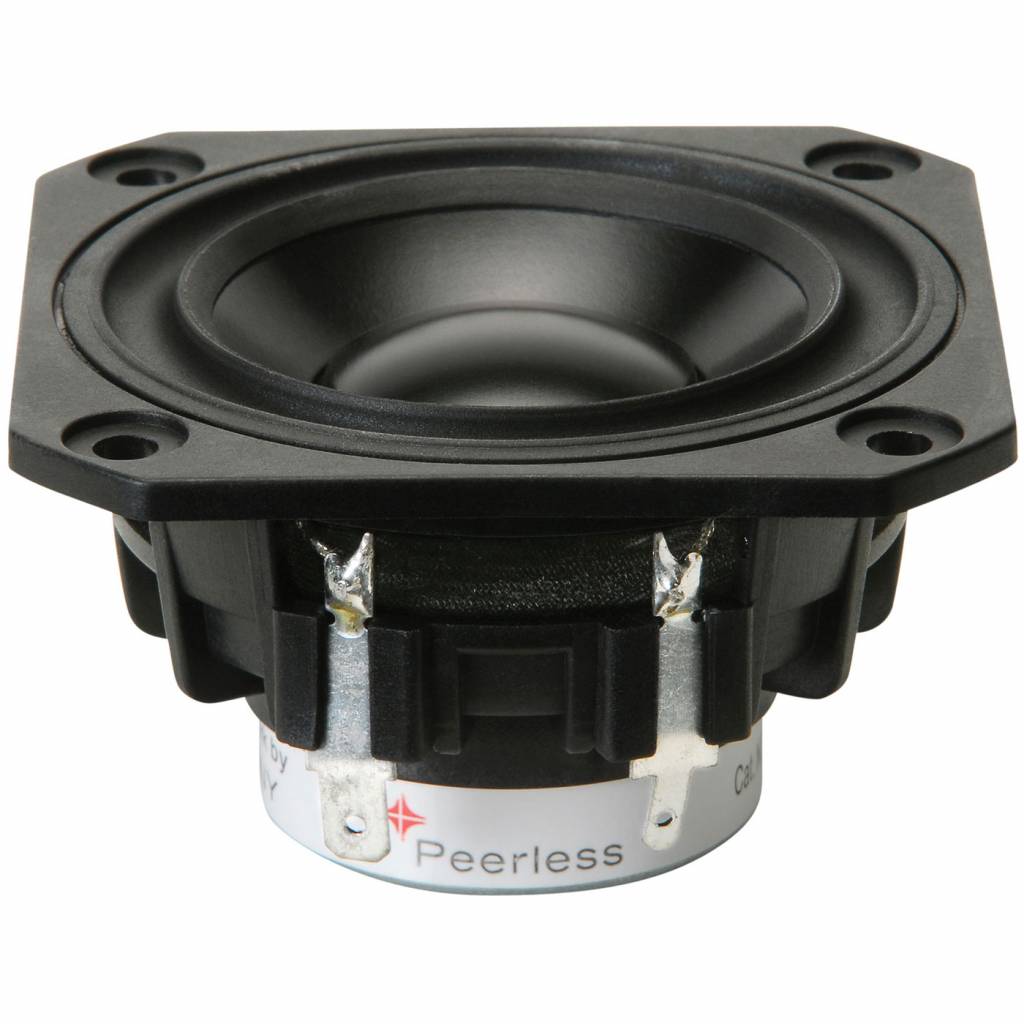

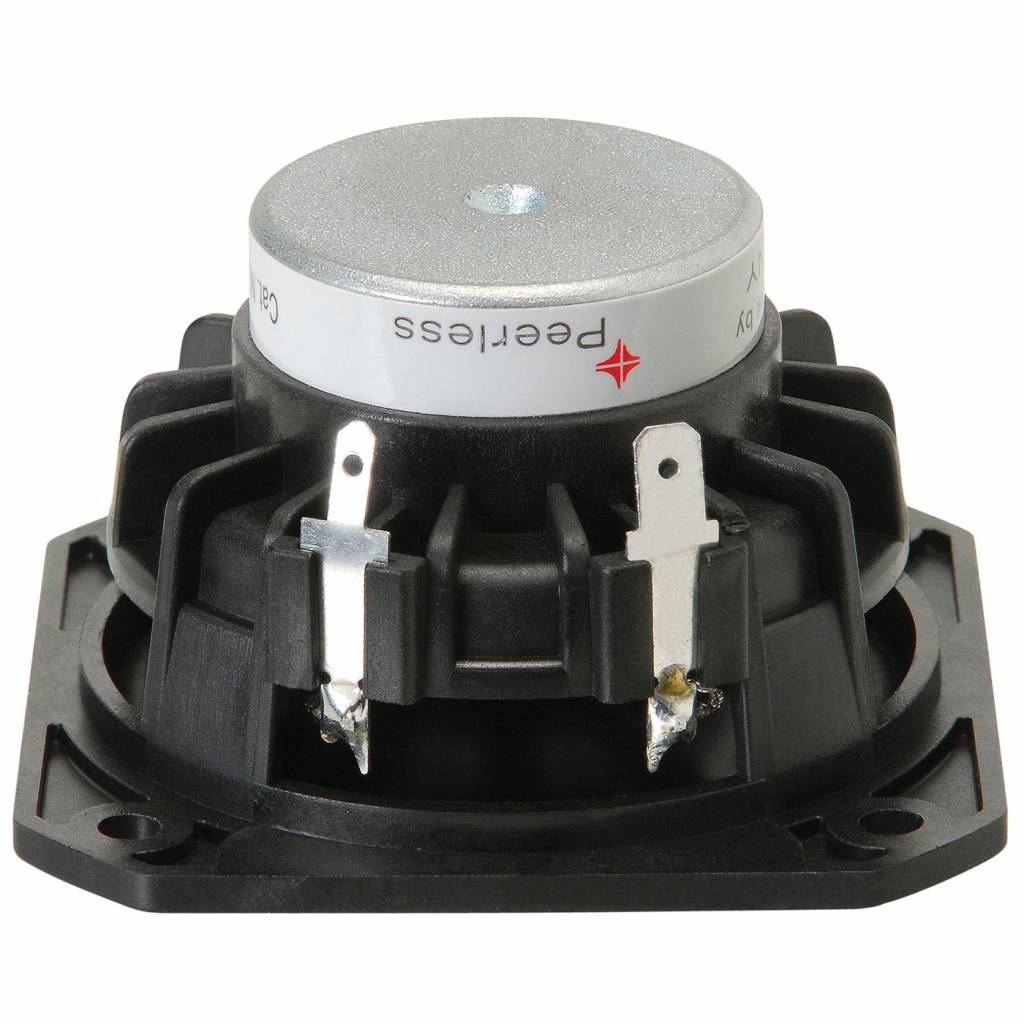

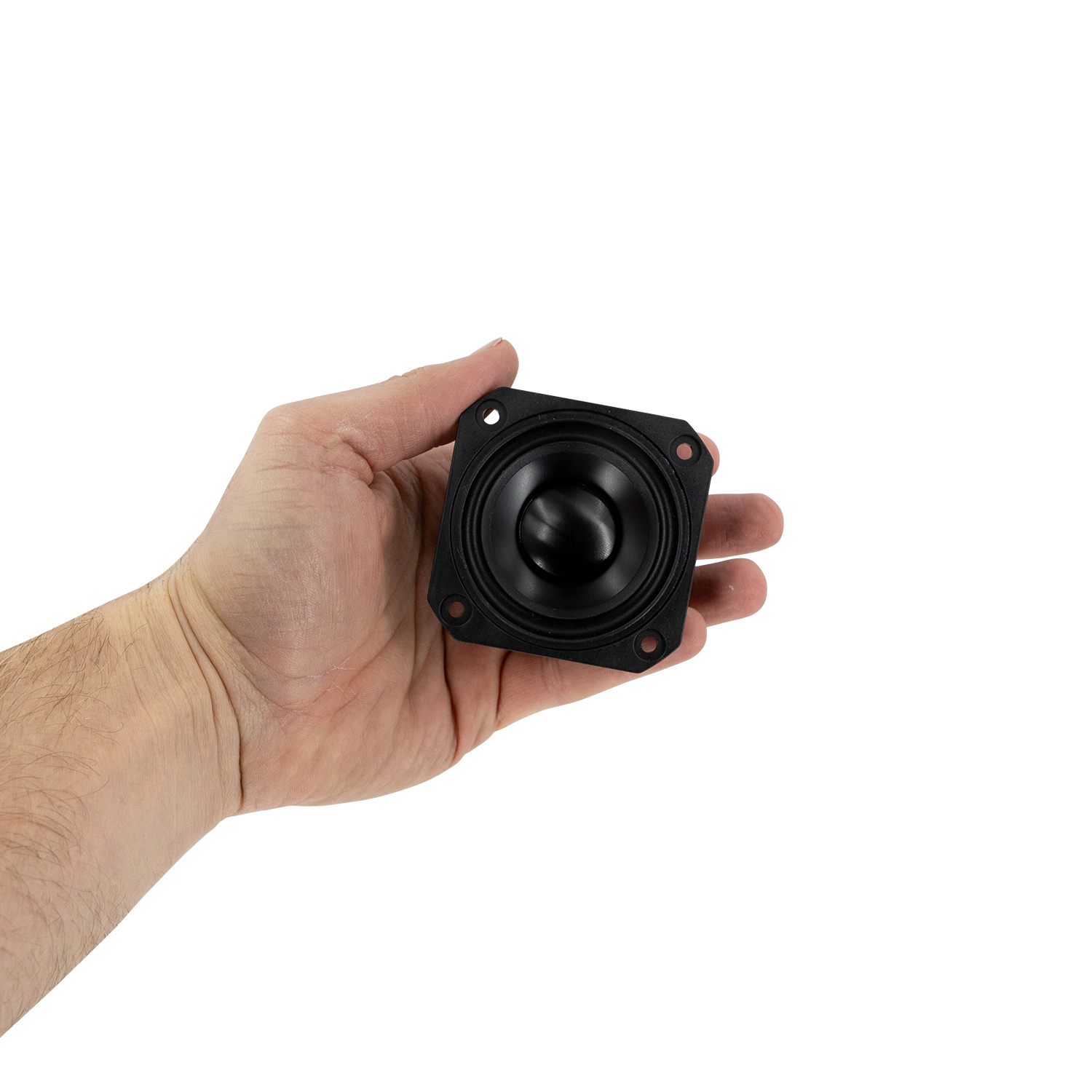

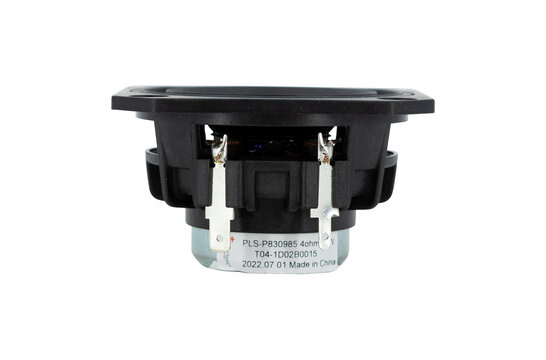

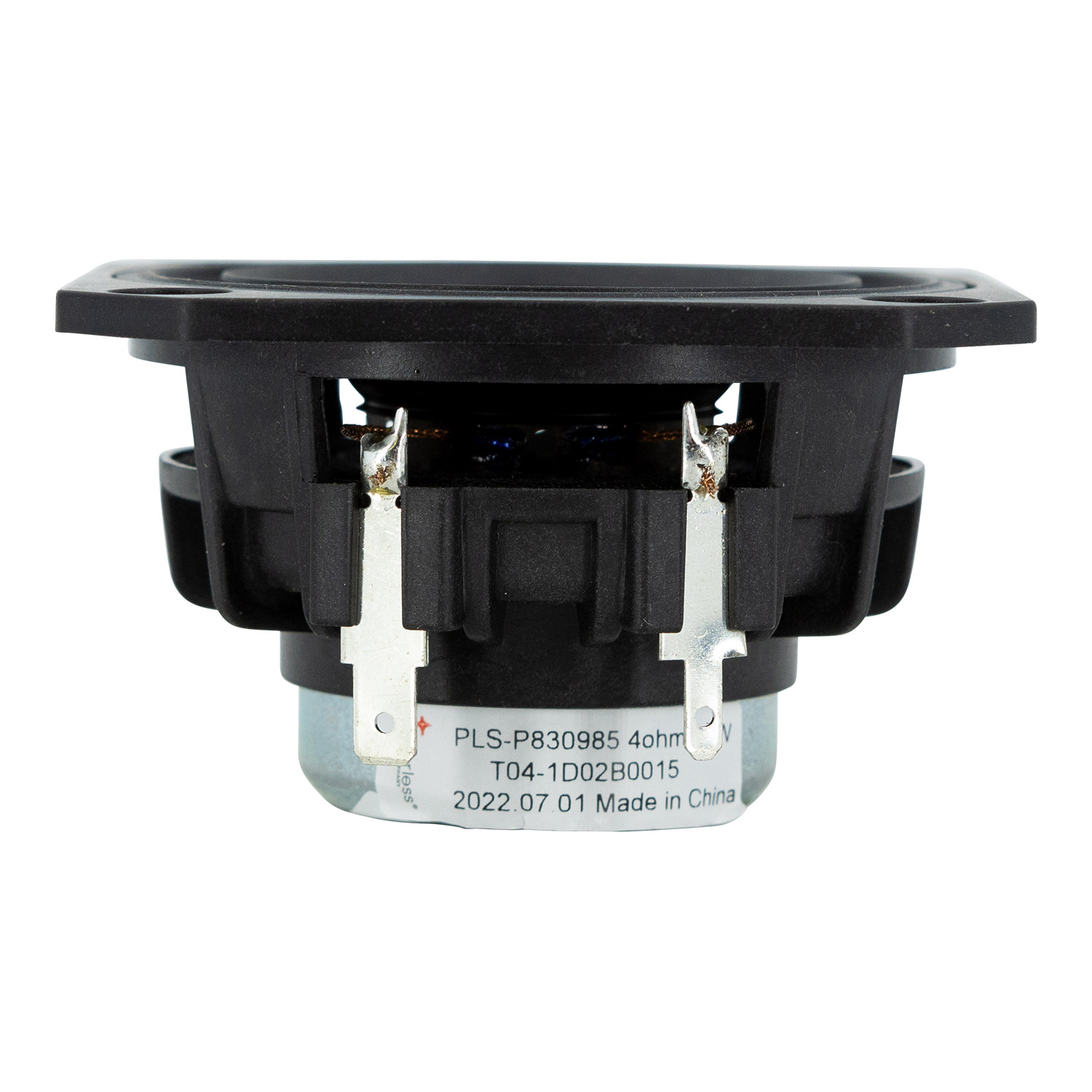

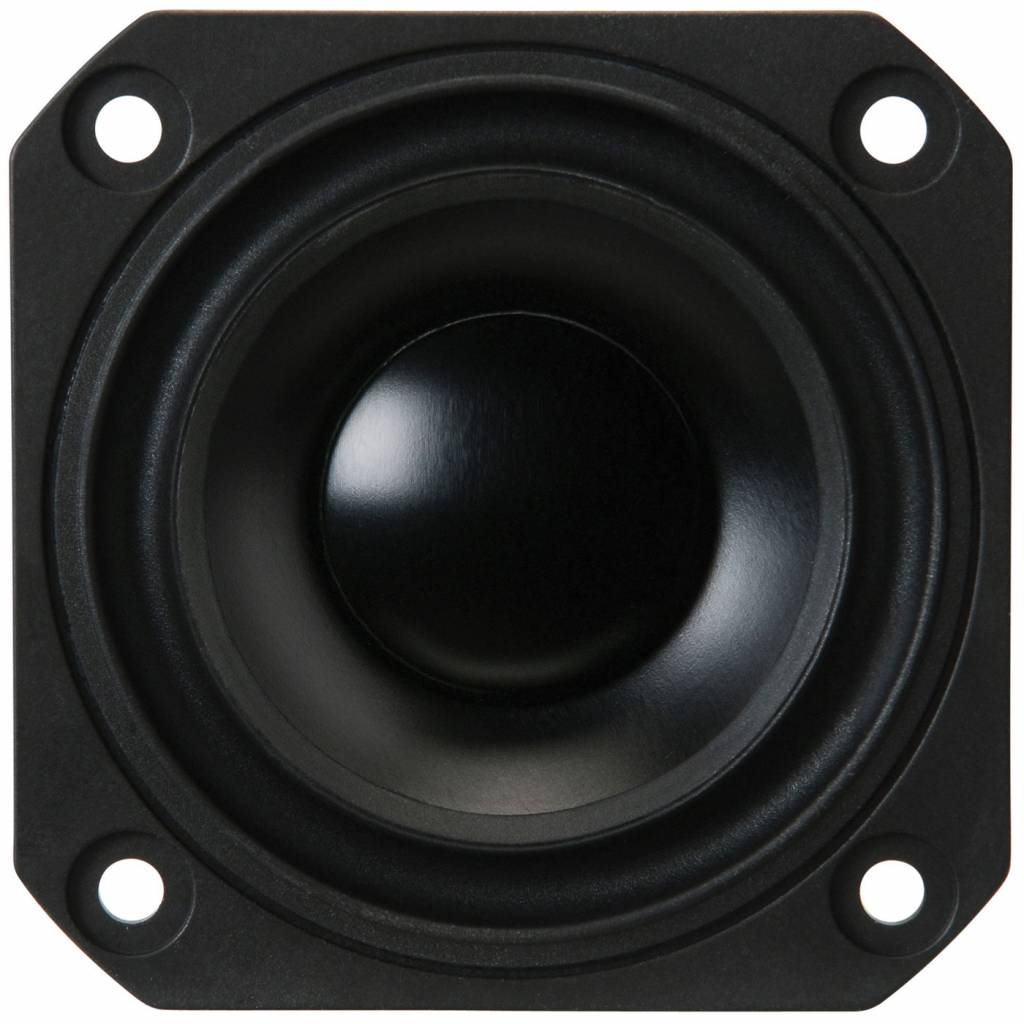

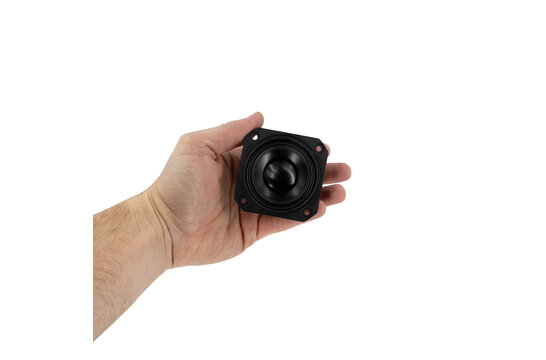

      PLS-P830985 Woofer a Gamma Completa

      Peerless by Tymphany PLS-P830985 Woofer a Gamma Completa

      €29,95

      10+ In magazzino

      Peerless by Tymphany PLS-P830985 Woofer a Gamma Completa

      2 reviews
      4 da 5
      2 reviews
      5 stars
      50%
      4 stars
      0%
      3 stars
      50%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      € 24,75€ 29,95 10+ In magazzino
      • -5% Acquista 4 per soli € 28,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Peerless by Tymphany PLS-P830985 Woofer a Gamma Completa

      Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.



      Highlights

      • Neodymium magnet
      • Double-vented motor
      • Anodized aluminum center dome
      • Distortion-reducing semi-progressive surround
      • Copper pole piece cap controls impedance



      Product details

      Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer



      This 2.5 inch 4 ohm member of the PLS family sets a high standard for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

      Show more

      Specifiche

      Numero dell'articolo:
      PLS-P830985
      EAN
      0844632083860
      Serie del woofer
      Peerless by Tymphany PLS series
      Tipo di woofer
      Full Range Woofer
      Diametro nominale
      2-1/2"
      Gestione della potenza (RMS)
      30 Watts
      Gestione della potenza (max)
      60 Watts
      Impedenza (Z)
      4 ohms
      Sensibilità (SPL a 1m / 2,83V)
      86.5 dB
      Risposta in frequenza
      90 to 20,000Hz
      Diametro della bobina mobile
      1"
      Resistenza DC (Re)
      3.7 ohms
      Induttanza della bobina mobile (Le)
      0.03 mH
      Frequenza di risonanza (Fs)
      101.2 Hz
      Fattore di merito meccanico (Qms)
      4.08
      Fattore di merito elettromagnetico (Qes)
      0.75
      Fattore di merito totale (Qts)
      0.63
      Massa del diaframma incl. la massa dell'aria (Mms)
      1.9g
      Cedevolezza meccanica della sospensione (Cms)
      1.27 mm/N
      Superficie del cono (Sd)
      22 cm²
      Prodotto BL (BL)
      2.7 Tm
      Volume equivalente di cedevolezza (Vas)
      0.02 ft.³
      Escursione lineare massima (Xmax)
      2 mm
      Materiale del cono / diaframma
      Aluminum
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Polymer
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      2.75"
      Profondità complessiva
      2.15"
      Diametro del ritaglio del pannello frontale
      2.42"
      # Numero di fori di montaggio
      4
      Volume per cassa sigillata
      0.1 ft.³
      Frequenza di risonanza della cassa sigillata (F3)
      150 Hz
      Volume per cassa reflex
      0.04 ft.³
      Frequenza di risonanza della cassa reflex (F3)
      72 Hz

      Show more

      3 di 5
      No description was given
      Da Christoph J. on 28 Marzo 2020
      5 di 5
      I bilt a concept speaker. I have changed the tweeter of the Videoton "Musical Encyclopredia" (bookshelf speaker) to this. Than I lowered the crossover frequency from 6.5 kHz to 200 Hz. Thus the Peerless works as a wide range speaker and a previous middle/deep speakers give a help in deep. Perfect! Far much better than the original!
      Da Ferenc S. on 26 Dicembre 2019
