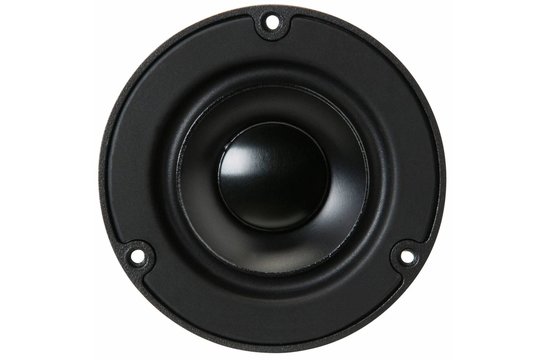

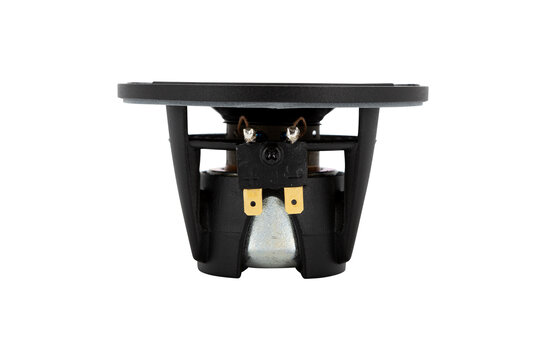

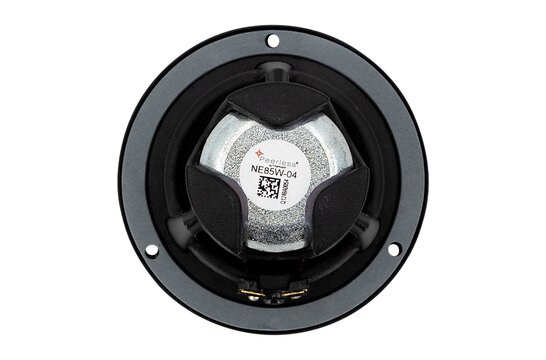

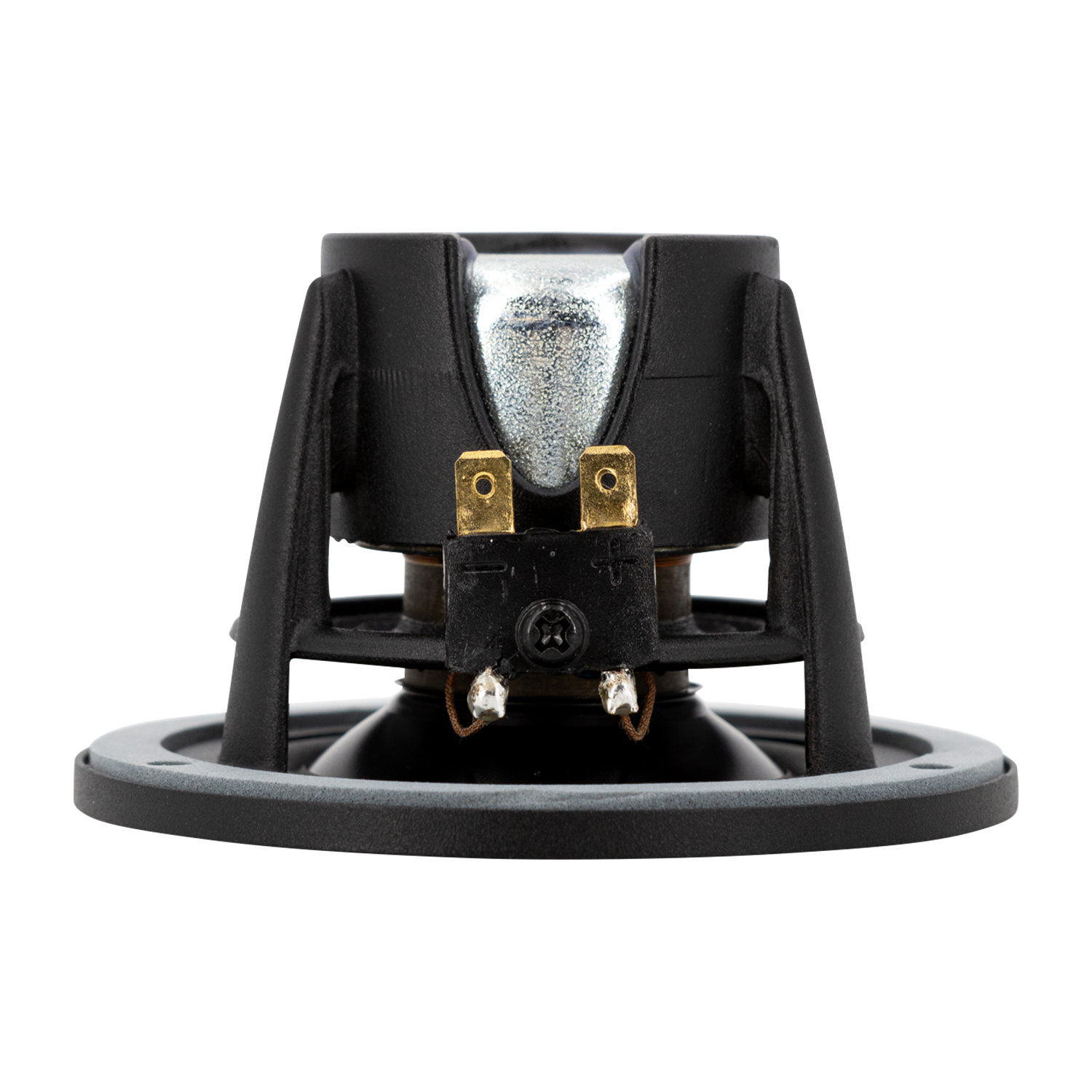

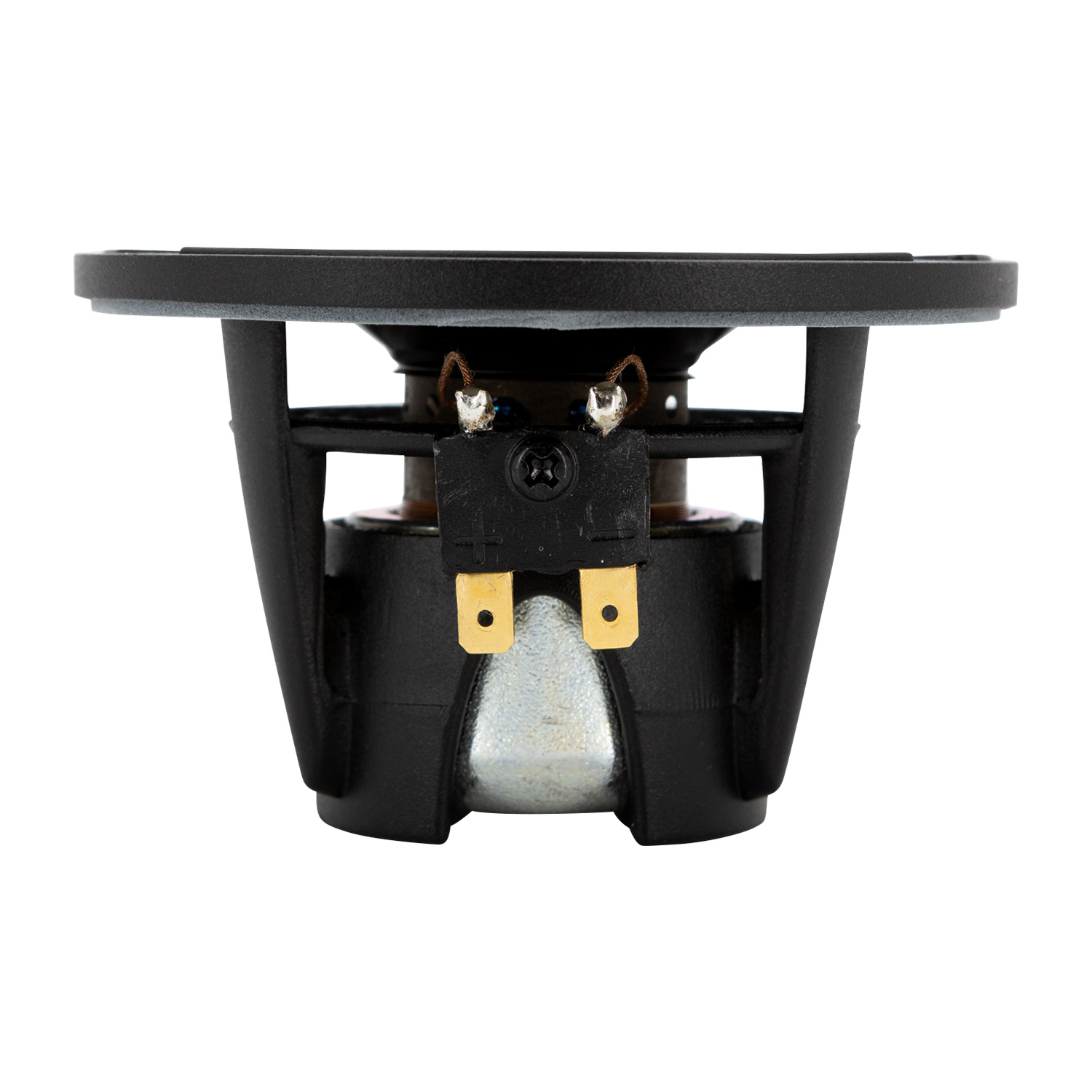

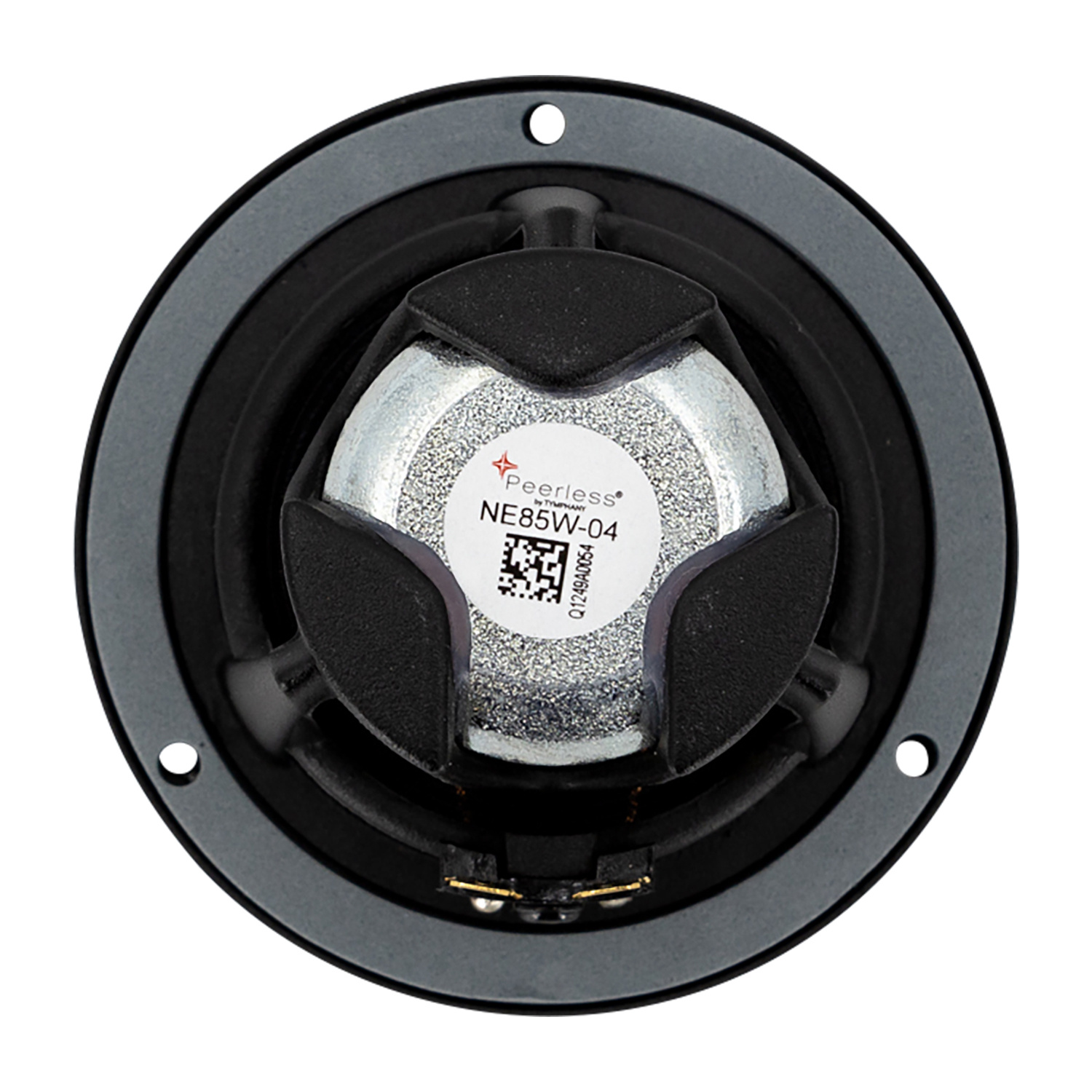

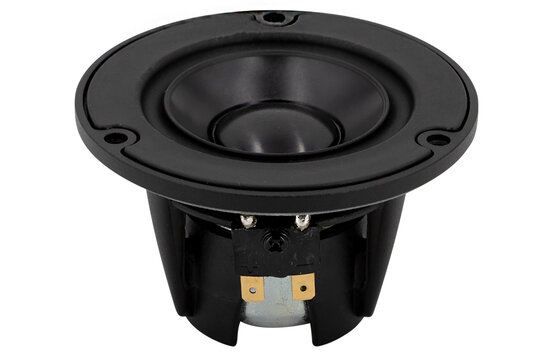

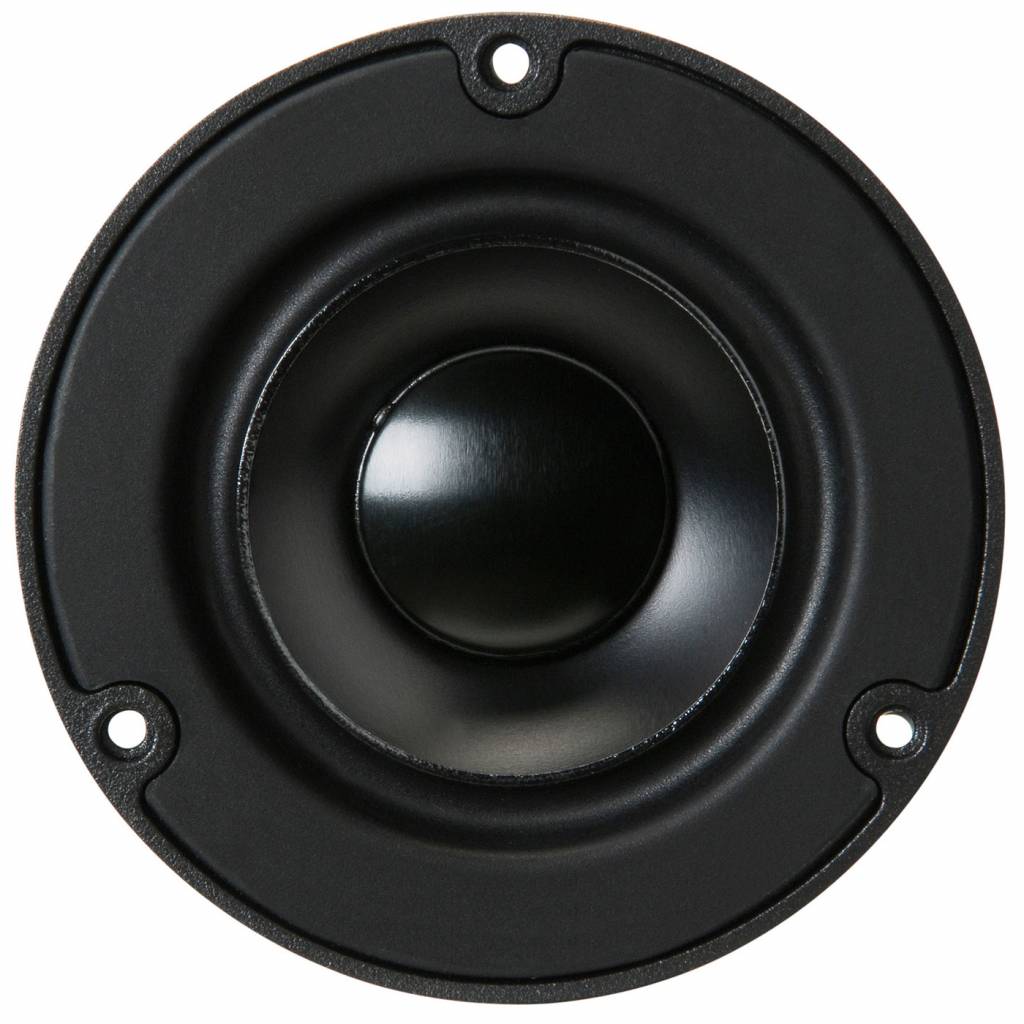

      NE85W-04 Woofer a Gamma Completa

      Peerless by Tymphany NE85W-04 Woofer a Gamma Completa

      €59,95

      10+ In magazzino

      Aggiungi al carrello

      Peerless by Tymphany NE85W-04 Woofer a Gamma Completa

      2 reviews
      4 da 5
      2 reviews
      5 stars
      0%
      4 stars
      100%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Peerless by Tymphany
      Mostra tutti Woofers Peerless by Tymphany
      2.5" | 4 Ω
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      € 49,55€ 59,95 10+ In magazzino
      • -5% Acquista 4 per soli € 56,95 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa
      NE85W-04 Woofer a Gamma Completa

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Very honest presentation of frequencies 200 hz and above
      • Cast basket, quality construction
      • Does not stand out in the low
      • Installation depth can be limiting

      Descrizione del prodotto Peerless by Tymphany NE85W-04 Woofer a Gamma Completa

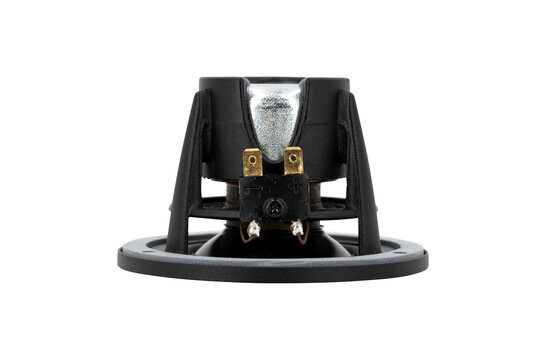

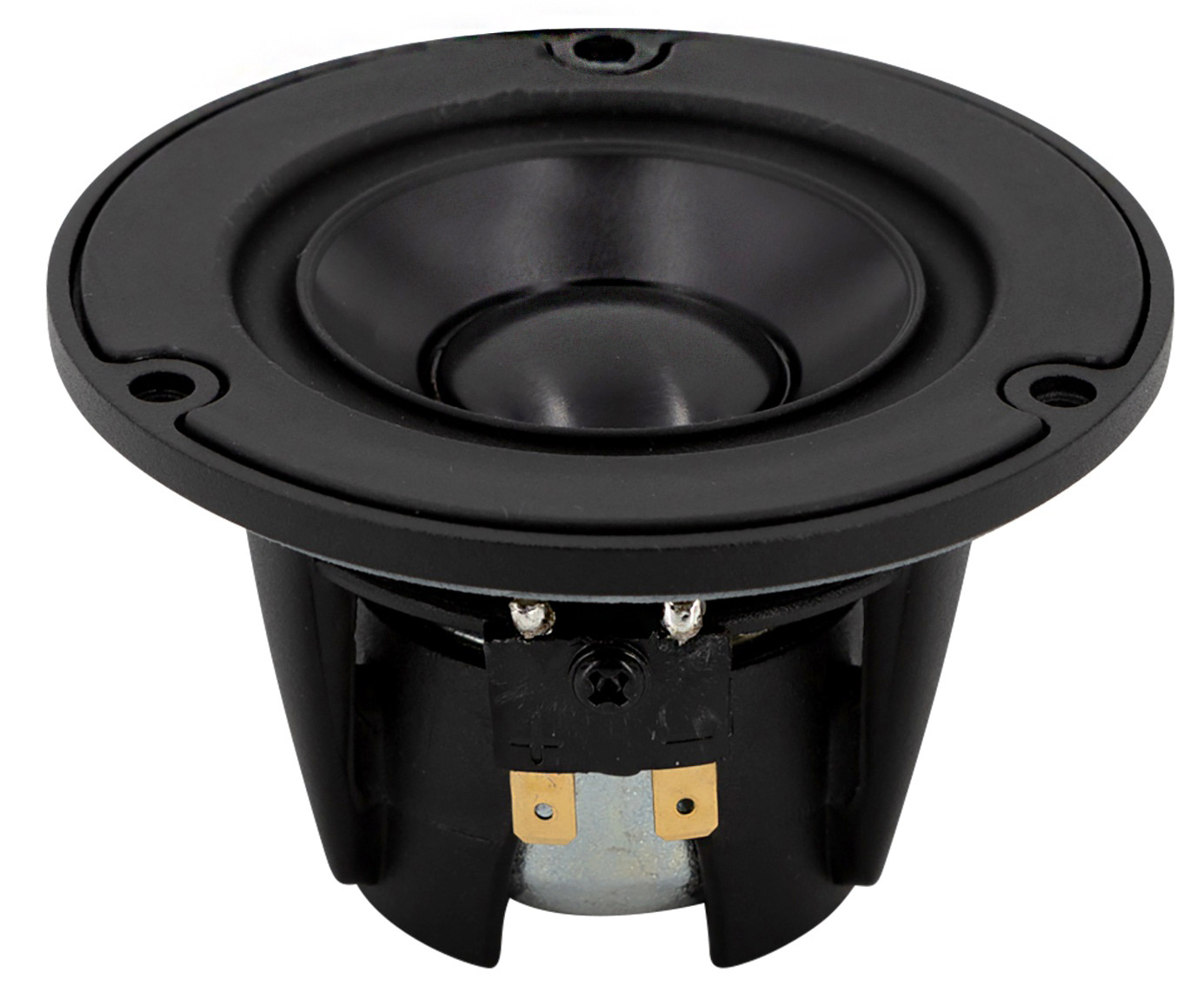

      Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.

      Highlights of the Peerless NE85W-04 Full-range Woofer

      • Sensitivity (SPL at 1m / 2.83V): 85.2 dB
      • Resonant Frequency (Fs): 110 Hz
      • Cast aluminum frame acts as a heatsink
      • Sculpted design promotes cooling and reduces reflections
      • High-strength compact neodymium motor
      • Aluminum cone with half-roll rubber surround
      • Long-throw voice coil on titanium former
      • Copper pole piece cap for extended HF response



      Product details Peerless NE85W-04 Full-range Woofer

      Peerless by Tymphany NE85W-04 2-1/2" Full Range Woofer

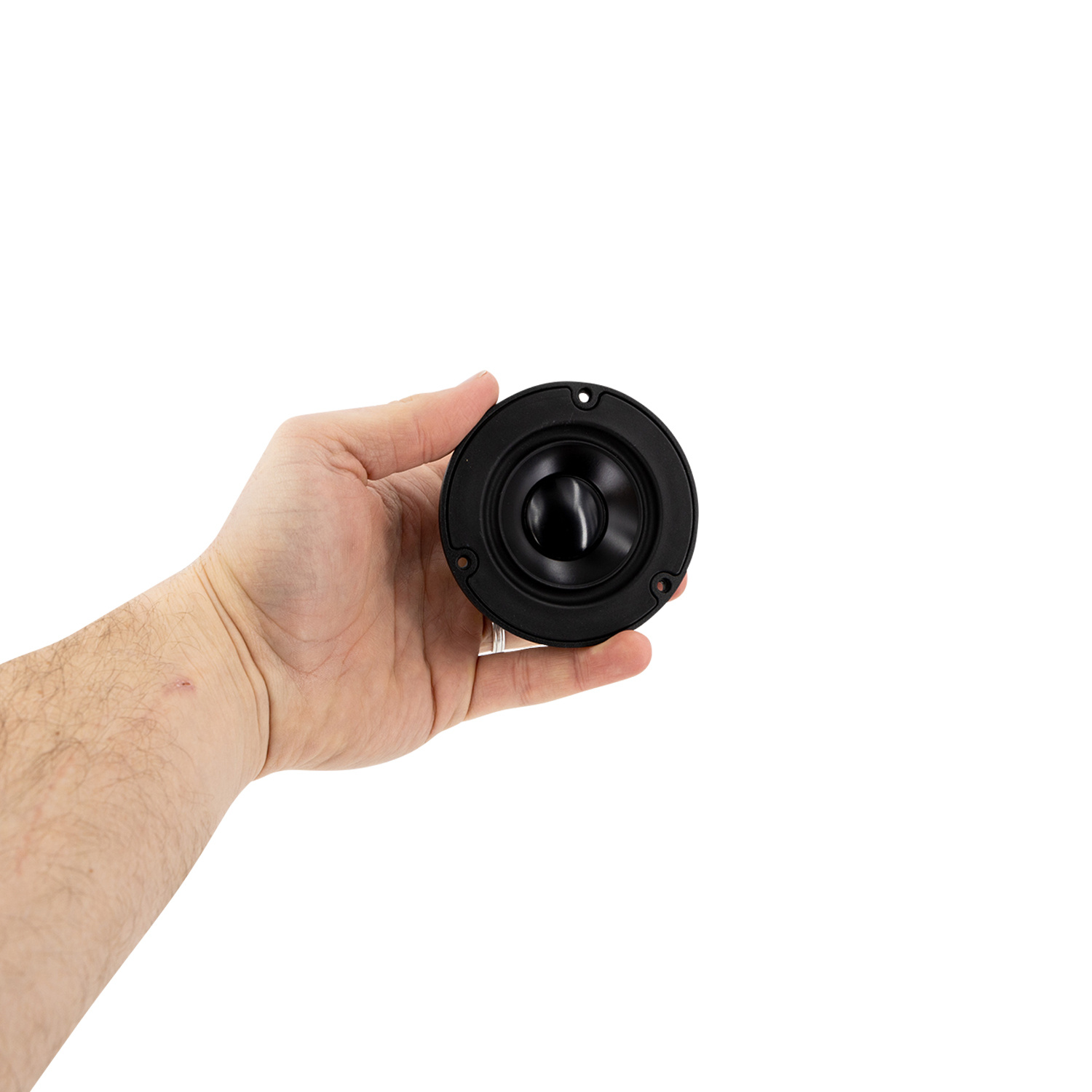

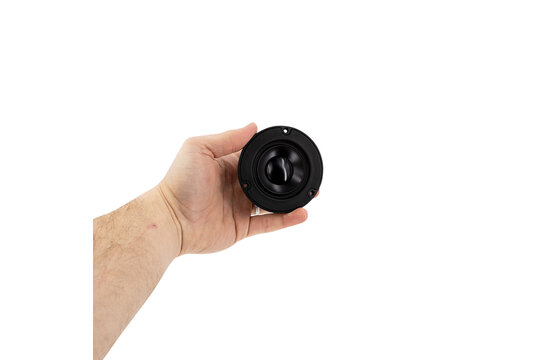

      This 2.5 inch 4 Ω member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The full-range drivers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone is aluminium, with a butyl rubber surround designed through finite element analysis for linearity of performance. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies.



      FAQ about the Peerless by Tymphany NE85W-04 Full-range Woofer

      Can the NE82E-04 Full-range woofer be used without a tweeter?

      Yes, the NE85W-04 is designed to operate as a full-range driver. Its high-frequency response extends up to 20 kHz, making it capable of functioning without additional tweeters in many configurations.



      What type of enclosures work best for the NE82E-04 Full-range woofer?

      The NE85W-04 works well in both sealed and ported enclosures. A small sealed box of around 5 Liter or a ported enclosure tuned to 80 Hz will optimize its performance.



      Peerless by Tymphany manufacturing code: T04-1D02B0009











      Show more

      Specifiche

      Numero dell'articolo:
      NE85W-04
      EAN
      0844632083877
      Serie del woofer
      Peerless by Tymphany NE series
      Tipo di woofer
      Full-range
      Diametro nominale
      2.5 " | 85 mm
      Gestione della potenza (RMS)
      25 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      85.2 dB
      Risposta in frequenza
      80 - 20000 Hz
      Diametro della bobina mobile
      25.7 mm
      Resistenza DC (Re)
      3.7 Ω
      Induttanza della bobina mobile (Le)
      0.071 mH
      Frequenza di risonanza (Fs)
      110 Hz
      Fattore di merito meccanico (Qms)
      10.3
      Fattore di merito elettromagnetico (Qes)
      0.73
      Fattore di merito totale (Qts)
      0.68
      Massa del diaframma incl. la massa dell'aria (Mms)
      2.12 g
      Cedevolezza meccanica della sospensione (Cms)
      980 μm/N
      Superficie del cono (Sd)
      22.1 cm²
      Prodotto BL (BL)
      2.73 Tm
      Volume equivalente di cedevolezza (Vas)
      0.674 L
      Escursione lineare massima (Xmax)
      4.89 mm
      Materiale del cono / diaframma
      Aluminum
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Cast Aluminum
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      3.35"
      Profondità complessiva
      51.3 mm
      Diametro del ritaglio del pannello frontale
      58 mm
      Diametro del cerchio dei fori di montaggio
      76 mm
      # Numero di fori di montaggio
      3
      Diametro dei fori di montaggio
      3 mm

      Show more

      Recensioni

      2 reviews
      Recensisci questo prodotto
      4 di 5
      These are great little drivers for the price, but they are very highly damped and sound is not as clear in 1k-5k range as I was hoping. These are perfect as mids from 400-1000hz in a small speaker. Packaging should be worked on, as my four drivers were full of dust and debris with marks in the rubber.
      Da Martin on 21 Ottobre 2025
      4 di 5
      Nice sound from this small speaker
      Da Ola S. on 10 Settembre 2019
