      NE19VTS-04 Tweeter a Cupola

      Peerless by Tymphany NE19VTS-04 Tweeter a Cupola

      €29,95

      10+ In magazzino

      Peerless by Tymphany NE19VTS-04 Tweeter a Cupola

      2 reviews
      5 da 5
      2 reviews
      5 stars
      50%
      4 stars
      50%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      € 24,75€ 29,95 10+ In magazzino
      • -5% Acquista 4 per soli € 28,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Peerless by Tymphany NE19VTS-04 Tweeter a Cupola

      The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.



      Highlights

      • 3/4" silk dome
      • Advanced design neo motor system
      • Copper caps reduce inductance and extend HF response
      • Aluminum rear chamber lowers resonance and doubles as a heatsink
      • Aluminum face plate and plastic protective grill



      Product details

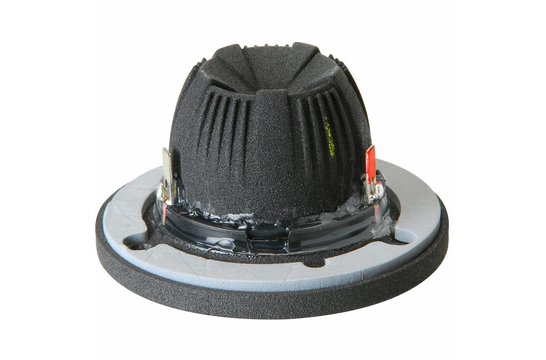

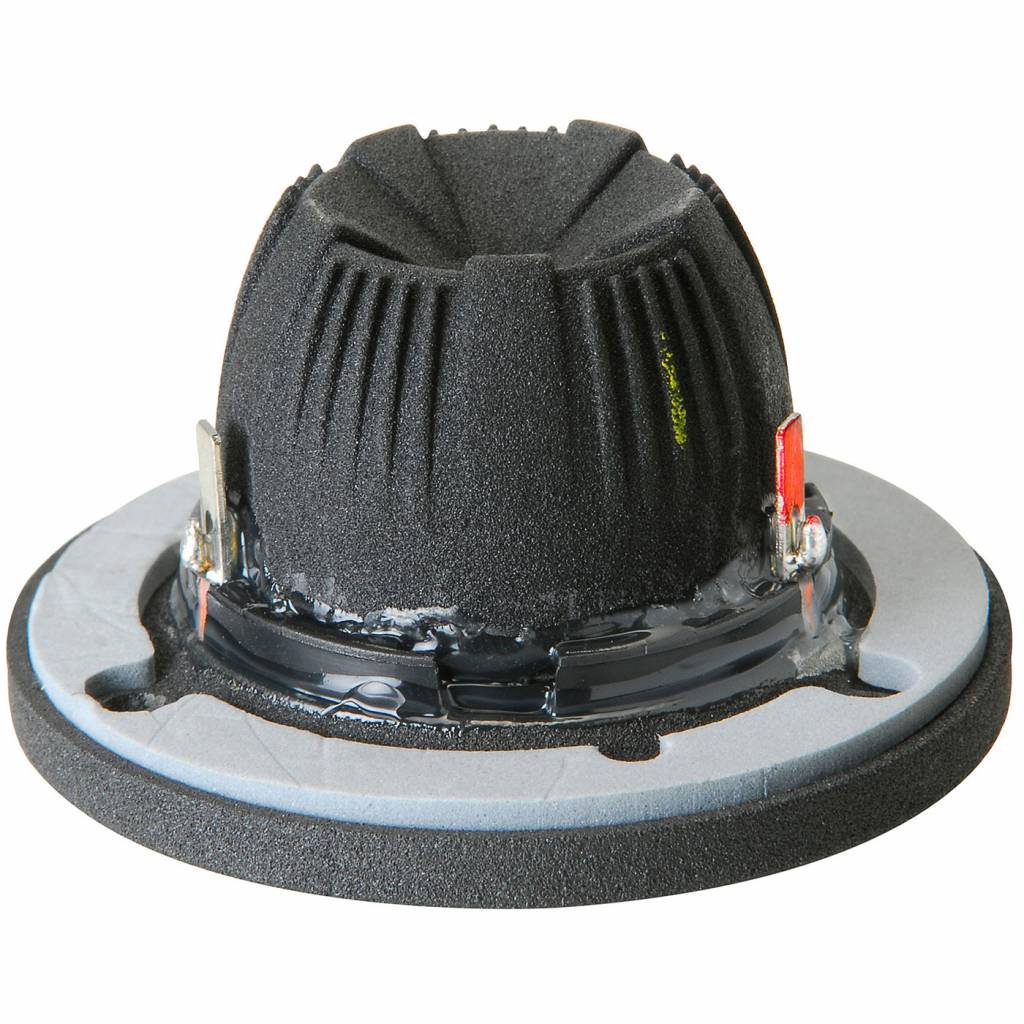

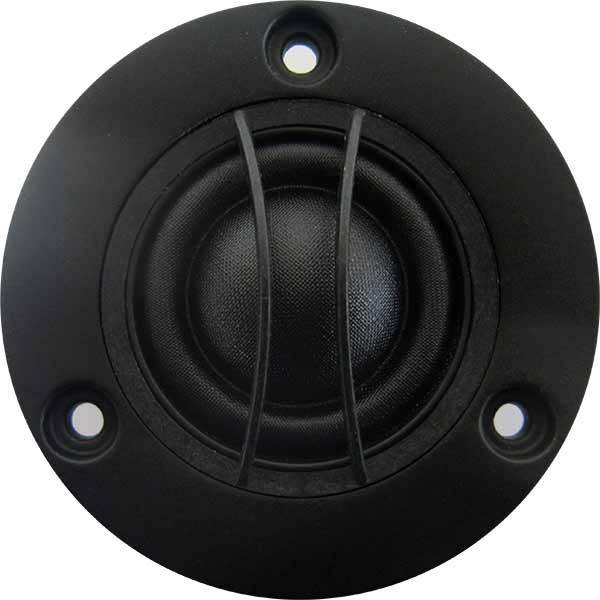

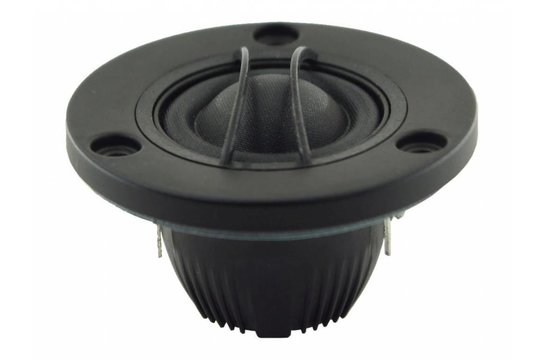

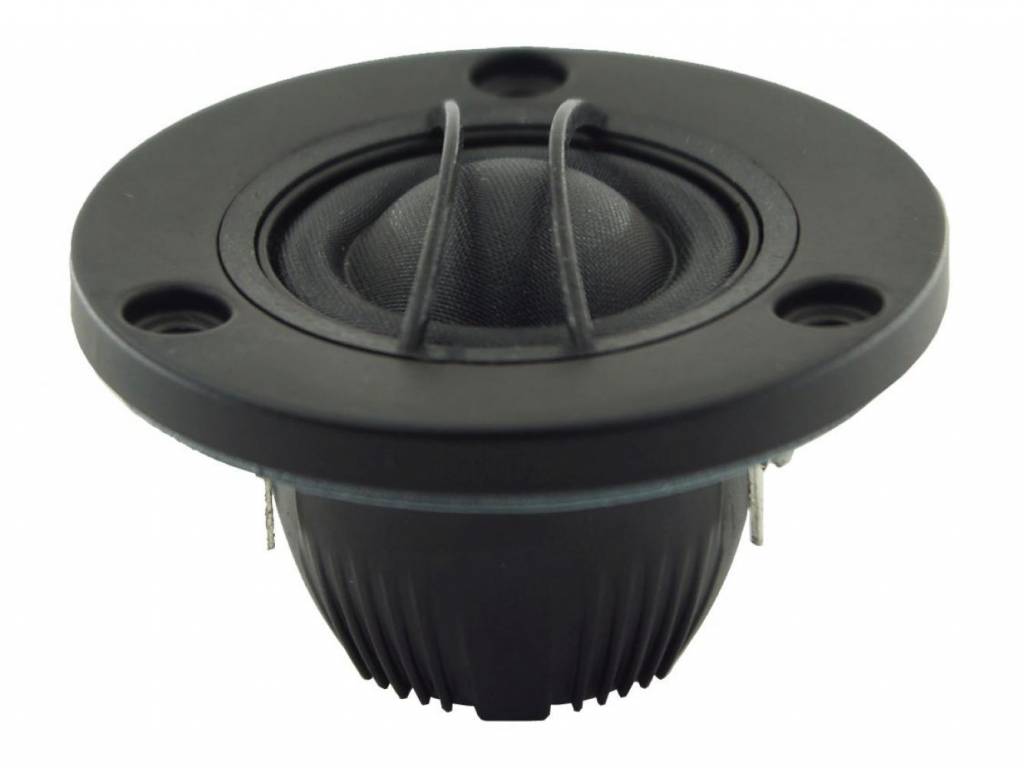

      Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter



      The 19 mm 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The tweeters in this family feature finite element analysis designed Neodymium-Iron-Boron magnet (NdFeB) motors, with copper caps for extended frequency response and reduced distortion. The aluminium rear chambers offer extended low frequency performance, while doubling as heat sinking. The butterfly supporting the tweeter diaphragm is made of a high temperature plastic, consistent with the products high temperature performance rating, and features supporting terminals. The dome material in this design is silk, and the design has been optimized for sound quality and clarity. Rounding out the design is an aluminium face plate and plastic grille, which offers protection for the tweeter diaphragm.

      Show more

      Specifiche

      Numero dell'articolo:
      NE19VTS-04
      EAN
      0844632083648
      Tipo di tweeter
      Soft Dome
      Serie del tweeter
      NE Series
      Diametro del cono / cupola
      19 mm | 3/4"
      Gestione della potenza (RMS)
      80 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      93 dB
      Risposta in frequenza
      1,600 to 25,000 Hz
      Frequenza di risonanza (Fs)
      816 Hz
      Resistenza DC (Re)
      2.80 ohms
      Induttanza della bobina mobile (Le)
      0.01 mH
      Fattore di merito meccanico (Qms)
      4.60
      Fattore di merito elettromagnetico (Qes)
      1.48
      Fattore di merito totale (Qts)
      1.12
      Diametro esterno complessivo
      2.04"
      Diametro del ritaglio
      1.50"
      Profondità
      1.14"
