The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.

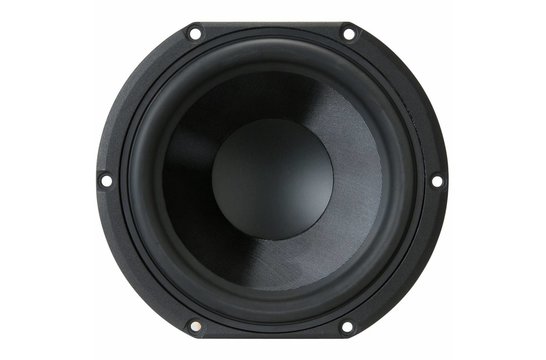

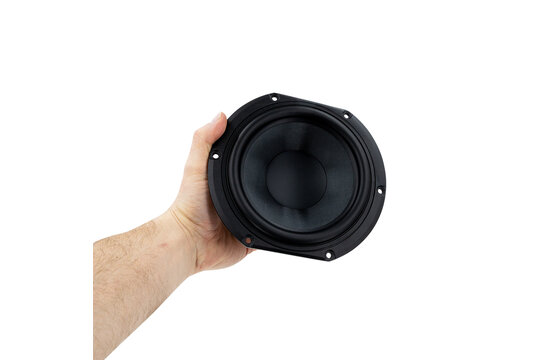

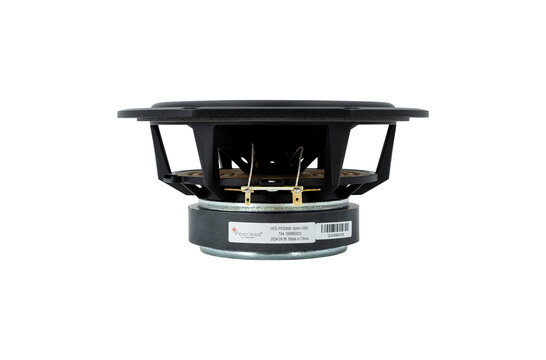

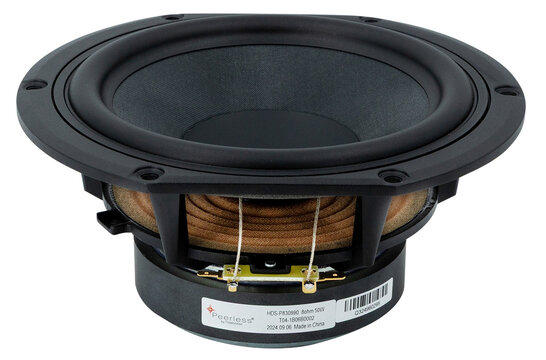

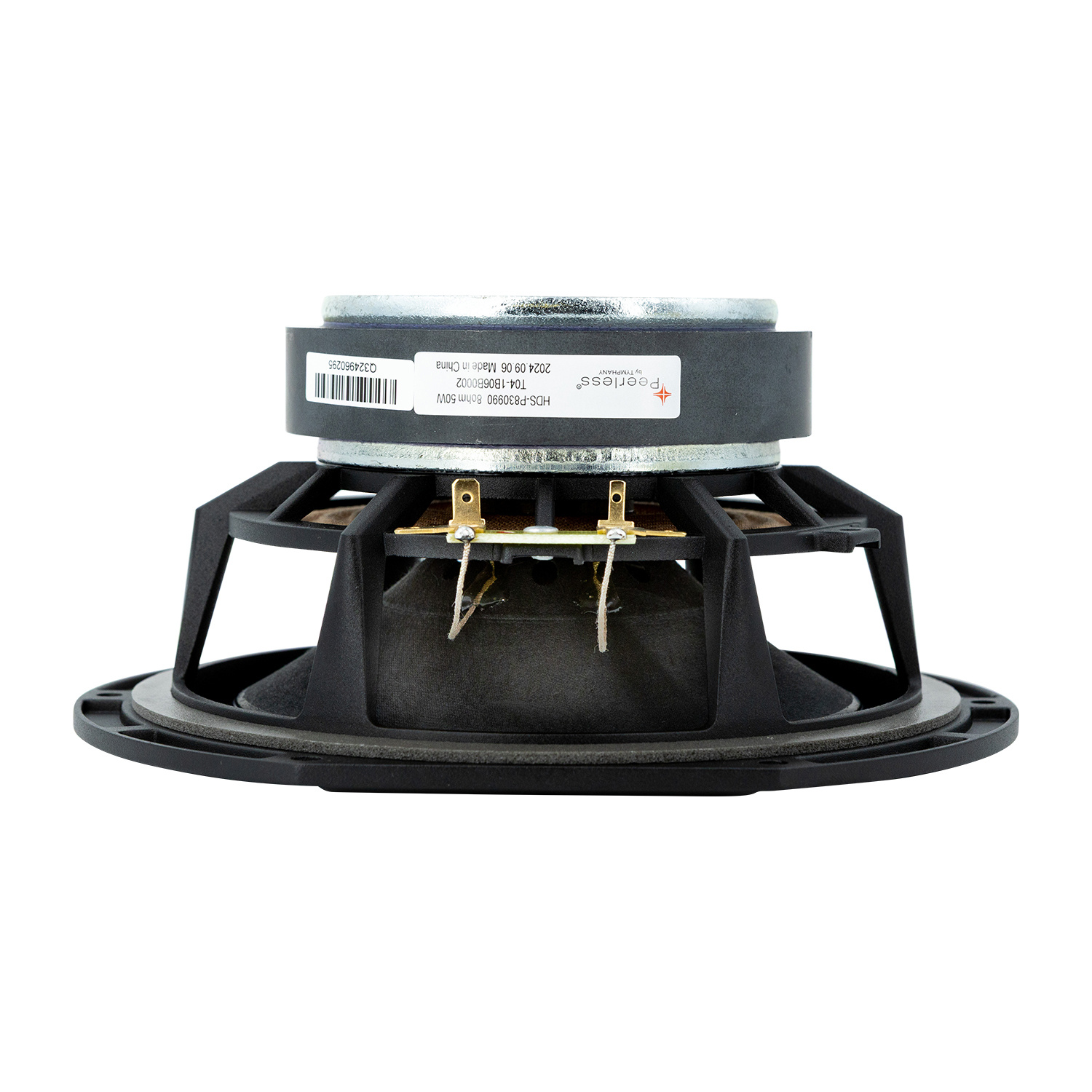

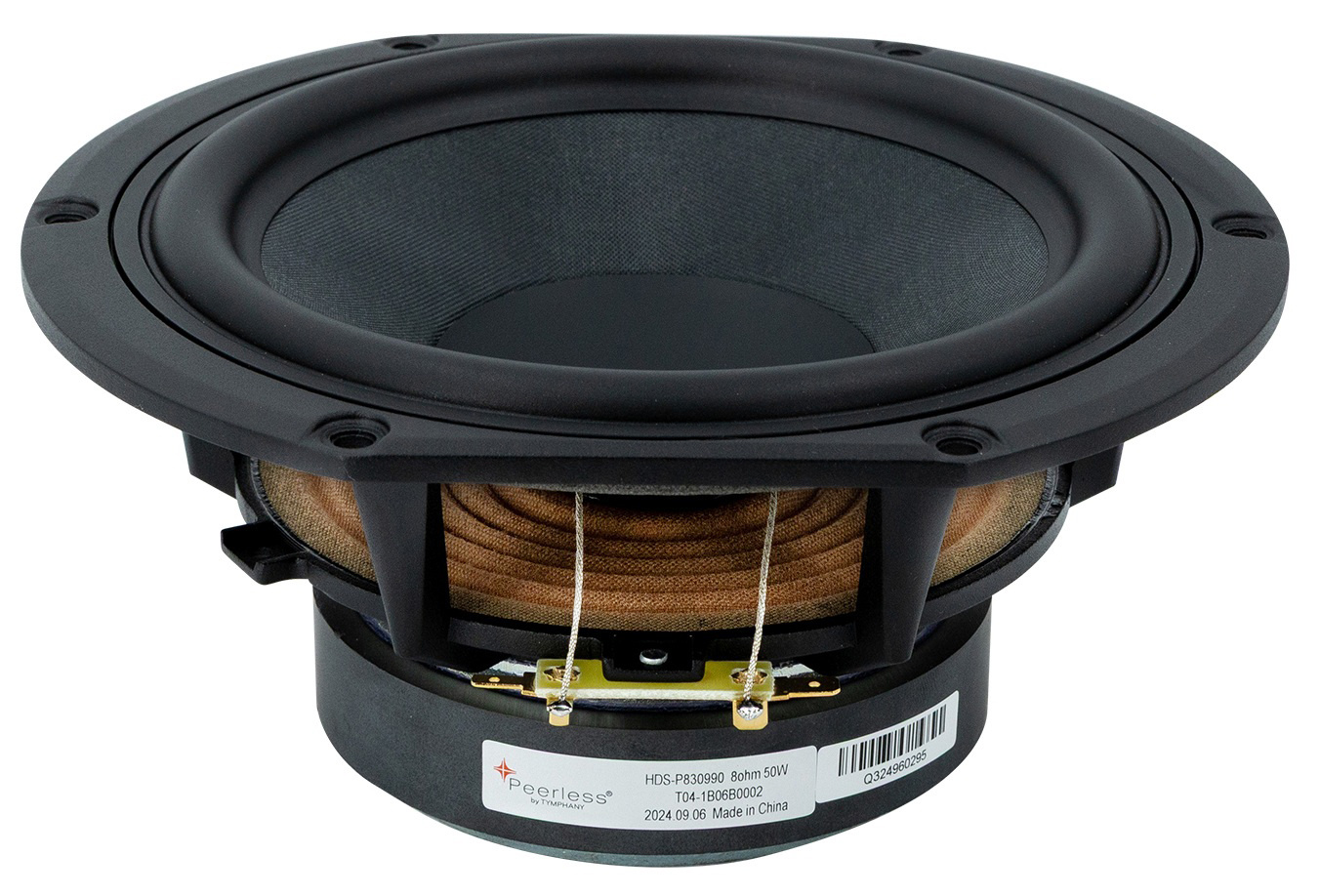

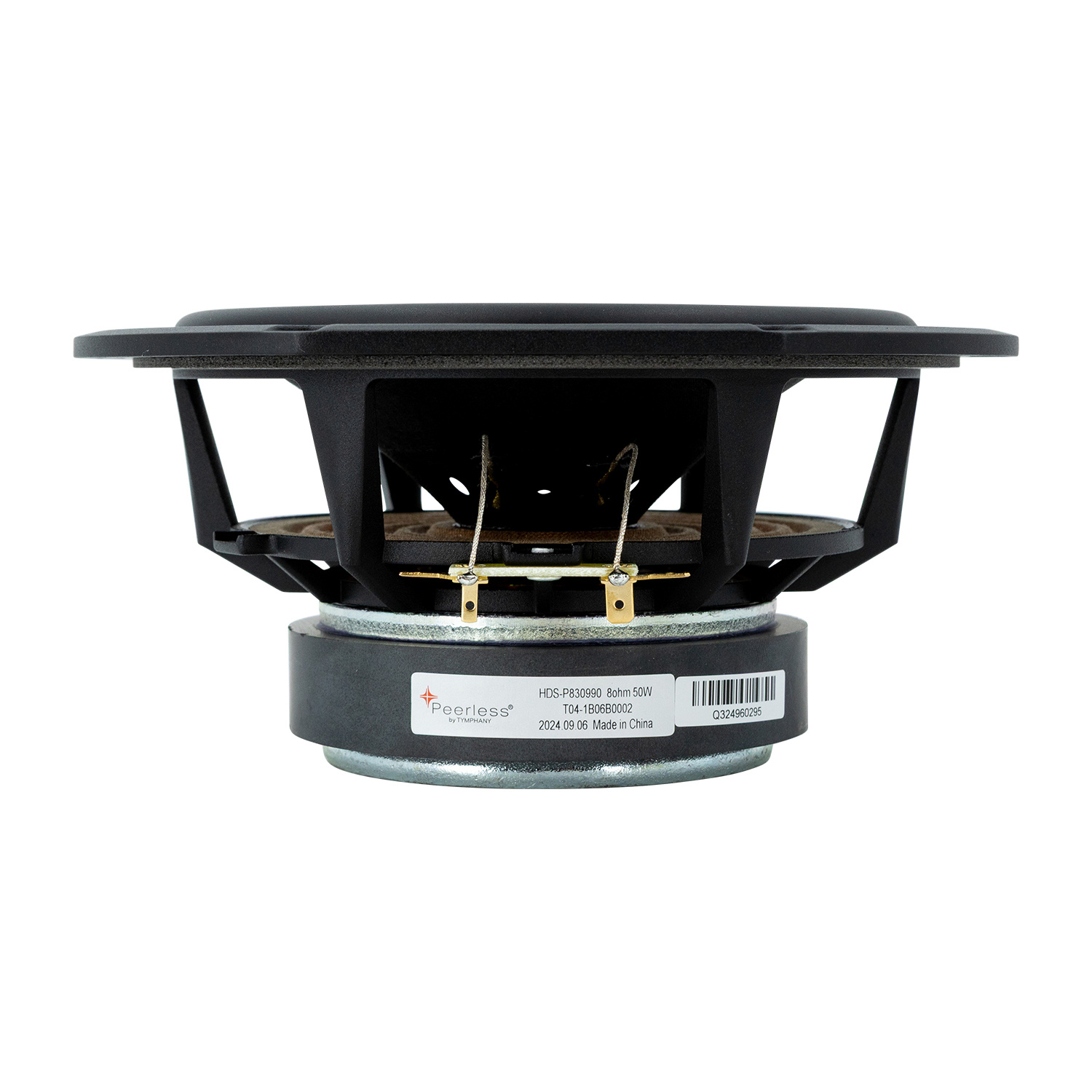

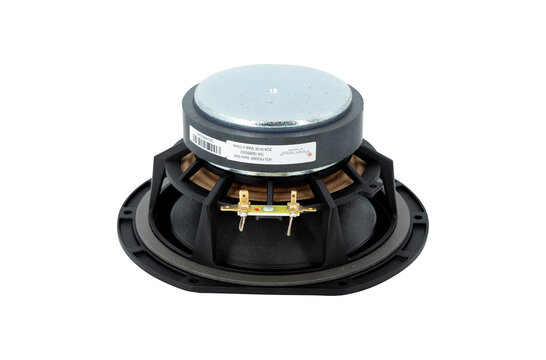

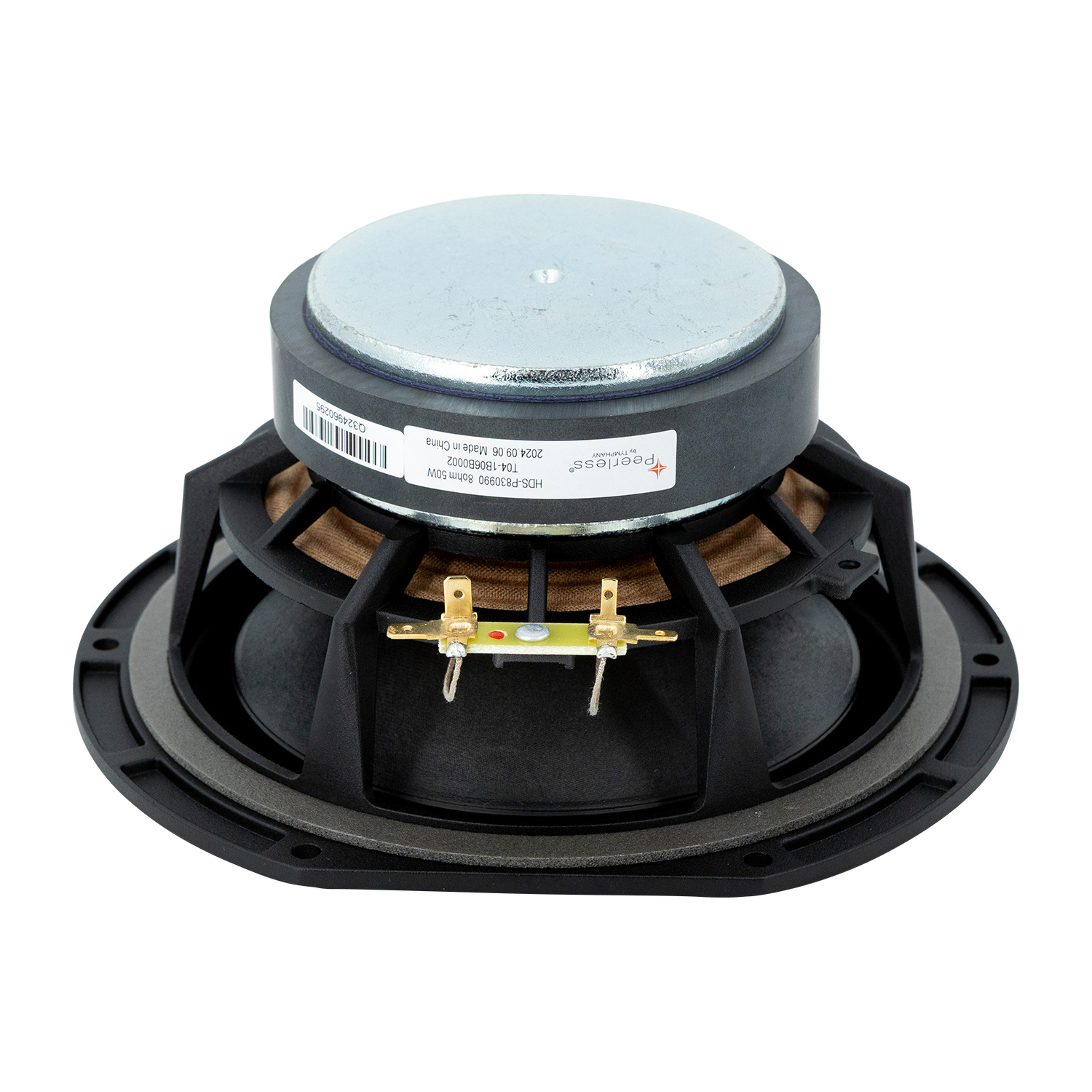

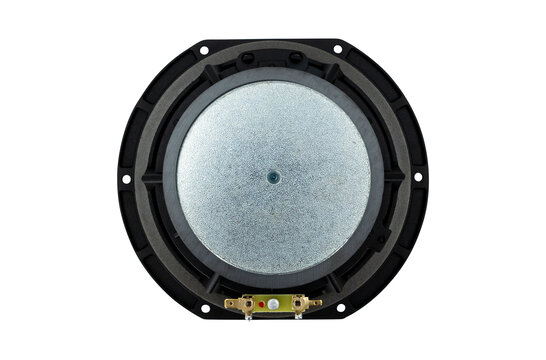

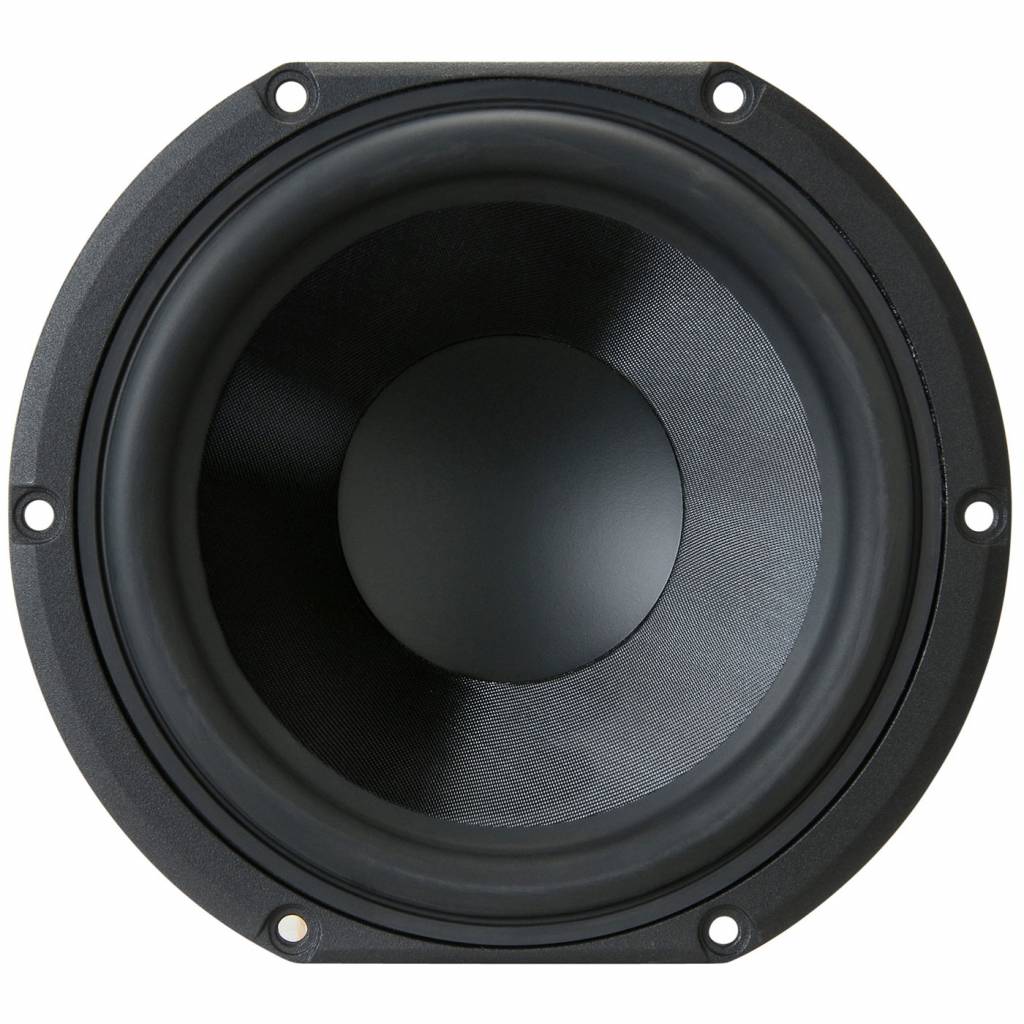

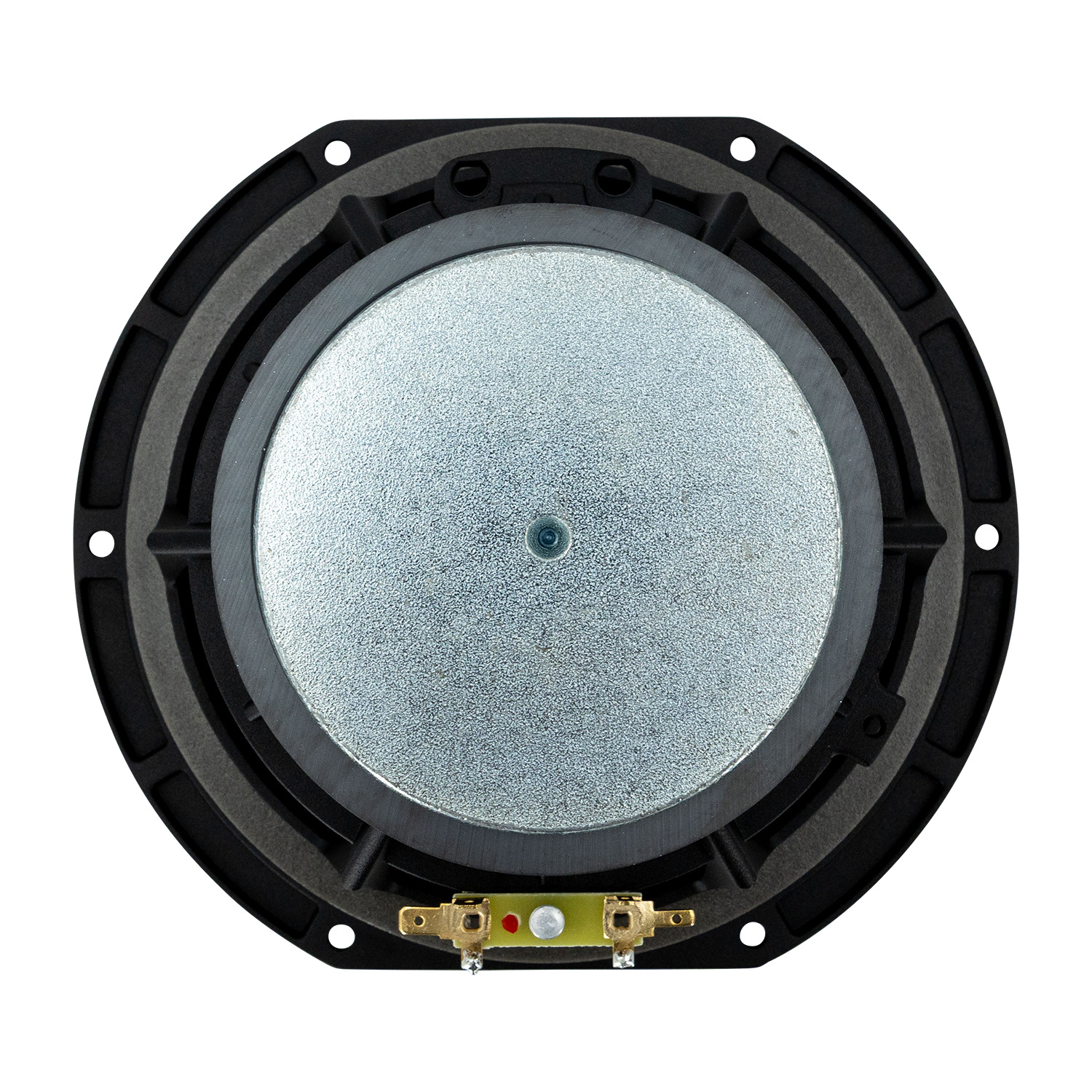

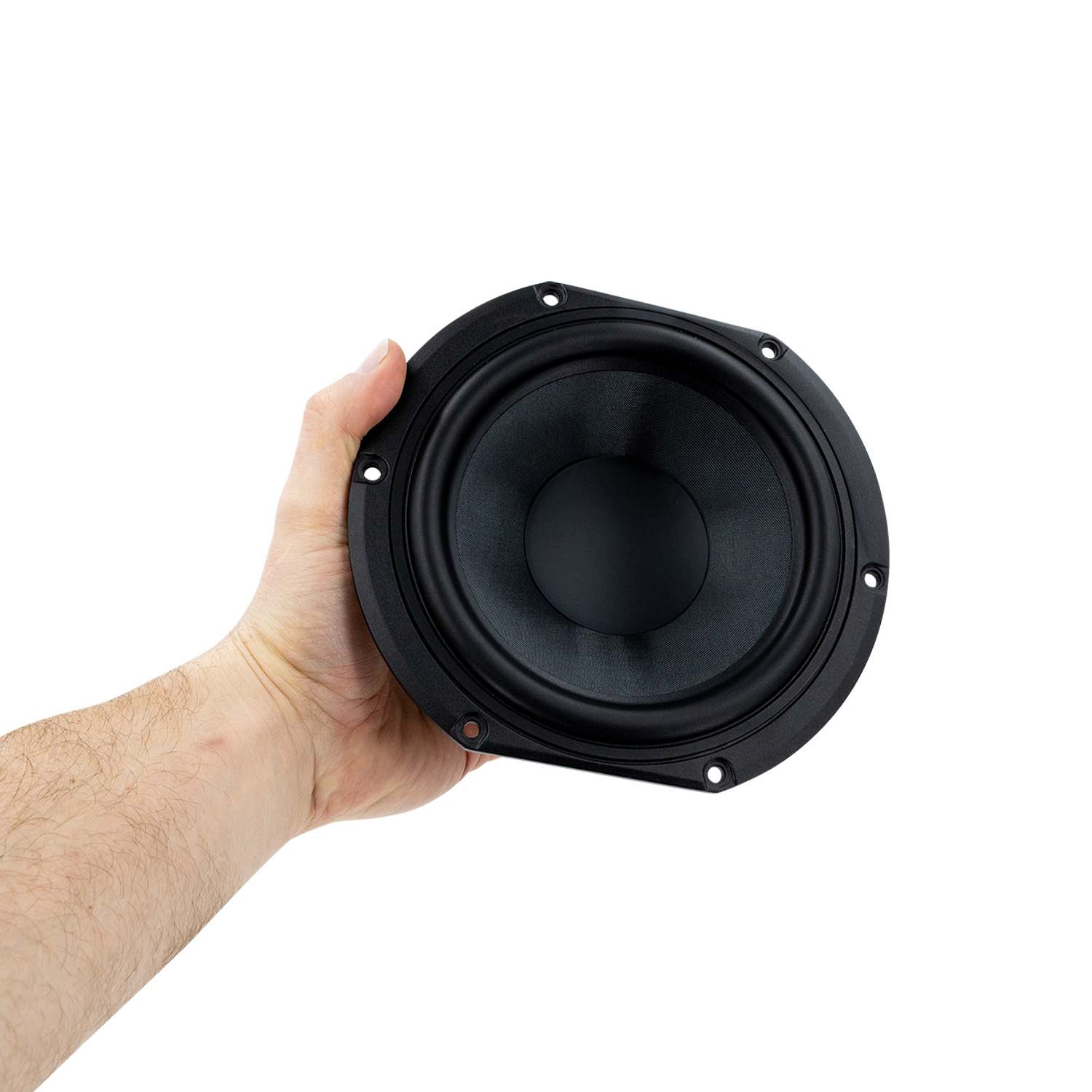

Peerless by Tymphany HDS-P830990 6-1/2" Bass midwoofer
This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is a glass fibre composite, offering a unique visual and acoustic experience.
The Peerless HDS-P830990 is known for its impressive combination of power handling, low distortion, and excellent midrange clarity. This 5.25-inch driver is part of the HDS line, which is designed for high-performance audio applications. Its fiberglass cone, phase plug, and die-cast aluminum basket contribute to a highly detailed, responsive sound, making it an excellent choice for high-end DIY speaker builds or as an upgrade in existing systems. It delivers a clean, linear response across the bass and midrange frequencies, handling crossover transitions smoothly.
Absolutely. The HDS-P830990 is often used as the bass-midrange driver in two-way systems due to its excellent bandwidth and flat frequency response up to around 3 kHz, which makes it easy to integrate with a tweeter. Its low distortion and phase plug design also reduce breakup and maintain clarity at higher frequencies, simplifying crossover design and reducing the need for complex filtering.
The fiberglass cone strikes a balance between rigidity and lightness, allowing the driver to respond quickly without distorting. This results in tight, controlled bass and an open, natural midrange. Fiberglass is also relatively resistant to environmental factors like humidity, which helps ensure durability. Overall, the cone material contributes to the driver’s smooth frequency response and makes it a great option for applications requiring both accuracy and dynamic range.
Definitely. Its broad frequency response and low distortion make it versatile for use in two- or three-way systems. It can handle midrange and upper bass frequencies effectively, leaving room for a dedicated woofer to manage lower bass or a midrange driver to cover the higher frequencies in more complex setups. Many builders pair it with a high-quality dome or ribbon tweeter to create a balanced, full-range sound that performs well for both music and home theater applications.
Peerless by Tymphany manufacturing code: T04-1B06B0002
