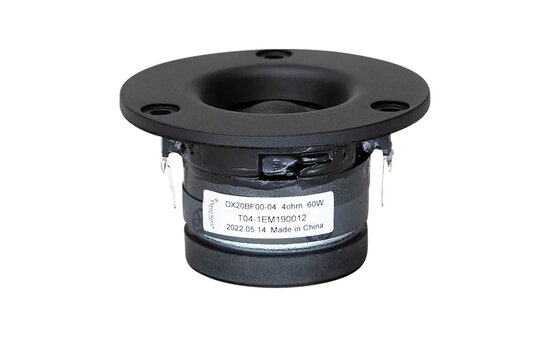

      DX20BF00-04 Tweeter a Cupola

      Peerless by Tymphany DX20BF00-04 Tweeter a Cupola

      €26,95

      10+ In magazzino

      Aggiungi al carrello

      Peerless by Tymphany DX20BF00-04 Tweeter a Cupola

      3 reviews
      5 da 5
      3 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Peerless by Tymphany
      Mostra tutti Tweeters Peerless by Tymphany
      3/4" | 4 Ω
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      € 22,27€ 26,95 10+ In magazzino
      • -5% Acquista 4 per soli € 25,60 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola
      DX20BF00-04 Tweeter a Cupola

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Low resonant frequency for its size
      • Great high frequency response
      • Budget-friendly
      • No wide dispersion

      Descrizione del prodotto Peerless by Tymphany DX20BF00-04 Tweeter a Cupola

      The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choice for smaller 2-way designs and car audio systems.



      Highlights of the Peerless DX20BF00-04 Dome Tweeter

      • Sensitivity (SPL at 1m / 2.83V): 89.9 dB
      • Resonant Frequency (Fs): 824 Hz
      • Triple ferrite motor improves power handling over similar neodymium designs
      • The deep magnet design creates a large resonant chamber for a lower Fs
      • Semi horn loading the dome improves efficiency and controls dispersion



      Products details Peerless DX20BF00-04 Dome Tweeter

      Peerless by Tymphany DX20BF00-04 3/4" Silk Dome Tweeter

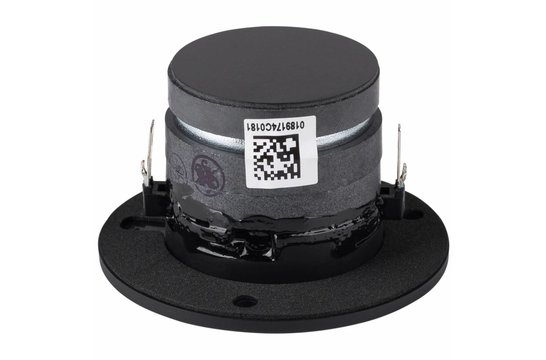

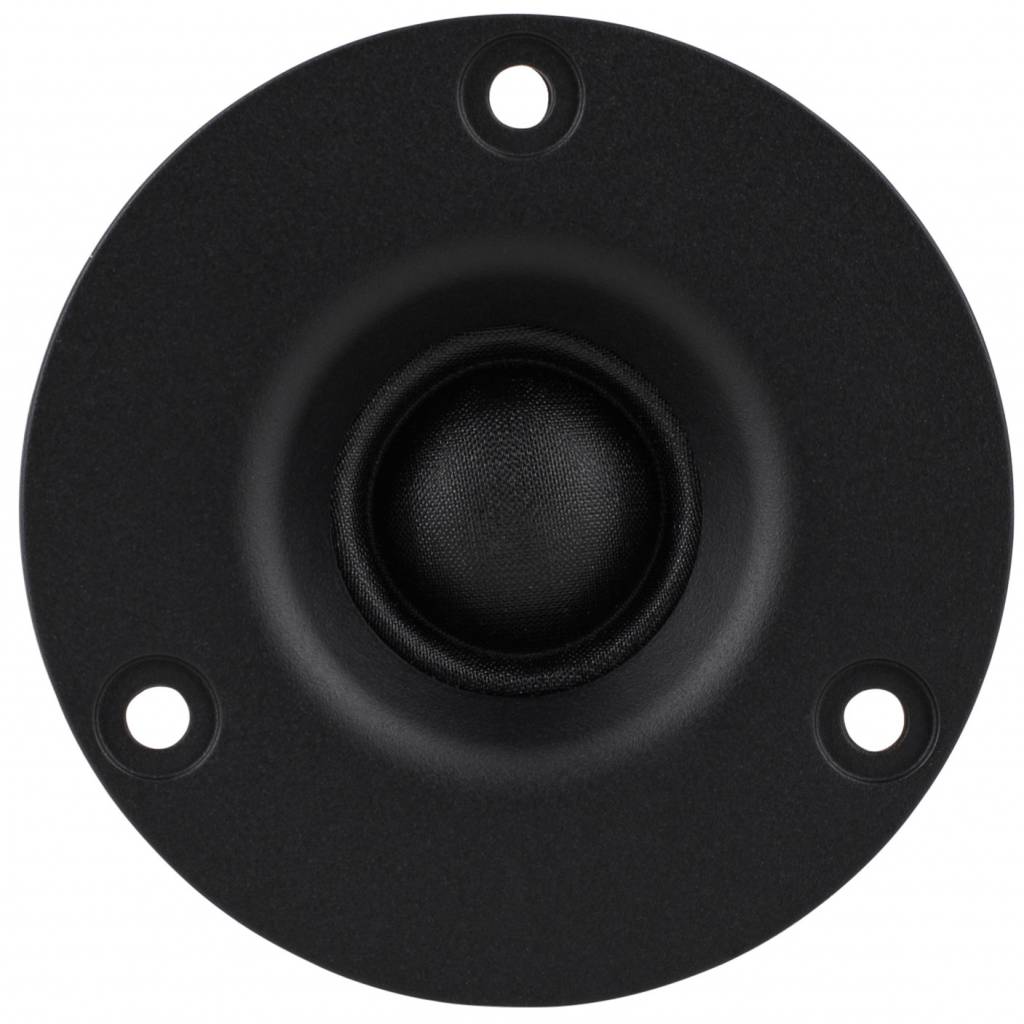

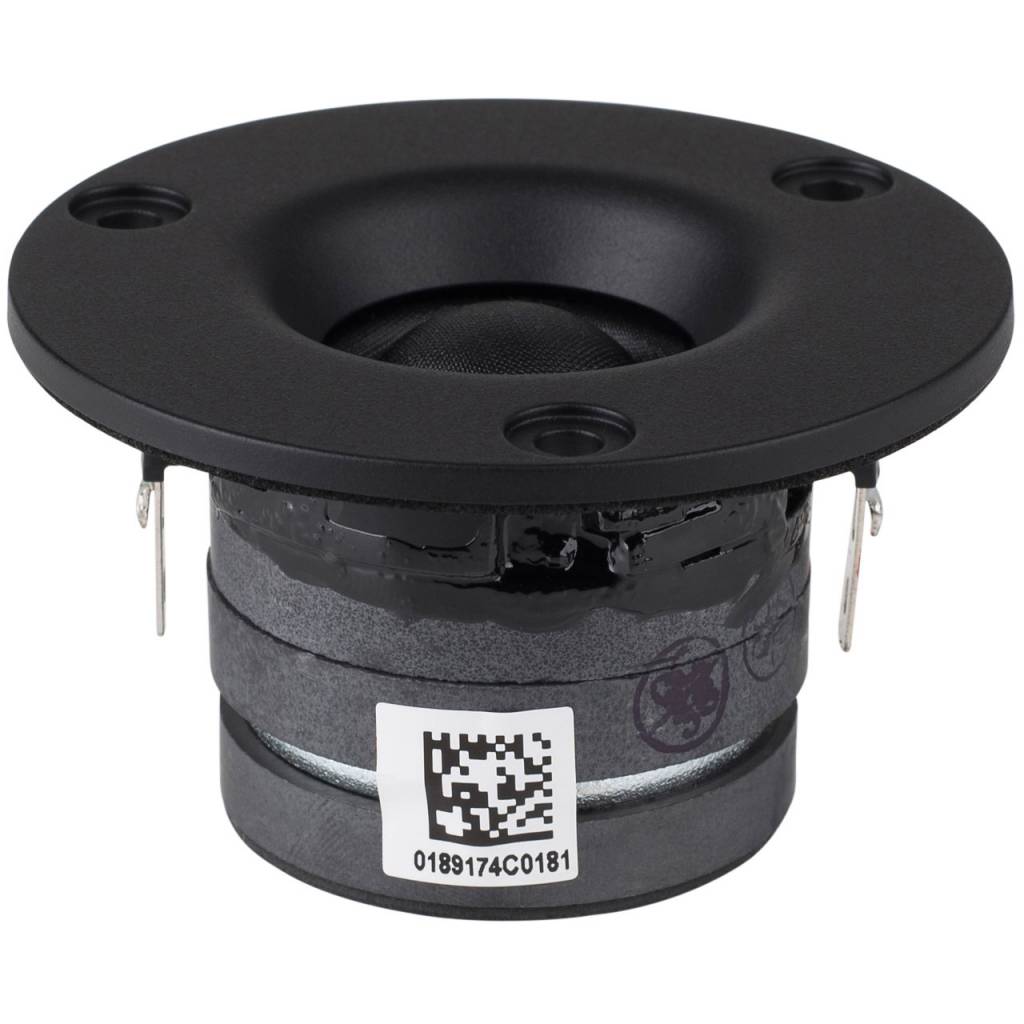

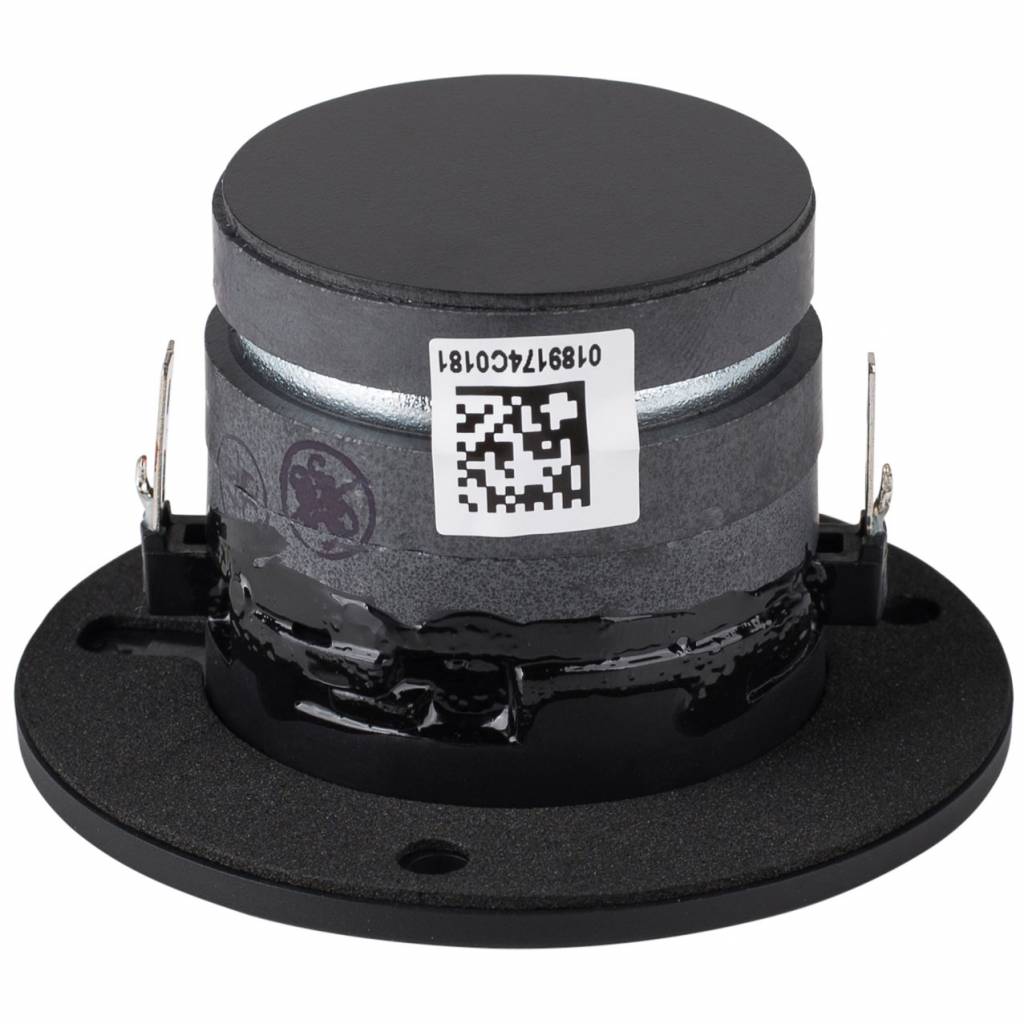

      This DX family tweeter features a 19mm 4 ohm voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.



      FAQ about the Peerless DX20BF00-04 Dome Tweeter

      How does the Peerless DX20BF00-04 perform in off-axis dispersion?

      Its compact dome design provides good off-axis performance, ensuring a consistent listening experience even when you're not directly in front of the speaker.



      What crossover design is recommended for this tweeter?

      A high-pass crossover with a cutoff frequency of at least 2,500 Hz is recommended. Using a second-order (12dB/octave) or higher crossover will protect the tweeter from excessive low-frequency energy.

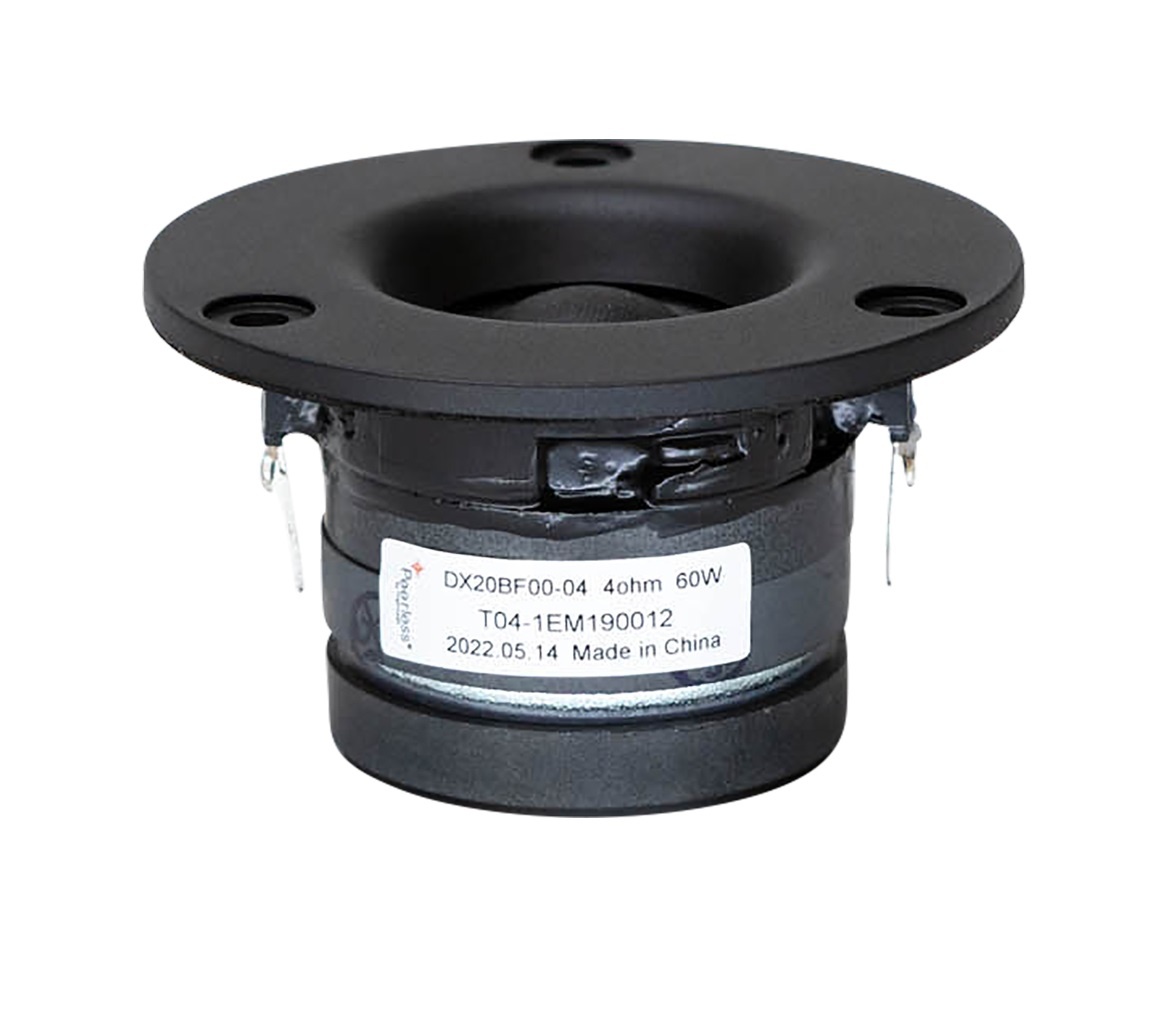

      Peerless by Tymphany manufacturing code: T04-1EM190012

      Show more

      Specifiche

      Numero dell'articolo:
      DX20BF00-04
      EAN
      0848864044842
      Tipo di tweeter
      Soft Dome
      Serie del tweeter
      DX Series
      Diametro del cono / cupola
      19 mm | 3/4"
      Gestione della potenza (RMS)
      60 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      89.9 dB
      Risposta in frequenza
      2500 to 20,000 Hz
      Frequenza di risonanza (Fs)
      824 Hz
      Resistenza DC (Re)
      2.81 ohms
      Induttanza della bobina mobile (Le)
      0.01 mH
      Fattore di merito meccanico (Qms)
      2.24
      Fattore di merito elettromagnetico (Qes)
      2.93
      Fattore di merito totale (Qts)
      1.27
      Diametro esterno complessivo
      2.6”
      Diametro del ritaglio
      1.91”
      Profondità
      1.38"

      Show more

      Recensioni

      3 reviews
      Recensisci questo prodotto
      5 di 5
      No description was given
      Da FRANCISCO R. on 14 Dicembre 2019
      5 di 5
      I bought them as a replacement for a pair of M800 Grundig. I have another pair of Canton Quintos' and now the Grundigs sound as well if not better with these tweeters. Very well balanced and detailed sound, without beeing too pitchy or too bright. I didn't modify the crossover and I don't think it is needed. Very good product for this price! And they are ferrofluid cooled :)
      Da Marius on 19 Novembre 2018
