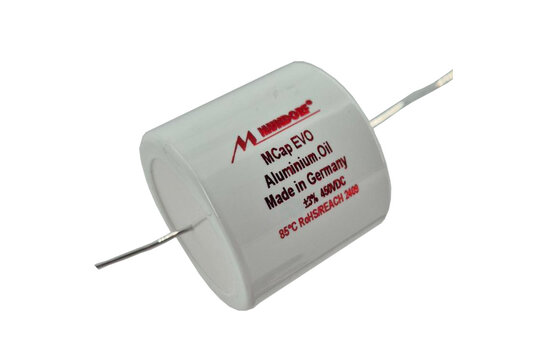

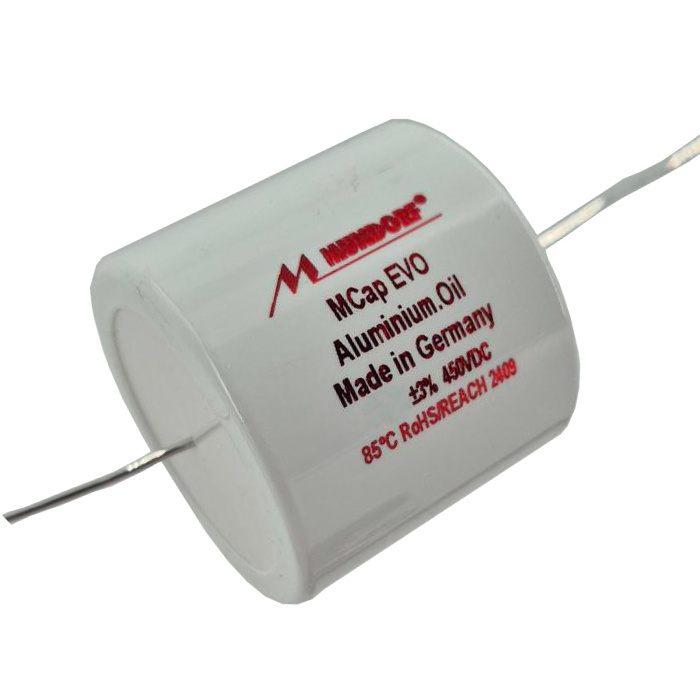

Name: Mundorf MEO-10T3.450 | 10 µF | 3% | 450 V | MCap EVO Olio Condensatore
Brand: Mundorf
SKU: MEO-10T3.450
Price: 25.95 EUR
Availability: InStock
Rating: 4.65 (3 reviews)

MEO-10T3.450 | 10 µF | 3% | 450 V | MCap EVO Olio Condensatore

€ 21,45€ 25,95 9 In magazzino10+ Arrivo previsto il 19-12-2025

Spedizione gratuita a partire da € 199
Ordinato prima delle 16:00, spedito oggi
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Mundorf MEO-10T3.450 | 10 µF | 3% | 450 V | Olio

The MCap EVO Oil combines the magic of the MCap EVO‘s sound characteristic with the acoustic advantages of oil impregnated capacitors.

Highlights

EVOLUTION winding technology
Purest Polypropylene foil vaporized
Metallised with a thick aluminium layer
Temperature range -25 to +125°C
RoHS compliant, lead-free
Oil impregnated capacitors
Made in Germany

Product details

Mundorf MEO-10T3.450 | 10 µF | 3% | 450 V | MCap EVO Oil capacitor

The new EVO, range of capacitors from Mundorf incorporate their amazing EVOLUTION winding technology. This features an unusually narrow but tall capacitor reel. This format results in two benefits over the normal dimensioning of capacitors. Firstly, as a shorter width is required the signal path between the huge contact areas is greatly reduced, thus an extremely low equivalent series resistance/ESR is achieved. Secondly, in order to achieve the same capacitance, the number of paralleled windings is larger than with regular caps, thus a minimized equivalent series inductivity/ESL is achieved.

The MCap® EVO was designed in 2012 as the successor of the RXF to facilitate utmost musical enjoyment even in small spaces on a limited budget. The PP capacitor film used here is first metallized with the thickest possible aluminium layer, then wound precisely into innovative EVOLUTION winding geometry and then potted by hand into special casings. The winding process is incredibly precise, the reels are spooled by hand in especially developed housing. Resulting in near avoidance of vibration and microphonic effects during the winding process. Furthermore, Mundorf use the purest Polypropylene foil vaporized with the thickest metal layer possible. The Capacitors are manufactured with one lead-out larger than the other to allow for horizontal and vertical mounting, the shorter lead also indicates the caps outer foil.

Specifiactions: Dielectric: Polypropylene • Metallisation: Aluminium • Loss factor tan ∂: 0.0002 @ 1kHz; 0.0001 @ 10kHz • Permissible ambient temperature 85°C / 185°F • RoHS compliant (lead-free) • REACH compliant.
