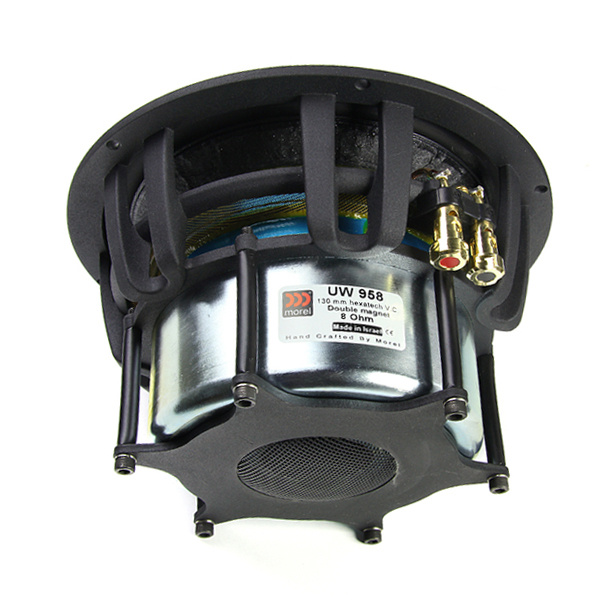

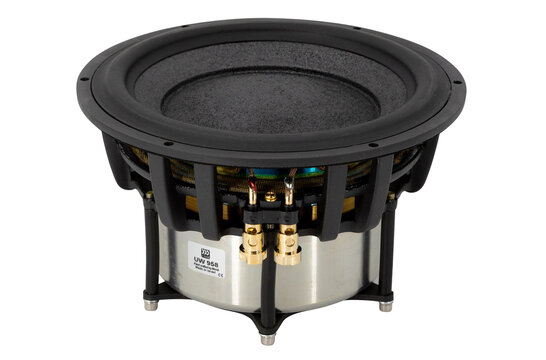

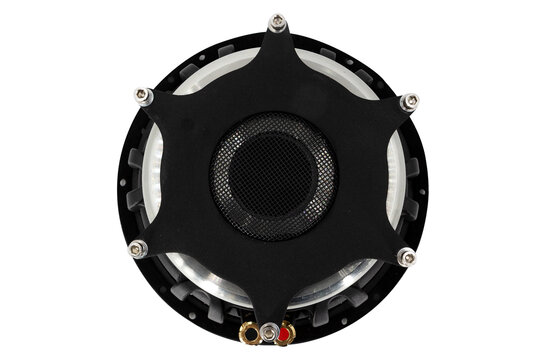

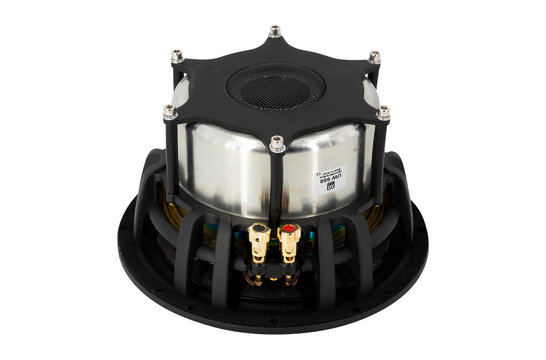

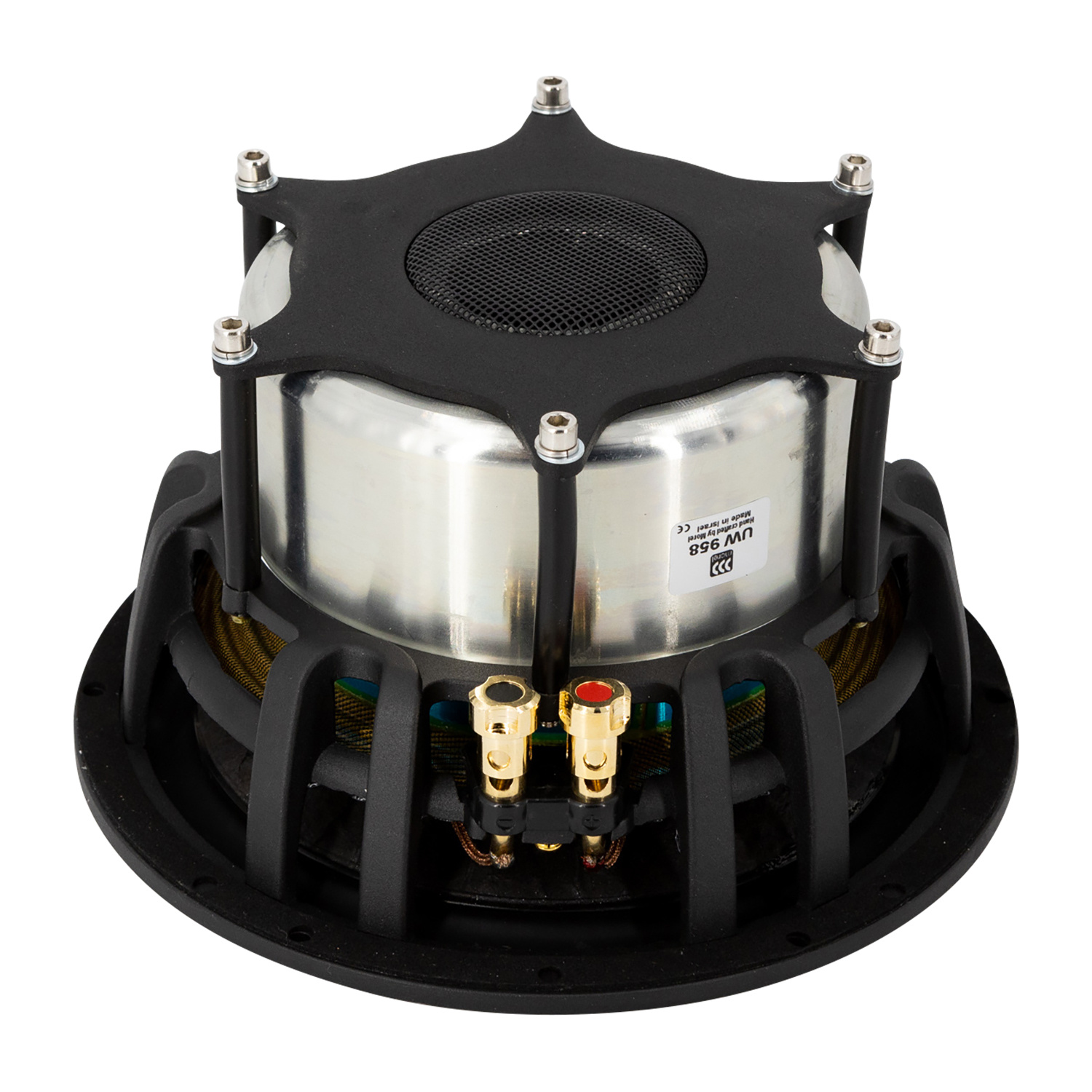

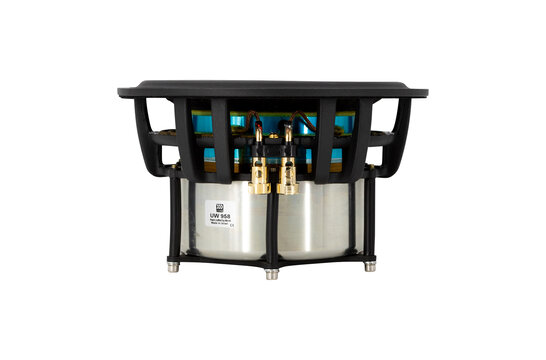

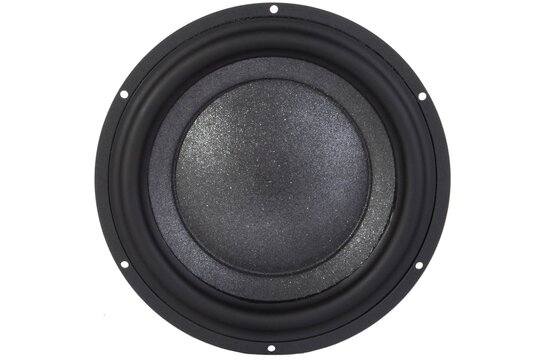

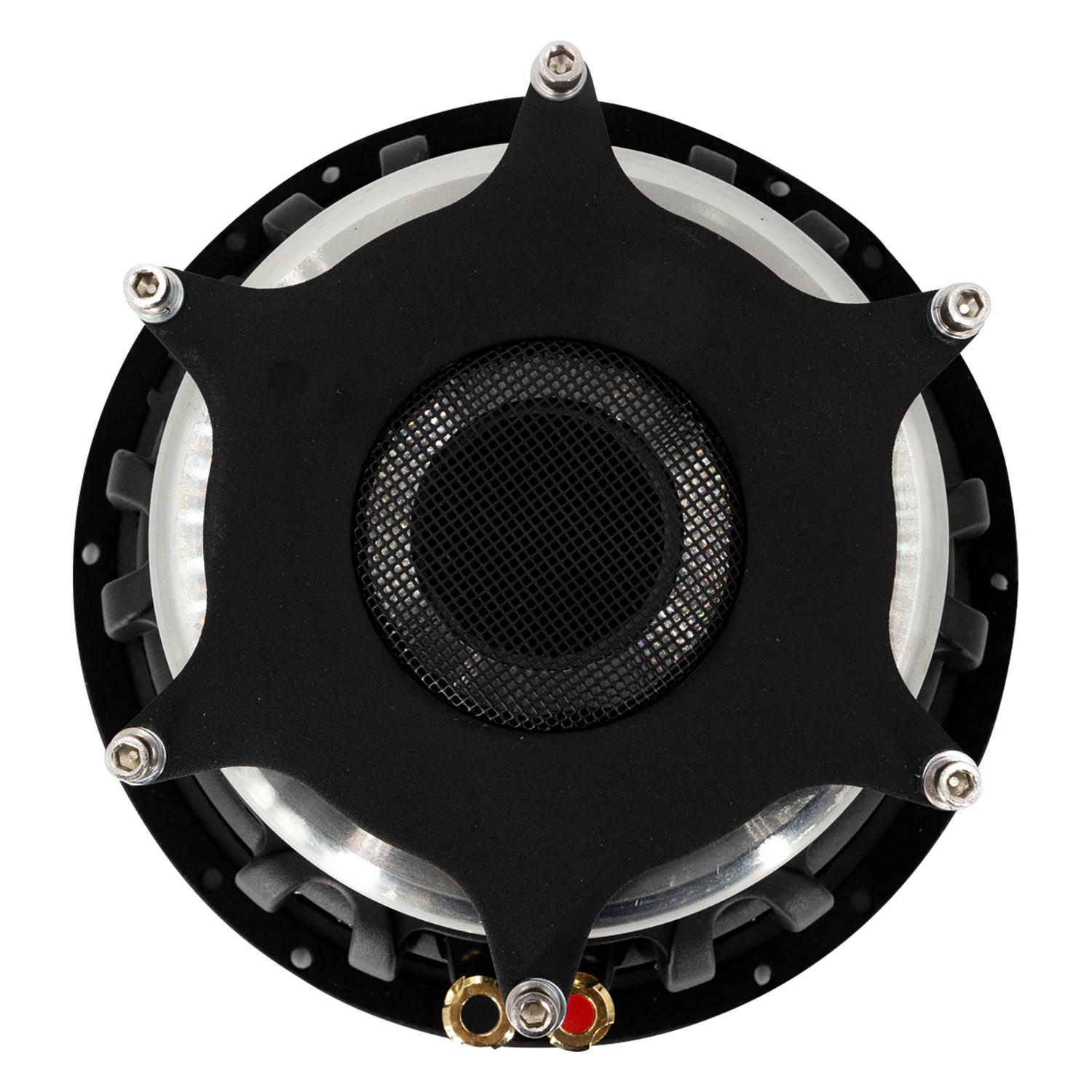

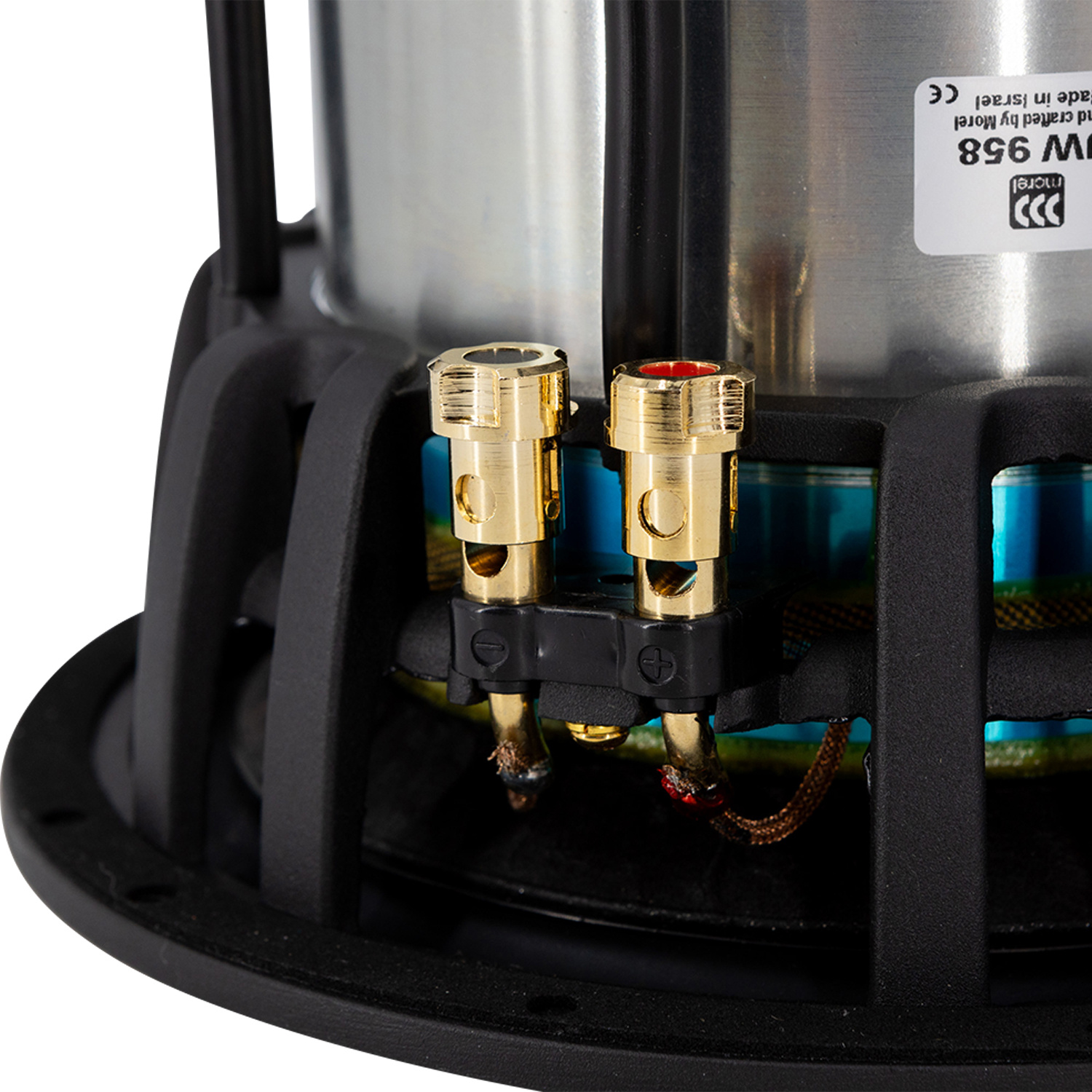

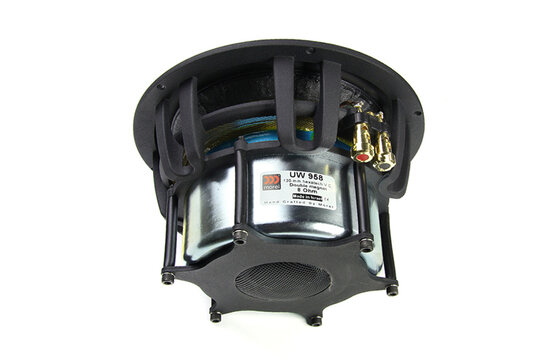

      UW958 Subwoofer

      Morel UW958 Subwoofer

      €599,95

      4 In magazzino

      Morel UW958 Subwoofer

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Morel
      € 495,83€ 599,95 4 In magazzino
      • -5% Acquista 4 per soli € 569,95 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Net Weight 5.95 Kg, cone: composite cellular fiber

      Descrizione del prodotto Morel UW958 Subwoofer

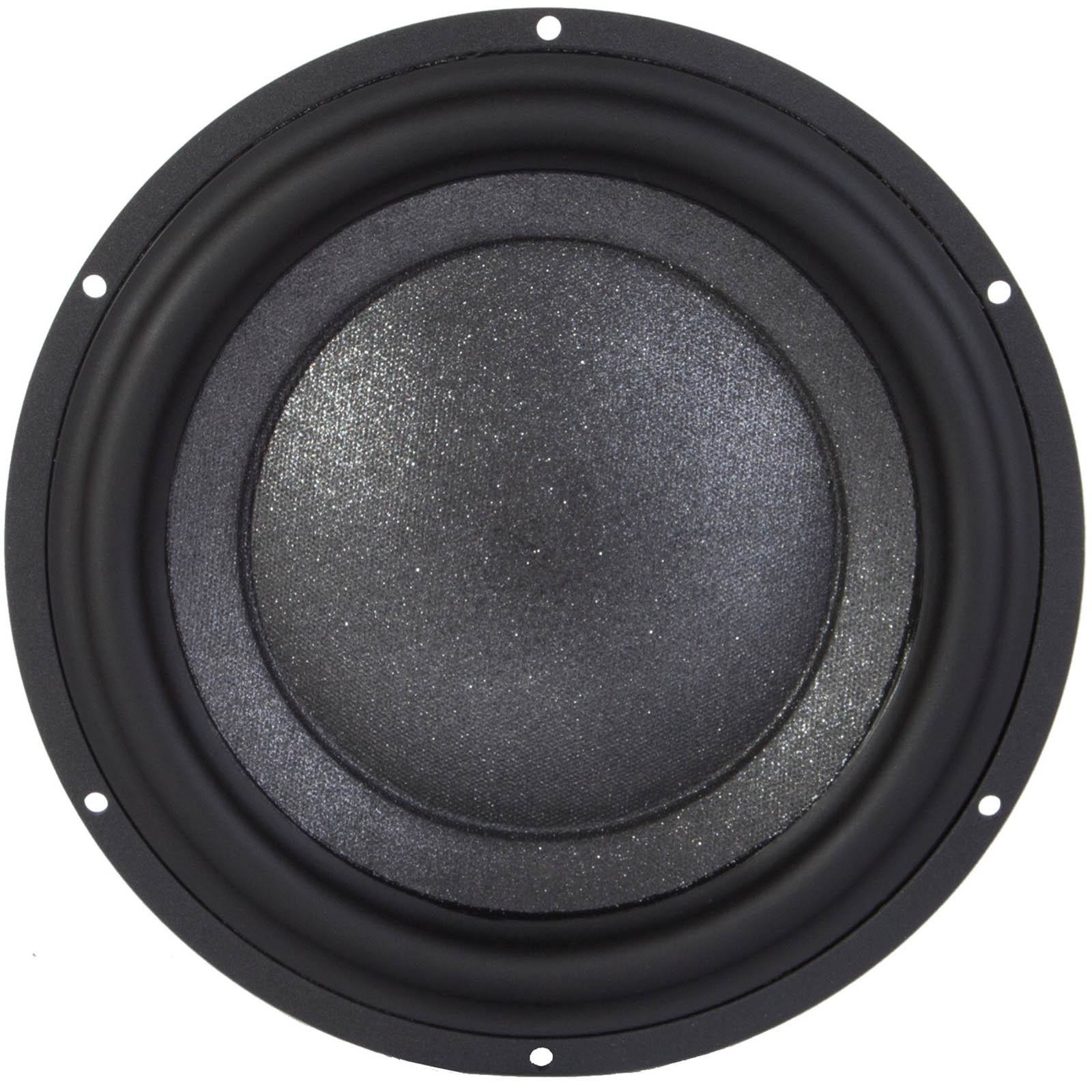

      Morel’s UW 958 9" Ultimate Series paper cone subwoofer is ideal for high output systems designed to deliver the lowest distortion possible. With a huge 5.1” voice coil this driver is capable of incredibly linear excursion with remarkable power handling before suffering from significant compression. Perfect for producing deep and powerful bass from compact designs, the UW 958 is in a class of its own.



      Highlights

      • Huge 5.1” Hexatech voice coil improves pistonic excursion and power handling
      • Internal high energy double ferrite magnet system maximizes flux for precise control
      • Rigid one-piece cone/dustcap increases structural integrity while lowering breakup
      • 11.5 mm xmax allows high displacement and excellent low frequency output

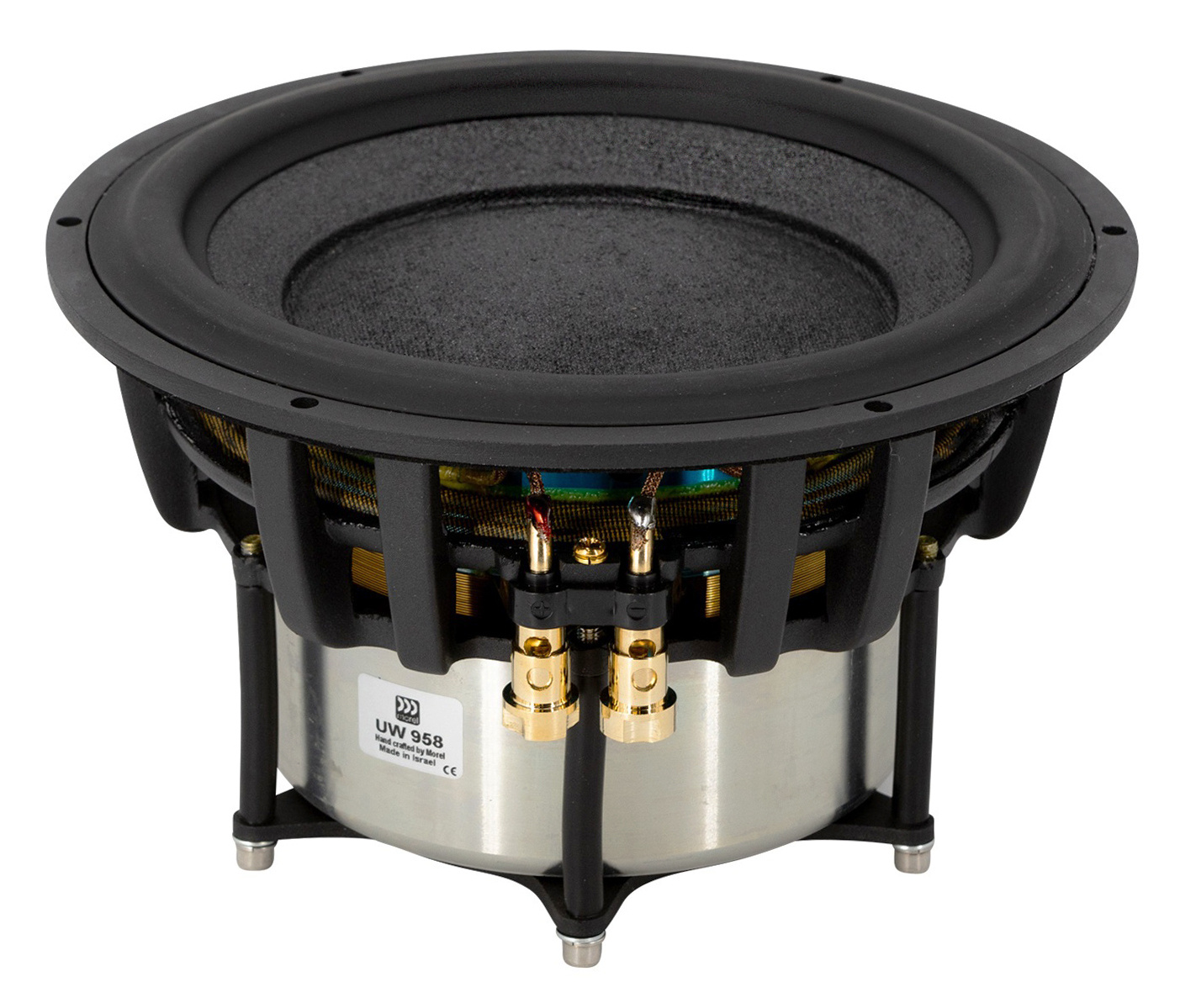

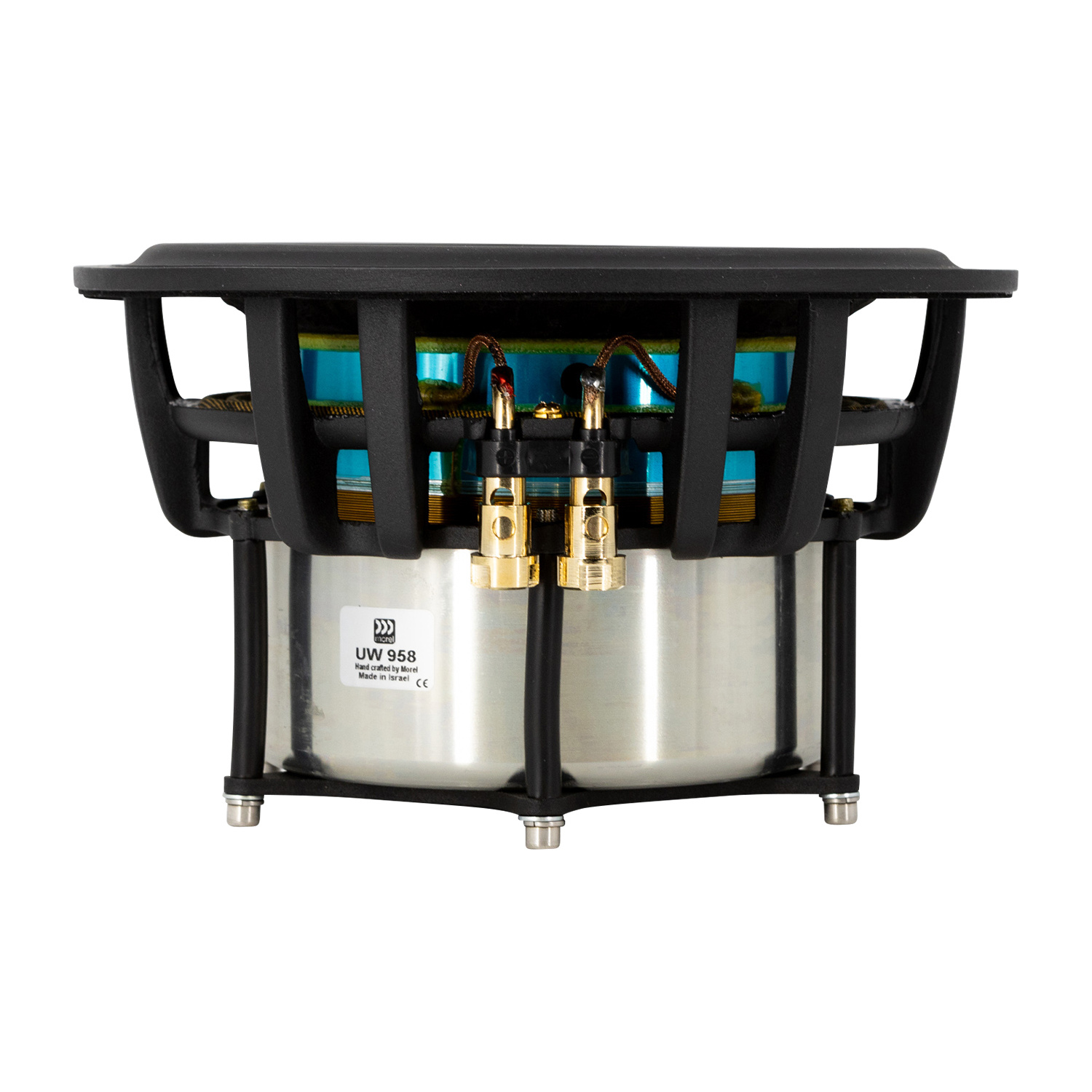

      • Cast aluminum Uniflow frame for maximum airflow and minimum reflections



      Product details

      Morel UW958 9" Paper Cone Subwoofer with 5.1" Voice Coil 8 Ohm



      The smallest driver in Morel’s Ultimate Series subwoofer line, the UM 958 9” paper cone subwoofer is capable of producing low frequency output that can match many larger drivers. Driving the one-piece composite cellular fiber cone/dustcap is a huge 5.1” voice coil assembly that gives the UM 958 incredible power handling capability. The voice coil uses an aluminum former and Hexatech aluminum winding to cut weight resulting in excellent dynamic response and accuracy. Mounted inside the voice coil is a high flux double ferrite magnet system with ample power to precisely control excursion. If you are building a compact design that need to deliver low distortion and powerful bass then Morel’s UW 958 will effortlessly deliver everything you expect.

      Show more

      Specifiche

      Numero dell'articolo:
      UW958
      EAN
      0848864068565
      Serie del woofer
      Morel Ultimate Subwoofer series
      Tipo di woofer
      Ultimate Woofer
      Diametro nominale
      222 mm, 9 Inch
      Gestione della potenza (RMS)
      500 Watts
      Gestione della potenza (max)
      1500 Watt (10 ms)
      Impedenza (Z)
      8 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      85.8 dB
      Diametro della bobina mobile
      130 mm, 5.1 Inch
      Resistenza DC (Re)
      6.2 Ohm
      Induttanza della bobina mobile (Le)
      1.32 mH
      Frequenza di risonanza (Fs)
      28 Hz
      Fattore di merito meccanico (Qms)
      1.61
      Fattore di merito elettromagnetico (Qes)
      0.45
      Fattore di merito totale (Qts)
      0.35
      Massa del diaframma incl. la massa dell'aria (Mms)
      65.5 g
      Cedevolezza meccanica della sospensione (Cms)
      0.47 mm/N
      Superficie del cono (Sd)
      243 cm2
      Prodotto BL (BL)
      0.64 T
      Volume equivalente di cedevolezza (Vas)
      39.5 Liters
      Escursione lineare massima (Xmax)
      11.5 mm
      Perdite meccaniche del driver (Rms)
      7.37 Kg/s
      Materiale del filo della bobina mobile
      Hexatech Aluminium
      Supporto della bobina mobile
      Aluminium
      Materiale del cestello / telaio
      Uniflow™ Aluminum
      Diametro esterno complessivo
      222 mm
      Profondità complessiva
      125 mm
      Diametro del ritaglio del pannello frontale
      200 mm
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      5 mm

      Show more
