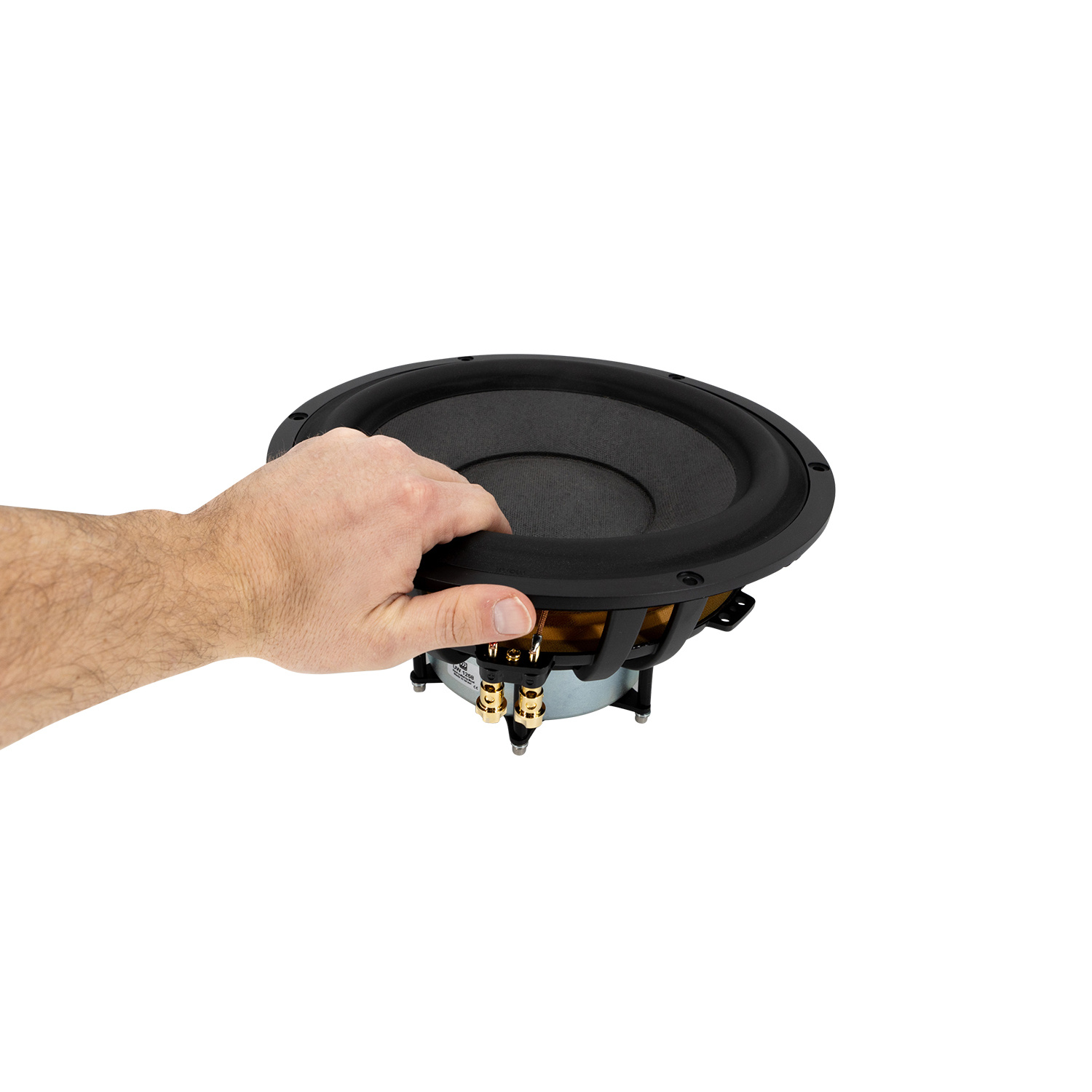

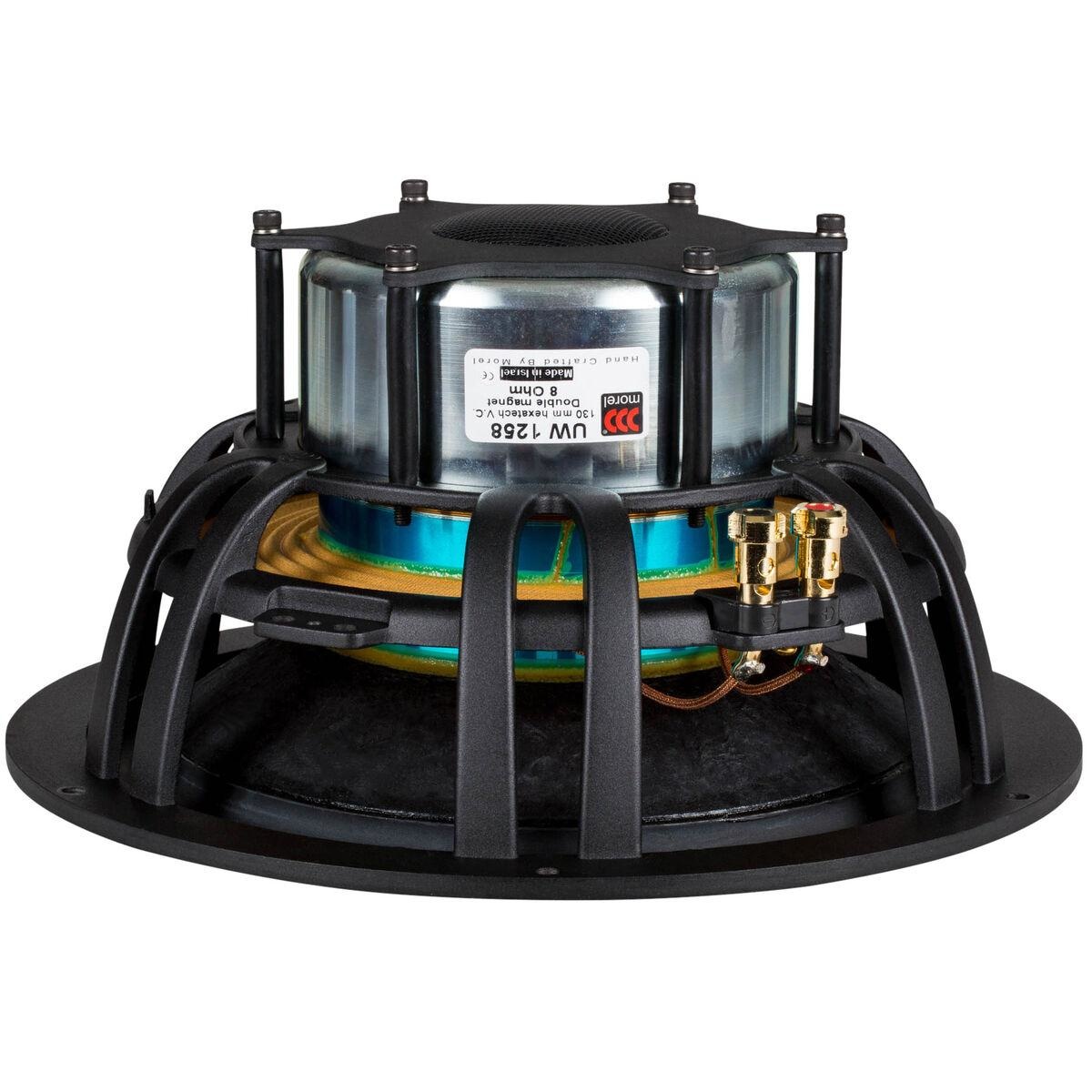

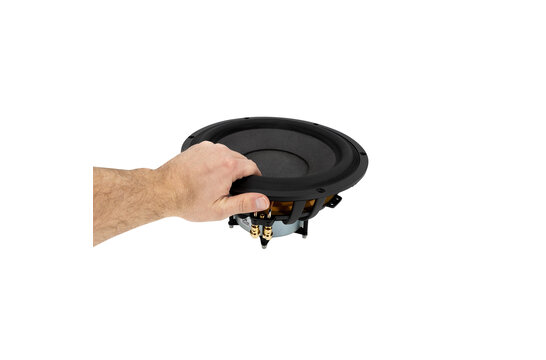

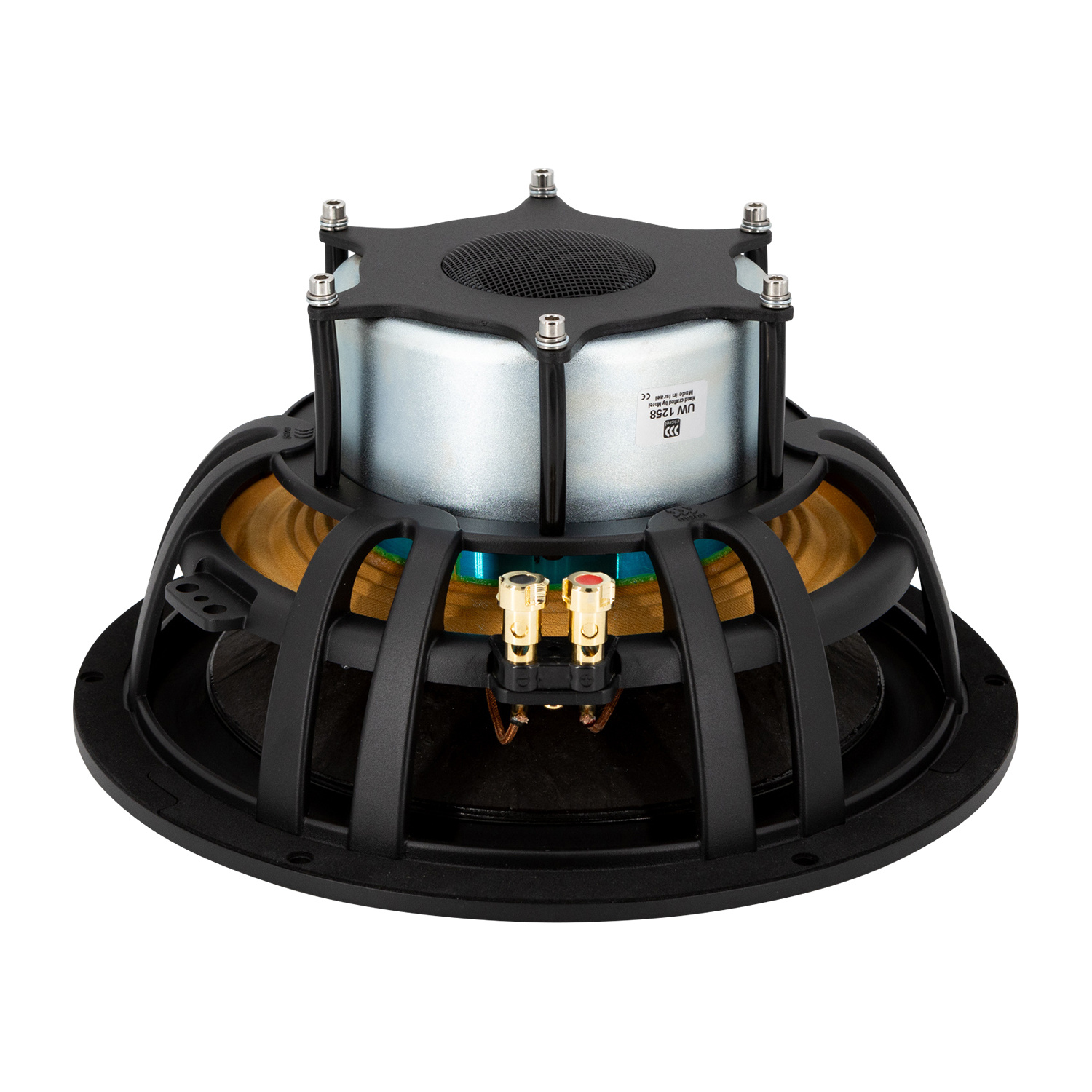

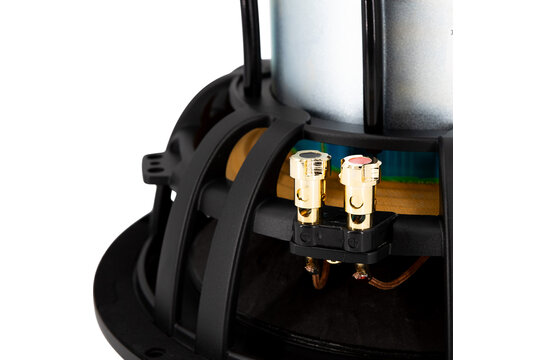

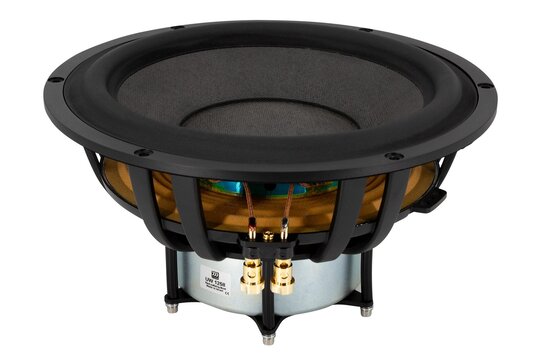

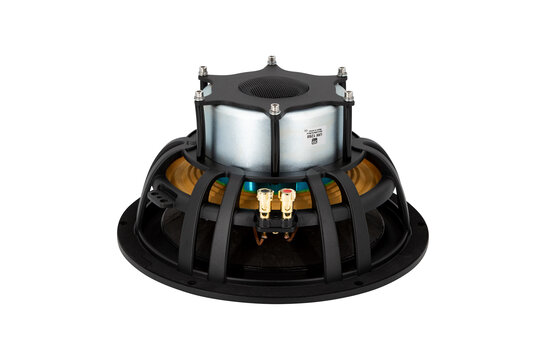

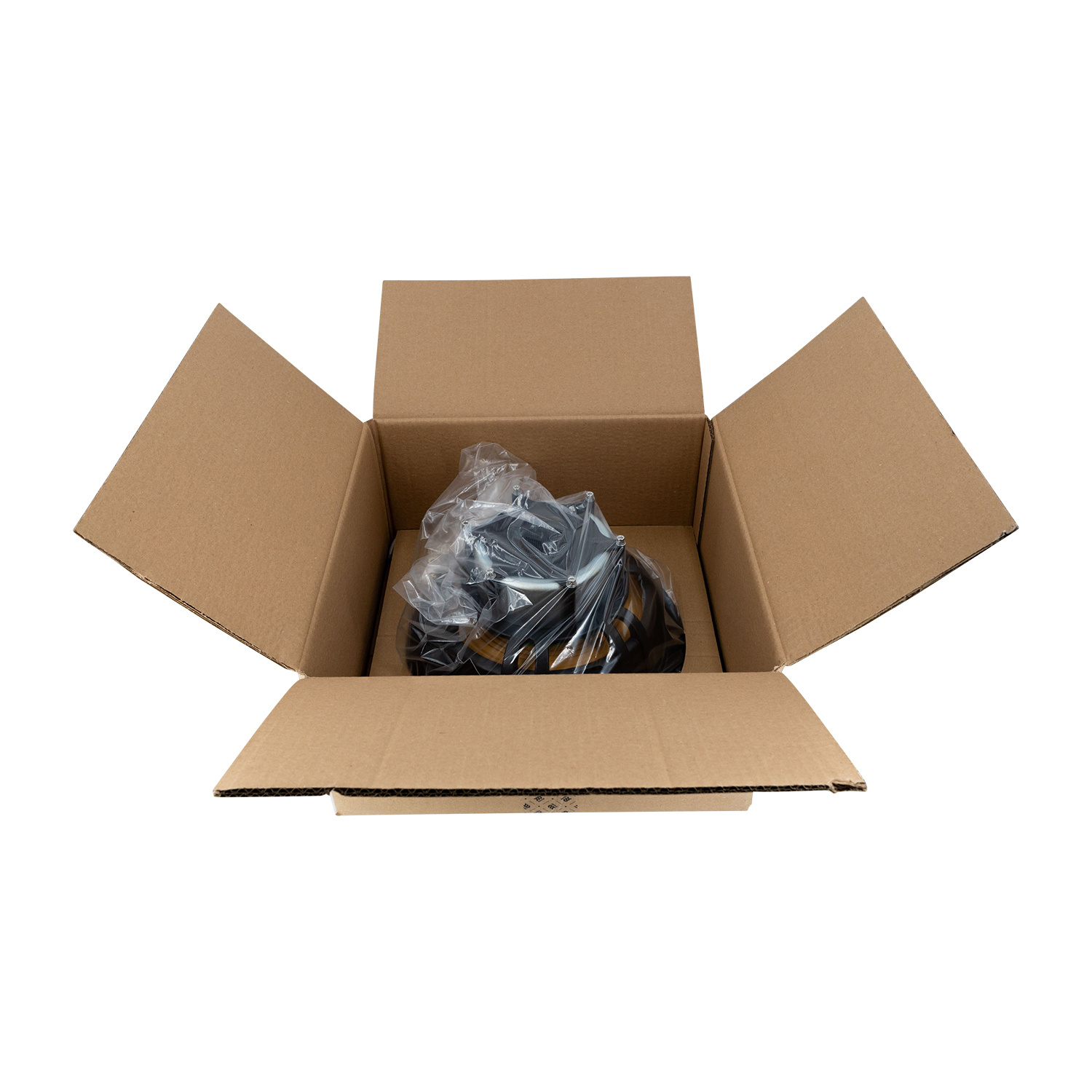

      UW1258 Subwoofer

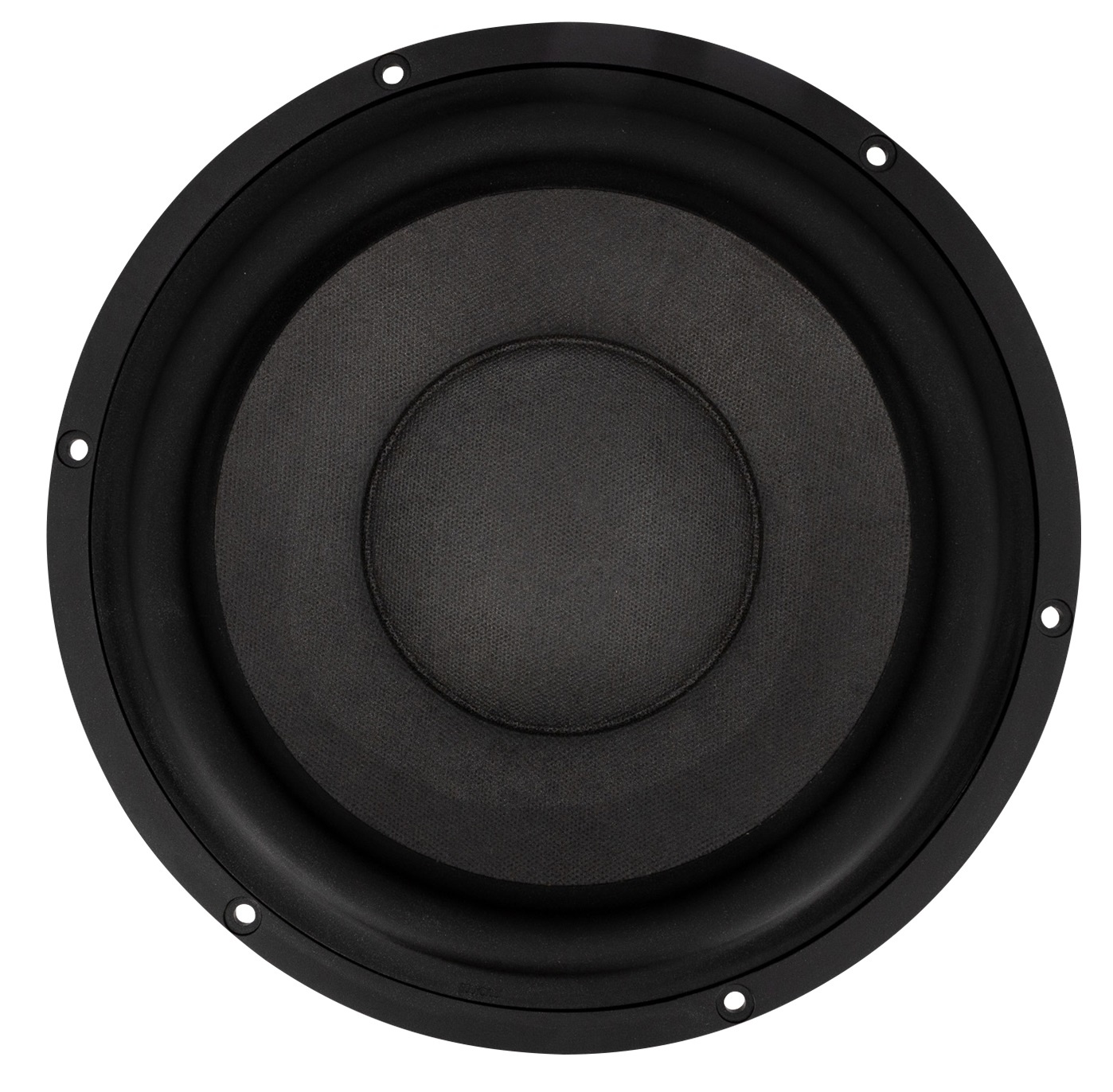

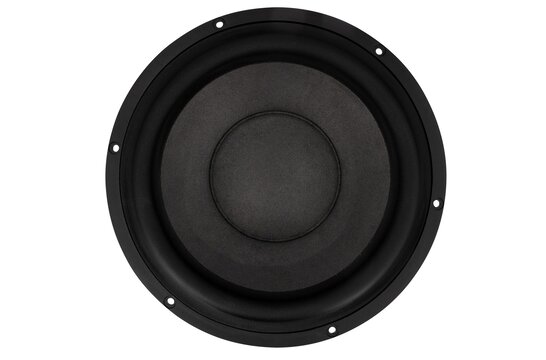

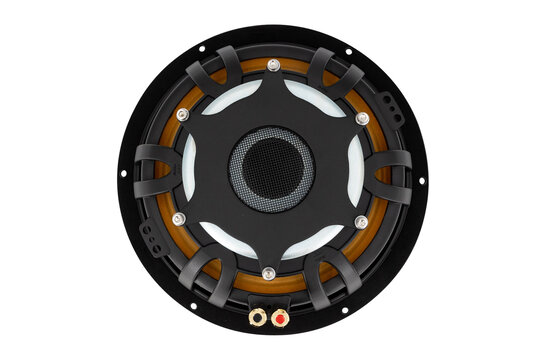

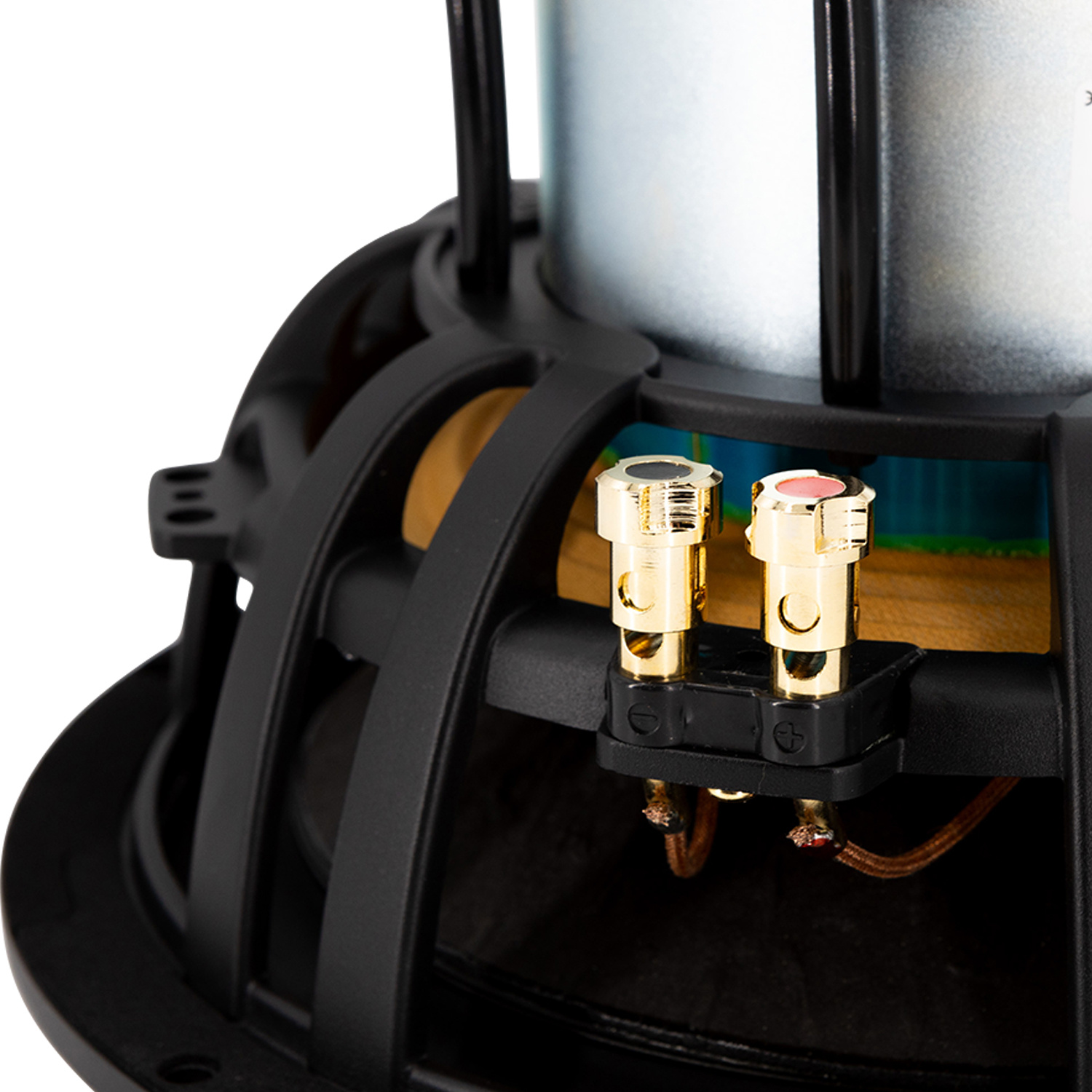

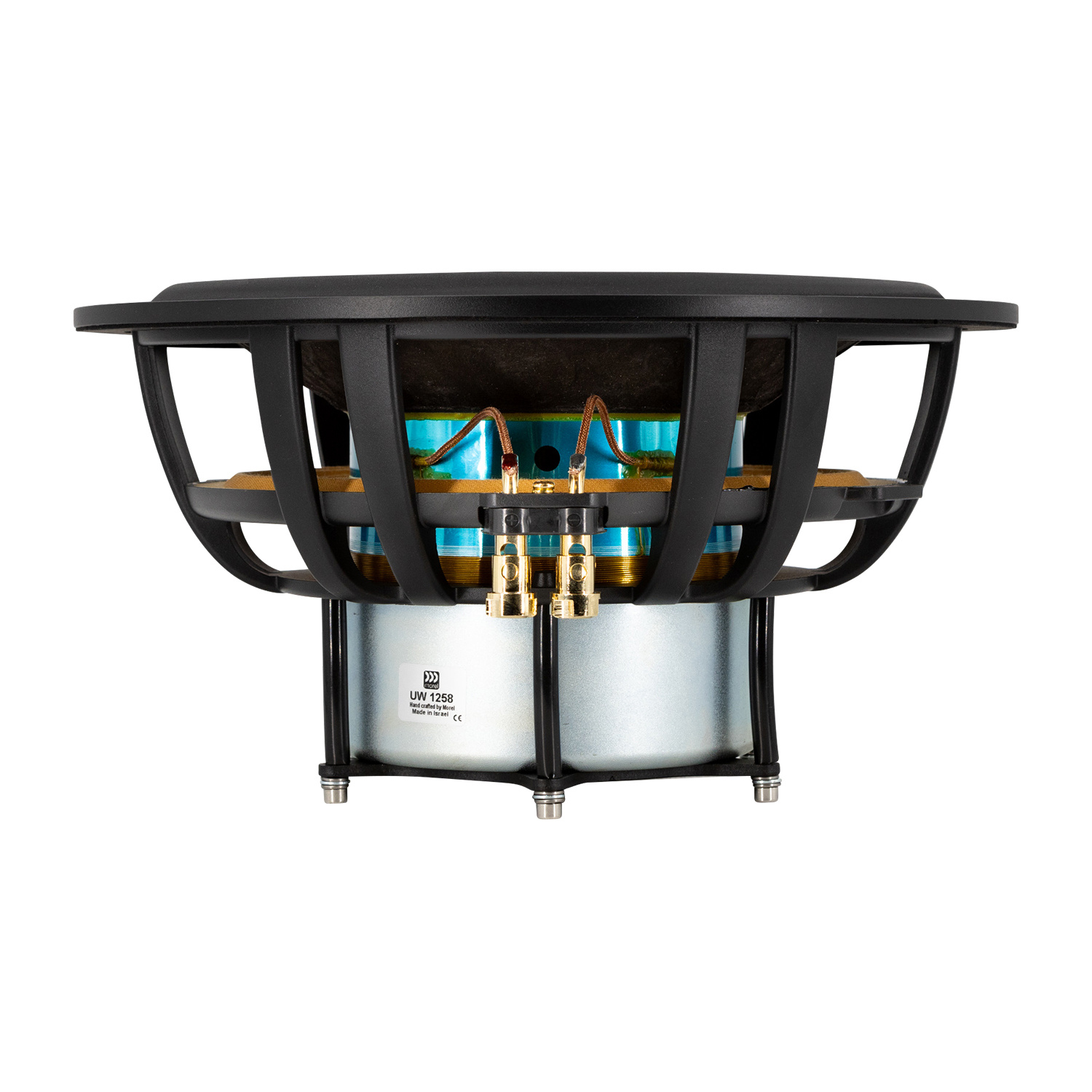

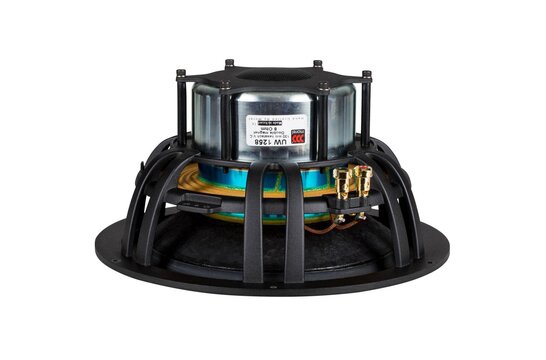

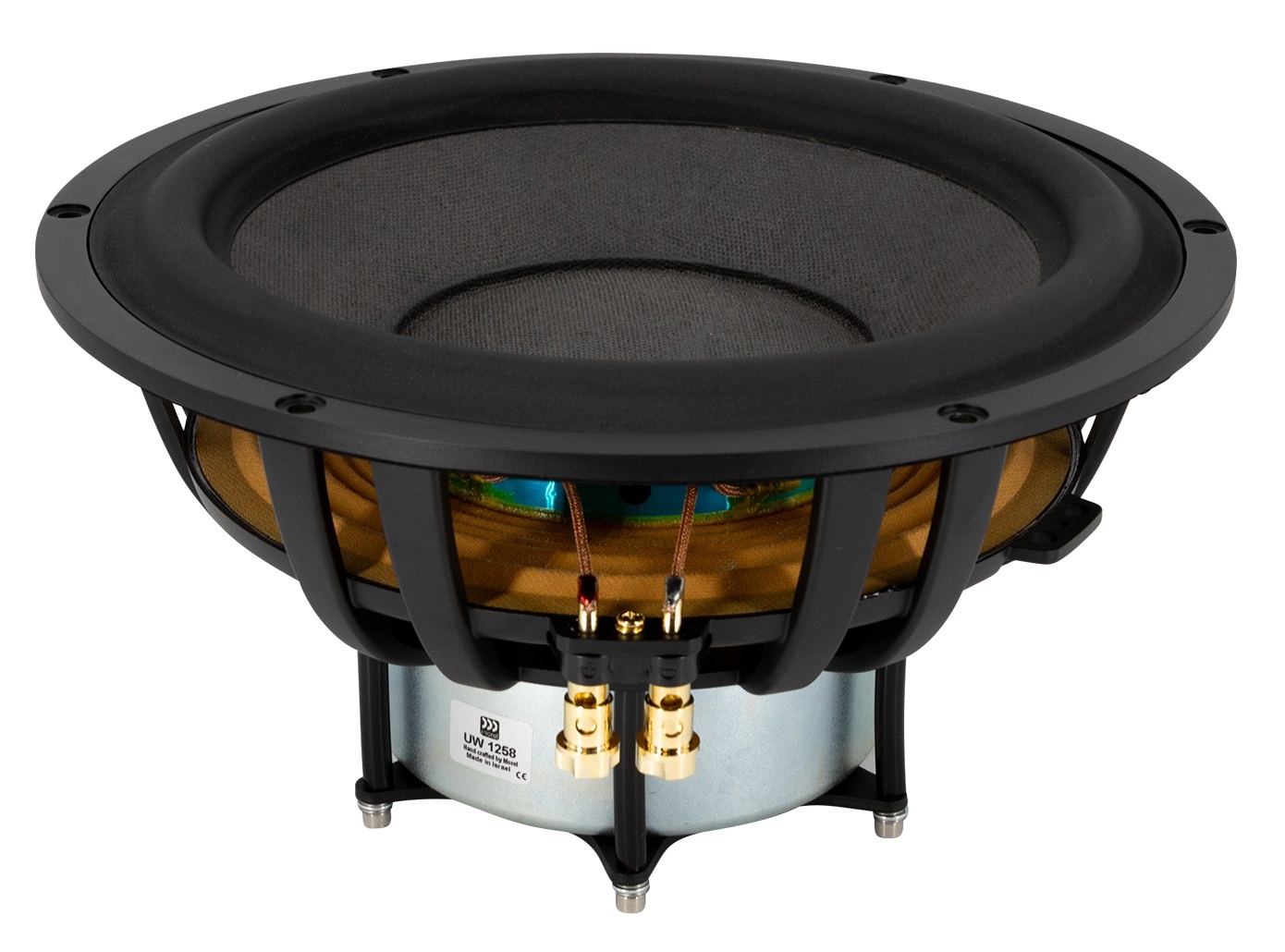

      Morel UW1258 Subwoofer

      €749,95

      4 In magazzino

      Morel UW1258 Subwoofer

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Morel
      € 619,79€ 749,95 4 In magazzino
      • -5% Acquista 4 per soli € 712,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Massive power: 800w nominal, 3000w peak and 5.1" Large Hexatech™ Aluminum voice coil

      Descrizione del prodotto Morel UW1258 Subwoofer

      And now…the Ultimate 12" subwoofer. Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver. Extra-large diameter 5" voice coil, free-breathing cast frame, and symmetrical suspension system guarantee the ultimate in subwoofer performance.



      Highlights

      • Uniflow™ aluminum diecast chassis
      • High-flux double ferrite magnet system
      • 5.1" Hexatech™ aluminum voice coil with 1-1/2" winding length
      • Very high Xmax for extended bass response
      • One piece paper cone/center dome
      • Accucenter™ self-centering cone assembly
      • PFS™ Progression Field Symmetry spider/surround engineering



      Product details

      Morel Ultimate UW1258 12" Subwoofer



      The Morel UW1258 is a 12" subwoofer with one piece paper cone. It has a nominal impedance of 8 Ω, resonance frequency of 21 Hz, sensitivity of 87 dB and equivalent volume of 138 l. The total Q factor is 0.43 and the power is 800 W (DIN). It has a Uniflow Aluminum diecast chassis and a high flux double Ferrite magnet system.



      The Ultimate Subwoofer Line also includes other models such as the Classic Woofer which is a 10" paper/carbon cone with a nominal impedance of 4 Ω.

      Show more

      Specifiche

      Numero dell'articolo:
      UW1258
      EAN
      0844632070877
      Serie del woofer
      Morel Ultimate Subwoofer series
      Tipo di woofer
      Ultimate Subwoofer
      Diametro nominale
      305 mm, 12 Inch
      Gestione della potenza (RMS)
      800 Watts
      Gestione della potenza (max)
      3000 Watt
      Impedenza (Z)
      8 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      87 dB
      Diametro della bobina mobile
      130 mm, 5.1 Inch
      Resistenza DC (Re)
      6.8 Ohm
      Induttanza della bobina mobile (Le)
      1.33 mH
      Frequenza di risonanza (Fs)
      21 Hz
      Fattore di merito meccanico (Qms)
      1.88
      Fattore di merito elettromagnetico (Qes)
      0.56
      Fattore di merito totale (Qts)
      0.43
      Massa del diaframma incl. la massa dell'aria (Mms)
      104.49 g
      Cedevolezza meccanica della sospensione (Cms)
      0.44 mm/N
      Superficie del cono (Sd)
      437 cm2
      Prodotto BL (BL)
      0.64 T
      Volume equivalente di cedevolezza (Vas)
      138.38 Liters
      Escursione lineare massima (Xmax)
      12.5 mm
      Perdite meccaniche del driver (Rms)
      8.15 Kg/s
      Materiale del cono / diaframma
      Composite cellular fiber
      Materiale del filo della bobina mobile
      Hexatech™ Aluminum
      Supporto della bobina mobile
      Aluminum
      Materiale del cestello / telaio
      Uniflow™ Aluminum
      # Numero di fori di montaggio
      6
      Diametro dei fori di montaggio
      6
