Name: Morel TM4055-8 Midrange/Tweeter
Brand: Morel
SKU: TM4055-8
Price: 249.95 EUR
Availability: InStock

2'' & 1" | 8 Ω

€ 206,57€ 249,95 3 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Morel TM4055-8 Midrange/Tweeter

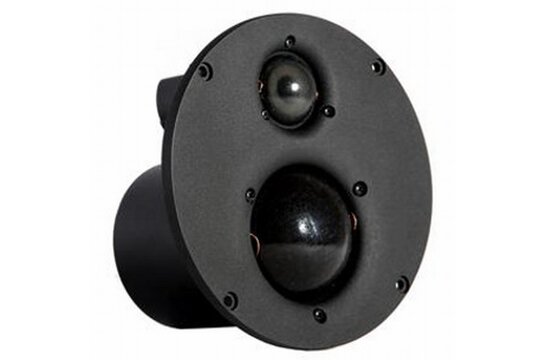

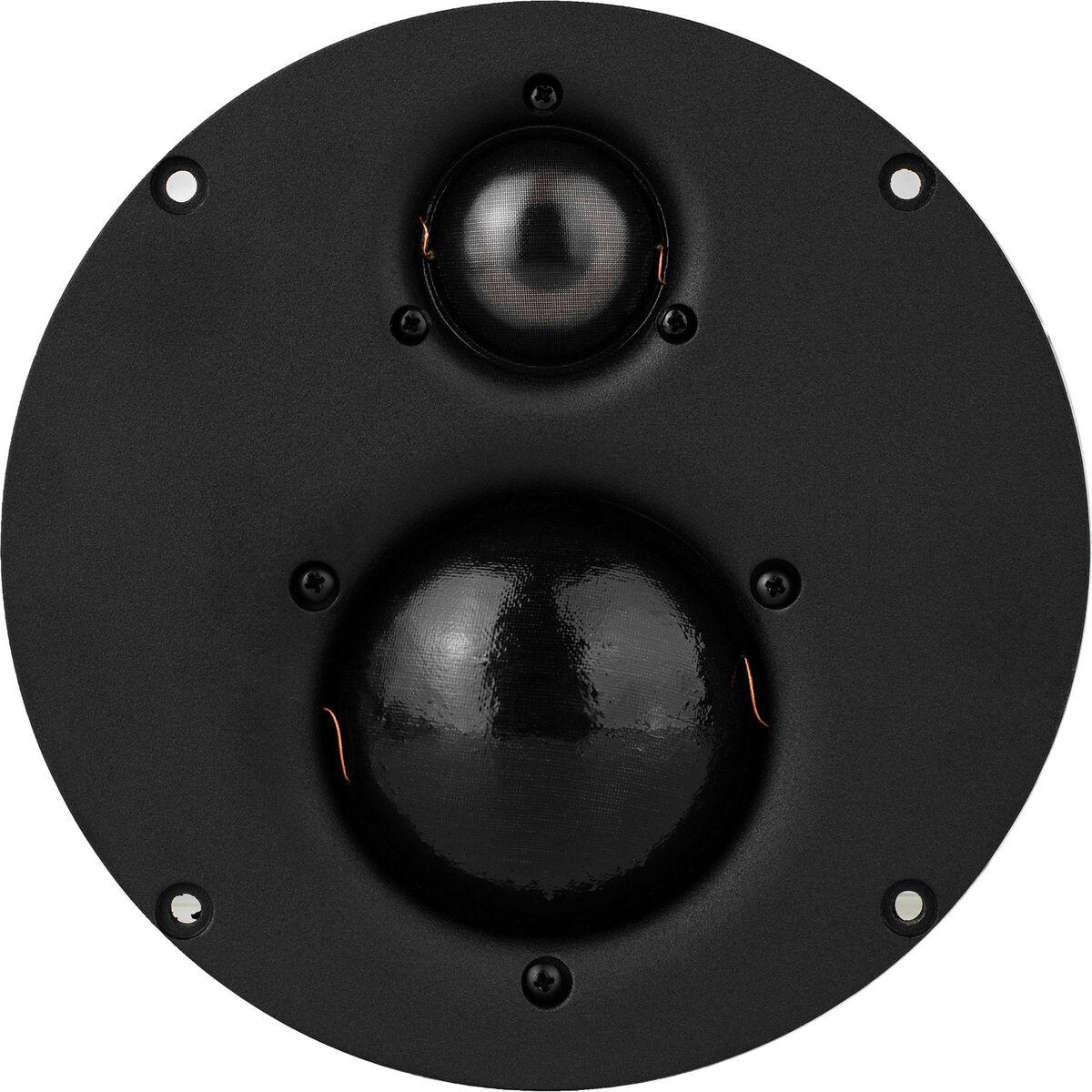

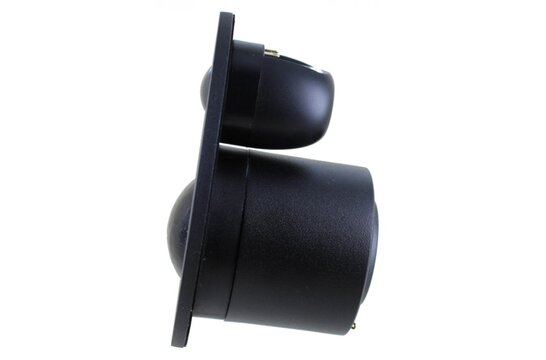

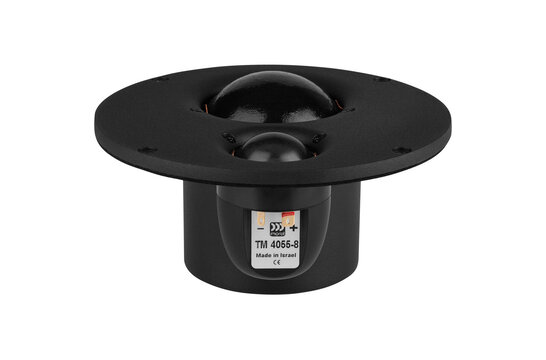

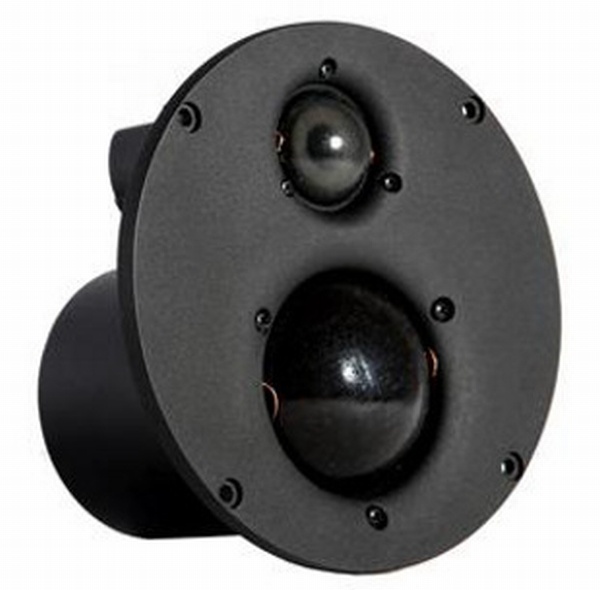

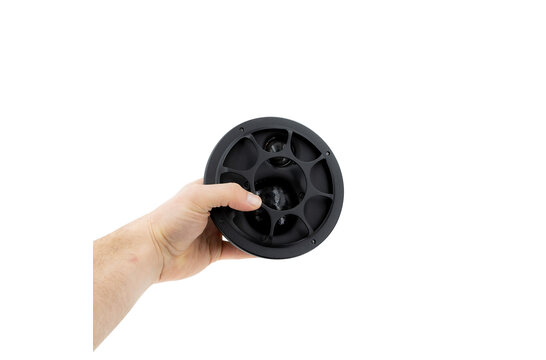

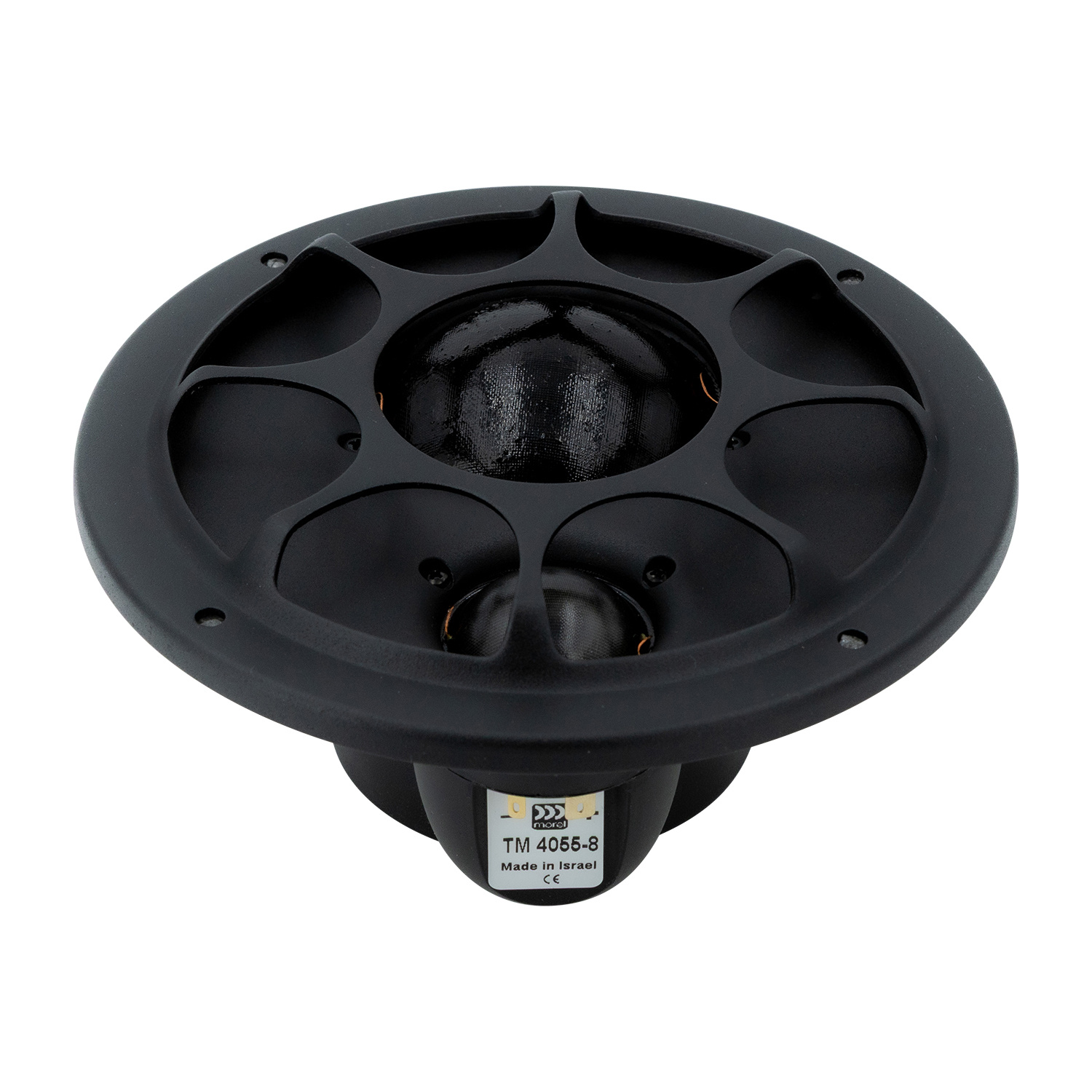

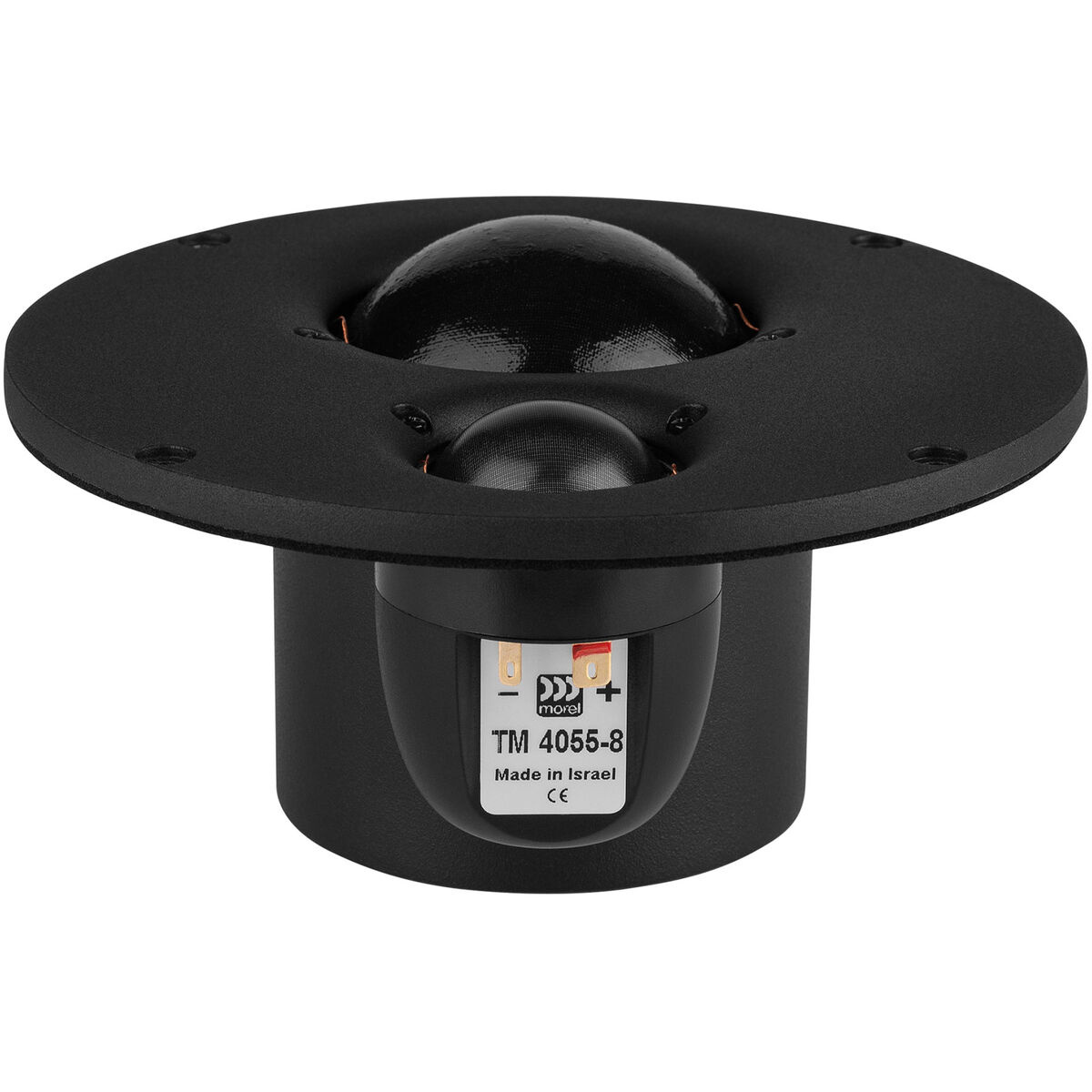

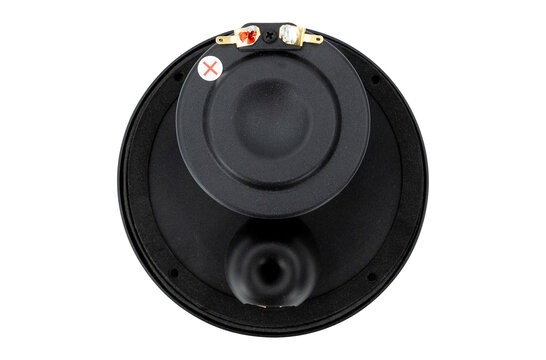

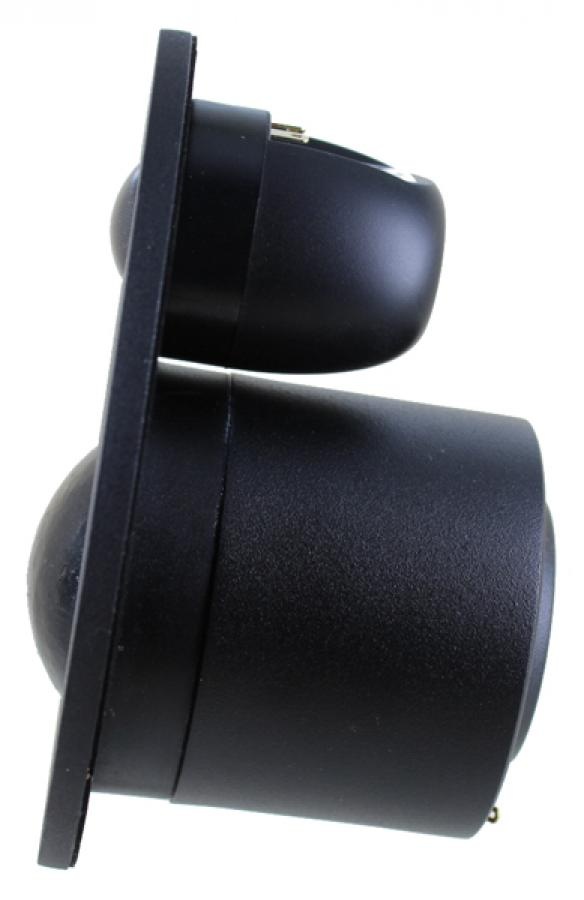

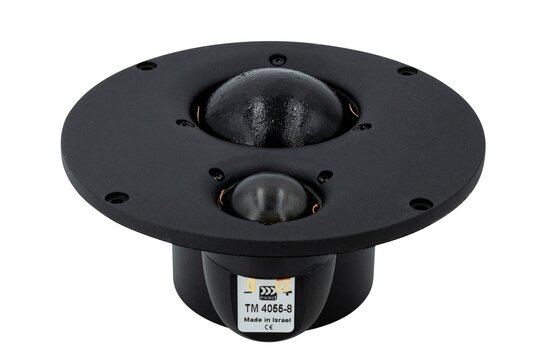

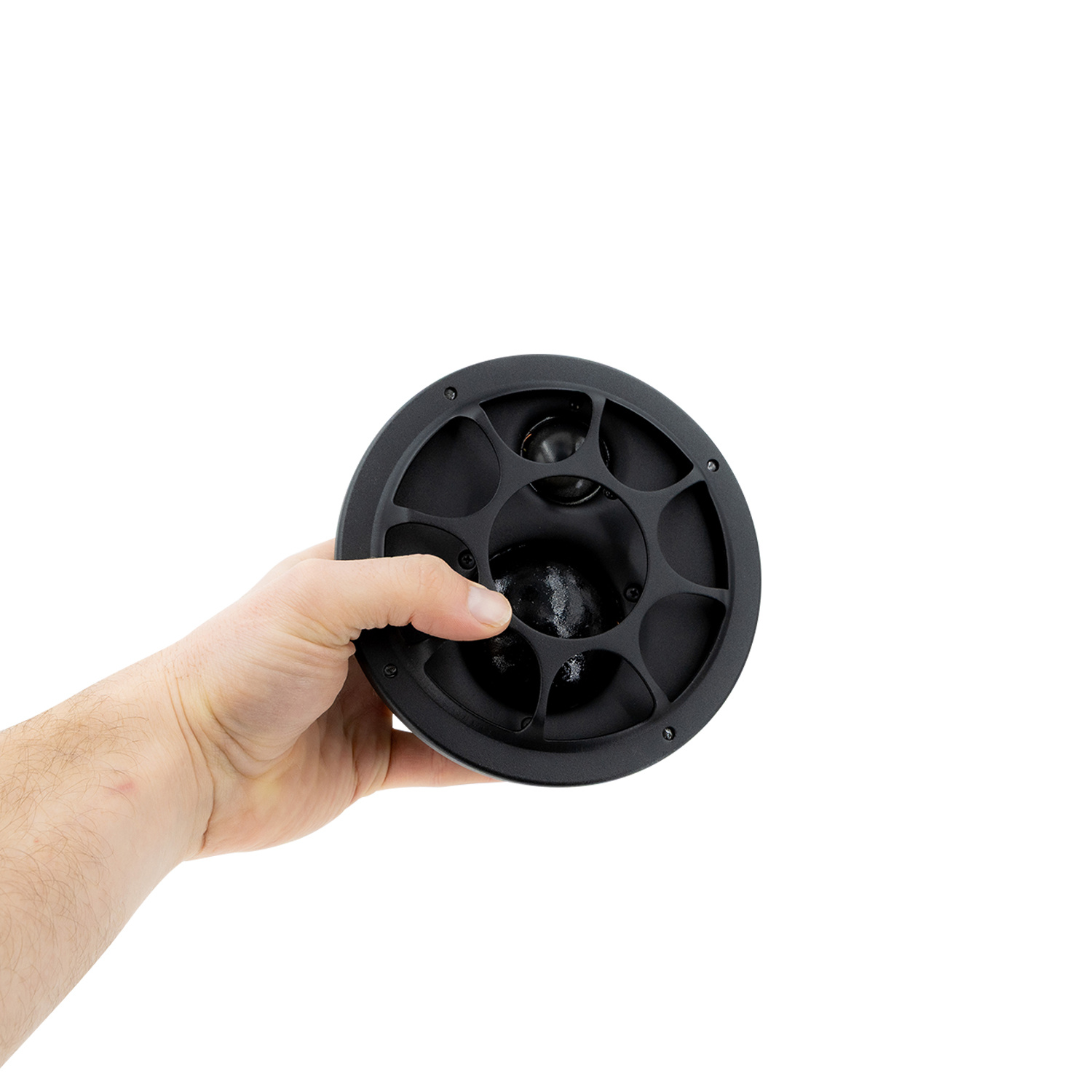

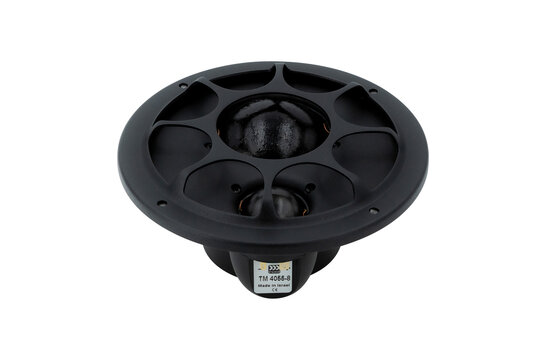

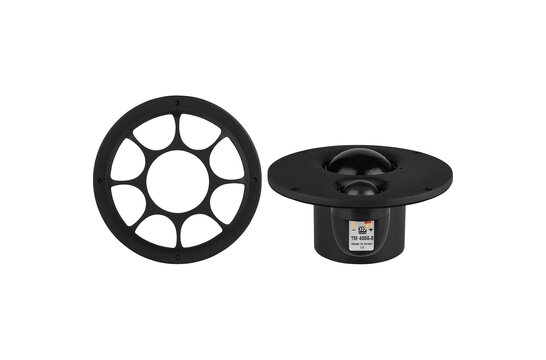

The Morel TM4055-8, lovingly referred to as the TweeMid, is an exquisite pairing of a 2" dome midrange, and a 1-1/8" dome tweeter on an easy to install plate. These drivers are designed to be paired in close proximity to each other, and offer a very flat summed response with excellent on and off axis response.

Highlights

Optimized proximity of tweeter and midrange
Excellent on and off-axis response
Easily allows for horizontal or vertical installation
Fits cut outs for Morel 5" woofers

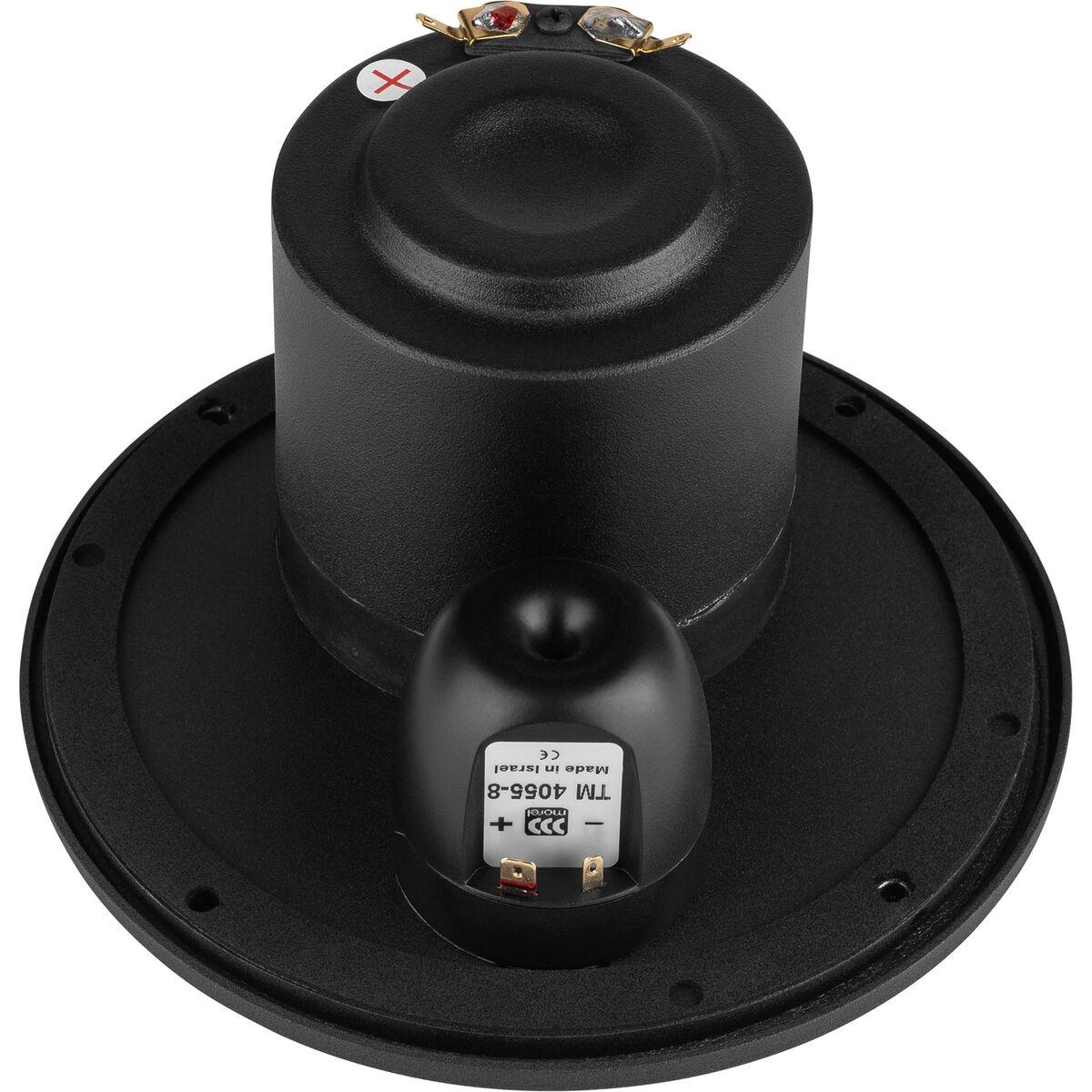

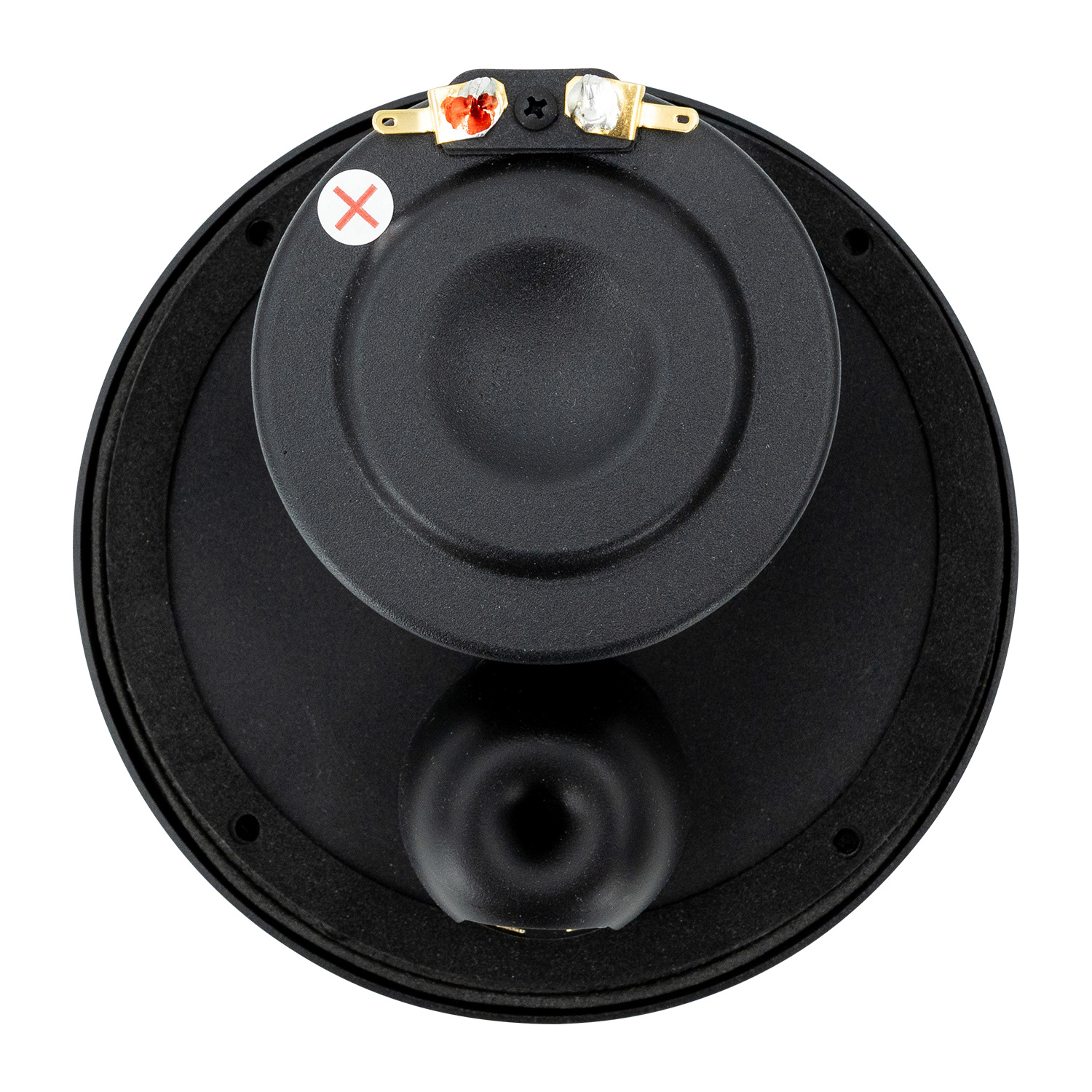

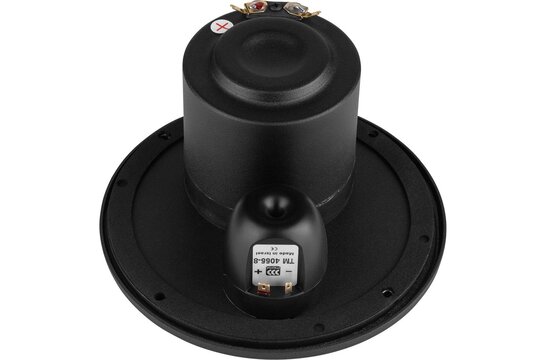

Internally damped, aluminum rear chamber
2.1" Acuflex™ hand coated soft dome midrange

Product details

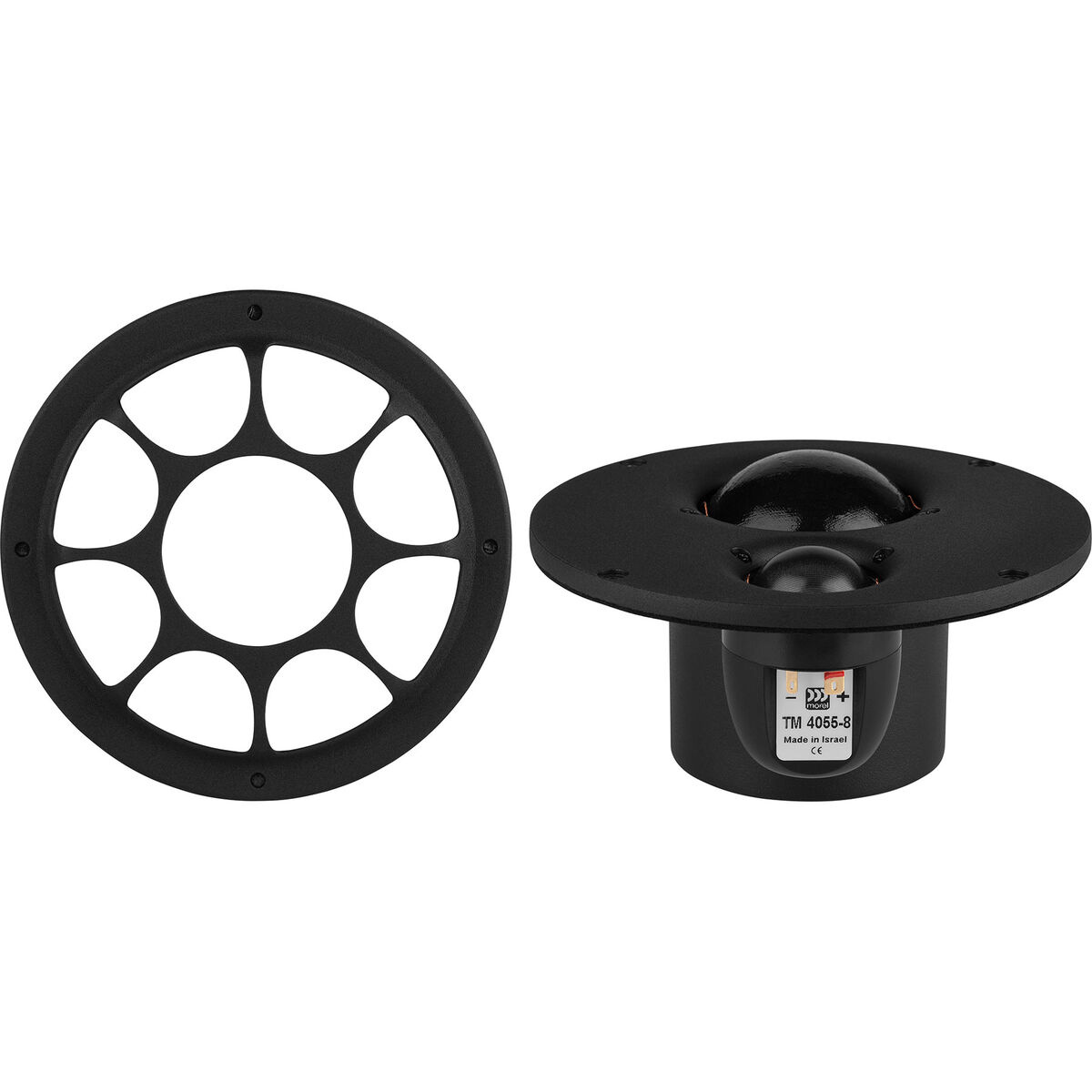

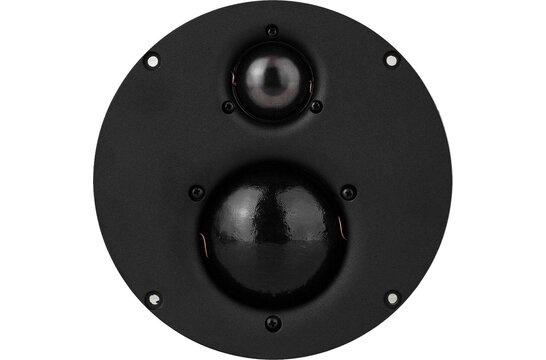

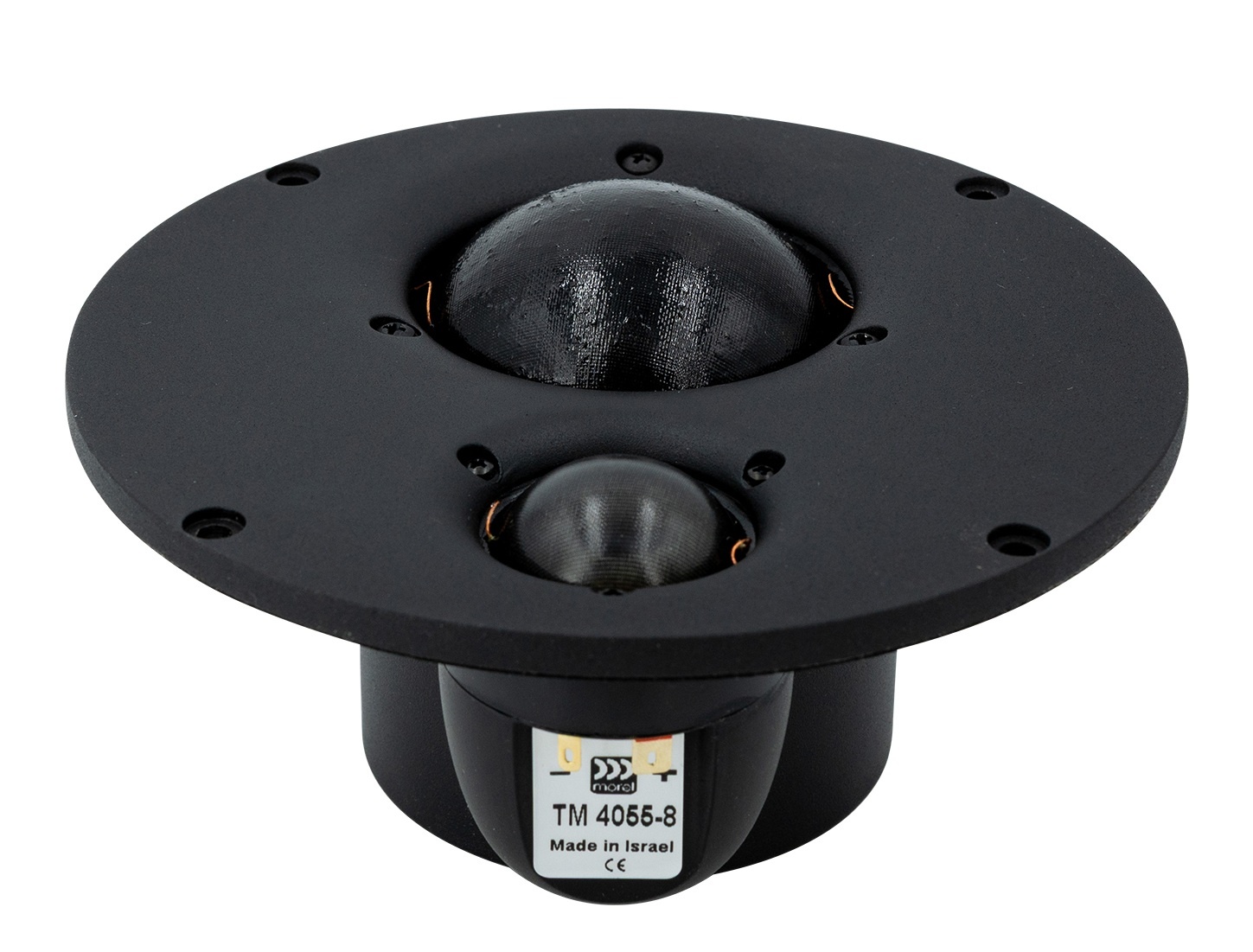

Morel TM4055-8 2" Midrange and 1-1/8" Tweeter Speaker Plate

The Morel TM4055-8, lovingly referred to as the TweeMid, is an exquisite pairing of a 2" dome midrange, and a 1-1/8" dome tweeter on an easy to install plate. These drivers designed to be paired in close proximity to each other and offer a very flat summed response with excellent on and off axis response. The hand coated Acuflex soft dome midrange provides a fantastic blend of articulation and relatively low resonant frequency. The excellent on and off axis response makes choosing a mounting location less imperative than most drivers.

2" Midrange:

Specifications: • Power handling: 200 watts RMS/1000 watts max • VCdia: 2.1" • Le: 0.17 mH • Impedance: 8 ohms • Re: 6.5 ohms • Frequency response: 365-4,200 Hz • Fs: 365 Hz • SPL: 86.5 dB 2.83V/1m • Vas: 0.03 cu. ft. (0.08 liters) • Qms: 0.84 • Qes: 1.32 • Qts: 0.51 • Xmax: 1.0 mm

1-1/8" Tweeter:

Specifications: • Power handling: 120 watts RMS/1000 watts max • VCdia: 1" • Le: 0.07 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.42 ohms • Frequency response: 640-20,000 Hz • Fs: 640 Hz • SPL: 86.5 dB 2.83V/1m • Qms: 1.28 • Qes: 1.55 • Qts: 0.70.
