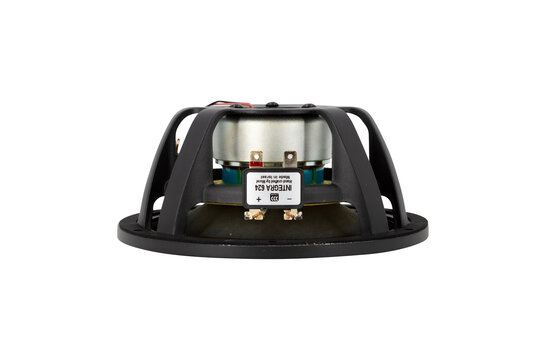

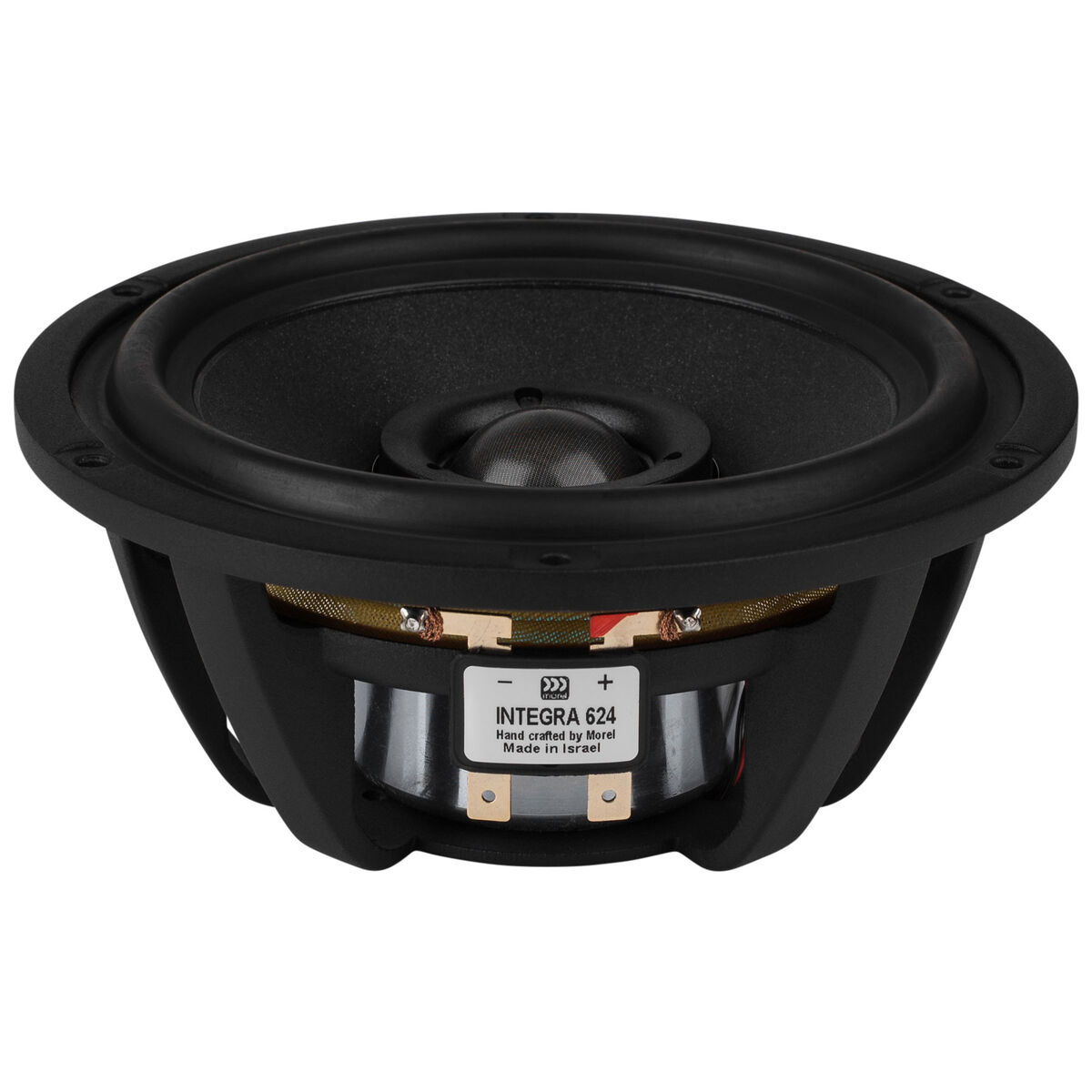

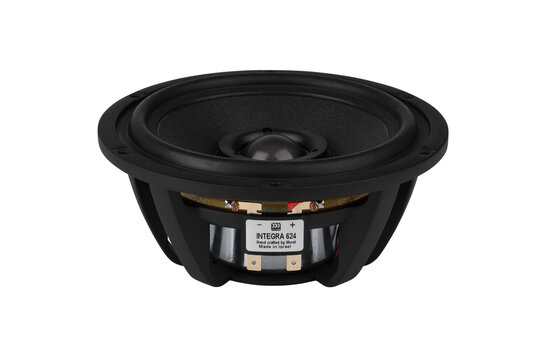

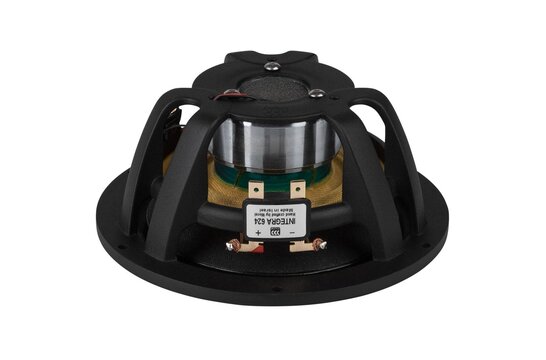

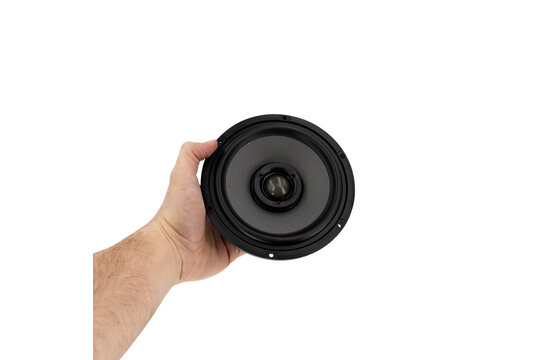

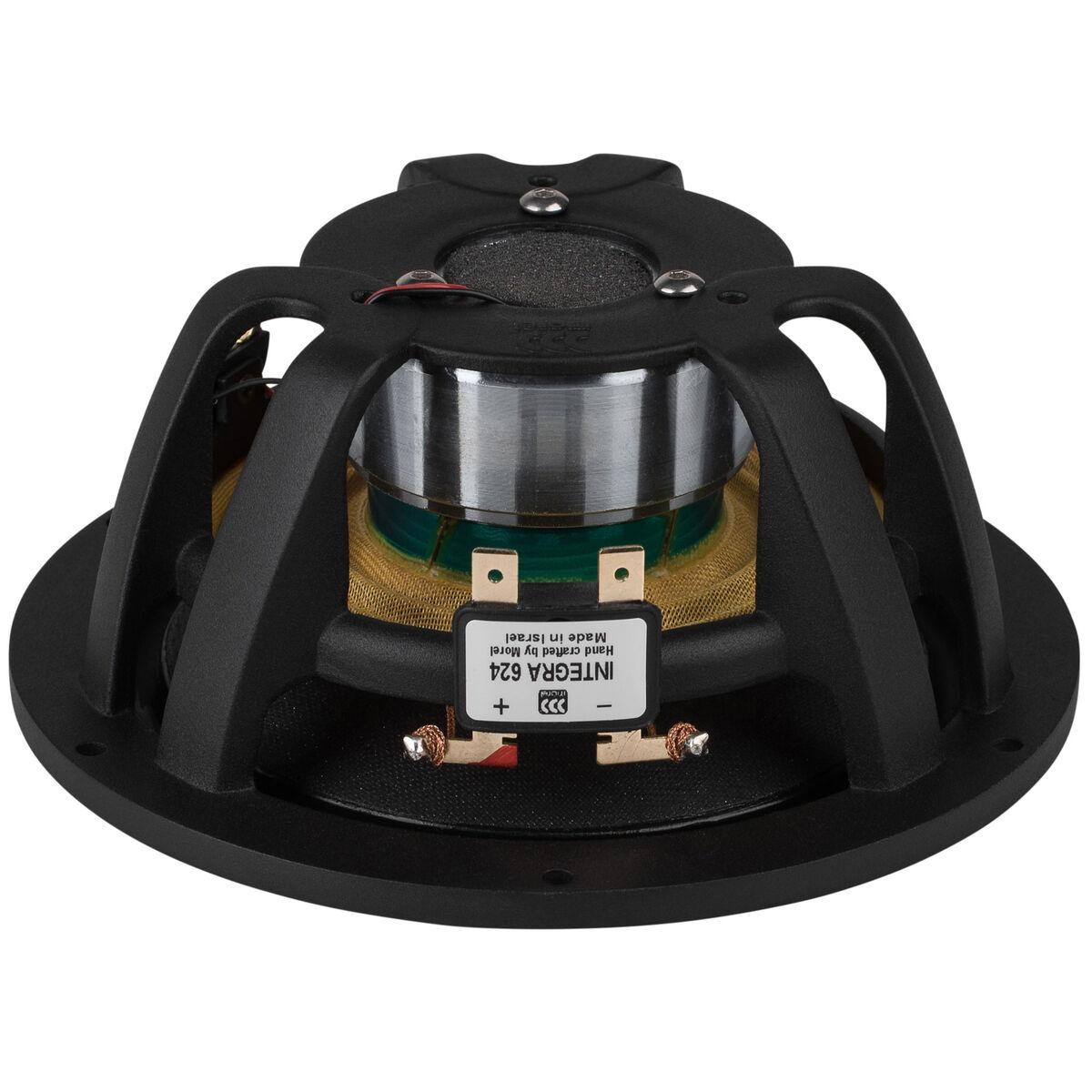

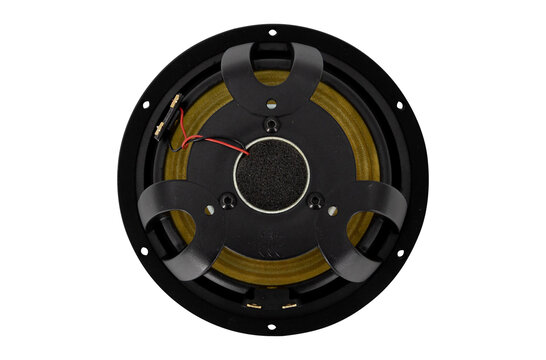

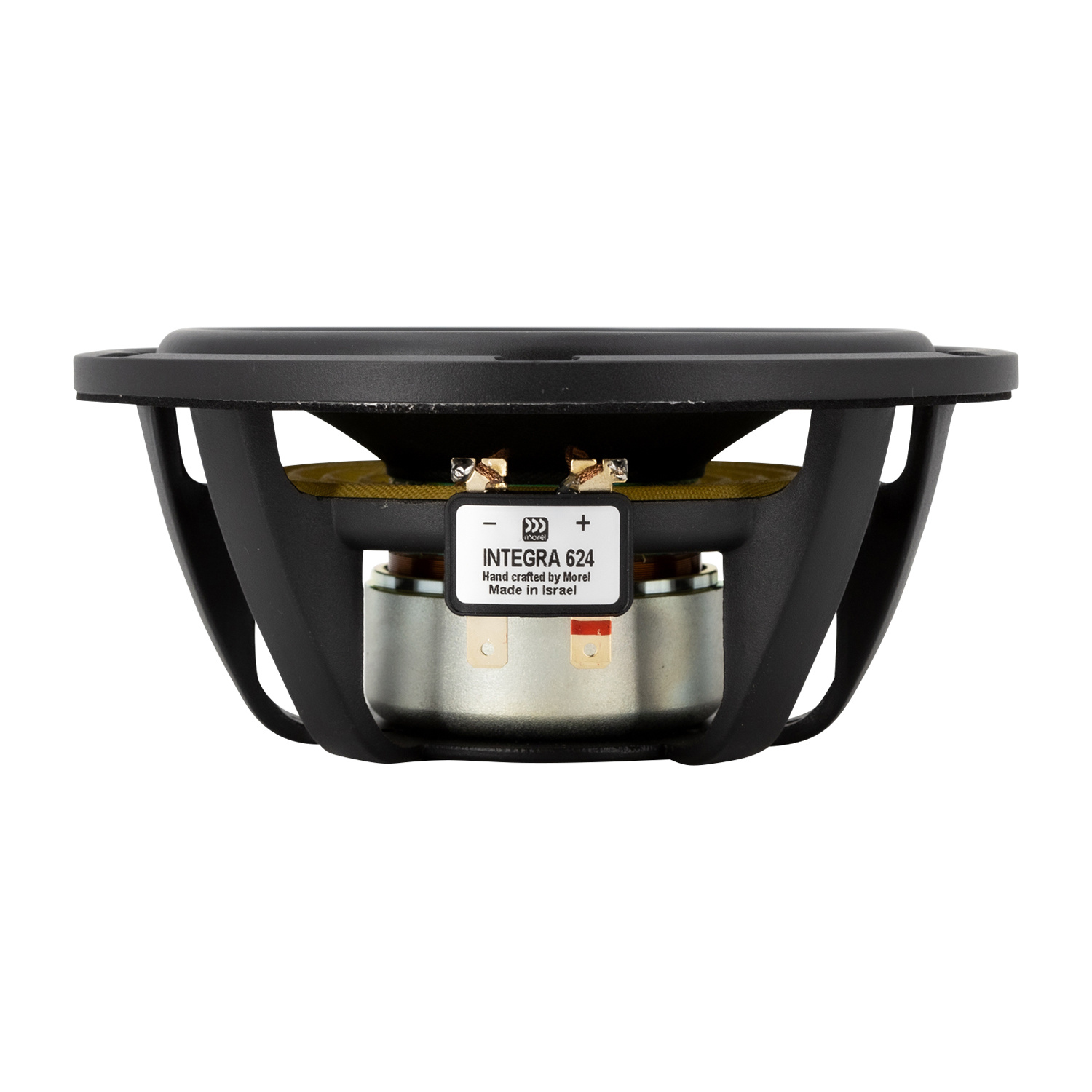

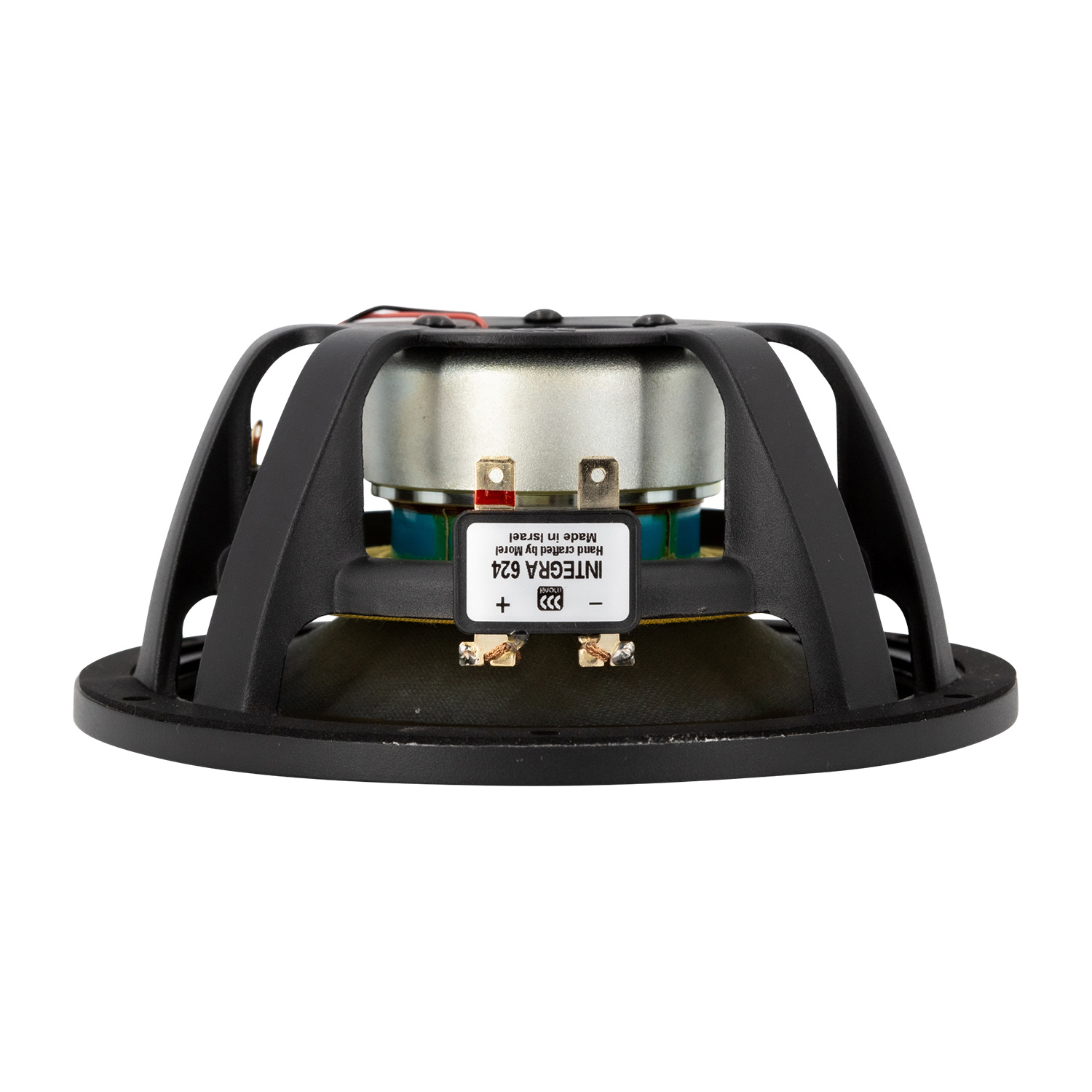

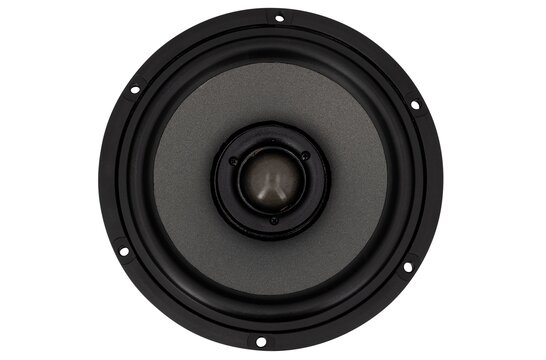

Name: Morel Integra 624 Woofer Coassiale
Brand: Morel
SKU: Integra 624
Price: 279.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

6'' | 4 Ω

€ 231,36€ 279,95 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato prima delle 16:00, spedito oggi
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Morel Integra 624 Woofer Coassiale

Morel designed the Integra 624 6" driver from the ground up to push the limits of what is possible with coaxial drivers. By using a huge 2.1" voice coil on the woofer, Morel concentrically mounted the 1.1" soft dome tweeter allowing for near perfect time-alignment with amazing off axis consistency.

Highlights

Time aligned woofer and tweeter configuration minimizes off axis anomalies
Massive 2.1" Hexatech™ voice coil is driven by a powerful hybrid neodymium/ferrite motor
1.1" Accuflex™ soft dome tweeter produces little distortion even at high output
Uniflow™ frame allows ample airflow to minimize compression and cool the voice coils

Product details

Morel Integra 624 Hybrid Series 6" Point Source Coaxial Full-Range

Morel's Integra 624 6" coaxial driver is unlike any other coaxial driver. By using a large voice coil on the woofer, Morel was able to mount the 1.1" Accuflex™ soft dome tweeter concentrically within the woofer cone. This results in minimal phase errors compared to conventional coaxial designs and allows the combined response to be ideal in all directions resulting from the near perfect time-alignment.

The Integra 624 features a large 28 mm Acuflex™ soft dome tweeter. Morel's innovative Acuflex™ is a specially engineered damping compound that allows for controlled accurate flexing, meaning each break-up mode is counteracted by another in the opposite direction. This action allows for the natural pure sound that has made Morel tweeters famous. The woofer uses a large 2.1" Hexatech™ aluminum voice coil to drive the low profile composite paper cone that excels in both on and off axis response.

The motor designed for the Integra 624 driver is an unconventional, innovative and highly effective Hybrid™ magnet system that uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size.

Specifications (Woofer): • Power handling: 80 watts RMS/500 watts max • VC dia: 2.1" • Le: 0.53 mH • Impedance: 4 ohms • Re: 3.68 ohms • Frequency response: 55-4,000 Hz • Fs: 58 Hz • SPL: 90.3 dB 2.83V/1m • Vas: 0.54 cu. ft. • Qms: 1.84 • Qes: 0.43 • Qts: 0.35 • Xmax: 3 mm.

Specifications (Tweeter): • Power handling: 80 watts RMS/200 watts max (with recommended crossover of 2,500 Hz/12 dB slope) • VCdia: 1.1" • Le: 0.84 mH • Impedance: 4 ohms • Re: 3.73 ohms • Frequency response: 2,200-20,000 Hz • Fs: 1124 Hz • SPL: 89 dB 2.83V/1m.
