Name: Monacor VRB-100S100 Rotary Potentiometer stereo 100 kΩ
Brand: Monacor
SKU: VRB-100S100
Price: 4.95 EUR
Availability: InStock

VRB-100S100 Rotary Potentiometer stereo 100 kΩ

€ 4,09€ 4,95 2 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Monacor VRB-100S100 Rotary Potentiometer 100 kΩ

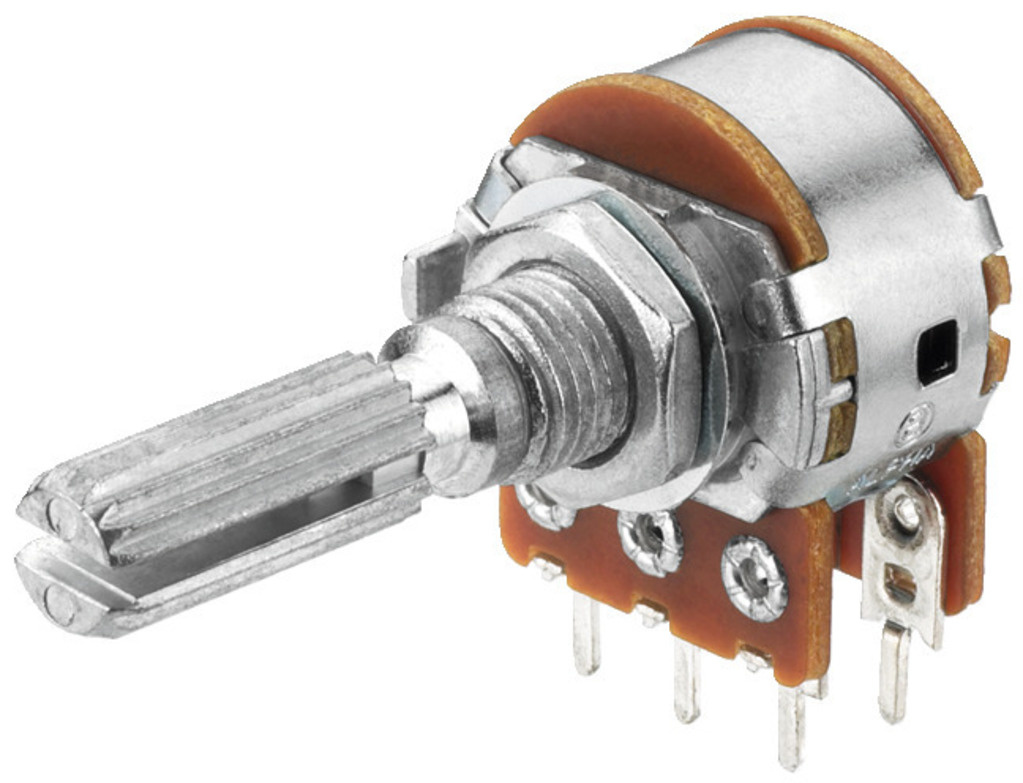

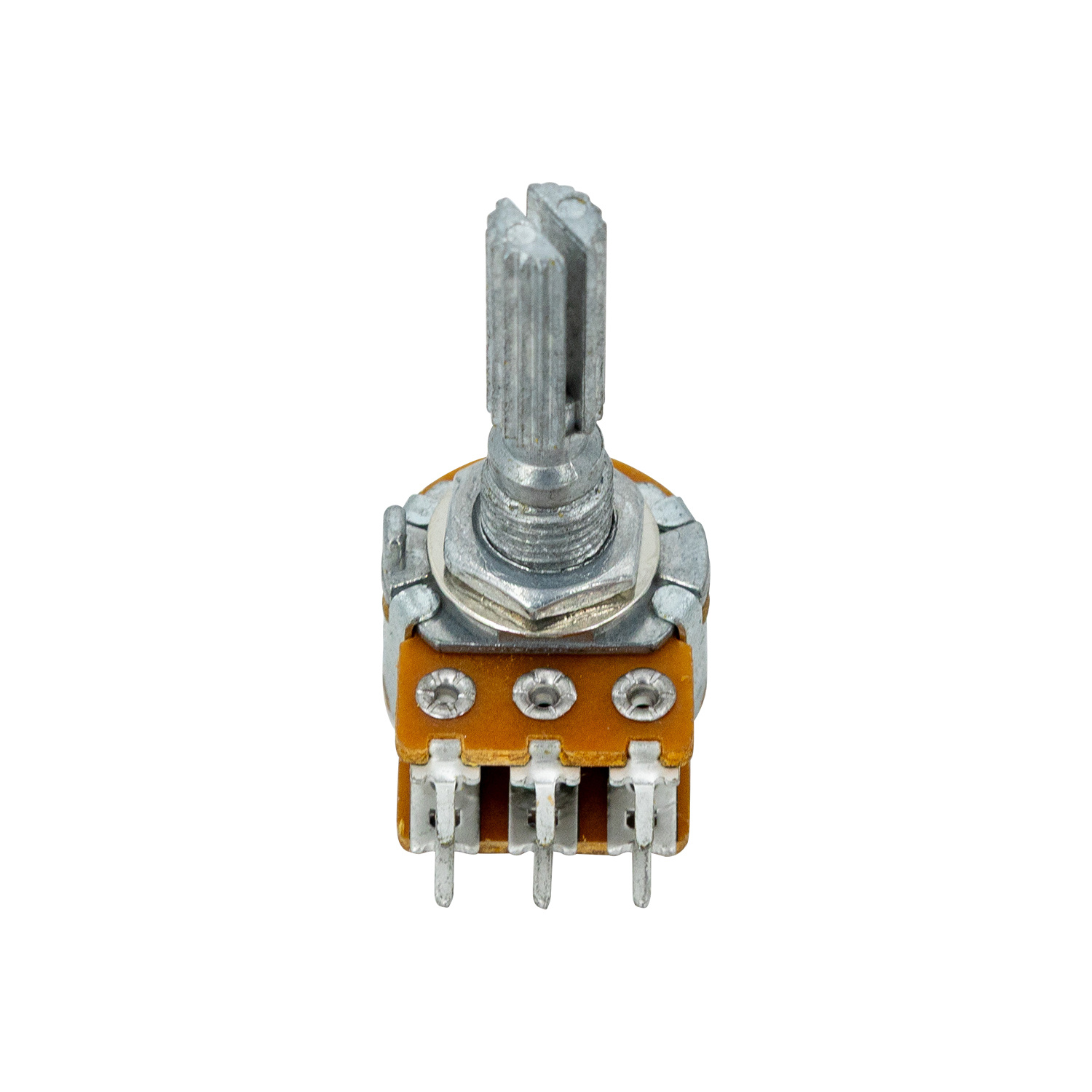

The Monacor VRB-100S100 is a high-quality stereo potentiometer with a 100 kΩ resistance and a 300° rotation angle. It is designed for use in audio applications and features a slotted 6 mm shaft for easy mounting.

Highlights

Resistance: 100 kΩ
Characteristic: Linear
Power rating: 0.2 W
Insulating resistance: < 100 MΩ/ DC 500 V
Test voltage: ˜ 500 V/1 min
Tracking error: ±3 dB, 0/-40 dB
Rotation angle: 300° ±5°

Product details

Monacor VRB-100S100 Rotary Potentiometer 100 kΩ

The potentiometer has nut fixing and PCB solder contacts for secure mounting. It also features a linear characteristic, which means that the output voltage changes linearly with the rotation of the shaft. This makes it ideal for applications such as volume control and tone control. The Monacor VRB-100S100 is a versatile potentiometer that can be used in a variety of audio applications. It is available from a variety of online retailers at a reasonable price.
