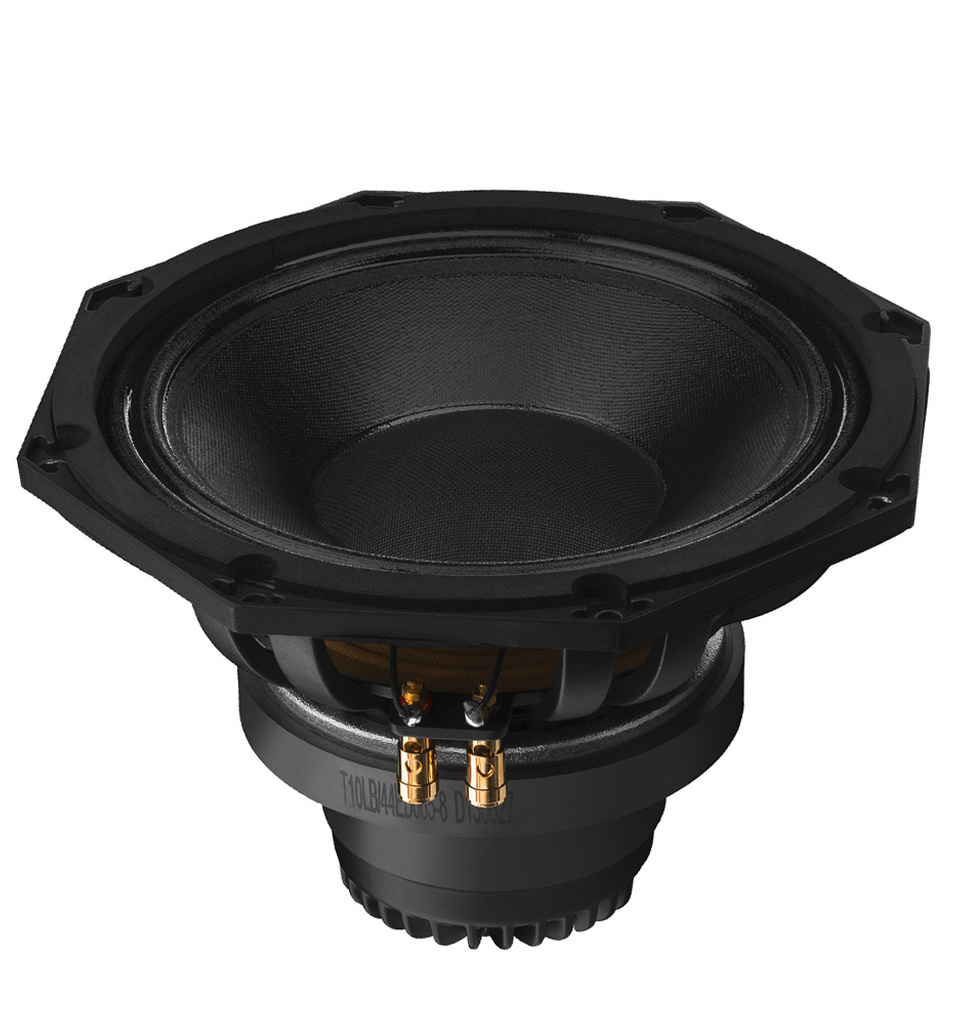

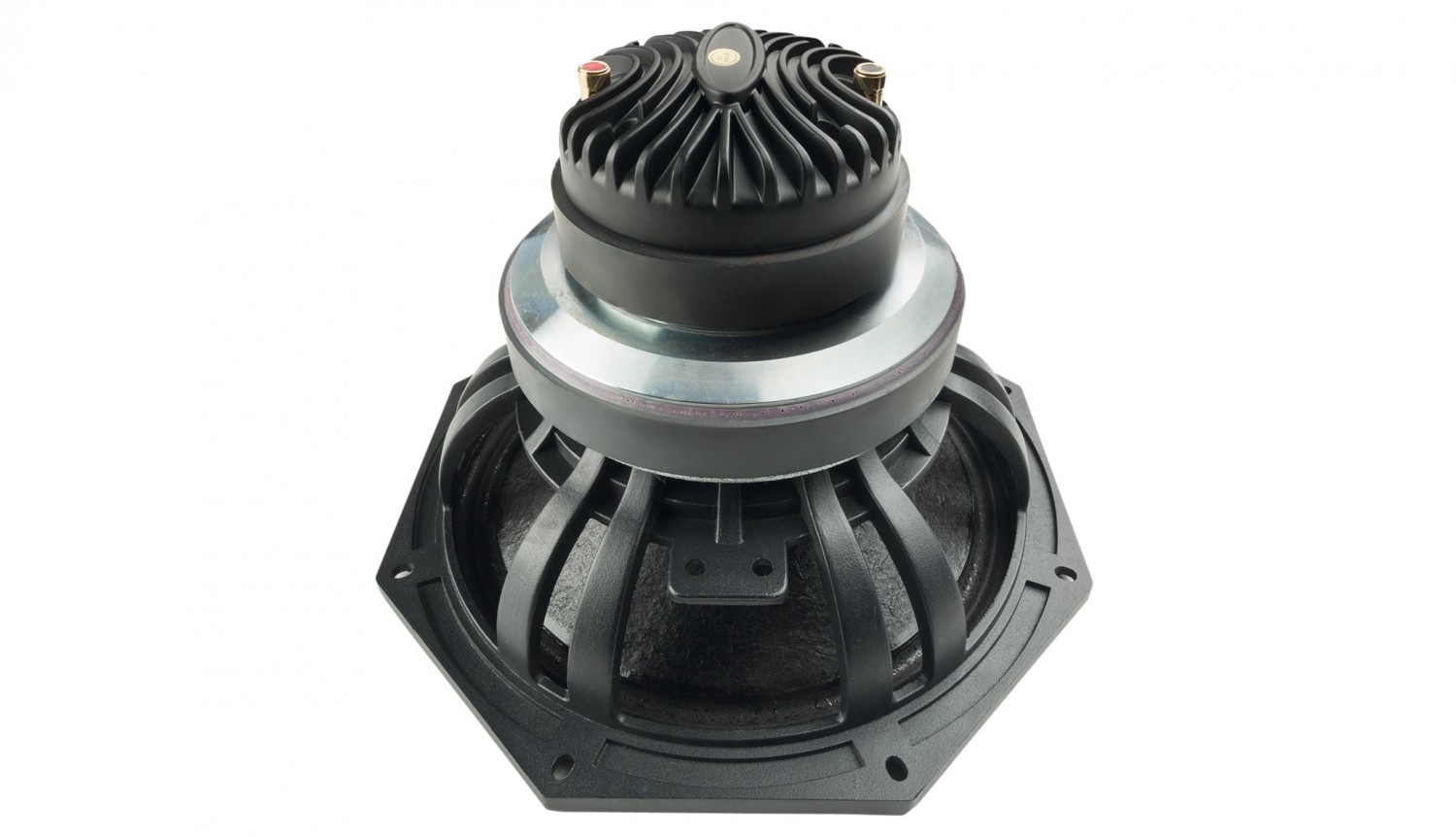

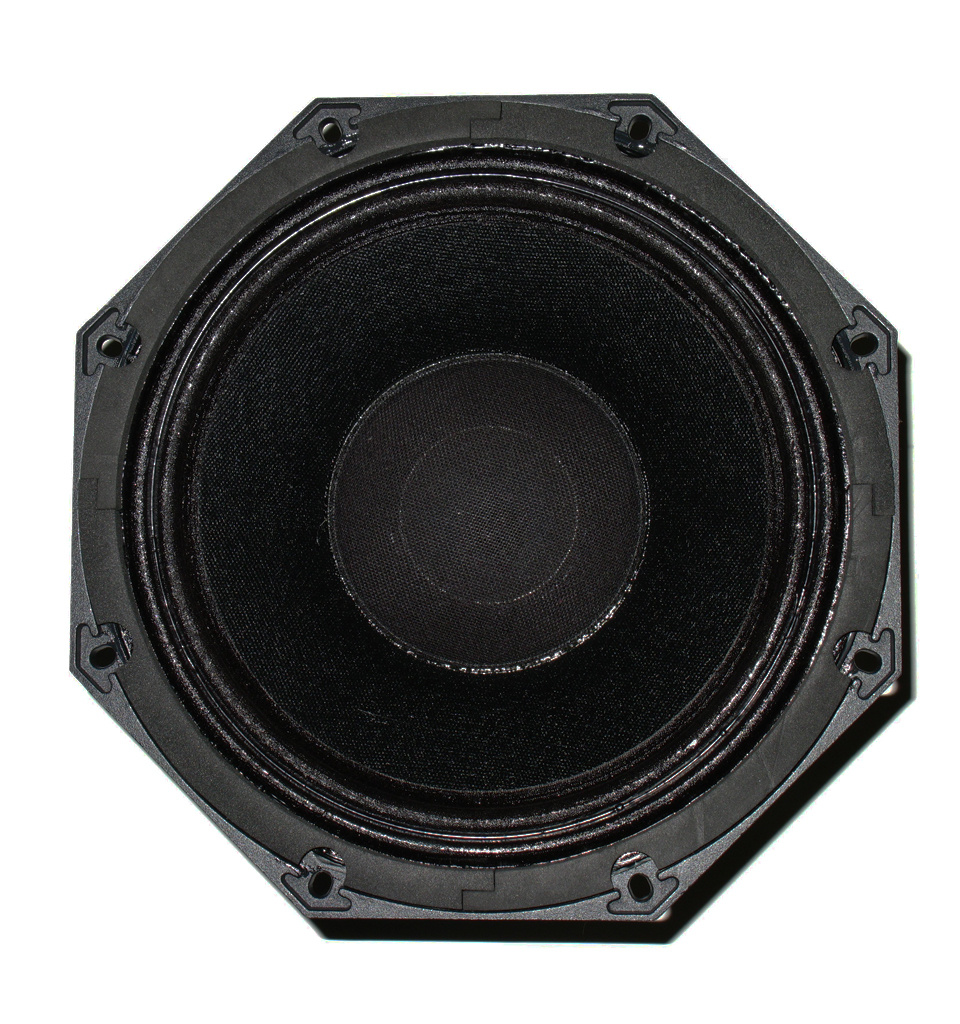

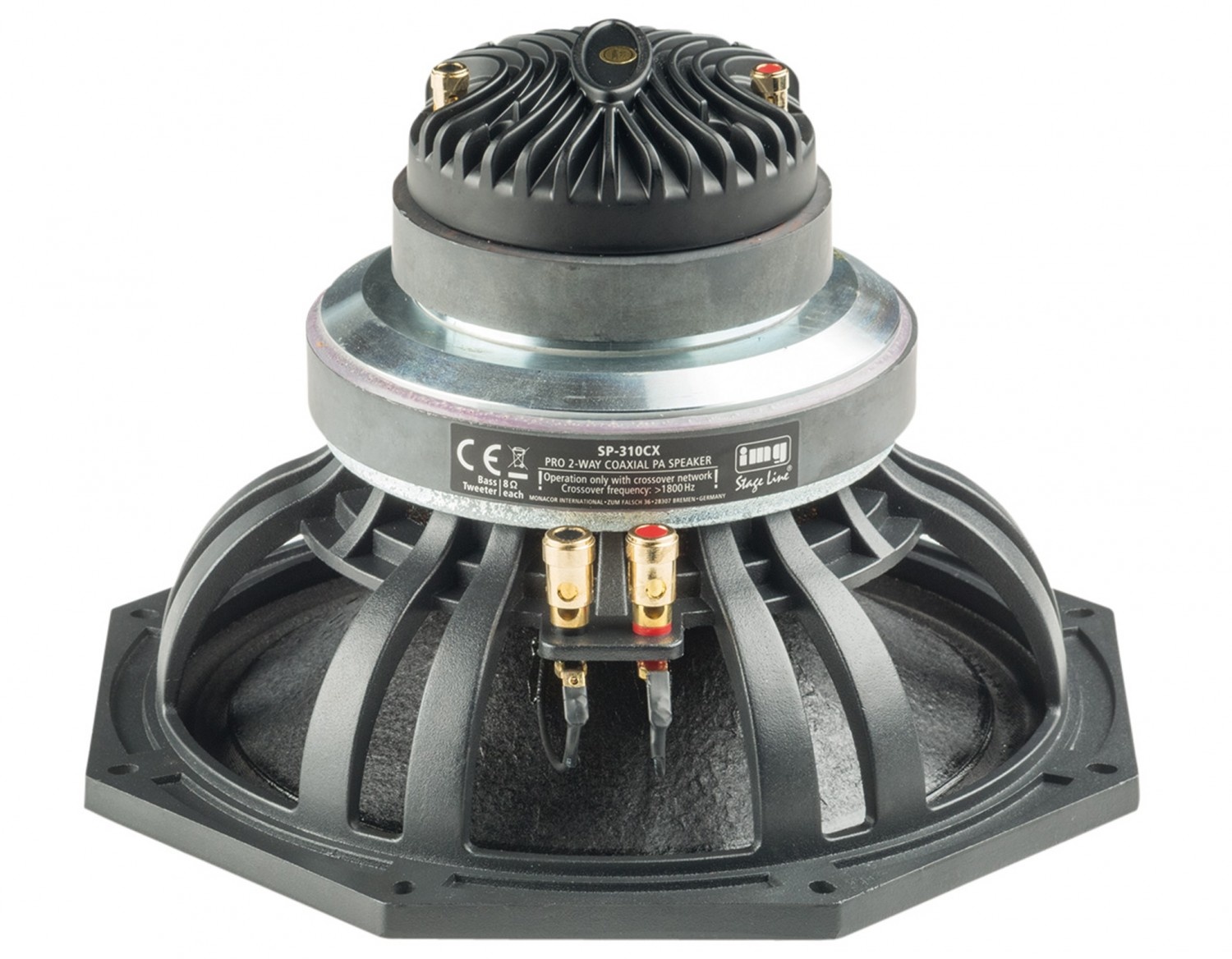

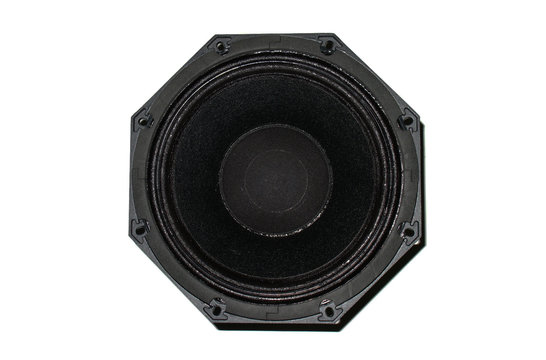

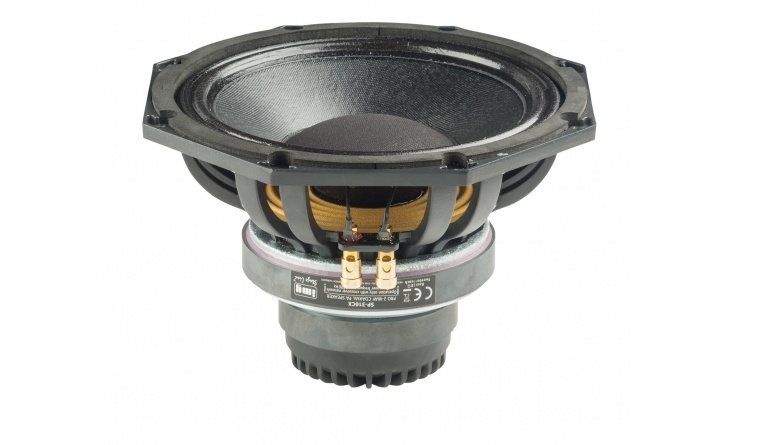

      Descrizione del prodotto Monacor SP-310CX Woofer Coassiale

      The SP-310CX coaxial woofer is a PA bass speaker of high power capability and high efficiency. Featuring a coaxially arranged horn tweeter it has excellent sound characteristics.



      Highlights

      • 25 cm (10") PA bass speaker of high power capability and high efficiency

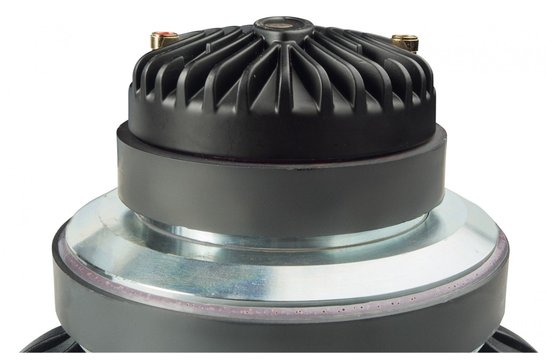

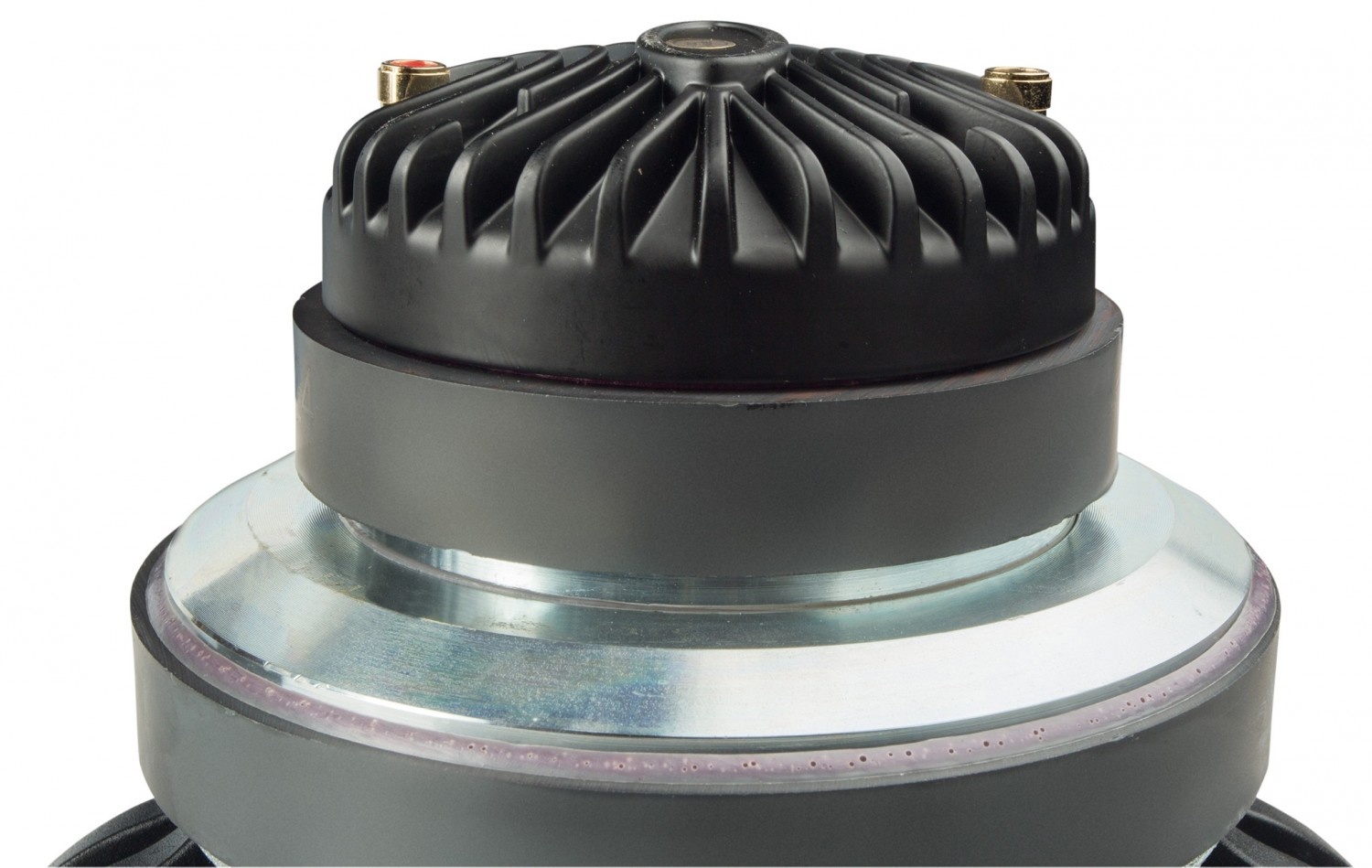

      • Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
      • Robust diecast basket with rear-ventilated centering spider
      • 64 mm (2½") heat-resistant voice coil on a polyamide voice coil former (TIL)
      • Excellent and consistent radiation pattern





      Product Details

      SP-310CX 2-Way Coaxial PA Speaker with Integrated Horn Tweeter



      The SP-310CX features an excellent and consistent radiation pattern. Due to its robust diecast basket and a heat-resistant voice coil it is shock and heat protected. It furthermore features an excellent and consistent radiation pattern. The result is a powerful speaker that is ideally suited for stage monitors or very compact full range speaker systems.



      Note: Operation only allowed with crossover network (recommended crossover frequency: >1,800 Hz)



      Klang+Ton 02/2016

      “The speaker system Studio 10 features a very neutral sound with great power reserves. Suitable as a studio monitor as well as for hi-fi applications of high requirements. The Studio 10 provides a well-balanced and neutral sound which achieves top results.” (SP-310CX in a project from K+T)

      Show more

      Specifiche

      Numero dell'articolo:
      SP-310CX
      EAN
      4007754246582
      Tipo di woofer
      Coaxial
      Diametro nominale
      10"
      Gestione della potenza (RMS)
      200 Watts
      Gestione della potenza (max)
      400 W (bass) / 100 W (tweeter)
      Impedenza (Z)
      2 x 8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      96 dB
      Risposta in frequenza
      f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter)
      Diametro della bobina mobile
      64 mm (bass) / 44 mm (tweeter)
      Peso del magnete
      1.6 kg
      Resistenza DC (Re)
      5.6 ohms
      Induttanza della bobina mobile (Le)
      0.65 mH
      Frequenza di risonanza (Fs)
      W: 60 Hz T: 700 Hz
      Fattore di merito meccanico (Qms)
      3.24
      Fattore di merito elettromagnetico (Qes)
      0.36
      Fattore di merito totale (Qts)
      0.32
      Massa del diaframma incl. la massa dell'aria (Mms)
      32 g
      Cedevolezza meccanica della sospensione (Cms)
      0.24 mm/N
      Superficie del cono (Sd)
      346 cm2
      Prodotto BL (BL)
      13.30 Tm
      Volume equivalente di cedevolezza (Vas)
      41 l
      Escursione lineare massima (Xmax)
      2.5 mm
      Supporto della bobina mobile
      polyamide (TIL)
      Profondità complessiva
      188 mm
      Diametro del ritaglio del pannello frontale
      232 mm
      # Numero di fori di montaggio
      8
