miniDSP Harmony DSP 8x12 | Dirac Live | Car Amplifier

Dirac Live powered 12ch Car Amplifier, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, USB/SPDIF/A2B, OLED Remote for Preset/Master & Sub volume control Array

Highlights

• 400MHz 32bit Sharc Floating point processor
• Dirac Live technology helps tune your cabin environment
• All Digital amplifier
• USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs
• 12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps)
• Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
• Windows/Mac compatible GUI
• Remote control or preset/master & sub volume control

Product details

Harmony DSP 8x12 | Dirac Live | Car Amplifier

miniDSP is proud to introduce the latest addition to its line of innovative car audio processors. The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels.

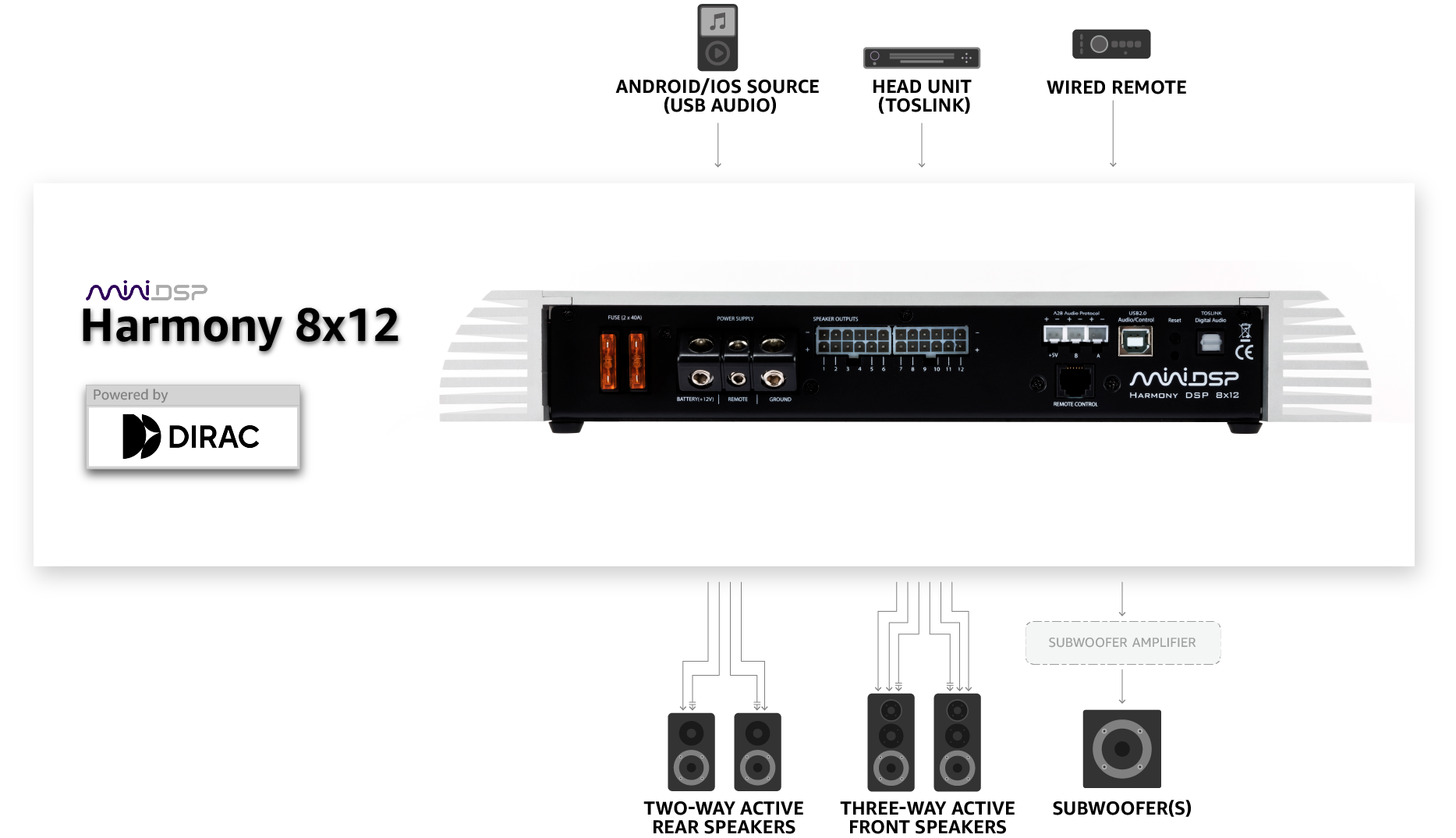

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console. Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers. In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads.

In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability. Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote.

What's in the Box?
1 x Harmony 8x12 Car Amplifier
1 x Dirac Live license
2 x Speaker wiring harness
1 x 1m USB cable
1 x 5m remote cable + OLED Remote control module
