      2x4 Boxed modulo DSP

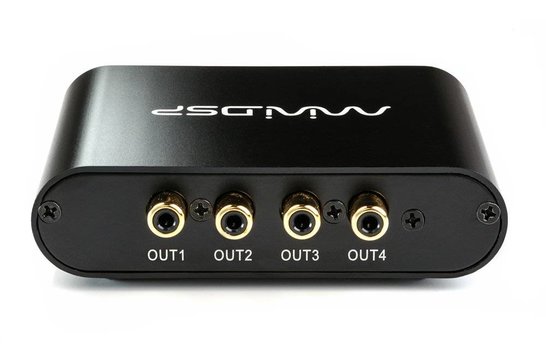

      miniDSP 2x4 Boxed modulo DSP

      €119,95

      Non disponibile: Fine del ciclo di vita. Non possiamo più fornire questo prodotto.

      miniDSP 2x4 Boxed modulo DSP

      48 reviews
      5 da 5
      48 reviews
      5 stars
      79%
      4 stars
      15%
      3 stars
      2%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: miniDSP
      € 99,13€ 119,95 Esaurito: Fine del ciclo di vita. Non possiamo più fornire questo prodotto.

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto miniDSP 2x4 Boxed modulo DSP

      The miniDSP 2x4 boxed has been phraced out by miniDSP and therefore is 'End of Life'. The best alternatives are the miniDSP 2x4HD boxed or the miniDSP 2x4 Flex (RCA).



      The 2x4 is the entry-level DSP module from miniDSP. The miniDSP 2x4 started a revolution for consumer-level DSP solution, and still is the first choice for many DSP applications.



      Highlights of the miniDSP 2x4

      • Small form factor
      • Programmable in real-time
      • AD- / DA-conversion at 24-bit resolution
      • Selectable input sensitivity

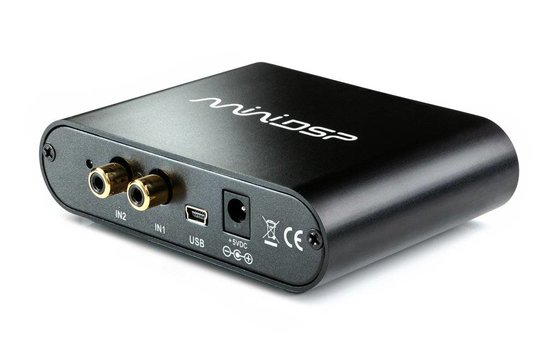

      • Power supply through USB or 2.1 x 5.5 mm DC connector



      Product details of the miniDSP 2x4

      miniDSP 2x4 Boxed Digital Signal Processor

      Tip:  Take a look at the table in this blog post to see which power supply to choose for this product.

      Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.



      When miniDSP started back in 2009, the miniDSP 2x4 was one of their debuting products. By combining powerful but affordable hardware with easy to use programming applications -or plugins-, miniDSP created a new standard for DSP solutions. This compelling combination meant a revolution for consumer DSP technology. Thanks to constant revisions, the miniDSP 2x4 still is a very popular and viable product in our DSP modules category.

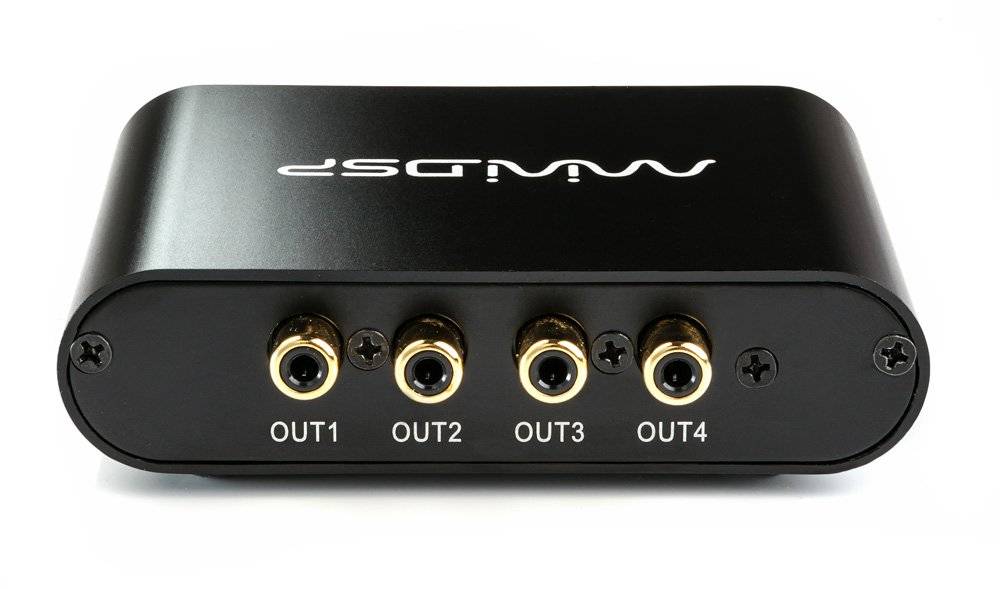

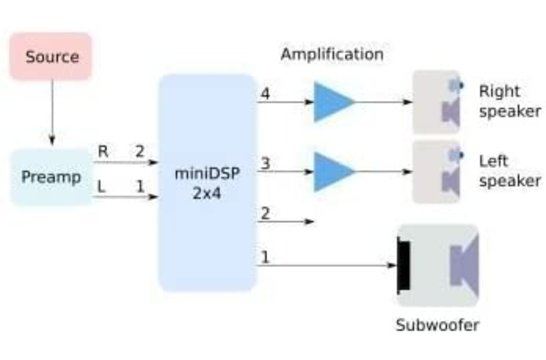

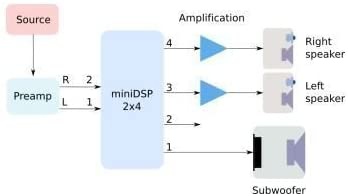

      The 2x4 takes two analogue input signals, processes the signals according to your program and passes them to the next device over 4 independent outputs. There is huge flexibility in how the signals get processed. This creates a vast array of potential applications, ranging from active crossovers for a two-way stereo system and audio mixing applications to subwoofer integration and trying prototype filters for your new design! The unit can be powered through USB, but also accepts a 5 – 24 VDC supply on the 2.1 x 5.5 mm DC connector.



      The 2x4 plugins have a clear GUI that provides an intuitive way to program filters and adjust settings, so they match your needs. The 2x4 can be programmed real-time, allowing you to finetune the filters while listening to your reference material.



      What’s in the box of the miniDSP 2x4?

      • 1 x miniDSP 2x4 Boxed (rev. B)
      • 1 x shielded miniUSB cable
      • 1 x coupon code for miniDSP plugin download.



      FAQ about the miniDSP 2x4 DSP

      I noticed there are two versions available; RevA and RevB. Which one do you supply?

      We only supply RevB. Rev(ision) suggested a whole different version, but A and B only differ on the max input level. RevB. allows a maximum input level of 2 Vrms. The maximum input level can easily be changed through a jumper. If you feel comfortable opening up the unit (only a screwdriver required), you can change RevB into RevA and vice versa yourself.



      There are multiple plugins available for the 2x4, which one should I choose?

      We recommend the 2x4 Advanced plugin. This plugin supersedes the other options in most applications. It allows for PEQ filters on all in- and output channels and matrix mixer for flexible signal routing. The other plugins are more focused on specific applications. Many of these applications can also be achieved through the 2x4 Advanced while leaving the options open if you wish to use your 2x4 for other purposes.

      Show more

      Specifiche

      Numero dell'articolo:
      2x4 Boxed
      EAN
      0642125616911
      Tipo di dispositivo
      Boxed
      Serie del dispositivo
      2x4
      Chip DSP
      Analog Devices ADAU1701
      Risoluzione di elaborazione e frequenza di campionamento
      24 - 56 bit / 48 kHz
      Configurazione ingressi/uscite
      2 / 4
      Connettività ingressi audio
      RCA
      Connettività uscite audio
      RCA
      Livello di ingresso massimo
      0.9 / 2 Vrms (selectable)
      Livello di uscita massimo
      0.9 Vrms
      Impedenza di ingresso
      8.8k (0.9 V) / 20k ohms (2.0 V)
      Impedenza di uscita
      560 ohms
      Software di calibrazione
      miniDSP 2x4 plug-ins
      IIR
      FIR
      -
      Dirac Live®
      -
      Preset DSP
      -
      Correzione della risposta all'impulso
      -
      Apprendimento telecomando a infrarossi
      -
      Compatibile con Windows / Mac
      /
      UMIK-1 incluso
      No
      Supporto per Room EQ Wizard
      -
      Dimensioni
      107 x 94 x 26 mm
      Alimentazione
      5 VDC (USB powered)
