      Descrizione del prodotto Markaudio PLUVIA-7PHD Woofer a Gamma Completa

      The new paper-cone Pluvia 7 PHD was developed with the attractive paper cone, unique suspension and low-mass coil which is wound in high-purity rectangular section copper. The Thiele / Small characteristics are engineered to allow surprising bass performance from a compact drive unit.



      Highlights

      • Latest-model

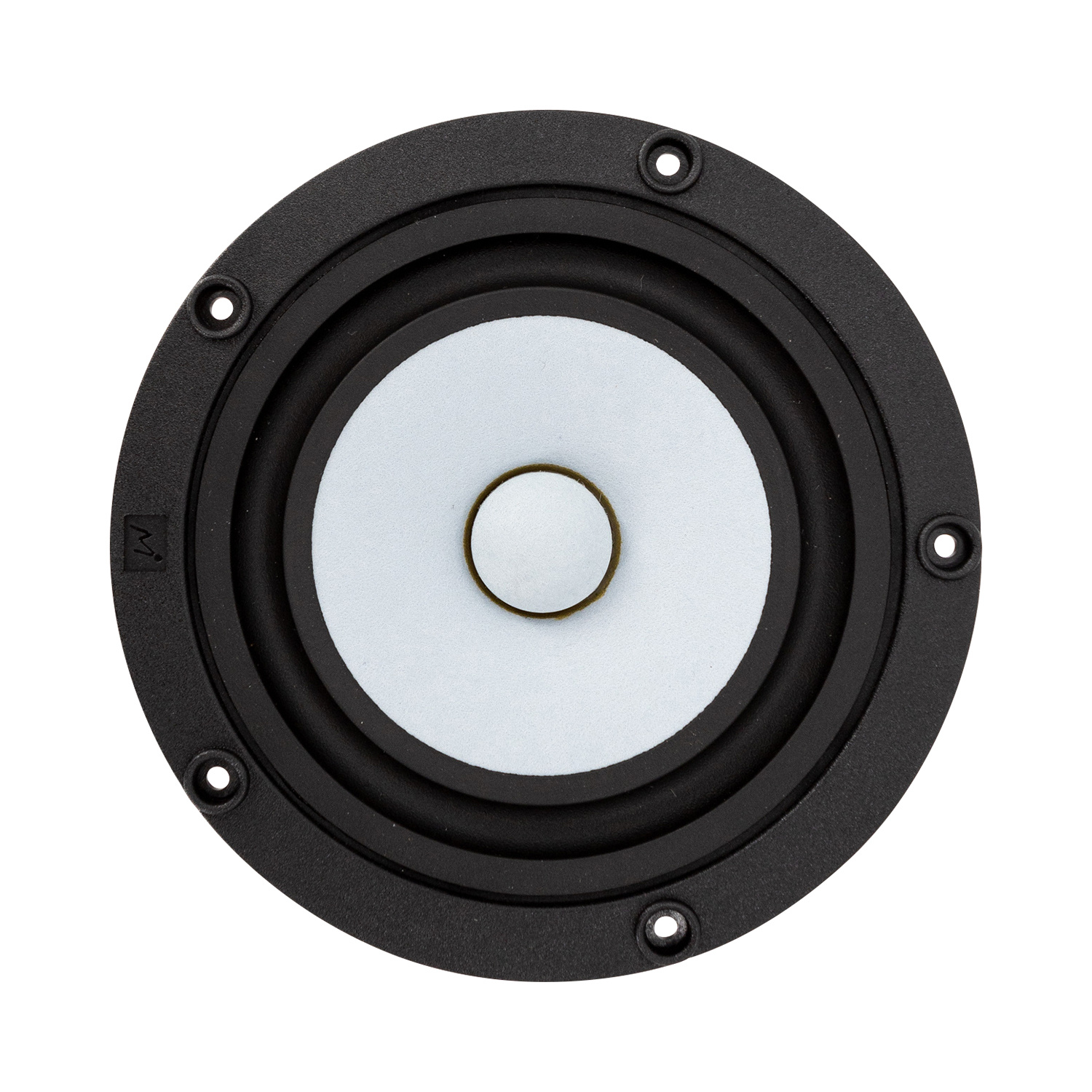

      • Blue 4’’ natural uncoated paper cone
      • Wide operating range –rolled off high frequencies for vintage tone
      • Low cone profile –very broad directivity pattern
      • Advanced low-distortion motor design
      • Long-stroke suspension with excursion arrestor and progressive-rate spider
      • Low-profile surface-mount reinforced polymer basket



      Product details

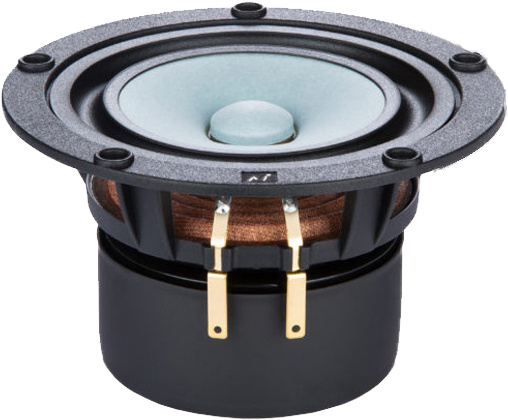

      Markaudio Pluvia 7 PHD Full-range Woofer



      The new paper-cone Pluvia seven PHD was developed due to requests from the DIY audio community for a return of paper cone drivers to the latest Markaudio drivers. Its response balance was carefully engineered to provide a shelved down treble and emphasized upper midrange output to address specific requests.

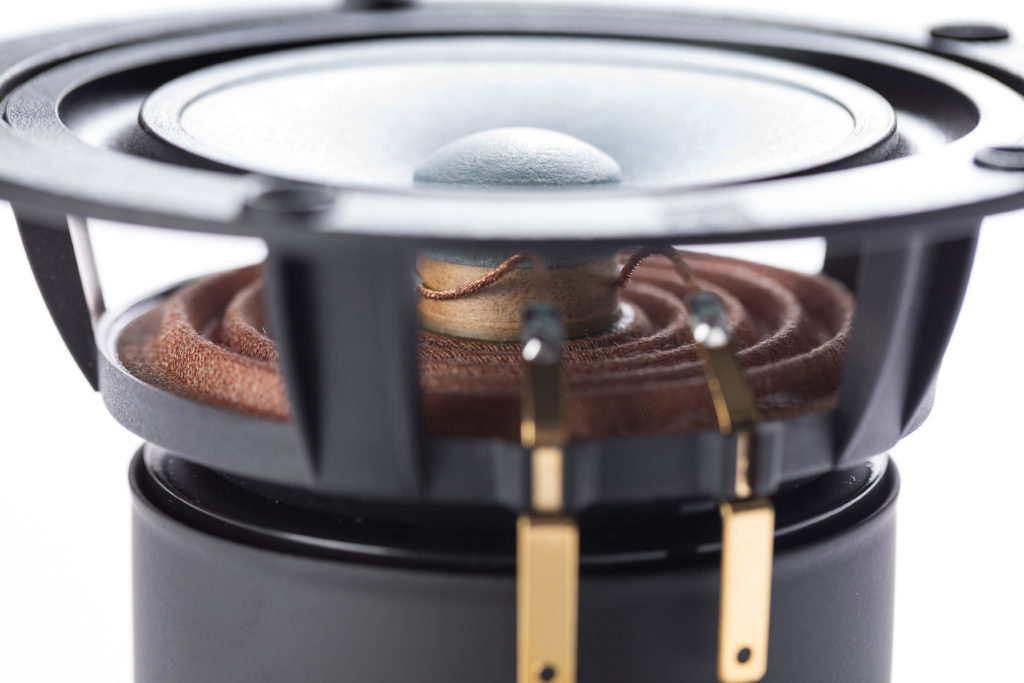

      The attractive paper cone, suspension, and low-mass coil, wound in high-purity rectangular section copper are unique to this model, and the Thiele / Small characteristics engineered to allow surprising bass performance from a compact drive unit. The frame is the familiar, high-quality Pluvia design, which may be conveniently surface or flush-mounted, and has a very open design, allowing good air-flow to the rear of the cone.



      The sound balance is warm, with emphasized upper midrange, and soft treble. Jazz followers in Asia played a role in the final tuning of this driver. Those enthusiasts into vintage and mono recordings using warm tube (valve) amplification may have a particular interest in this driver.

      Show more

      Specifiche

      Numero dell'articolo:
      PLUVIA-7PHD
      EAN
      0691046947734
      Serie del woofer
      Markaudio Pluvia series
      Tipo di woofer
      Full-Range Woofer
      Diametro nominale
      4''
      Gestione della potenza (RMS)
      15 Watts
      Impedenza (Z)
      8 Ohms
      Sensibilità (SPL a 1m / 2,83V)
      87 dB
      Risposta in frequenza
      60-30,000 Hz
      Resistenza DC (Re)
      3.5 Ohms
      Induttanza della bobina mobile (Le)
      0.0274 mH
      Frequenza di risonanza (Fs)
      77.8 Hz
      Fattore di merito meccanico (Qms)
      2.7968
      Fattore di merito elettromagnetico (Qes)
      0.6623
      Fattore di merito totale (Qts)
      0.54
      Massa del diaframma incl. la massa dell'aria (Mms)
      3.2888 g
      Cedevolezza meccanica della sospensione (Cms)
      1.2728 mm/N
      Superficie del cono (Sd)
      50 cm²
      Prodotto BL (BL)
      2.9146
      Volume equivalente di cedevolezza (Vas)
      4.4905
      Escursione lineare massima (Xmax)
      4 mm
      Materiale del cono / diaframma
      Uncoated paper
      Materiale della sospensione
      Rubber
      Materiale del cestello / telaio
      Cast aluminum
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      122 mm
      Diametro del ritaglio del pannello frontale
      100 mm
      Diametro del cerchio dei fori di montaggio
      112 mm
      # Numero di fori di montaggio
      5
      Diametro dei fori di montaggio
      3.1 mm
