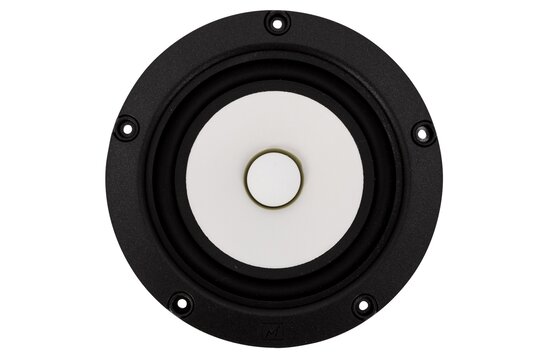

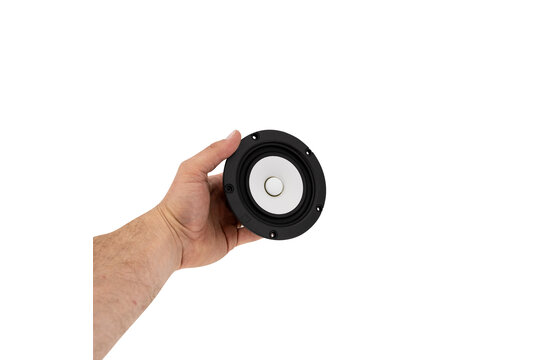

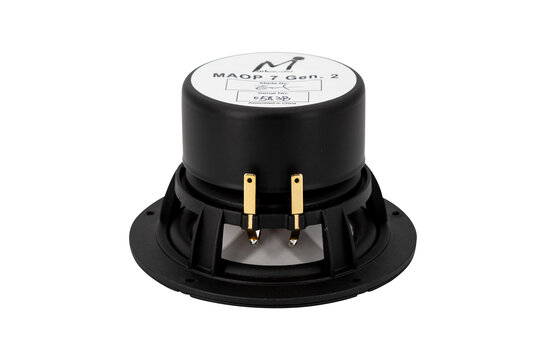

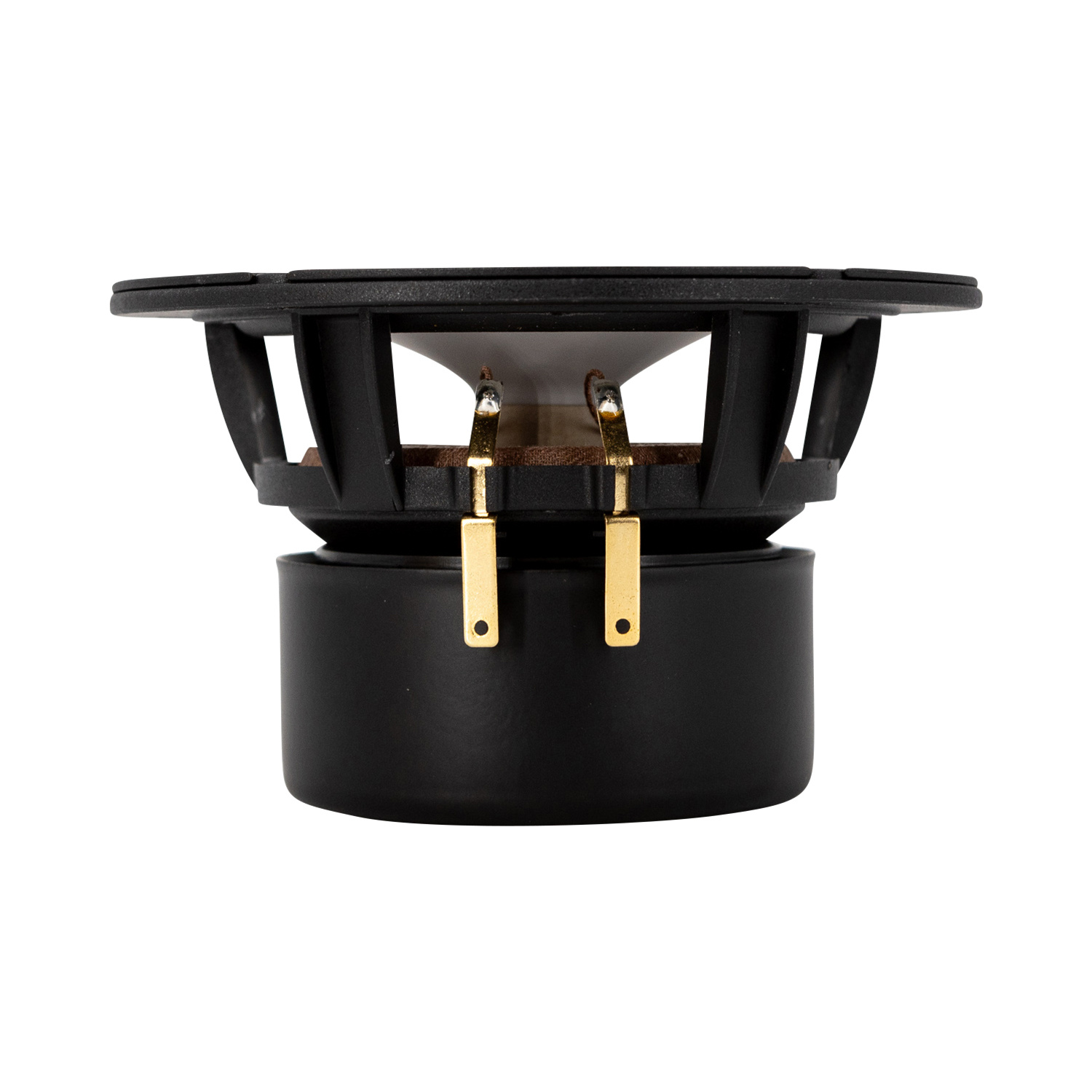

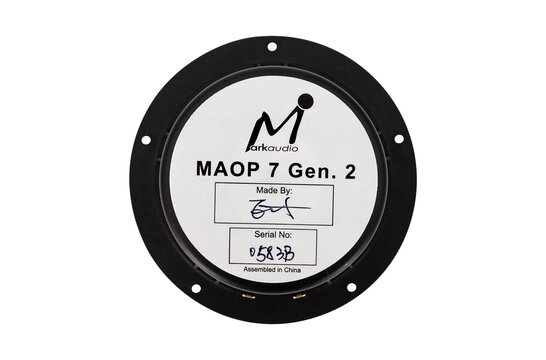

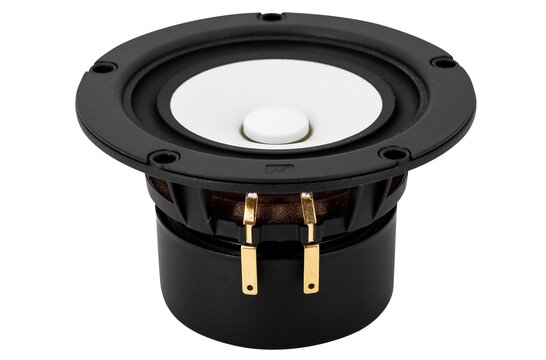

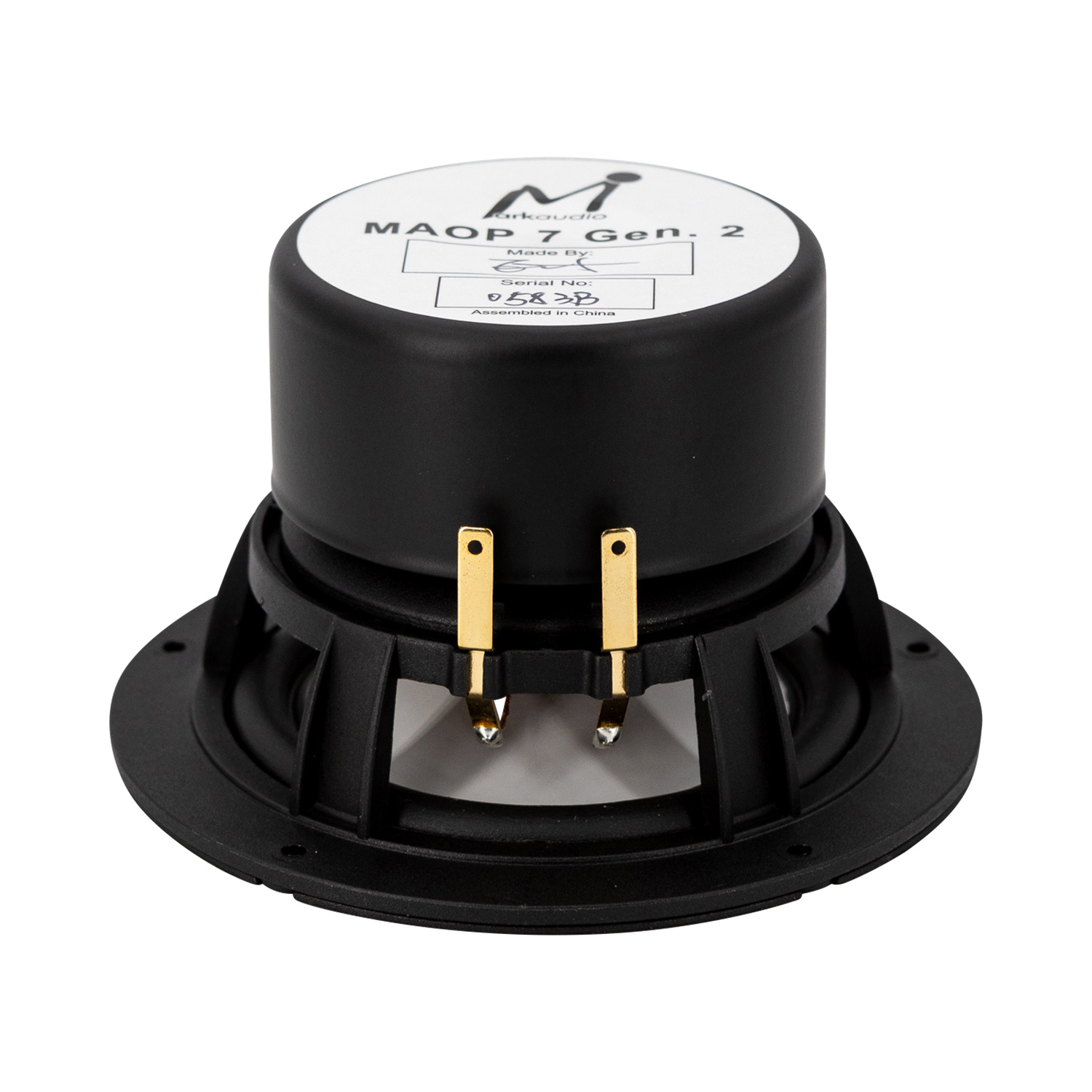

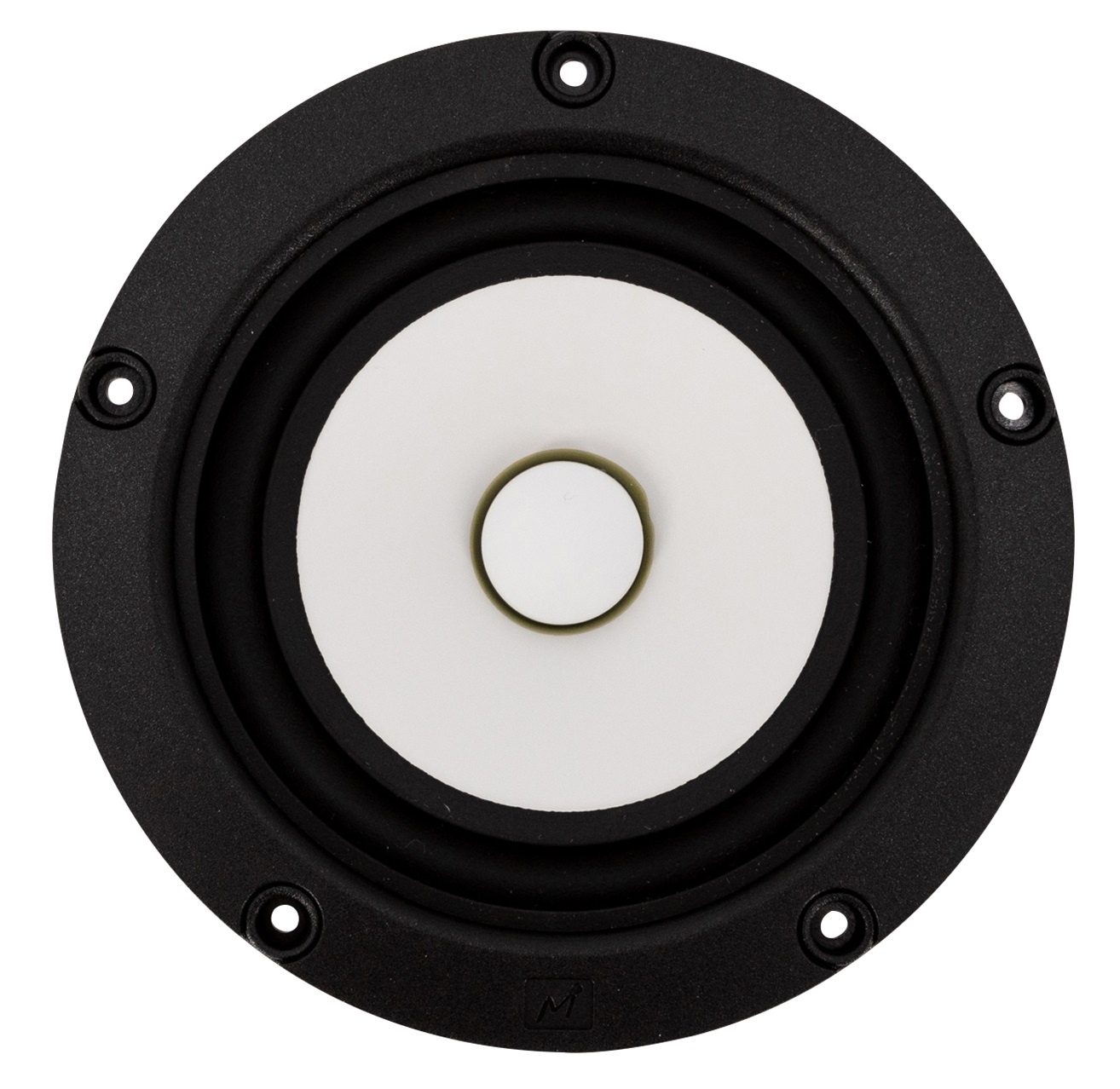

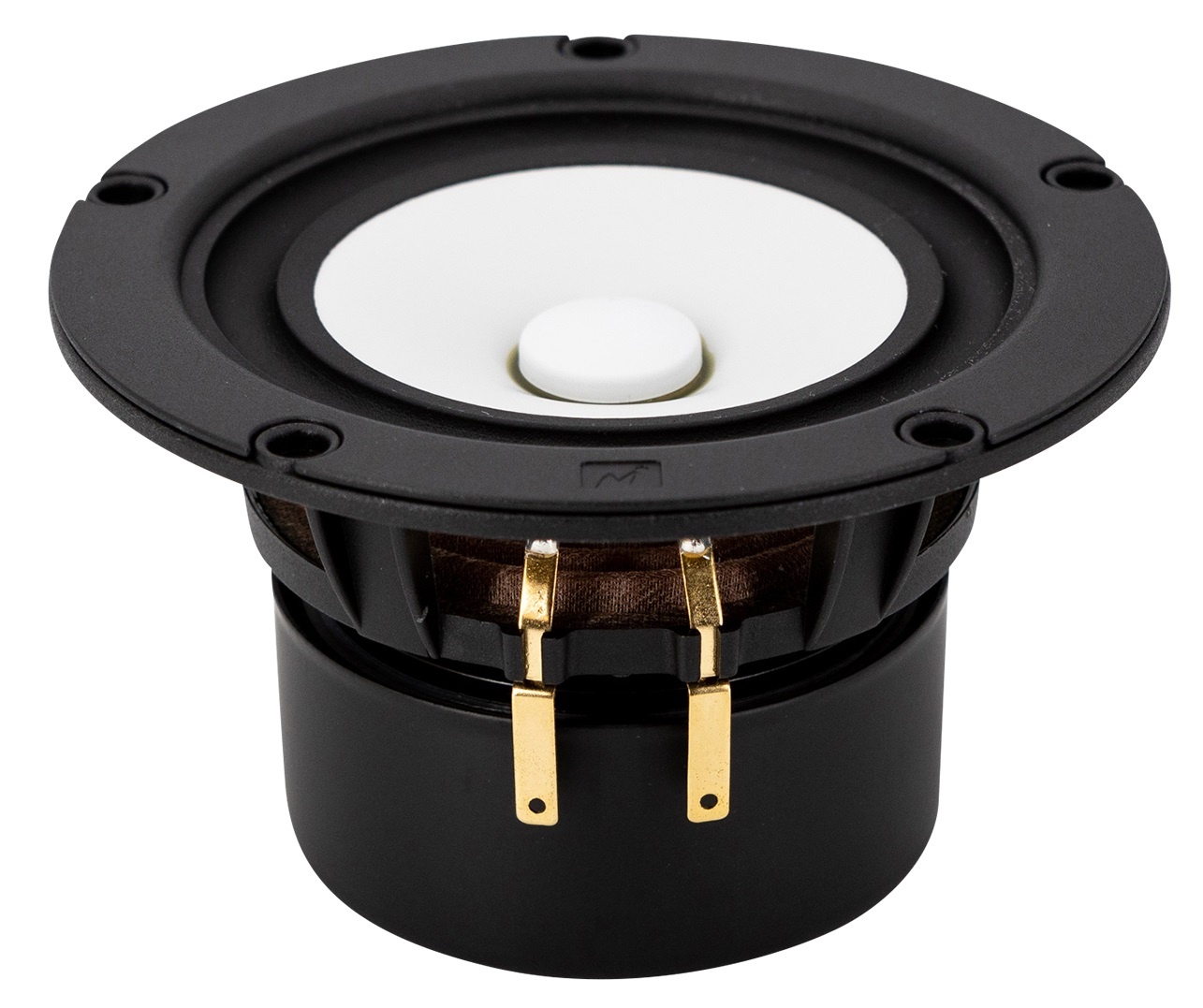

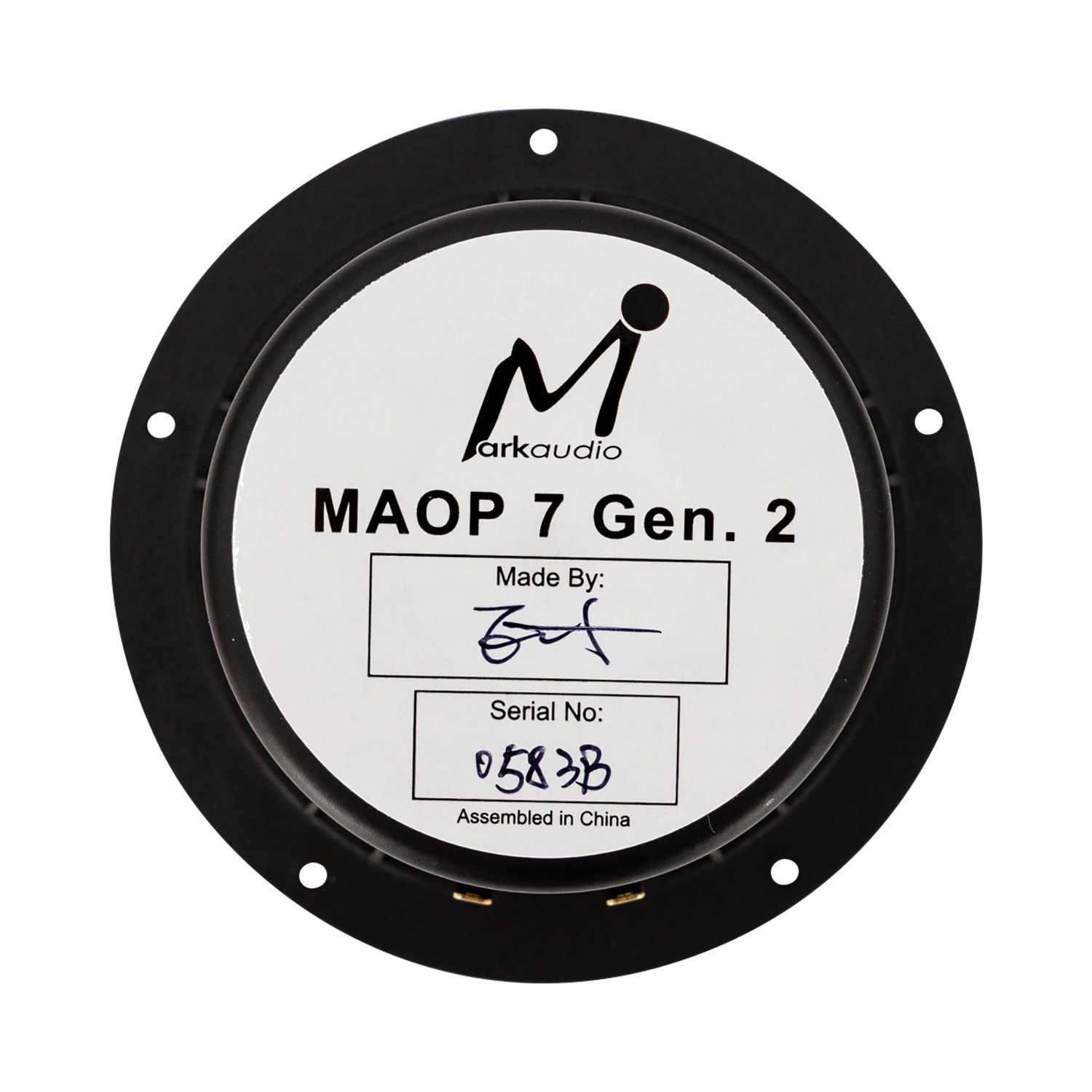

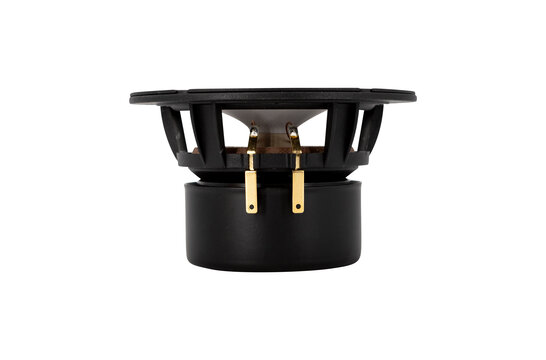

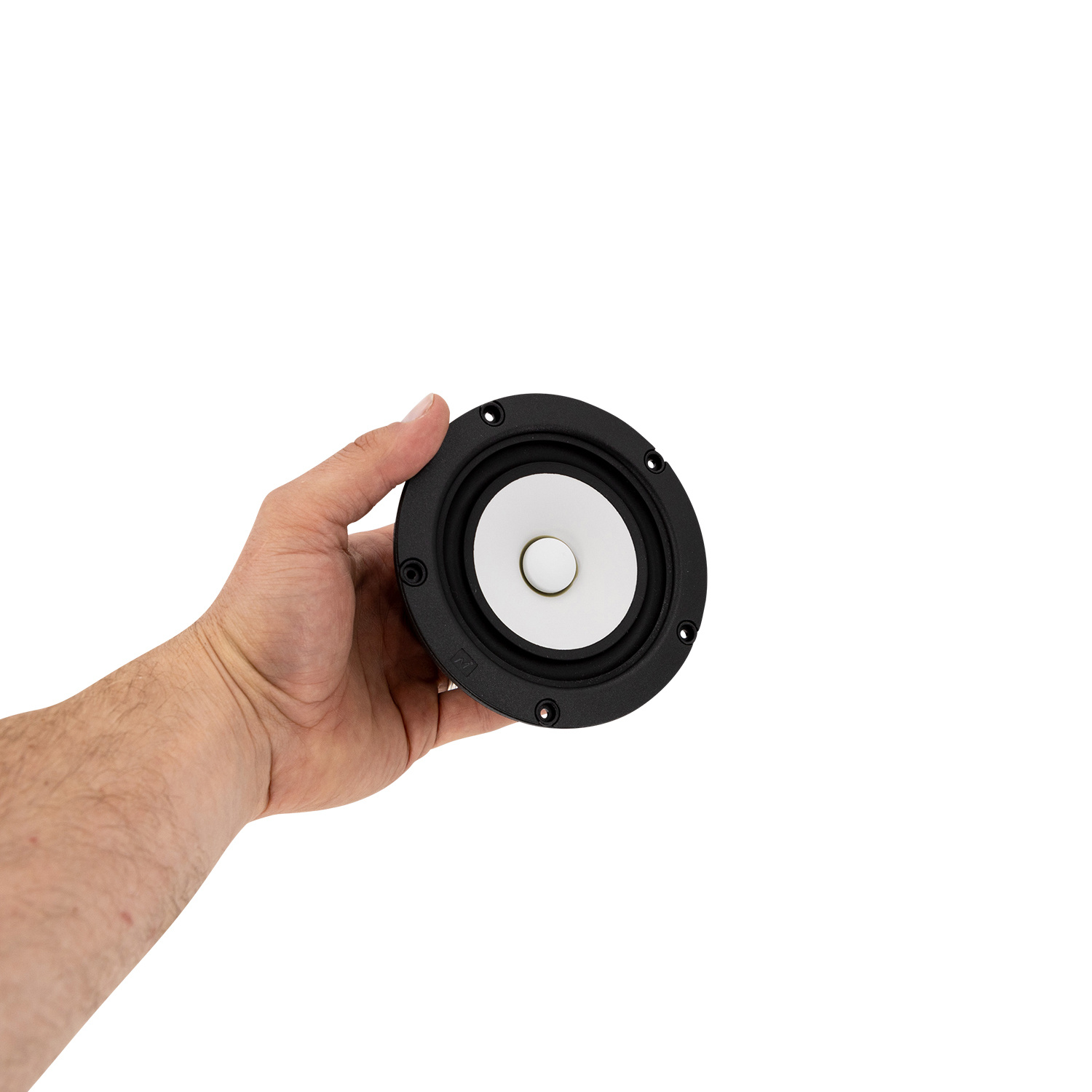

      MAOP-7.2 White Woofer a Gamma Completa

      Markaudio MAOP-7.2 White Woofer a Gamma Completa

      €129,95

      2 In magazzino10+ Arrivo previsto il 16-01-2026

      Markaudio MAOP-7.2 White Woofer a Gamma Completa

      3 reviews
      5 da 5
      3 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Markaudio
      € 107,40€ 129,95 2 In magazzino10+ Arrivo previsto il 16-01-2026
      • -5% Acquista 4 per soli € 123,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Markaudio MAOP-7.2 White Woofer a Gamma Completa

      The Mark Audio wide band drivers MAOP (Micro Arc Oxidation Process or Plasma Electrolytic Oxidization) have been made in extremely small production runs and are extremely collectable by the local customers.



      Highlights

      • Every pair is matched
      • Micro Arc Oxidation Process
      • Crystalline oxide cone
      • Wide band driver



      Product details

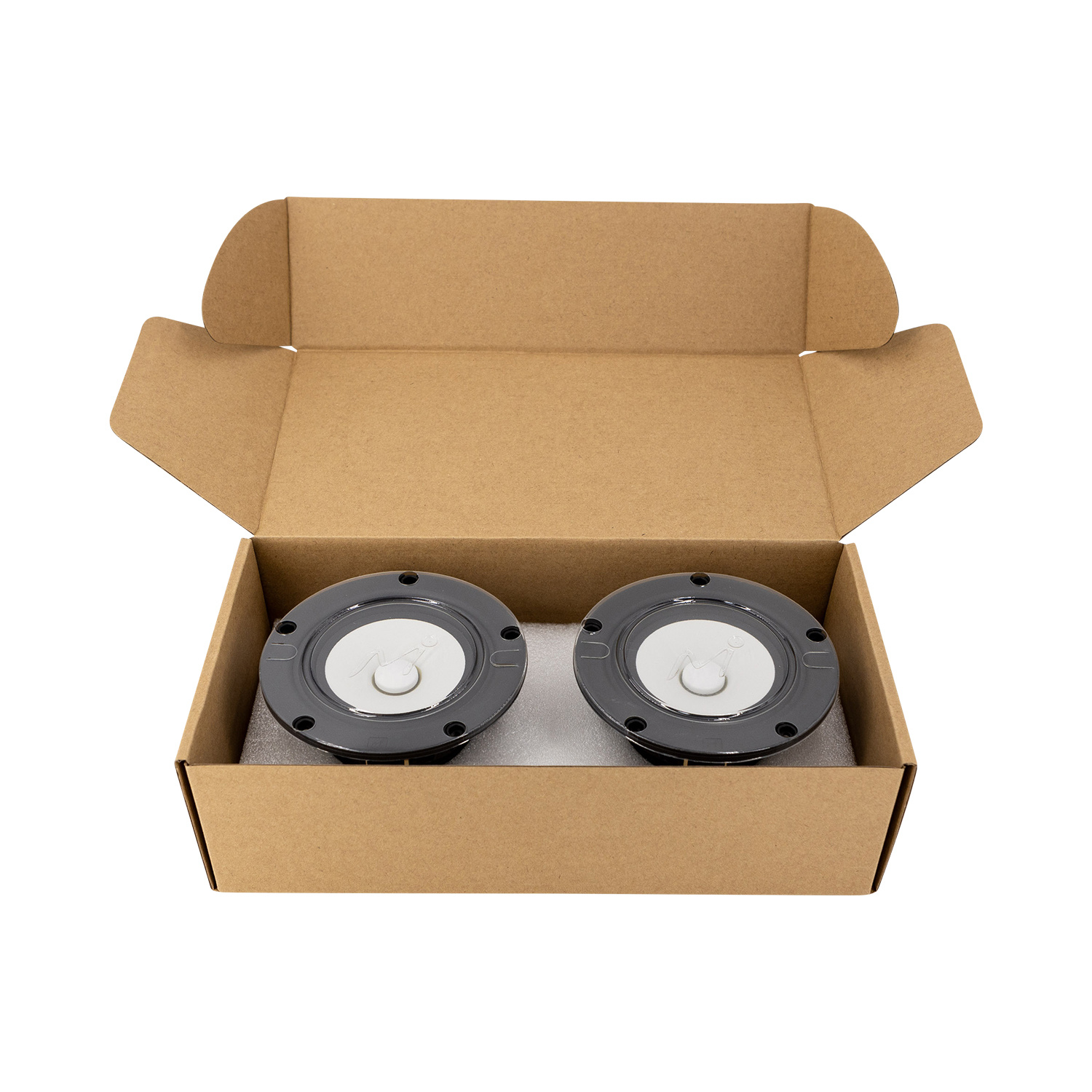

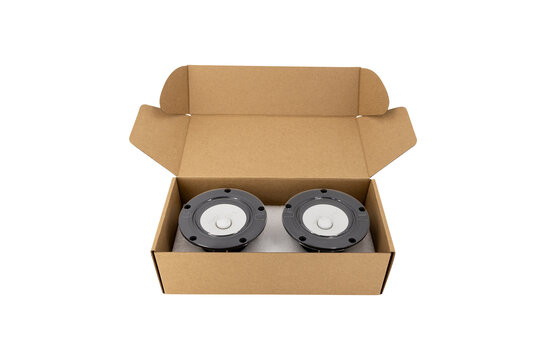

      Markaudio MAOP-7.2 White 4" Full Range Woofer | Each two drivers are sold as a matched pair.



      The uniqueness of Markaudio lays on their matching pairs of drivers. Each driver is tested and paired with another driver that shows the closest matching frequency response measurement. In order to respect this philosophy and added value to these great products, we at SoundImports, recomend you to purchase them as pairs.



      The Magnetic Arc Oxidisation Process is done at extremely high temperature in a flux bath that is prone to differential temperatures (hot/cold spots) which can warp the cones. The process is 10 times the cost of normal cone production, at least half are scrapped as it does render cones unusable if they are warped even slightly. The MAOP process involves a chemical conversion where the cone material is converted into its crystalline oxide. The crystal grows both inward into the substrate and outward. As such the new coating is not a deposited coating it is part of the original structure which gives excellent adhesion. The large crystal structure provides excellent stiffness and resistance to damage. The crystalline structure also encapsulates microscopic voids. It is supposed that it is the blend of microscopic voids and stiff structure that lend the cone the audio properties of both the metal cone and the paper cone, accuracy and a listen all day quality.



      After construction, each driver is individually measured in the anechoic chamber at the Markaudio factory and pair matched based on that data to within, 0.5% tolerance.  Each pair is supplied with individual electrical and acoustic measurements.

      Show more

      Specifiche

      Numero dell'articolo:
      MAOP-7.2 white
      EAN
      0691046947857
      Serie del woofer
      Markaudio MAOP series
      Tipo di woofer
      Full-range Woofer
      Diametro nominale
      4"
      Gestione della potenza (RMS)
      15 Watts
      Impedenza (Z)
      6 Ω
      Sensibilità (SPL a 1m / 2,83V)
      85.8 dB
      Risposta in frequenza
      75-25.000 Hz
      Diametro della bobina mobile
      22 mm
      Resistenza DC (Re)
      5.4 Ω
      Induttanza della bobina mobile (Le)
      0.02 mH
      Frequenza di risonanza (Fs)
      76.5 Hz
      Fattore di merito meccanico (Qms)
      1.98
      Fattore di merito elettromagnetico (Qes)
      0.6
      Fattore di merito totale (Qts)
      0.465
      Massa del diaframma incl. la massa dell'aria (Mms)
      3.88 g
      Cedevolezza meccanica della sospensione (Cms)
      1100 µm/N
      Superficie del cono (Sd)
      50.2 cm²
      Prodotto BL (BL)
      4.09 Tm
      Volume equivalente di cedevolezza (Vas)
      3.96 Liters
      Escursione lineare massima (Xmax)
      ± 2.25 mm
      Materiale della sospensione
      Rubber
      Materiale del filo della bobina mobile
      Copper
      Supporto della bobina mobile
      Aluminium
      Materiale del cestello / telaio
      Plastic
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      122.3 mm
      Profondità complessiva
      71.5 mm
      Diametro del ritaglio del pannello frontale
      100 mm
      Diametro del cerchio dei fori di montaggio
      112 mm
      # Numero di fori di montaggio
      5
      Diametro dei fori di montaggio
      3.1 mm

      Show more

      5 di 5
      Hij is wat ingewikkeld te configureren, te ingewikkeld misschien voor sommige build plans?, Maar ik moet m toch 5 sterren geven. Erg goede maar moeilijk te temmen driver. Geen bezwaar als je deze goed behandelt.
      Da Lukas on 17 Ottobre 2025
      5 di 5
      Its a great speaker! With a high pass filter and a subwoofer it sounds outstanding! Really high end audiophile stuff, can recommend!
      Da Elia on 1 Novembre 2024
