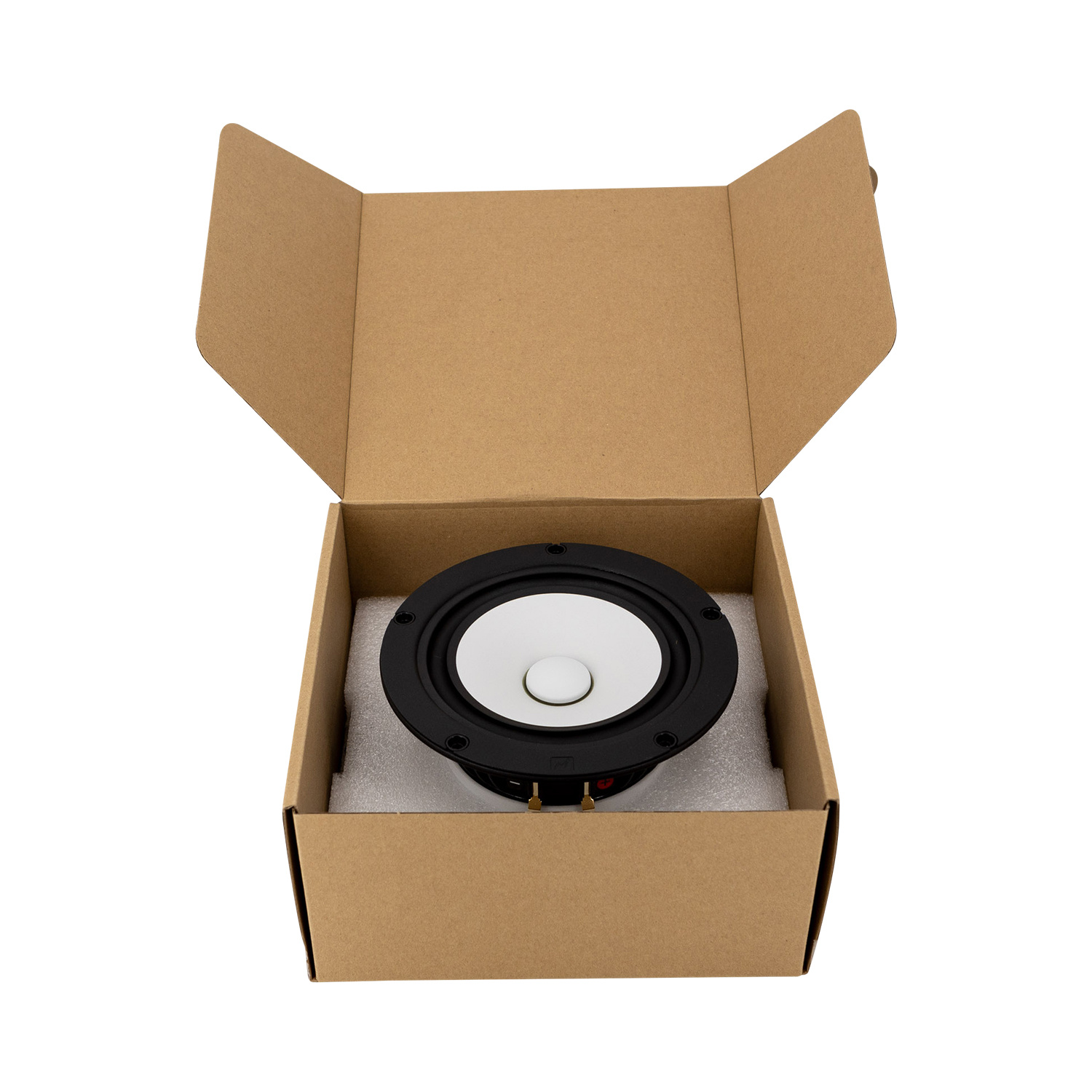

      MAOP-11 Woofer a Gamma Completa Matched Pair

      Markaudio MAOP-11 Woofer a Gamma Completa Matched Pair

      €329,95

      5 In magazzino8 Arrivo previsto il 16-01-2026

      Markaudio MAOP-11 Woofer a Gamma Completa Matched Pair

      2 reviews
      5 da 5
      2 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Markaudio
      € 272,69€ 329,95 5 In magazzino8 Arrivo previsto il 16-01-2026

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto Markaudio MAOP-11 Woofer a Gamma Completa Matched Pair

      The Mark Audio wide band drivers MAOP (Micro Arc Oxidation Process or Plasma Electrolytic Oxidization) have been made in extremely small production runs and are extremely collectable by the local customers.



      Highlights

      • Micro Arc Oxidation Process
      • Crystalline oxide cone
      • Wide band driver



      Product details

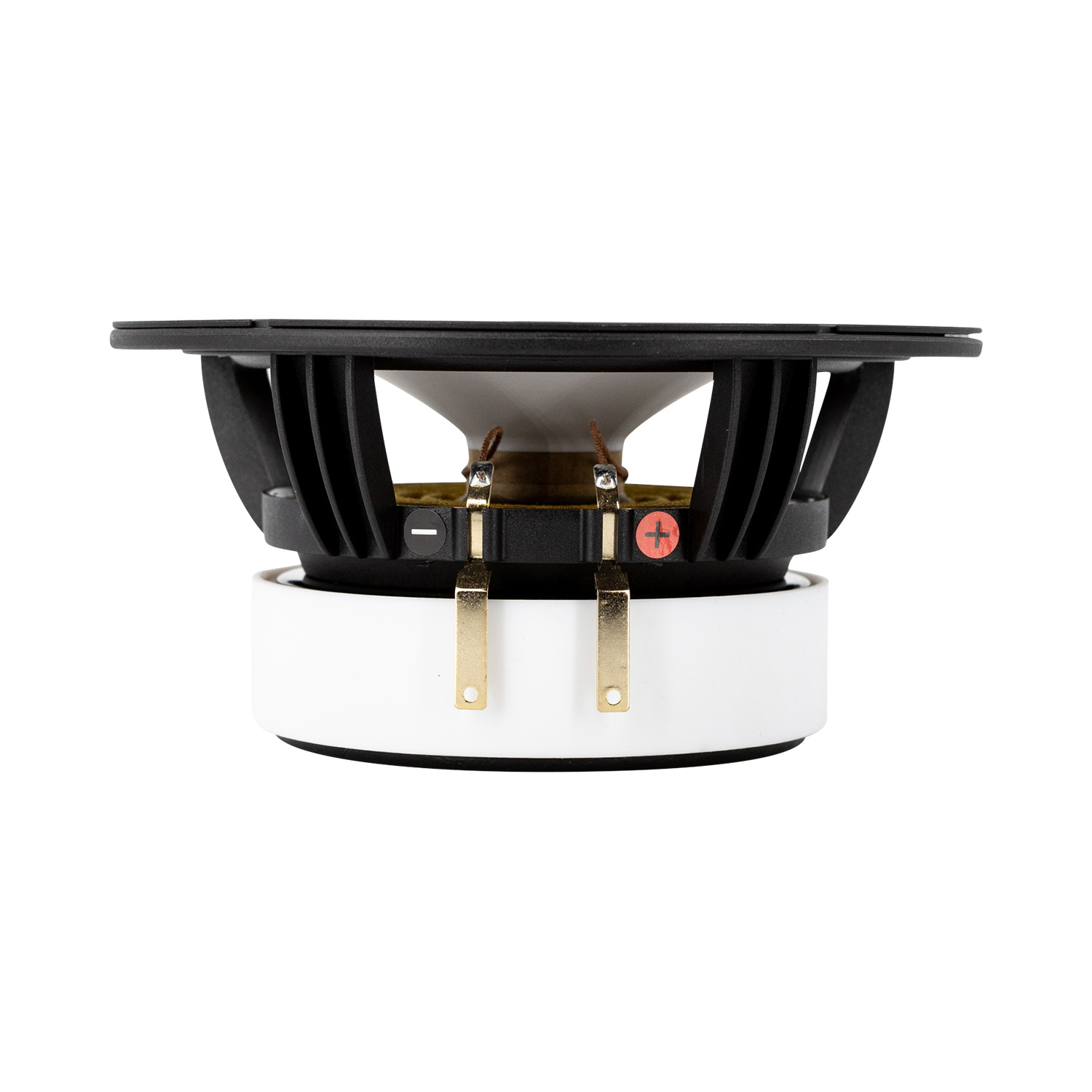

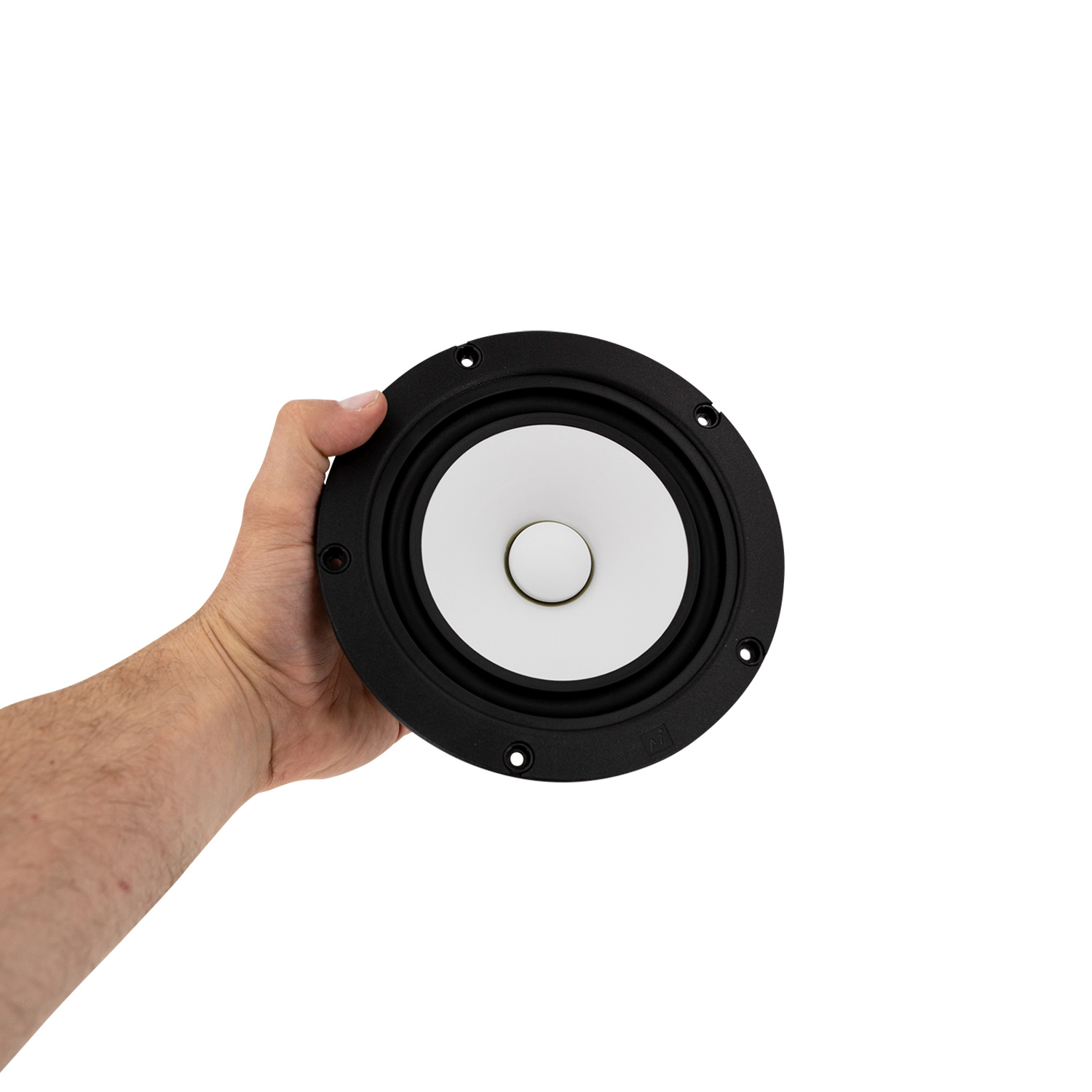

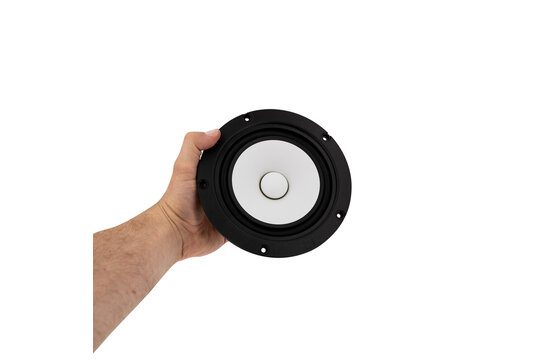

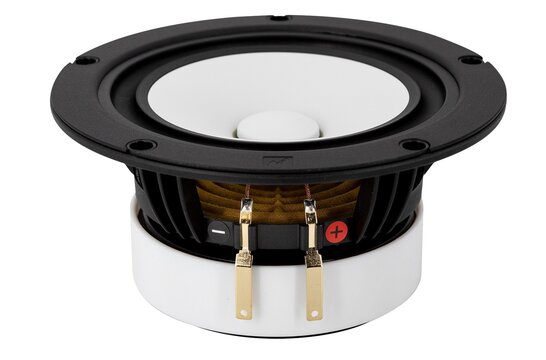

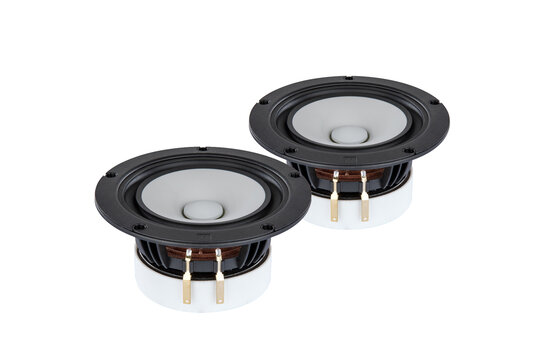

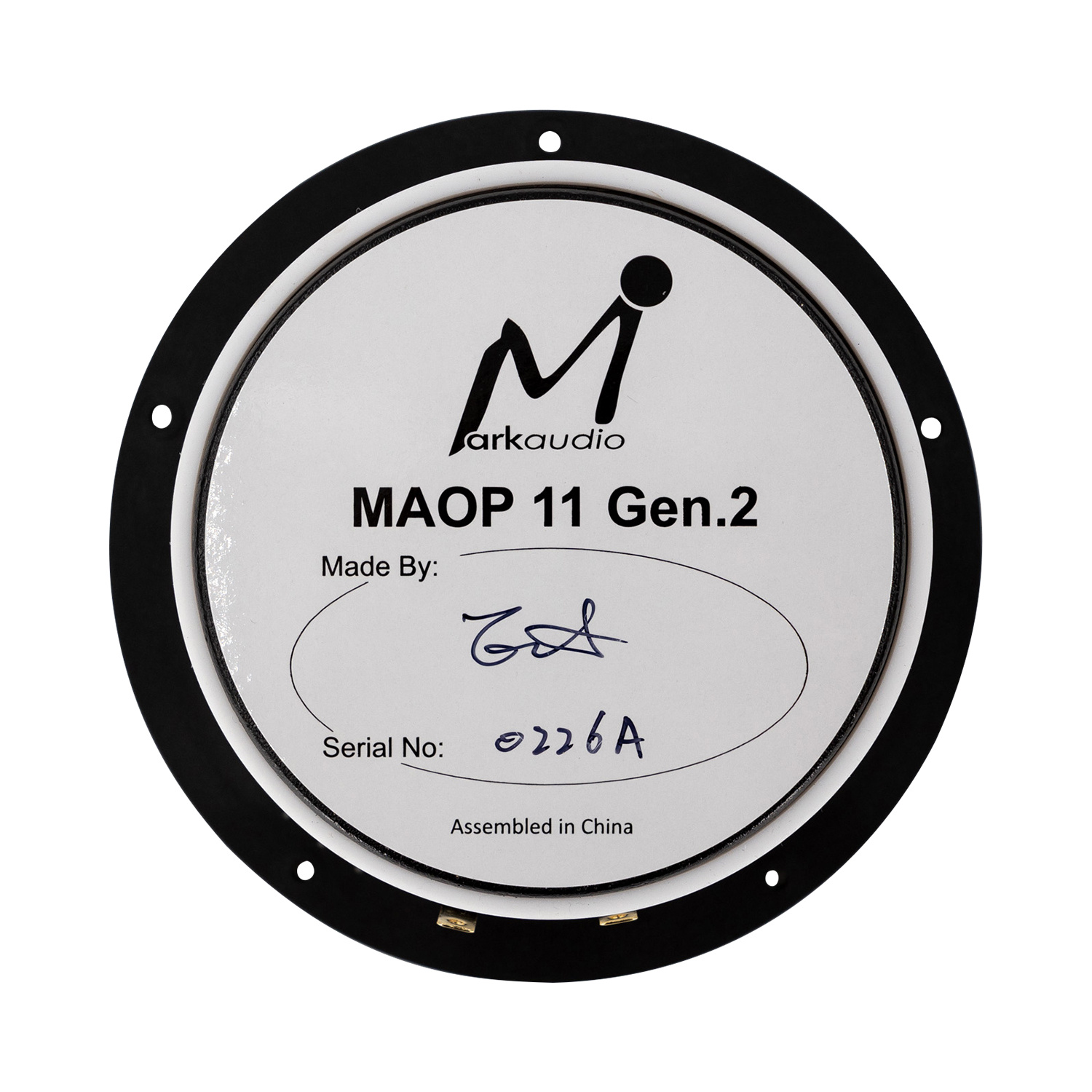

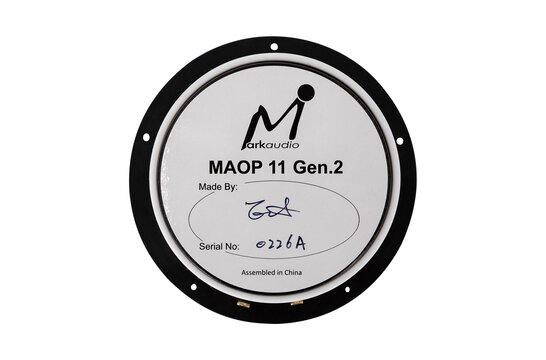

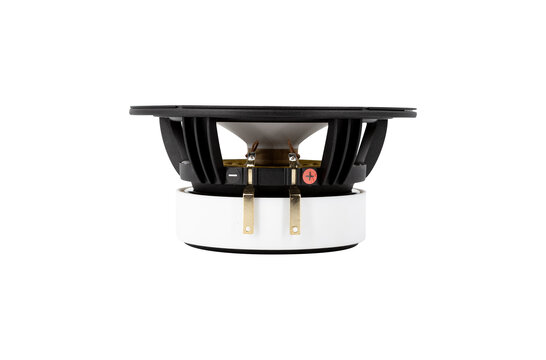

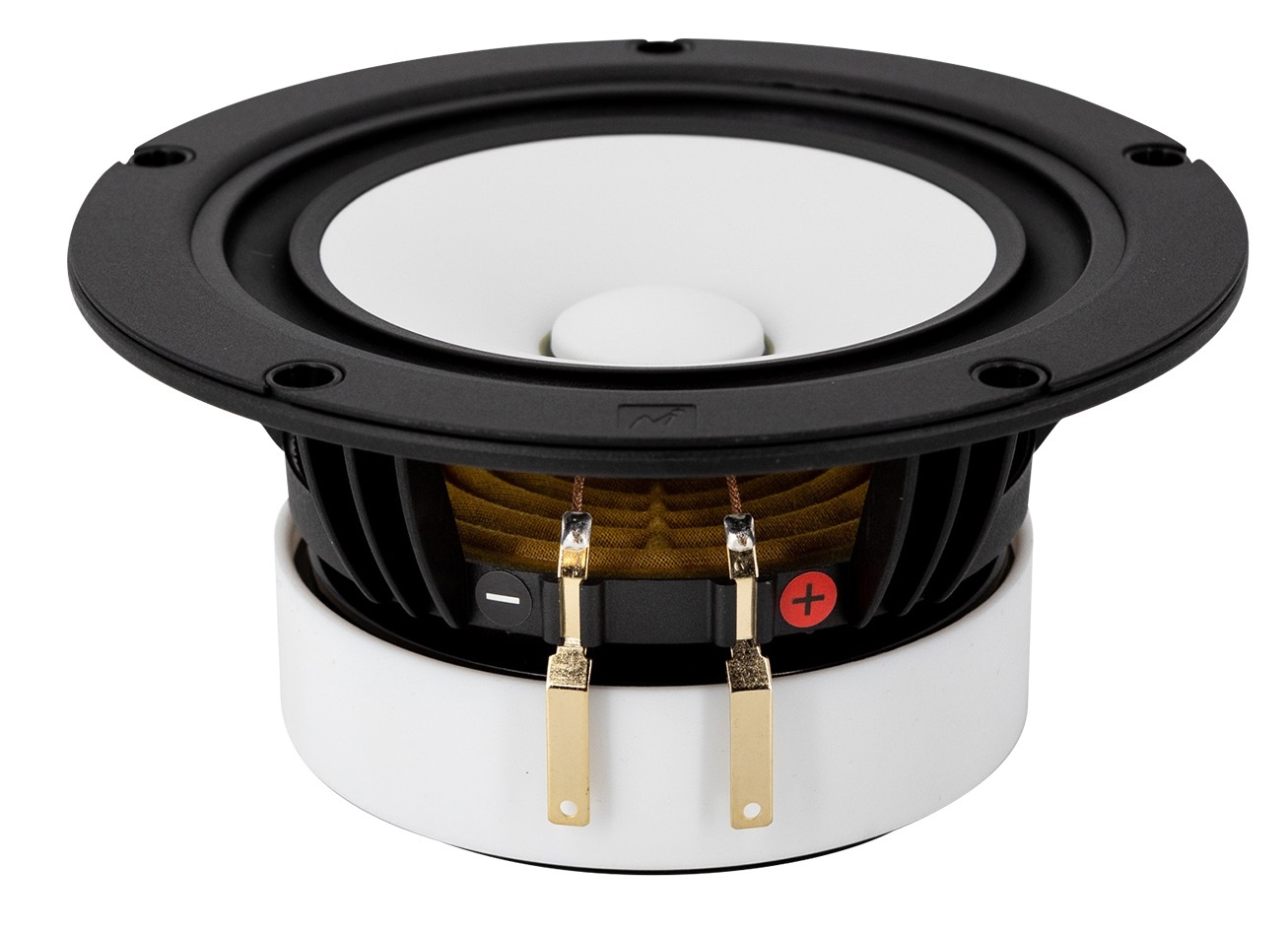

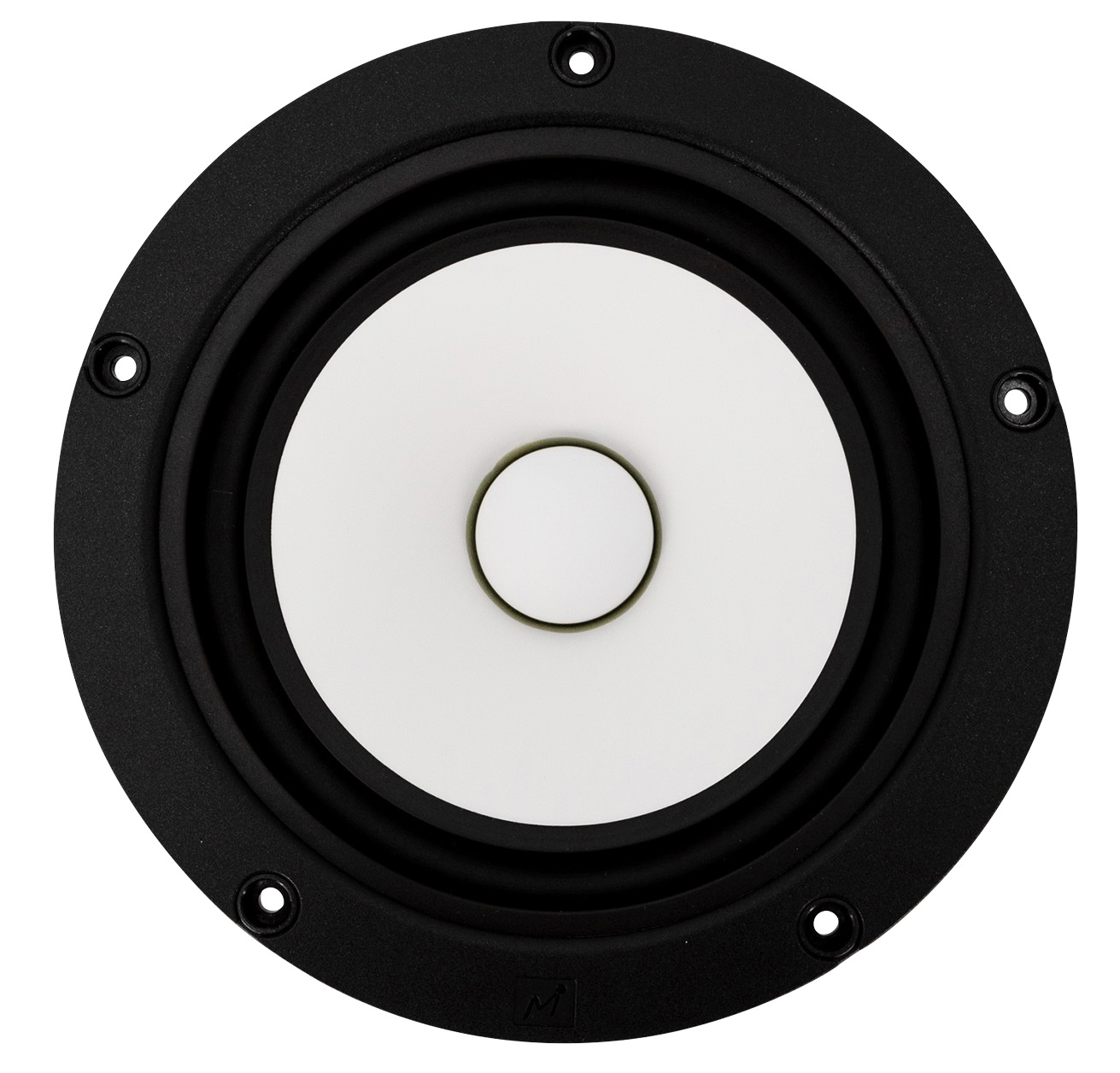

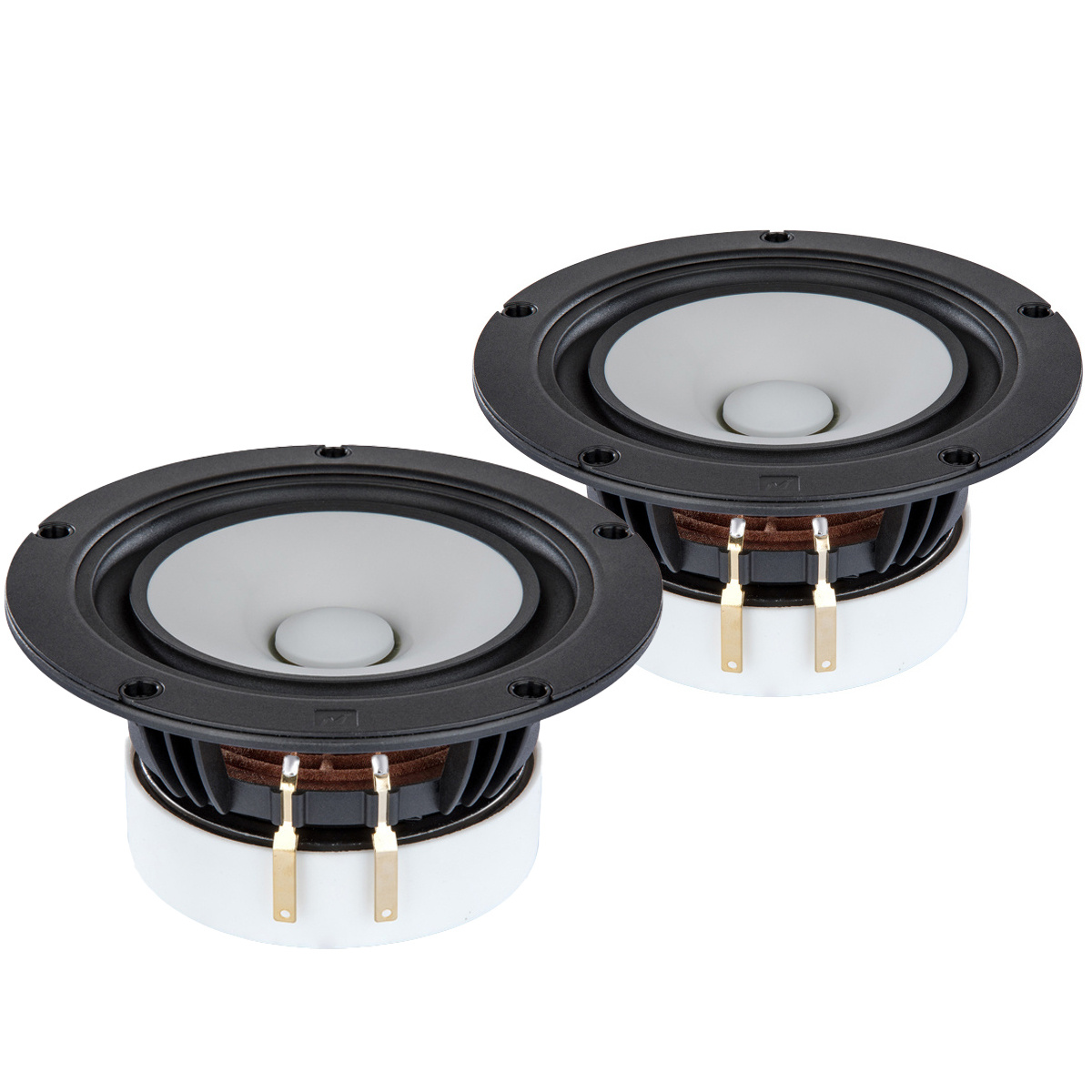

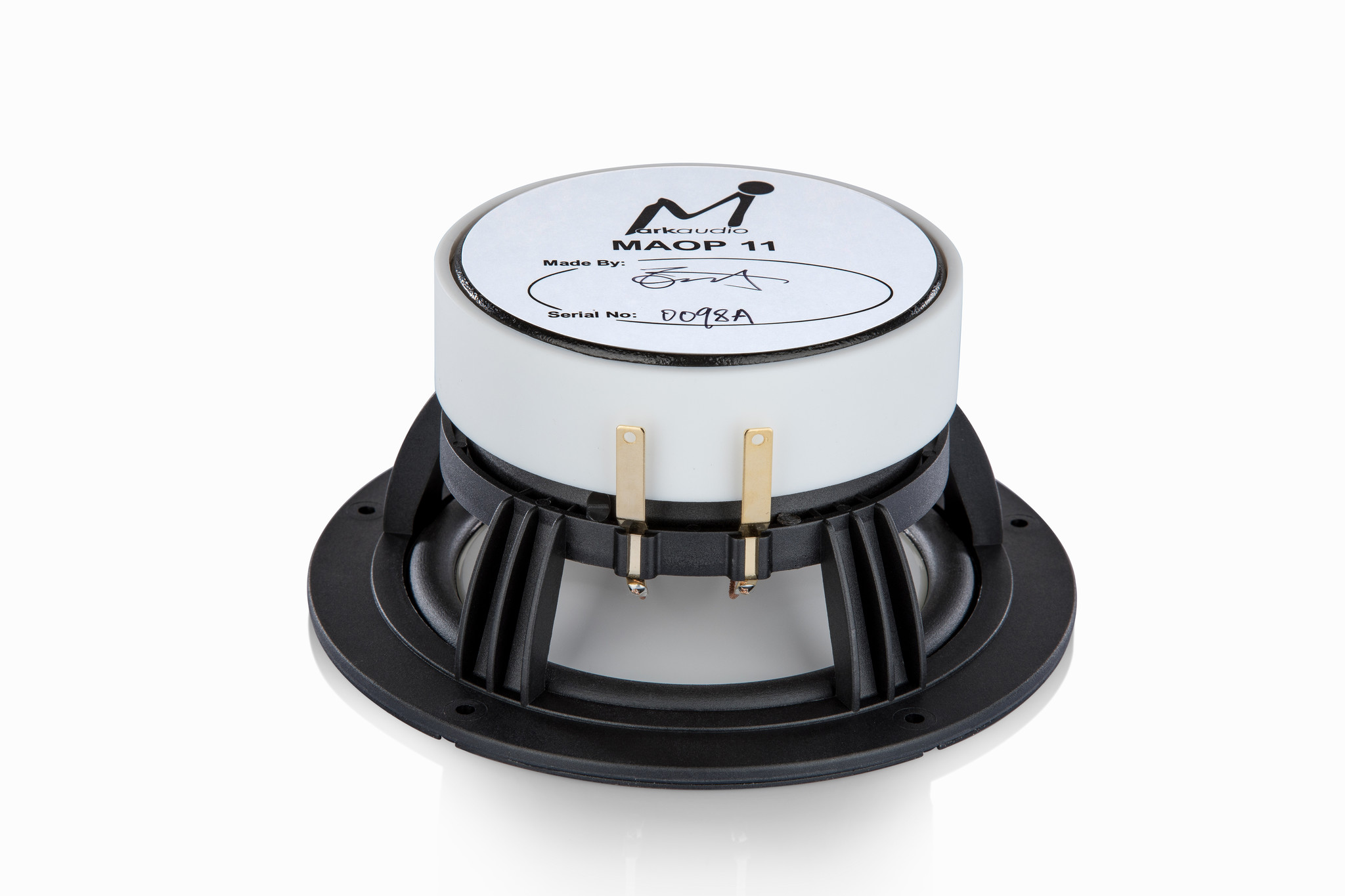

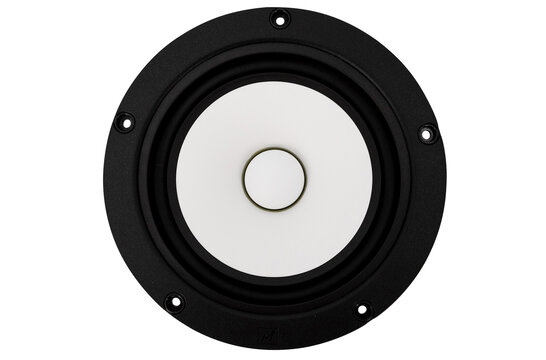

      Markaudio MAOP-11 6.5" Full-range Woofer Matched Pair (A+B)



      The Magnetic Arc Oxidisation Process is done at extremely high temperature in a flux bath that is prone to differential temperatures (hot/cold spots) which can warp the cones. The process is 10 times the cost of normal cone production, at least half are scrapped as it does render cones unusable if they are warped even slightly. The MAOP process involves a chemical conversion where the cone material is converted into its crystalline oxide. The crystal grows both inward into the substrate and outward. As such the new coating is not a deposited coating it is part of the original structure which gives excellent adhesion. The large crystal structure provides excellent stiffness and resistance to damage. The crystalline structure also encapsulates microscopic voids. It is supposed that it is the blend of microscopic voids and stiff structure that lend the cone the audio properties of both the metal cone and the paper cone, accuracy and a listen all day quality.

      Show more

      Specifiche

      Numero dell'articolo:
      MAOP-11
      EAN
      0691046947871
      Serie del woofer
      Markaudio MAOP series
      Tipo di woofer
      Full-range Woofer
      Diametro nominale
      6.5"
      Gestione della potenza (RMS)
      35 Watts
      Impedenza (Z)
      8 ohms
      Sensibilità (SPL a 1m / 2,83V)
      88.6 dB
      Risposta in frequenza
      35-25.000 Hz
      Resistenza DC (Re)
      6.8 Ω
      Induttanza della bobina mobile (Le)
      69.3 mH
      Frequenza di risonanza (Fs)
      44.3 Hz
      Fattore di merito meccanico (Qms)
      2.0043
      Fattore di merito elettromagnetico (Qes)
      0.3523
      Fattore di merito totale (Qts)
      0.2996
      Massa del diaframma incl. la massa dell'aria (Mms)
      12.0624 g
      Massa in movimento del diaframma (Mmd)
      11.3985 g
      Cedevolezza meccanica della sospensione (Cms)
      1.0680 mm/N
      Superficie del cono (Sd)
      0.0111 m²
      Prodotto BL (BL)
      8.0545 Txm
      Volume equivalente di cedevolezza (Vas)
      18.4 Liters
      Perdite meccaniche del driver (Rms)
      1.6767 WM
      Materiale del cono / diaframma
      Crystalline Oxide
      # Numero di fori di montaggio
      5

      Show more

      5 di 5
      The broadband drivers from Markaudio are absolutely marvellous , thats why Pearl Audio, Lindemann and others use them for their professional Lineup. I have 6 120 already for my AV System and now use the MAOP 11 Gen2 for rebuilding my concrete Rauna Speakers .
      Da Reinhard on 13 Novembre 2025
      5 di 5
      Echt gekocht op reputatie en boy o boy, wat is het al mooi na 100 uur inspelen
      Da Poi on 17 Settembre 2024
