Acquista Markaudio CHP-90 Woofer a Gamma Completa?

3.5" | 8 Ω

€ 57,81€ 69,95 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

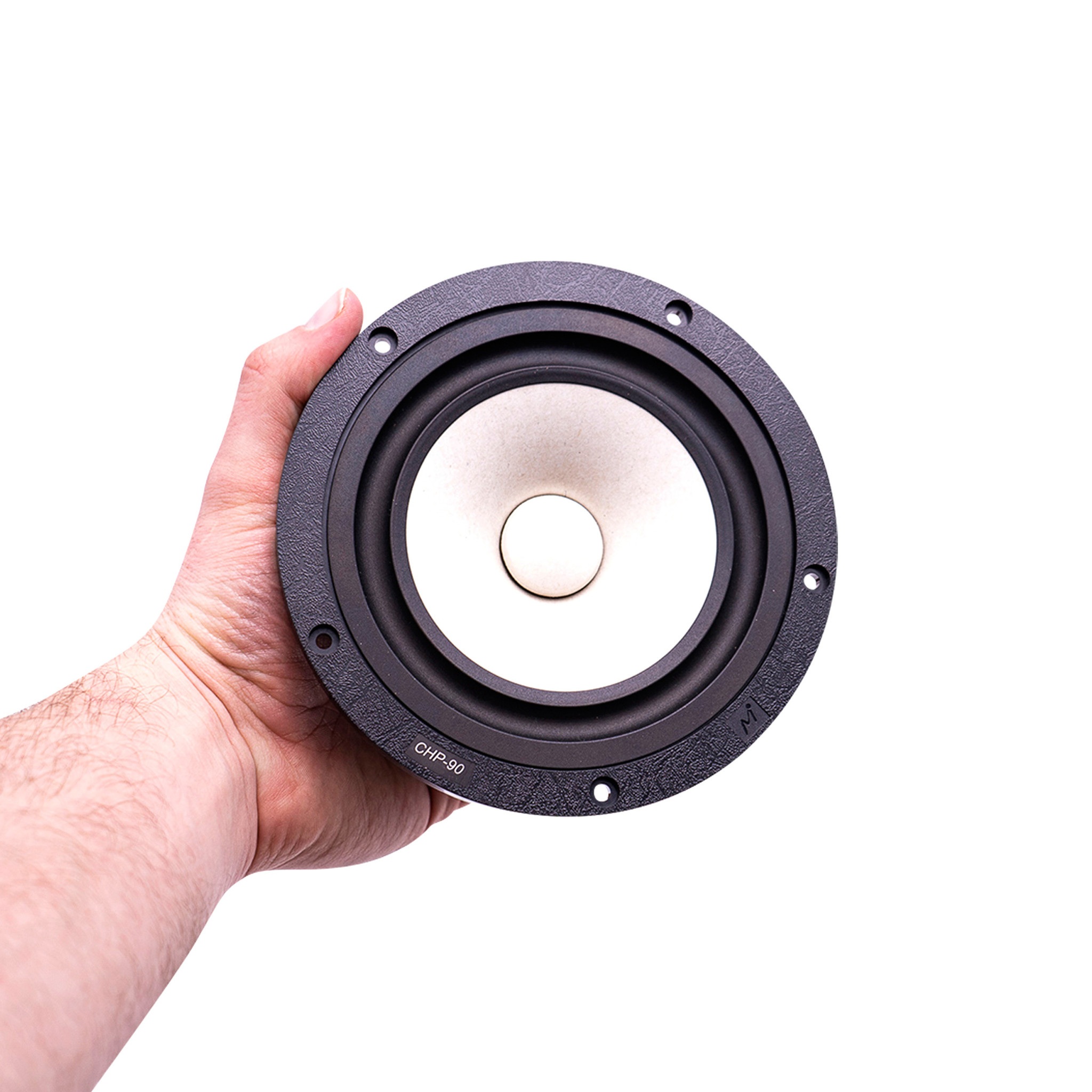

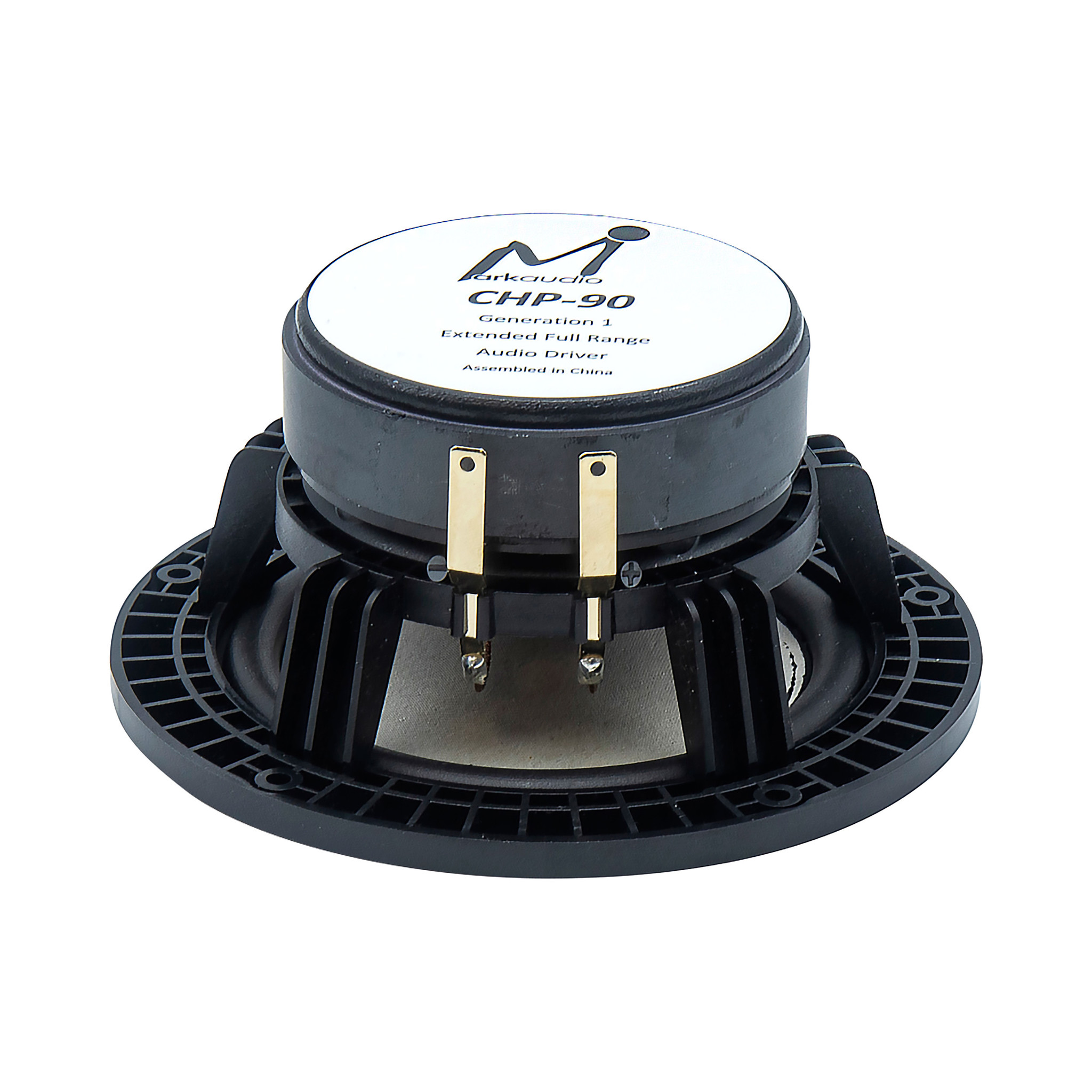

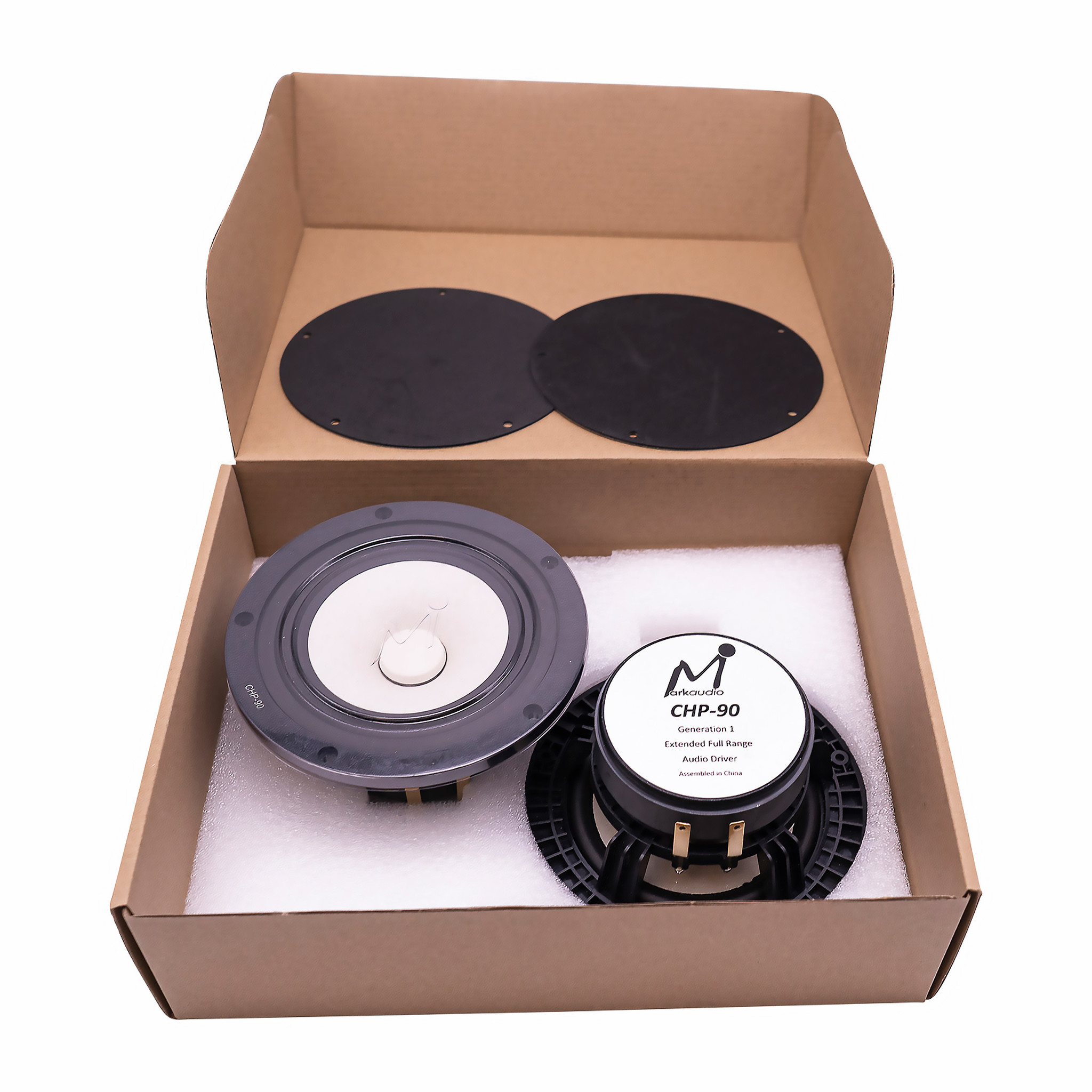

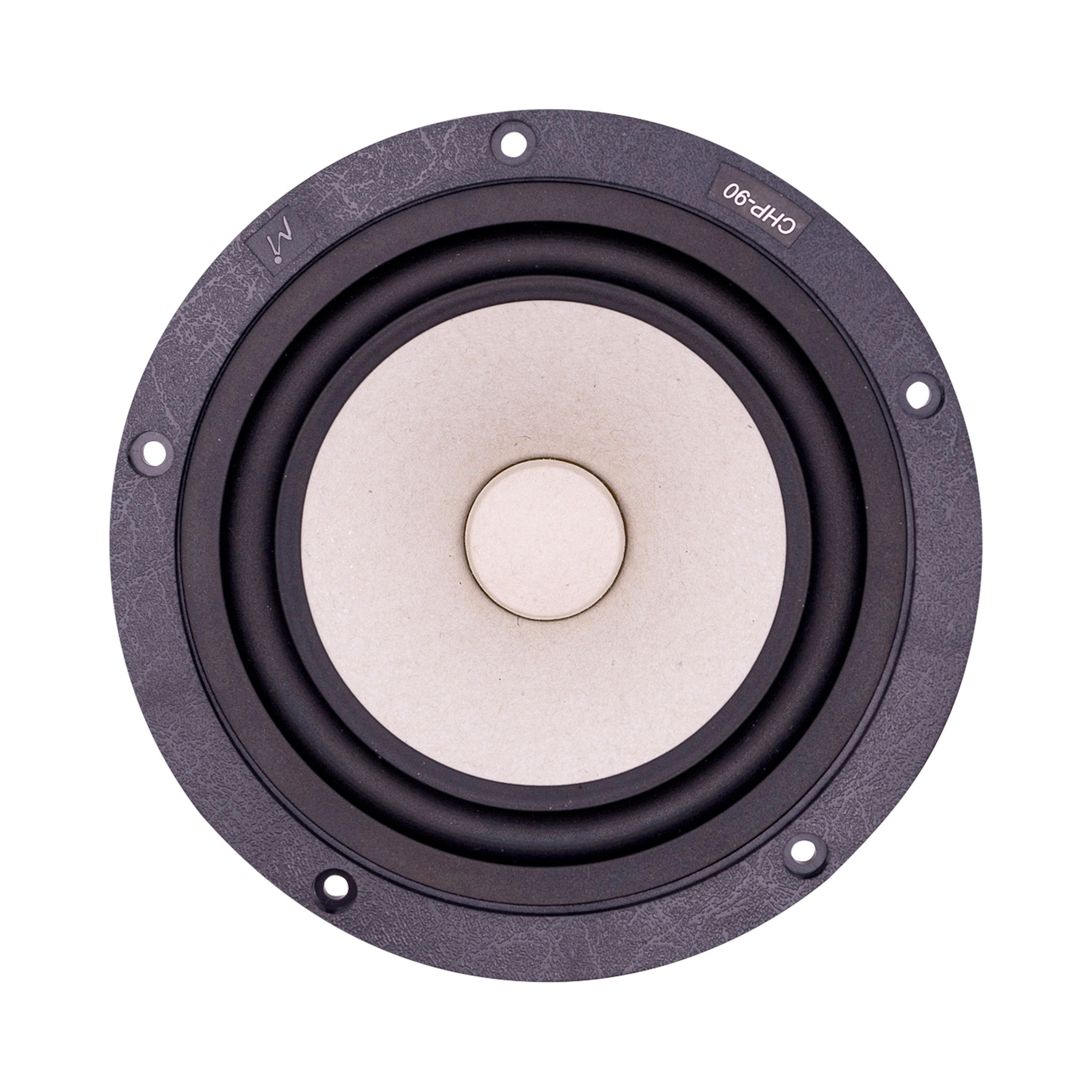

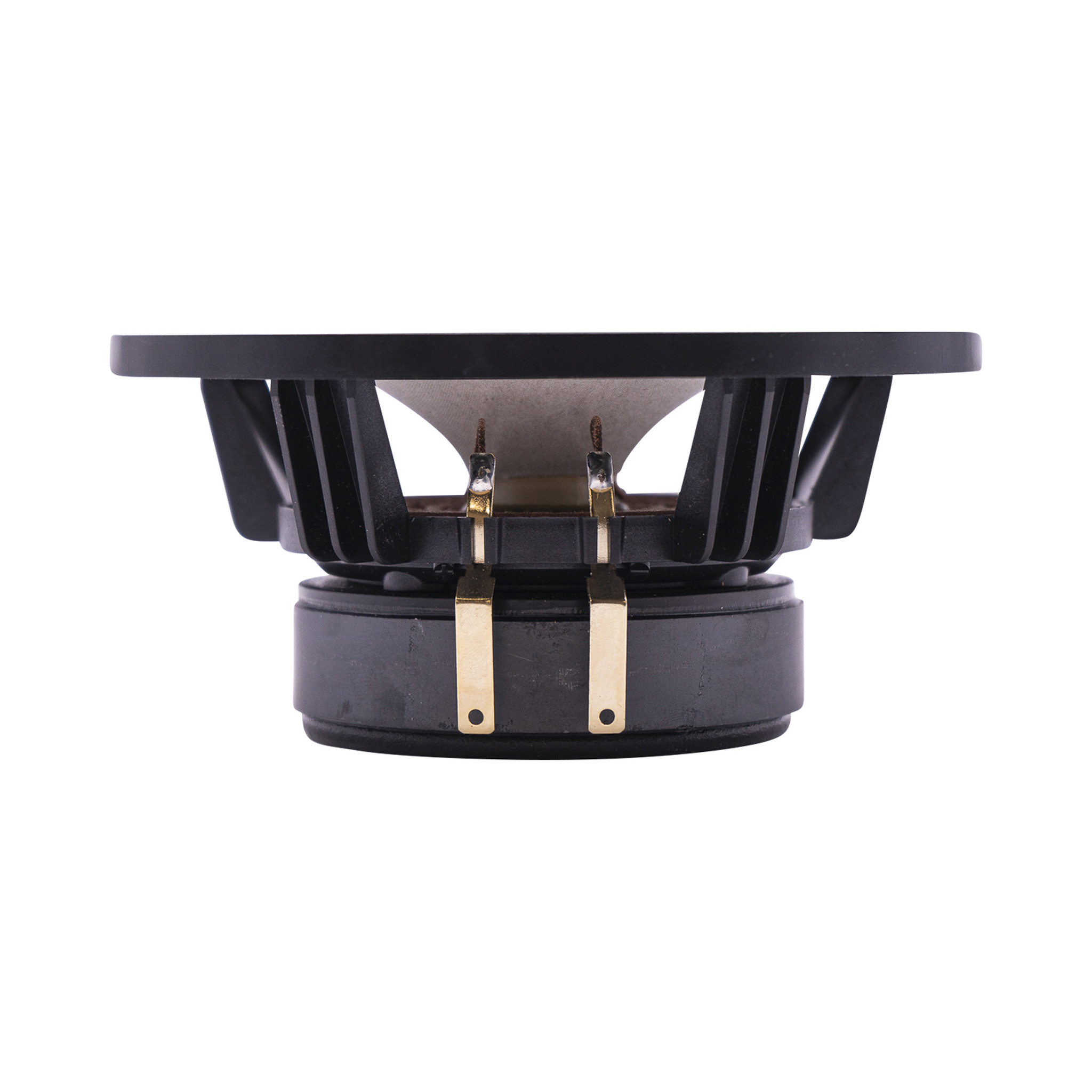

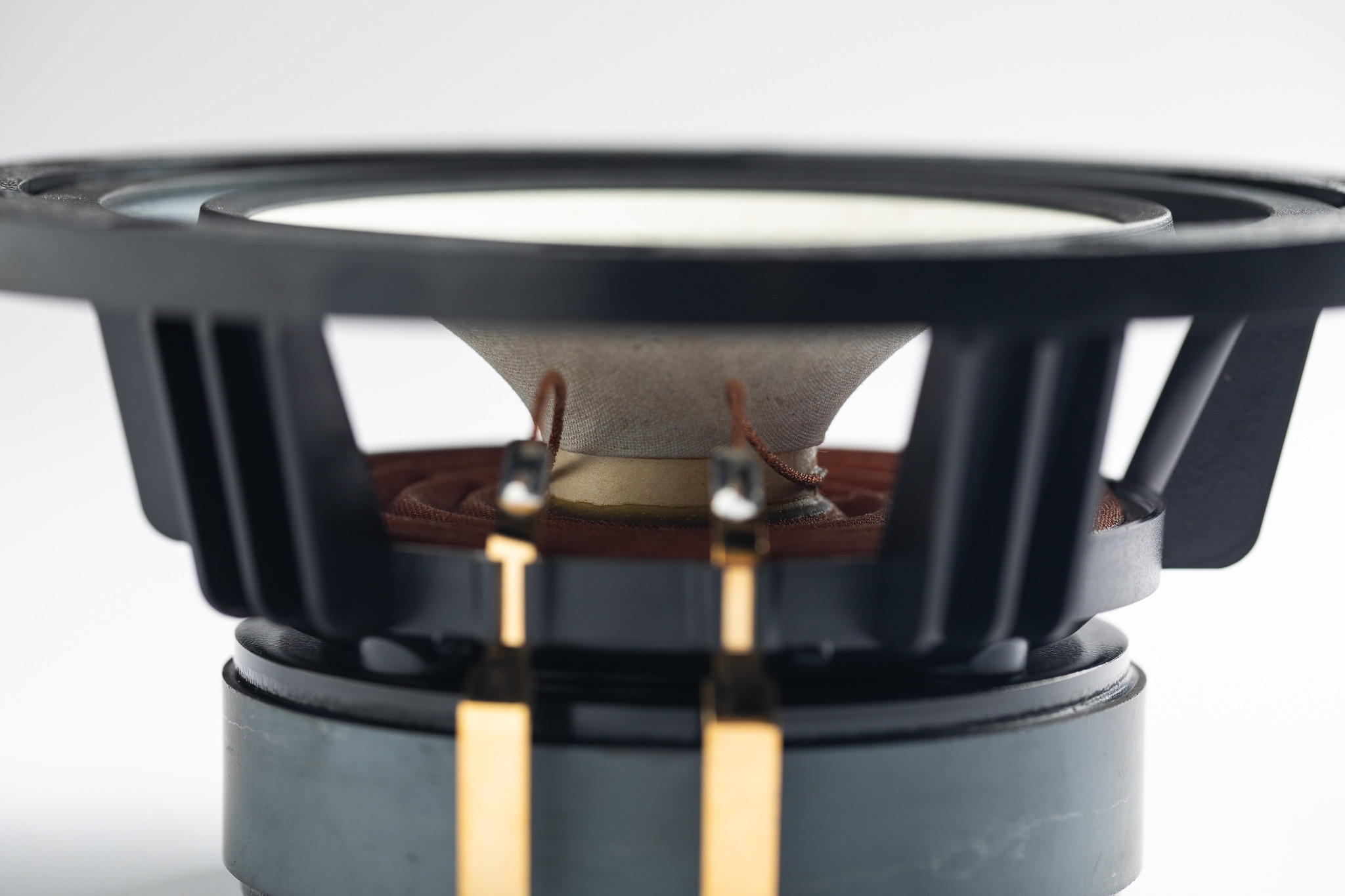

Descrizione del prodotto Markaudio CHP-90 Woofer a Gamma Completa

The CHP90 is an attractive Full-Range multipurpose drive unit suitable for use in a variety of medium size loudspeakers applications, or as part of a multiway system. For single full-range point-source purist applications, the CHN90 is highly capable. The cone is formed from paper, mica and fibreglass materials, creating high stability in the emitting surface across the usable frequency range.

Highlights

Full range drive unit
Single ferrite magnet
90mm cone with paper, mica, glass fiber materials
Operating range to 28KHz –very linear response
Long stroke suspension with progressive-rate spider

Product Details

Markaudio CHP-90 White Full-range Paper Woofer

F Zero is 48Hz, VAS is +20 Litres and SPL 89.2 dB. Usable frequency range (depending on box design) is from 37Hz to 28KHz, rated at +89dB in many applications. The frequency response curve is near flat, making the CHN90 ideal for purist applications. The central mid-range is benign, near flat response, from 1KHz to 6KHz giving end-users and custom builders the potential to use the CHP90 as a mid-field driver in larger multiway applications, useful for balancing out larger radiated surface outputs from big bass units.

The CHP90 also has potential for use in 2 way applications as a bass-mid driver. Most Markaudio drivers have a purpose designed frequency lift in the lower ranges (typically 100Hz to 500Hz) to compensate for baffle step losses. The CHP90 is useful to these applications where end-users and loudspeaker makers need a wider choice on frequency cross-over point selection. The CHP90 shares the custom, modified-ABS chassis design with the CHR90. All moving parts (powertrain) are new and custom-made for this driver.

Much work has been done to make the CHP90 a versatile driver and extend the well-known performance characteristics of Markaudio’s products.
